3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
AIM:-

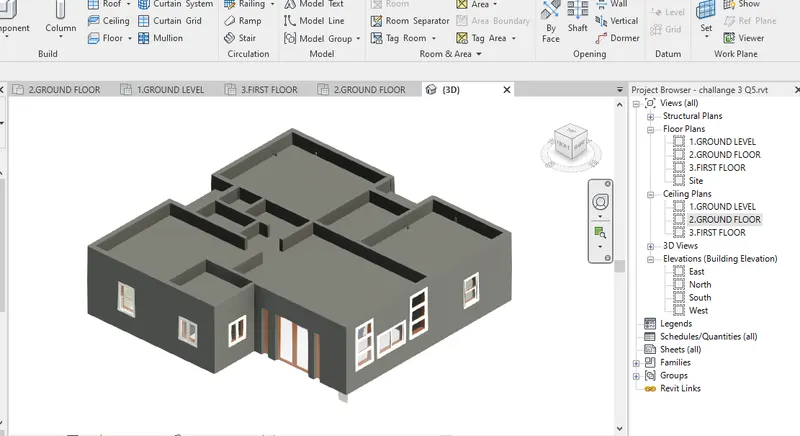

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
INTRODUCTION :-
First floor level . Modal a celling from Architecture tab above the first floor wall at the first -floor
PRODUCER:-
1.Go to the Architecture tab
2.Sellect the celling of tab
3.Then Select the sketch celling
4.Then Select the pick mark
5.After then select the tik mark
6.And go to the 3D view and Creating the celling
RESULT:-
AIM:-

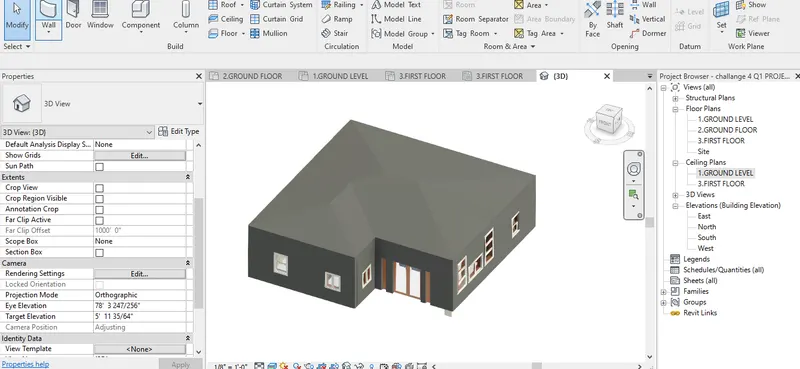

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
INTRODUCTION :- Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing
PROCEDURE:-

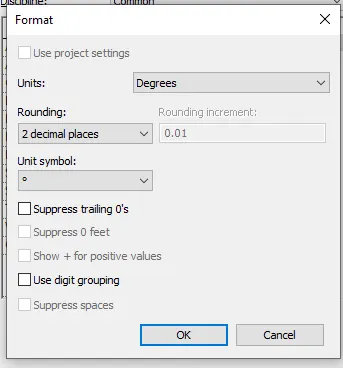

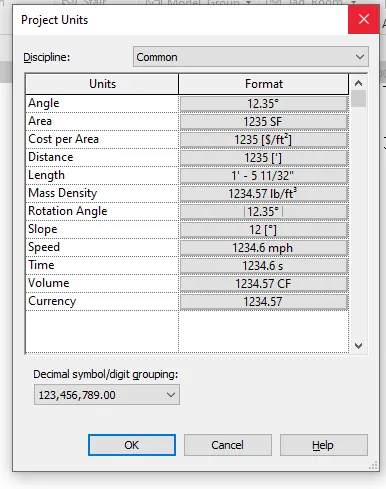

1.First of all take the unit command and change the Architecture to decimal places
2.Go to the Architecture tab Select the Roof and then take the line
3.Select the all outer boundry
4.After than Select the tik mark
5.And select the Roof and chand the Roof slop 10 Degree
RESULT:-
AIM:-

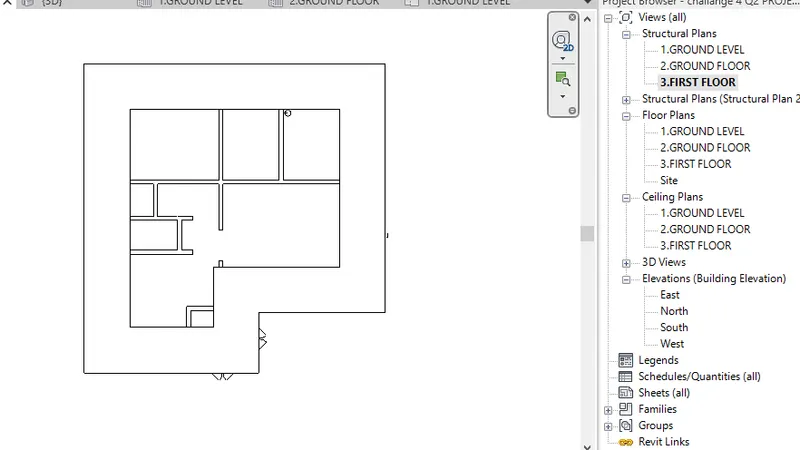

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
INTRODUCTION :- Architecture plan must have walls, floors, and all the components placed within the building for example table, chair , dining table , washing machin , Structure plan must have details of only walls, floors, and columns
PROCEDURE:-

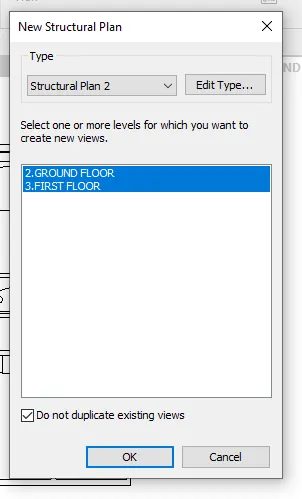

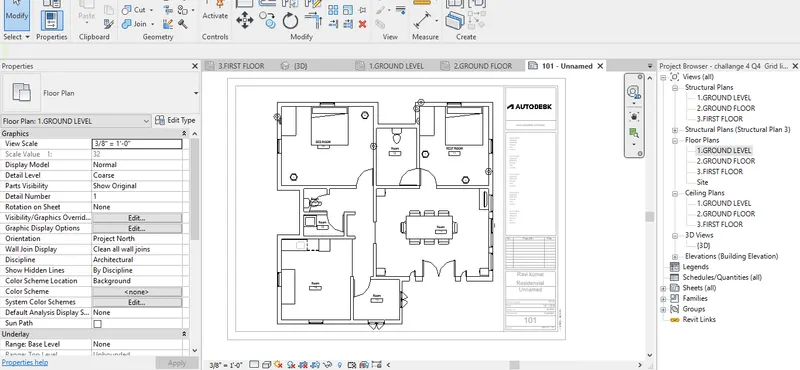

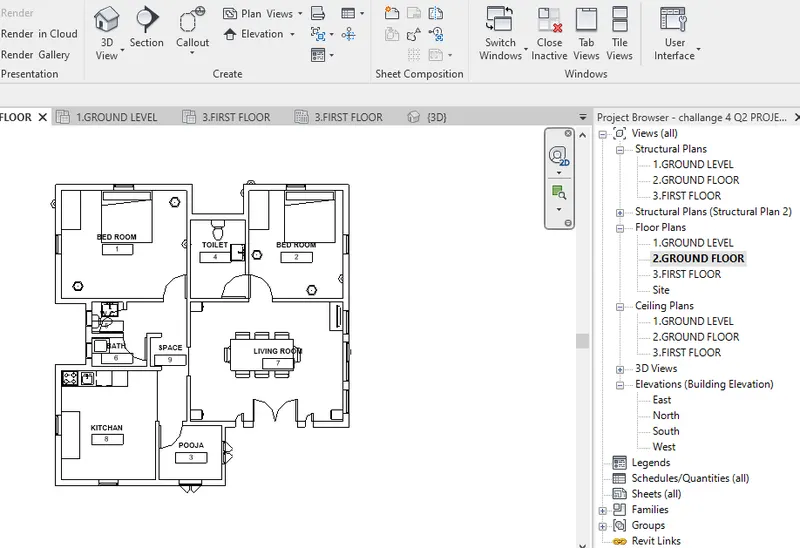

1. Go to the view tab and select the plan view After then select the floor plan
2.Than chack The structueral plan
3.And see the wall and column only
4.Select the floor plan and ground floor plan
b. Structure plan must have details of only walls, floors, and columns
Result:-
a. Architecture plan must have walls, floors, and all the components placed within the building
1.Go to the veiw plan
2.Select the plan view
3.Select the Floor plan
Result:-
AIM:-

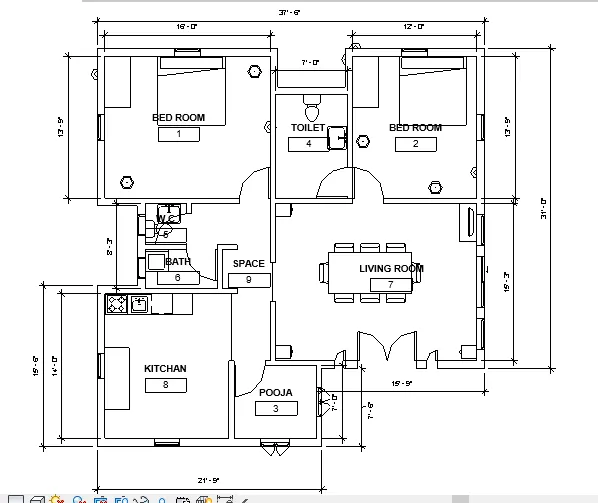

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
INTRODUCTION :-
Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal And put the all demenssion Bed room bath and kitchan and toilet All the dimenssion are put
Prosuder:-
1.Go to the Annotate tab and then Select athe liner
2.And put the all dimenssion
3. All the wall , bed room kitchan , the bith All dimenssion
Result:-

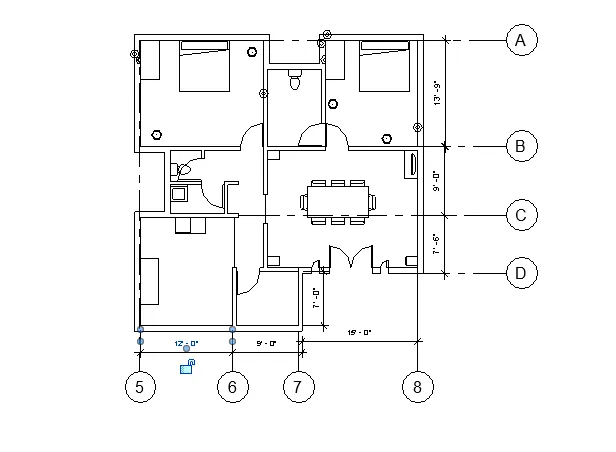

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
1. Go to the Architecture Tab
2.Take the gride line
3. Select the line tab
4.Go to the Annotate tab and then Select athe liner
5.And put the all dimenssion
6. All the wall , bed room kitchan , the bith All dimenssion
Result :-
AIM:-
5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
INTRODUCTION :-
Create a sheet template from the view tab and adjust the parameters on the sheet
Prosuder:-

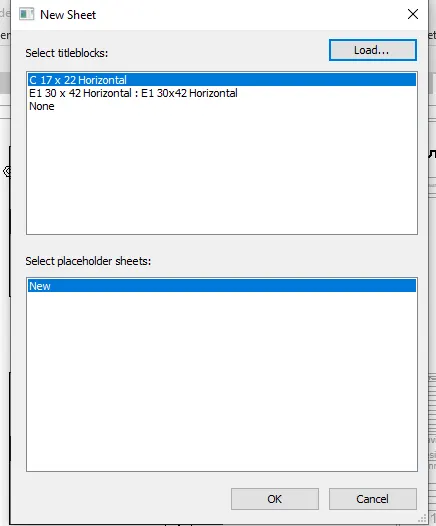

1.Go to the view tab
2.Create the document set
3.Select the titel block lod

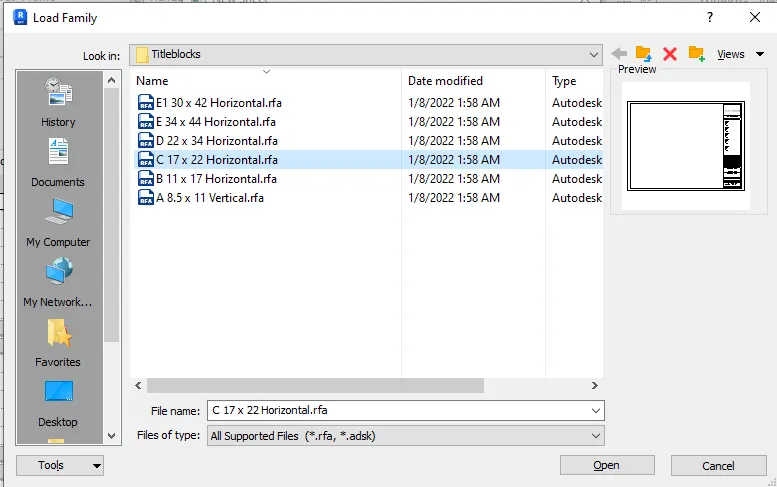

4. Go to the lod family
5.Then select the Templet set
Result:-
AIM:-

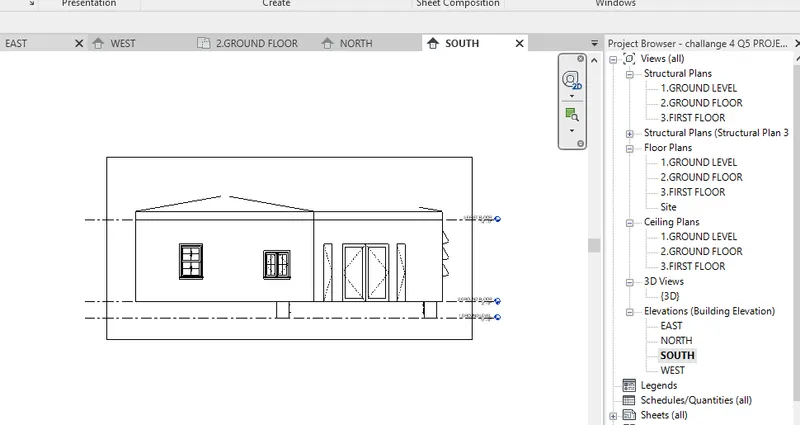

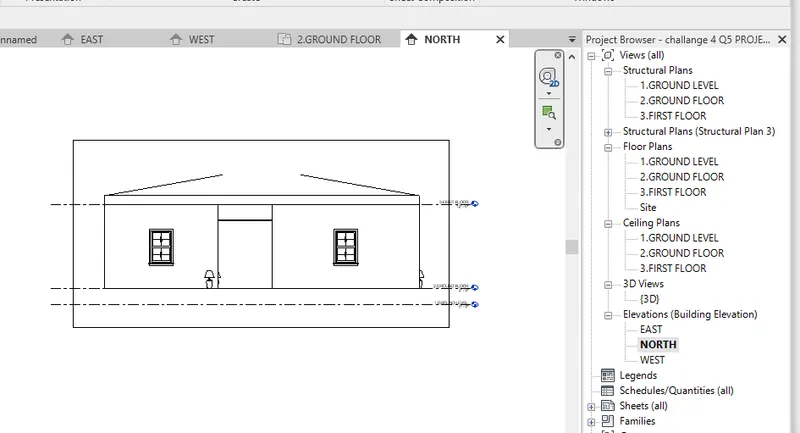

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
INTRODUCTION :- Using the elevation tab create the elevation views, looking at your building from East, North, South, and West At the diffrent view of the drawing
Prosuder:-

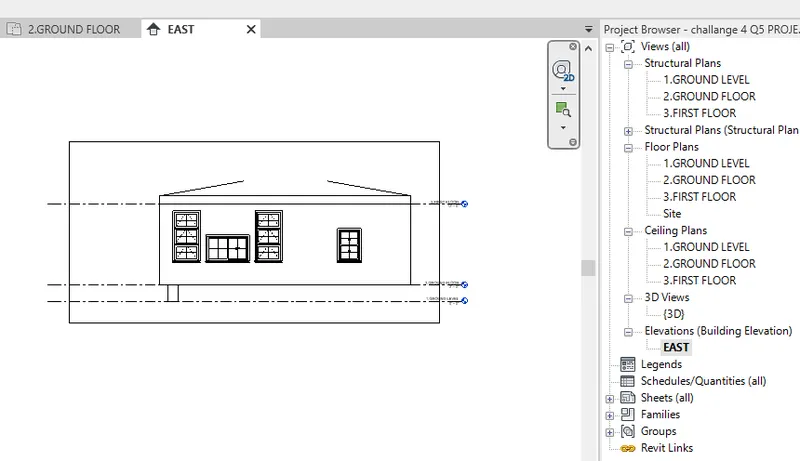

1. Using the elevation tab create the elevation views, EAST

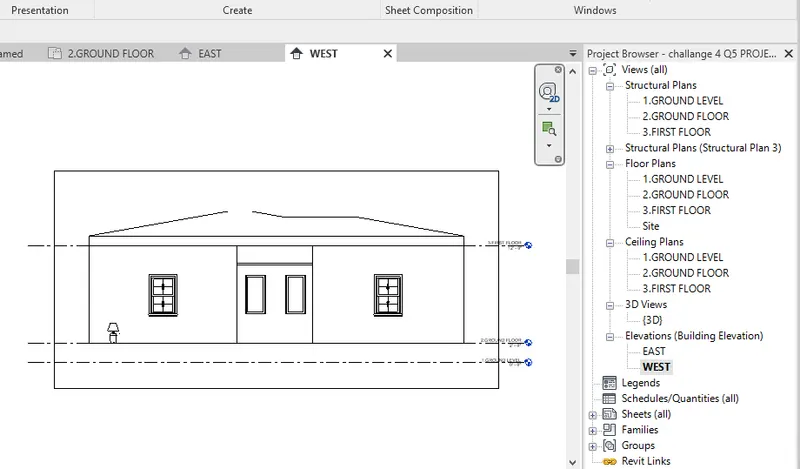

2. Using the elevation tab create the elevation views, WEST
3. Using the elevation tab create the elevation views, NORTH
4. Using the elevation tab create the elevation views, SOUTH
RESULT:-
AIM:-

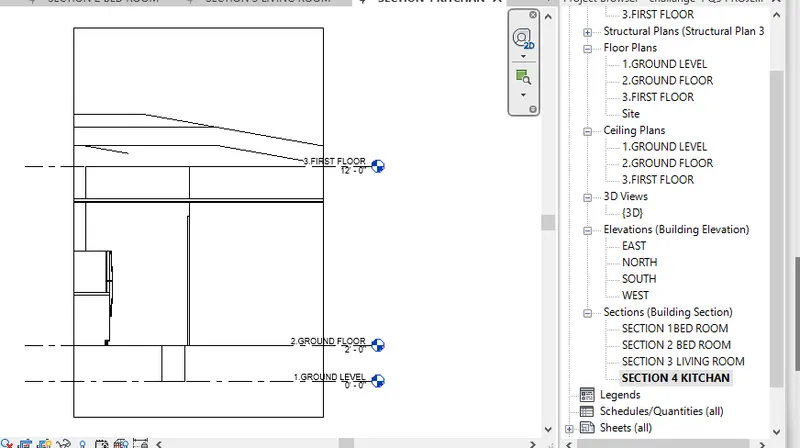

7) Produce section cut through each room either cutting across longitudinally or in a transverse direction
INTRODUCTION :- Produce section cut through each room either cutting across longitudinally or in a transverse direction
Prosuder:-
1.Go top the view tab
2.select the view tab

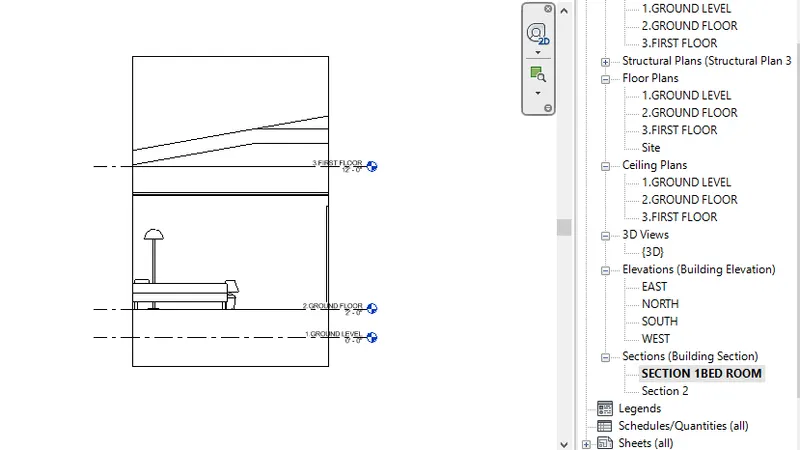

3.Cut the Bed rom longitudinally

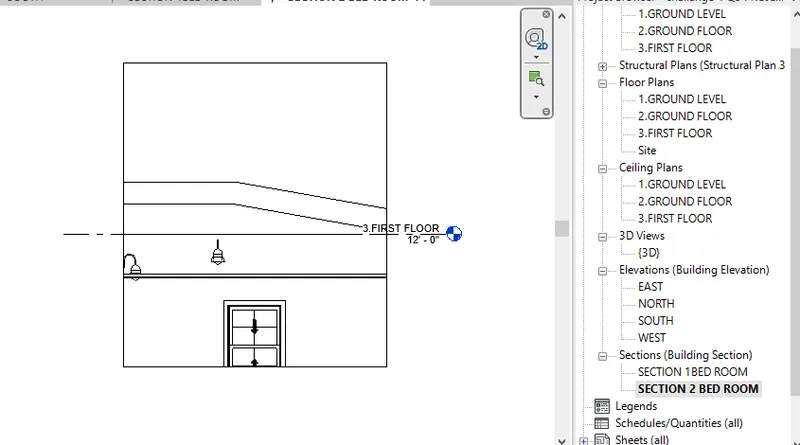

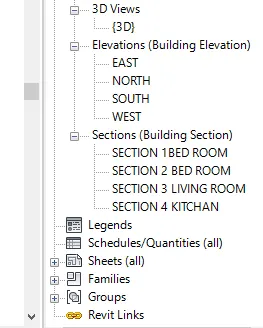

4.Change the section name section 1 Bed room
1.Change the section name section2 Bed room

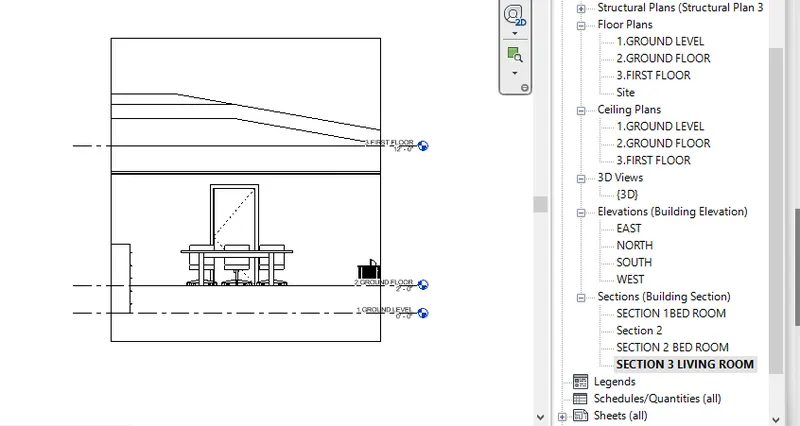

1.Change the section name section3 Living room
RESULT:-
AIM:-

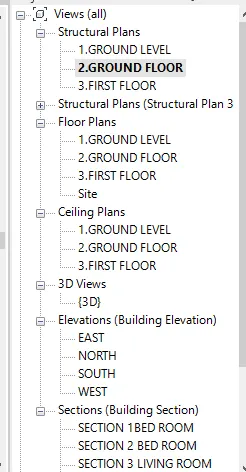

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
INTRODUCTION :-
Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Prosuder:-
1.All create propartise like
2. Stuctural plans
3.Floor plans
4.ceilling plans
5.Elevation plans
6.Sections view
RESULT :-
AIM:-
9) Using the sheet template produced create multiple sheets as follows

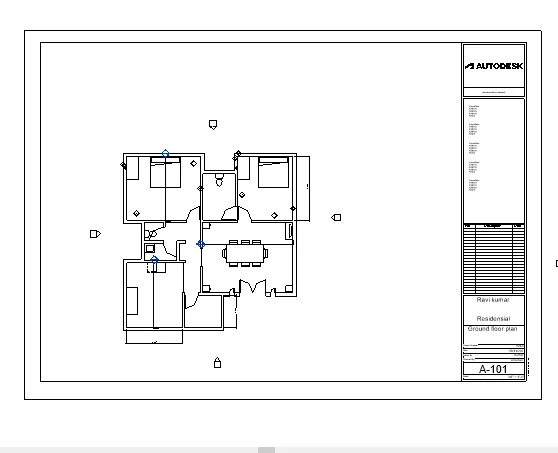

a. A 101- Ground Floor Architecture Plan

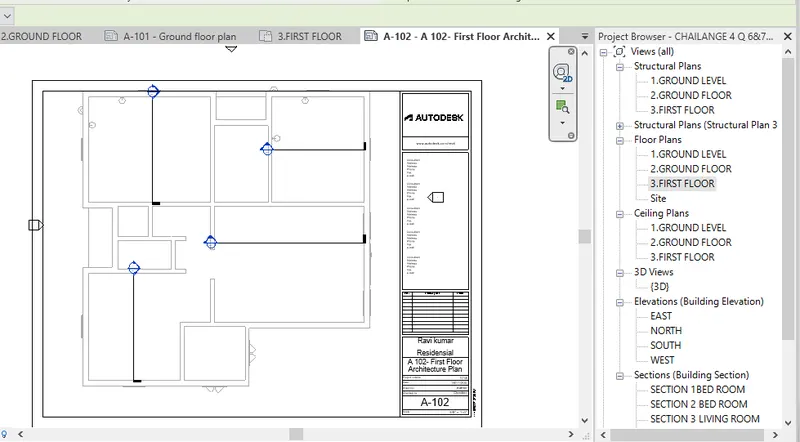

b. A 102- First Floor Architecture Plan

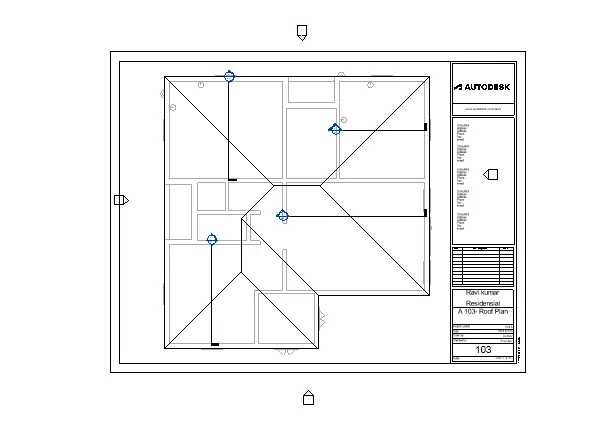

c. A 103- Roof Plan

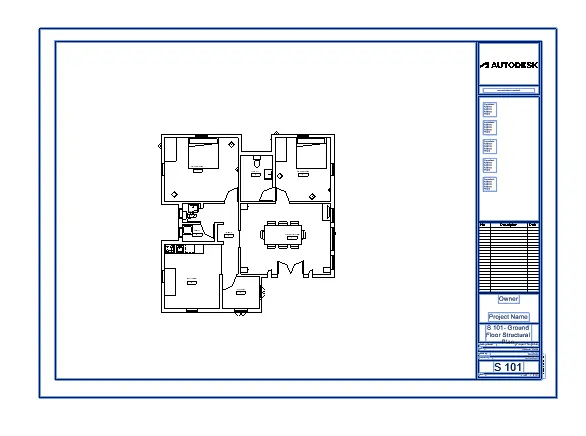

d. S 101- Ground Floor Structural Plan

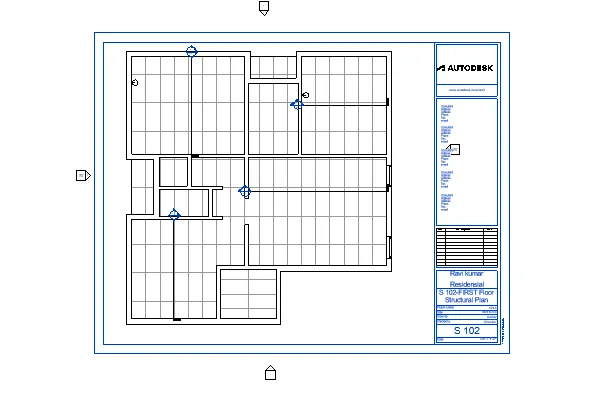

e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
INTRODUCTION :- Using the sheet template produced create multiple sheets as follows,Ground Floor Architecture Plan,First Floor Architecture Plan, Roof Plan,Ground Floor Structural Plan, First Floor Structural Plan is creating
Prosuder:-
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan

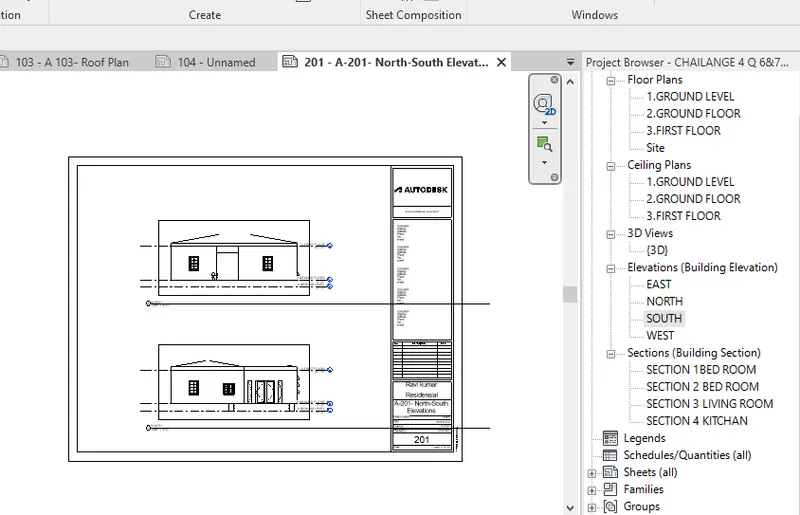

g. A-201- North-South Elevations

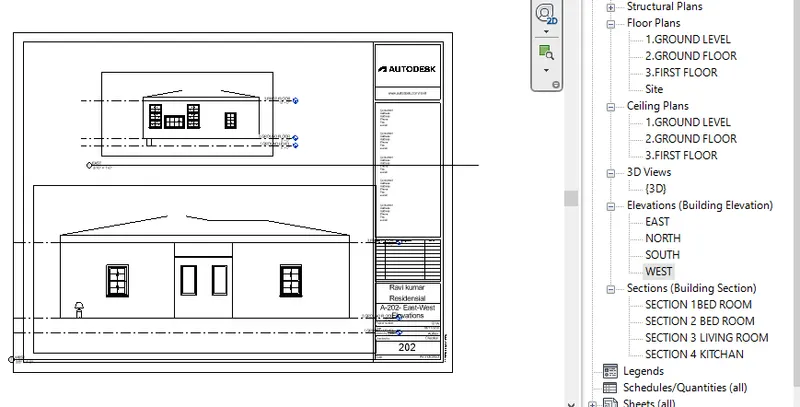

h. A-202- East-West Elevationsr
RESULT:-
AIM:-
10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
INTRODUCTION :- Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting set the caimara
1.Go to the view tab First of all
2.The select the 3D view and cleck
3.then go to the caimara
4.Set the bed rom watch the proper view

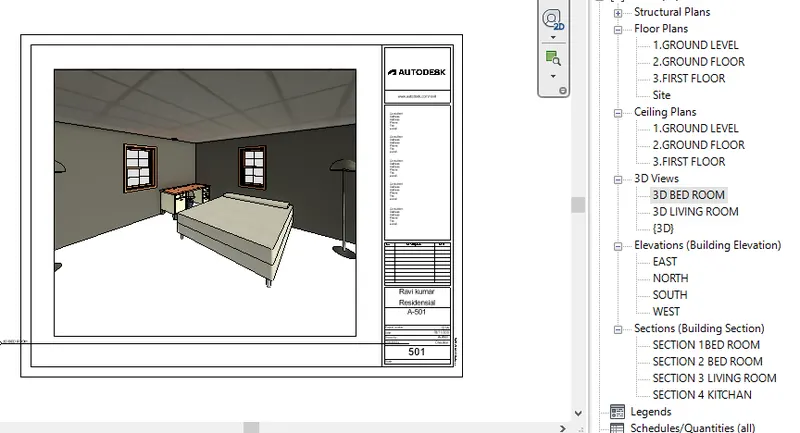

1.create a new set of sheets starting A-501

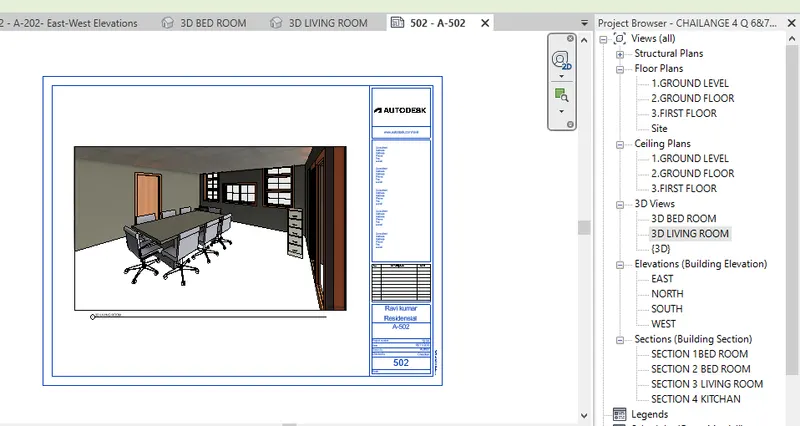

2.create a new set of sheets starting A-502

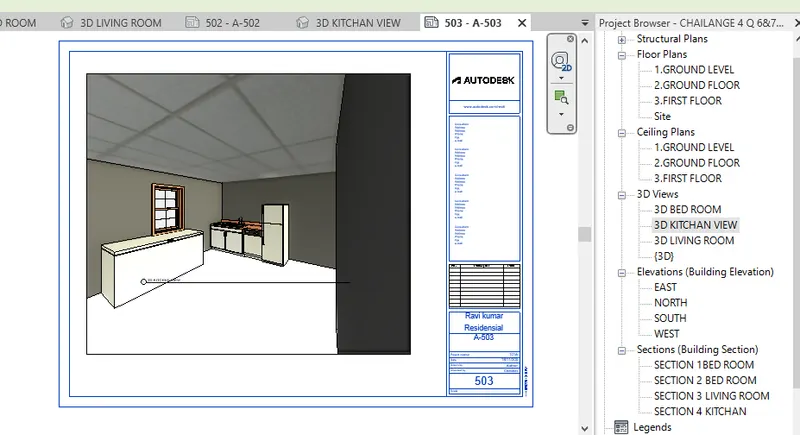

3.create a new set of sheets starting A-503
RESULT :-
