3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Q.1

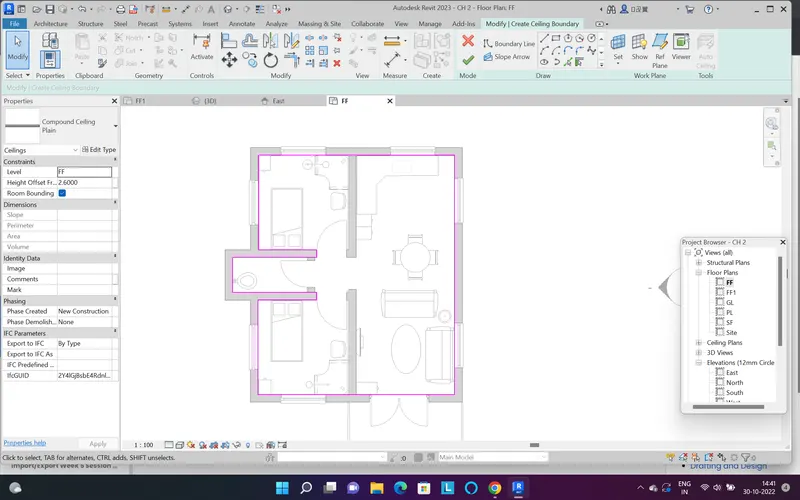

Aim - 3D Creation of Celing for a house plan using REVIT
Introduction - Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
Procedure -
1.open the model created in the week 3 challenge
2.then go to the celing option
3.create the celing using pick line option
4. check the level of the celing in the properties option
5. chlick the check option and complete the celing
Result -
Q.2

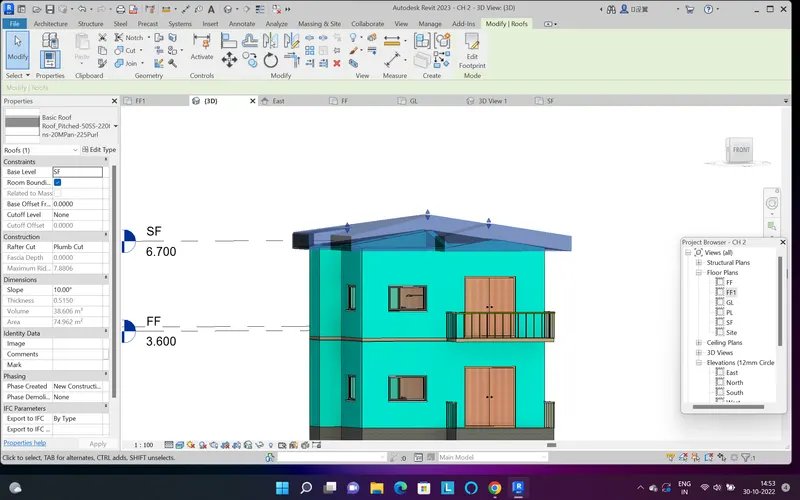

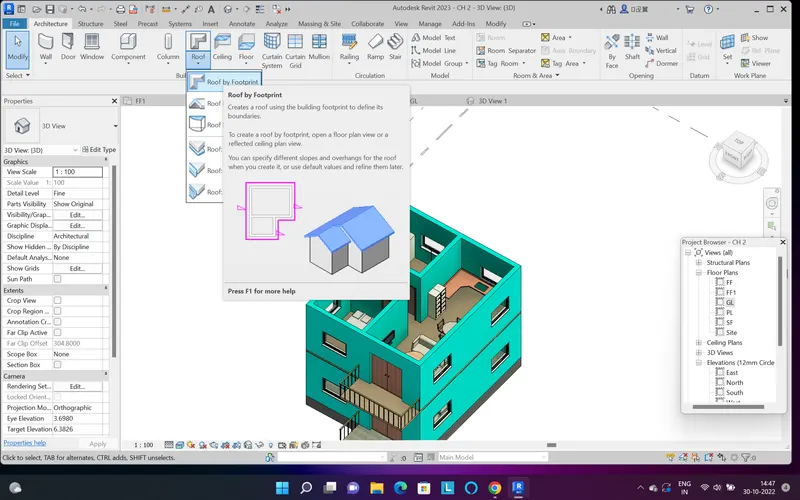

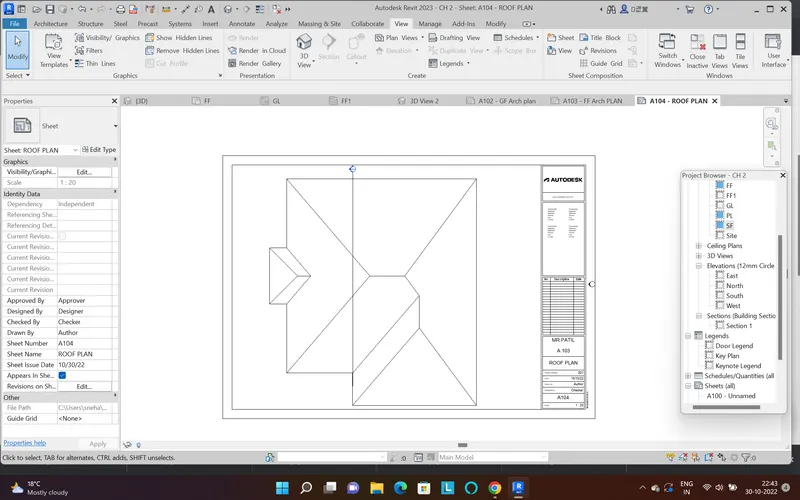

Aim - 3D Creation of Roof for a house plan using REVIT

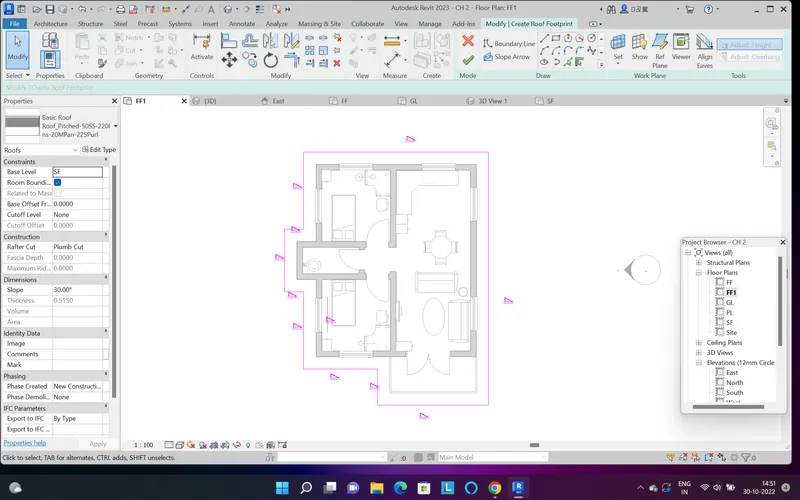

Introduction - Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
Procedure -
1. go to the option roof from architecture tab
2. then select the footprint option
3. then by pickline option pick all the outer wall lines
4. i kelp the offset of 0.5m
5. then check the level in the properties table
6. and click ok
Result -
Q.3

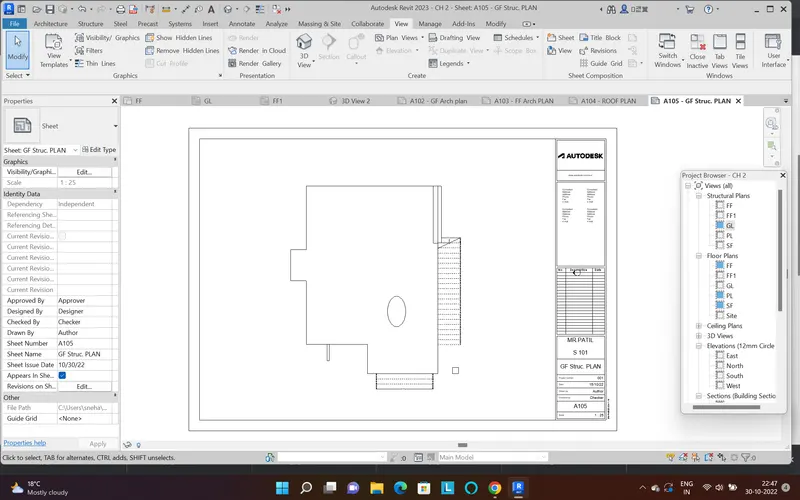

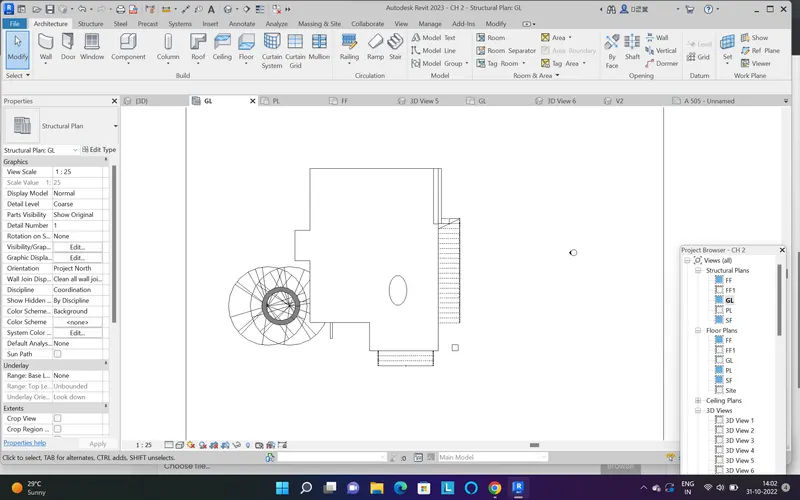

Aim - 3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

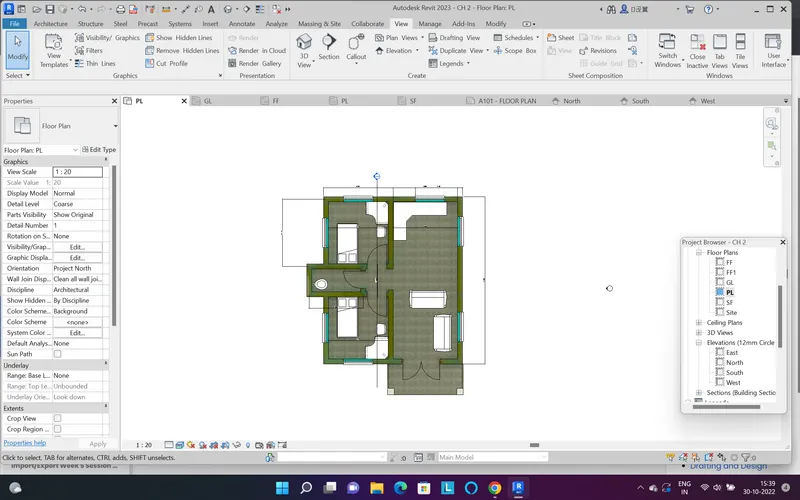

Introduction - Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans
Procedure -

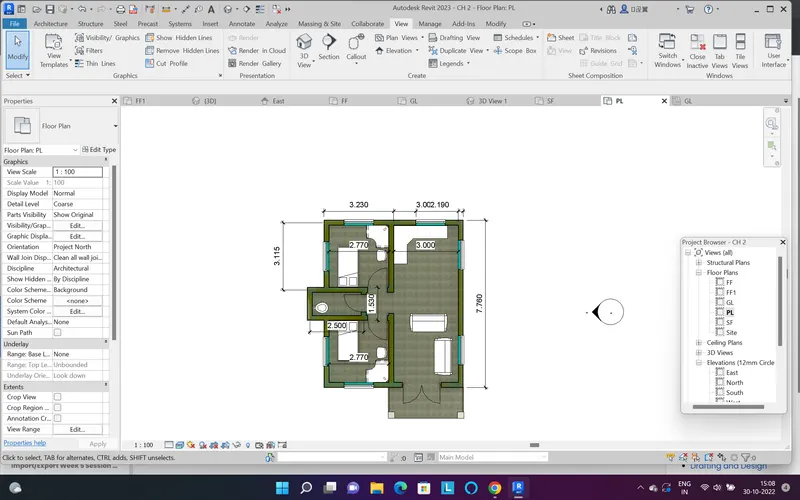

1. open the model created

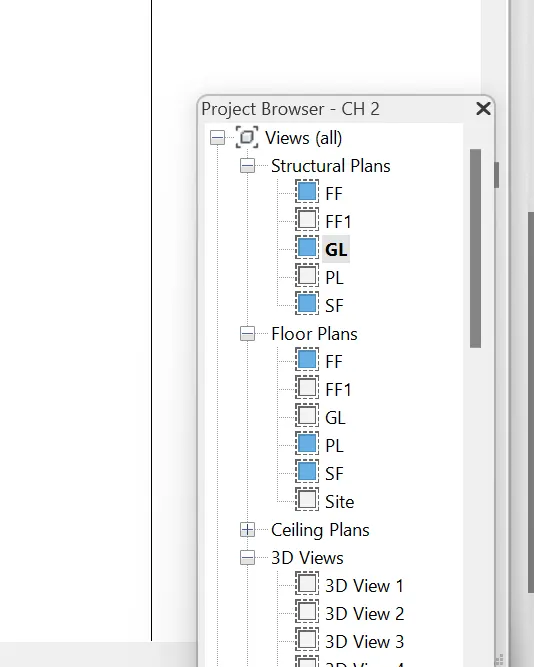

2. then go to properties browser and you will see the structural plan and floor plan
3. selct the plan you want to see
Result -
Q.4
Aim - 3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Introduction - Using annotate toolbar add dimensions to all the walls and floors
Procedure -

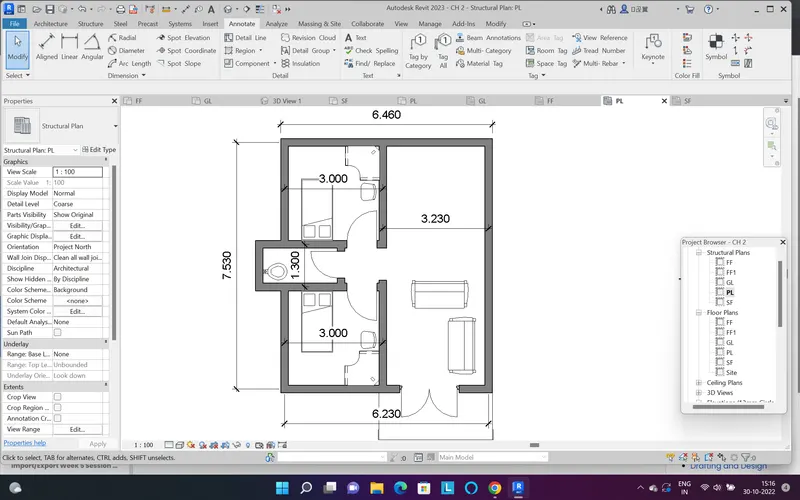

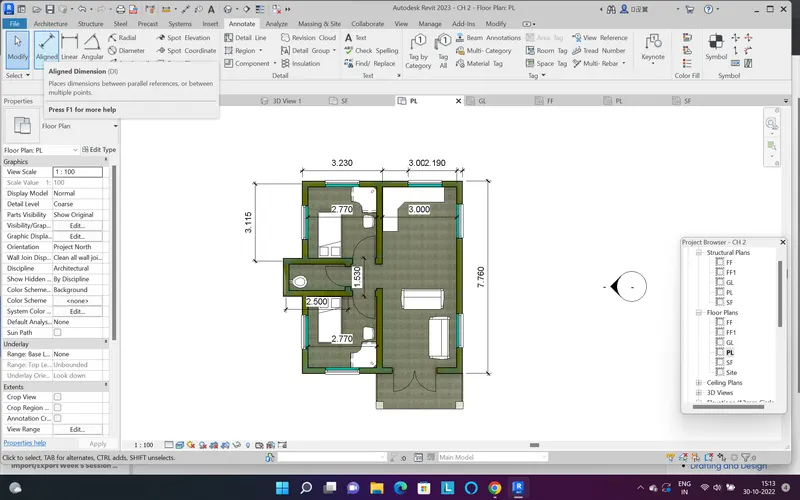

1. go to the annotate tab
2. select the linear or aligned option to mark the diemension into the plan
3. give the diemsions to the structural and architectural plan
Result -
Q.5
Aim - 3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

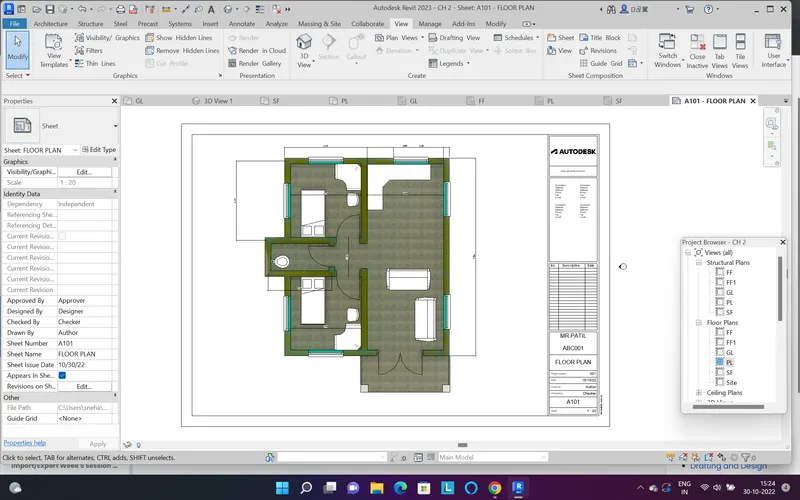

Introduction - Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
Procedure -

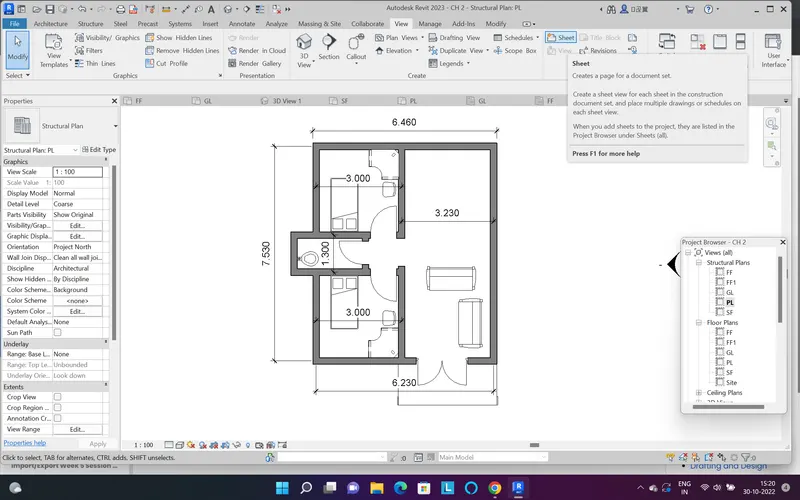

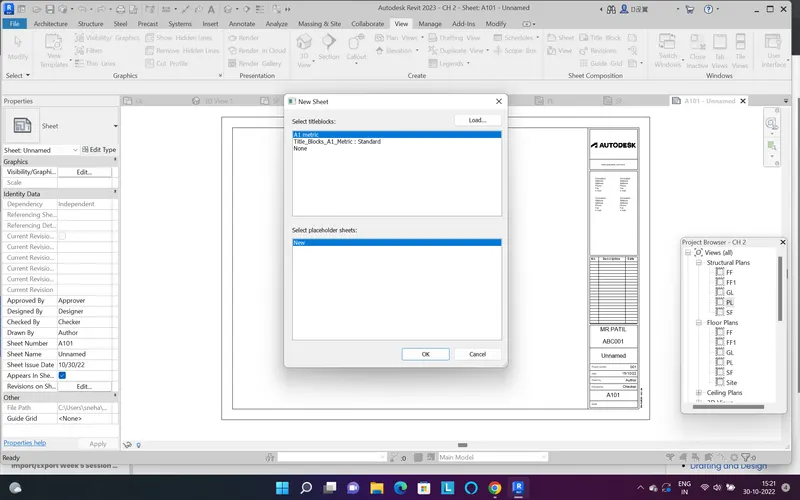

1. go to the view tab
2.add sheet
3. select the paper size you want
4. then add the plan to sheet

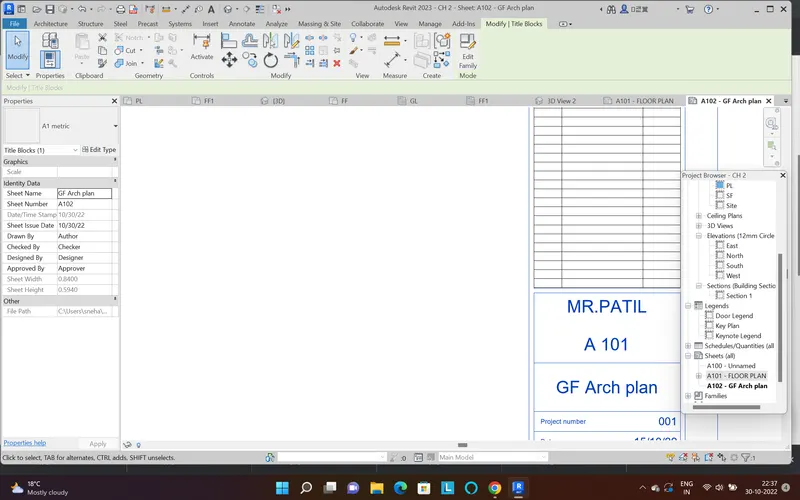

5. you can name the sheet, give the sheet no
Result -
Q.6

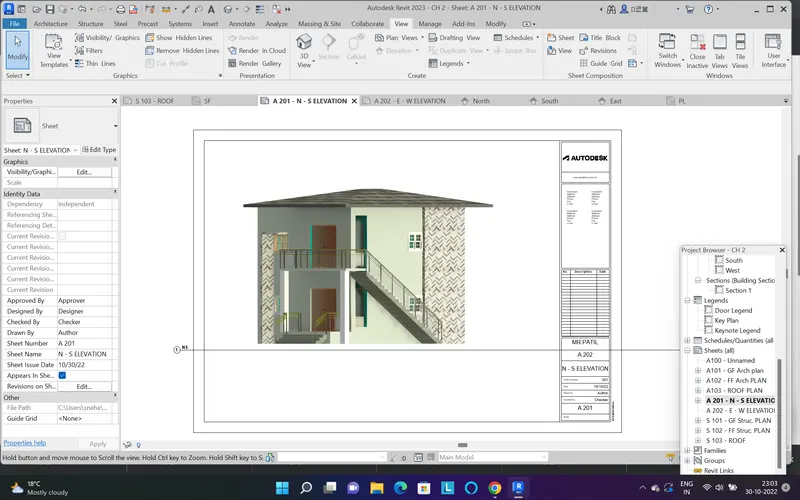

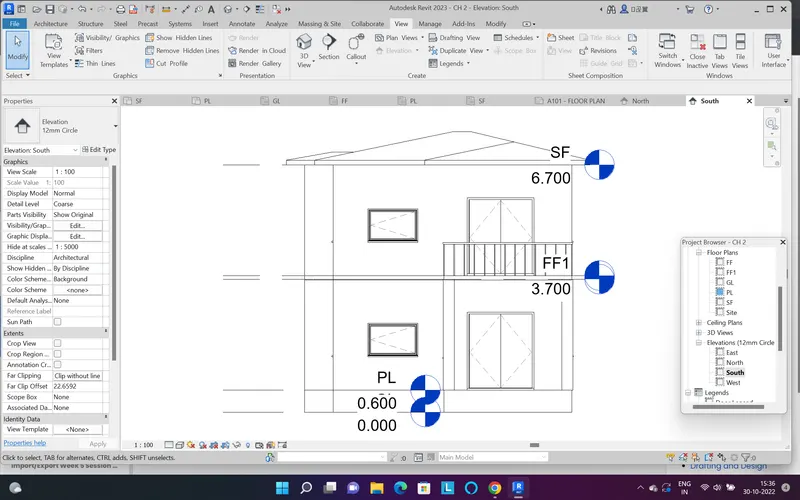

Aim -3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

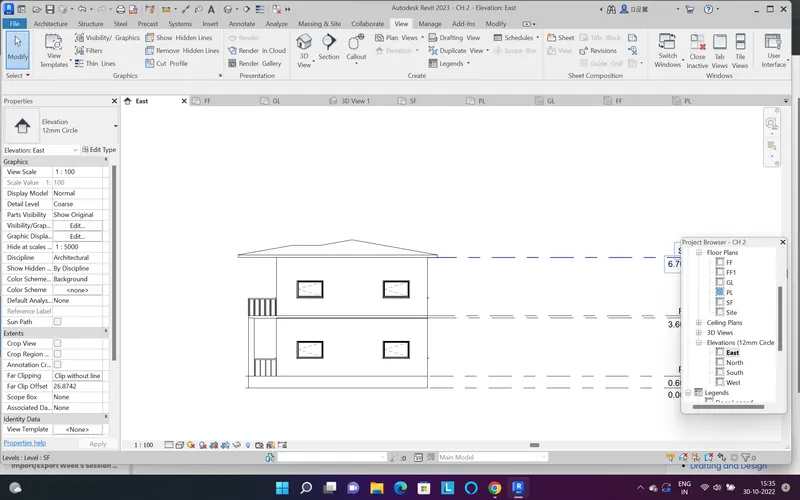

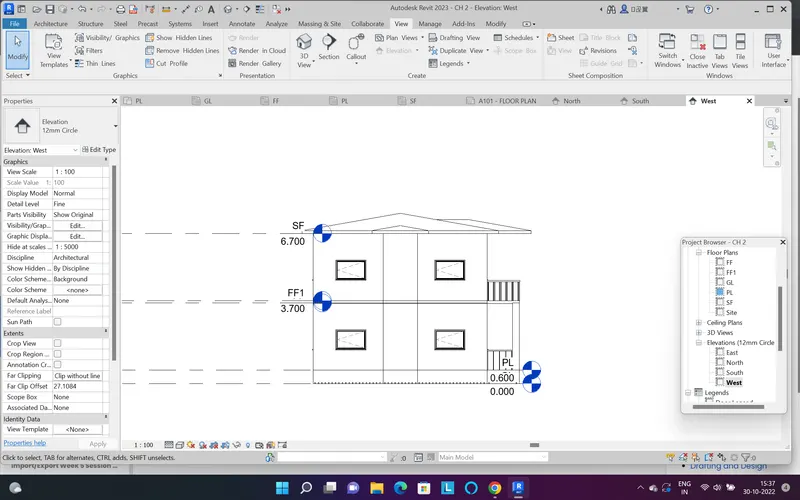

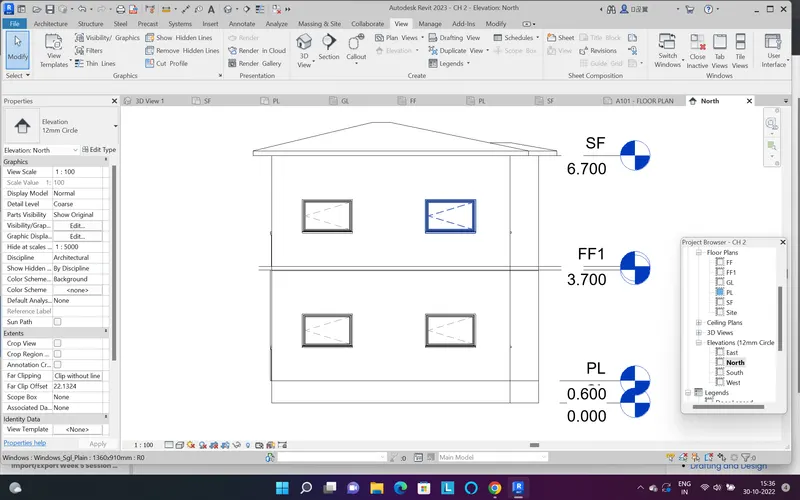

Introduction - Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
Procedure -
1. go to property browser
2. you will see the option elevation
3. you can see the east west north south elevations of the model there
4.just selct the direction from which you want to see your model
Result -
Q.7

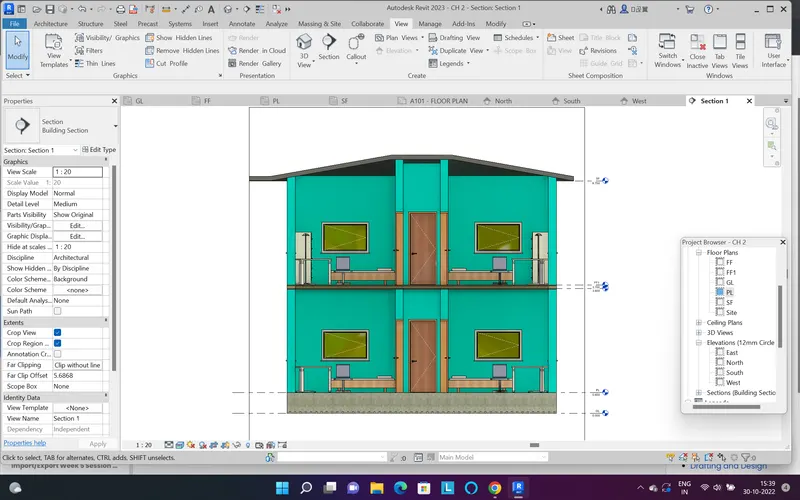

Aim - 3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

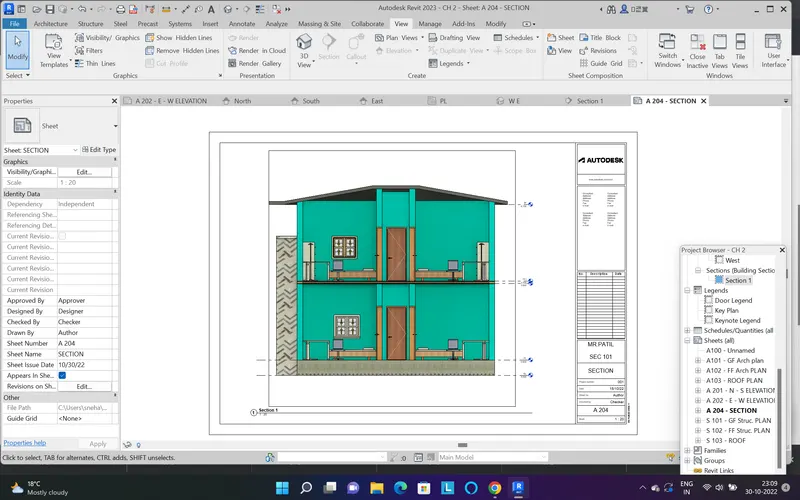

Introduction - Produce section cut through each room either cutting across longitudinally or in a transverse direction
Procedure -

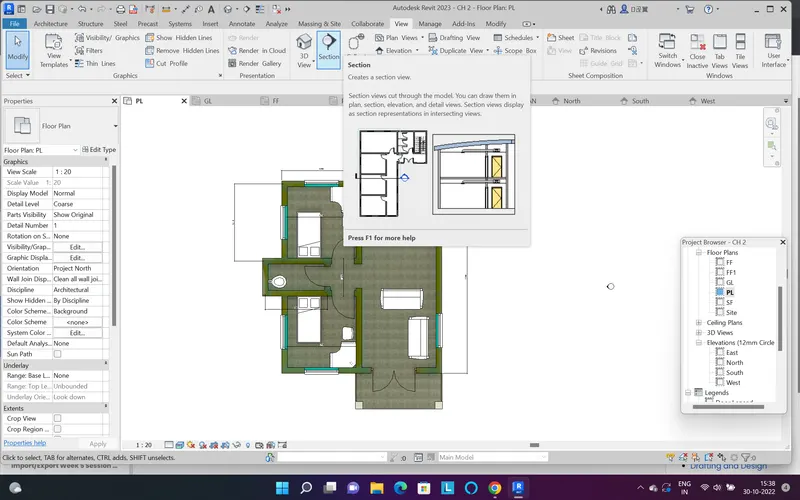

1. go to the view tab
2. select the section command
3. add the section line where you want section
4. then go the view
5. you can see the section of the model
Result -
Q.8
Aim - 3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Introduction - Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Procedure -
1.to see the plan, section , elevation you can simply go the property browser and see all the views
Result -
Q.9
Aim -3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

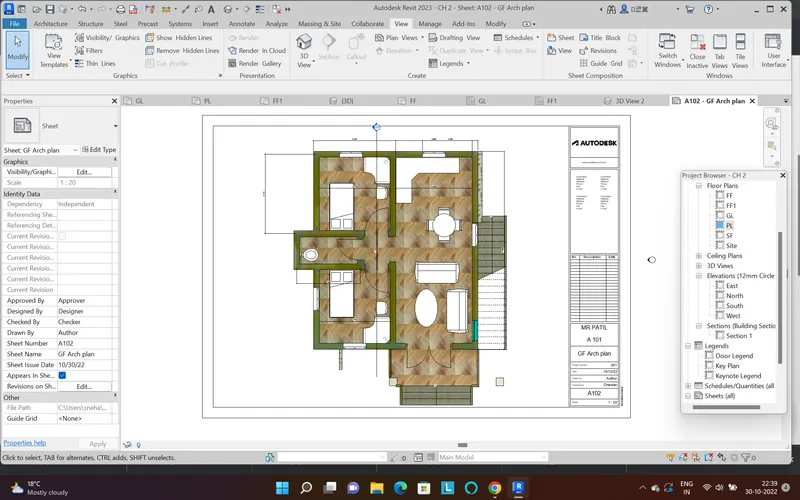

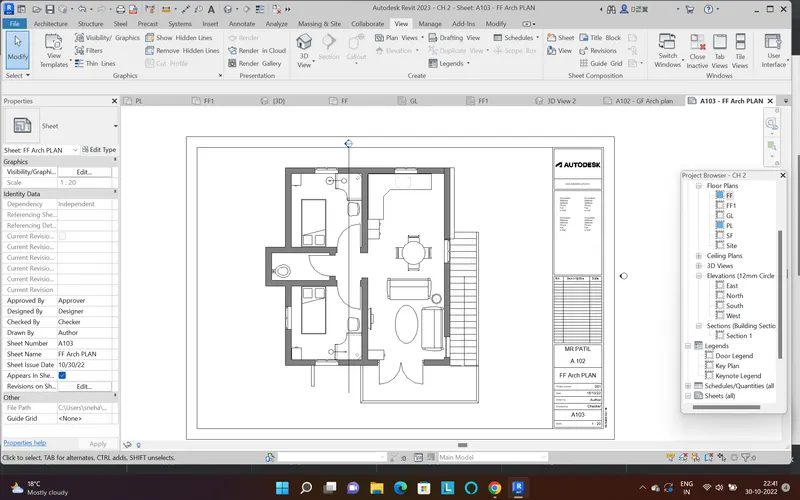

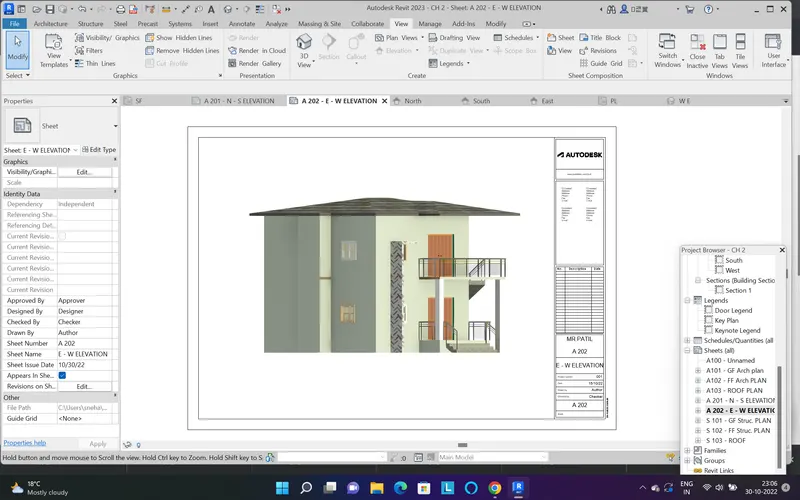

INtroduction -Using the sheet template produced create multiple sheets
Procedure -
note- before creating sheets did some changes in the model like, added stairs, changes the material of the wall, added some architectural elements, changed the windows

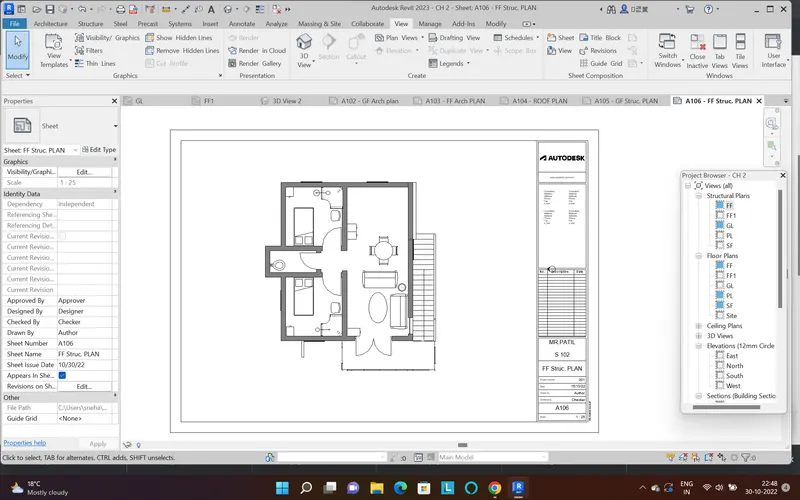

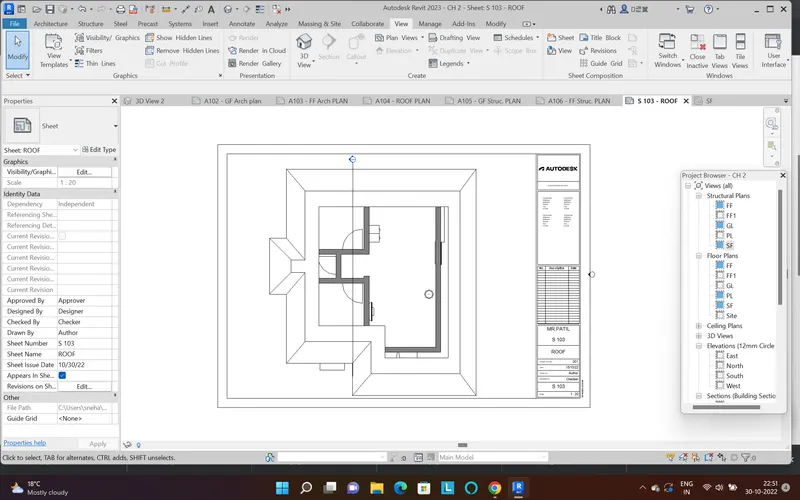

1.go to view tab
2. crated the sheets as mentioned in the que for every plan chnage the sheet no and name
3. then add the views to the sheet
Result -
Q. 10

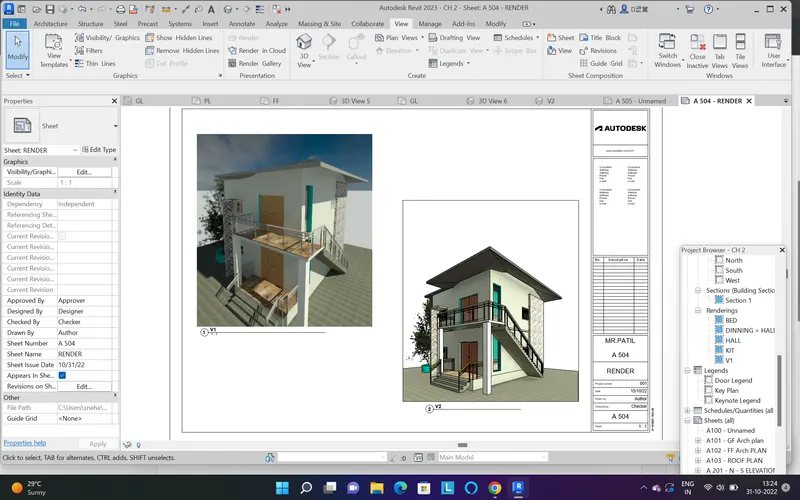

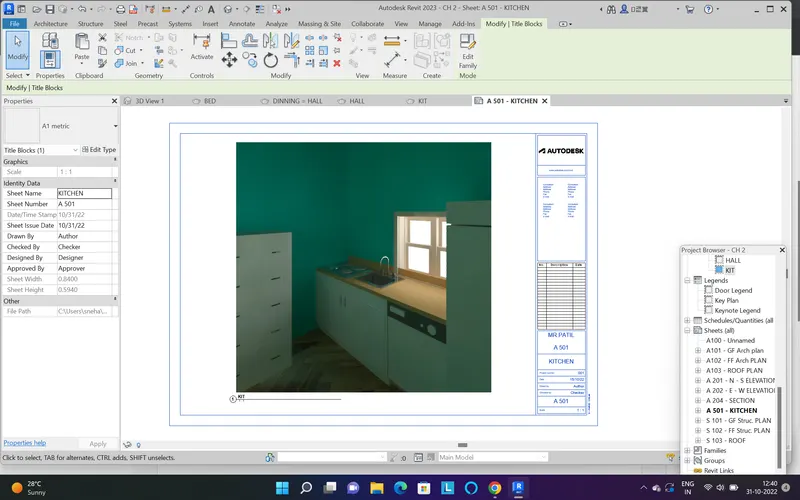

Aim - 3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

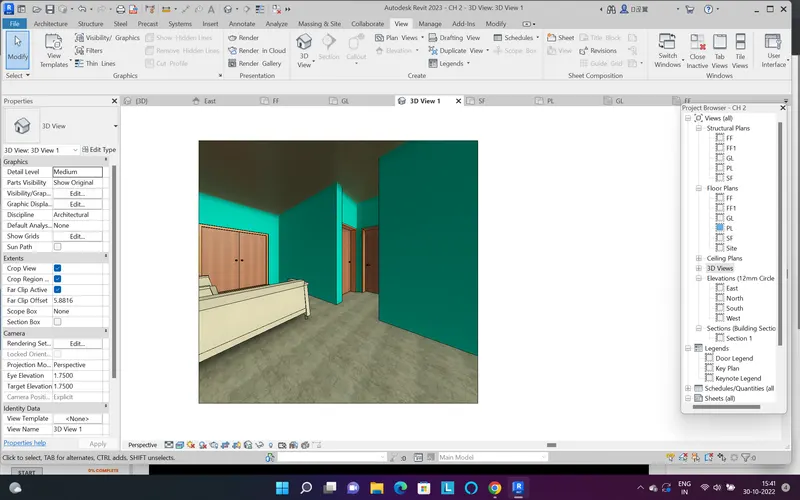

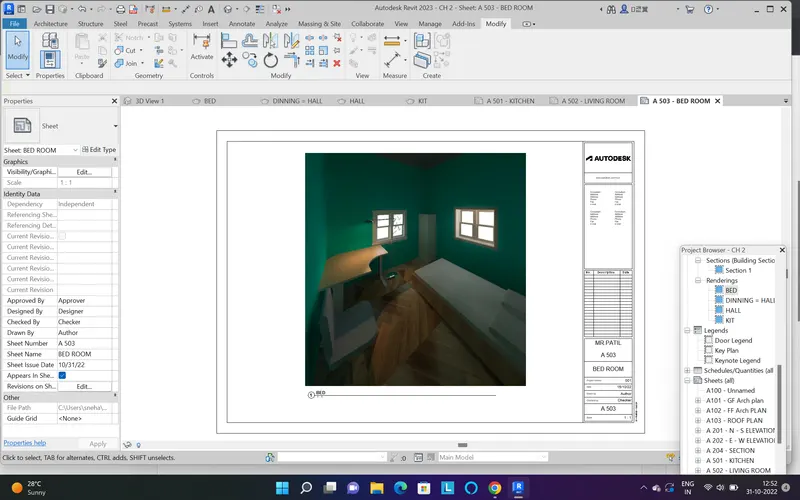

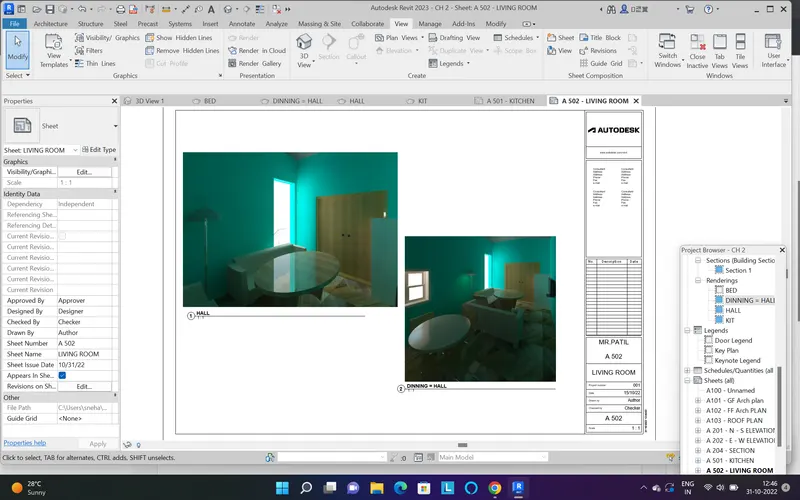

Introduction - Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images.
Procedure -
1. go to the view tab
2.then go to 3d view then select the camera
3. then place the camera in every room and save the view
4. then render the view
5. then prepare the sheet for different views
result -
