3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Answer 1-

Aim- Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

Step 1- Openeing the week 3 plan layout

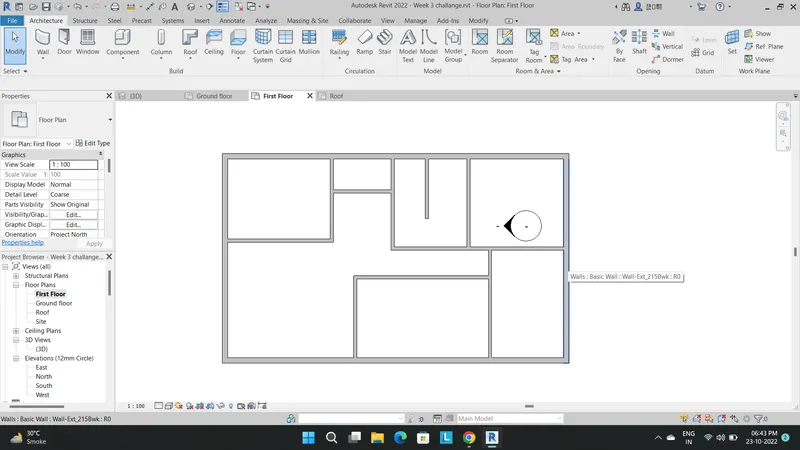

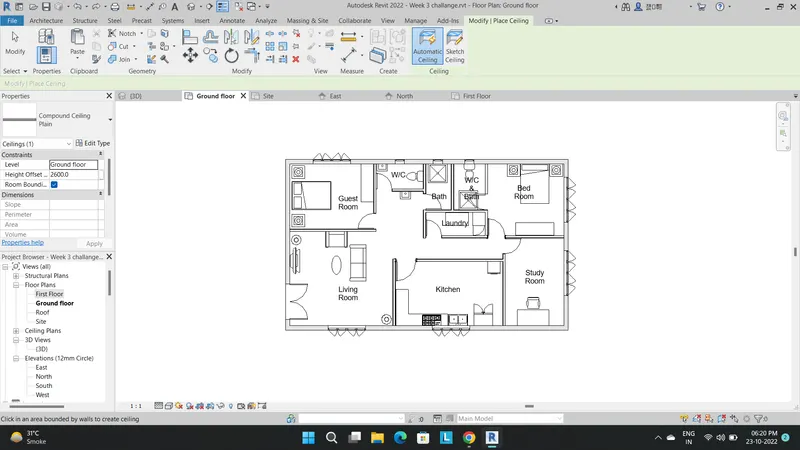

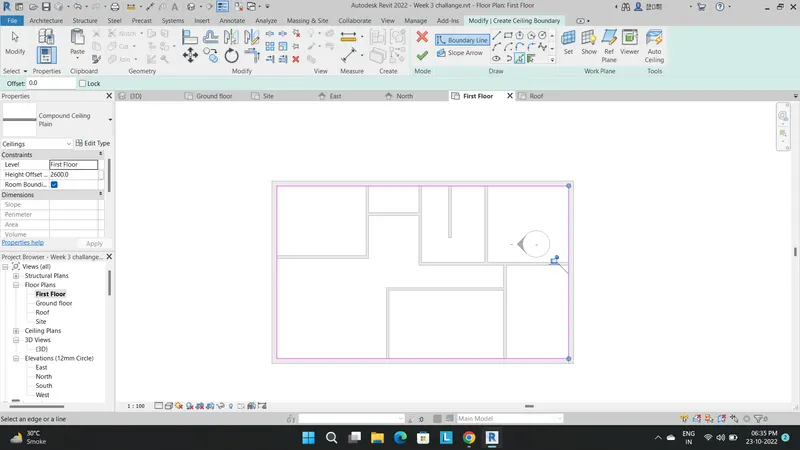

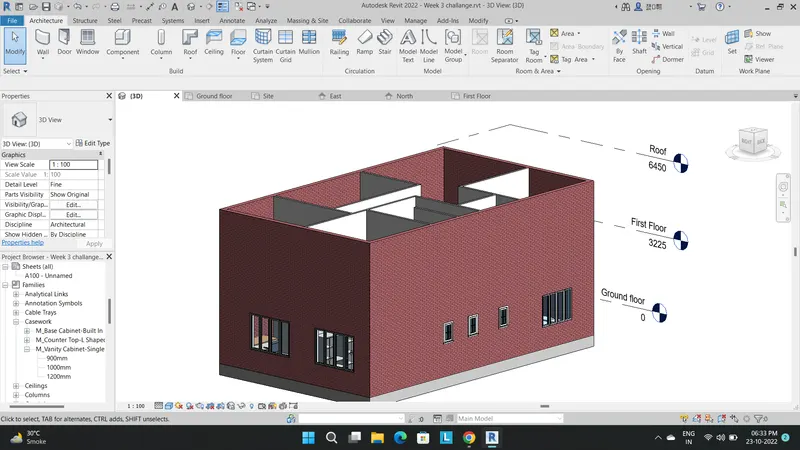

Step 2- Select the view for which ceiling has to be created. In this case we will be creating the ceilling on the first floor. go to the first floor level and select the ceiling option and then use sketch ceiling pick a line tool and pick all the outer lines and once done select ok and check it in the 3D view if the ceiling is created.

Answer 2-

Aim- Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

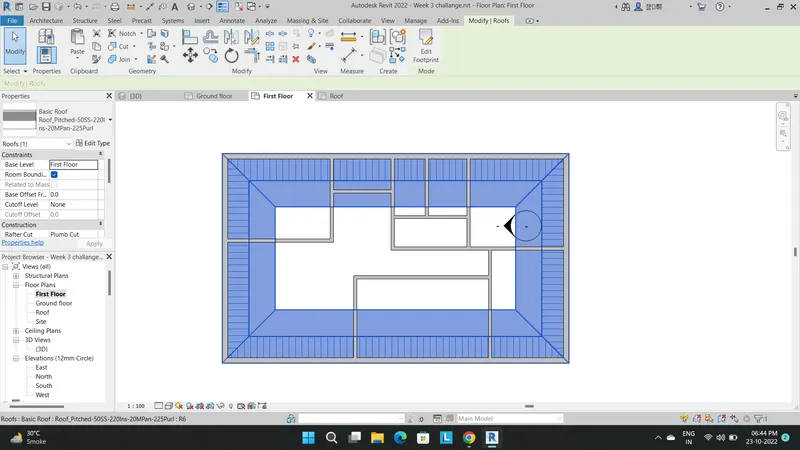

Step 1- Going to the first floor view and selecting the roof tool bar option.

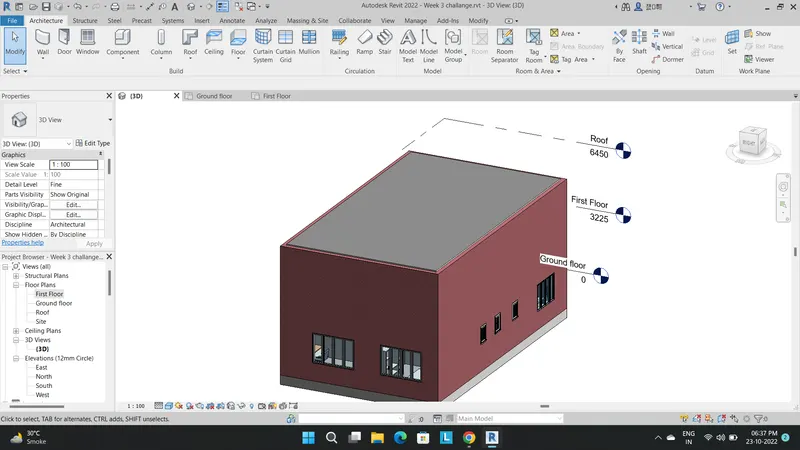

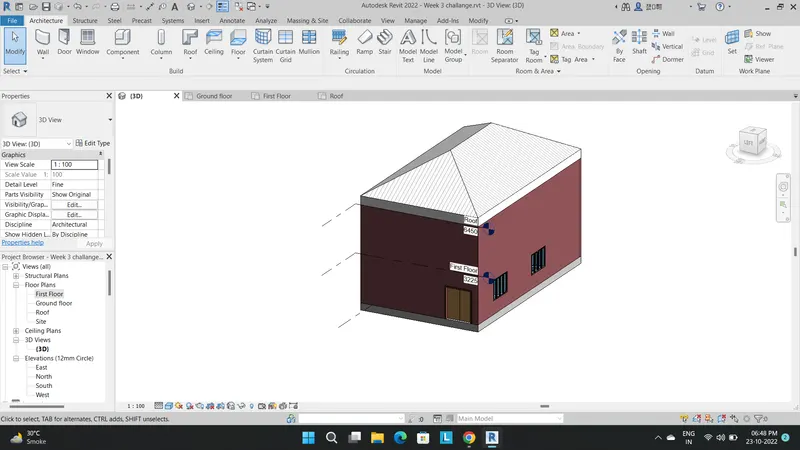

Step 2- Selecting the outer lines and creating the roof and checking it in 3D view.

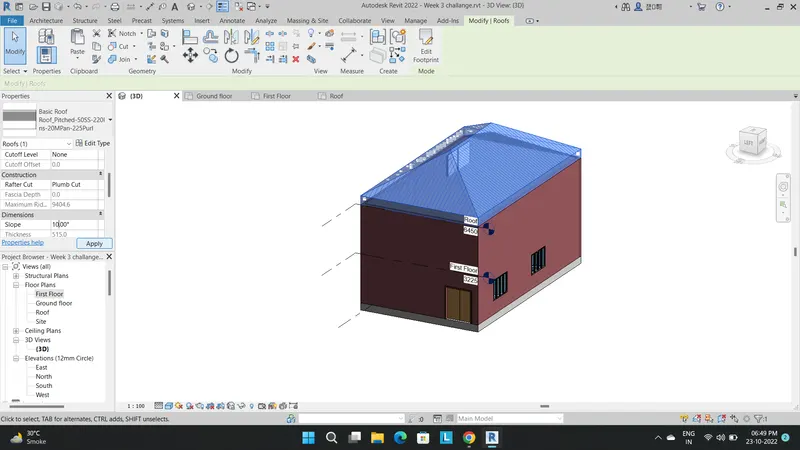

Step 3- Assigning the slope of 10 degree to the roof.

Answer 3-

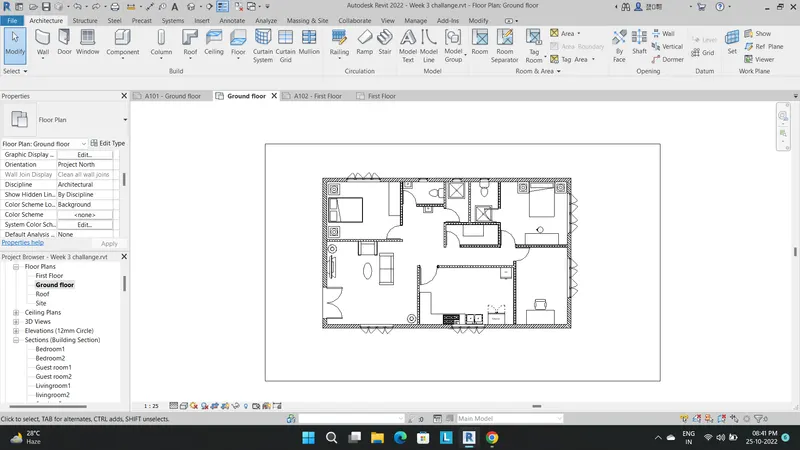

Aim- Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans.

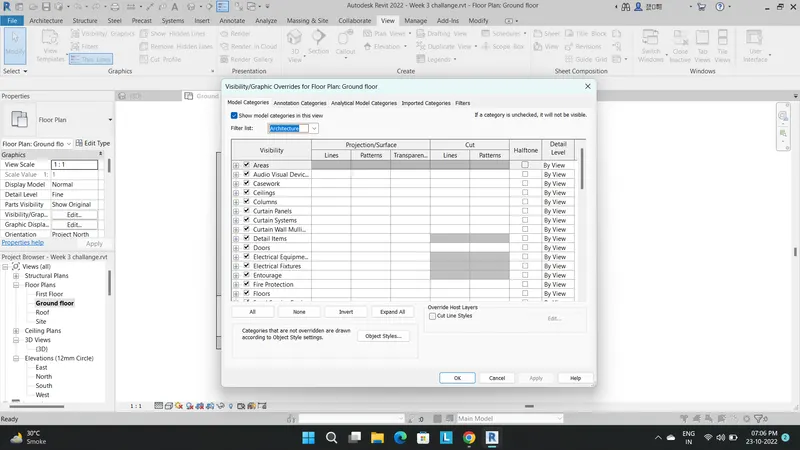

Step 1- Going to the visibility tool bar and seperating the architectural and structural views. In structural view we can see beams, columns, steel frames and in arcitectural view we will be able to see all the other objects such as floors, walls, doors, windows furnitures.

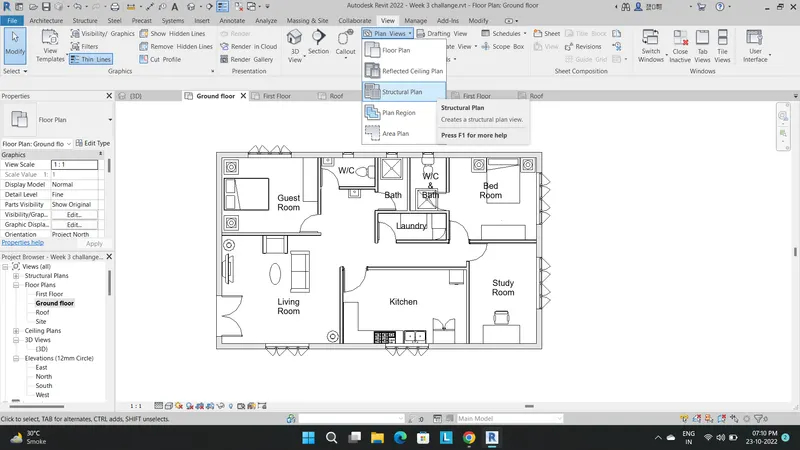

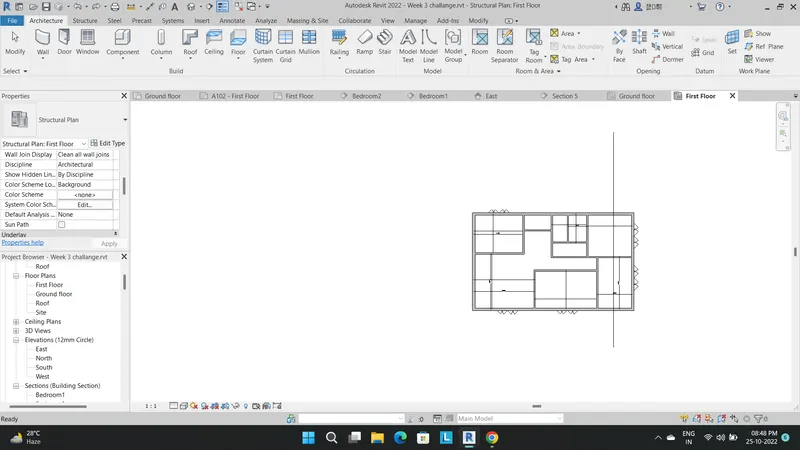

Step 2- For viewing the structural view go to view tool bar and select plan view drop down tool and select structural view.

Answer 4-

Aim- Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

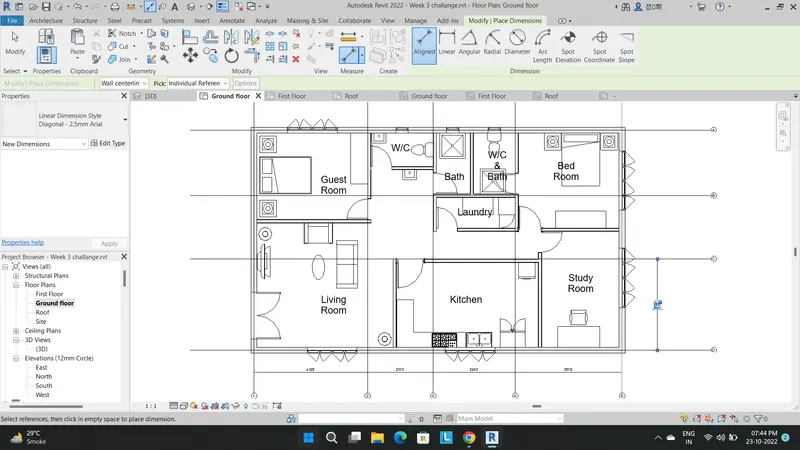

Step 1- Adding the dimensions to the wall and floors with respect to the grid lines in architectrural view

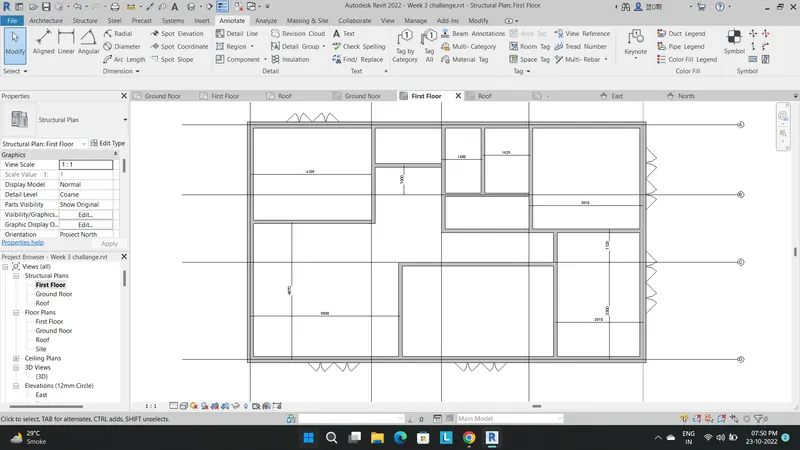

Step 2- Adding the dimensions to the wall and floors with respect to the grid lines in strutrural view.

Answer 5-

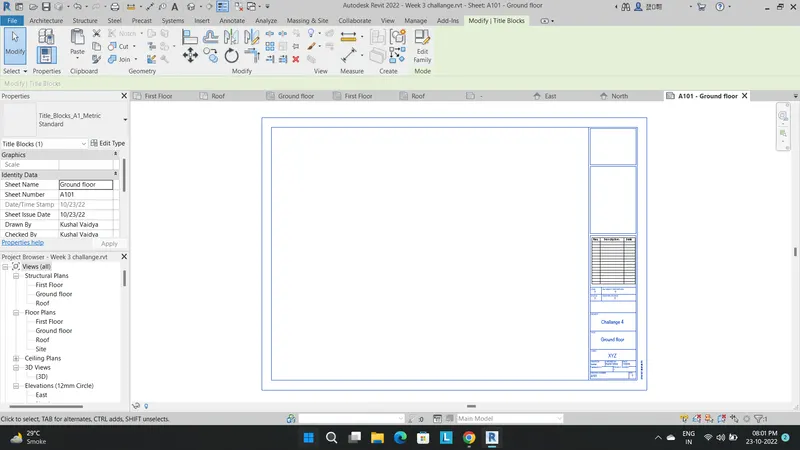

Aim- Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Step 1- Go to the view tool bar asnd select sheet tab

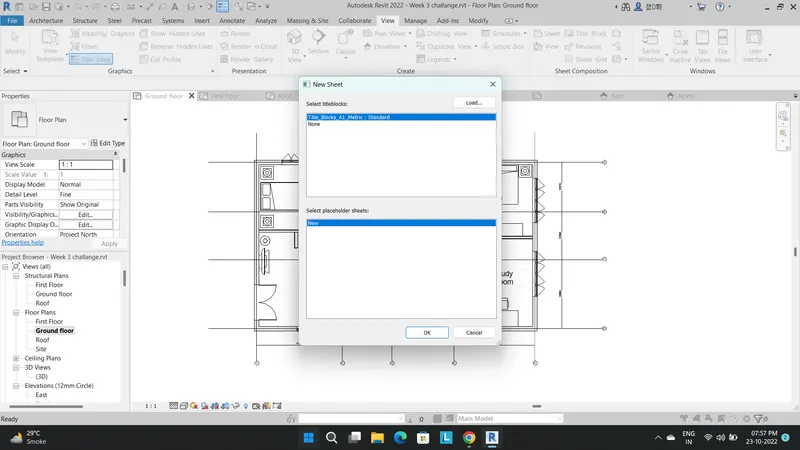

Step 2- Select the sheet which you require in this case I will go with the A1 sheet size.

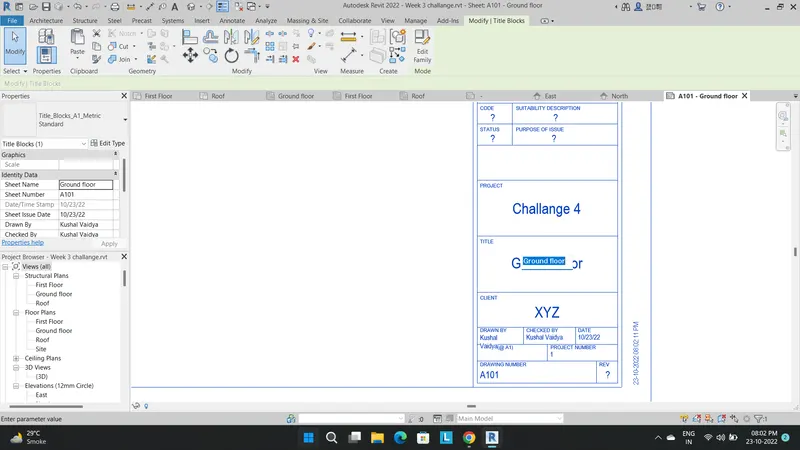

Step 3- Edit the details as per your requirements

Step 4- Draging the view to the sheet

Answer 6-

Aim- Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

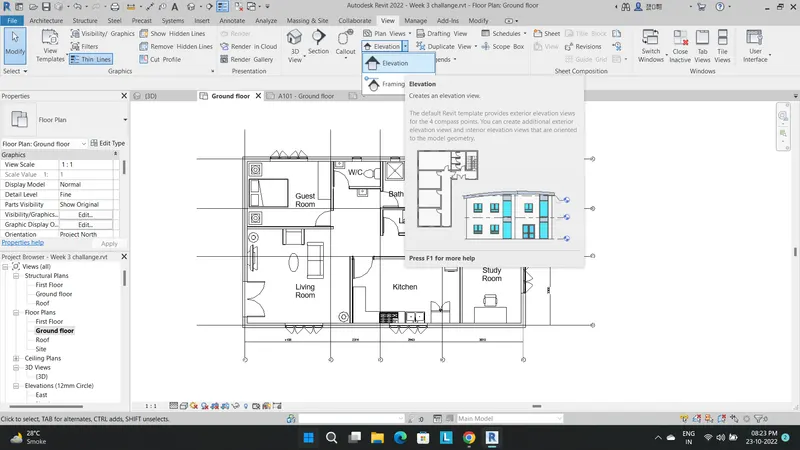

Step 1- Using view option we can create different elevational views.

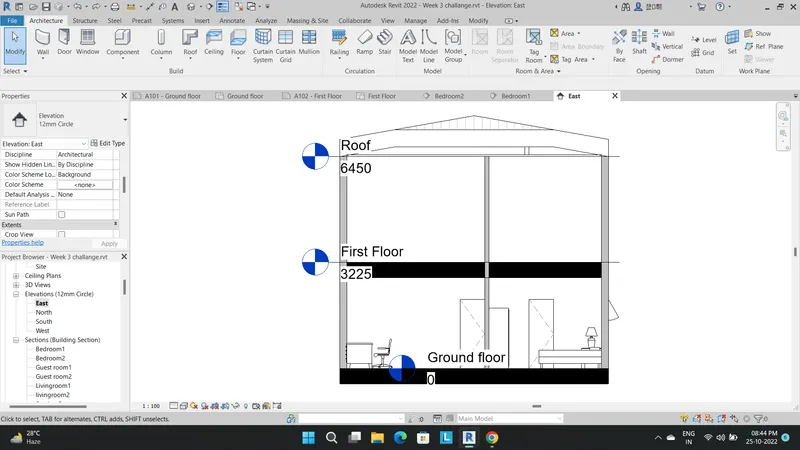

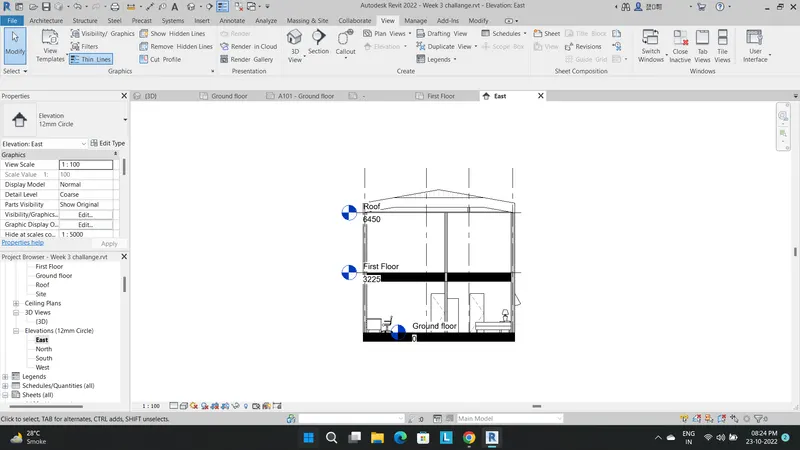

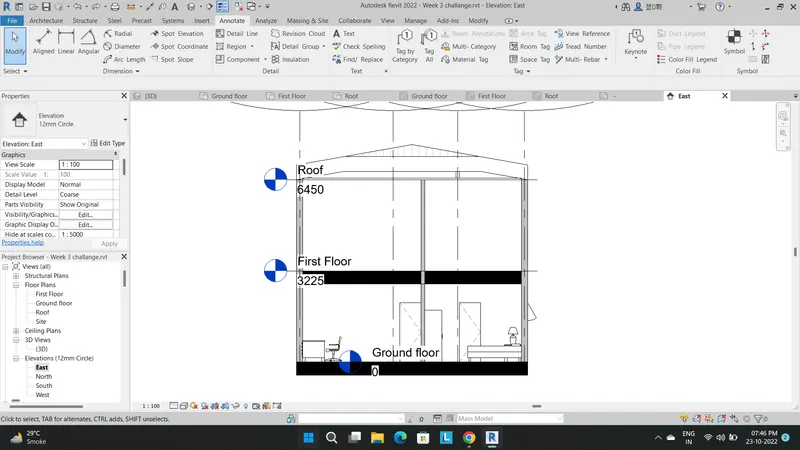

East View

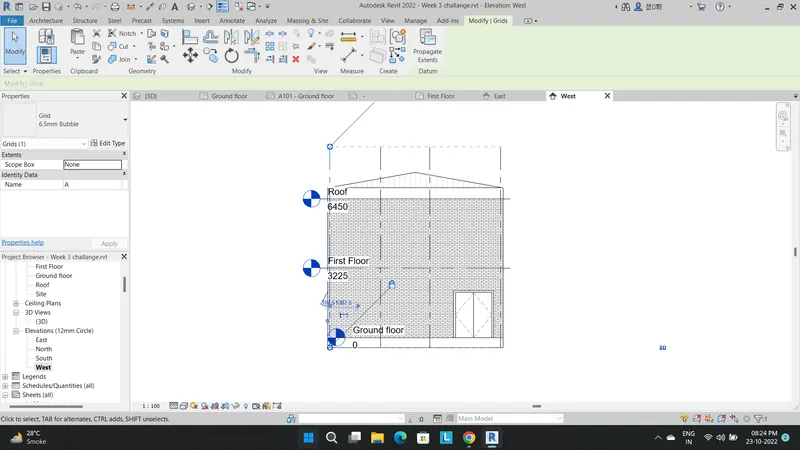

West view

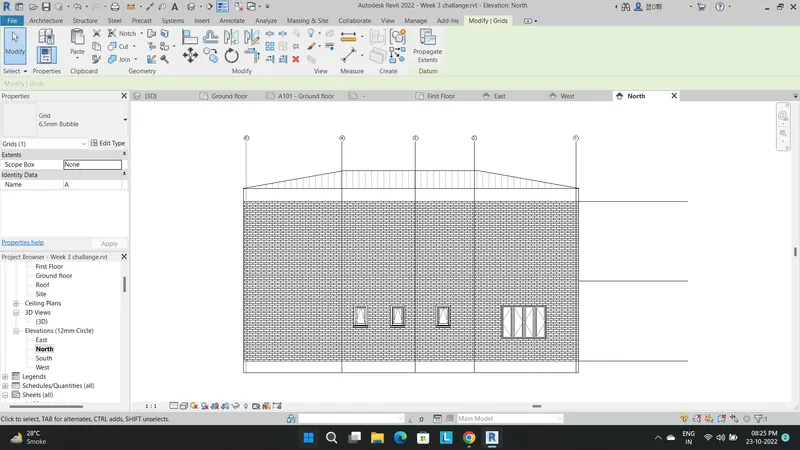

North view

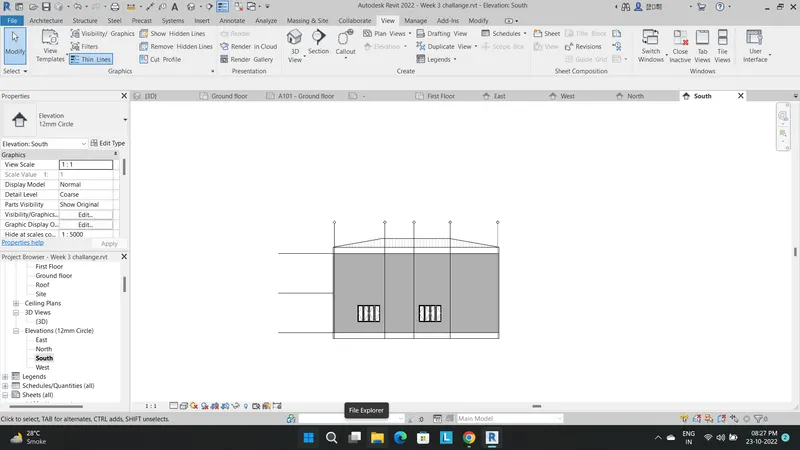

South View

Answer 7

Aim- Produce section cut through each room either cutting across longitudinally or in a transverse direction

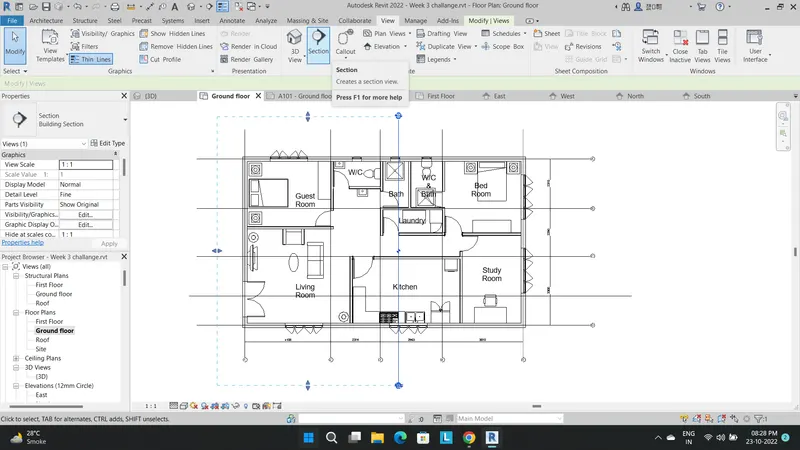

Step 1- Select option of section from View tool bar

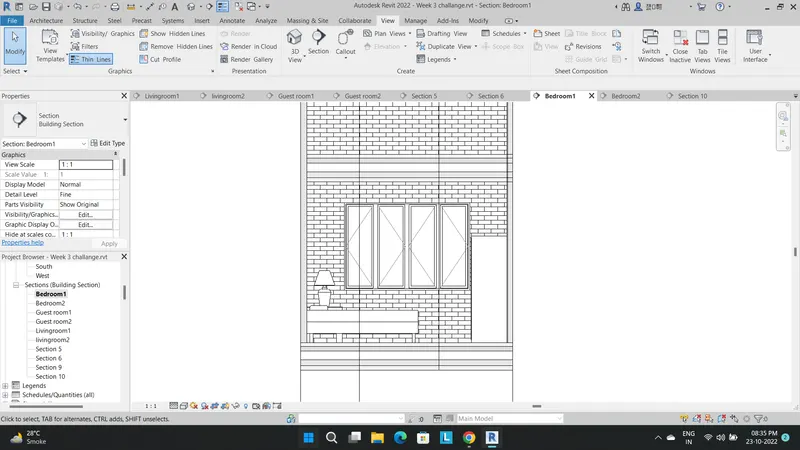

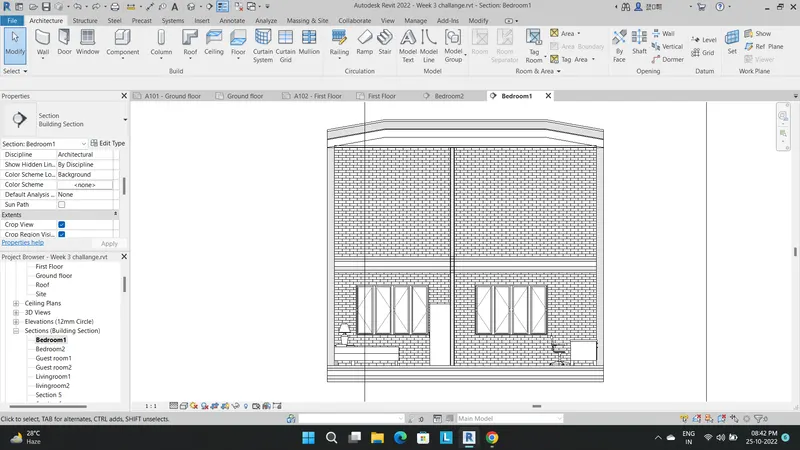

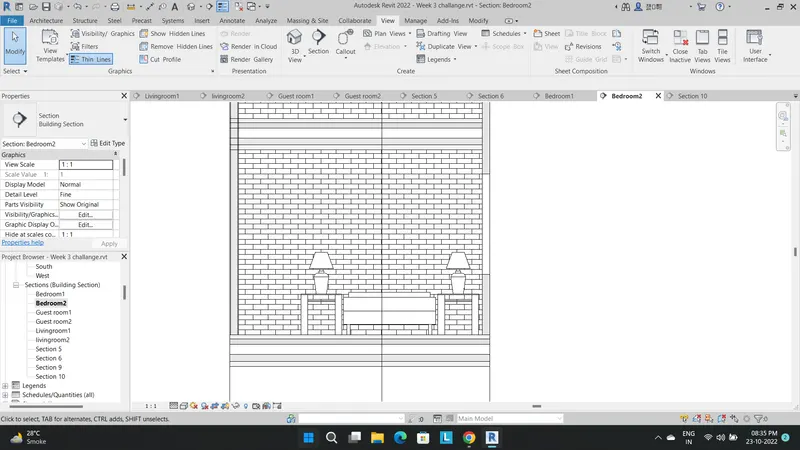

Bedroom

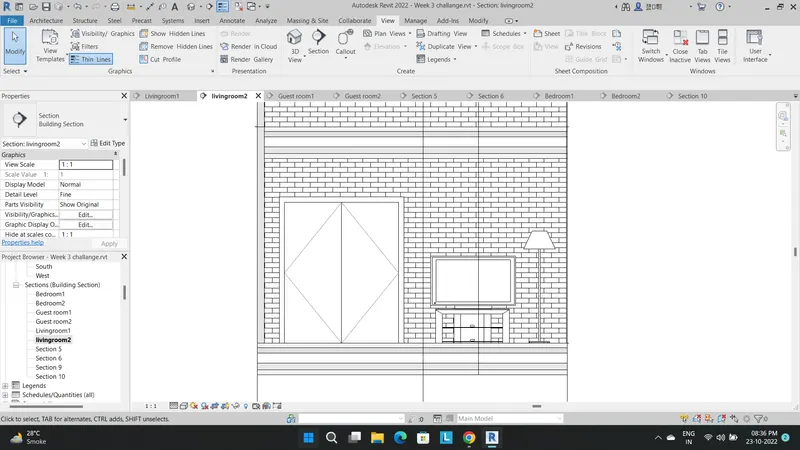

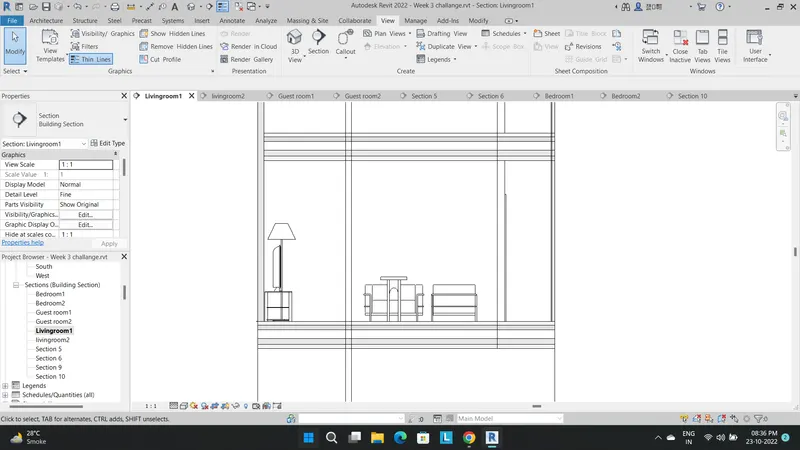

Living room

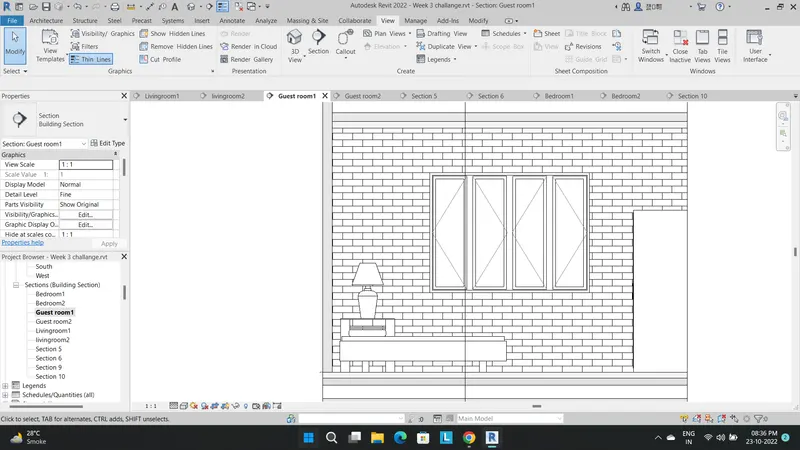

Guest room

Answer 8-

Aim- Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Plan View-

Sectional view-

Elevational View-

Other Views can also be used with the help of project browser window in left bottom side of the window

Answer 9-

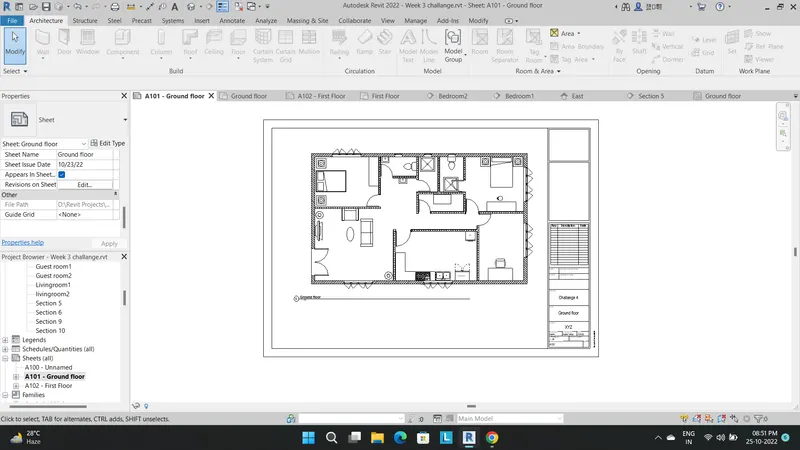

Aim- Using the sheet template produced create multiple sheets

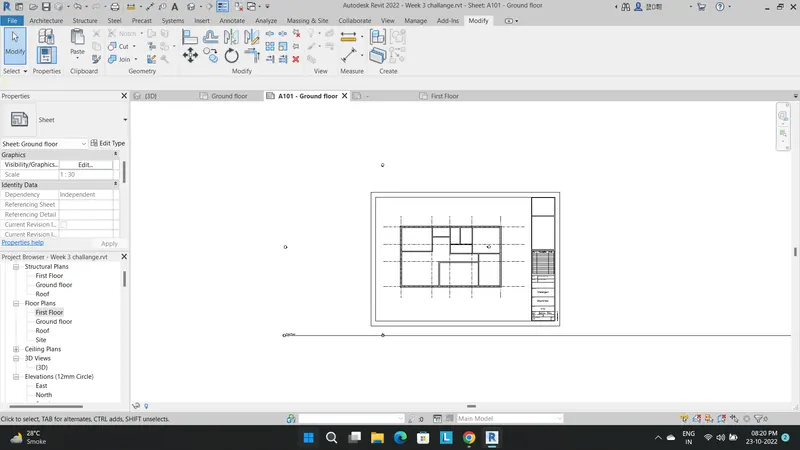

A 101- Ground Floor Architecture Plan

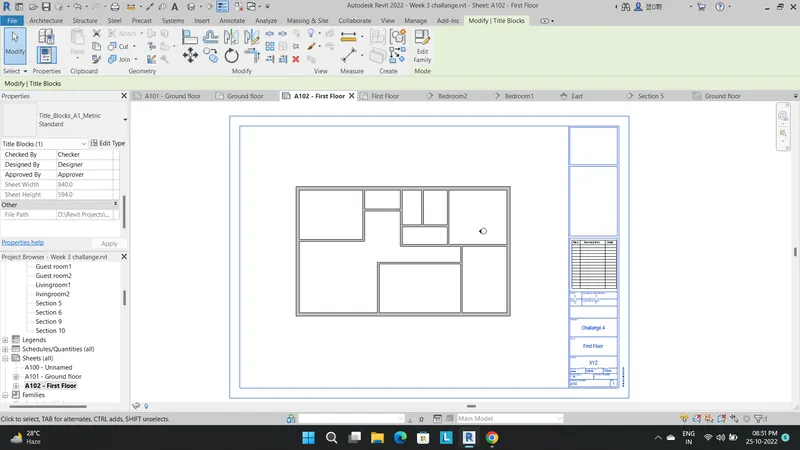

A 102- First Floor Architecture Plan

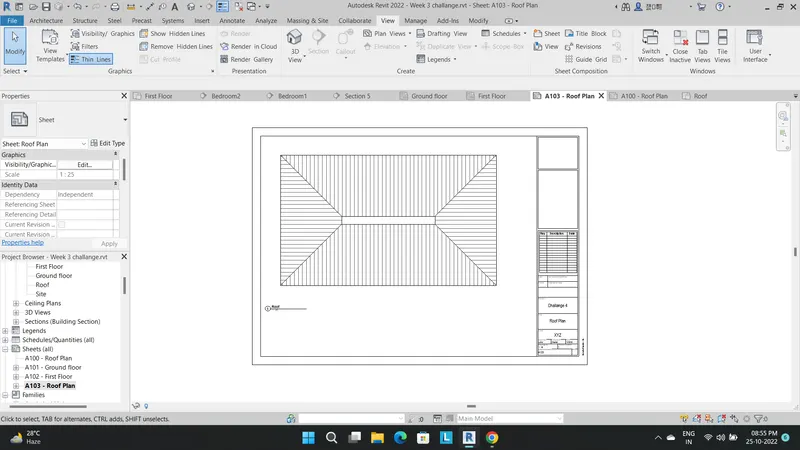

A 103- Roof Plan

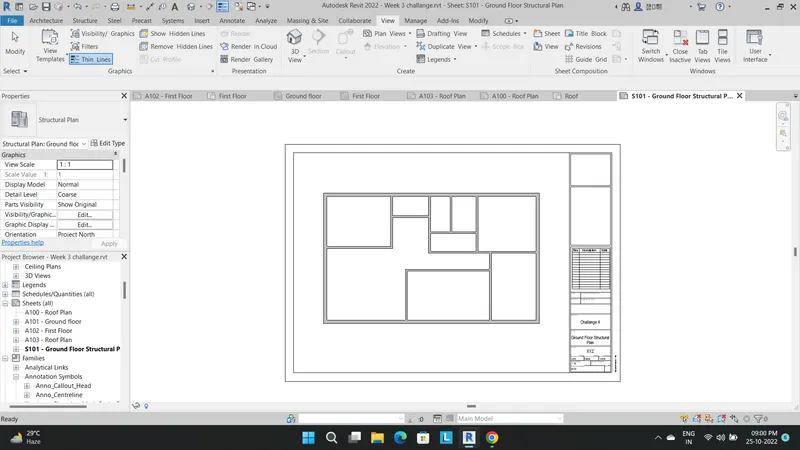

S 101- Ground Floor Structural Plan

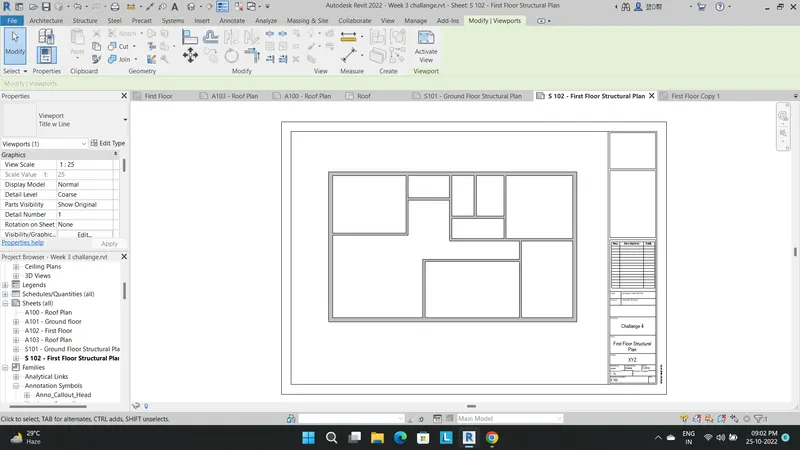

S 102- First Floor Structural Plan

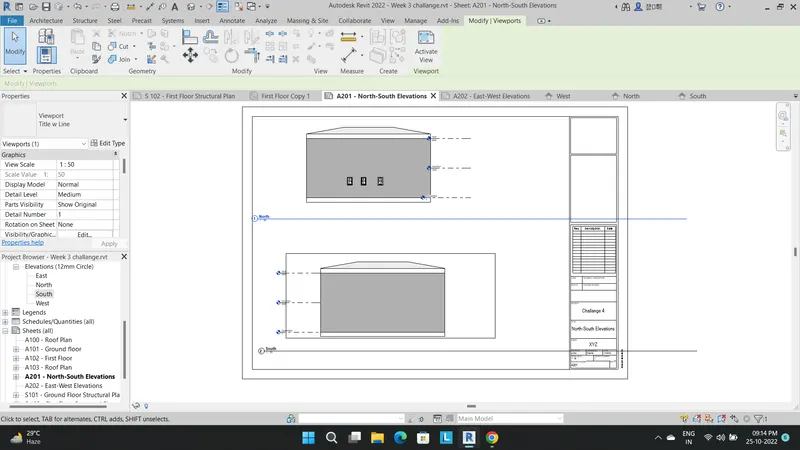

A-201- North-South Elevations

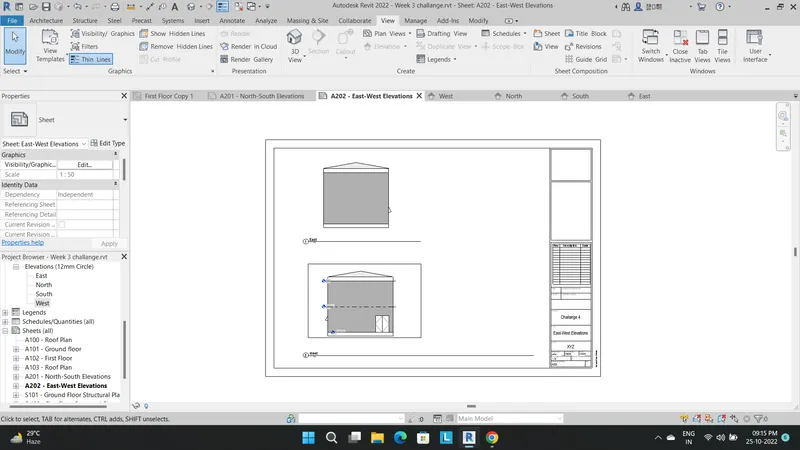

A-202- East-West Elevations

Answer 10-

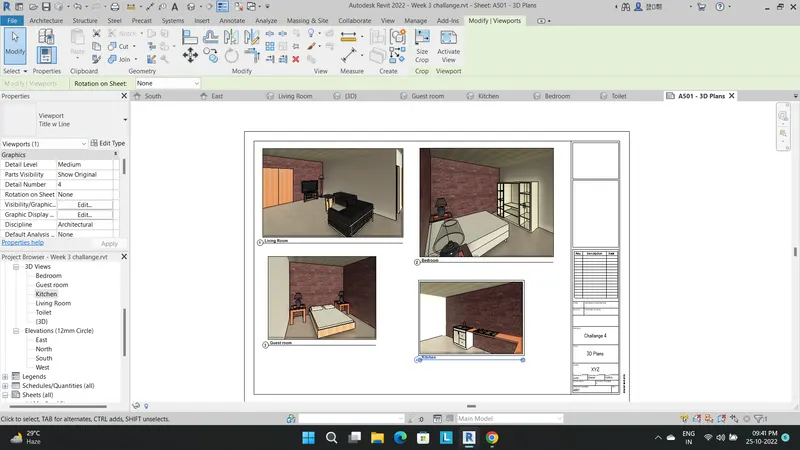

Aim- Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501
