3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Aim: To create 3D view of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific in revit

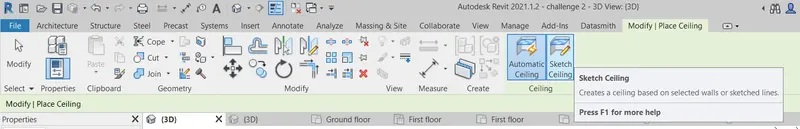

1. Procedure to create celing :

• Open revit software
• select the floor plan which has been created

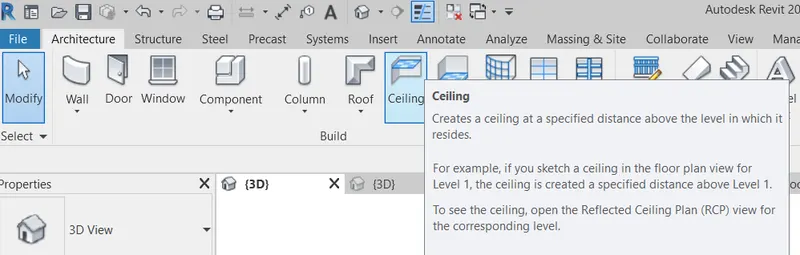

• Click on celing from the architectural tab
• Select sketch celing, then select pick lines and select the lines from the floor plan.

Result:

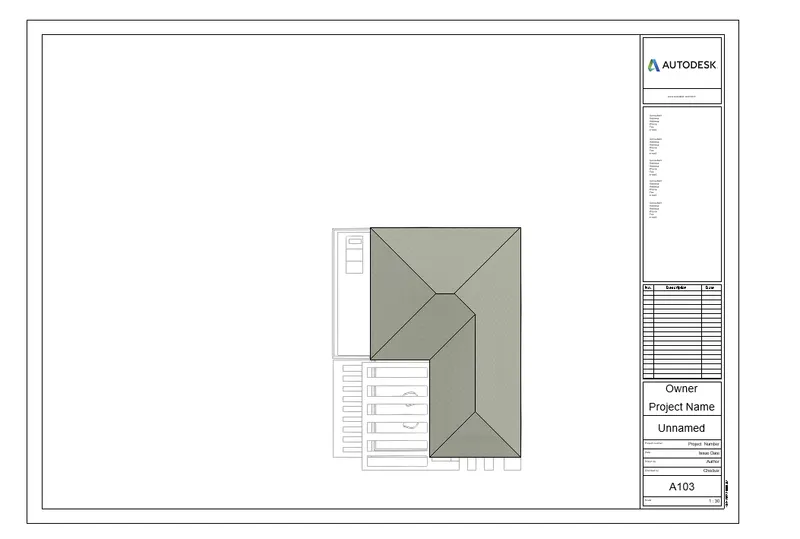

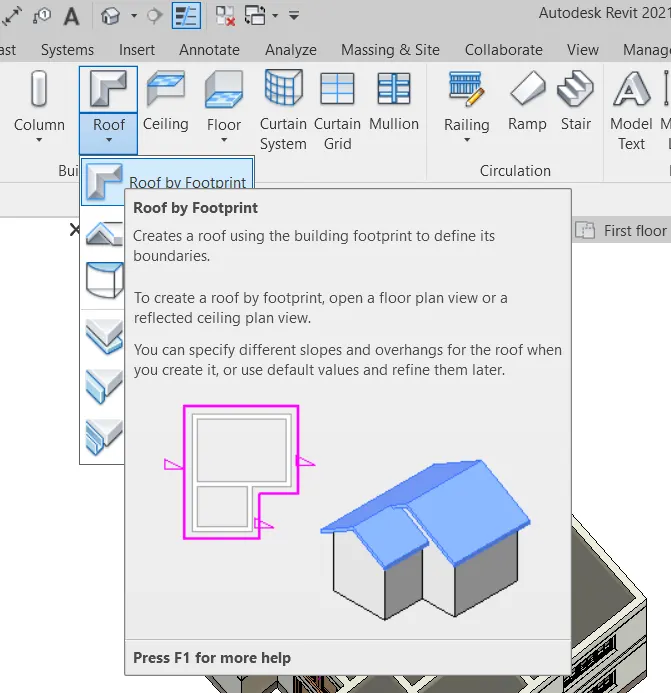

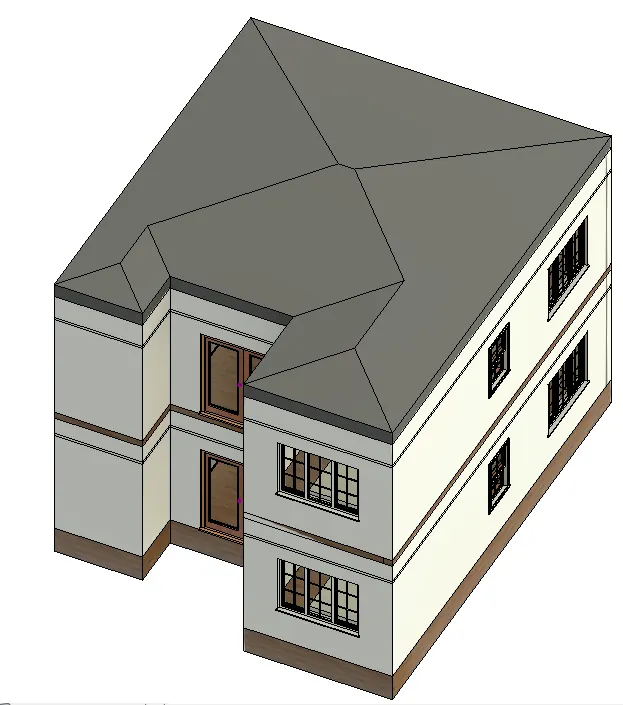

2. Procedure to create roof:

• Open the floor plan which has been created
• Select roof from architecturial tab
• Select roof by footprint, select pick lines and select the boundary lines of the floor plan then select ok.

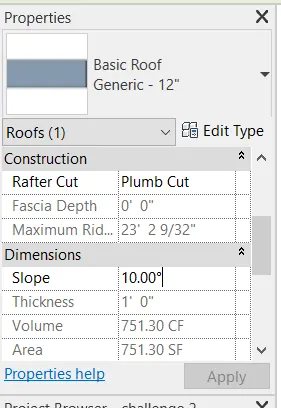

• Select the roof which has been created and go to the property browser and change the dimension of the slope to 10.

Result:

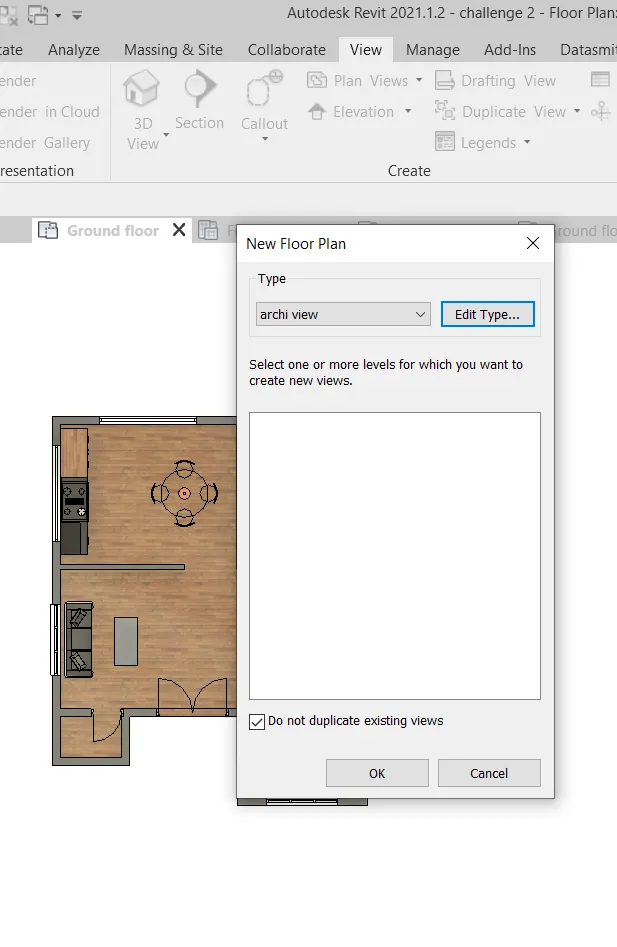

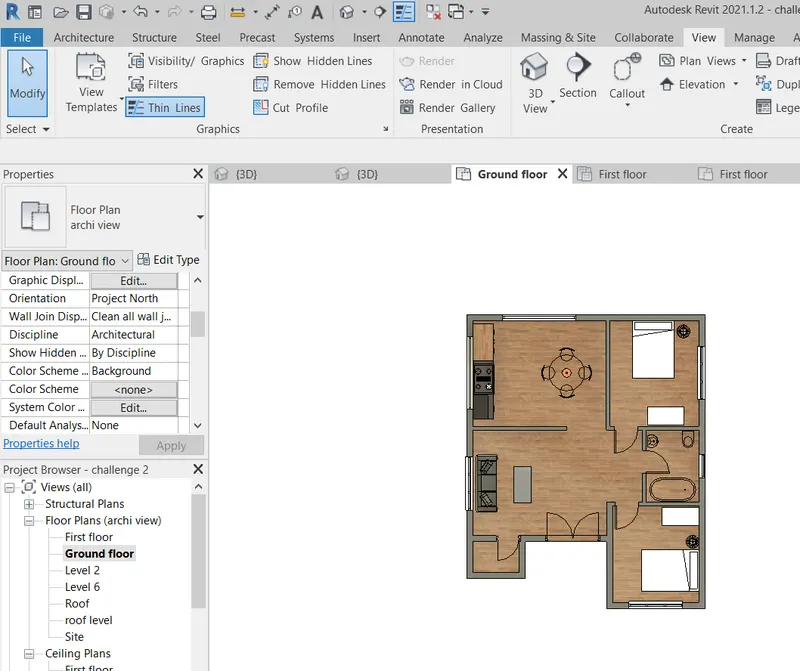

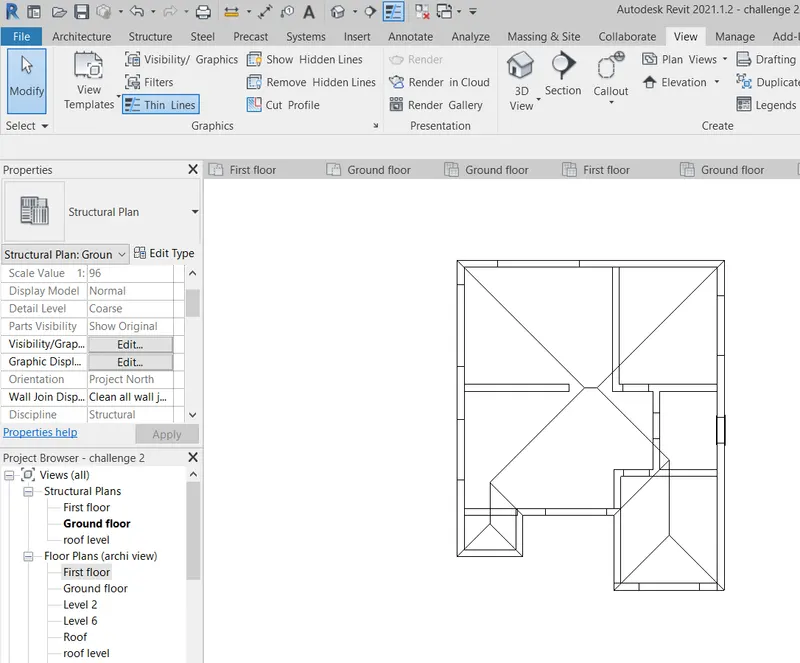

3. Procedure to create the Architecture plan and the Structural plan view:

• Open the floor plan which has been created

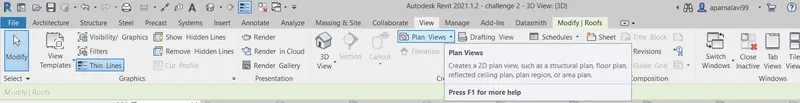

• Go to the plan views from the views tab
• Select floor plan from the plan views, click ok and the view is created.
• Select structural view from the plan views from the view tab
• Select the floor which you want to create the structural view and then select ok.

Result:

Architecture plan

Structure plan

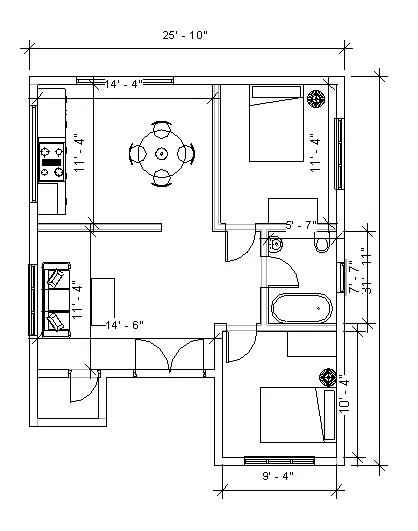

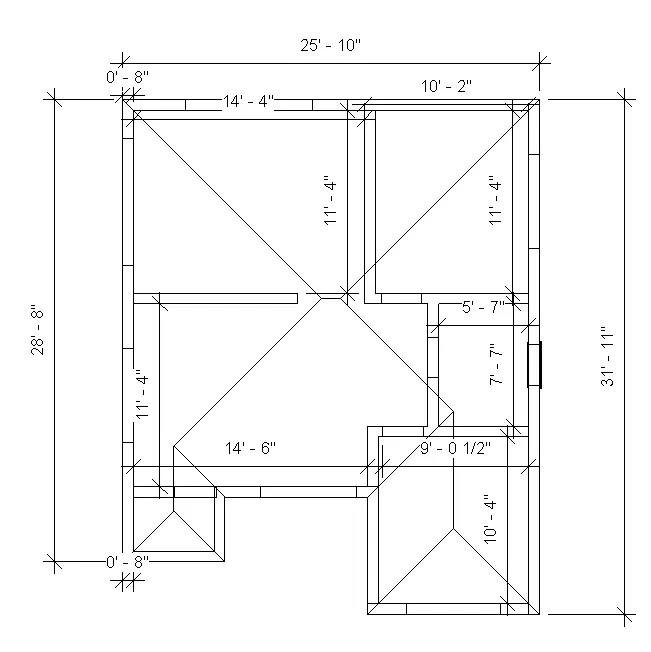

4. Procedure to add the dimension for both structure and architecture plan

• Open the plan view of the architecture plan
• select the annotate command from the ribbon
• Using linear and the angular dimensions measure all the dimensions.
• The above procedure is fallowed for the structure plan.

Result:

Structural plan Architecture plan

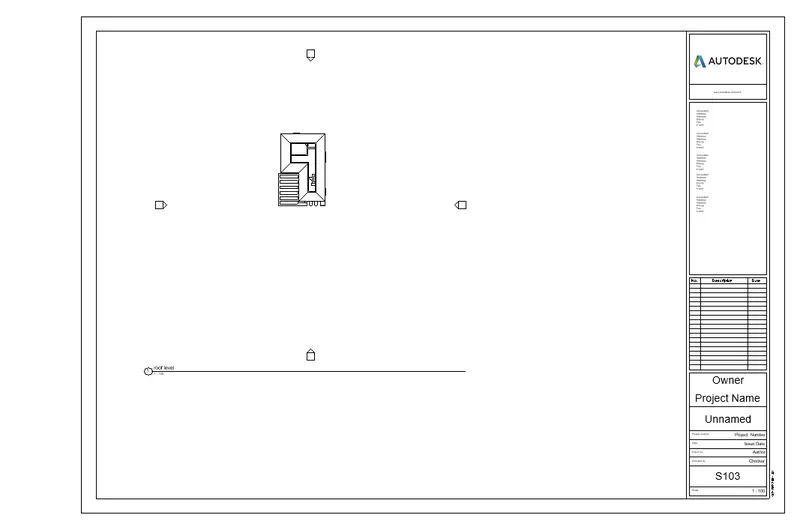

5. Procedure to create the sheet template

• Open the floor plan which has been created
• Select the sheet icon from the view tab
• Select the sheet sixe from the dialouge box click ok
• Then the sheet appeares, drag the view which is to be appied upon the sheet
• Adjust the scale from the property browser

Result:

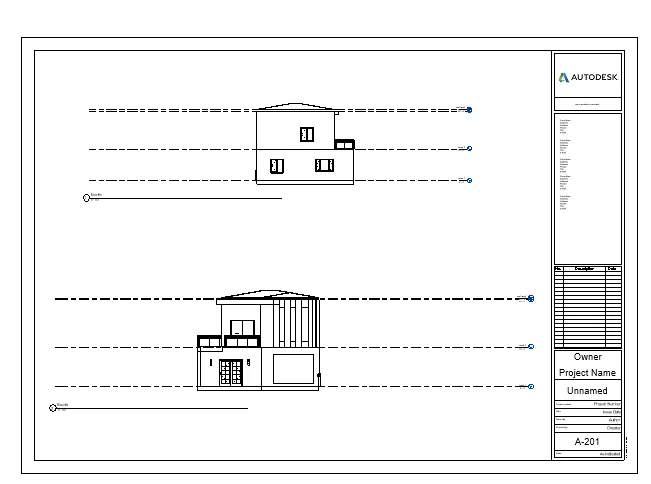

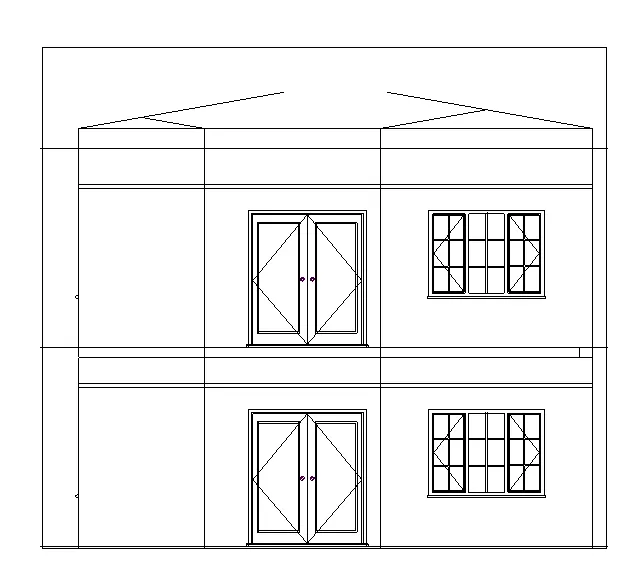

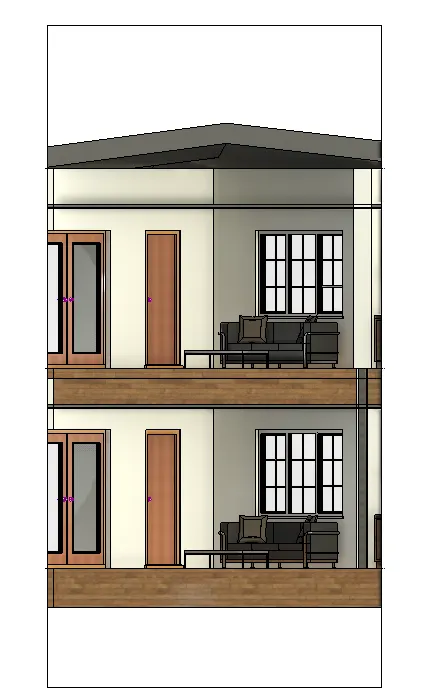

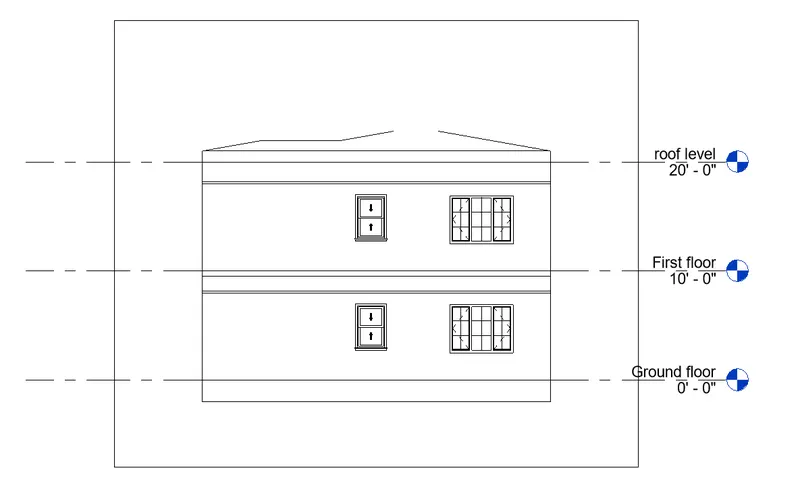

6.Procedure to create elevation view

• Open the floor plan which has been created
• Go to the elevation from the view tab
• A small elevation icon appeares, place it at the direction from which the view has to be created the enter
• The view will be created, check in the property browser.
• Simerarly created all 4 views.

Result:

East view

South view

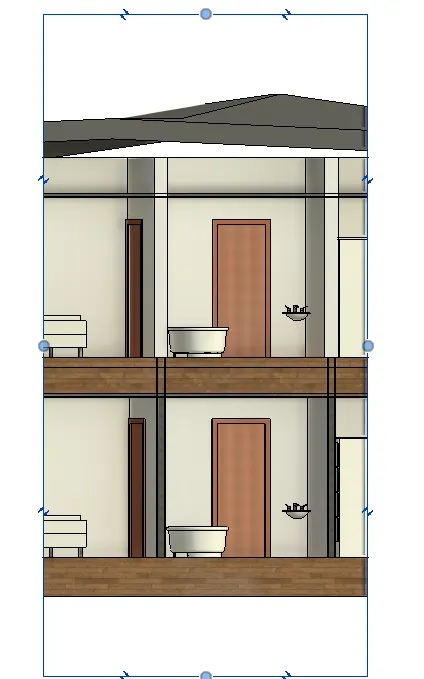

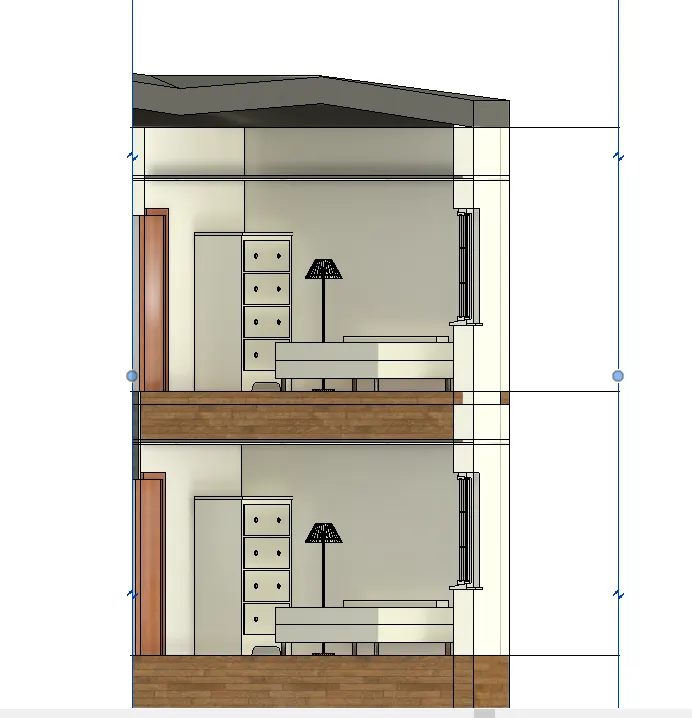

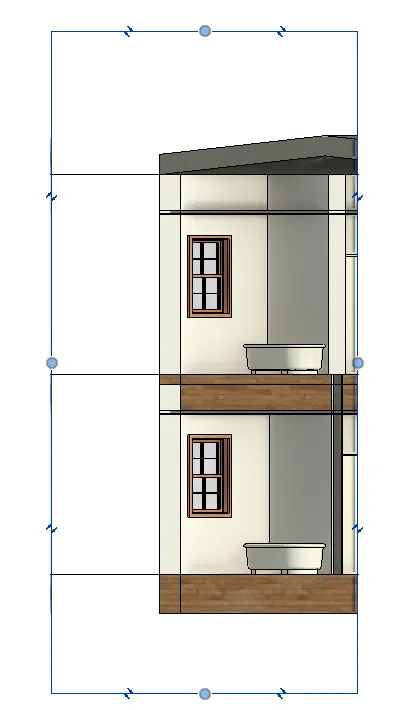

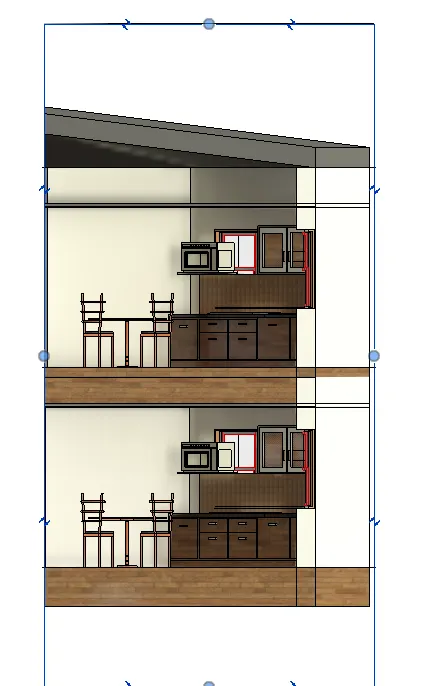

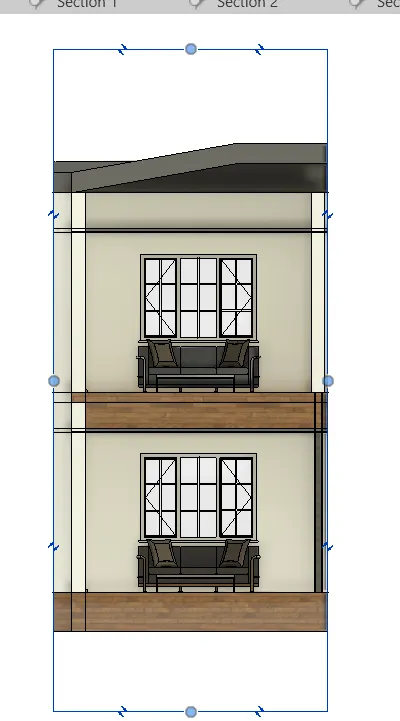

7. Procedure to create the section:

• Open the floor plan
• Select section icon from the view tab
• Place the section either longitudinally or transverse direction
• The section view of the particular room has been created
• Go to the project browser to view the section of each rooms.

Result:

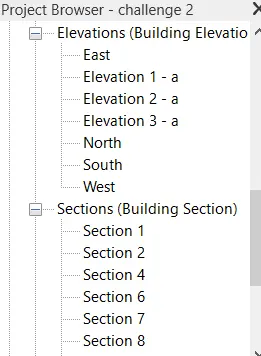

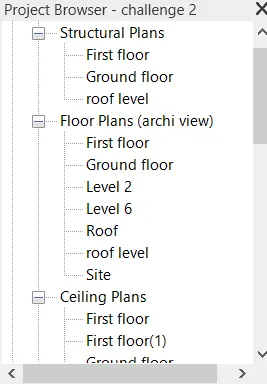

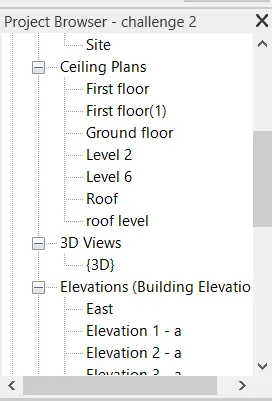

8. Project browser:

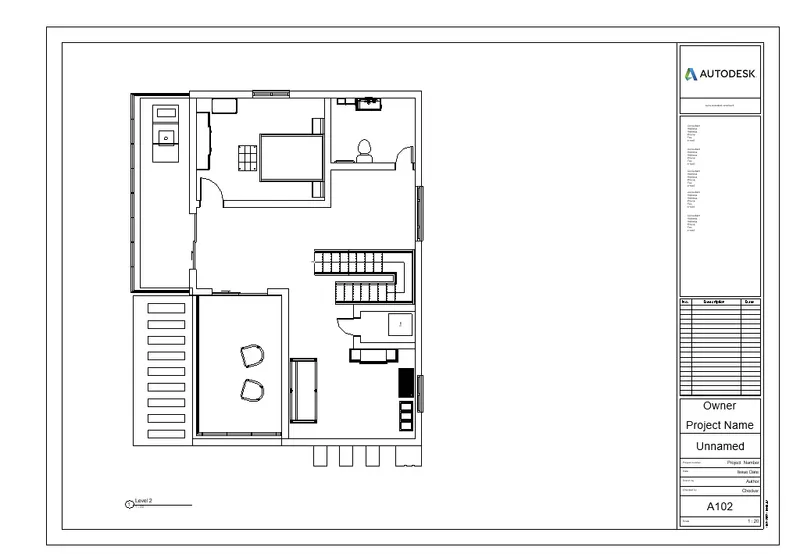

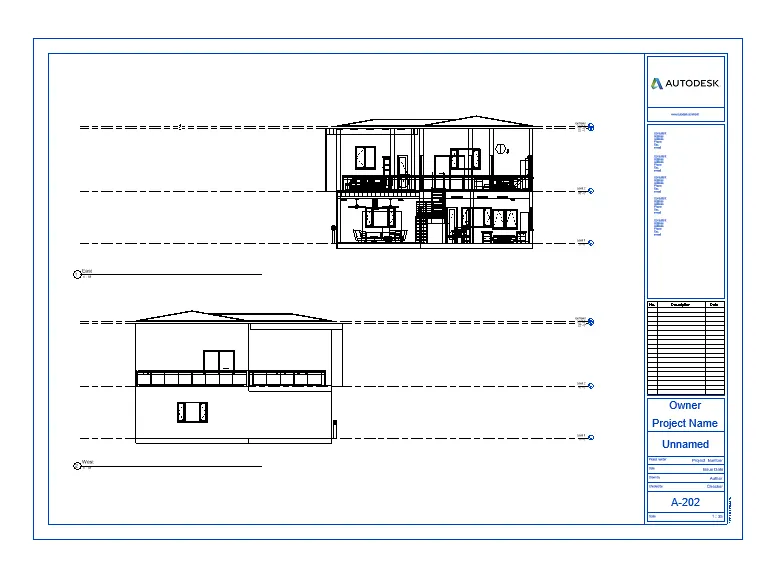

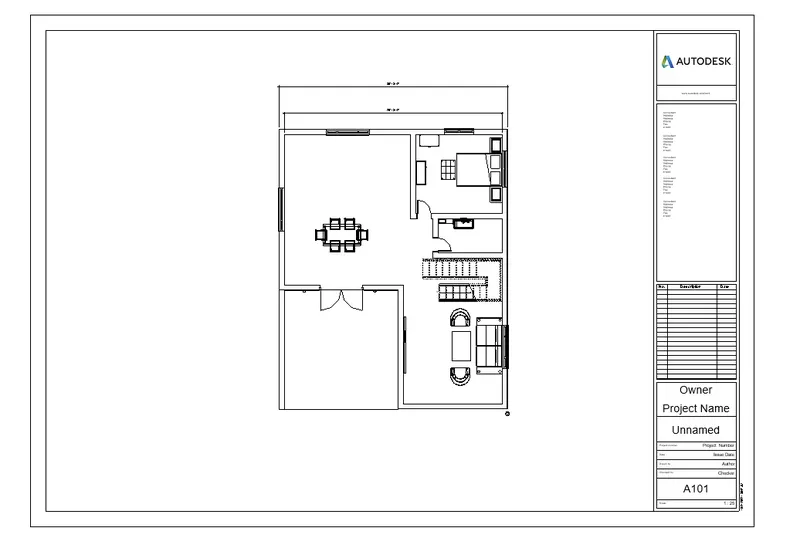

9.Procedure to create multiple sheets

• Open floor view
• Select sheets from the view tab
• select the sheet size
• Drag and drop the ground floor view on the sheet and rename it has A101
• Similarly create all the sheets for all the views mentioned.

Result:

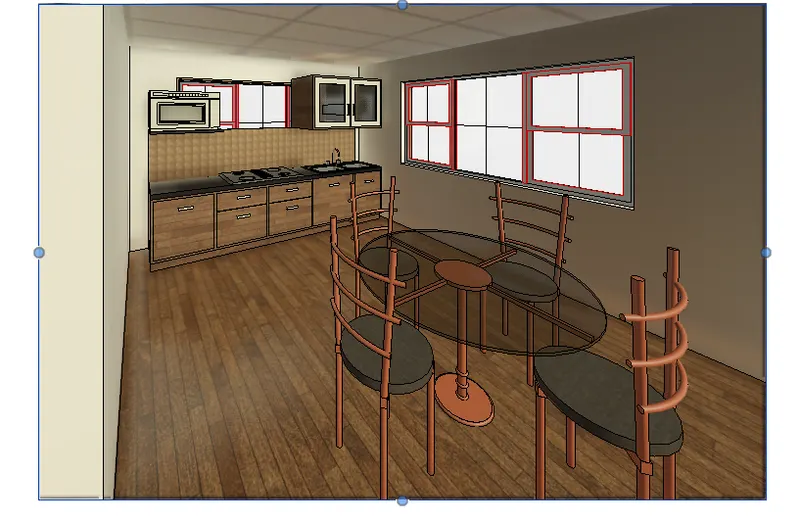

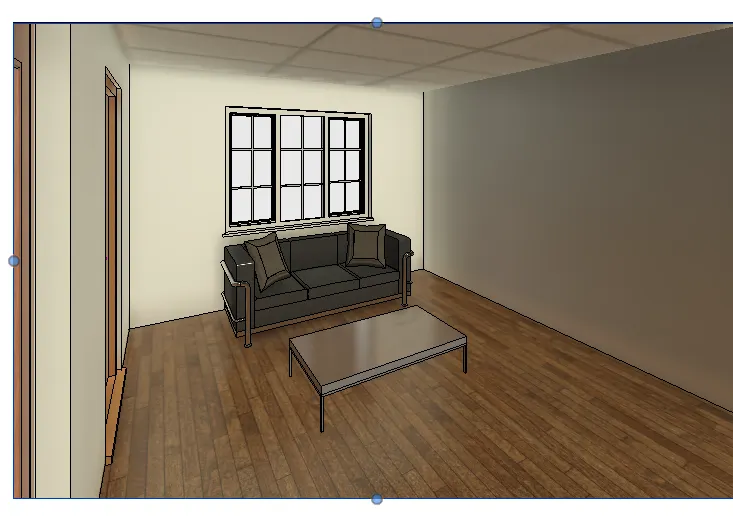

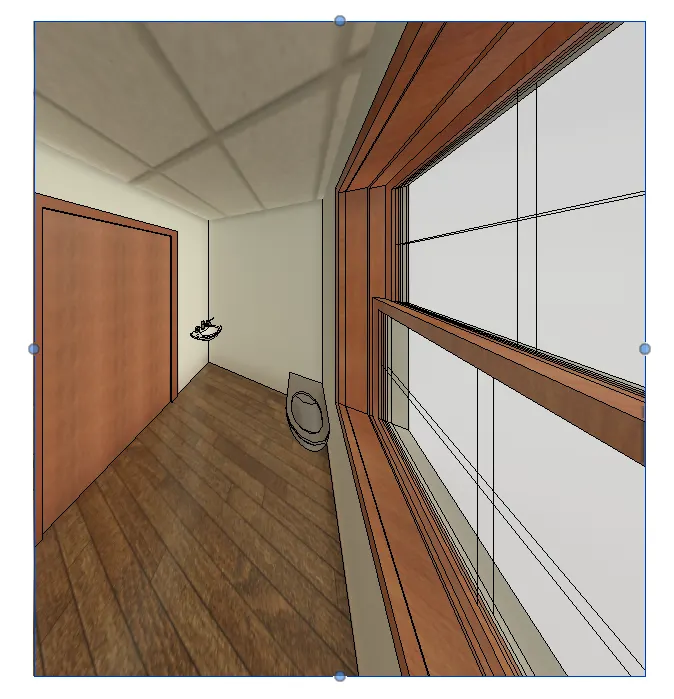

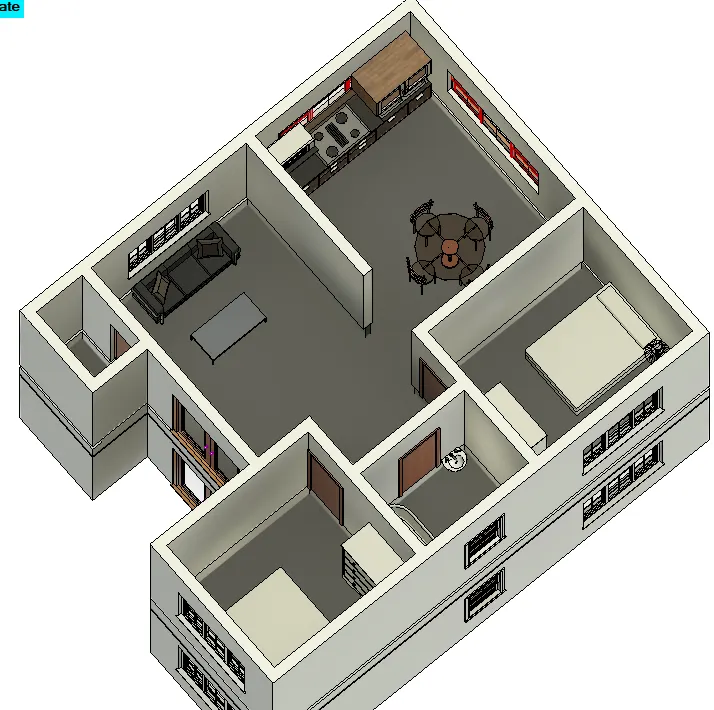

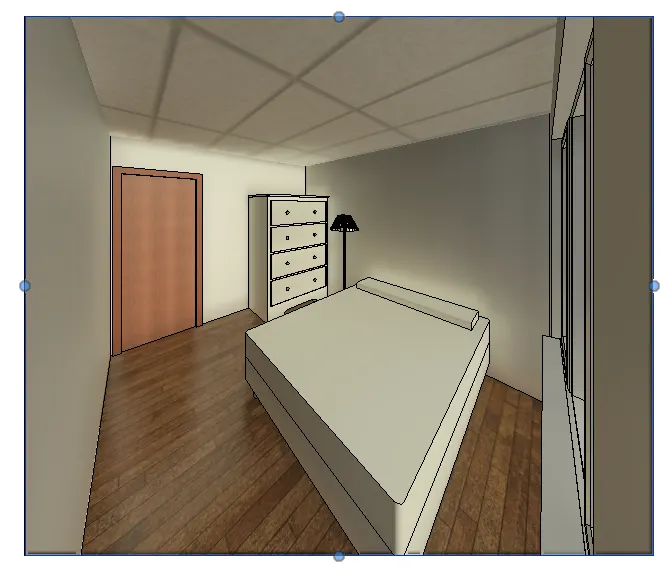

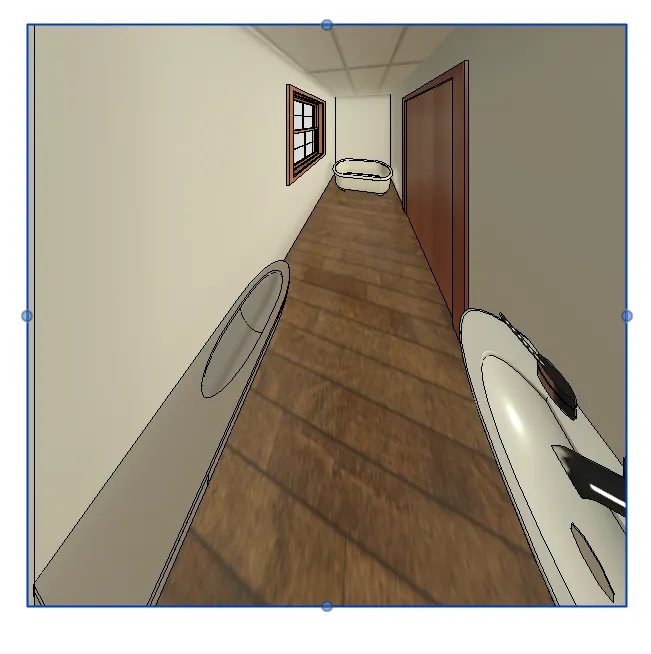

10.Procedure to create 3d view/camera specific view

• Open the floor plan
• Open the view tab
• From the dropdown of the 3d view select camera
• Place the camera in room to get the 3d view

Result:
