3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1Q:

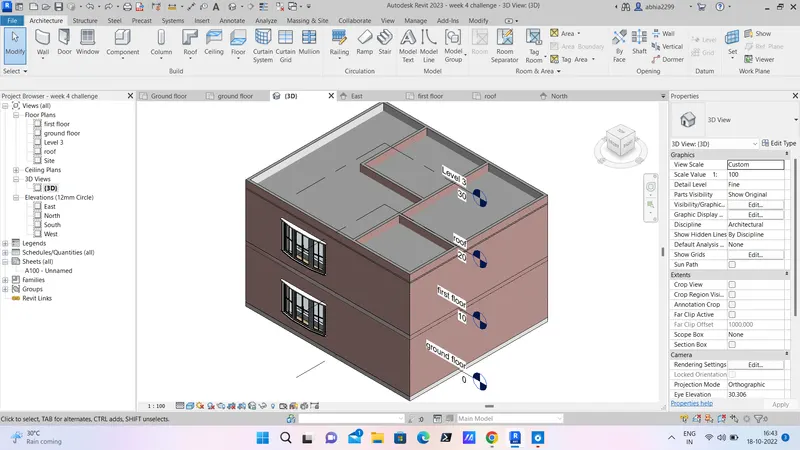

AIM: Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
PROCEDURE:Open the week 3 file, click on the floor plan in Project browser.
Select Ceiling on the architecture tab and select sketch ceiling.
Chose the pick lines and select the boundry of the floor plan.Click ok.
Ceiling is created in properties select the distance.
RESULT:Created the ceiling to the floor plan.
2Q:

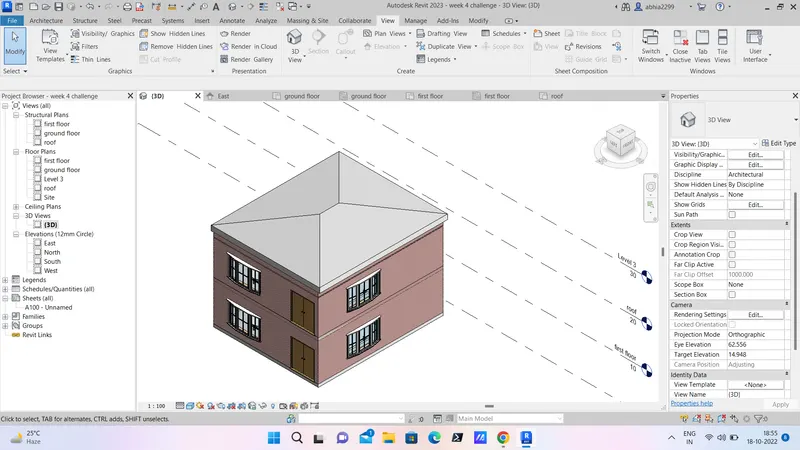

AIM:Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
PROCEDURE:Open the week 3 file, click on the floor plan and select first floor plan.
Select the Roof in Architecture tab and chose pick lines and select boundrys of first floor plan .click ok.
Roof is created and select the roof in Properties Adjust the slope in 10 degrees.
RESULT:Created the Roof for the project.
3Q:
AIM:Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
PROCEDURE:Open the week 3 file.
Open the View tab and select the Plan view.
Chose the view as structural view and select the groung floor.
Strutural view is dispaled in project browser.Repeat it for remaining floor and views.
RESULT:Created the strutural and architectural view.
4Q:
AIM:Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
PROCEDURE:Create the architectural view and strutural view of ground floor & first floor.
Select the annotate tab and chose Linear dimensions.
Now provide the dimensions for the both architectural and strutural view.
RESULT:Completed the giving dimensions for architectural and strutural view.
5Q:
AIM:Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
PROCEDURE:Open the view tab and select the sheet.
Now edit the sheet using the project information from the Manage tab.
Now select the floor plan of groung floor and drag it in the sheet.
Select the floor plan in sheet and adjust the size in Properties.
RESULT:Completed the creating the sheet.
6Q:
AIM:Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
PROCEDURE:Open the floor plan of the ground floor.
Click on the View tab and select the elevation.
Give the elevation on all directions of the plan.
Now click on the elevation in project browser we can get the elevation view of building.
RESULT:Completed the elevation view of all direction.
7Q:
AIM:Produce section cut through each room either cutting across longitudinally or in a transverse direction
PROCEDURE:Click on the floor flan of groung floor.
In the view tab open the section and create the section.
Create the section at the longitudinal and transverse direction in bedroom,hall and kitchen.
Now in the Project browser in section adjust the view.
RESULT:Created the Longitudinal and Transverse section of Plan.
8Q:
AIM:Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
PROCEDURE:
Go to the open file select the project.
Go to the view tool select the sheet select the title block.
Select the view select the floor plan,elevation,section add to view.
9Q:
AIM: Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
PROCEDURE:Open the file and select the project.
Create the Elevation, Section,Plans and Structural plan.
Click on the view tab and open the sheet.
A sheet is create now provide the information on it and rename it on the project browser as A 101-Ground Floor Architecture Plan.
Now drag the Ground floor architecture plan on the sheet.
In the properties set the scale of the floor plan and adjust it.
Repeat it same for all the plans.
RESULT:Created the template of multiple sheets.
10Q:
AIM:Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting
PROCEDURE:Open the file and select the project.
On the 3D view click on the camera and create the camera in all the rooms.
In property browser click on the 3d view.
Click on the view tab and open the sheet.

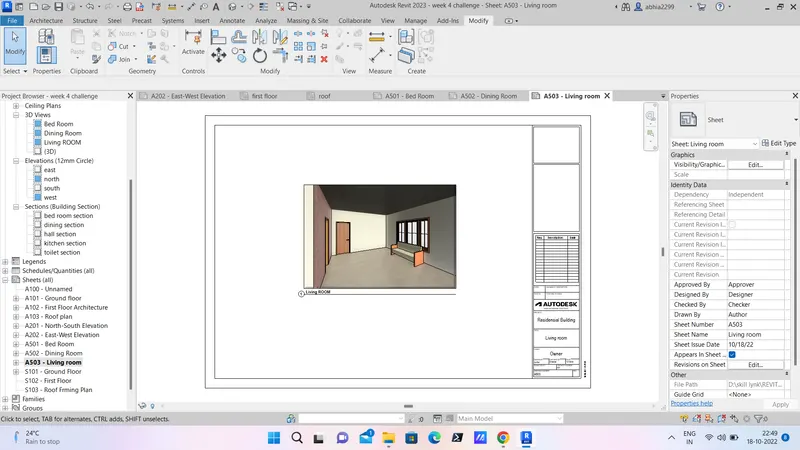

A sheet is create now provide the information on it and rename it on the project browser as A 501-Living room.
Now drag 3d view of living room on the sheet.
In the properties set the scale of the 3D view and adjust it.
Repeat it same for all the views.
REPEAT:created the 3D view sheet in the sheet.
