3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Q.1 Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
Ans:-
AIM:- To model a Ceiling from the architecture tab above the walls at the first-floor level.
INTRODUCTION:-
Model a Ceiling from the architecture tab above the walls at the first-floor level is a very similar process to that of floor and roof.
PROCEDURE:-
Step:-1

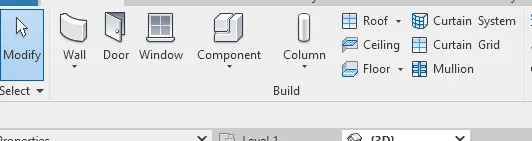

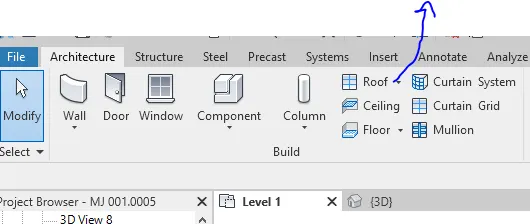

- First we open the revit sofware, and select the ceiling option from the architecture toolbar.
Step:-2
- After selecting the ceiling option, then select the each room one by one.
- Then the ceiling will be created, as shown in the below figure.
Step:-3

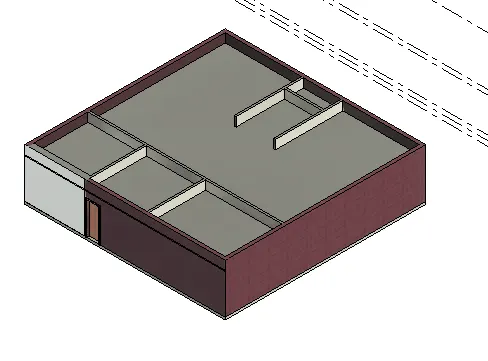

- Here now we can see the ceiling in the three dimensional view as shown in the below fig.
RESULT:-
Q.2 Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
Ans:-
AIM:- To model a roof above the ceiling by selecting the footprints of the ceiling.
INTRODUCTION:-
- Roof is the covering of the top of a building and serving to protect against rain, snow, sunlignt wind, and protect against high temperature.
PROCEDURE:-
Step:-1

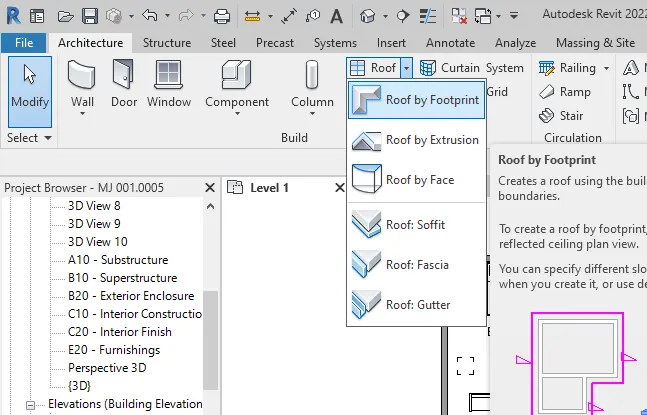

- Open the architecture toolbar, and select the Roof by Footprint option as shown in the below figure.
Step:-2

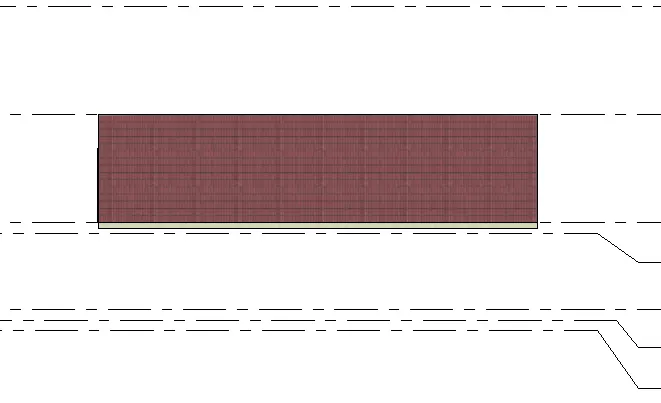

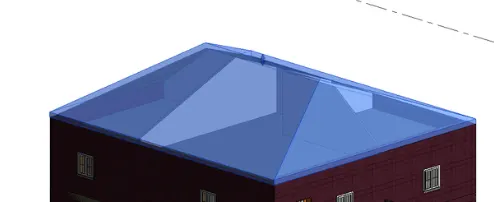

- Next we select the roof and adjust the roof to 10 degrees by selecting it, as shown in the figure.
Q. 4
Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
Ans:-
AIM:- To add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file.
INTRODUCTION:-
- The structural plan view is the default view when you start a new project using a structural template.
- Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
- The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan.
- Floor plan views are created automatically as you add new levels to your project.
Step:-1

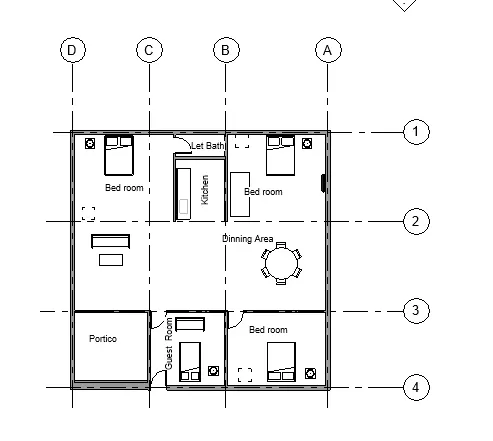

- Here we drawn the longitudinal and transverse grids to the architectural floor plans as shown below.

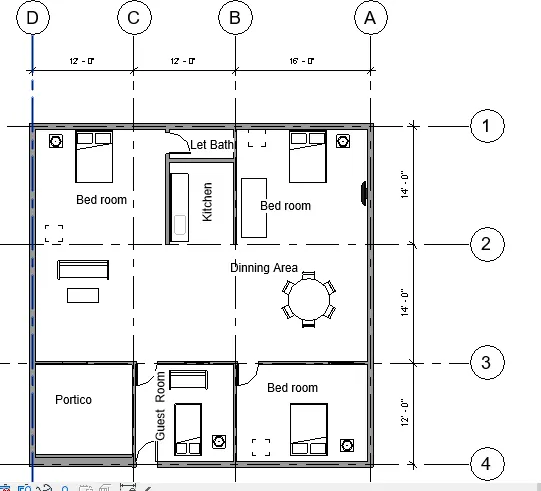

- And add the dimensions to the architectural plans as shown below.
RESULT:-
- The dimensions are added to the structural floor plans and the architectural floor plans.
- And the longitudinal and transverse grids are also created in the project file.
Q.5
Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
Ans.
AIM:- To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
INTRODUCTION:-
- Create views on a project template before you start building the model to streamline the project documentation process.
- When creating a project template, you can include sheets in the template. Start with a blank project file, and create the standard views and levels that each project should include.
- Leave the views empty, but assign standard names to them. To create a standard set of construction documents, create sheets using the desired title blocks.
- Add views to the sheets, using the desired viewport templates and view title types.
- Then save the empty project as a project template.
PROCEDURE:-
Step:-1
- First we click on the sheet option from the view toolbar, as shown below.
- After clicking the sheet, Thhe new tab will be visible on the screen.

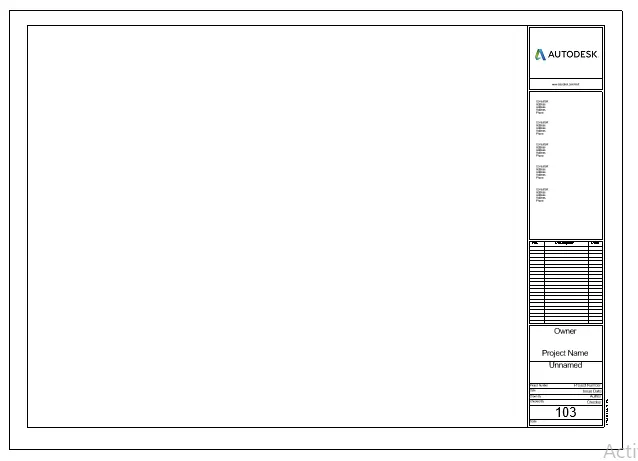

- In that new tab we select the A1 metric, then the sheet template will be displayed.
Step:-2

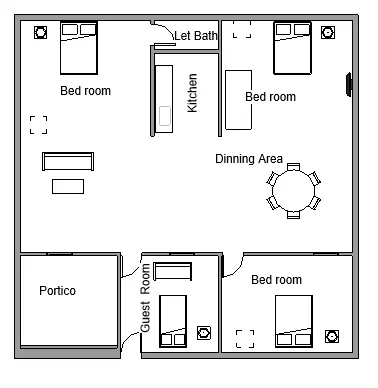

- In the sheet template we insert the plan separately as shown below.

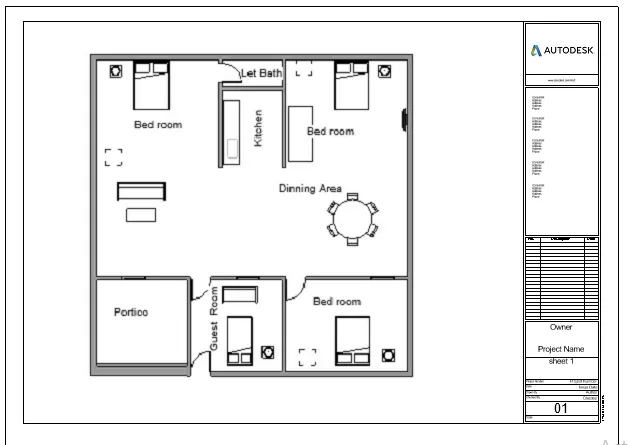

- Next edit the Project name and the sheet number as shown in the below figures.
RESULT:-
- Created a sheet template from the view tab and adjusted the parameters on the sheet for adding appropriate views.
Q.6 Using the elevation tab create the elevation views, looking at your building from East, North, South, and West.
AIM:- To create the elevation views, looking at your building from East, North, South, and West using the elevation tab.
INTRODUCTION:-
- An elevation is a view of a building seen from one side, a flat representation of one view.
- This is the most common view used to describe the external appearance of a building.
- Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building.
PROCEDURE:-
Step:-1

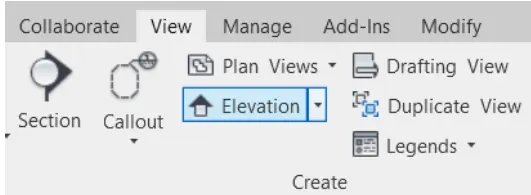

- First we click on the elevation option from the view toolbar, as shown below.
Step:-2

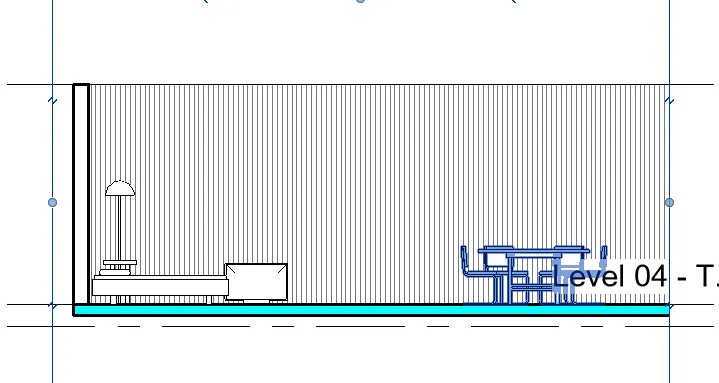

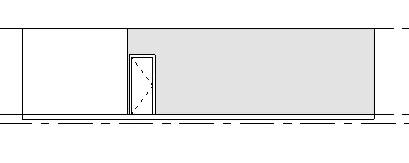

- Next the elevation from the east will be visible, as shown below.
Step:-3

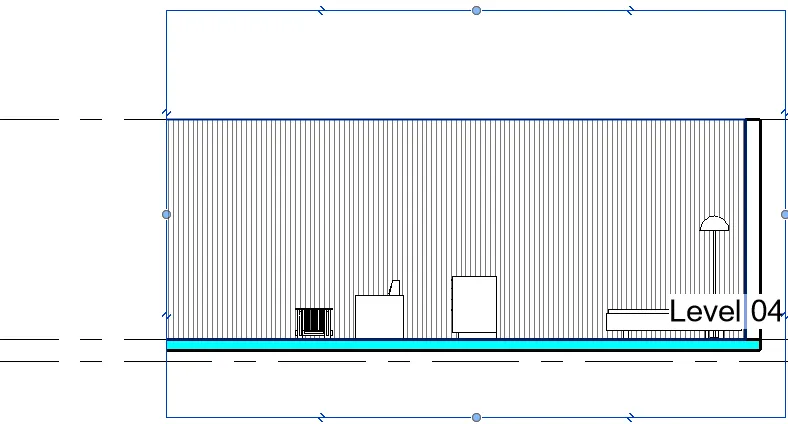

- Next the elevation from the south will be visible on the screen, as shown below.
Step:-4
- Next the elevation from the North will be visible on the screen, as shown below.
Q.7
Produce section cut through each room either cutting across longitudinally or in a transverse direction.
AIM:- To produce section cut through each room either cutting across longitudinally or in a transverse direction.
INTRODUCTION:-
- Sectional views reveal hidden details in a mechanical drawing.
- These views assume that a cutting plane has removed portions of the object represented by the drawing, displaying the appropriate section of the interior.
- Sectional views are used in engineering and architectural drawings.
PROCEDURE:-
Step:-1
- First we click on the section option from the view toolbar, as shown below.

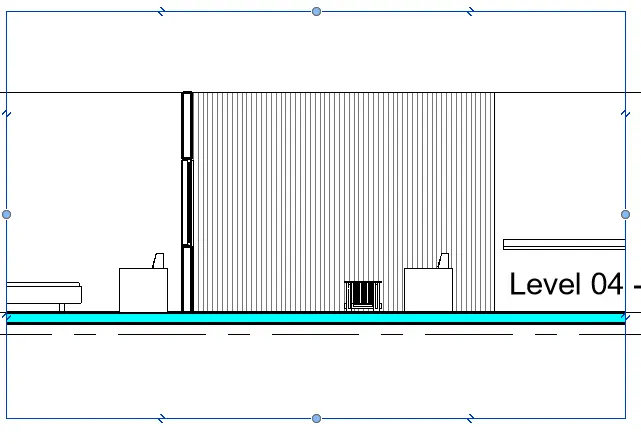

- Next we produce the section view of the bed room as shown in the below figure.
Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
AIM:- To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.
INTRODUCTION:-
- The structural plan view is the default view when you start a new project using a structural template.
- Most projects include at least one structural plan. New structural plan views are created automatically as you add new levels to your project. You can create multiple structural plan view types.
- The floor plan view is the default view in a new architectural project. Most projects include at least one floor plan.
- Floor plan views are created automatically as you add new levels to your project.
- Sectional views reveal hidden details in a mechanical drawing.
- These views assume that a cutting plane has removed portions of the object represented by the drawing, displaying the appropriate section of the interior.
- Sectional views are used in engineering and architectural drawings.
- They help civil engineers, architects, and airplane designers communicate their ideas to their peers.
- An elevation is a view of a building seen from one side, a flat representation of one view.
- This is the most common view used to describe the external appearance of a building.
- Each elevation is labelled in relation to the compass direction it faces, e.g. looking toward the north you would be seeing the southern elevation of the building.
PROCEDURE:-
Step:-1

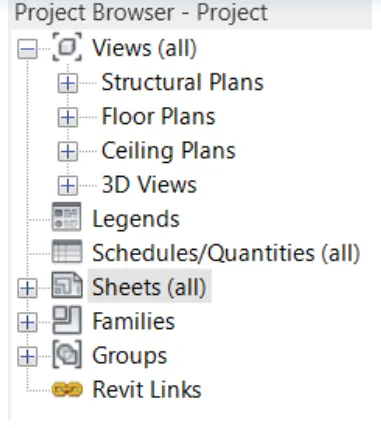

- First we open the project browser, the views, Plan Views, Section Views, and Elevation views are visible in that project browser as shown below.
- Next we insert these plans one by one in the sheets separately.
Step:-2

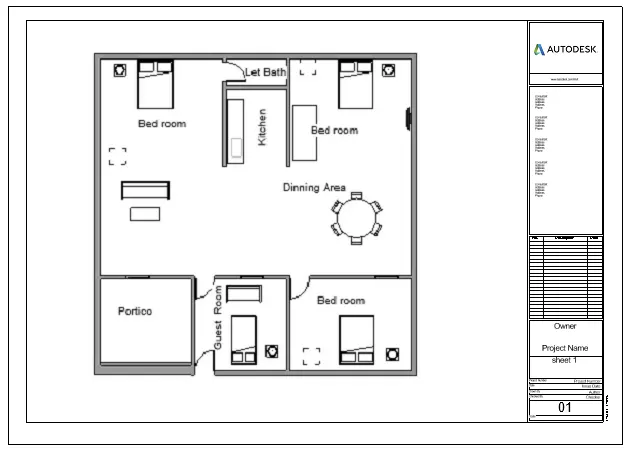

- First we insert the in the sheet template, as shown in the below figure.
