3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

INTRODUTION;

Inorder to create the ceiling and roof for a building using revit software following steps can be followed;

• Ceilling: open revit software--> architecture tab--> Ceiling.
• Roof: open revit software--> architecture tab--> Roof.

architecture plan, structural plan, sectional view ans elevation view can be developed fron the view tab.

• ribbion --> view--> plan views: choose any of the plan like floor plan, structural plan etc.
• Sectional view can be developed as follows.
  View --> create panel --> section--> then we have to mark where the section is to be created.
• Elevation: view --> Create panel --> elevation views.

Camera specifics view necassary for rendering a building created which provides a realastic view for the building. This can be developed from the view tab.

• View ---> 3 view dropdown --> camera. Then place the camera wherever necessary and develop the camera view.

1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

Aim: To create the ceiling above the walls at the first floor level.

Procedure:

• Initially open the week3 assignment from the revit software.
• Then, first let us create a vernadh in ground and first floor as well as, so that roof can be created for the entire structure.
• For the initally go to plan view.

• Then using the floor option create the floor for the verandh portion as given below.

• Now,copy this floor to the level 2 i.e the first level.
• now we have to create a column for the verandah at the ground floor.

• next we have to create the railings for the first floor vernadh.
• for this go to railing options in the architecture tab and create the railings.
• Now we can place the ceiling for this go to architecture tab and choose ceiling.
• ceiling is to be provided in the level 2 for the ground level.

• Hence the ceiling is created in ground and 1st floors.

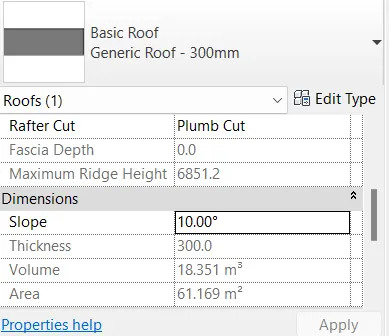

2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

Aim: To Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.

Procedure:

• Inorder ti create the roof, intially go to architecture tab of the ribbon.
• Then choose the roof option from the roof- dropdown choose roof by footprint.

• Then using the pick wall option in the modify tab create the roof boundary.
• Now we have adjust the slope to degree.


• Hence degree slope is created.

3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

Aim: To create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans.

Procedure:

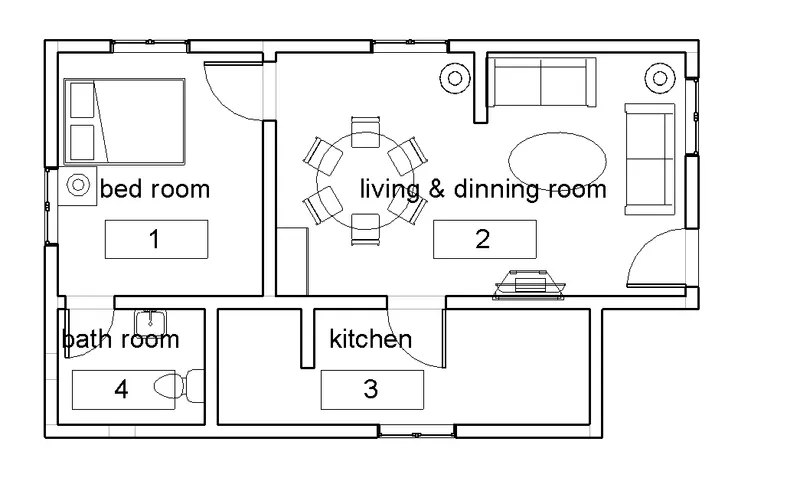

a. Architecture plan:

• Initially go to view tab of the ribbon then select view.

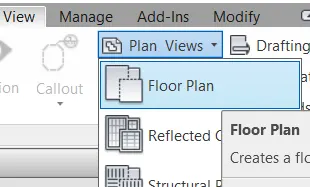

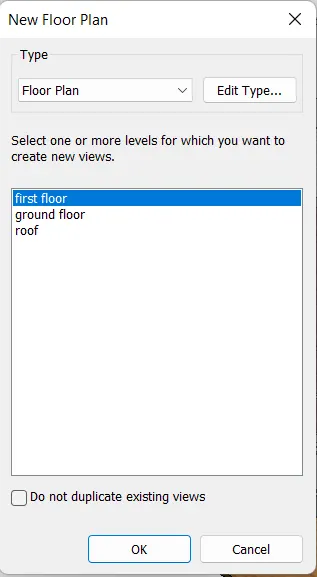

• In the plan views, select floor plan.

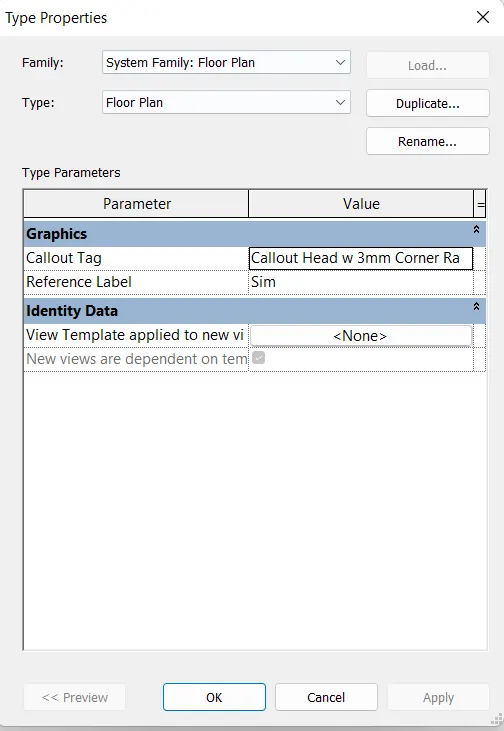

• click level1 and go to edit type.

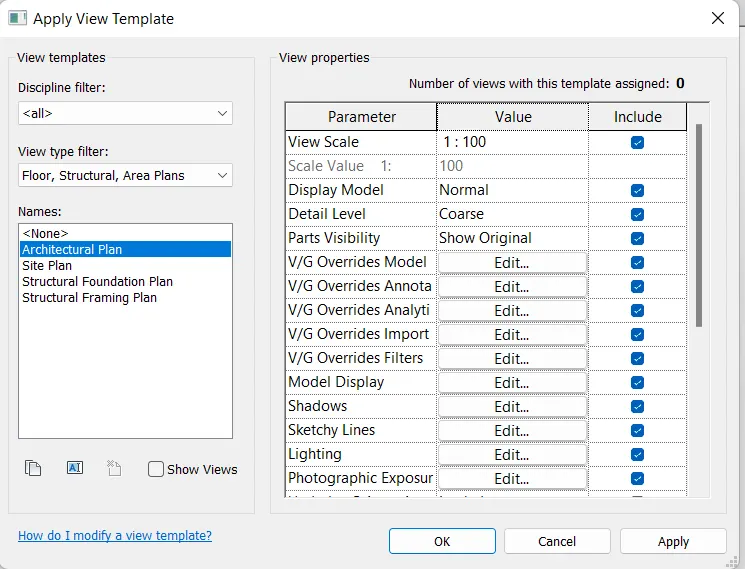

• choose view template applied to new views.

• in that select architectural plan

• Then the floor plan is obtain as follow.

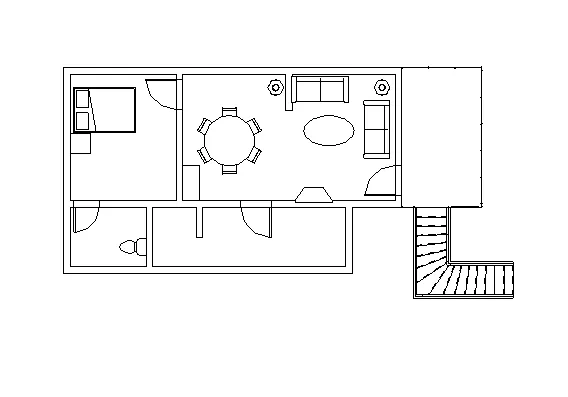

• Ground floor plan

• First floor plan.

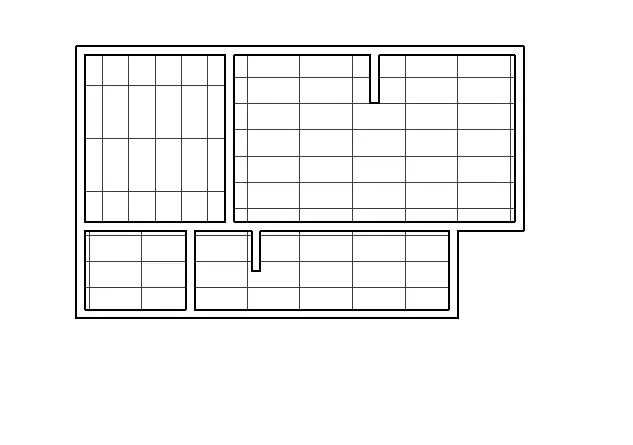

b. Structure plan; For this plan will contain only walls and floors and columns as the structural element and is given as follows.

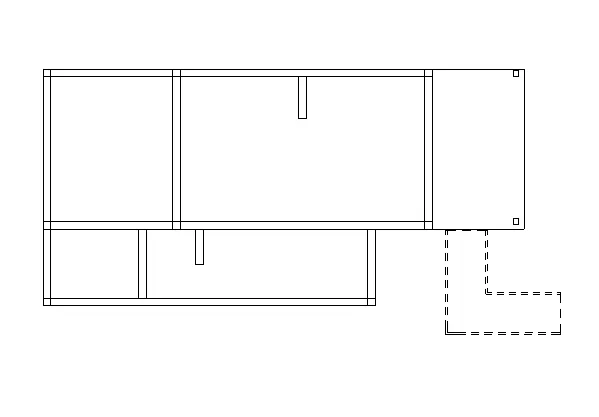

• Ground floor structural plan.

• First floor structural plan

• Hence, structural plan is also developed.

4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Aim: To Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

Procedure:

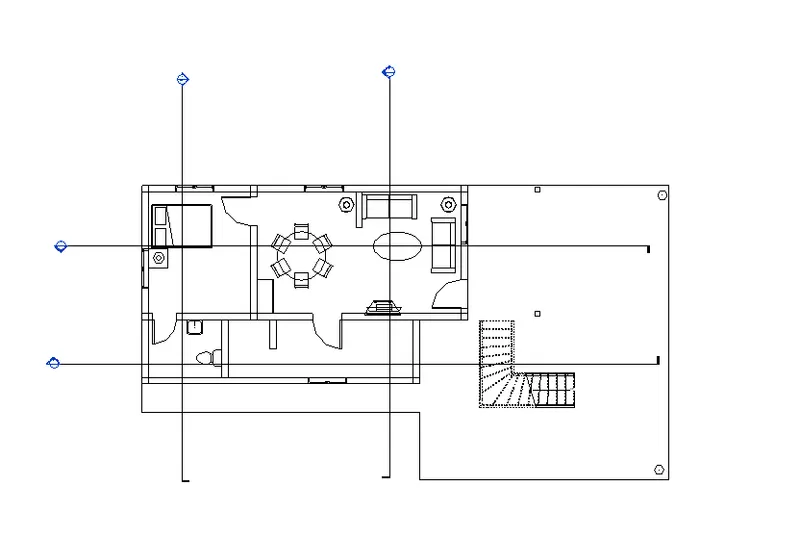

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

• Intially select the floor plan for ground floor.

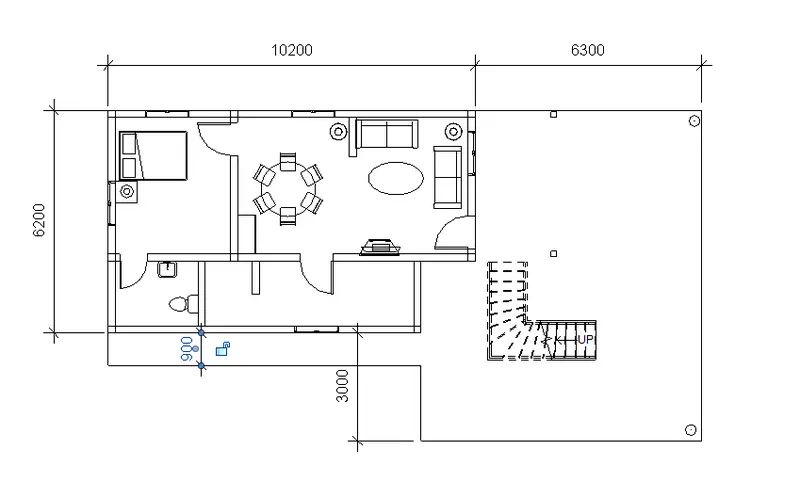

• Go to annotate tab and choose linear dimensions and provide linear dimnensions in the plan.
• Now go to the architectural tab and choosen tag rooms option.
• Then tag the indivual rooms as given below.
• For ground floor.

• For first floor.


b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

• Now we have to create the strutural plan dimnesions accornding to grid lines.
• for this go to structural plan.
• Then go to the architectural tab, selct the grid lines and draw the grids along the walls.
• Ground floor

• First floor.

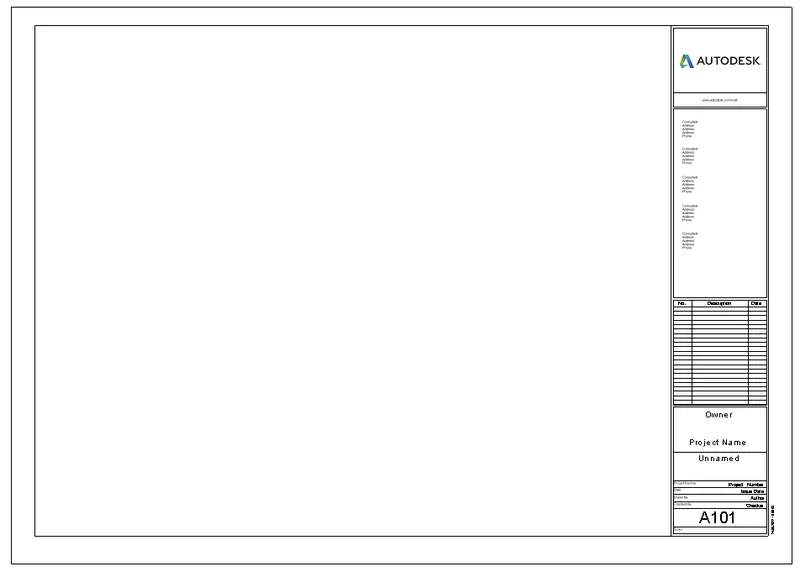

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Aim: To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.

Procedure:

• Intially go to view tab of the panel.

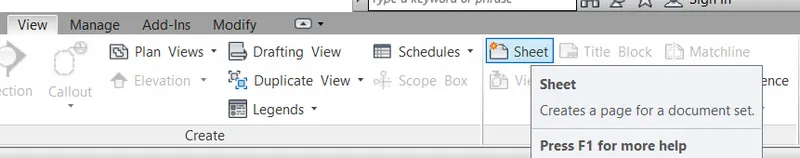

• Choose sheet option in the sheet composition panel of the view tab.


• Click load option more templates.



• Select the template and click ok.
• Now, choose the view that is to be added in the template.
• Add view to the sheet and then adjust the scale so that it fit to the template.

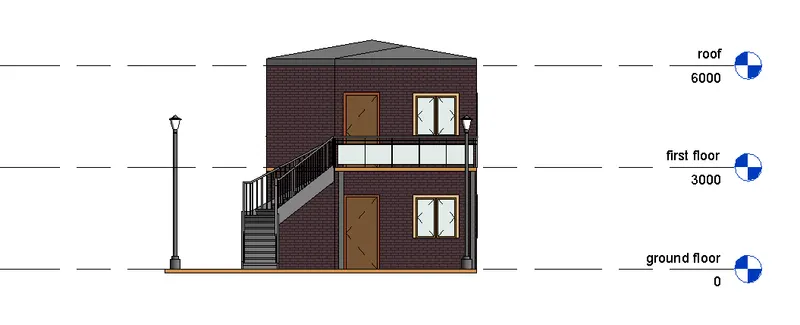

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Aim: To Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Procedure:

• Intially go to view tab of the ribbon.
• Choose elevation view.
• Then create the elevation view--> north, south,east and West.

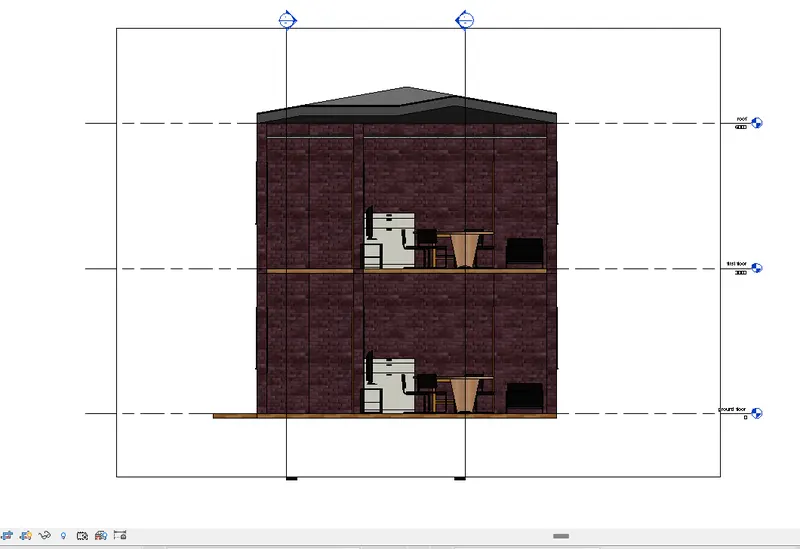

• The elevations views thus obtained are:

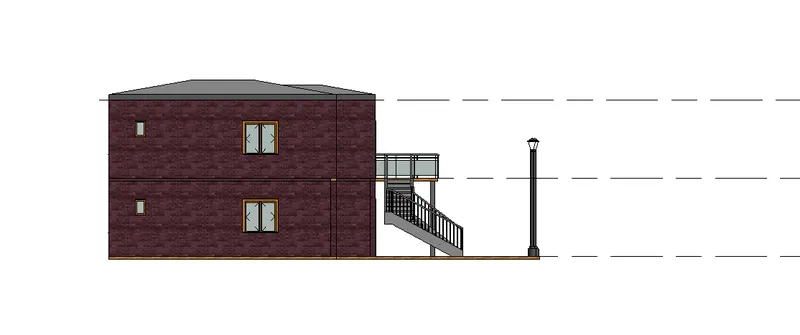

• EAST:

• SOUTH:

• WEST:

• NORTH:


7) Produce section cut through each room either cutting across longitudinally or in a transverse direction

Aim: To produce section cut through each room.

Procedure:

• Go to view tab of the ribbion.
• Select the selection view and then section the required room.

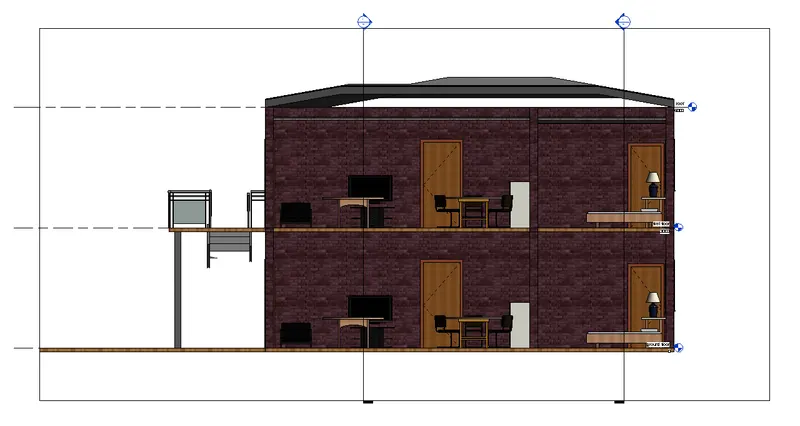

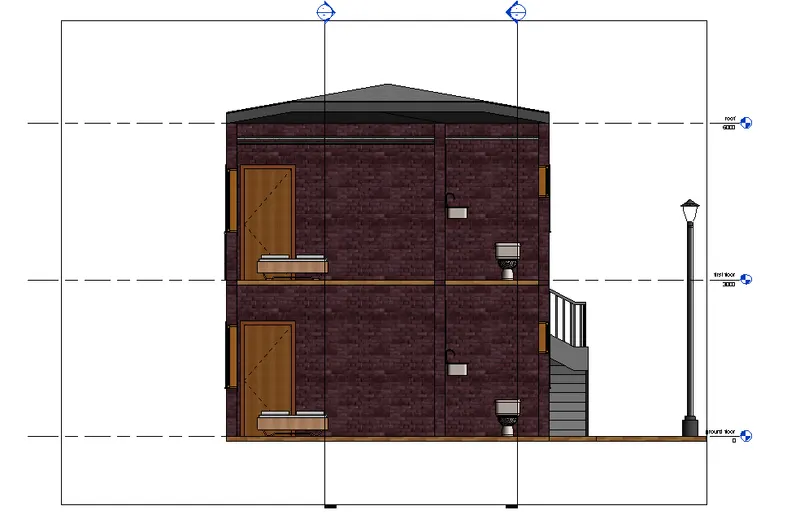

• SECION-1:


• SECTION-2:


• SECTION-3:


• SECTION-4:


• Hence, Four section have been created.

8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

Aim: To Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser.

Procedure:

• Go to view tab of the ribbon.
• Choose property browser.

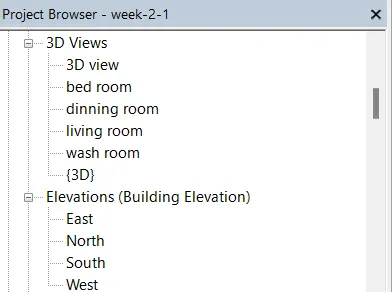

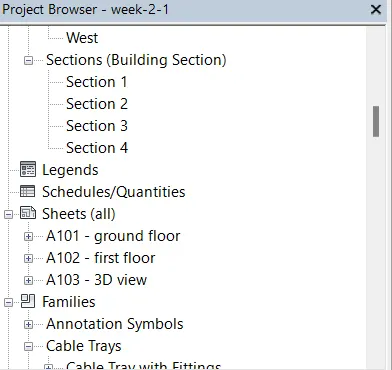

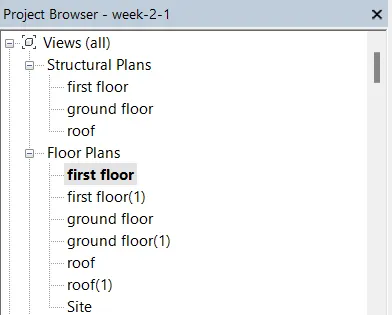

• The following are the different views created.






9) Using the sheet template produced create multiple sheets as follows

Aim: To create sheet template and odd different views in it.

Procedure:

• Go to view tab of the ribbon panel.
• Choose sheet option and load the template required.
• Then add the view in it.

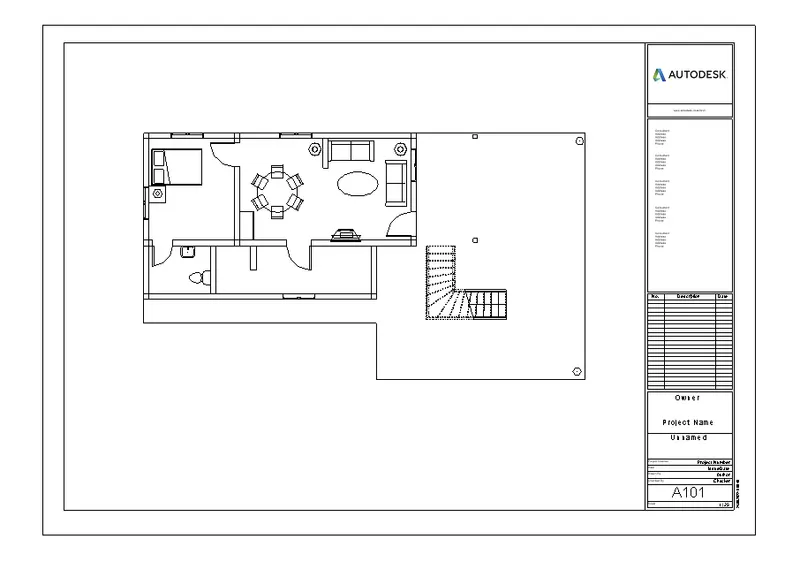

a. A 101- Ground Floor Architecture Plan

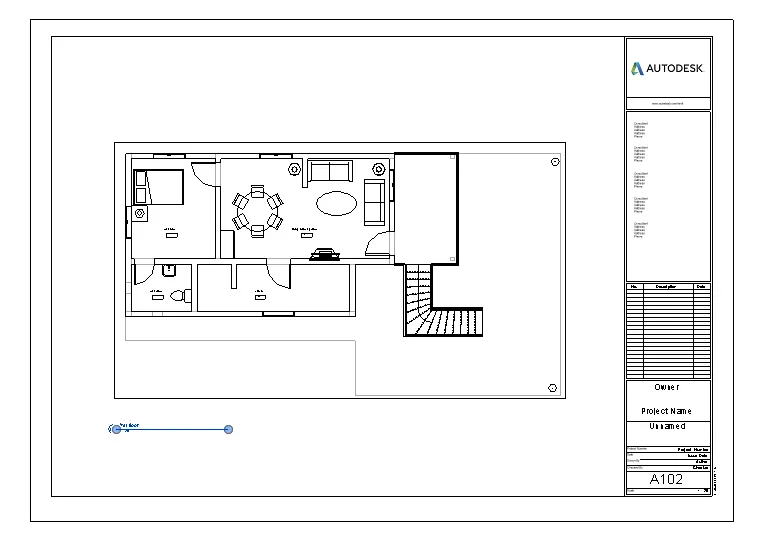

b. A 102- First Floor Architecture Plan

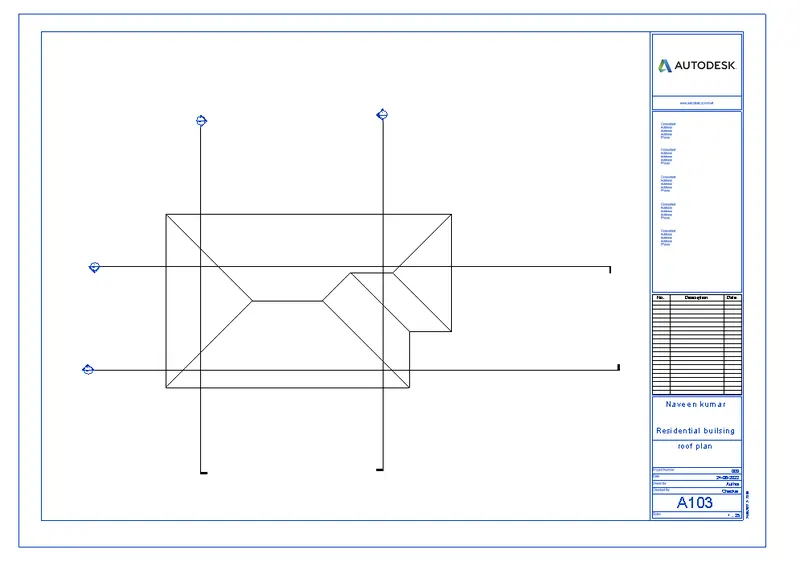

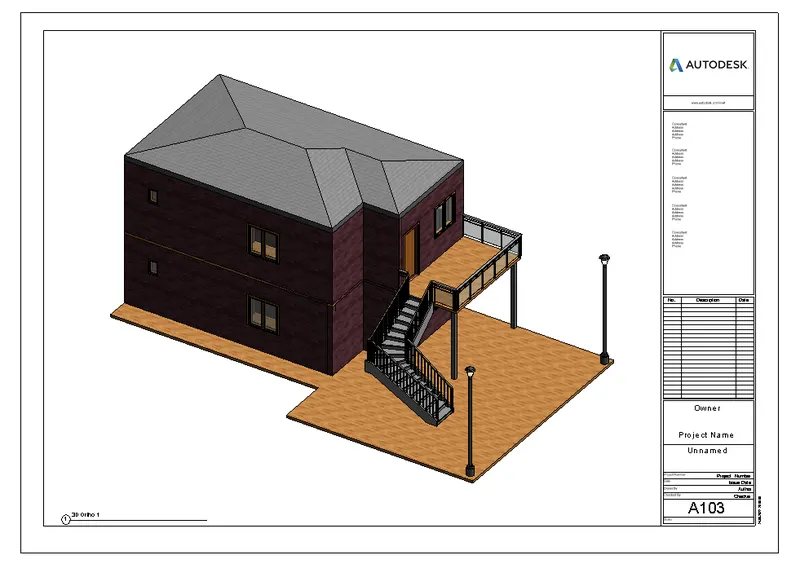

c. A 103- Roof Plan

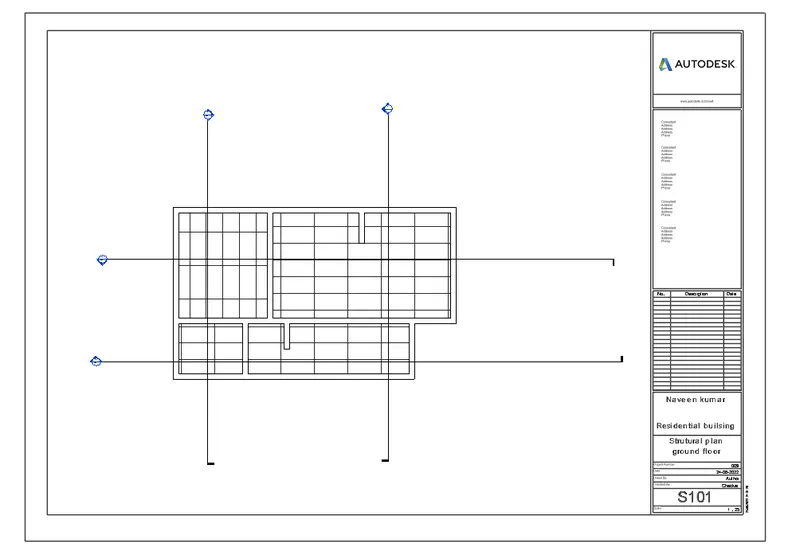

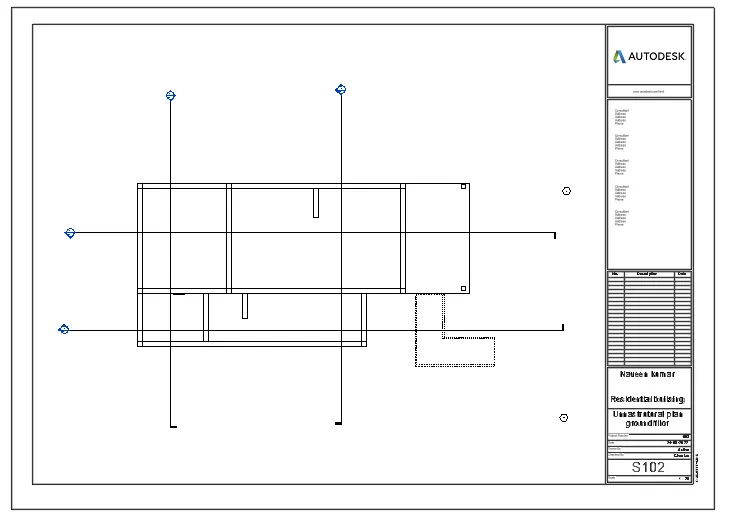

d. S 101- Ground Floor Structural Plan

e. S 102- First Floor Structural Plan

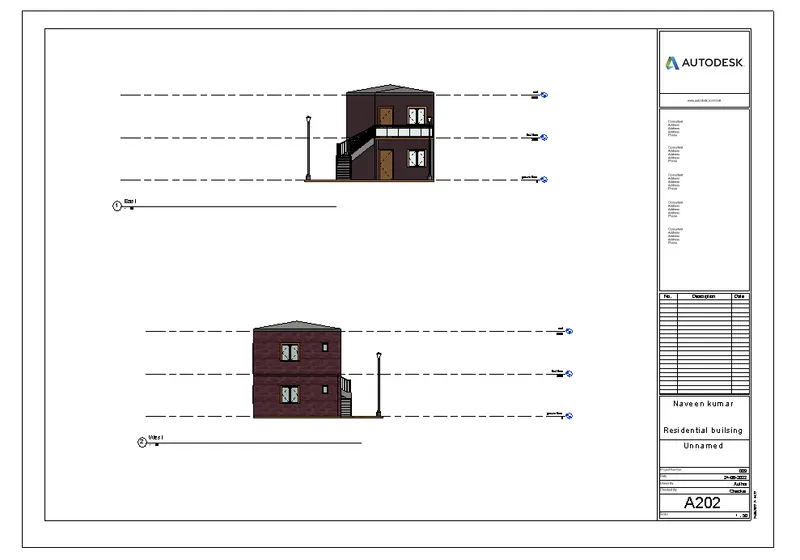

g. A-201- North-South Elevations

h. A-202- East-West Elevations

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Aim: To create a camera-specific view or a 3D view in each room.

Procedure:

• Inorder to create a camera specific view. first go to view tab.
• Then choose 3D drop down and in that choose camera.
• Now place the camera in the plan view at suitable location to obtain the camera view.
• Different camera views are then produced in a temple.

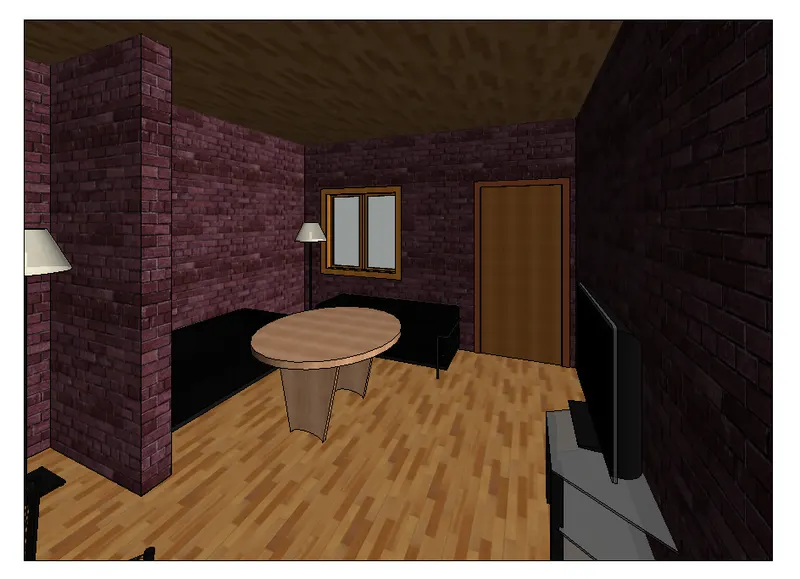

1. Bed room

2.living room

3.Dining room

4.Wash room

All the bed room and toilet views are identical.

• Now we have to create a new set of sheets starting from A501, A502,......

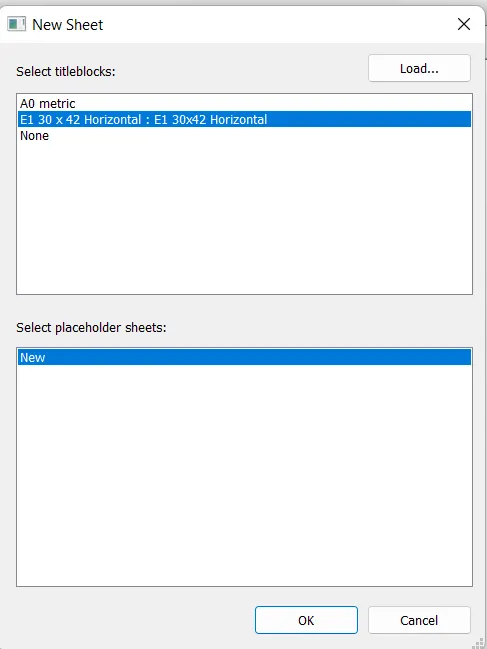

  view-->sheet--> Select the template for the sheet.
• Then we have to include these views to these sheets.
  view--> place A view.

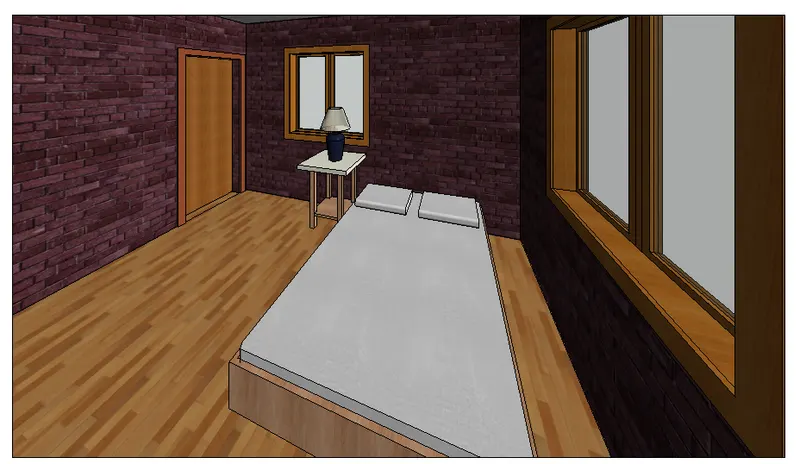

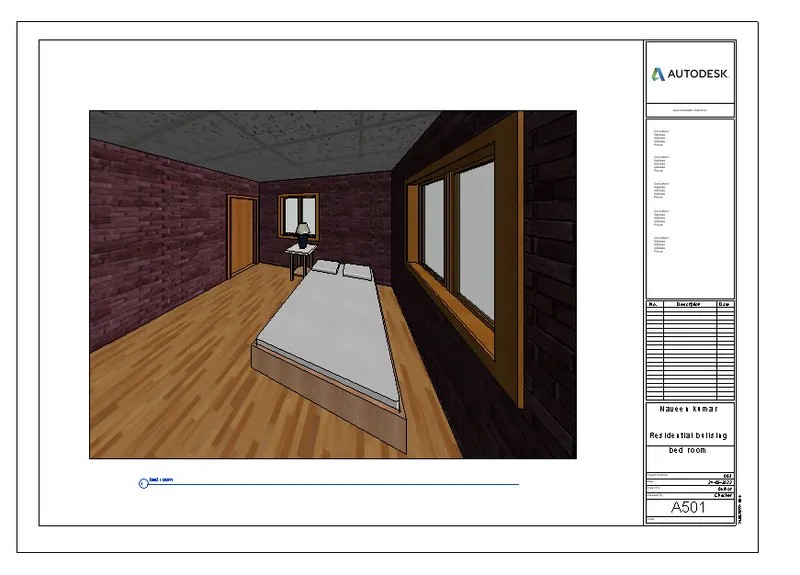

  A501-bed room

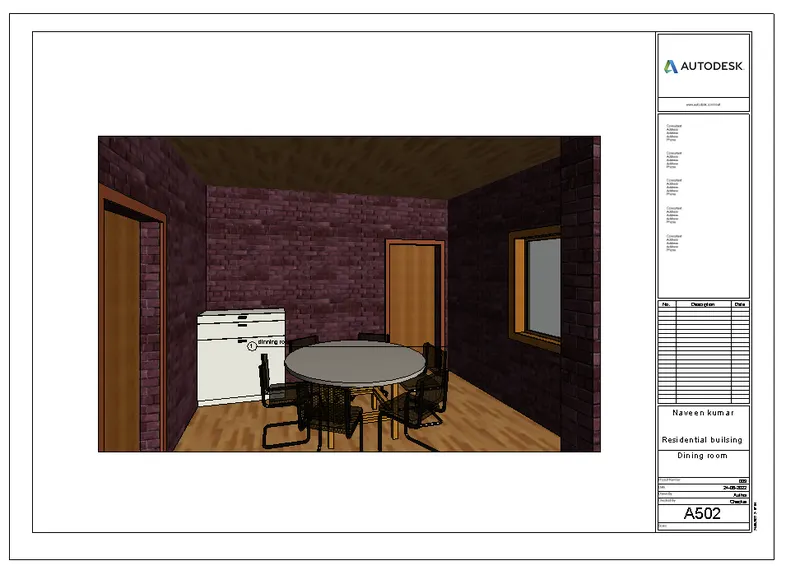

  A502-dining room

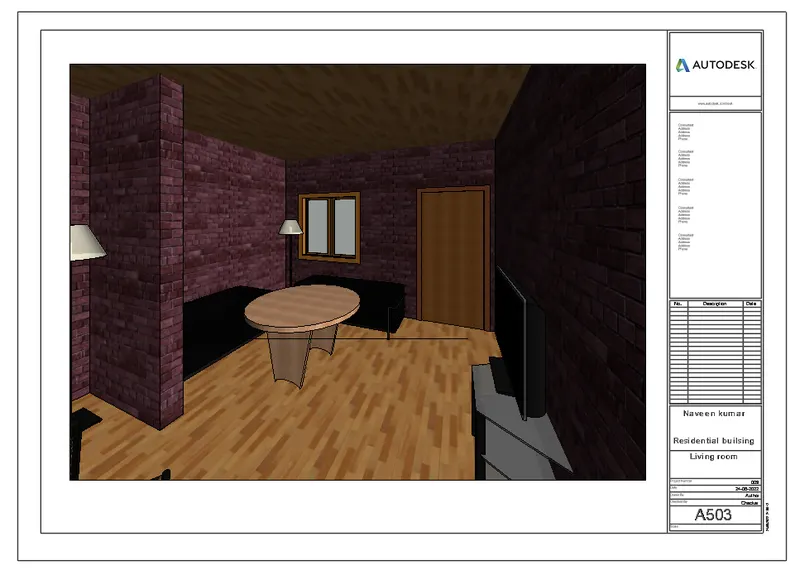

• A503-LIVING ROOM

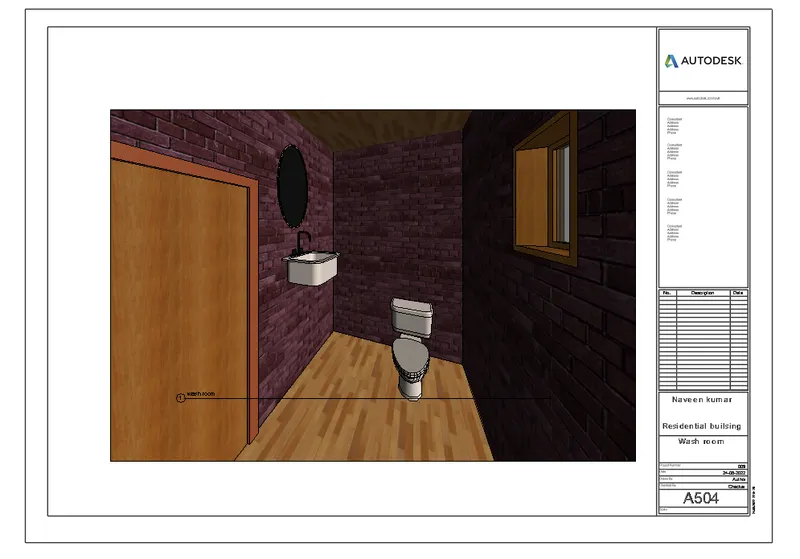

• A504-WASH ROOM:


RESULT:

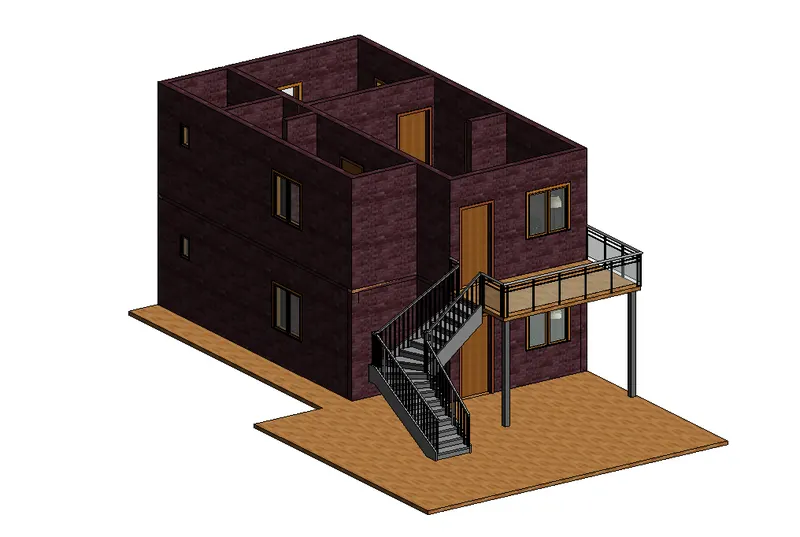

1. The ceiling is created, and is given below:

2.Roof is created is as given below:

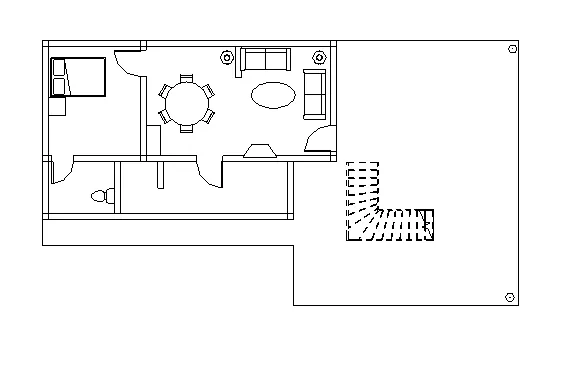

3. Plan viewa are created:

a.articutral plans:

• Ground floor plan

• First floor plan.


b. Structure plan;

• Ground floor structural plan.

• First floor structural plan

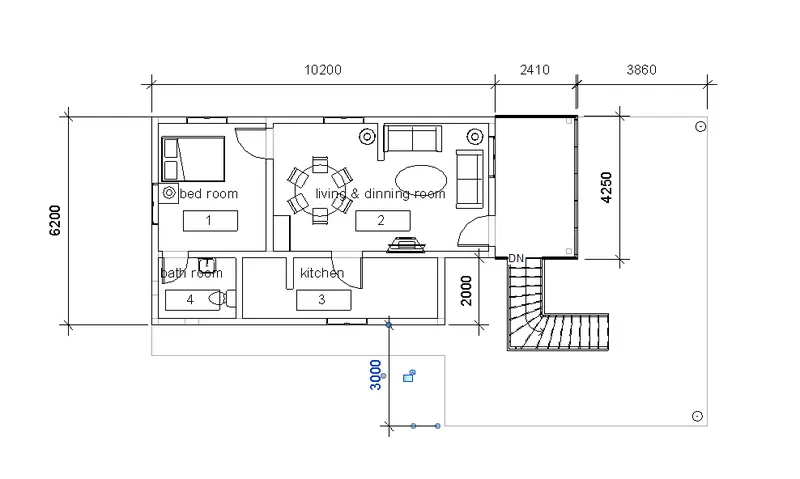

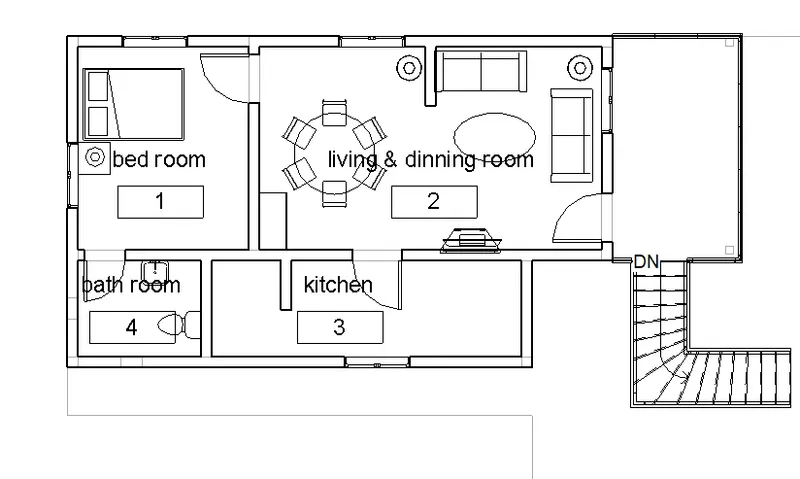

4) a.Architectural plan dimnesions:

• For ground floor.

• For first floor.

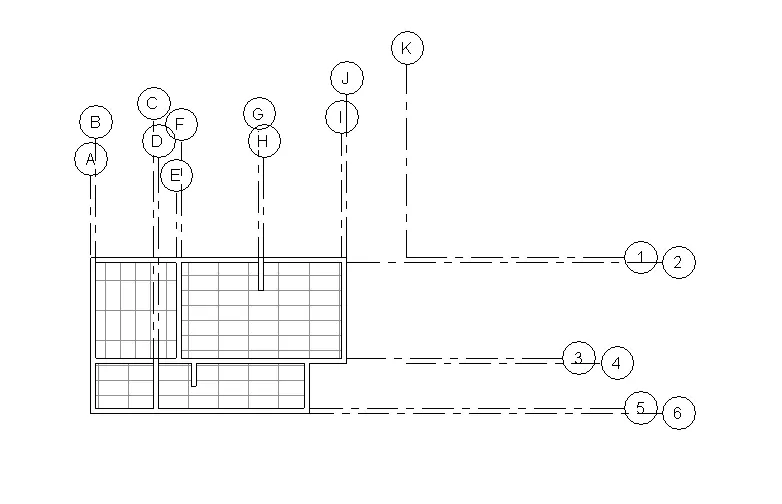

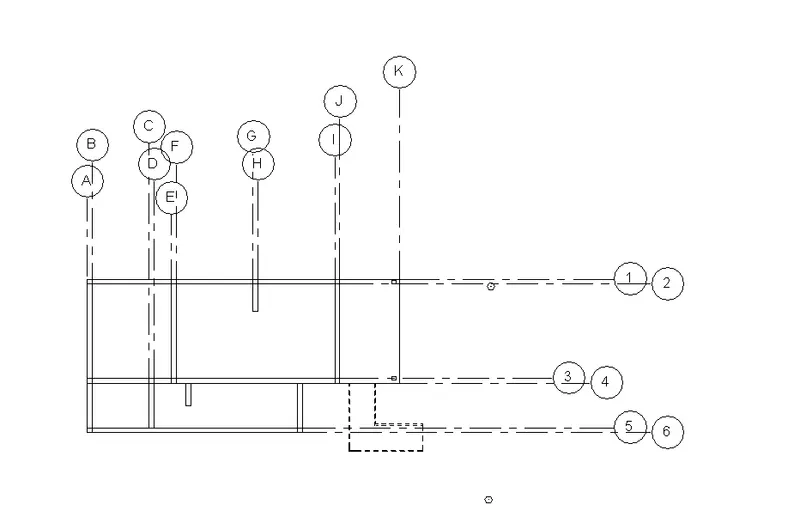

b. The Structure plan grids

• Ground floor

• First floor.


5) These sheets are created follows:

6)Elevations are created as follows:

• EAST:

• SOUTH:

• WEST:

• NORTH:


7) There are 4 sections created and detailing given below:

• SECION-1:


• SECTION-2:


• SECTION-3:


• SECTION-4:



8) Classification is given below:

• The following are the different views created.






9)diffrent sheets created in below:

a. A 101- Ground Floor Architecture Plan

b. A 102- First Floor Architecture Plan

c. A 103- Roof Plan

d. S 101- Ground Floor Structural Plan

e. S 102- First Floor Structural Plan

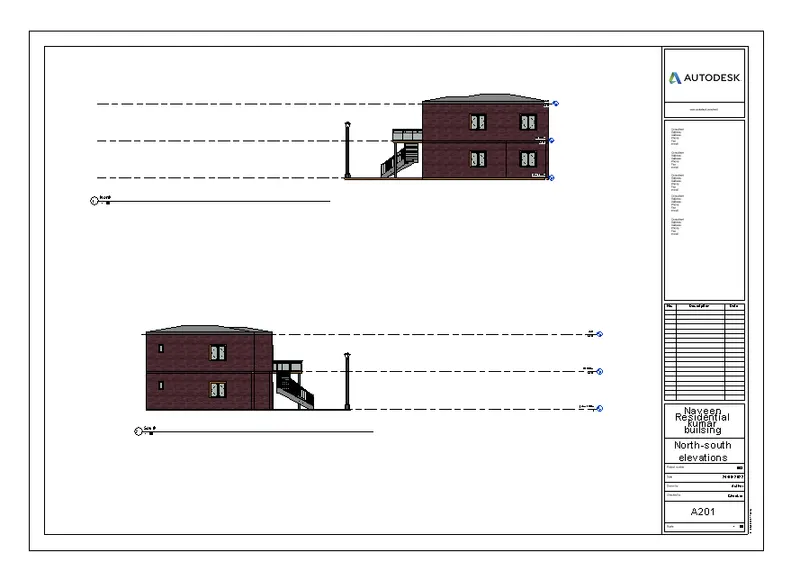

g. A-201- North-South Elevations

h. A-202- East-West Elevations

10)The sheets are created for camera specific 3d views given below:

• A501-bed room


  A502-dining room

• A503-LIVING ROOM

• A504-WASH ROOM:
