3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

• 30 Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and camera specific view for a house plan using REVIT

QUESTION 1

• Based on the project saved from Week 3, proceed from the First Floor Level. Model a Celling from the architecture tab above the walls at the first-floor level

AIM:

• PROVIDE THE CEILLING TO THE RESIDENTIAL UNIT CREATED IN WEEK 3

PROCEDUERE

STEP 1

• first start the revit 2023 software by double clicking on them

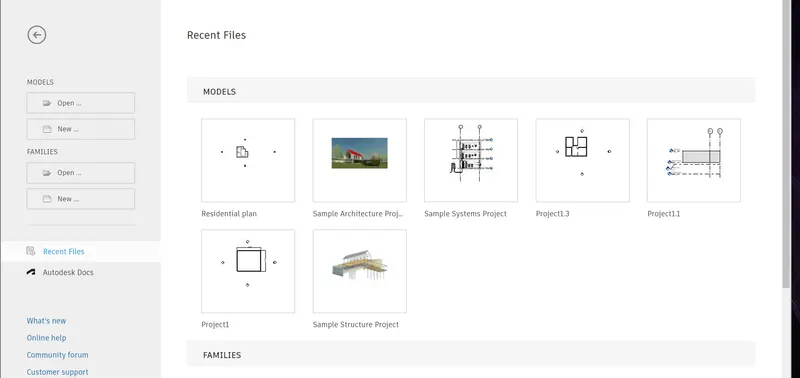

• after that homepage og revit software is open as shown below

• then click on open to open the file
• select the file and open it
• as shown below

STEP 2

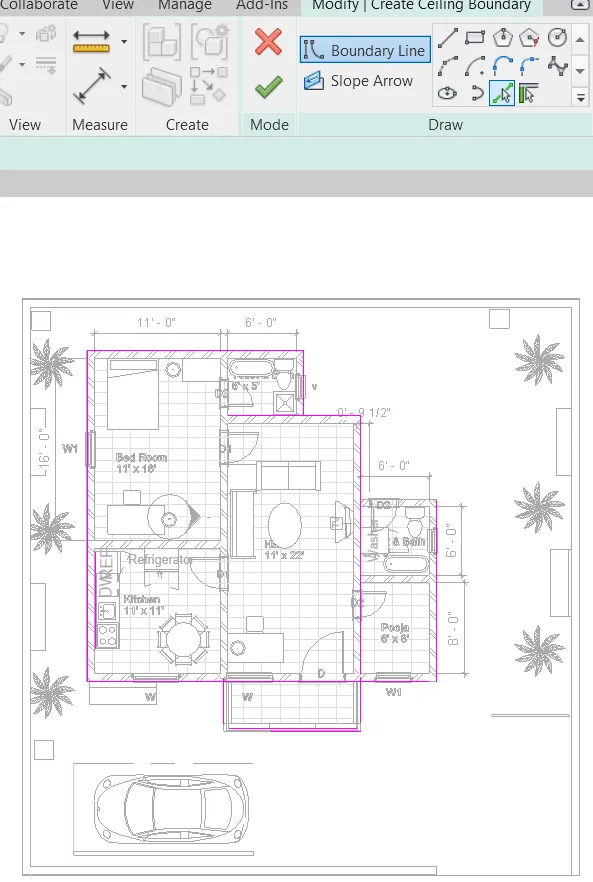

• provide the ceiling
• Go to 1 floor
• go to the archicture tab
• click on ceilling
• then click on sketch celling
• select the pick line option as shown below

• click on MODE option

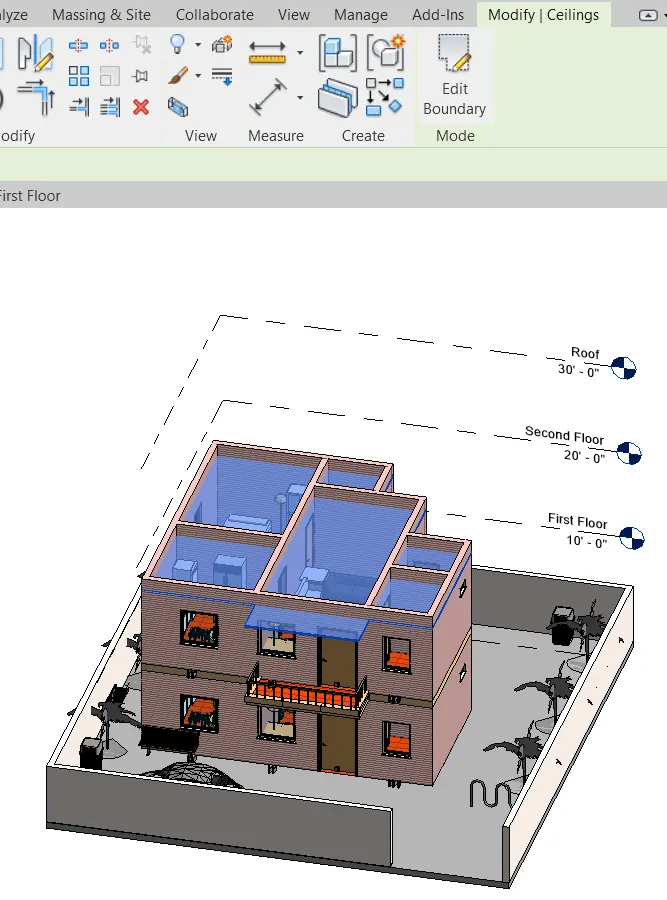

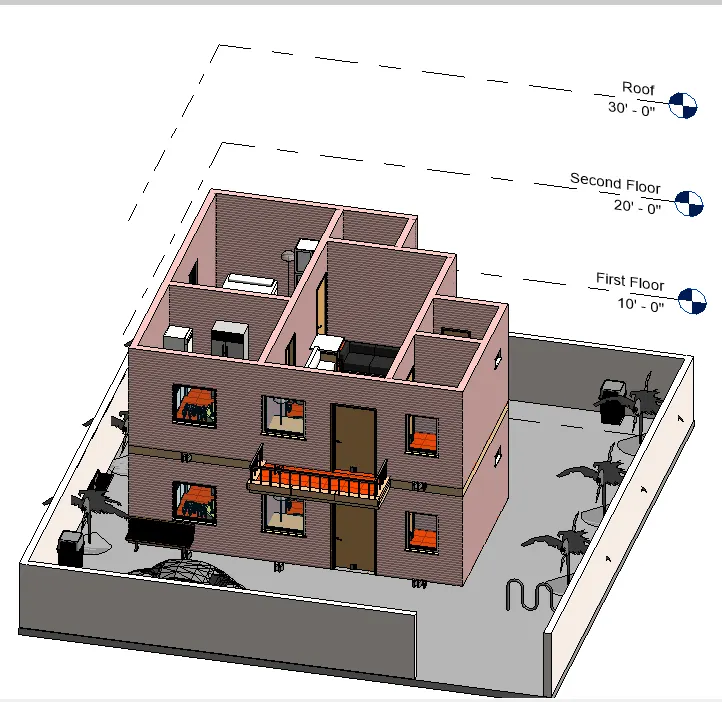

• in this way we provide ceilling to the residential model

RESULTS:

QUESTION 2

• Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

AIM:

• PROVIDE THE ROOF ABOVE CEILLING BY SELECTING THE FOOTPRIENT OF THE CEILLING

PROCEDURE:

STEP 1

• start the revit software
• then homepage is open as shown below

• click on open
• select the file and open it

STEP 2

• then to to the orchicture tab
• click on rool

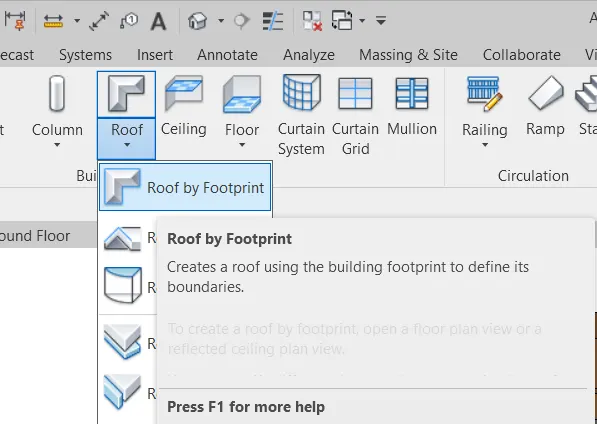

• select the root by footprient option
• then selet the pickline option
• then click on modo

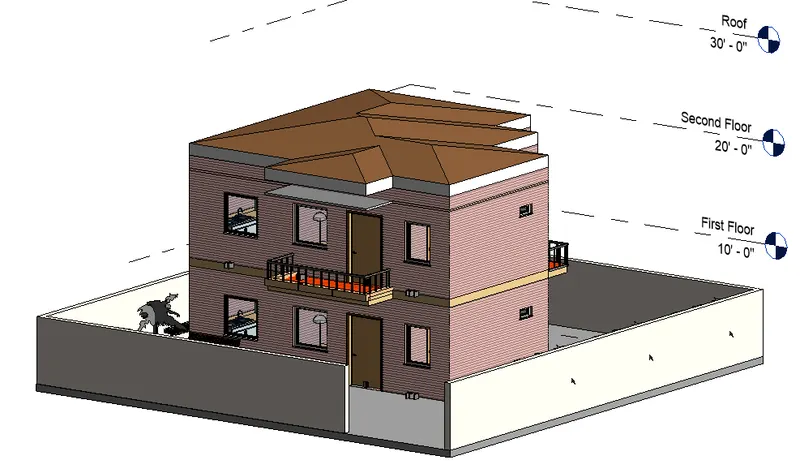

• the roof is created as show below

then select the roof

• go to the properties broswer

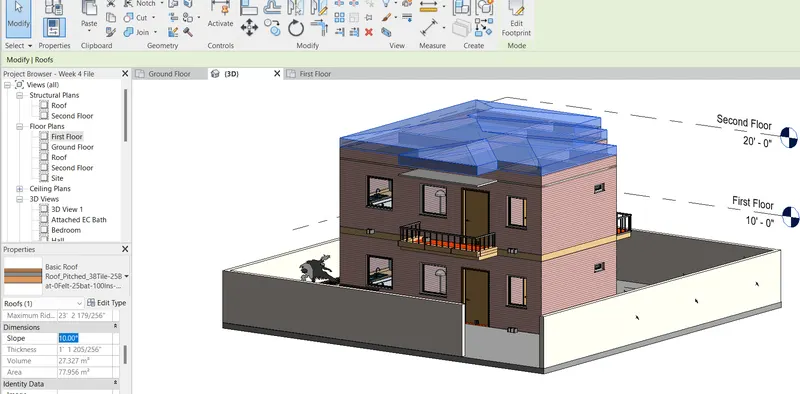

• give the stope value os 10 degree

• click on apply
• the slope of roof is changed as 10 degree

STEP 3

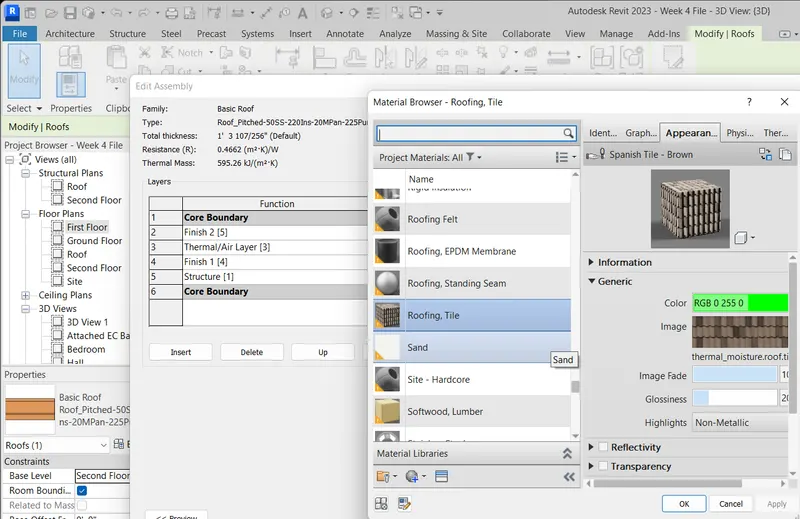

• change the material of the roof
• select the roof
• go to the properties broswer
• click on edit
• select the structure as roof tile

• click ok
• then apply
• the matorial of the roof is changed

RESULTS:

QUESTION 3

• Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans

• a. Architecture plan must have walls, floors, and all the components placed within the building
• b. Structure plan must have details of only waills, floors, and columns

AIM

• CREATE THE ARCHICTURAL AND STRUCTURAL PLAN PROCEDURE

STEP 1

• stort the revit software
• then homepage of revit software is operi as shown below

• then click on open
• select the le which is atrody created in week 3
• select the file and open it

STEP 2

ARCHITECTURAL PLAN

• for the archictural plan go to the properties brower
• then click on ground floor plan
• in that architectural plan include the details about furniture wall elements
• shown below

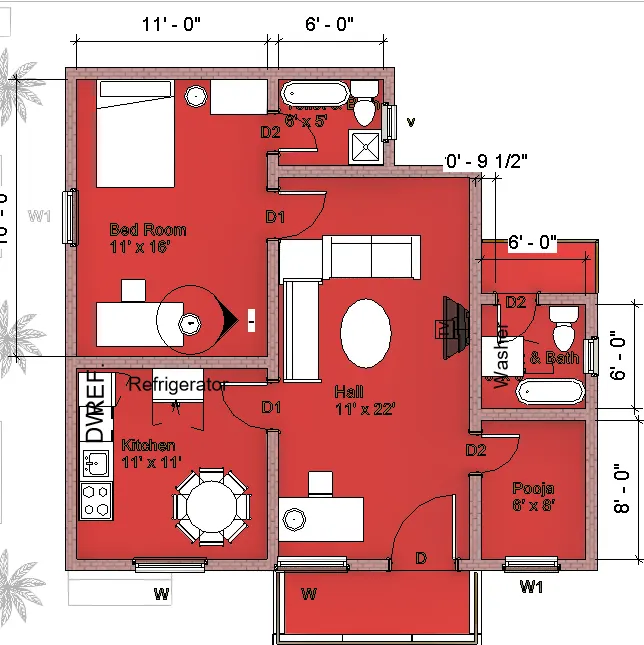

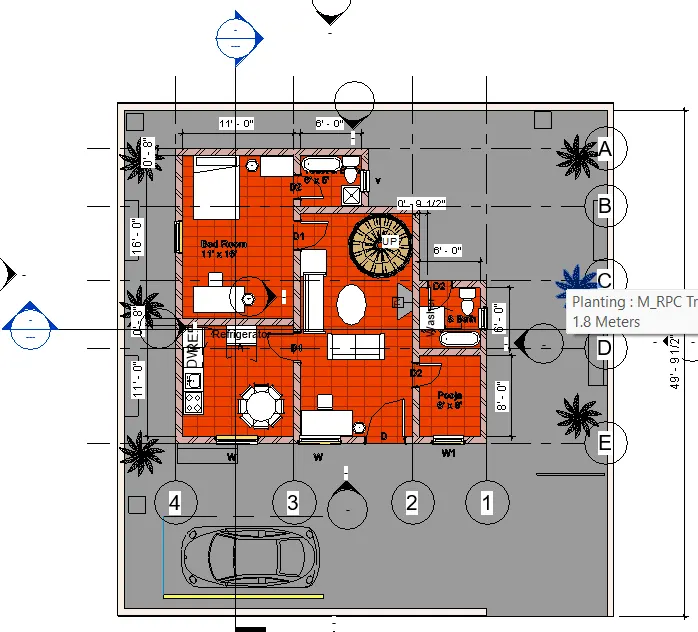

GROUND FLOOR PLAN

• simlerly again go to the properties broswer
• click on first floor plan

FIRST FLOOR PLAN:

STRUCTURAL PLAN:

• in that structural plan containt wat element column and beam elements et
• to the structural plan
• click on vlow action
• selet the structural view
• the structural view of the residential unit is shown below

STRUCTURAL VIEW:

RESULTS:

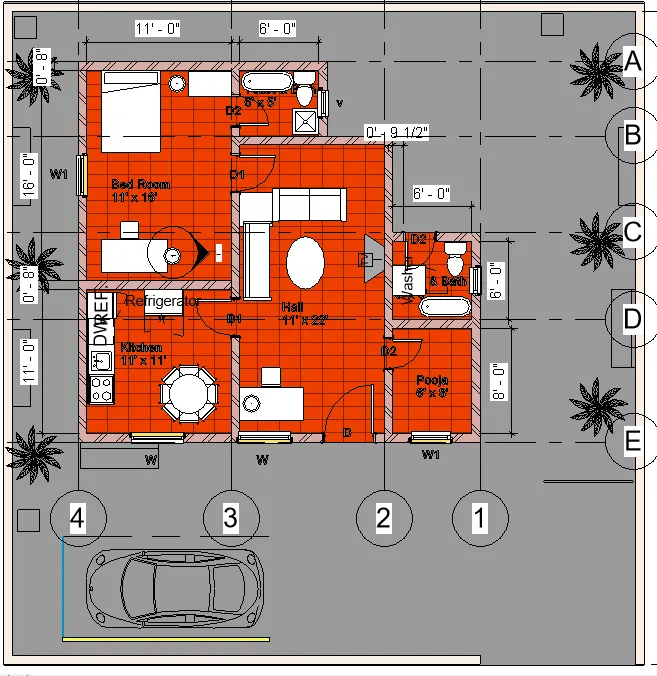

1. ARCHICTURAL PLAN (GROUND FLOOE PLAN)



ARCHICTURAL PLAN (FIRST FOOR PLAN)

STRUCTURAL PLAN: ( GROUND FLOOR PLAN)



STRUCTURAL PLAN: ( FIRST FLOOR PLAN)

QUESTION 4

• Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grido. Locate all the framing components of the building with reference to a fixed point using Structural plans

AIM:

• GIVE THE DIMENSION TO THE STRUCTURAL AND ARCHICTURAL PLAN BY USING ANOTATION TOOLBAR: .

PROCEDURE:

STEP 1

• start the revit software
• then homepage of revit software is open as shown below



• then click on open oftion
• select the file
• and open it

STEP 2

• go to the properties broswer
• click on ground floor plan
• click on anotation tab in the ribbon
• select the inner oftion to give the dimension
• type the UN for units
• select the length dimension unit as foot and imperical inches
• then given dimension shown below



STRUCTURAL PLAN:

• go to the properties broswer
• click on structural plan
• then click on annotation tob in the ribbon
• then select the inner option
• and give the dimension os shown below

RESULT :

QUESTION 5

• Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

AIM:

CREATE THE SHEET TEMPLET AND ADD VIEWS IT

PROCEDURES

STEP 1

• Start Revit Software
• then homepage of revit is opered as shown below

• then click on OPEN option
• select the line and open it

STEP 2

• click on view octon in ribbon
• then click on sheer option
• select the sheet templet

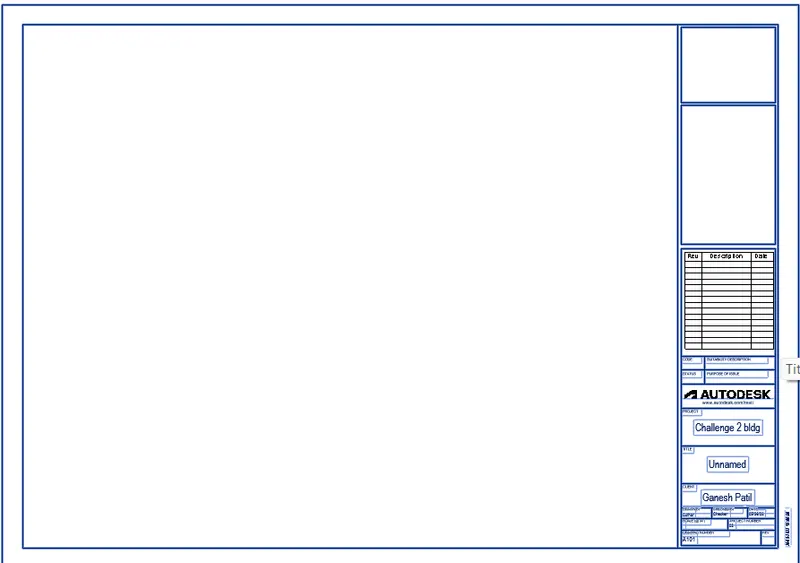

• and then click on ok sheet templet shown below

• then go to manage tab

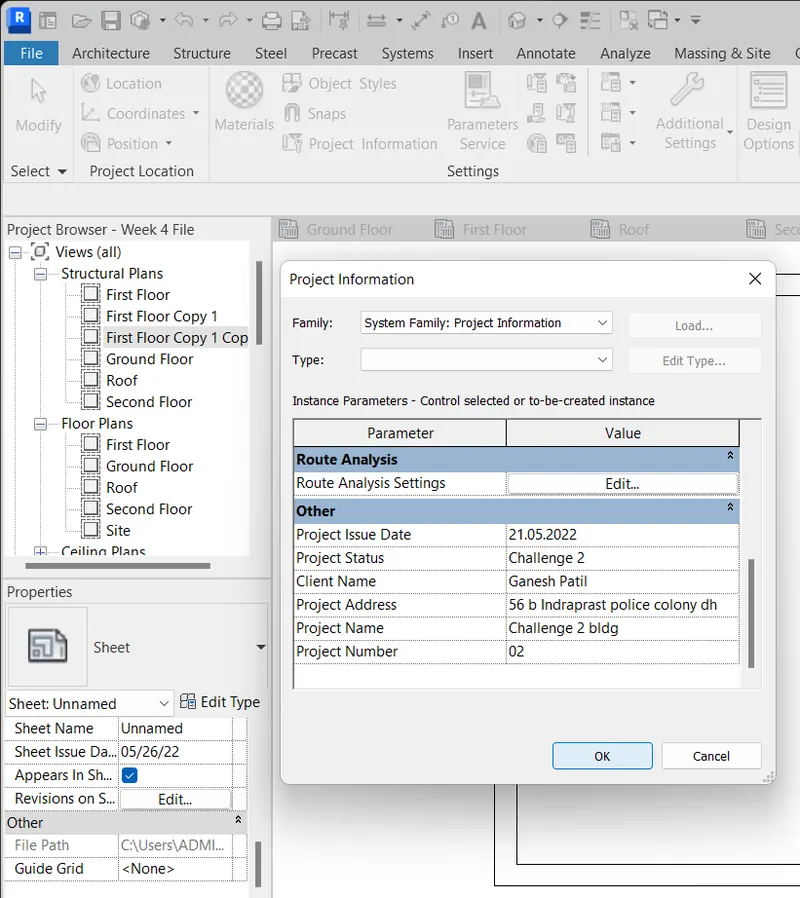

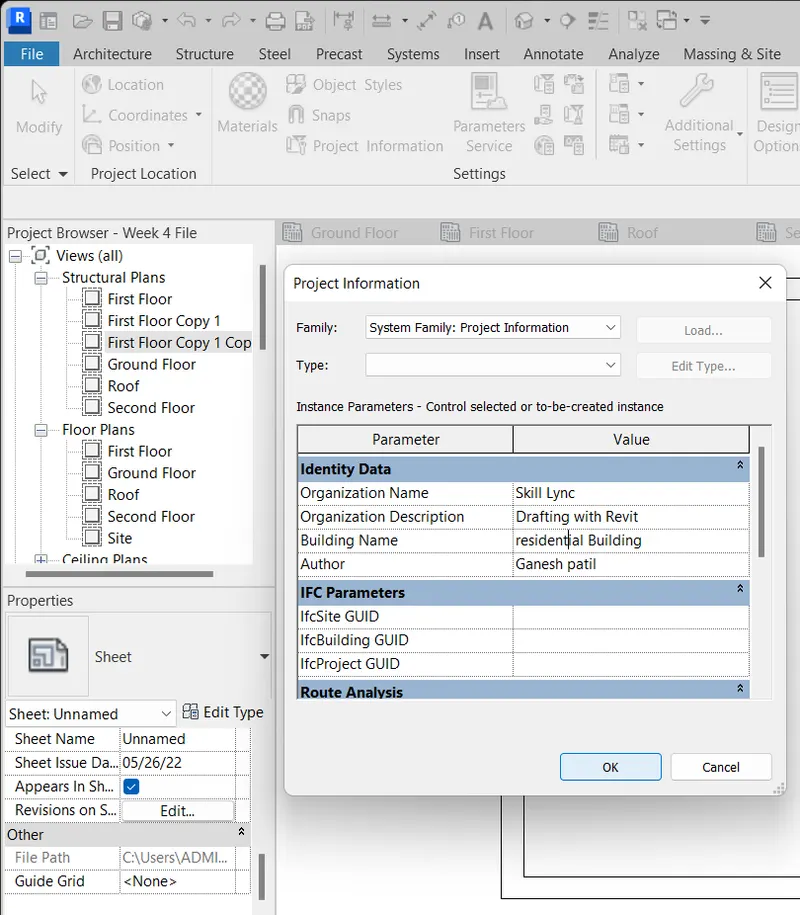

• click on project information
• til the at internation as shown below

• Click ok
• then go to the properties broswer
• right click on sheet option
• one dialogbax is pan
• Select rename option from that dialogbox

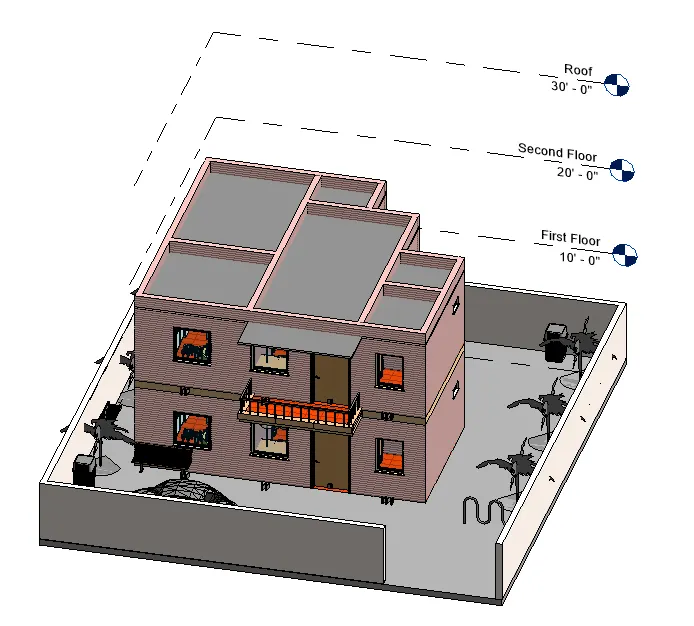

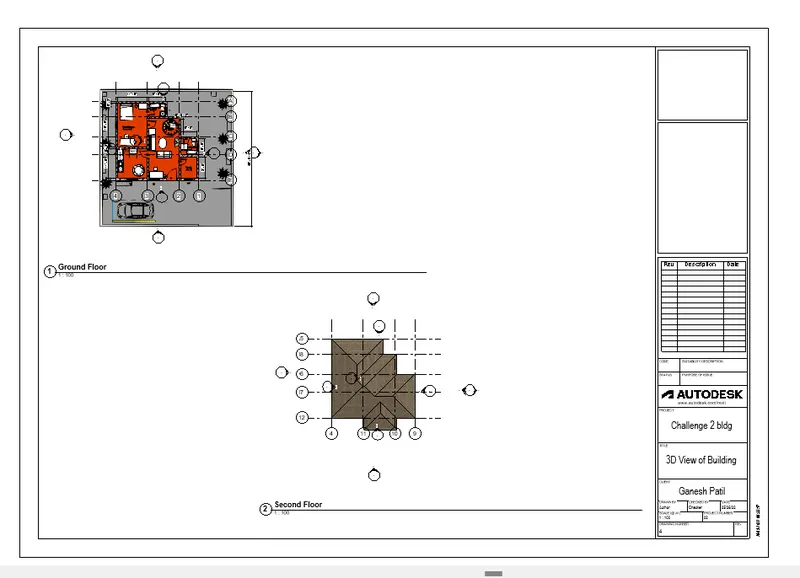

• and give the name as 30 VIEW OF BUILDING
• click ok
• then go to the properties broswer
• click on 3d view
• select the view and mag it to the sheer as shown below

• again go to the view tab
• click on sheet
• select the templet and click ok
• do same process and create another sheet
• give the sheet nome on 30 VIEW OF BUILDING
• sheet shown below

• then create another sheet name as GROUND AND FIRST FLOOR PLAN
• Shown below



RESULTS:

SHEET 1



SHEET 2



SHEET 3

QUESTION 6

• Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

AIM:

• CREATE THE ELEVATION VIEW LOOKING AT THE BUILDING FROM EAST, NORTH, SOUTH AND WEST

PROCEDURE:

STEP 1

• start the revit software
• then homepage of revit is opend as shown below



• then click on open
• select the file and open it

STEP 2

• create the elevation
• go to the view tab in ribbon

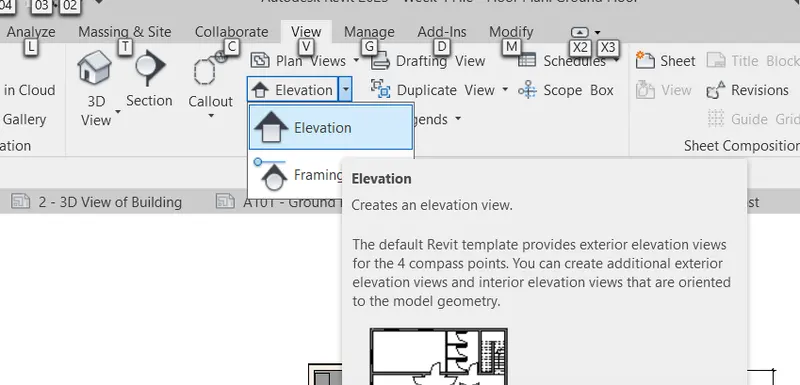

• then click on elevation

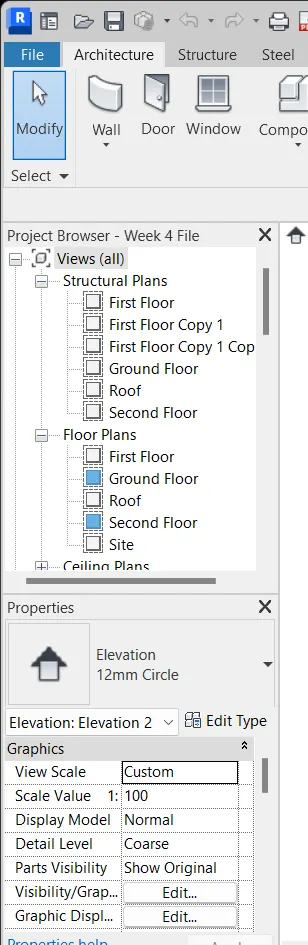

• then go to the properties broswer

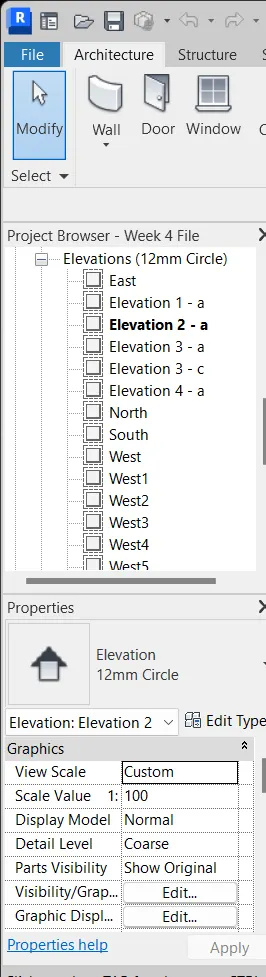

• right click on elevation view created and rename it as per direction
• then couble click on EAST view

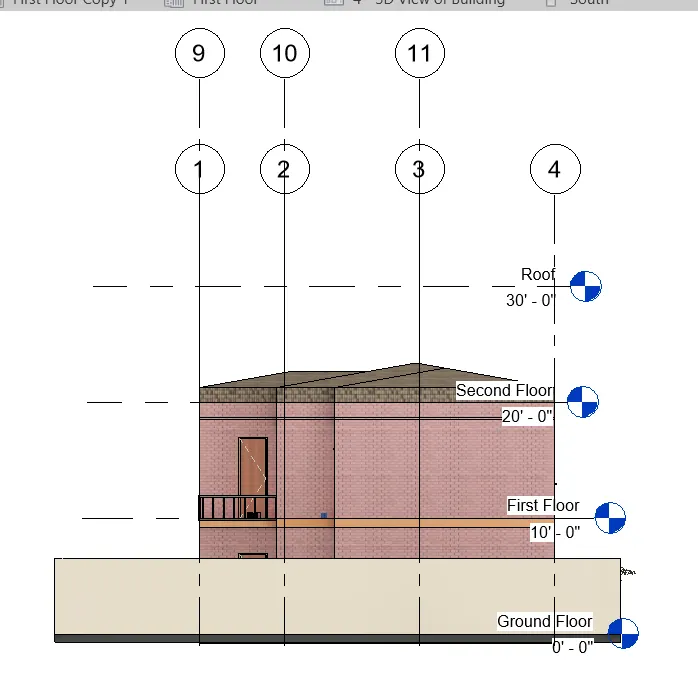

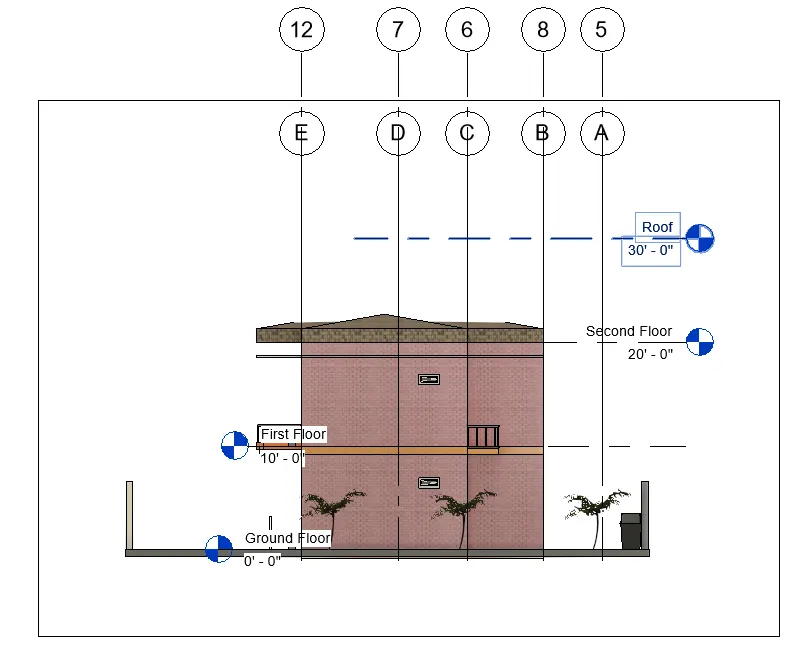

• East view shown below

• then go to the properties broswer
• double click on NORTH side

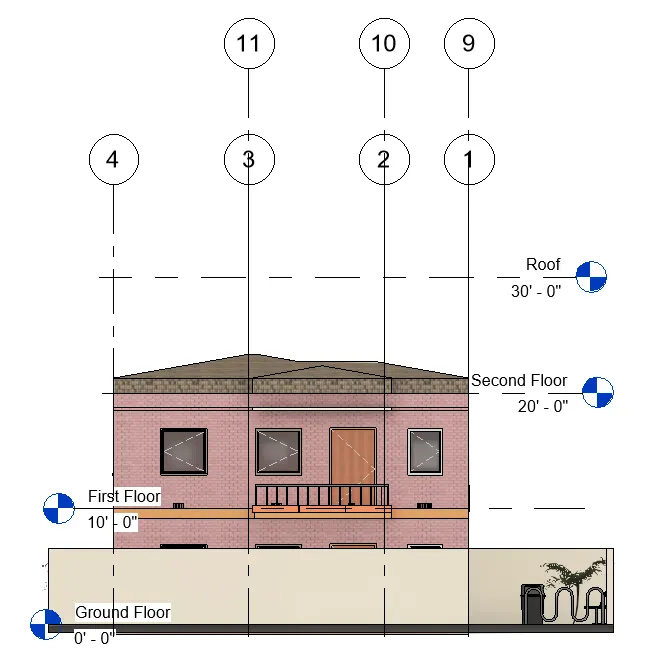

• the view shown below



• then again go to the properties broswer
• double click on SOUTH side
• the view shown below





RESULTS :

EAST SIDE

NORTH SIDE

SOUTH SIDE

QUESTION 7

• Produce section cut through each room either cutting across longitudinally or in a transverse direction

AIM:

• TO CREATE THE SECTION VIEW OF BUILDING:

PROCEDURE:

STEP 1

• Start the revit software
• then homepage of revit software is open as shown below

• then click on OPEN option
• select the file and open it

STEP 2

• go to the view option
• then click on SECTION option
• provide the section line shown below



• then go to the properties broswer
• where different rooms section view is created
• then right click on each section and rename it as section 1

• again go to the properties broswer
• right click on section and rename it as section 2

RESULTS :

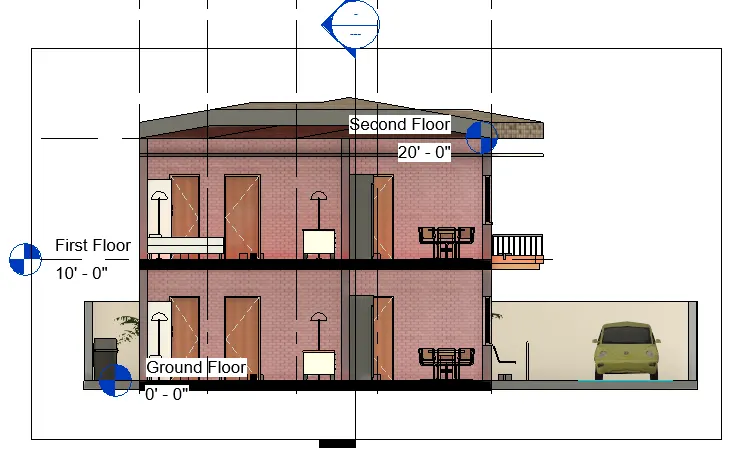

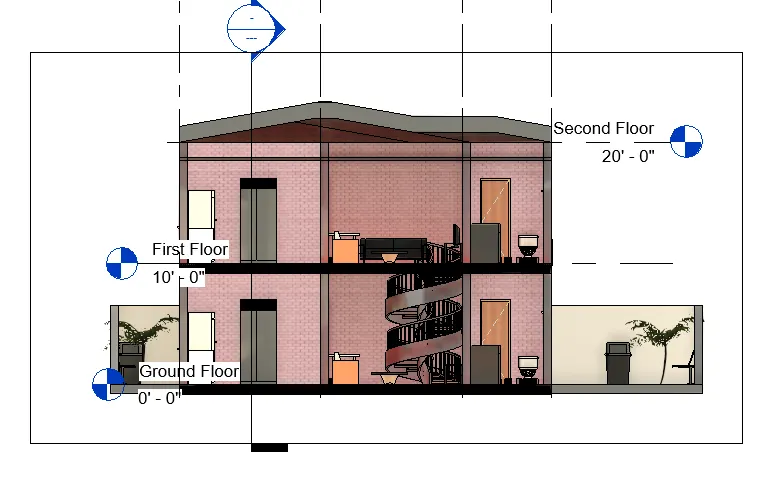

 SECTION 1





 SECTION 2

QUESTION 8

• Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

AIM:

• CLASSIFY THE VIEWS AS PLAN VIEW, SECTION AND ELEVATION VIEW USING PROPERTIES BROSWER:

PROCEDURE:

STEP 1

• start the revit software
• then homepage of revit is open as shown below

• then click on open option
• select the file and open it

STEP 2

• Go to the properties broswer.

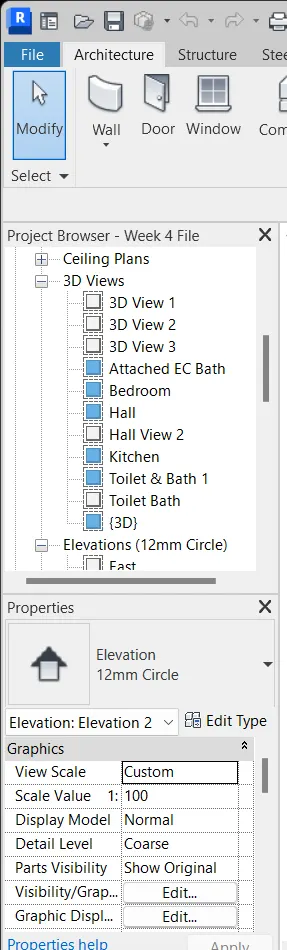

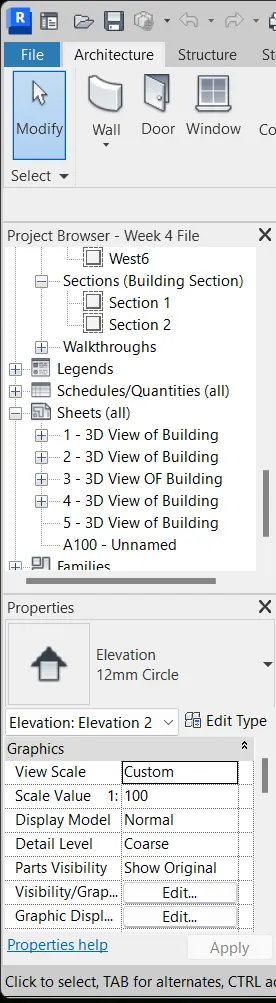

• where all views are created list is available as shown below



STEP 3

• for the floor plan
• go to the properties Browser
• double click on ground floor plan
• floor plan is open as shown below

• Then click on section view
• section view is open as shown below

• then double click on elevation
• click on east side
• east side view in open



• then double click on section view
• select the section by double clicking on them
• section view is open



 RESULTS

Plan View : (GROUND FLOOR VIEW )



Elevation

East View:

North View :

South View :

SECTION VIEW

Section 1:

Section 2:

QUESTION 9

• Using the sheet template produced create multiple sheets as follows

• a. A 101-Ground Floor Architecture Plan
• b. A 102- First Floor Architecture Plan
• c. A 103- Roof Plan
• d. S 101- Ground Floor Structural Plan
• e. S 102- First Floor Structural Plan
• f.  S 103- Roof Framing Plan
• g. A-201-North-South Elevations.
• h. A-202-East-West Elevations

Add additional sheets based on the sections created in your Revit file

AIM:

• CREATE THE SHEET AND DRAG THE DIFFERENT VIEWS

PROCEDURE:

STEP 1

• Start the revit software
• then homepage of revit is opend as shown below

• then click on OPEN option
• select the file and open it

STEP 2

• create the sheet
• click on view option
• click on sheet
• select the templet file.
• cilck ok
• then sheet is created as shown below

• go to the properties broswer
• right click on created sheet.
• and rename it as  A101 - GROUND FLOOR ARCHICTURAL PLAN



• then go to the view tab
• click on ground floor plan
• and drag it into the sheet
• shown in below



STEP 3

• again go to view tab
• click on sheet option
• selct the templet
• and click ok
• then go to the properties broswer
• right click on sheet
• and rename it as FIRST FLOOR ARCHICTURAL PLAN.
• go to the properties broswer
• select the first floor plan
• and drag it into the sheet as shown below.



 RESULTS:

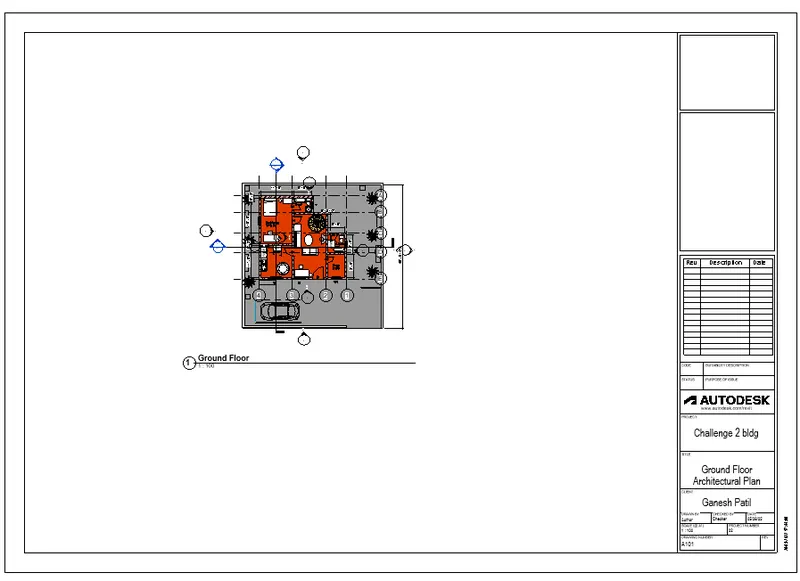

A101-GROUND FLOOR ARCHITECTURAL PLAN

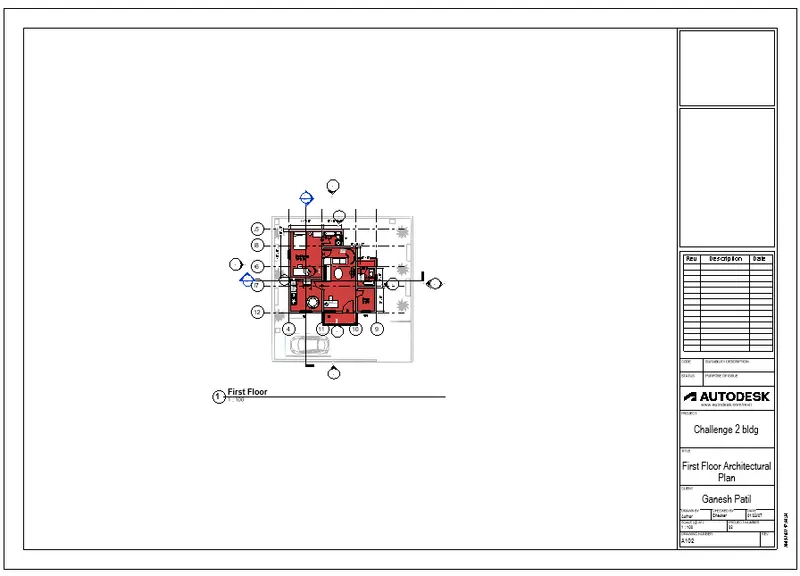

A102- FIRST FLOOR ARCHITECTURAL PLAN

A103- ROOF PLAN

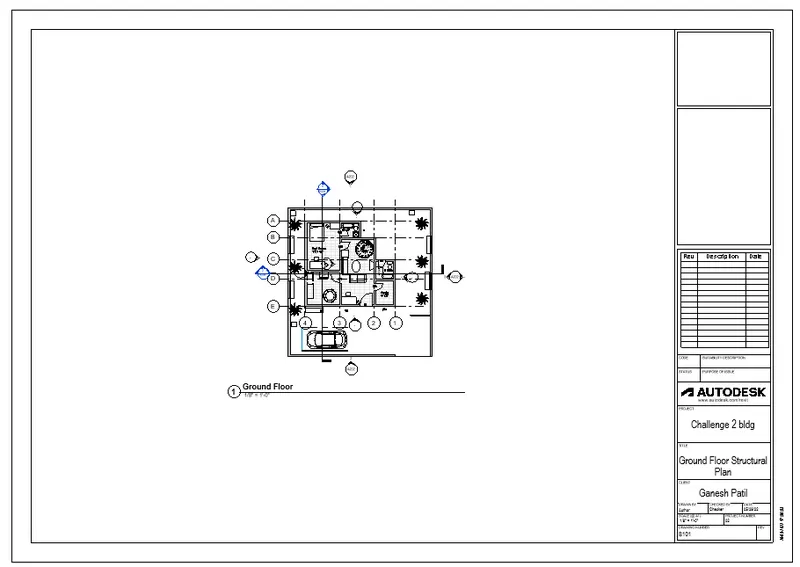

 S101-GROUND FLOOR STRUCTURAL PLAN

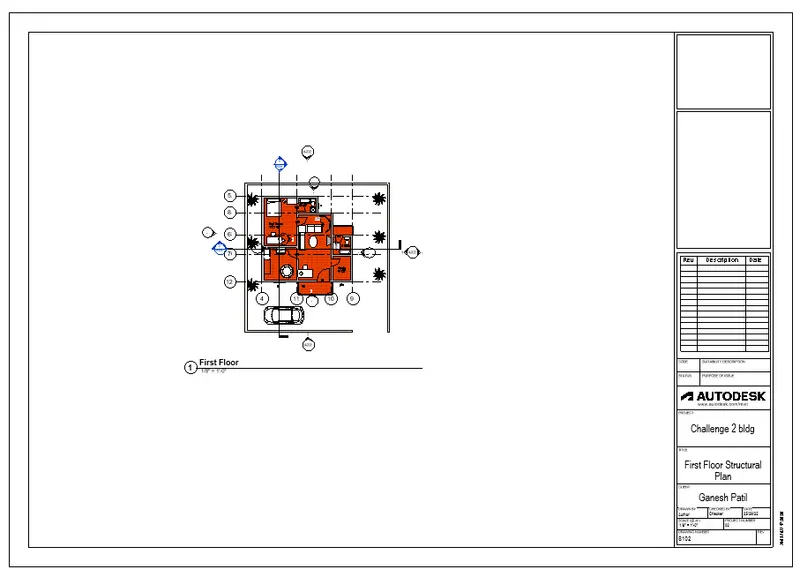

S102- FIRST FLOOR STRUCTURAL PLAN

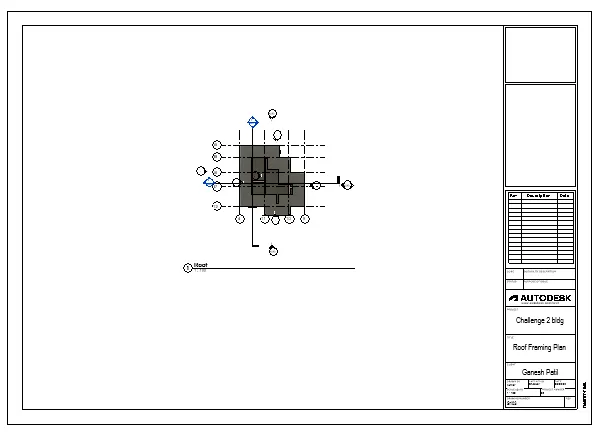

S103 ROOF FRAMING PLAN

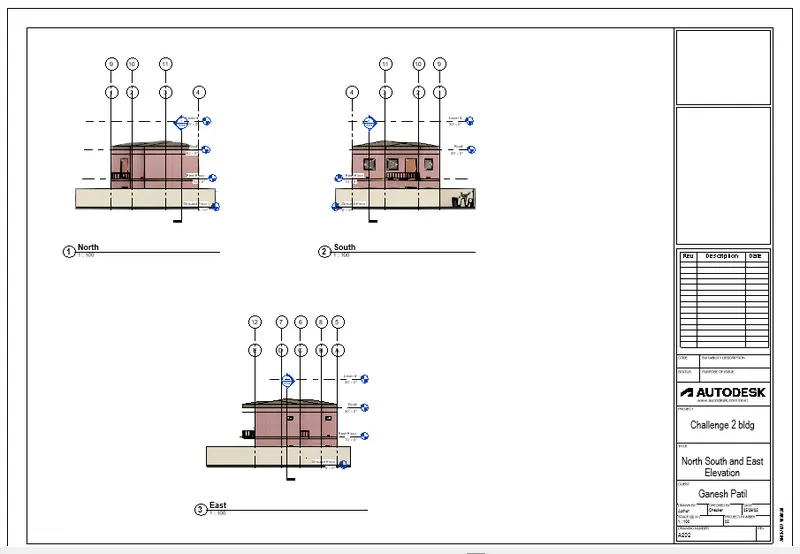

A202 NORTH SOUTH AND EAST ELEVATION

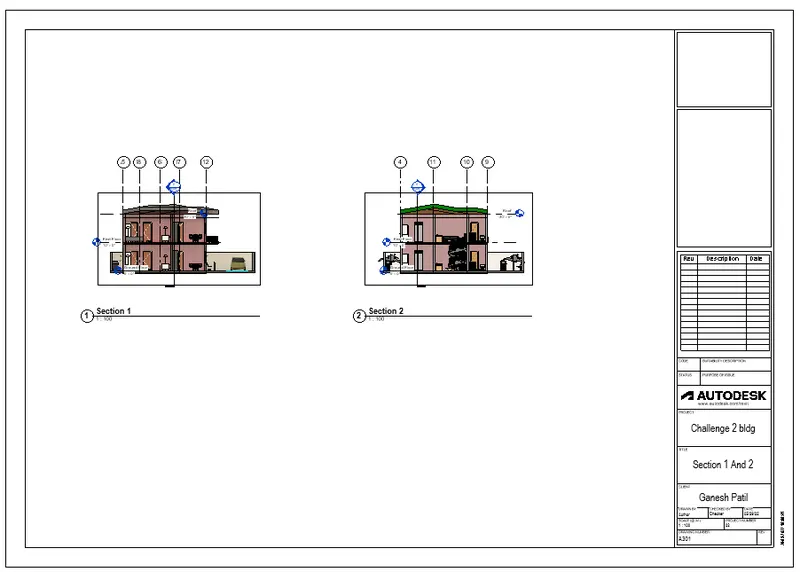

A301- SECTION 1 AND 2

QUESTION 10

Create a camera-specific view or a 30 view in each room (living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n) to place the 3D view images. Produce the sheets as a part of project drafting.

AIM

CREATE THE CAMERA VIEW OF EACH ROOM

PROCEDURE

STEP 1

• start the revit software
• then homepage of revit is open as shown below

• then click on OPEN option from that homepage
• then select the file which is cleadly created in wook 3
• select it and open it

STEP 2

• go to the view option
• click on sheet option
• select the templet file
• and click ok sheet shown below.



• then go to the properties broswor
• right click on sheel
• click on rename option
• and rename it as A 501- 30 DINING HALL
• click ok
• then go to the properties broswer
• click on view
• select the dinning view and drag it into the sheet as shown below



• then again go to the view option
• click on sheet
• select the templette
• and click ok
• then go to the properties brocwer
• right click over new sheet click on rename option
• and give the name as A 502- LIVING ROOM
• click ok
• shown below

• in this way create all the sheet shown in results

RESULTS:

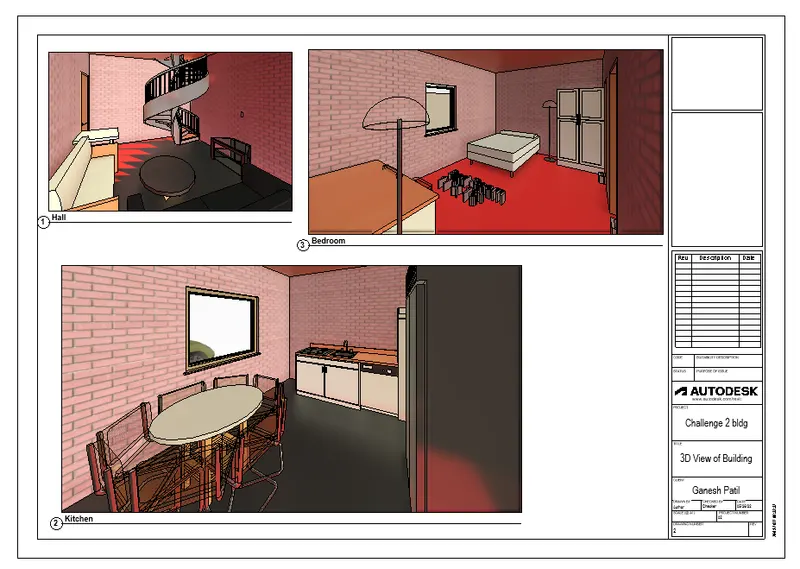

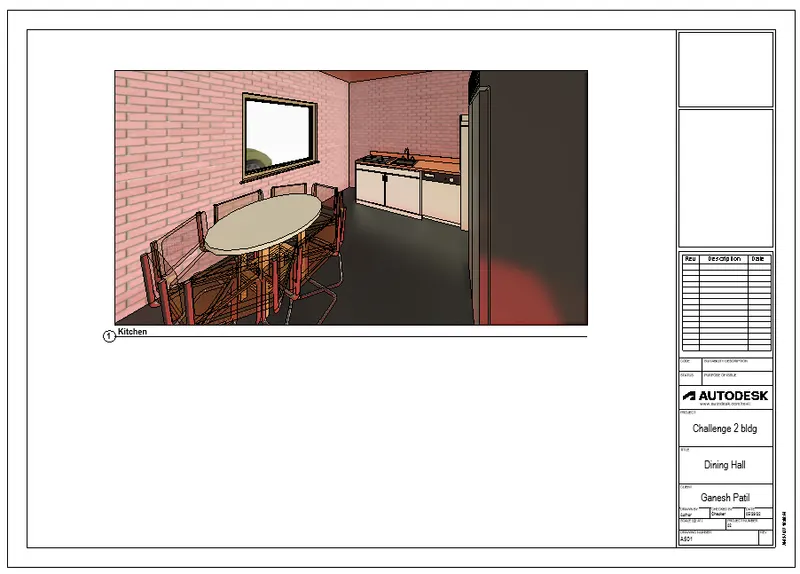

A501-30 DINNING HALL

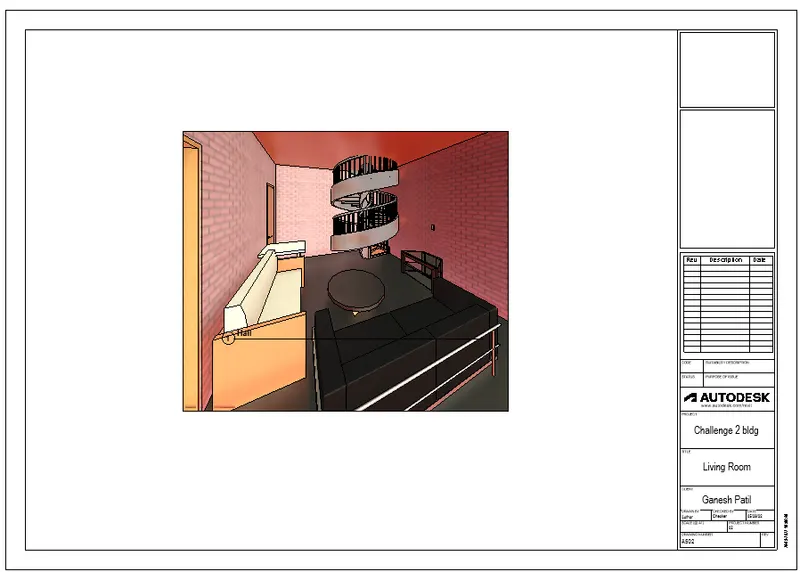

A 502 LIVING ROOM

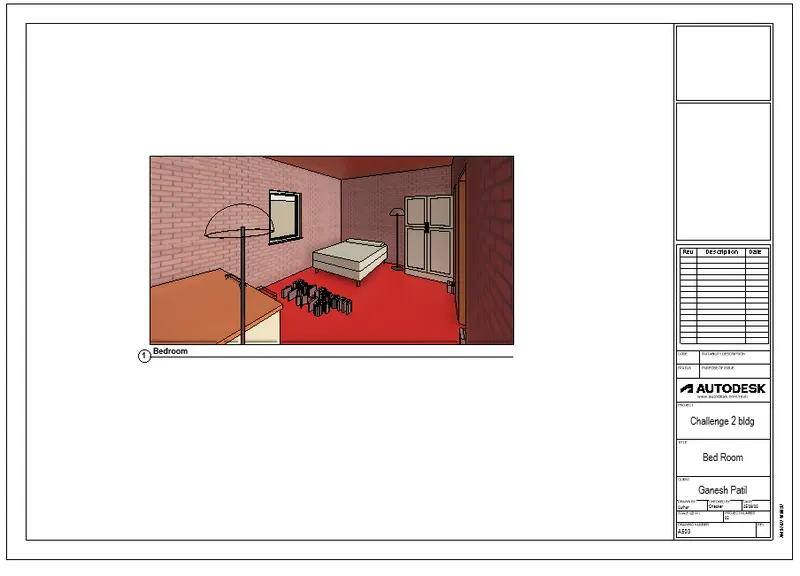

A503 BED ROOM

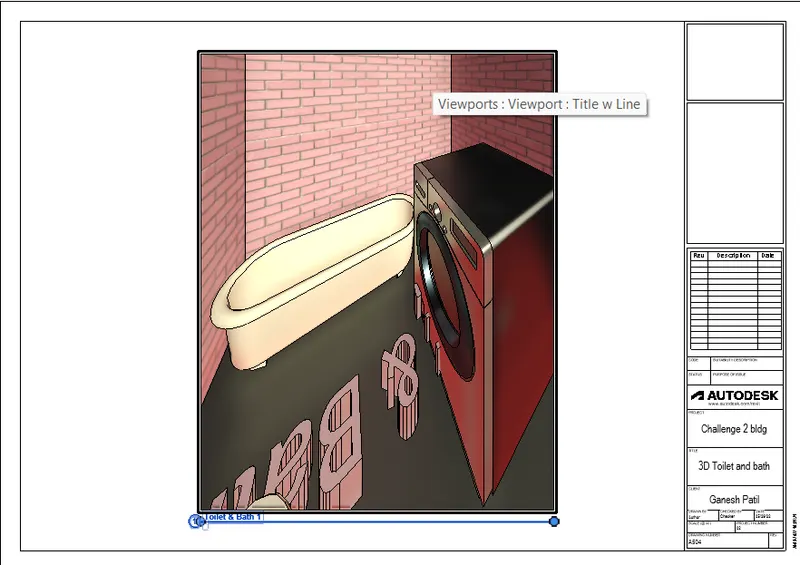

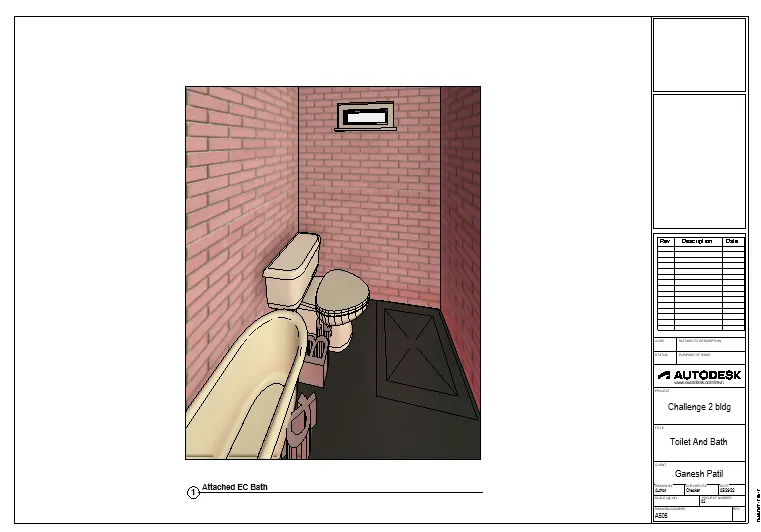

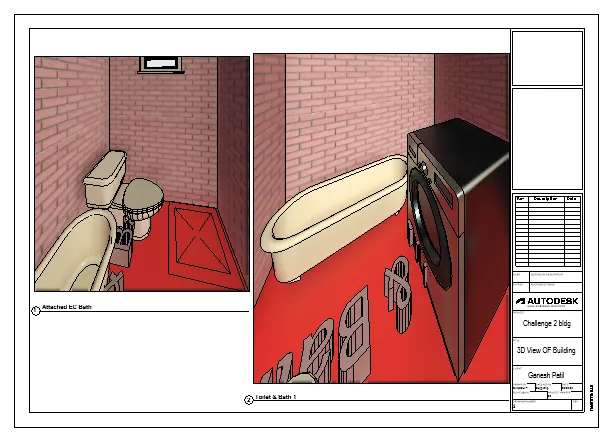

A504- ATTACHED TOILET AND BATH

A505- TOILET AND BATH
