3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1 ans:

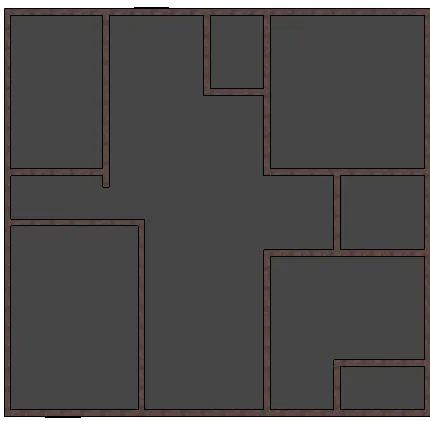

Aim:To model a celling from the archiecture tab above the walls at the first-floor level.
Procedure:
Step-1:
- First we open the revit softawre
- Now set the plan in 2d view

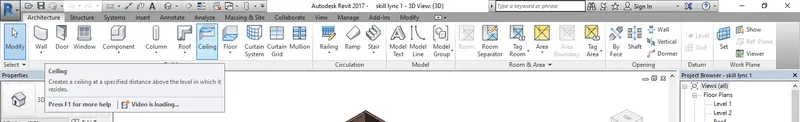

- Now select the ceiling option from the architecture toolbar as shown below
- After selecting the ceiling option, now select sketch ceiling
- then select the total plan as shown

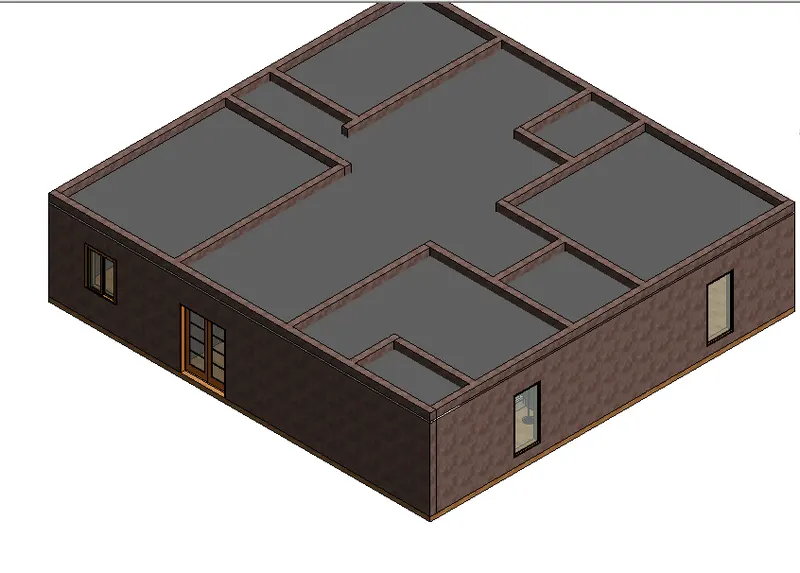

- Now click on tick now ceiling is created
- Now the ceiling is created
Result:
2 ans:

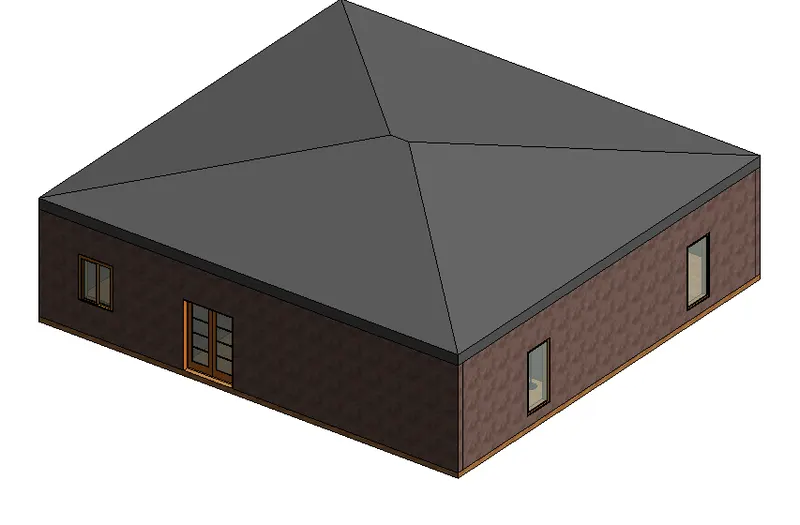

Aim: To model a roof above the ceiling by selecting the footprints of the ceiling
Procedure:
- In the architecture tab, select roof

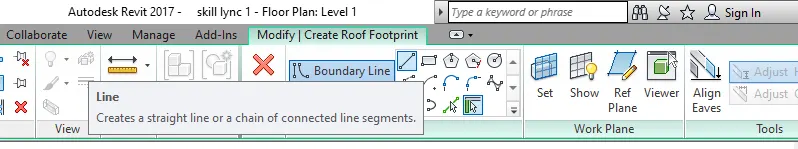

- From draw selection click on pick lines
- Select the desired lines upn which the roof is required

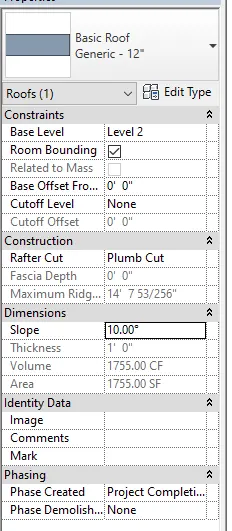

- From property browser change the sllope to 10degrees to change the slope of the roof
- Now we get the final result
Result:
3 ans:

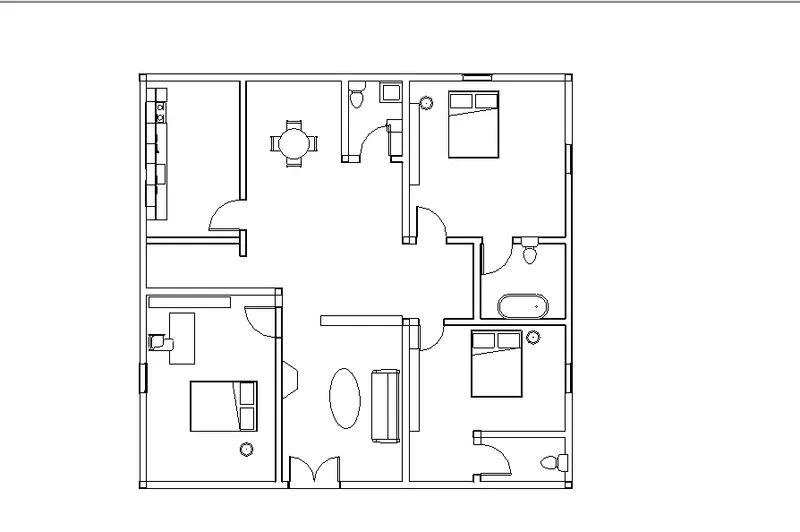

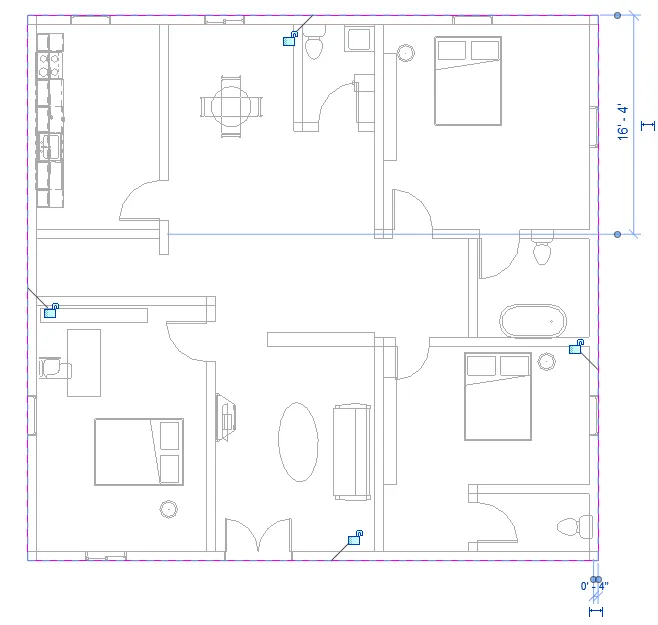

Aim: To create architectural and structural plan
Procedure:

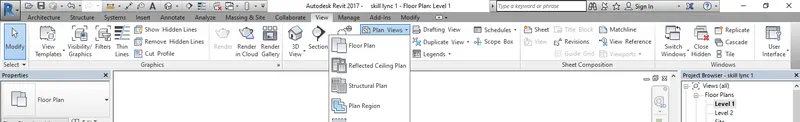

- In the view tab select plan view as shown
- Now click on structural plan

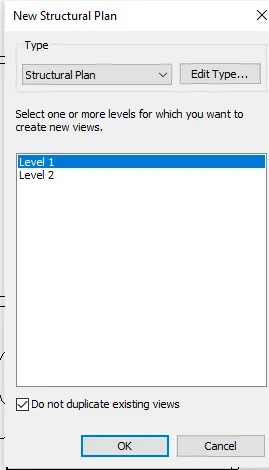

- Now a new dialogue box open select on plan we need as shown
- Now we get structural plan
- Now structural and architectural plan is created successfully
Result:
4 ans:

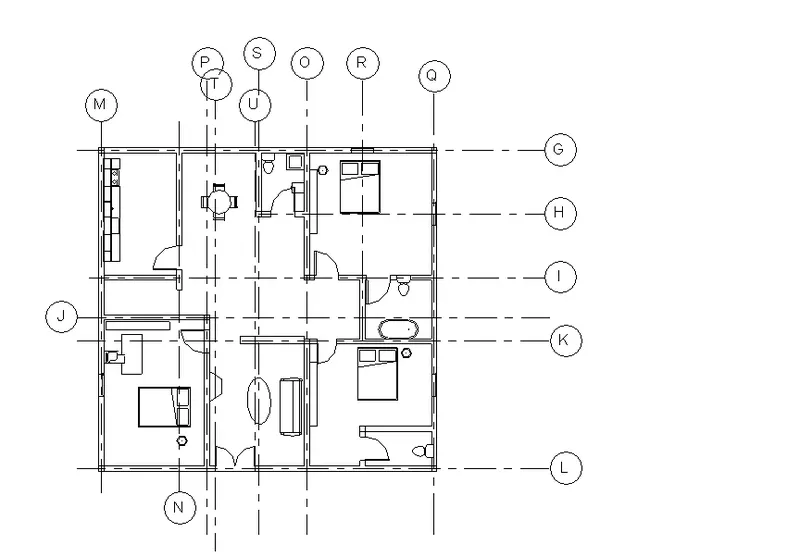

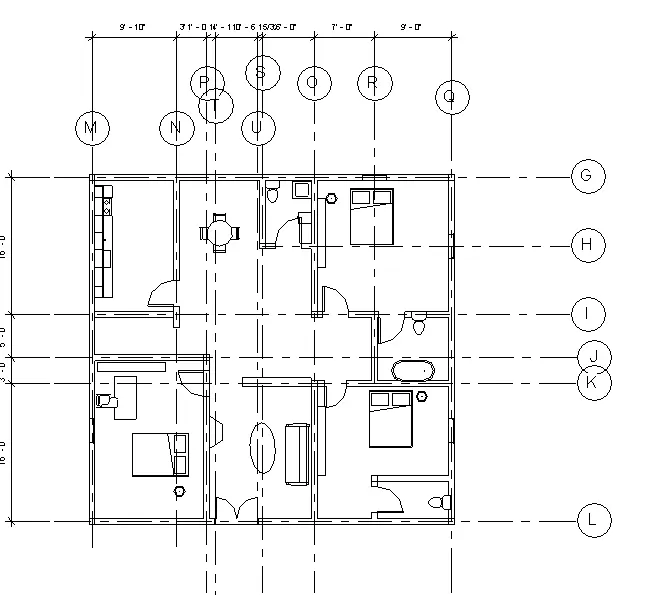

Aim: To use annote toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
Procedure:

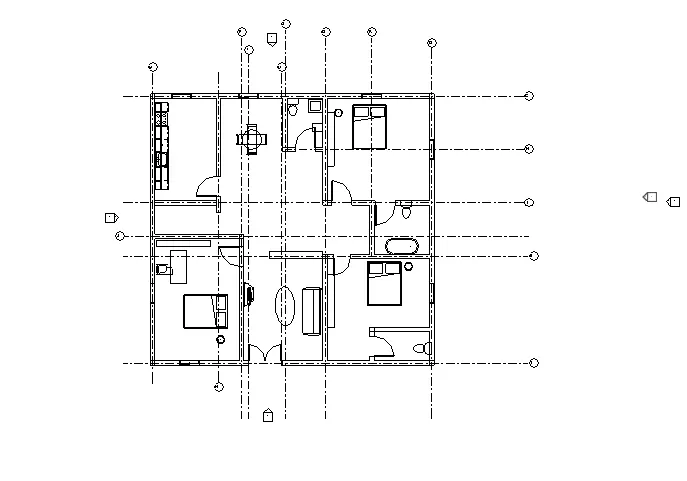

- Select the grid from the architecture menu
- Apply grids to the floor plan
- From annotate toolbar aligned tool and set the dimension for walls and components
Result:
5 ans:

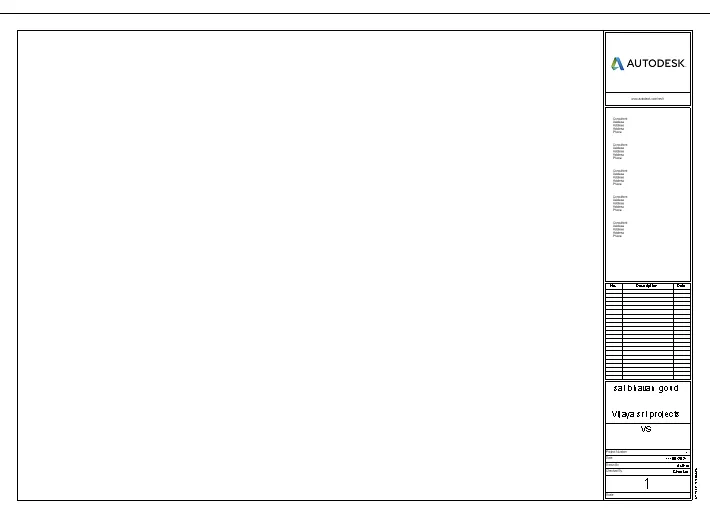

Aim:To create a sheet template from the view tab and adjust the parameters on the sheets to add appropriate views
Procedure:
- From the view tab ->select the sheet composition section->click on the sheet

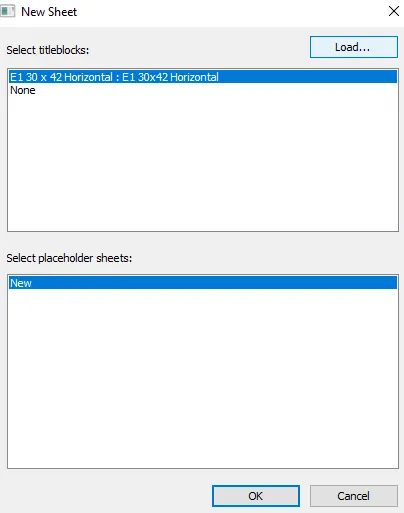

- Now a dialouge box opened select the sheet and click ok
- If we need more sheets click on load and insert them

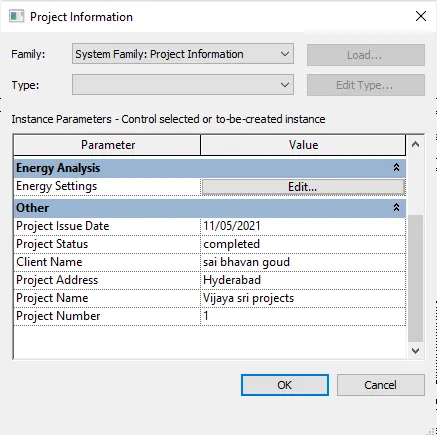

- Now edit the information on the sheet or change the information in the project information.the details will be updated automatically as shown
- The sheet was created from the view tab and parameters on the sheet were adjusted successfully.
Result:
6 ans:

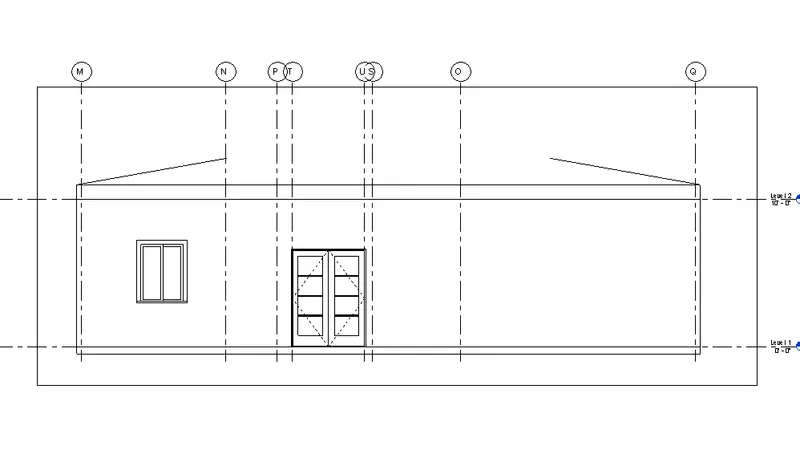

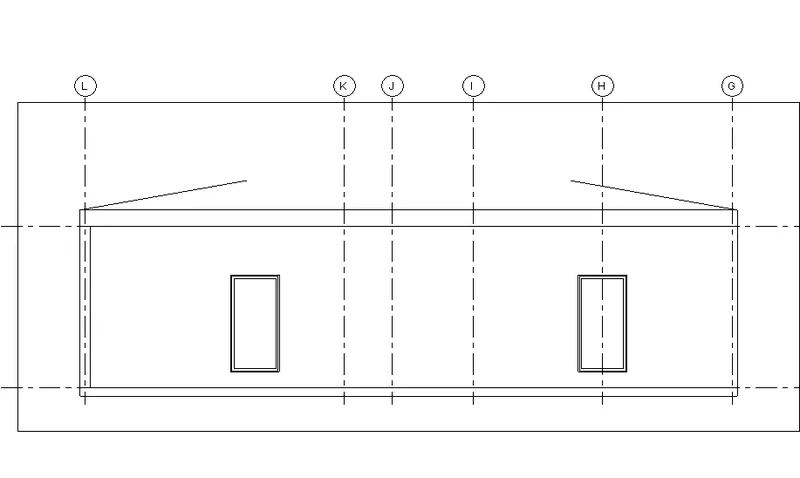

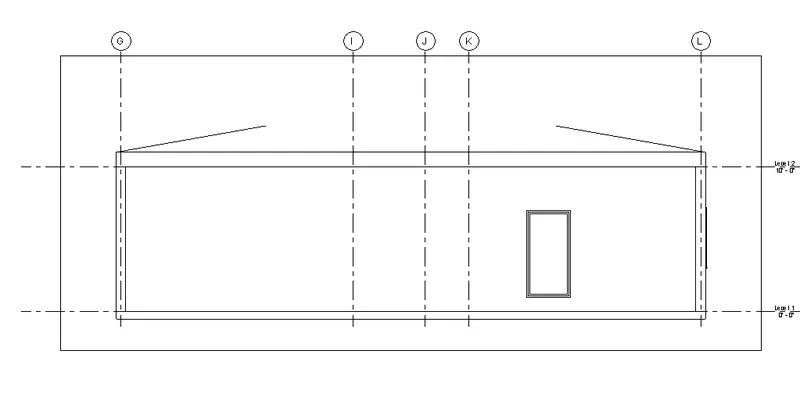

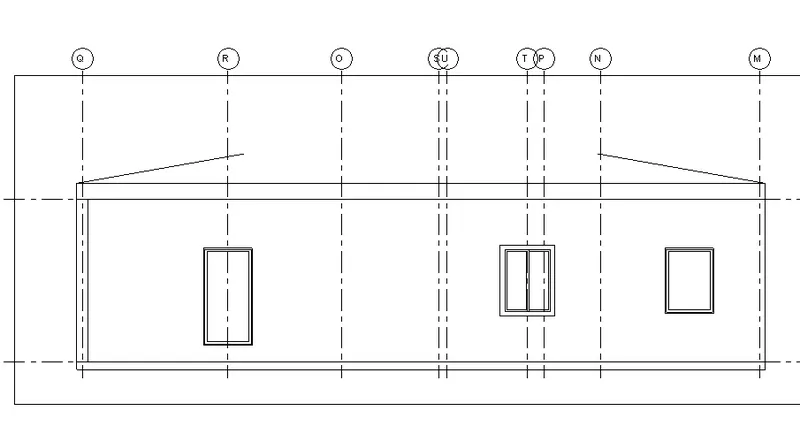

Aim: To use the elevation tab to create the elevation views,looking at our building from East,North,South and West
Procedure:

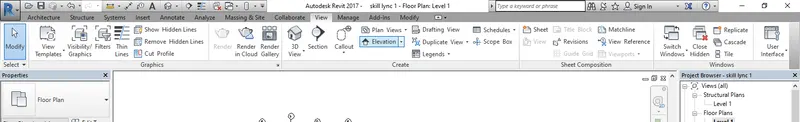

- From the view tab select elevation
- Place them at East,North,South and West to the drawing
- Name them accordingly from the project browser
Result:Elevation views are made for the project successfully
7 ans:

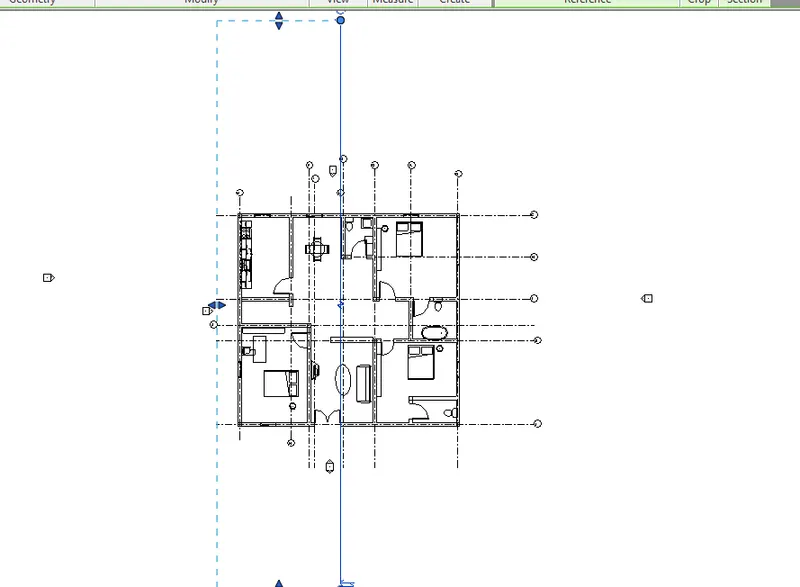

Aim: To Produce section cut through each room either cutting across longitudinally or in transverse direction
Procedure:

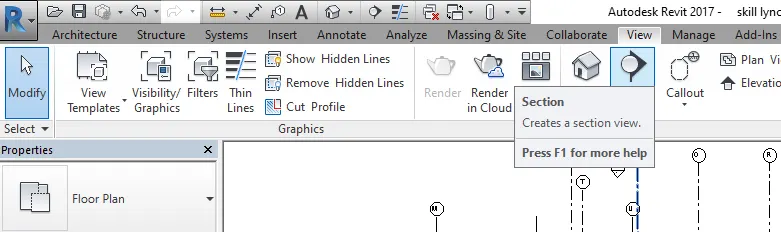

- From the view tab select selection
- Cut the floor plan longitudinal or transverse as the desired section is required

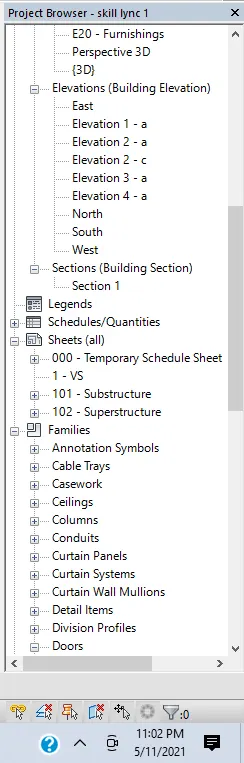

- In the project browser new section division is created

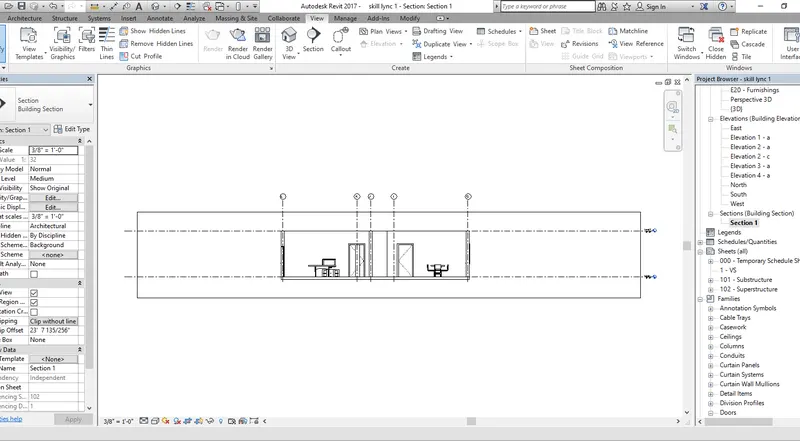

- Click on that to open the section view
Result:section view was created successfully
8 ans:
Aim:To classify the views, Plan views, Section views, and Elevation views to either Design or Documentation category using property browser
Procedure:

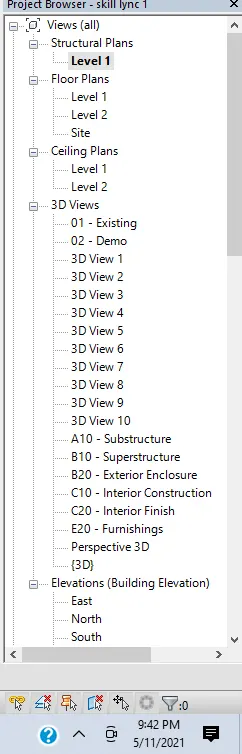

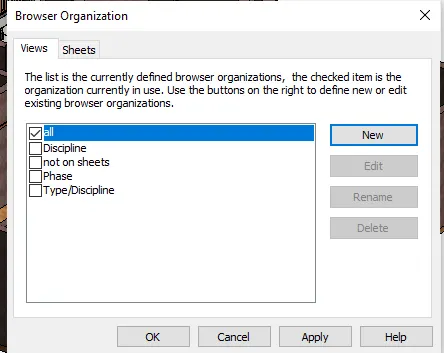

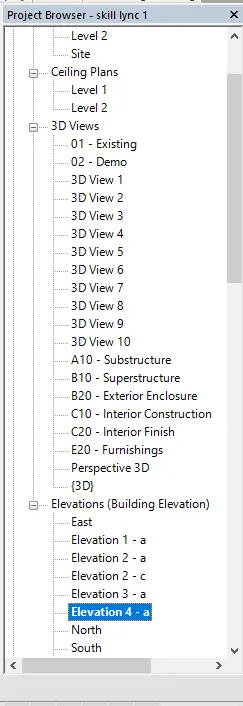

In project browser Right click on views(all) and choose browser organization

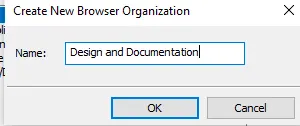

- From the dialog box opened click on new and set a new browser organization as design and documentation
- Click on ok and ok

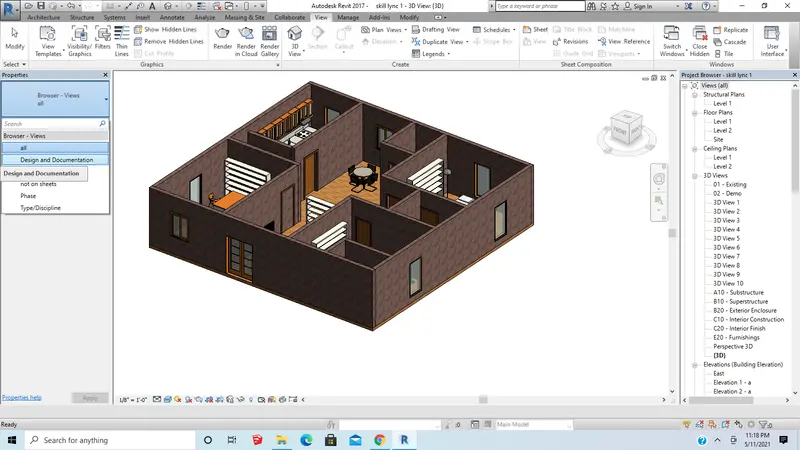

- Now Left click on views(all) from project browser
- Now from properties change the organization to design and documentation
Result:Task has been completed successfully
9 ans:
To use sheet template produced and create multiple sheets as follows
- A101 Ground floor Architecture Plan
- A102 Firts floor Architecture Plan

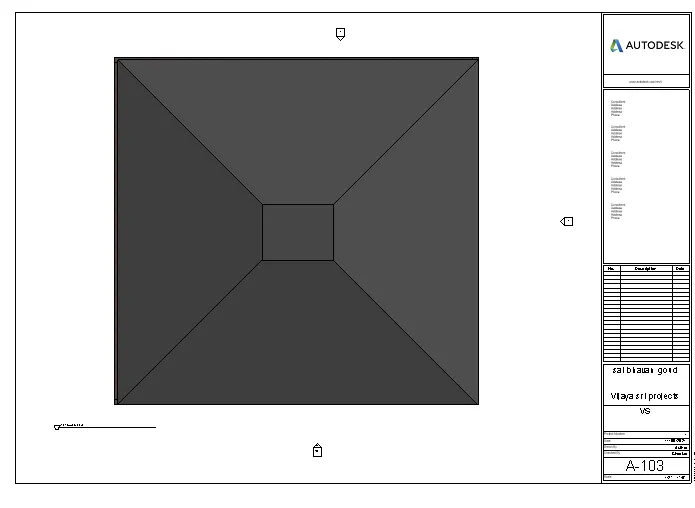

- A103 Roof Plan
- S101 Ground floor structural Plan
- S102 First floor structural Plan

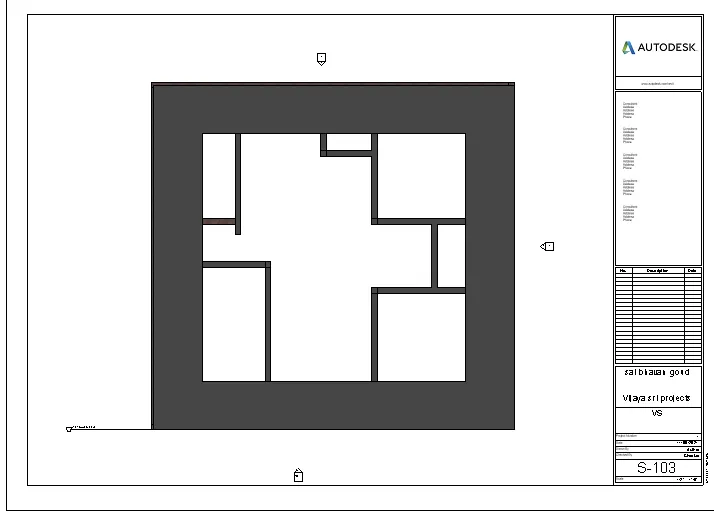

- S103 Roof framing Plan

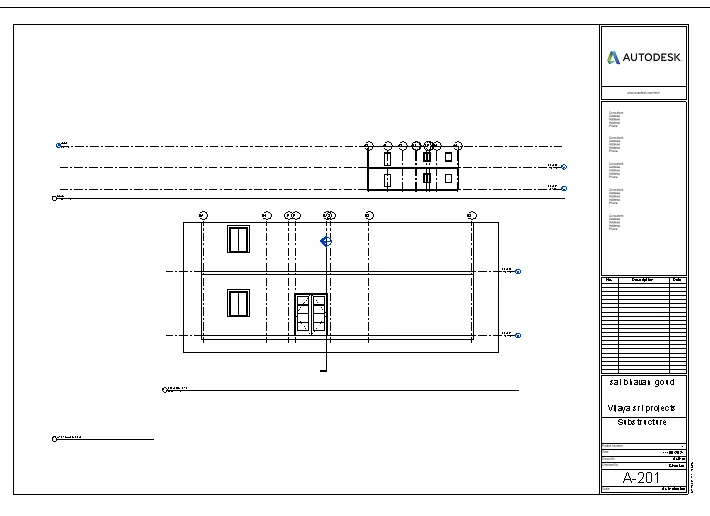

- A 201 North South Elevations

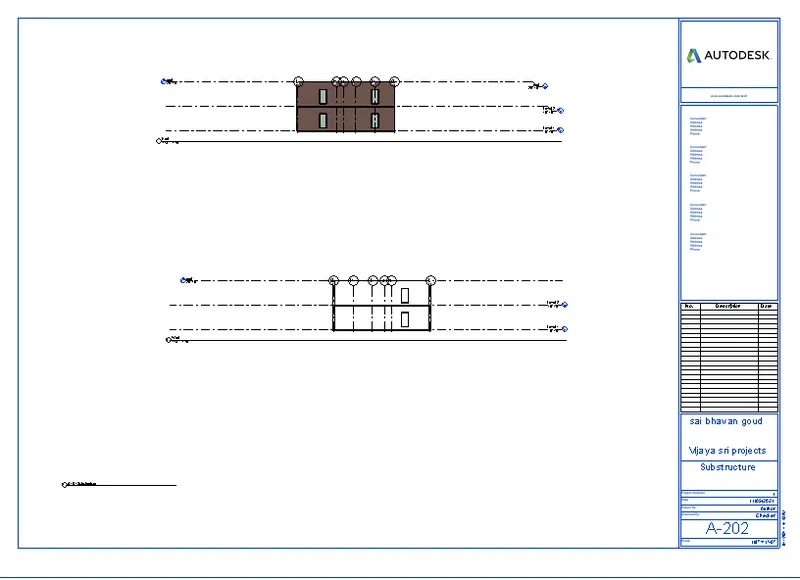

- A 202 East West Elevations
Aim:To create sheet templates
Procedure:
- Open Revit software

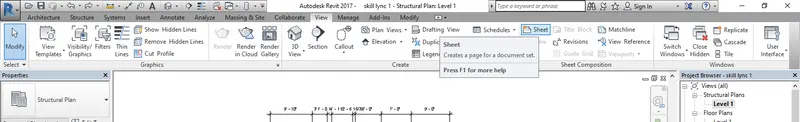

- Goto views click->sheet
- Now a dialogue box opened select the sheet and click ok
- Now sheet opens,
- Now edit the sheet information

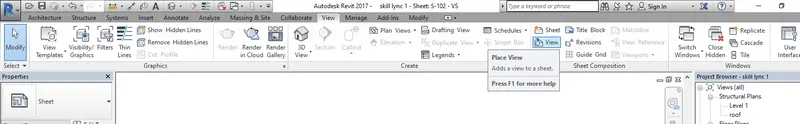

- Now go to view and click view as shown

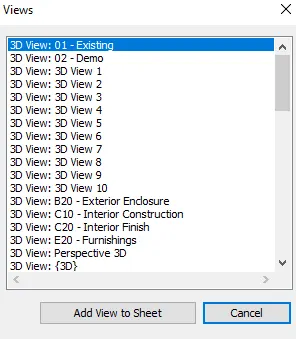

- Now view dialogue box opens select any view
- Now we get the views in sheet

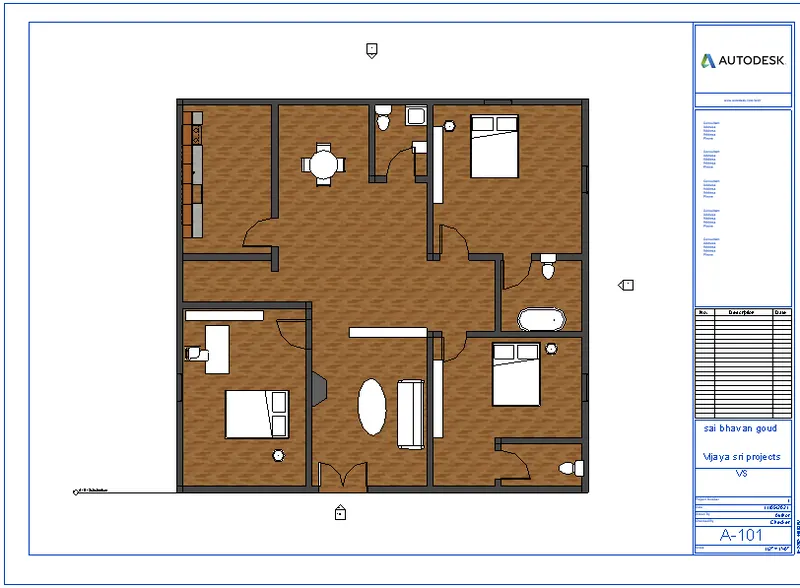

A101 Ground floor Architecture Plan

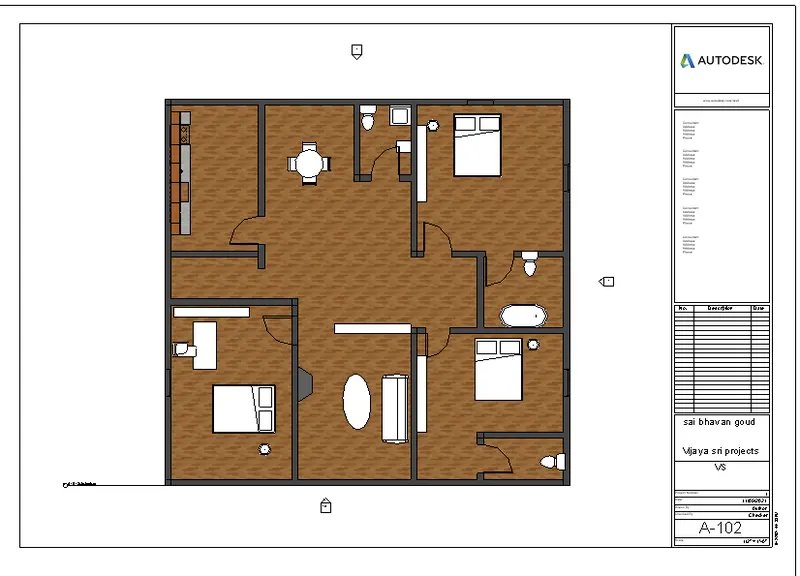

A102 Firts floor Architecture Plan
A103 Roof Plan

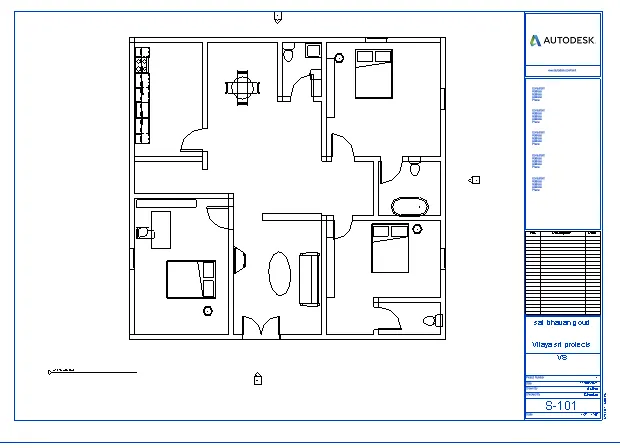

S101 Ground floor structural Plan

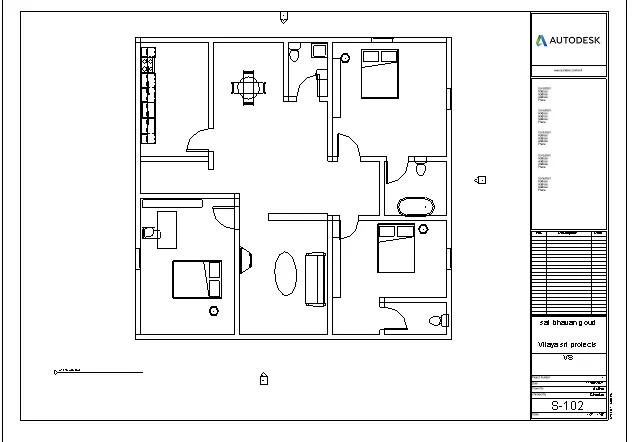

S102 First floor structural Plan
S103 Roof framing Plan
A 201 North South Elevations
A 202 East West Elevations
Result:Task has been completed successfully
10 ans:

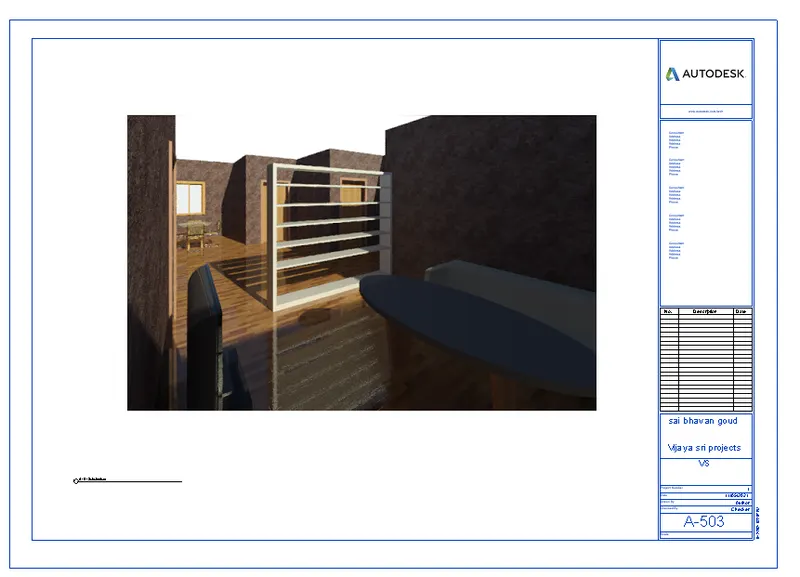

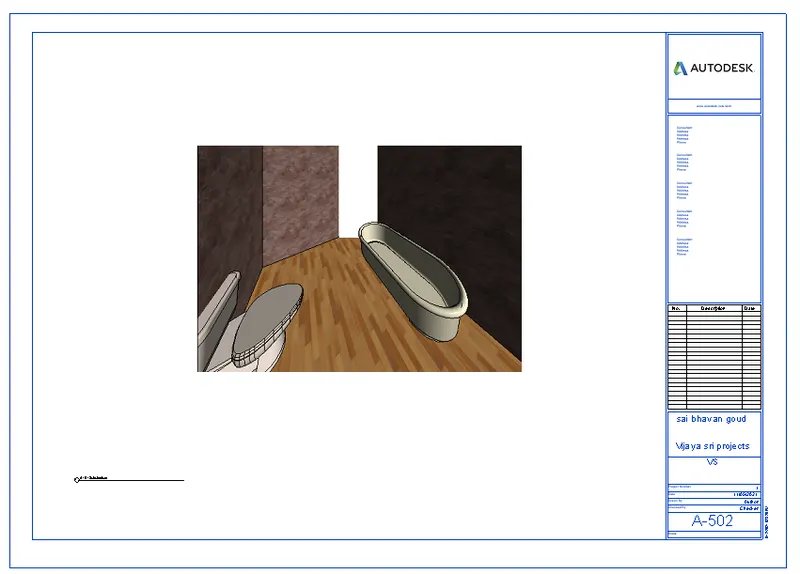

Aim: To 3D view in each room and Based on the views create a new set of sheets starting A-501,502...... to place 3D view images
Procedure:
- Open the project go to the 3D view tab in the View tab

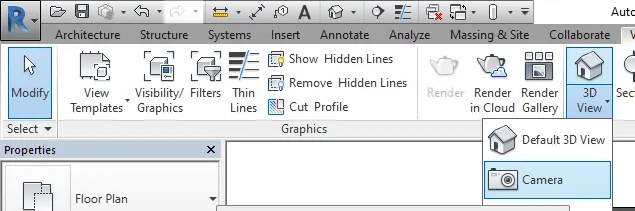

- Under 3D View select the camera
- Place the camera on the plan and tap where you want it
- Then go to the view tab and create a new sheet
- Now a dialogue box opened select the sheet and click ok
- Change the parameter on the sheet as required

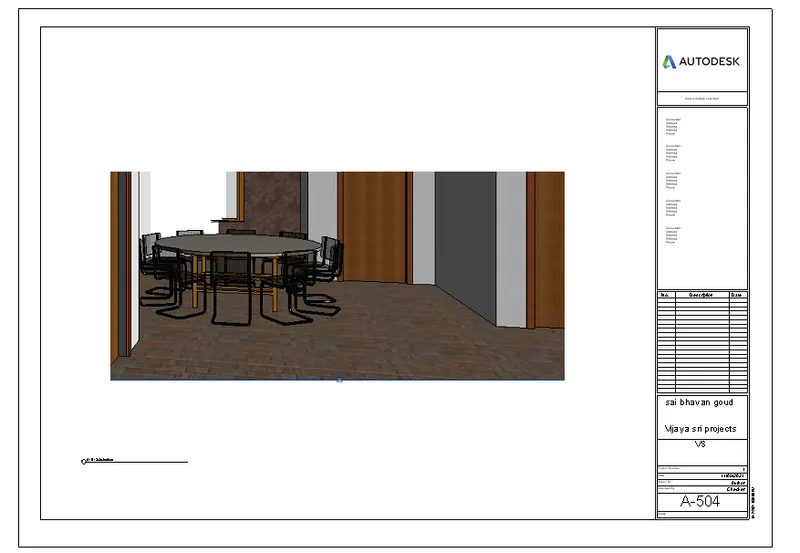

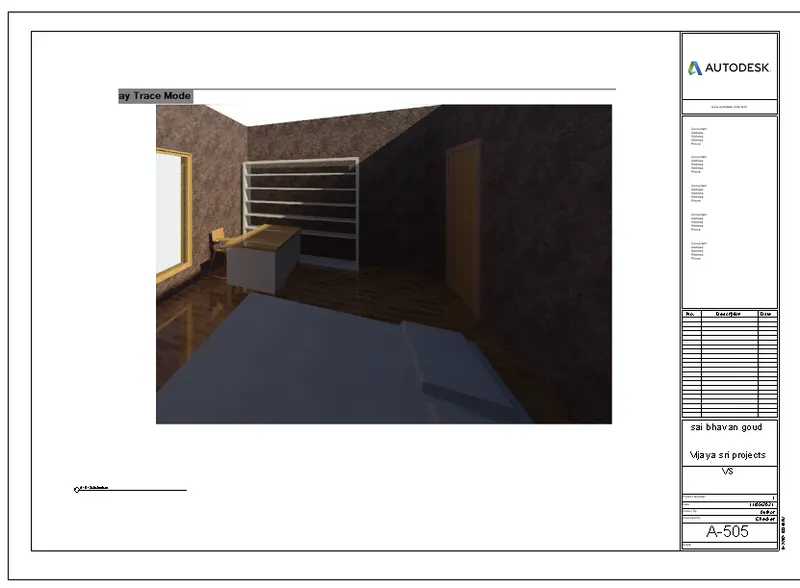

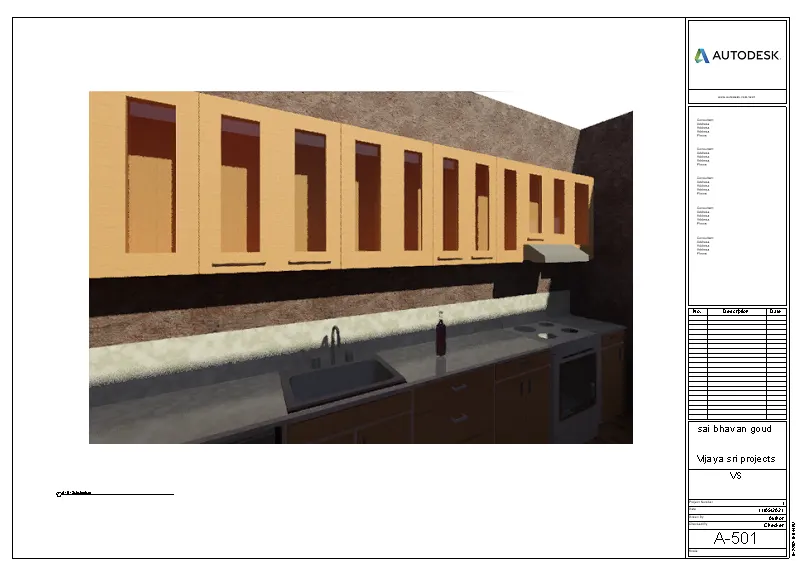

- Name the sheet as A-501 and add 3D view images on the sheet
- In a similar way, we can create new sheets and place the images
Result:Task has been completed successfully
