3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

1)

AIM: To model a Ceiling from the architecture tab above the walls at first floor level.

TOOLS USED:

• Architectural tab
• Ceiling
• Project browser

PROCEDURE:

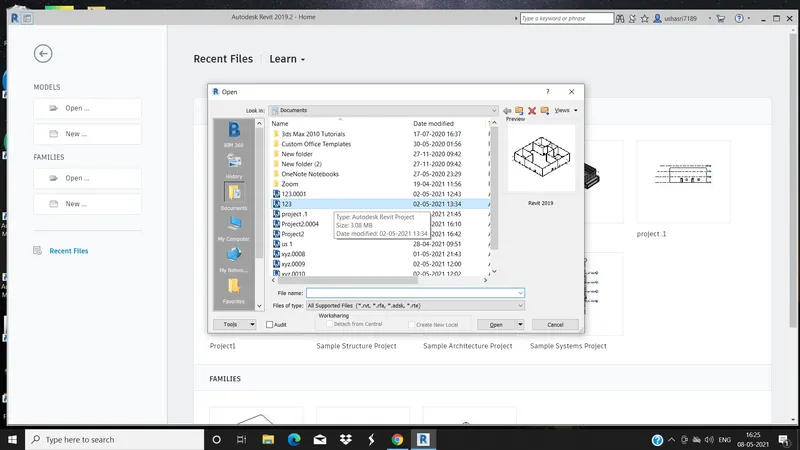

1. Firstly, open the Revit software , then, go to open and select the project which is saved in week 3 . click open.

2. Now , the model is viewed in the model space . Then, select Architecural tab, in that select Ceiling.

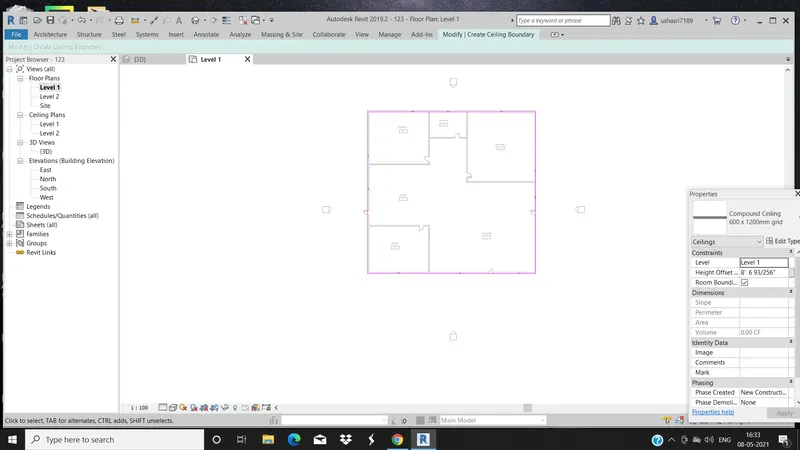

3. Select the sketch ceiling and click pick lines and select the boundaries of the model and click green mark at right top.

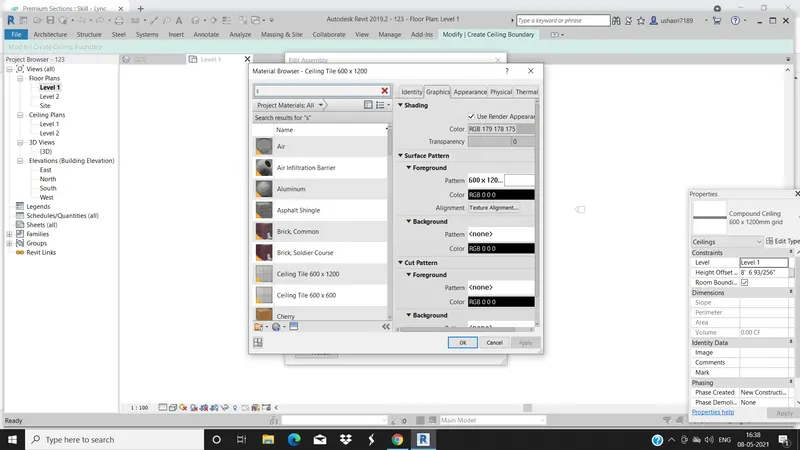

4. Now go to the properties browser and select the edit type and select the type of ceiling you need and change the thickness. click ok.

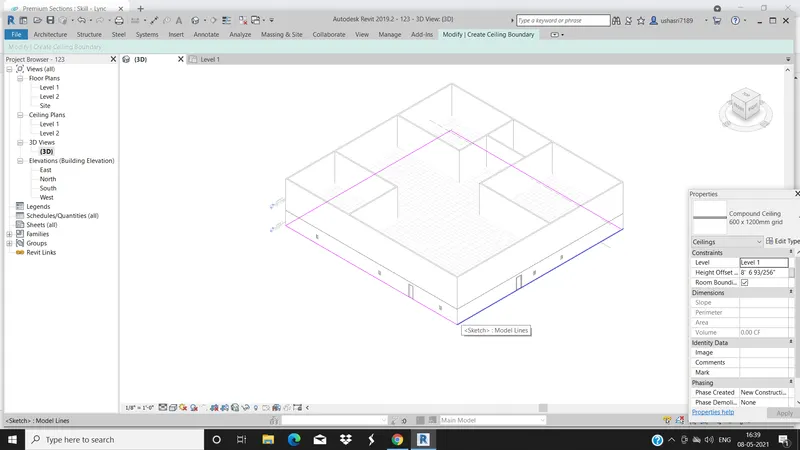

5. Now view the model in the 3D view.

RESULT: The Ceiling to the wall is successfully with the required material and thickness and viewed it in 3D.

2)

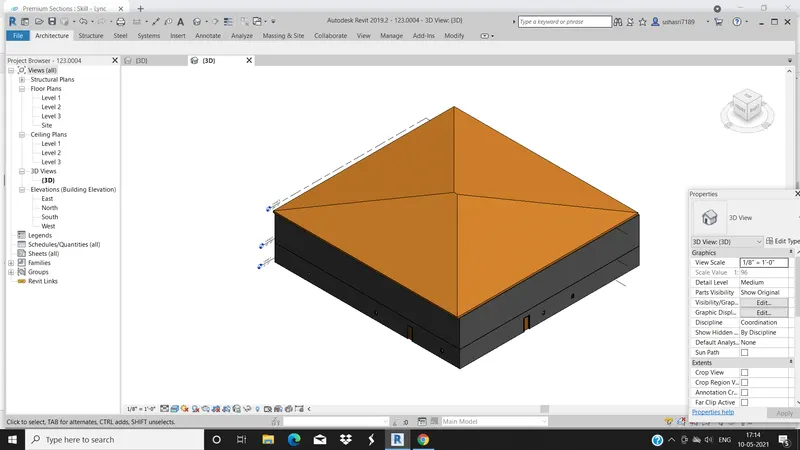

AIM: To model a roof above the ceiling with a slop of 10 degrees by selecting the footprints of ceiling .

TOOLS USED:

• Architectural tab
• Properties
• ROOF
• Roof by foot print

PROCEDURE:

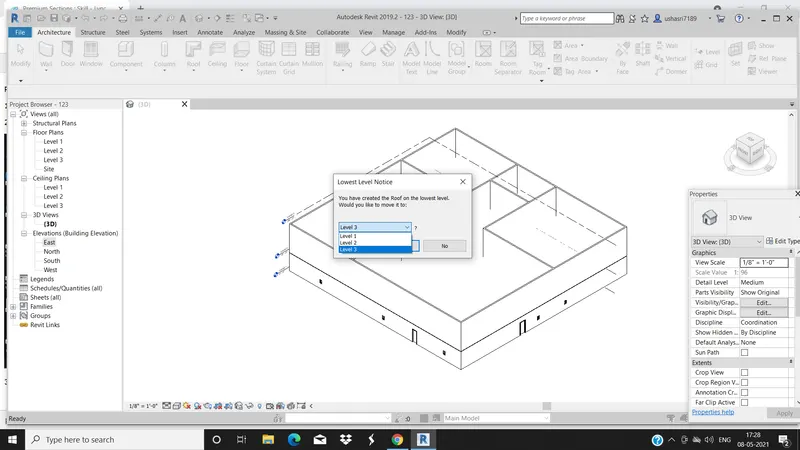

1. Open the provious model which we have created. Create another level as roof ,by adding the level in elevation.

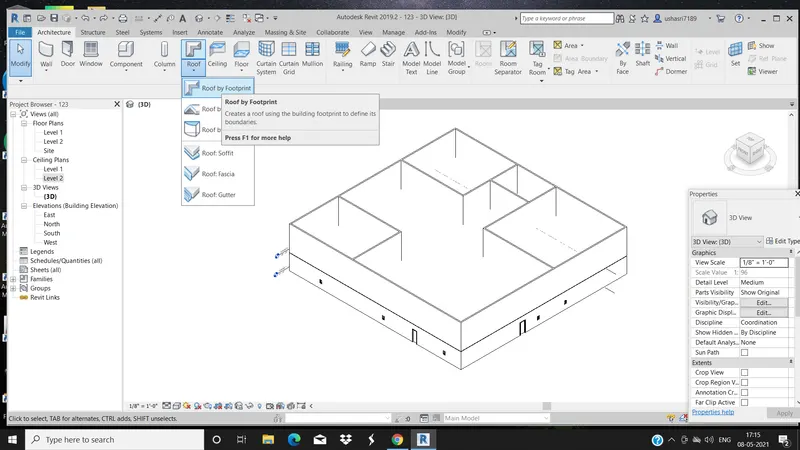

2. Select ARCTICTURE tab and then select the Roof which is present in the ribbon and then roof by footprint .

3.select the level in which you need to insert the floor .

4. Select the boundary of the model and click ok.

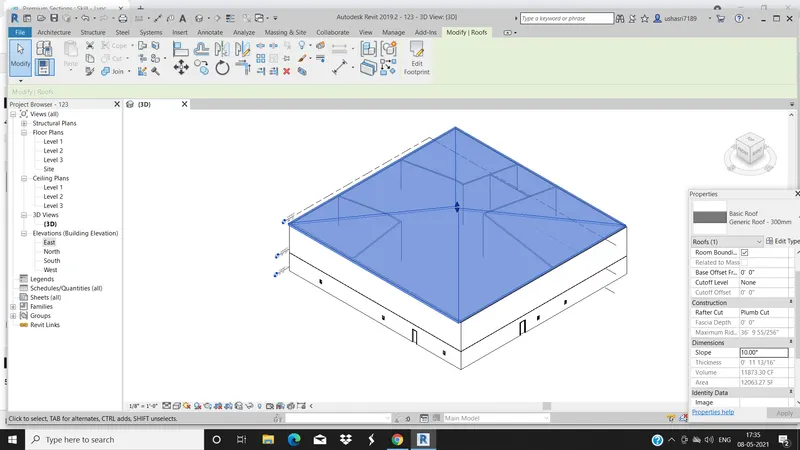

5. Now go the properties and in dimwnsions change the angle of slop to 10 degrees and click apply.

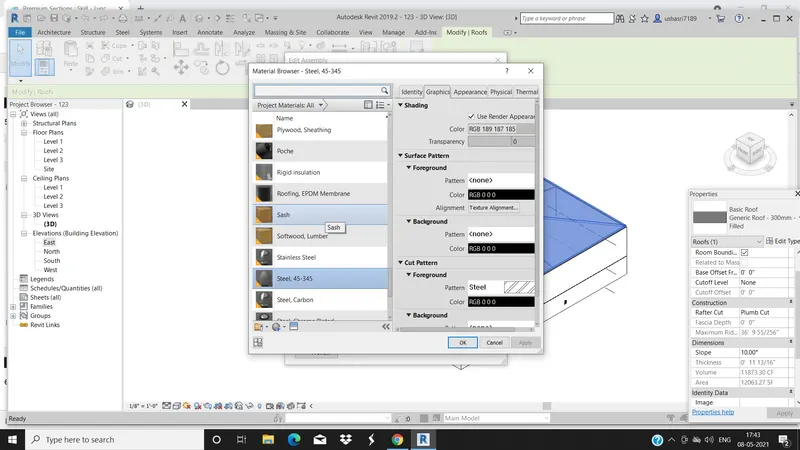

6. Go to the properties browser and select the material that is required for the roof.

RESULT: The roof is successfully created to the model with appropriate material and having the slop of 10 degrees.

3)

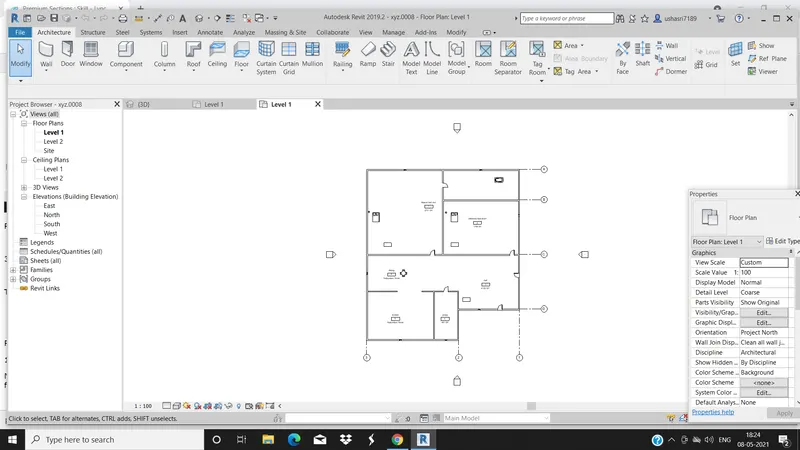

AIM : To create plan views for Ground floor level and first floor level and seperate them to Architectural and structural plans.

TOOLS USED :

• Structural plan
• view
• open

PROCEDURE:

1. Open the Revit software. Select open and select previous saved fole in week 2.

Note:The model that we prepared from the weel 2 and week 4 are already the Architectural plans it inclue walls , floors and components . Edit the name to the levels and copy and paste the groung floor to the first floor level . Rename the floor plan as Architectural plan.

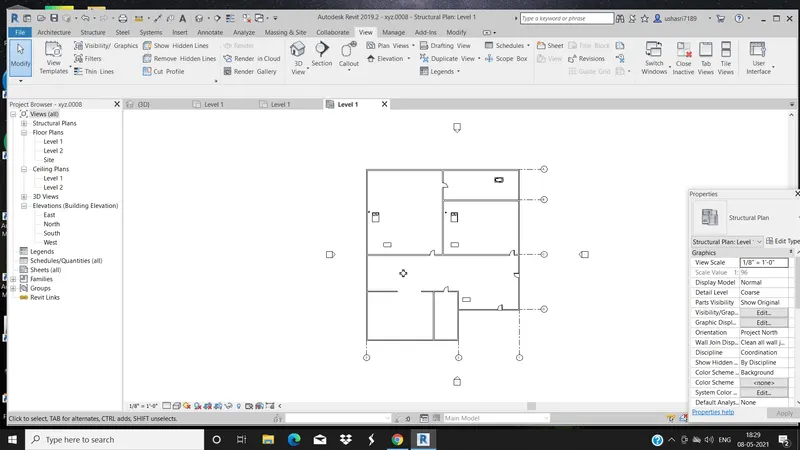

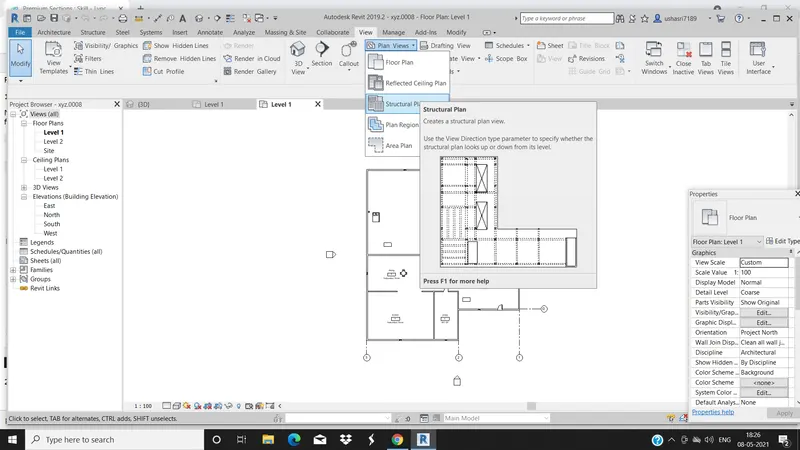

2.Select the view tab and go to plan views and select Structural plan in that and select the both levels.

3. now you can able to see the structural plan for both first floor and ground floor .

RESULT: The plan view of ground floor and first floor are created in Architectural and structural plan successfully.

4)

AIM: To add Dimensions to all the walls and floors with reference to the longitudinal and traverse grids by using the annotate toolbar.

TOOLS USED:

• Architectural tab
• Grids
• Annotatons
• aligned

PROCEDURE:

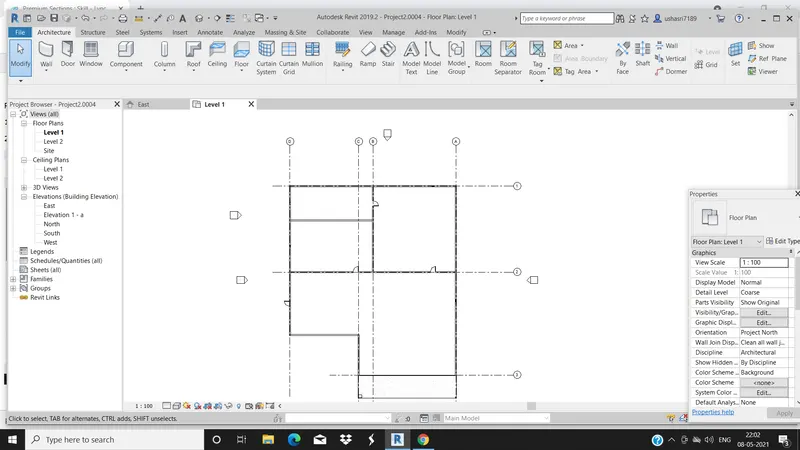

1. Open the Revit file, select Architectural tab and then select grids.

2. Draw both the Horizantal and vertical grids and name the horizantal as A,B,C,D from top to bottom and vetical as 1,2,3 from right to left.

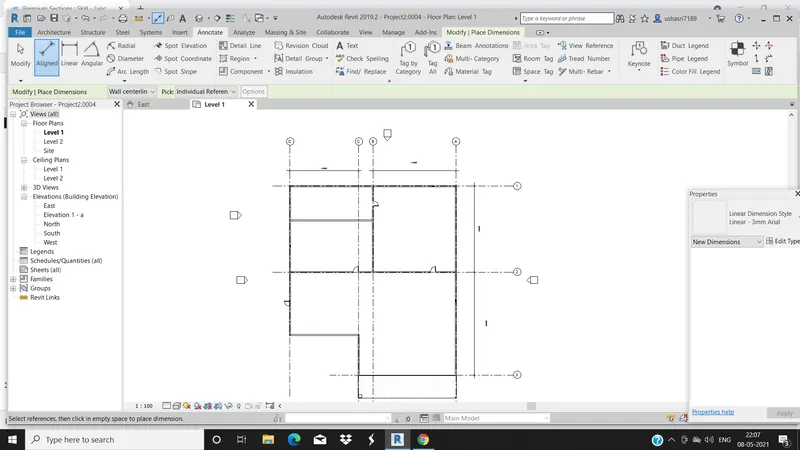

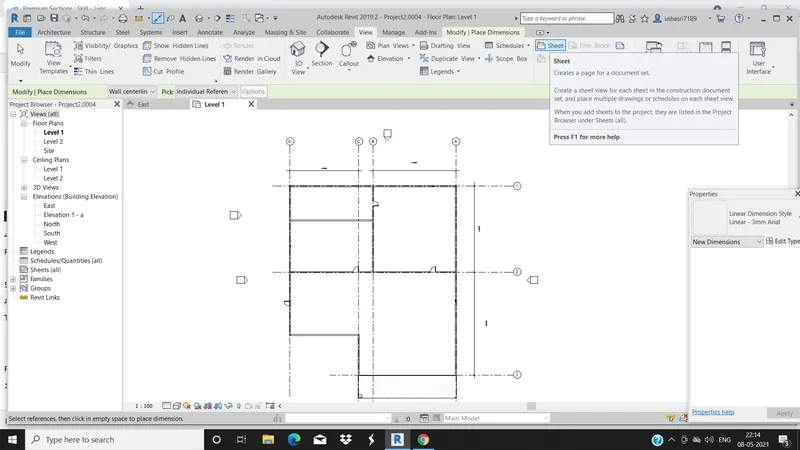

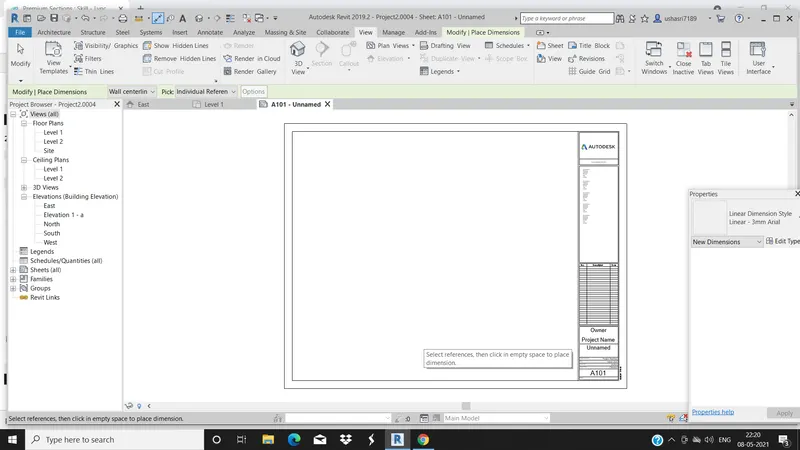

3. Select the Annotate toolbar and go to Aligned and find the dimensions between the grids.

4. Do the same procedure to the structural plan to align the dimensions between grids.

RESULT: The dimensions between the grids are Aligned for both Structural and Architectural plan by using Annotate tool bar successfully.

5)

AIM: To create the sheet template from the view tab and adjusting parrrrrameters on the sheer to add appropriate views.

TOOL USED:

• Sheet
• load
• view

PROCEDURE:

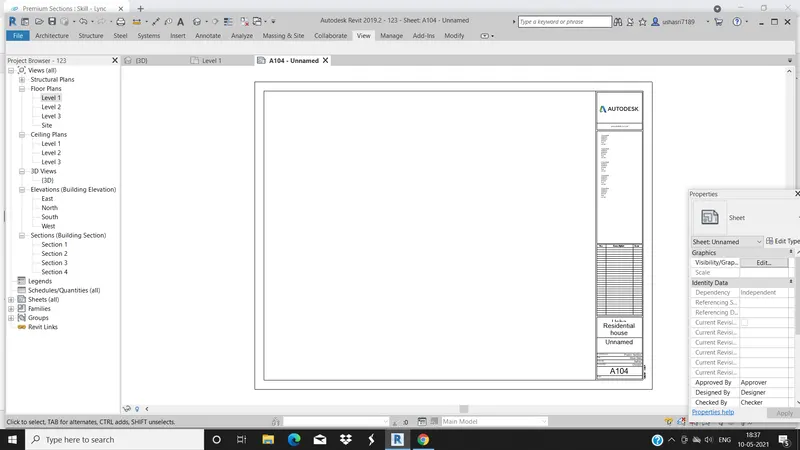

1. Select the view toolbar and then sheets .

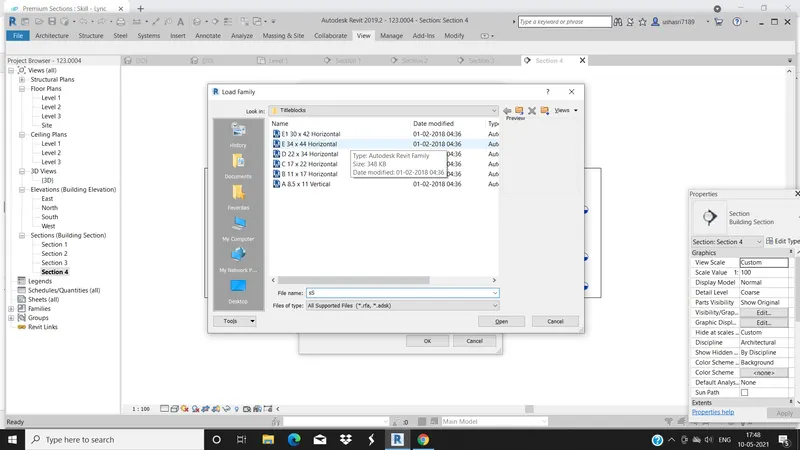

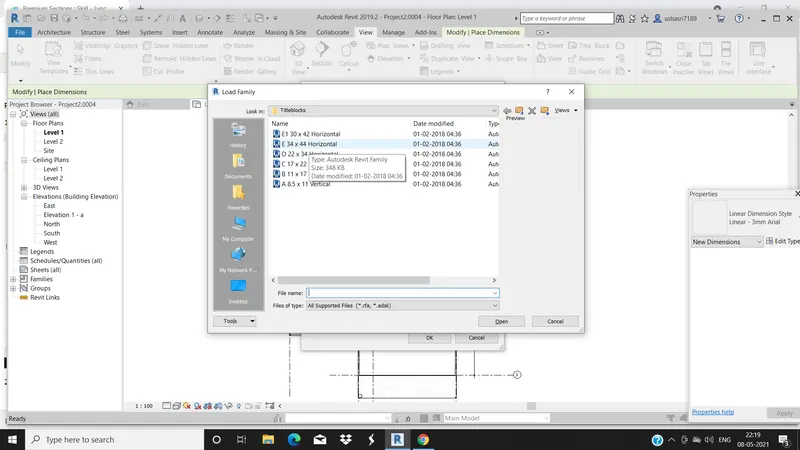

2. A new sheet dialouge box appears in that we can see load ,click on that you will find title block famile with various sizes of sheet select the size of sheet requied . click ok.

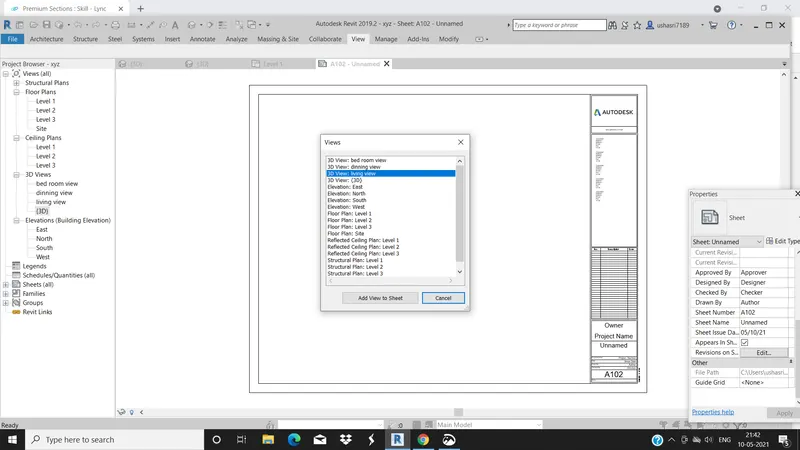

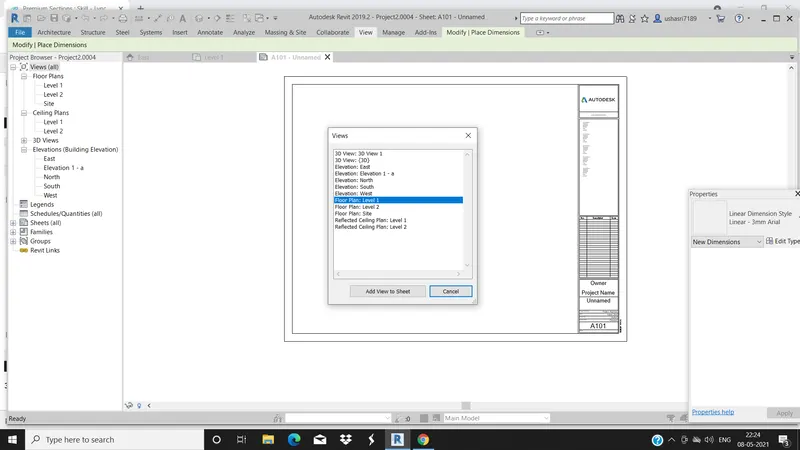

3. select view in the view toolbar . A view dialogue box appers, select the view and add to the Sheet.

4. Now you can change the view scale in the properties .

5.We can also change the sheet name, sheet number , checked by project name in properties and by double clicking in the sheet directly we can rename.

RESULTR:The sheet template is created and parameters are adjusted and different views are added in the sheet succeess fully.

6)

AIM: To create the Elevation view of EAST, NORTH, SOUTH, AND WEST of our model by using the Elevation tab.

TOOLS USED:

• open
• view
• Elevation

PROCEDURE:

1. Open the Revit software and slect the open and open the file that you have creted before.

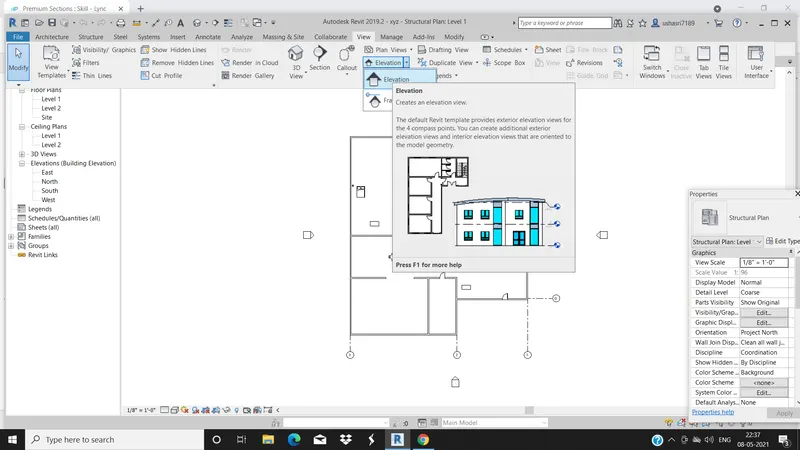

2. Sellect the view tab then, elevation.

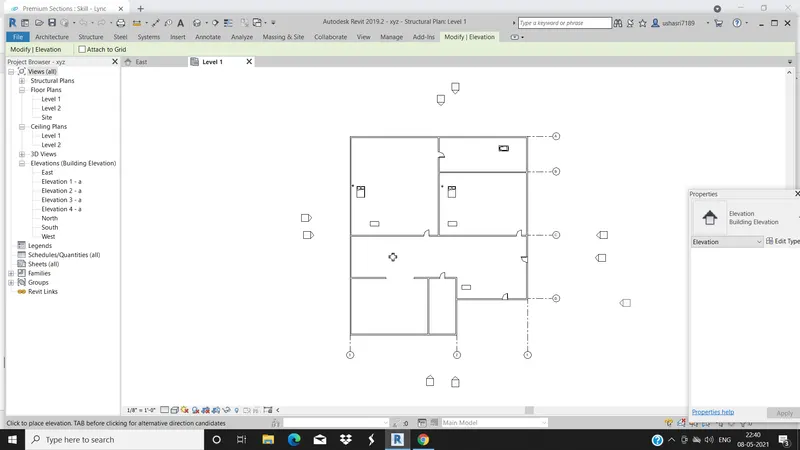

3. place the elevation in the direction you need like south, north, east, and west.

4. Now we can see the different Elevations in properties browser as Elevation1 -a ,,,, Raname them as North, east, west, south.

5. Now, view the different Elevations.

EAST VIEW

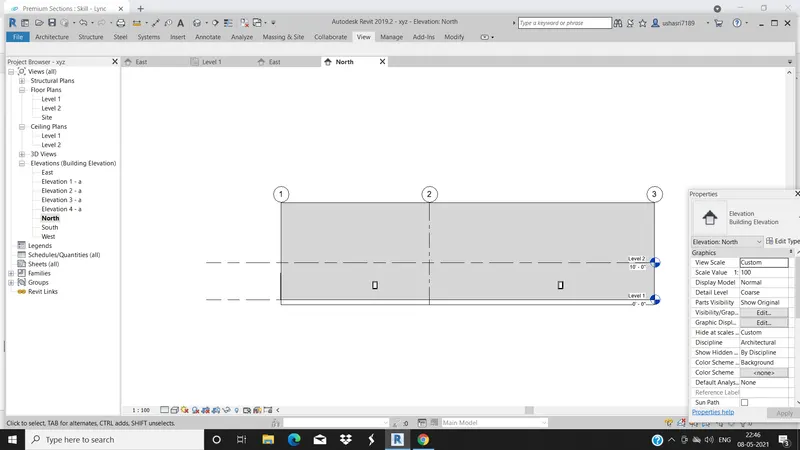

NORTH VIEW

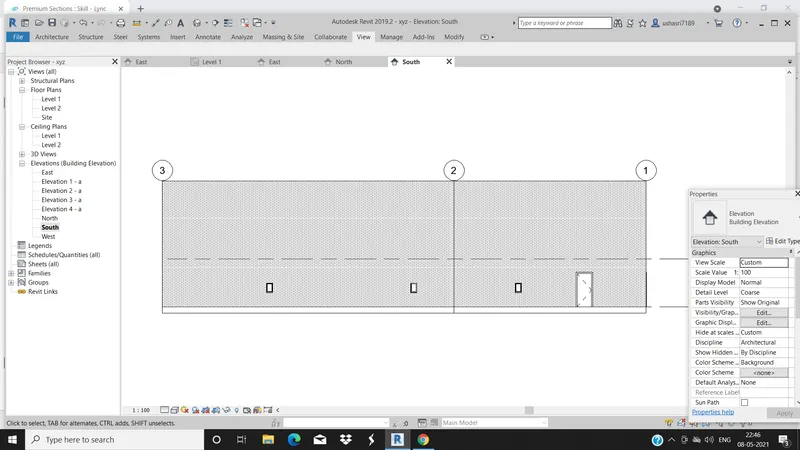

SOUTH VIEW

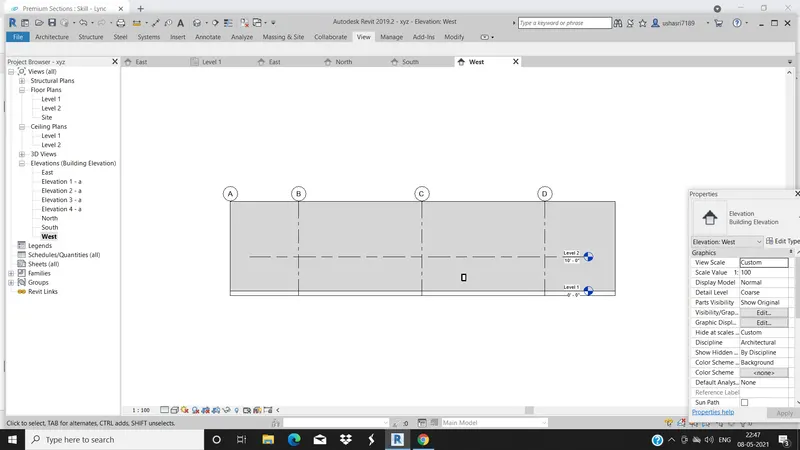

WEST VIEW

RESULT: The differnt Elevation views are created by using elevation tab and viewed them successfully.

7)

AIM:To produce the section view for each room either cutting across longitudinally or in transverse direction.

TOOLS USED:

• View
• open
• section
• properties browser

PROCEDURE:

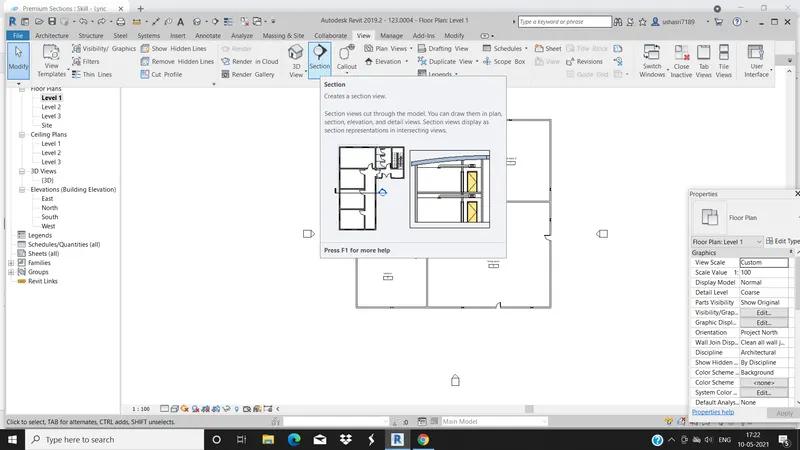

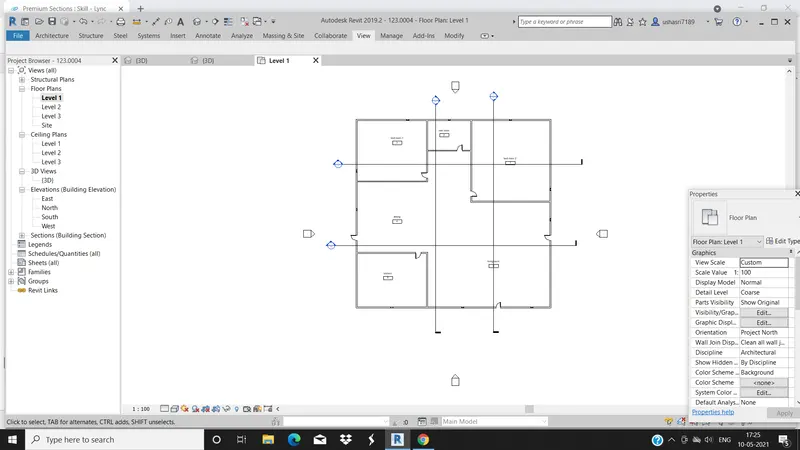

1. Open Revit and select the previous created file. the, go to view tab and select the section.

2. Draw the horizantal or traverse lines in which direction and where you need the section view.

3. Now the different sectoions created we can view them in properties browser in section category. If you want to rename that section we can rename them.

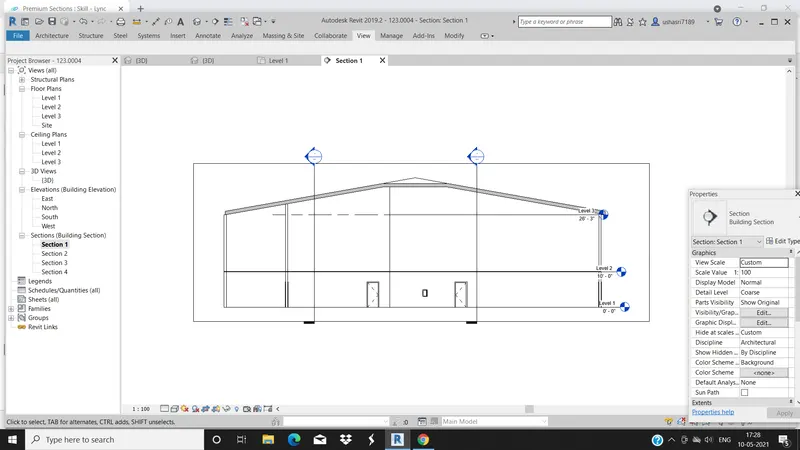

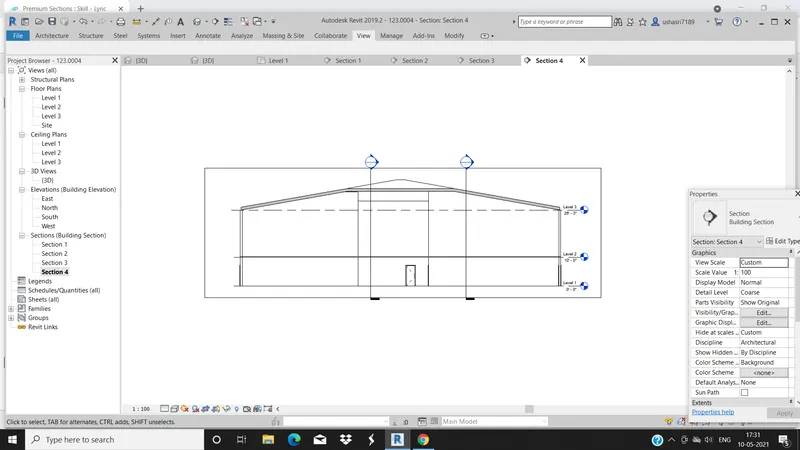

SECTION 1

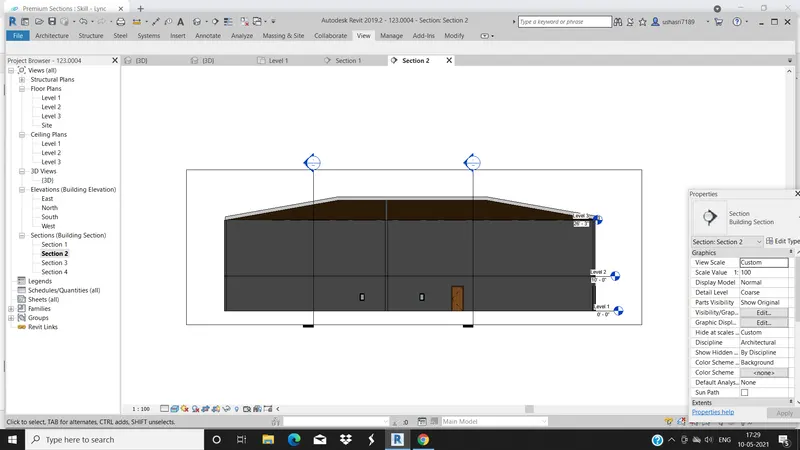

SECTION.2

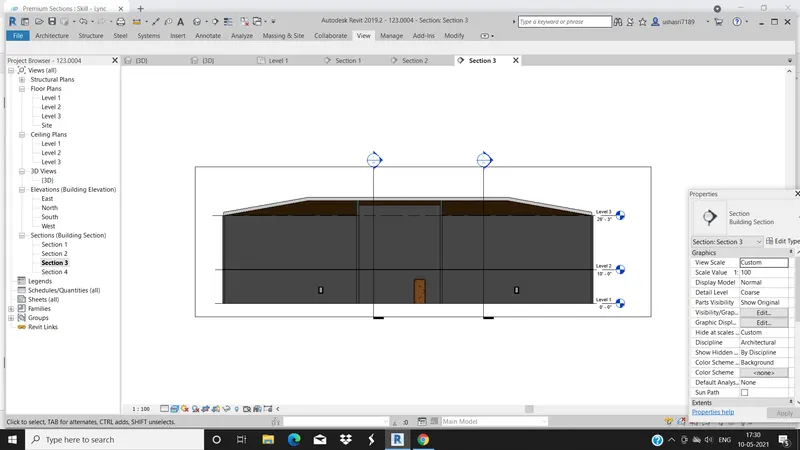

SECTION 3

SECTION 4

RESULT: The different section in ( longitudinal and transverse direction ) for the layout is created and viewed then successfully.

8)

AIM: To classify the views like plan views, section views, elevation views, to either design or Documentation categary using properties browser.

TOOLS USED :

• Open
• view tab
• sheet
• load

PROCEDURE:

1. open the Revit soft ware, and open the previous file which you have saved.

2. Go to view tab then, selct sheet , now a dialogue box of newsheet appears , click on load and the sheet of dimensions which you need.

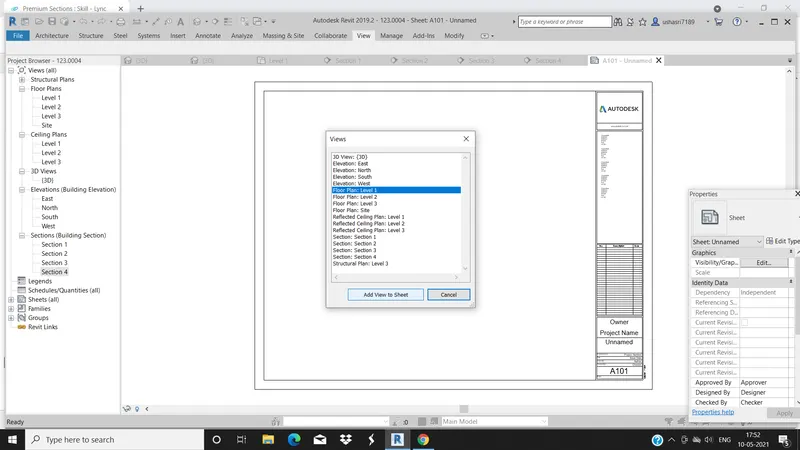

3. Select the view and load the view which you want to insert in the sheet. click add to view sheet.

4. In properties browser we will have view scale change that to the required scale you needed.

5. Fill the detailing like properties name, sheet issued in the sheet by double clicling or we can change in properties and click apply.

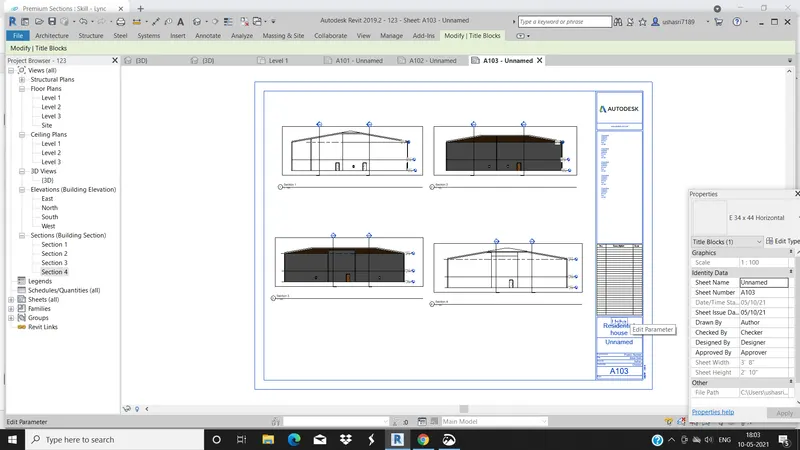

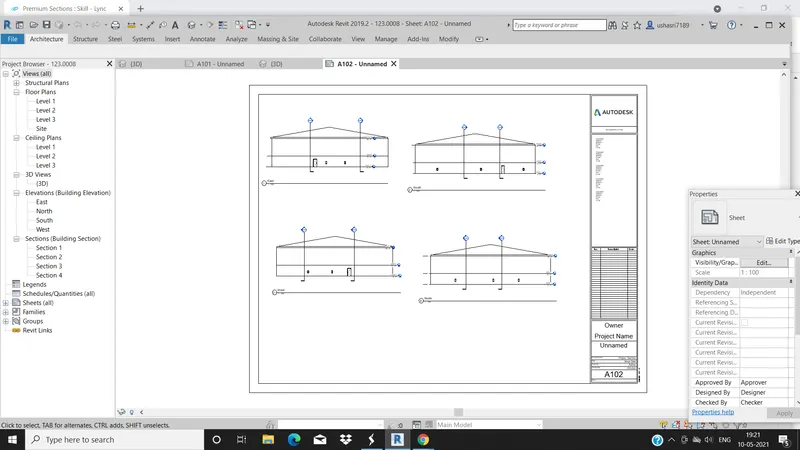

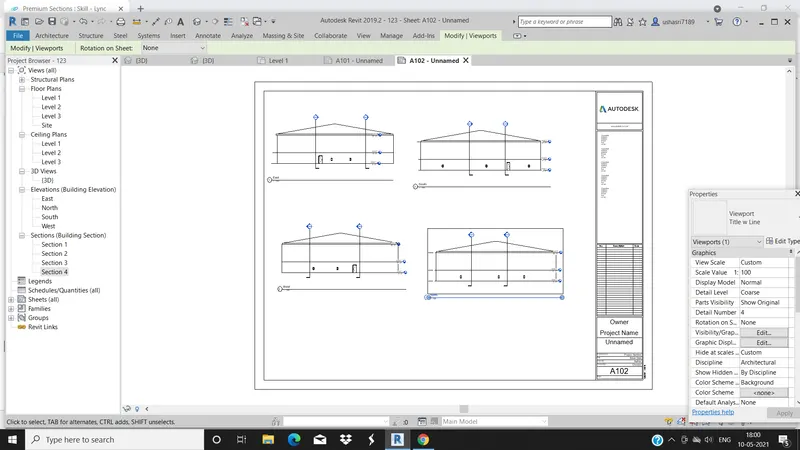

6. Insert all the ection views and elevation views in the sheet category in the properties browser and double clicking on ot.

RESULT: The plan views , section views, elevation view are classified and placed in the sheet and they renamed successfully.

9)

AIM: To create multiple sheets by using adding the sheets.

TOOLS USED :

• View tab
• sheet
• properties browser

PROCEDURE:

1. Open the Revit software and select the file then, open the previous created file.

2. select the view tab then, sheet.

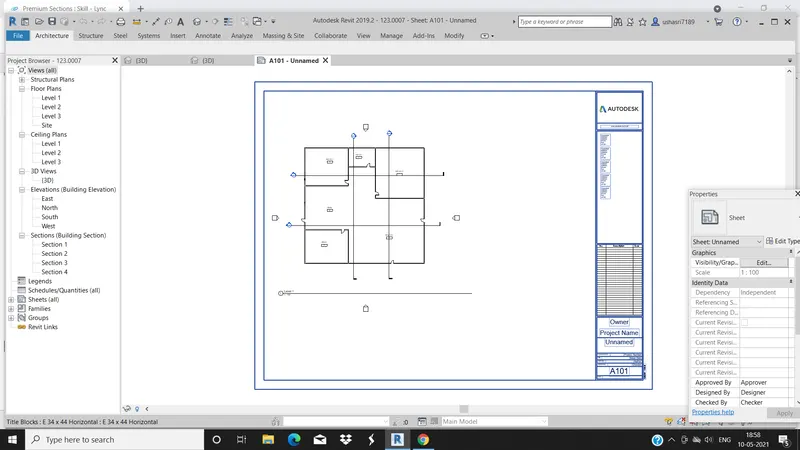

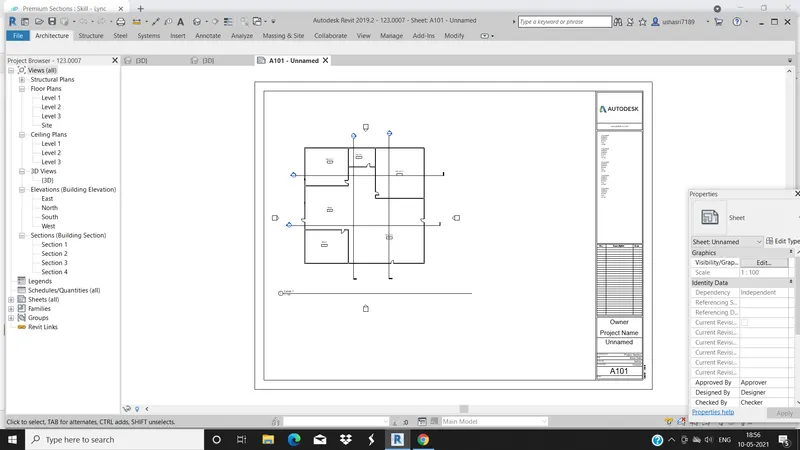

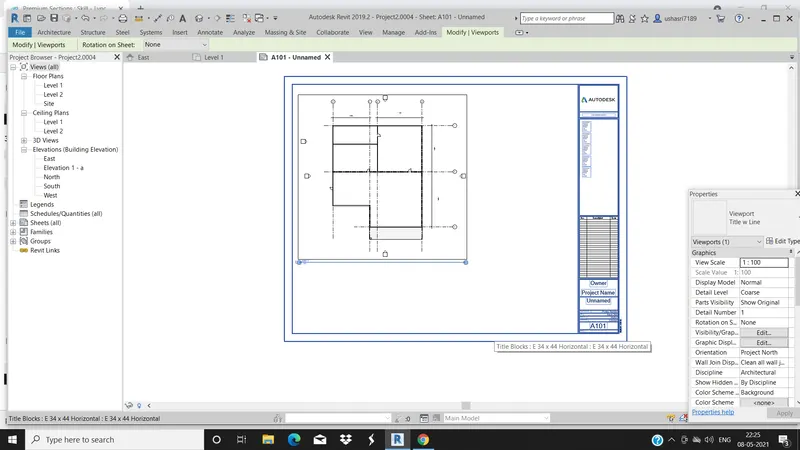

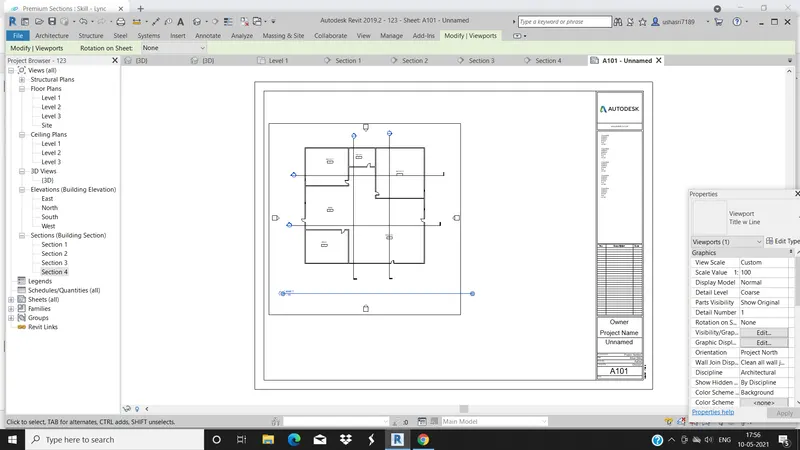

3. Select the view and add ground floor view Architectural to the sheet. And rename the sheet by double click on view name in the sheet category. Edit all the details like sheet name , issue date in the sheet.

a) A101- Ground floor Architecture plan

b)A102 F irst floor Architectural plan

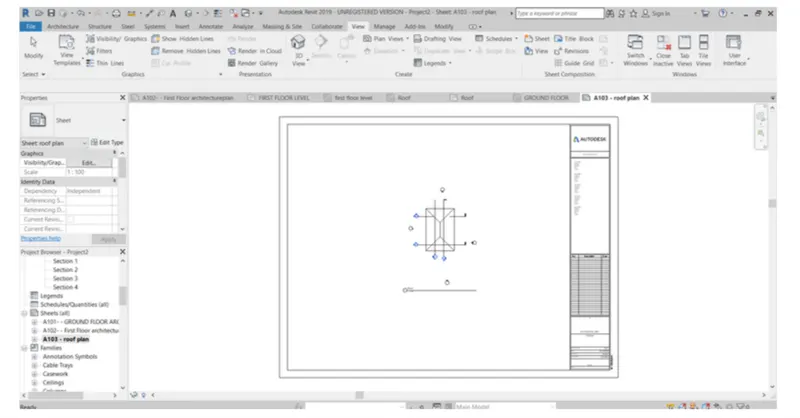

c) A103 ROOF plan

d) S101 Ground floor structural plan

e) S102 FIRST FLOOR STRUCTURAL PLAN

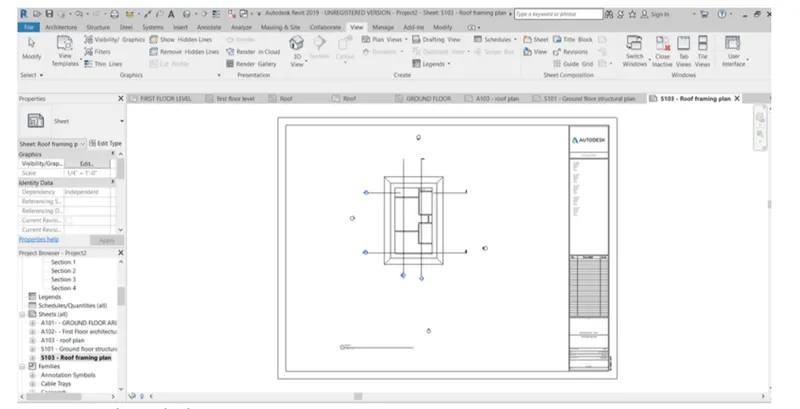

F) S 103 roof framing plan

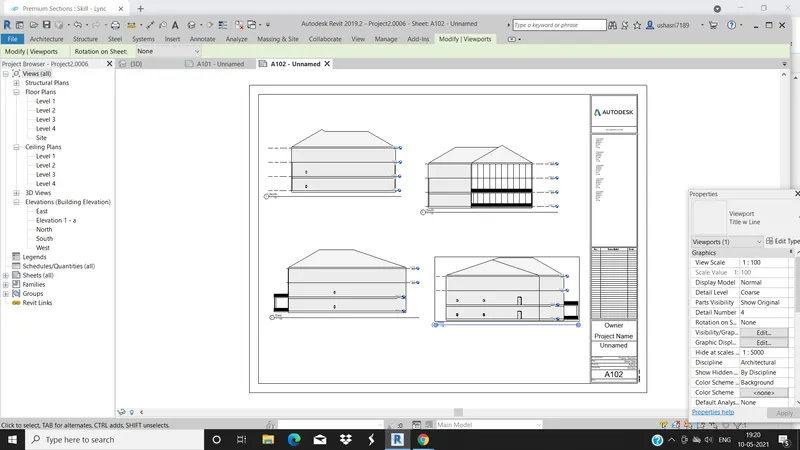

g) A 201 NORTH SOUTH ELEVATION AND A 202 EAST AND WEST

H) SECTIONS

RESULT: The different views are inserted in the sheet template and named them and new sheet templates are added successully.

10)

AIM: To create a camera specific view for each room (living, dinning, bed room) and creating the new set of sheets to place the 3D view images.

TOOLS USED:

• open
• view
• 3D view
• sheet

PROCEDURE:

1. Open the Revit software then, open the previous model that you saved.

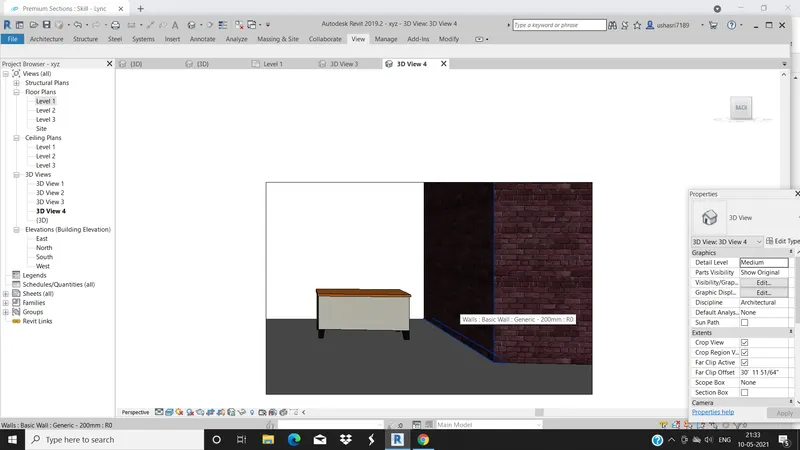

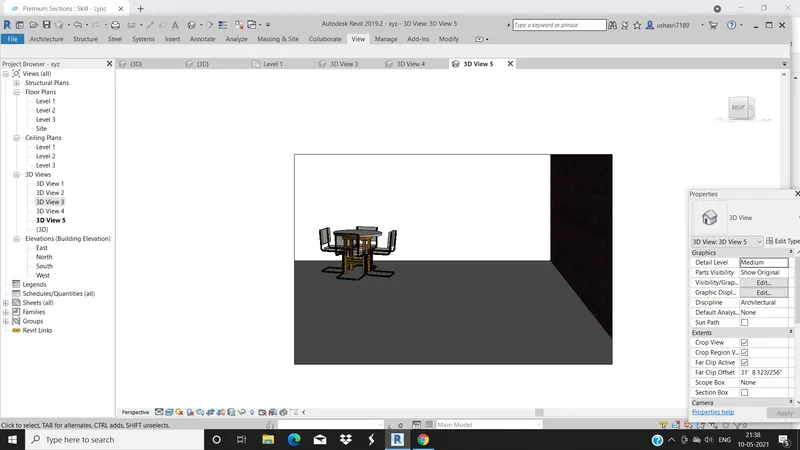

2. Select the VIEW then select the 3D view then, select camera in the place where you need the views like bed room, living, dinning.

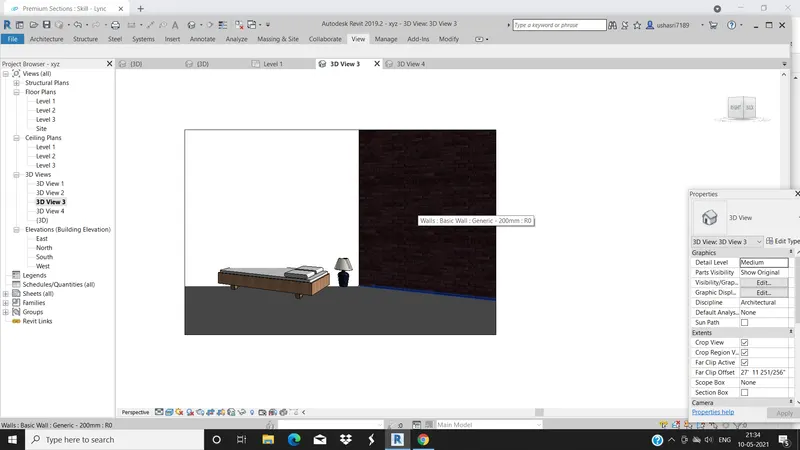

camera view of bed room:

camera view of living

camera view of dinning

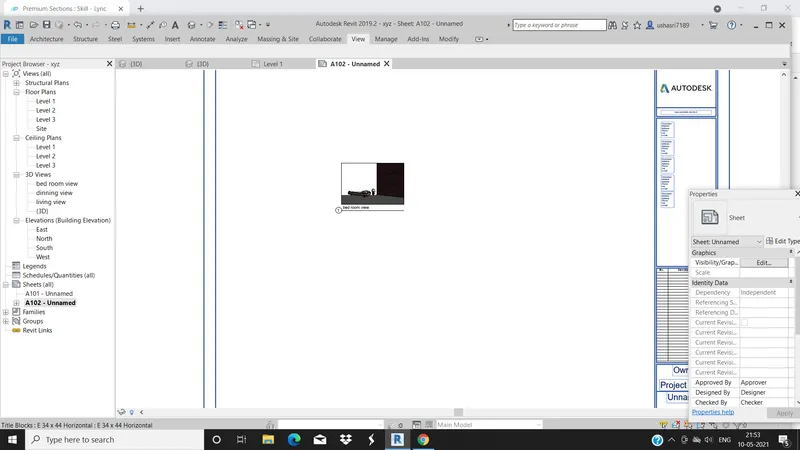

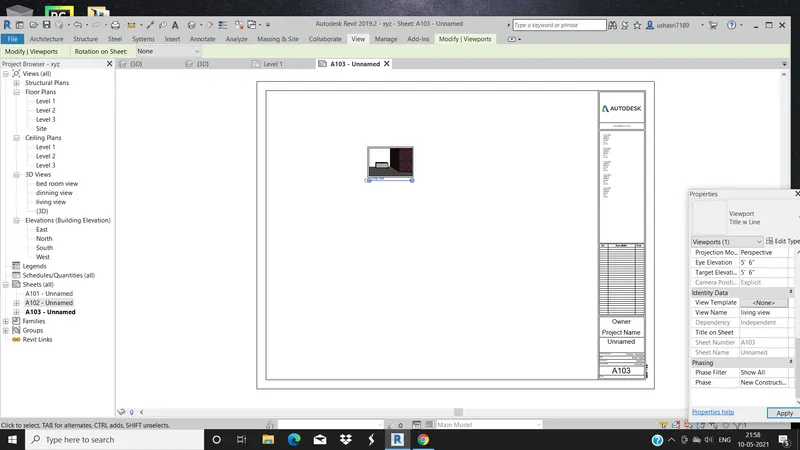

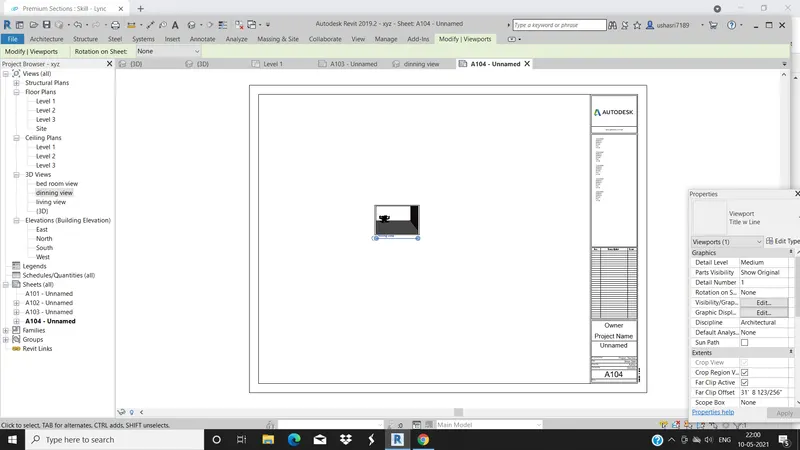

3. Select the view and click sheet to creat a sheet template, place the views in the sheet by selecting the view and add view to sheet.

4. Rename the sheet name by selecting the properties browser then, select Sheet and give right click and rename it as A- 501 BEDroom

sheet of A-502 LIVING ROOM

SHEET OF A-503 DINNING

RESULT: The specific camera views are created to different rooms and they are placed in the sheets successfully.
