Usage of Collaborate tool in REVIT

1)

AIM: To open an Architectural template and set the project base point and project shared coordinates for the project 1 by using the manage tab.

TOOLS USED:

• New
• Architectural template
• Manage

PROCEDURE:

1. Open the Revit software and click the new then, select the Architectural template.

2. Go to Architectural tab then, select grids and draw the grids and rename the vertical grid as 1 and horizantal as A.

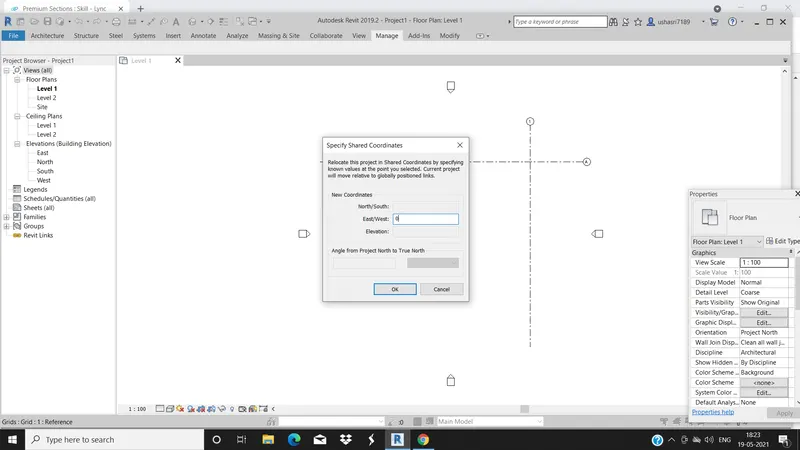

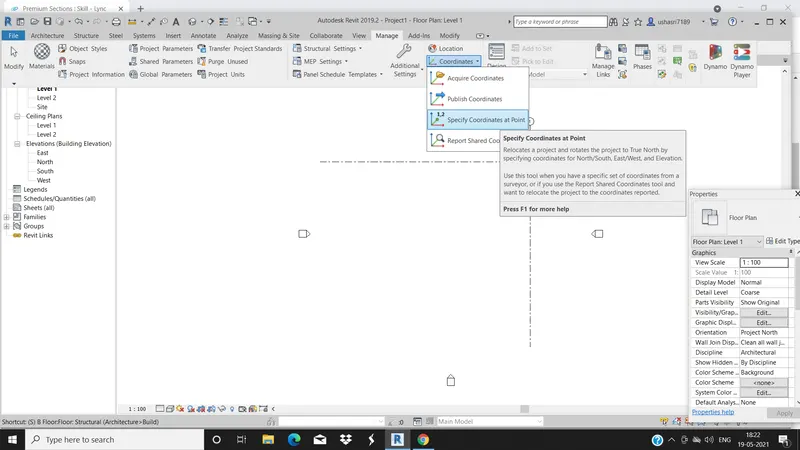

3. Go to manage tab and click on specify coordinates at point and select the grid lines. A dialouge box appears make the new coordinates as 0'. in both the directions.

4. Select the file and select the save as and save the file with appropriate name.

RESULT:

The project base point and project shared coordinates for the Architectural template is created successfully by using the Mange tab.

2)

AIM: To create a Structural template and set the project parameters the same as Architectural model by using the manage tab.

TOOLS USED:

• New
• stuctural
• manage
• save as

PROCEDURE:

1. Open the Revit soft ware.

2. Select the new and click the structural template.

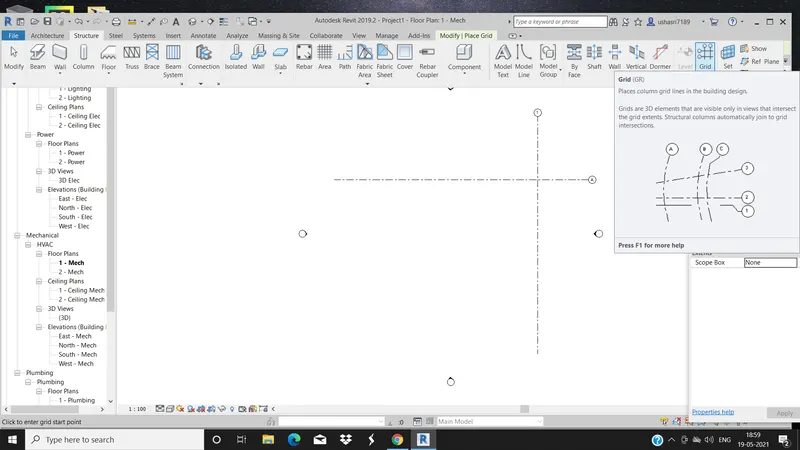

3. Go to Structural tab and select the grids and draw the traverse and logitudinal grids at extreme edges.

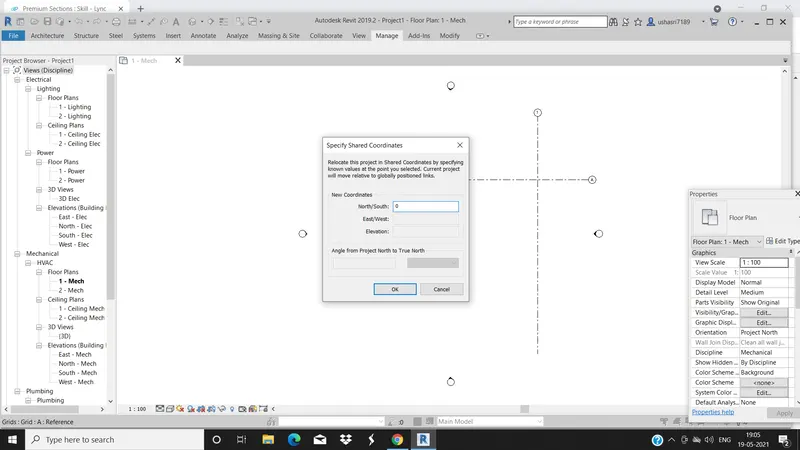

4.select the manage tab and click go to specified shared coordinates and select the grid line and A dialouge box appers in that make the new coordinates as 0'0'' in the directions.

5. Go to files and save as and saveas the file with appropriate name.

RESULT: The Structural template with the same parameter as that of Architectural templte by using the manage tab is created and saved successfuliy.

3)

AIM: To Re-open the Architectural model and using the tools under the collobrate tab using the tools under the collobrate tab make the Architectural model as the central model.

TOOLS USED:

• File
• open
• collobrate
• save

PROCEDURE:

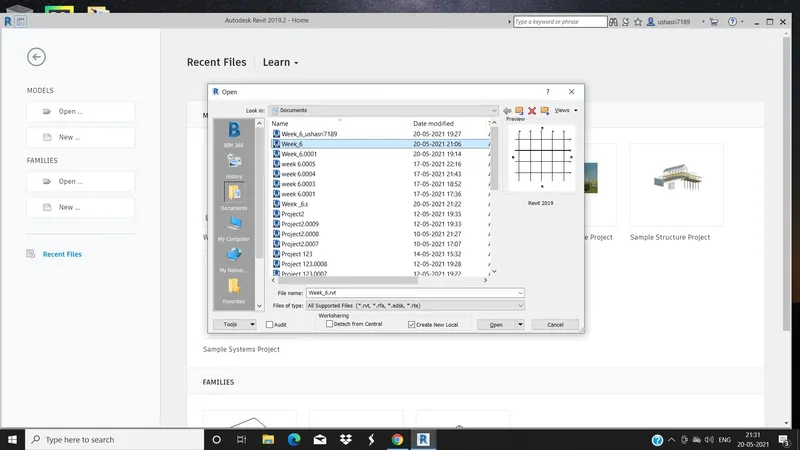

1.Select the file and open the previously created Architectural file.

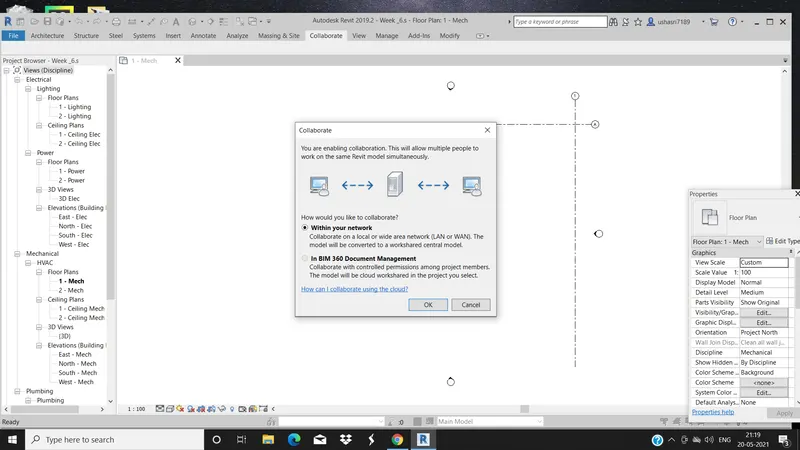

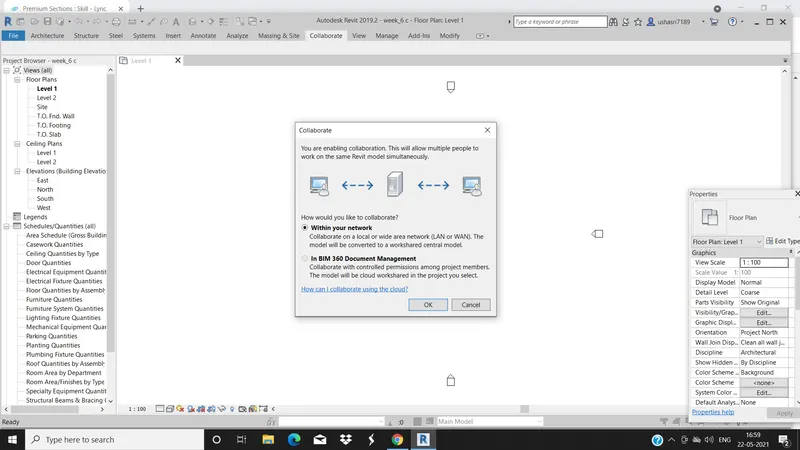

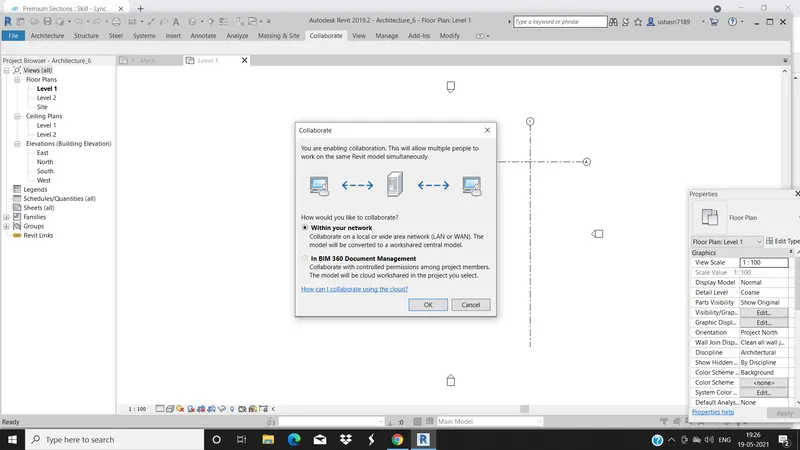

2. Select the collabrate and click on the collabrate dialogue box appears select the within your network, and click ok.

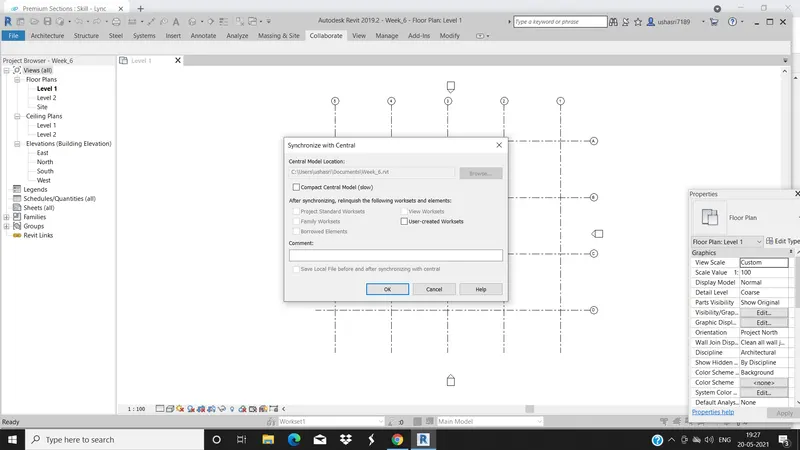

3. Go to collobrate and synchronize with central and then click syncronise now.

RESULT:The Architectural model is marked as central model by using the collobrate tab successfully.

4)

AIM: To create the longitudinal and Travese pattern for the project.

TOOLS USED:

• Open
• Architectural
• Grids
• save
• Aligned

PROCEDURE:

1. Select the Architectural file which is created before.

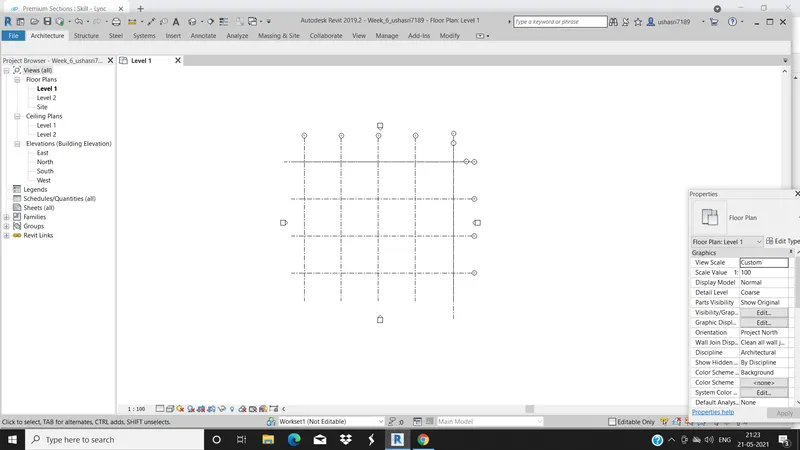

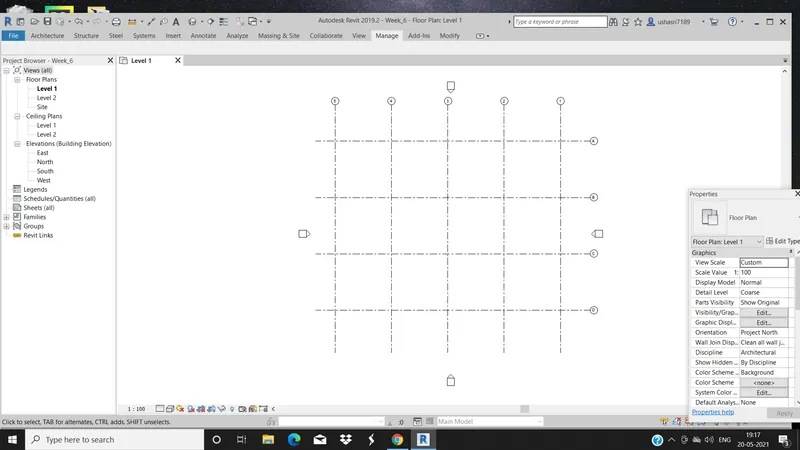

2.Select the Architectural tab and click on grids then, draw the logitudinal and transverse patterns at an offset of 30'.

RESULT: The logitudinal and traverse grids are draw successfully by using the grids option.

5)

AIM: To Synchronizing the changes from the local copy to the central file of the Architectural model.

TOOL USED:

• Collobrate
• Synchronize

PROCEDURE:

1. Select the collobrate tool under collobrate tab.

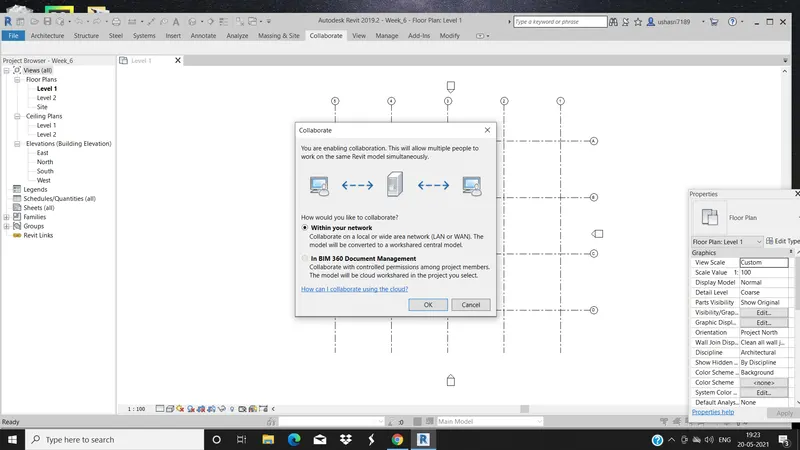

2. Select the within your network option and click ok.

3.Select the Synchronize with central tool under manage tab.

4. click the save.

RESULT: The Synchronizing is change from local copy to the central file is done successfully.

6)

AIM: To open the Structural model and using the collabrate tool save the model as central file.

TOOLS USED:

• Open
• collabrate
• synchronize

PROCEDURE:

1. Open the Structural model which is already created.

2.Select the collobrate tab and click the collobrate.

3. Select the within your network , then click ok

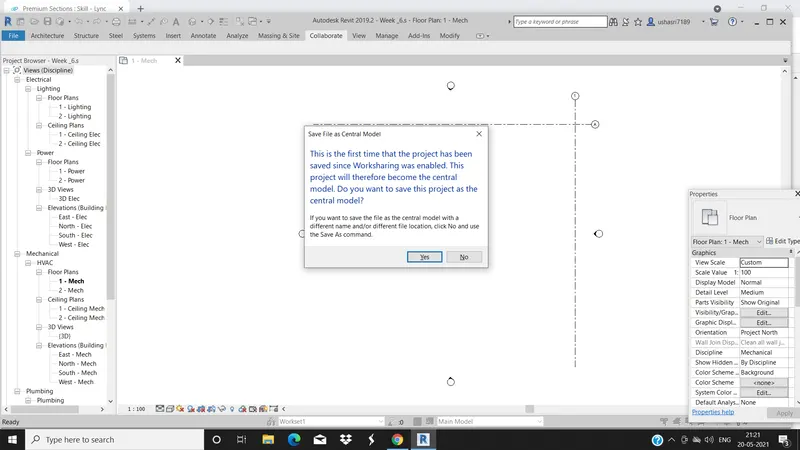

4. Click on save and save the file as central file . Click ok.

RESULT:

The Structural model is successfully saved as central file by using the collabrate tab.

7)

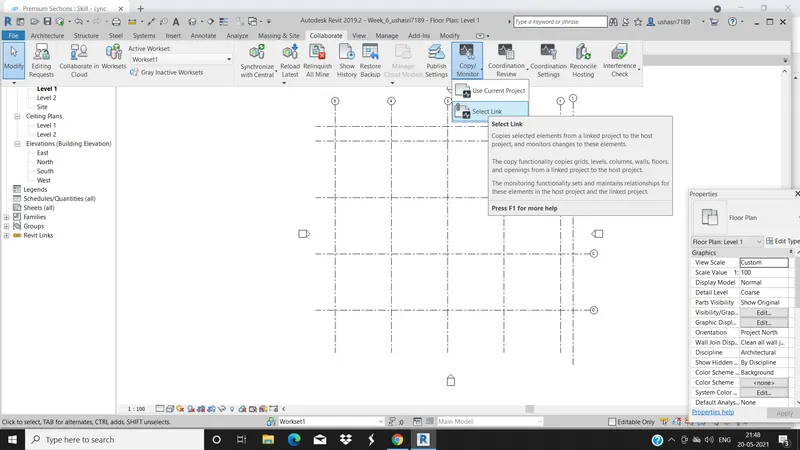

AIM: To copy the Grids and levels from the Architectural model to Structural model by using the copy monitor tool.

TOOLS USED:

• Manage tab
• collobrate
• copy monitor
• manage links

PROCEDURE:

1. Open the Architectural file which file which we have creaed earlier.

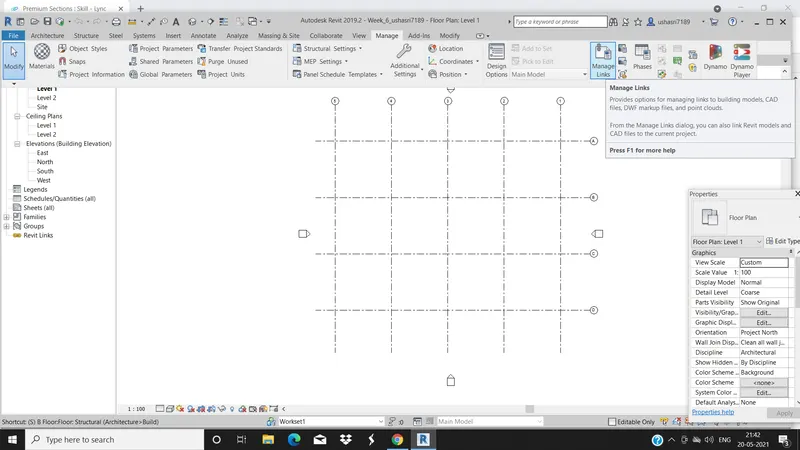

2. Add the structural model to the current model using the manage link option.

3. Select the copy monitor in the collobrate tab and click the select link.

4. Select the copy option so that we can copy all object in single click.

5. select the object which we need to copy and click on finish.

RESULT:The object in the Architectural model are successfully copied to the structural model.

8)

AIM:

To create a new file with a construction templte and linking both the Architectural and Structural model by using the manage links and saving the file and closing.

TOOLS USED:

• NEW
• save
• close
• manage tab
• manage link
• colabrate

PROCEDURE:

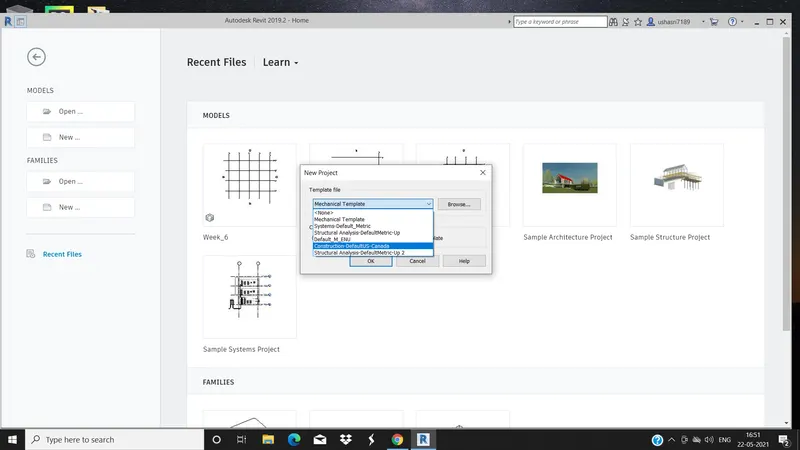

1. Open the Revit and click on new the, select construction templtee.

2. Select the collobrate under the collobrate tab.

3. selevct the within your network . click ok

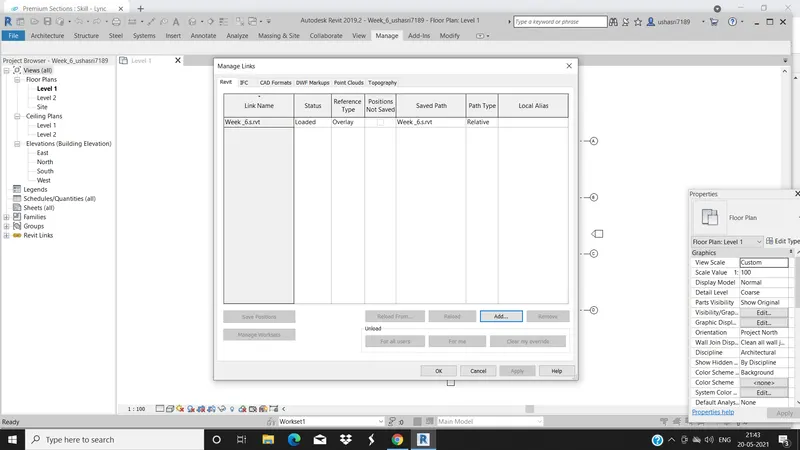

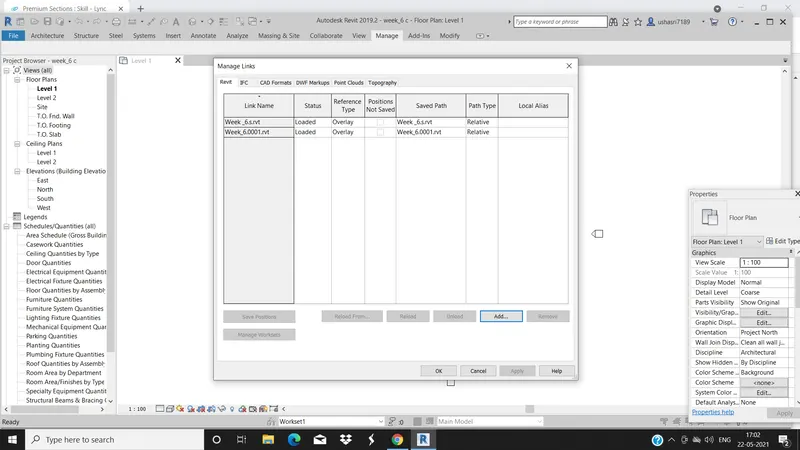

4. click save and click yes then, go to manage tab and click the manage links and Structural and Architectural models which we created earlier and click ok.

5. Save the file and close.

RESULT:The both the Architectural and Structural models are now linked to central model file.

9)

AIM: To check wheather the structural and Architectural model grids are matching in the construction templte.

Yes, both the structural and Architectural model grids are matching in the construction templte .

if not,

1.Open the model and click the reclocte position in the position menu in the manage tab.

2. now select the base coordinates of the both files.

RESULT: Now the coordinates are successfully coincided.

10)

1. ARCHITECTURAL

• Creating doors
• creating windows
• material assign
• creating staircase
• Design development

2. STRUCTURAL

• Foundation
• columns
• slabs
• floor
• roof
• starircase
• beams

3. CONSTRUCTION MODEL

• Site access
• quality control
• health and safety

Multiple people can work on the same project by worksharing with use of central model
