3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

Ans.1.

Identify the residential model elements such as Door, Windows, Tables, Chair, Couch, Bed, Lamps from the library and insert them to the model . Save the project for use
for Assignment 3

Aim :- Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

Introduction :- Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level

In the REVIT Architecture tutorial, I am trying to show you how to create CEILING elements both "Automatically" and by means of the Sketch method.

• Creating Celings automatically
• Creating Celings by Sketch
• Aligning Suspended Celing Grids

Procedure :-

• Open REVIT
• Open a new sheet and set units as feet and inches.
• Taken the Celing area by selecting use of project browser.

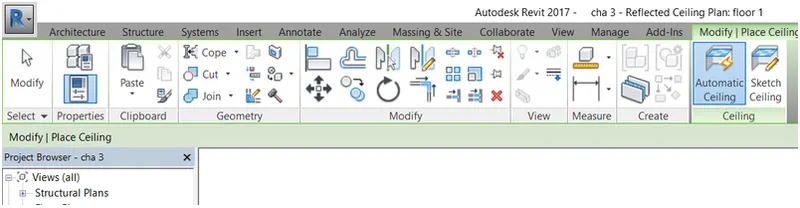

• In above the tool bar, the Celeing option and make the drawing.
• Set into the floor plan using ceiling on project browser.
• And use the sketch option or automatic optionto draw the Ceiling.

• If you can use the Sketch option please use a rectangle or line option to easy draw.
• Take rectangle option here and draw with rectangle in inner of the walls

Result :-

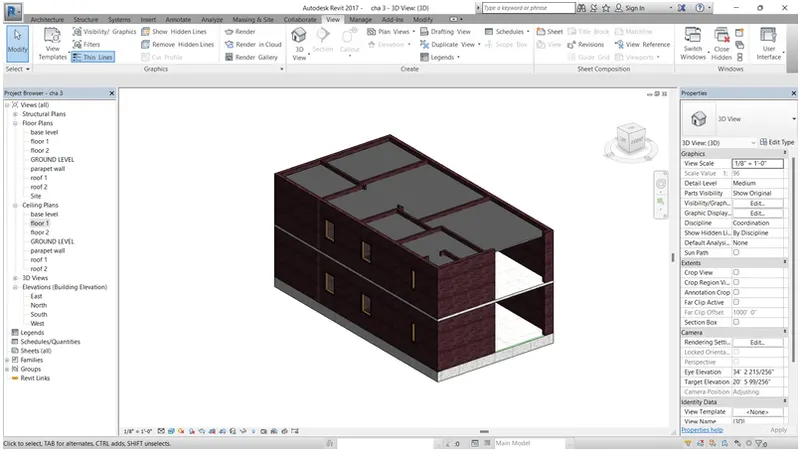

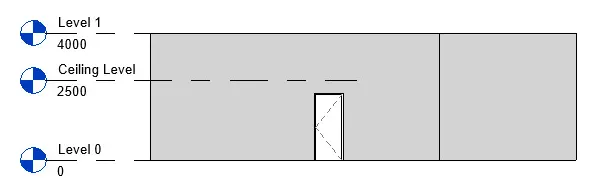

First Floor Level Model a Ceiling from the architecture tab above the walls at the first-floor level is drawn.

Ans.2.

Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

Aim :- Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

Introduction :- Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

• REVIT offers several methods of crateing Ceiling roofs. Choosing the method that best meets the needs of your design.
• The extrusion of the roof can extend in either a positive or a negative direction along the plane perpendicular to face the solid component for eg.wall.
• Create roofs on any non-vertical faces of a mass using roof by face tool. You can crate roofs in a similar way that we created floors (refer to my previous blog on the Cadline Community).
• In the Type selector, select a roof type.
• Move the cursor to highlight a face.

Procedure :-

• The process is little same like as Celing procedure but here we have use the roof option.
• Open a new sheet and set units.
• In the tool bar taken a roof option.
• We have to select the foot print in roof option

• Pick the same as automatic or sketch.
• As per the same i can take a Sketch option for draw the roof
• After the rectangle option just draw in exterior wall
• In the properties browser given the slope value as 10 degrees
• Then click OK

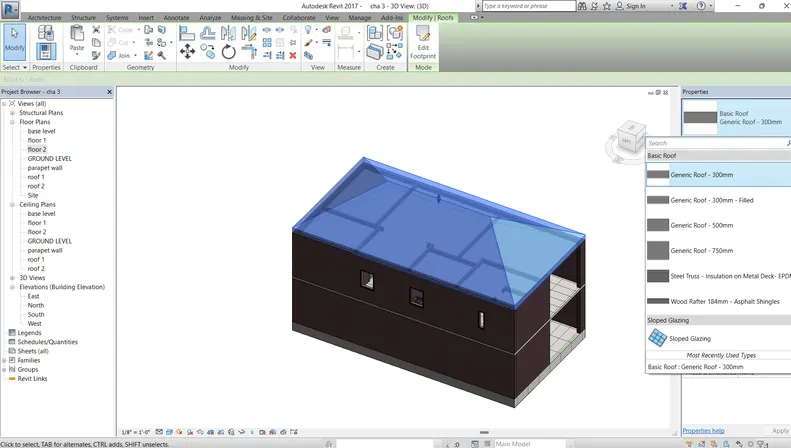

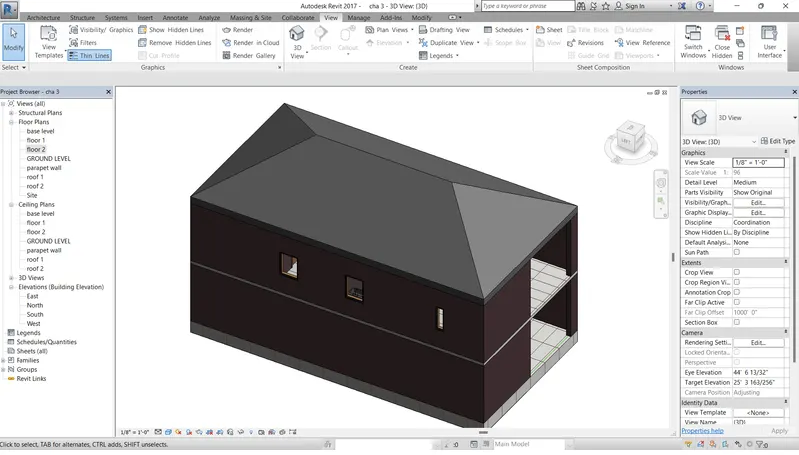

• Finally check the roof in 3D view.

Result :-

Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees is drawn.

Ans.3.

Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

Aim :- Using the file saved from weeks 2 to 4, create plan views for ground floor level and first- floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

Introduction :- Using the file saved from weeks 2 to 4, create plan views for ground floor level and first- floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns

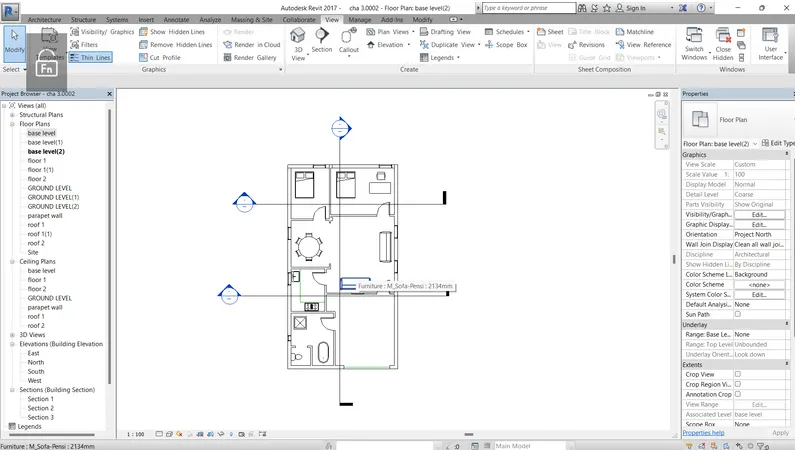

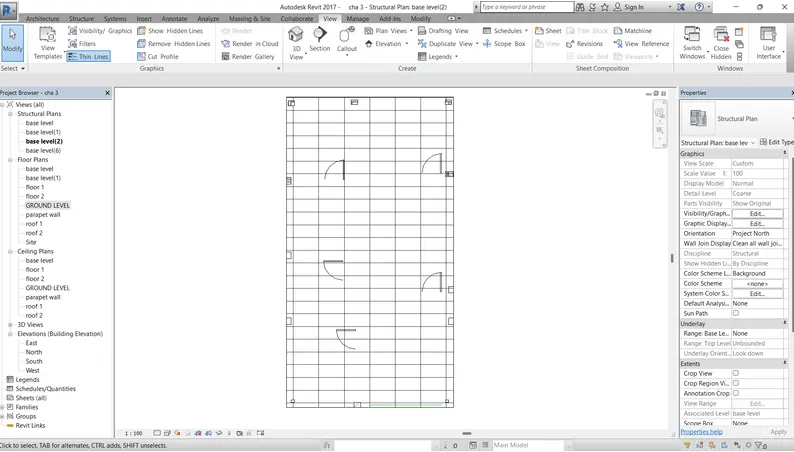

• The Structural plan view is the default view when you start a new project using structure template. Most project includs at least one structrual plan.New structural plan views are created automatically as you add new levels in the project.We can create multiple structural plan view types.
• the floor plan view is default view in a new archtectural project - Most projects include at least one floor plan.
• Floor plan views are crtaed automatically as you add new levels to your project.

Procedure :-

a. Architecture plan must have walls, floors, and all the components placed within the building

• Architecture plan should have walls, floors, and all components placed within the building.

• Open new sheet and set units.
• Set the levels.

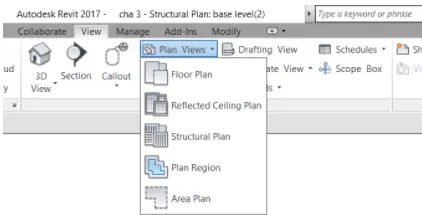

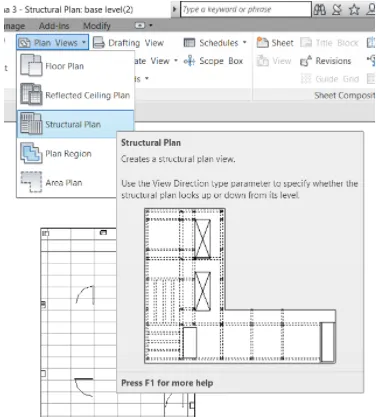

• In the above tool bar pick the view option

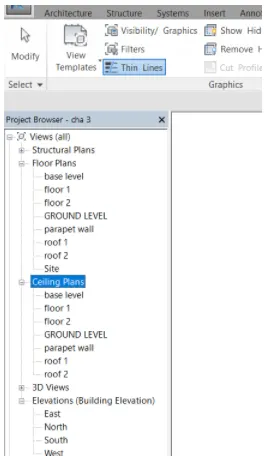

• And taken the plan views in right side.

• In the plan views they have some opion just to pivk the floor plan.

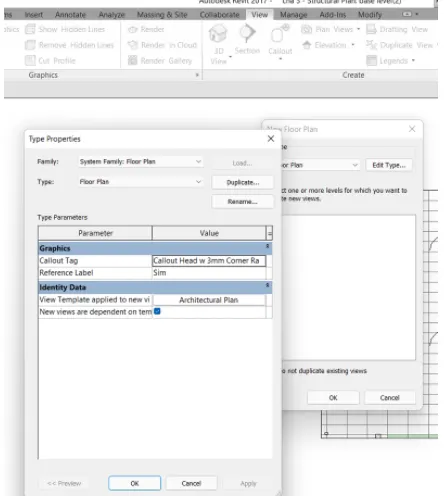

• And click the edit option, set the architecture.
• And then Click OK, to view the architecture plan on screen.

b. Structure plan must have details of only walls, floors, and columns

• Same like the above one.
• Open the new sheet and set unit.
• Set the levels.
• In the above tool bar pick the view option.
• And take the plan to view in right side

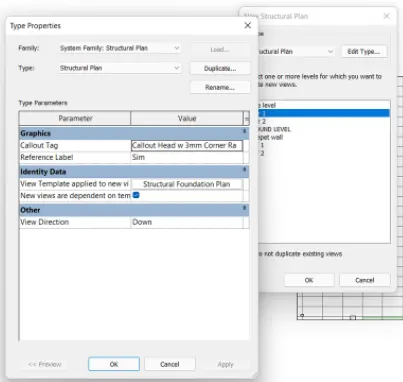

• In the plan view they have some option, just pick the structural plan.
• Automatically it can show the structrural view the plan.

Result :-

a. Architecture plan must have walls, floors, and all the components placed within the building

b. Structure plan must have details of only walls, floors, and columns

Ans.4.

Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Aim :- Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Introduction :- Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

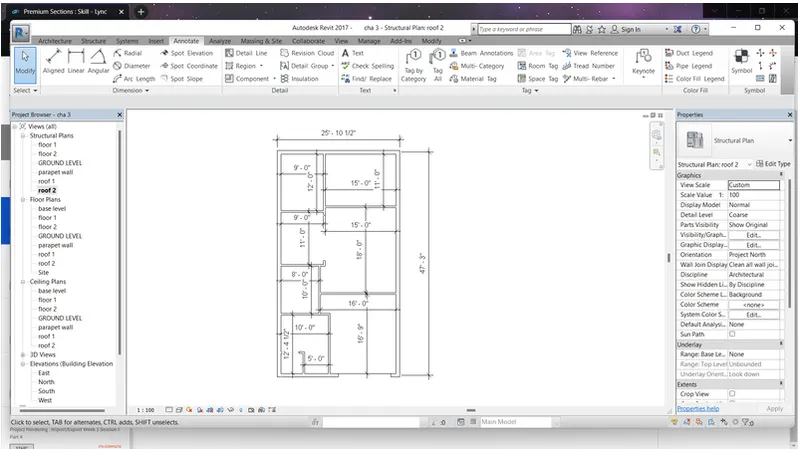

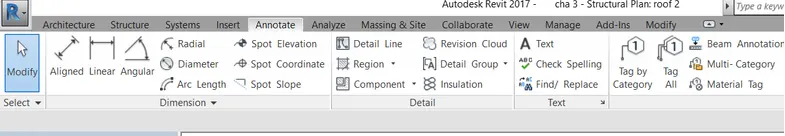

ANNOTATE IN REVIT

• A tag is an annotation for identifying elements in a drawing Symbols. A symbols is a graphic reperesnetation of an annotatation element or other object. Multi-Rebar Annontions. trag multiple rebar and rebar sets with the single annotation.

1. In a view that shows the main model and design option, add the annotations and details tht we want to appear in similar views foe all design options.
2. With the view active in the drawing area, click view tab create panel duplicate view drop-down (Duplicate and Detailing)

Annotate and detail design option

GRIDS IN REVIT

• Grids are annotation elements that helps organize the design. On the ribbion, click (Grid), click Modify then Place grid tab draw panel and select a sketch option. Use (pick lines) to snap the grid to an existing line such as wall.

Procedure :-

• Same like the above option
• Open new sheet and set unit
• Set the levels in elevation view
• In the tool bar pick Modify option

• And they may have option to pick in modify tool bar

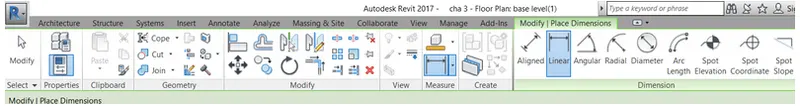

• We can take the linear option to draw the dimensions

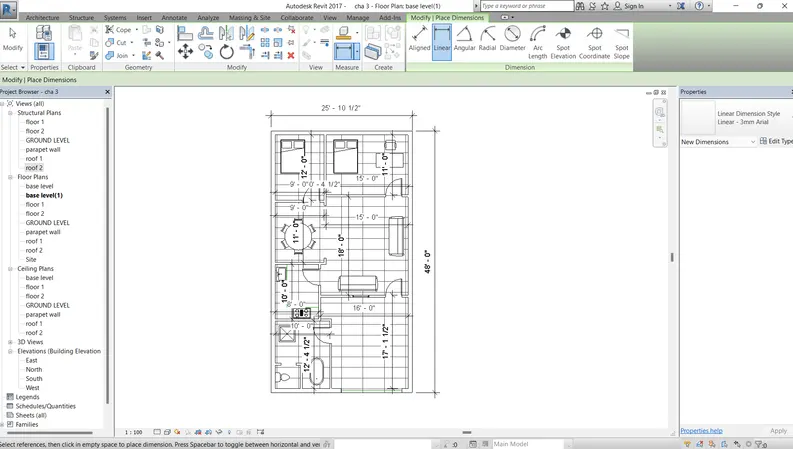

• Give the dimensions for seperate individual rooms

Result :-

a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans

b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans

Ans.5.

Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Aim :- Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

Introduction :- Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views

• A construction document set (also called as a drawing set or sheet set) consists of several sheets. Topics in the section. Above sheets in REVIT you create a sheet view for each sheet in the construction documnets set.
• You can then place multiple drawings or schedule on each sheet view.

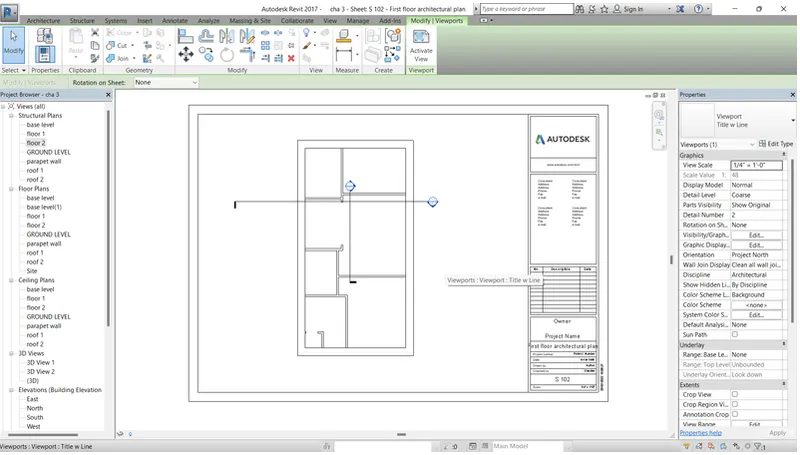

ADD SHEET

• Open the project
• Click view tab sheet composition panel (Sheet)
• Select a title block, as follows. In the new sheet dialog, Select a title block from the list
• Enter information in the title block of the sheet
• Add views to the sheet
• Change the dafault number and name that Revit assigned to the sheet.

Procedure :-

• Open the new sheet and set the unit
• Set the levels

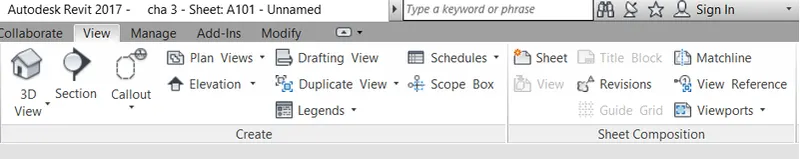

• Select the sheet option in the above tool bars

• Edit the sheet size as what you want like (A0, A1, A2, A3, A4 )
• I can take the A2 sheet

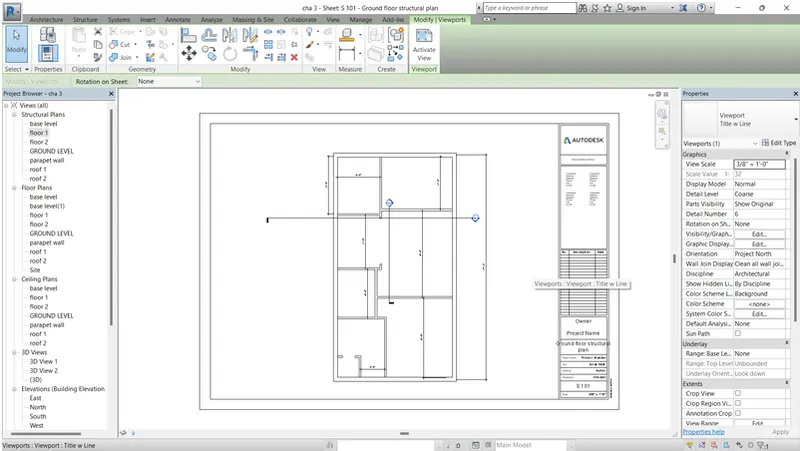

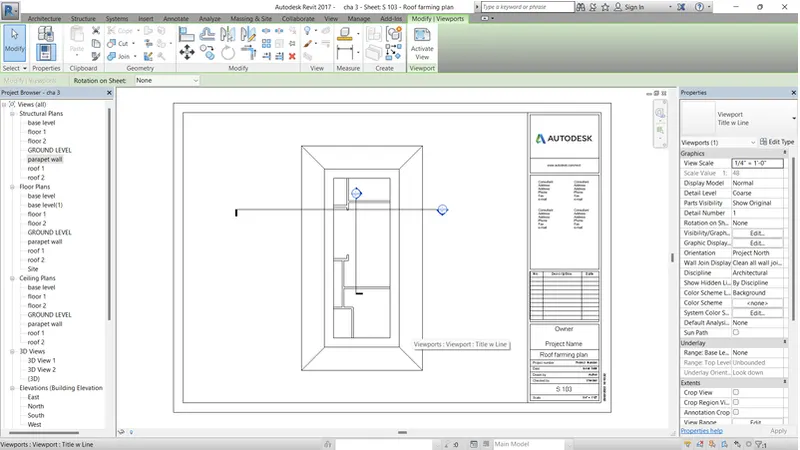

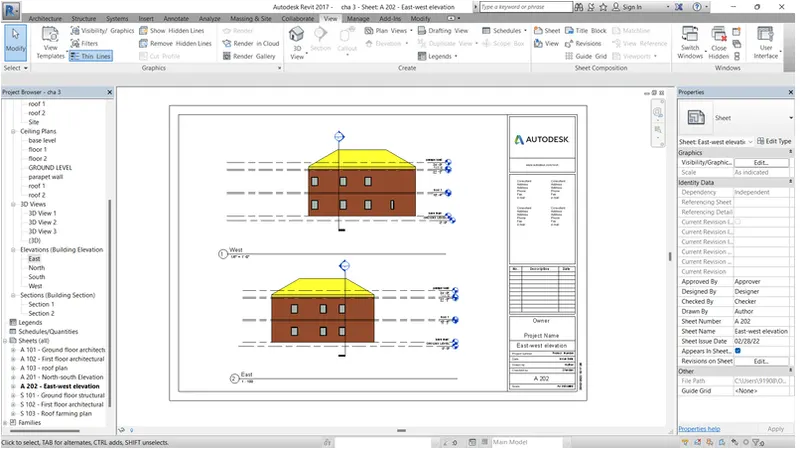

• And pick the floor plan and drag into the sheet
• And edit the size of the picture use the scale option in properties box.

Result :-

Ans.6.

Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Aim :- Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

Introduction :- Using the elevation tab create the elevation views, looking at your building from East, North, South, and West

• An elevtion drawing is a view of the building seen from one side......Elevations are drawn as if looking at a building from the front or side (as opposed to floor plans which are drawn looking at a building from above)
• elavation views are a part of the default template in Revit Architecture.
• When you create a project with the default template in Revit architecture.
• When you create a project with the default template, 4 elevation views are included north, soth, east, west, it is the elevation views where you can sketvh level lines. For each level lines.For each line that you sketch a corresponding plan view is created.

Procedure :-

• Open the new sheet and set the unit
• Set the levels
• After the finishing the diagram in 3D model

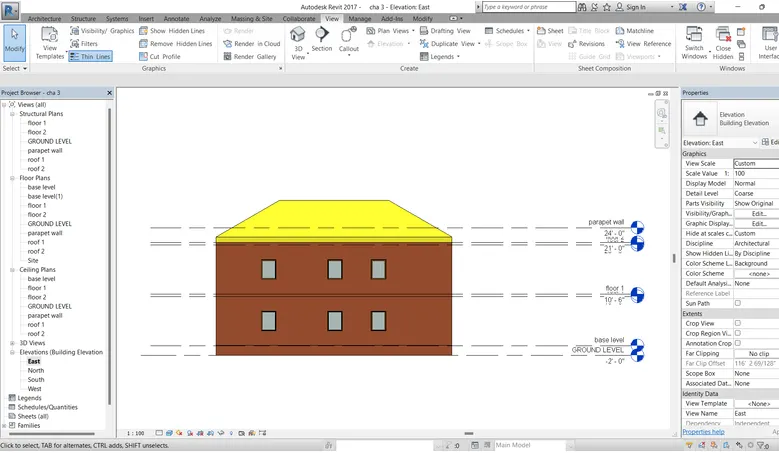

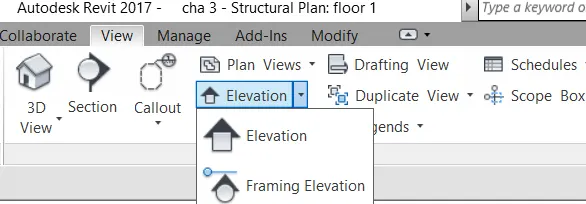

• Pick the elevation in above the tool bar

• After taken the elevation option and place into in the screen.
• It place depends upon the diagram.

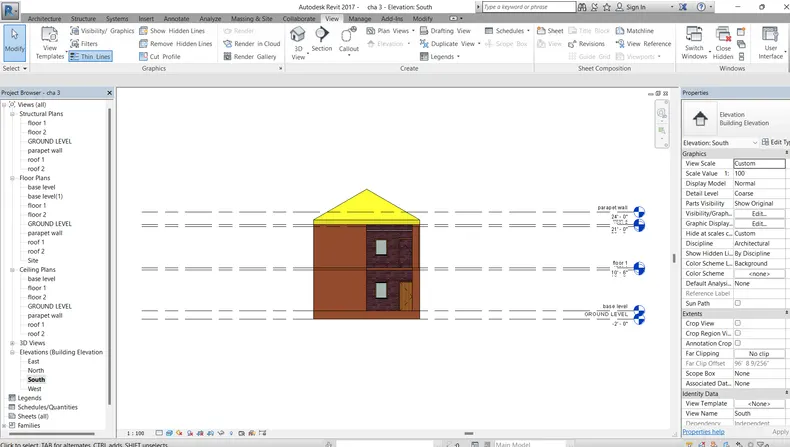

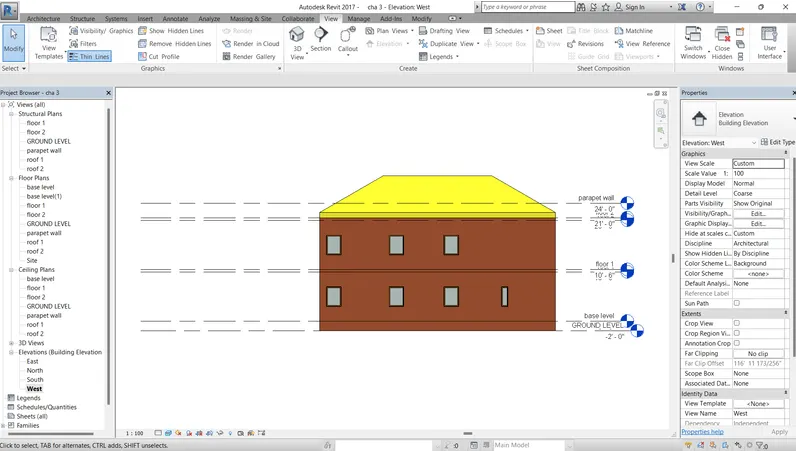

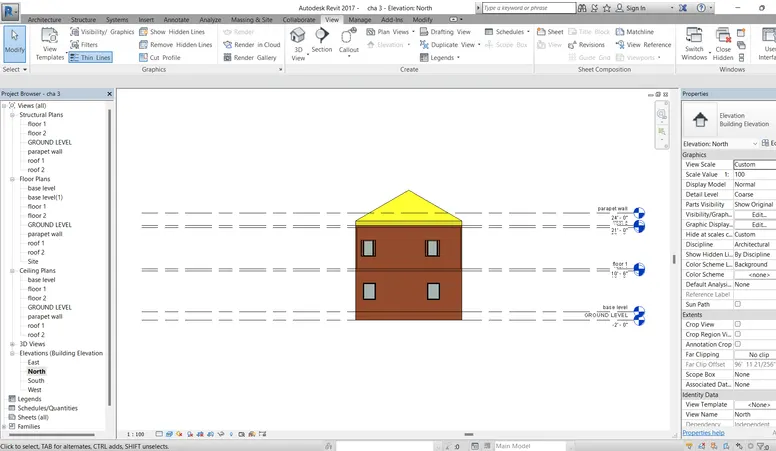

• Wecan placed the elevation in four side north, south, east, west.
• Just check the elevation in project browser.

Result :-

Ans.7.

Produce section cut through each room either cutting across longitudinally or in a transverse direction

Aim :- Produce section cut through each room either cutting across longitudinally or in a transverse direction

Introduction :- Produce section cut through each room either cutting across longitudinally or in a transverse direction

• Sectional views reveal hidden details in a mechanical drawing.
• These views assume that a cutting plane has removed portions of the object represented by the drawing, displaying the appropriate section of the interior.
• Sectional views are used in engineering and architectural drawings.
• They help civil engineers, architects and airplane design communicate their ideas to their peers.

Procedure :-

• Open the new sheet and set the unit
• Set the levels

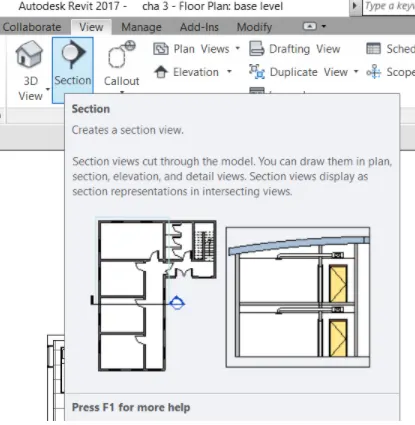

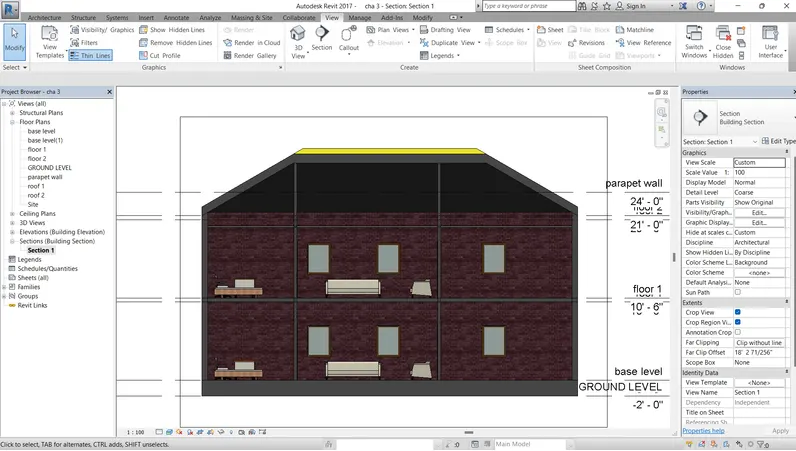

• Token the section options in above the tool bar.

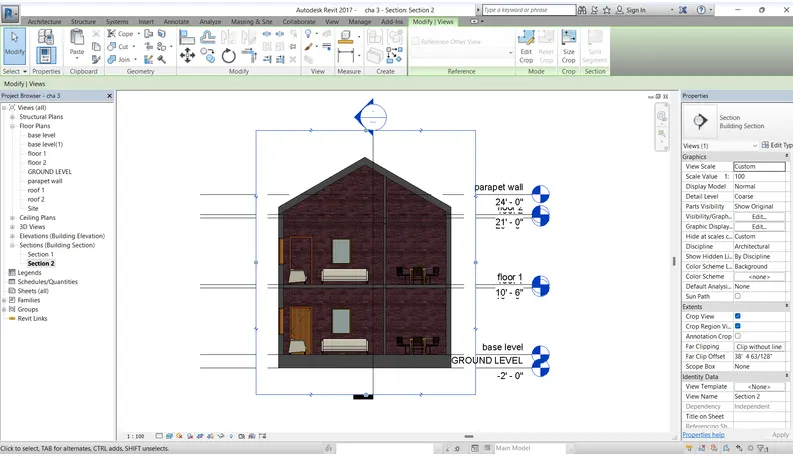

• And section option is make cut the elavtion and view the cutting elevation on the screen.

• Craete the section view with use of section option.
• And cut plan view use the section
• And saw the section in the section view on the project browser
• Check the 3D view with use of section in project browser.

Result :-

Ans.8.

Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Aim :- Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

Introduction :- Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

• The structural plan view is the default view when you start a new project using a structural templates.
• Most popular include at least one structural plan. New structural plan view are created automatically as we add new levels to your projects. We can create multiple structural plan view types.
• The floor plan view is the default view in new architecture project.Most projects include at least one floor plan.
• Floor plan views are created automatically as you add new leveels to your projects. Sectional views reveal hidden details in a mechanical drawng.
• These views assume that a cutting plane has removed portions of the objects represented by the drawing, displaying the appropriate section of the interior.
• Sectional views are used in engineering and architectural drawings.
• They help civil engineers, architects, and airplane designers communicate their ideas to theri peers.'
• An elevation is a view of the building seen from one side, a flat representation of one view.
• This is most common view used to describe the external appearance of the building.
• Each elevation is labelled in relation to the compass direction it faces, eg. looking towrds North we would see the Southern elevation of the building.

Procedure :-

• Open the new sheet and set the unit
• Set the levels

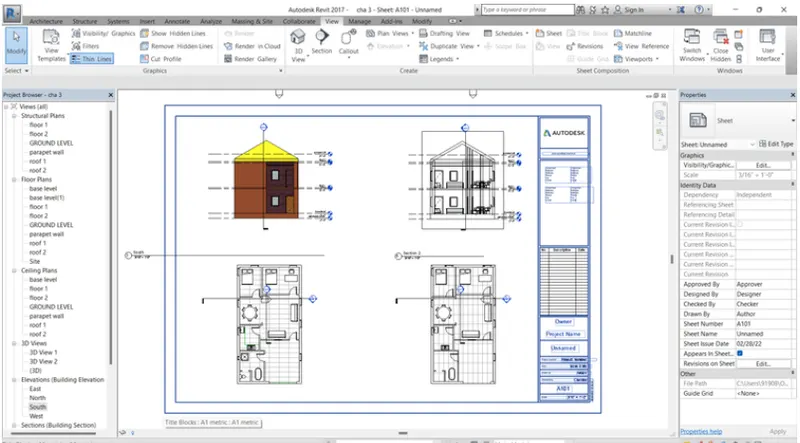

• Use sheet option in view on tool bar
• Set new sheet and Modify the size

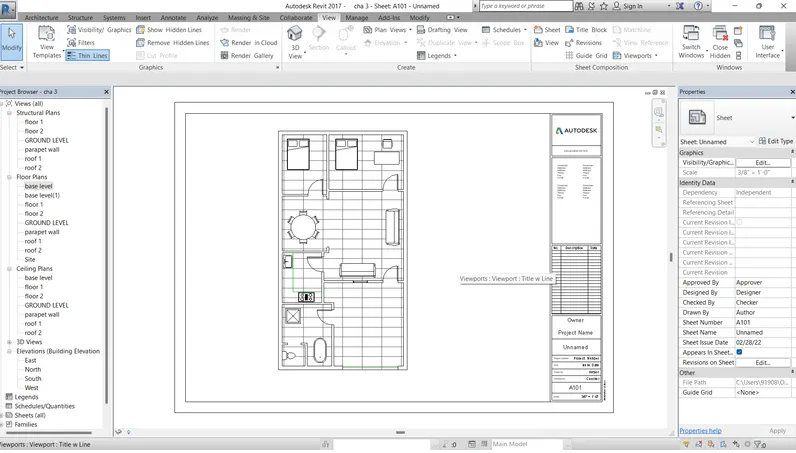

• Taken ground level/ floor and drag into the sheet and modify the size with use of scale.
• Taken the first floor and drag into the sheet and modify the size with use of scale.
• Taken the section plan and drag into sheet and modify the size with use of scale.
• Taken the eevation and drag into the sheet and modify the size with uses of scale.

Result :-

The views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser is drawn

Ans.9.

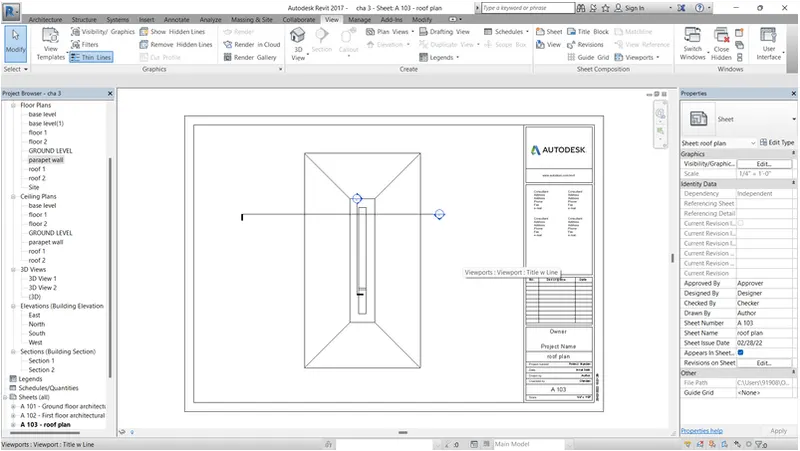

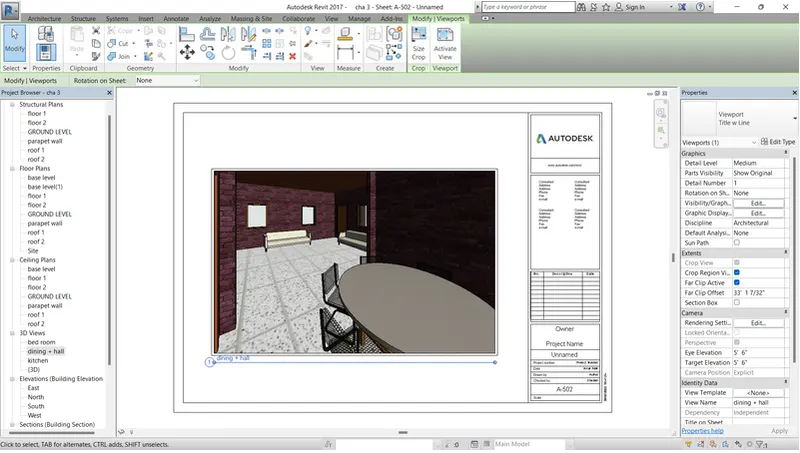

Using the sheet template produced create multiple sheets as follows

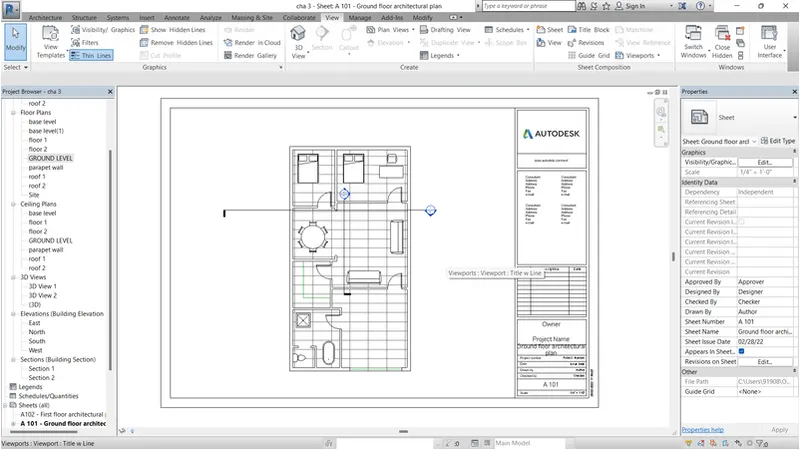

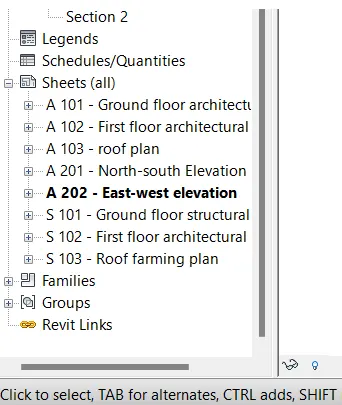

a. A 101- Ground Floor Architecture Plan

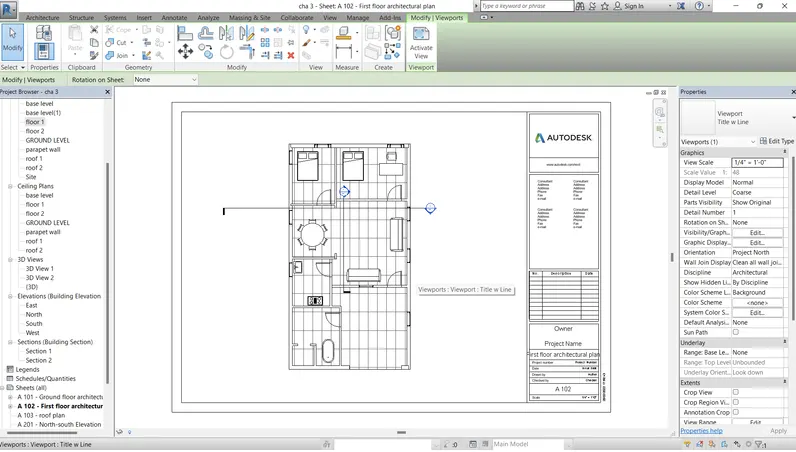

b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

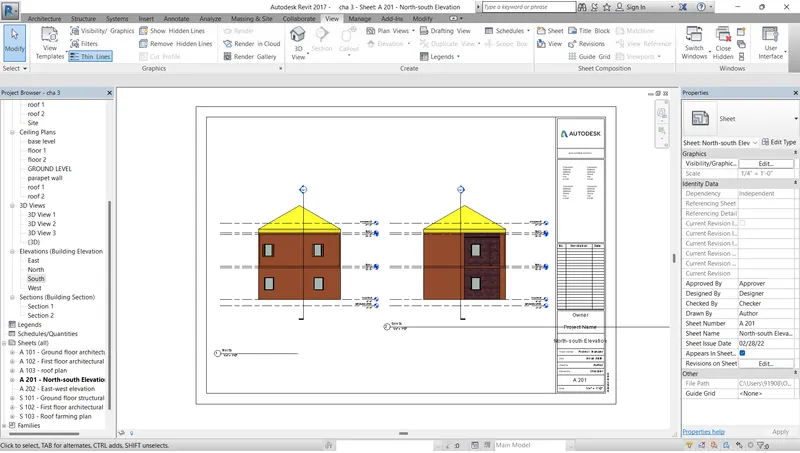

g. A-201- North-South Elevations
h. A-202- East-West Elevations

Aim :- Using the sheet template produced create multiple sheets as follows

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

Introduction :- Using the sheet template produced create multiple sheets as follows

a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

• When a view is too large to fit on a singl sheet, you can create multiple sheets for the view, divide theview into parts and show one part on each sheet.You can also use this technique when a view is too tall or wide for a sheet and we can show parts of view next to each other on the same sheet.
• Add a sheet

1. Open the project
2. Click on view tab sheet composition panel (Sheet)
3. Select a title block, as follows :in the new sheet dialog, select a title block from the list
4. Enter information in the title block of the sheet
5. Add views to the sheet
6. Change the default number and name that Revit assigned to the sheet.

Procedure :-

• Open the new sheet and set the unit
• Set the levels
• Use sheet option in view on tool bar
• Set new sheet and Modify the size
• Here we can also set the name and number of the sheet individually
• Here we have 8 number of differeent sheet want to create as followed by the given questions

• In thwe project browser we can see sheet option and are shown here
• Just select one by one sheet
• First we can take the A-101 as ground level/floor architectural plan sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the A-102 as first level/floor architectural plan sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the A-103 as roof level/floor architectural plan sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the A-201 as north-south elevation sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the A-202 as east-west elevation sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the S-101 as ground level/floor architectural plan sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the S-102 as ground level/floor architectural plan sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the S-103 as ground level/floor architectural plan sheet and drag the architecture floor plan into sheet and modify the size of the diagram.

Result :-

Ans.10.

Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Aim :- Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

Introduction :- Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.

• Click the small arrow near the 3D view, and click the corner button on the drop-down menu.Then you can define the camera by two clicks: Camera position and target position. After you define the camera, Revit will automatically open a new view. This view will show you what your camera sees.

The perspective option controls wheather a 3D view display as perspective instead of orthograhic

• Open a plan, section or elevation view
• Click view tab , then create panel then 3D view drop-down then Camera

Note: If you clear the perspective option on the option bar, the view that s an orthographic 3D view and not a perspective view.

• Click in the drawing area to place the camera
• Drag the cursor to the desrired target and click to place it.

REVIT creates a perspective 3D view and assign a name to the view :3D view-1 , 3D view-2 and so on. to rename the view in the project browser right click and select Rename.

Note: when used in a workshared project, the 3D view command creates a default 3D view per user.The assigned name to this view is given as 3D- Username

We can use a section box to limit the viewable portion of 3D view.

Parent topic :3D Views

Related concepts

• Project browser
• About 3D views

Related Tasks

• Rotate a section view or sace box
• Create an orthographic 3D view

Procedure :-

• Open the new sheet and set the unit
• Set the levels
• Use sheet option in view on tool bar
• Set new sheet and Modify the size
• Here we can also set the name and number of the sheet individually
• Here we have 3 number of different sheet want to crate as followed by the given question

• Use the camera option in the view on tool bar
• Take camera and turn the plan into 2D
• Place camera on bedroom, kitchen and hall/living room

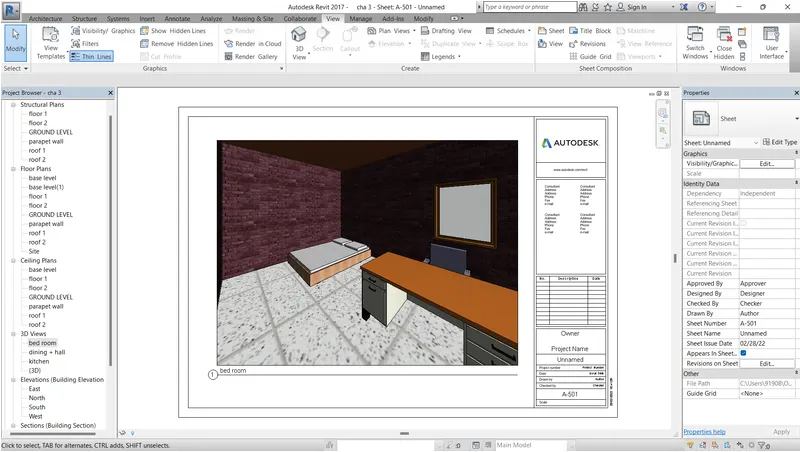

• Next we can take the A-501 as Bedroom elevation sheet and drag the architecture floor plan into sheet and modify the size of the diagram.
• Next we can take the A-502 as Kitchen elevation sheet and drag the architecture floor plan into sheet and modify the size of the diagram.

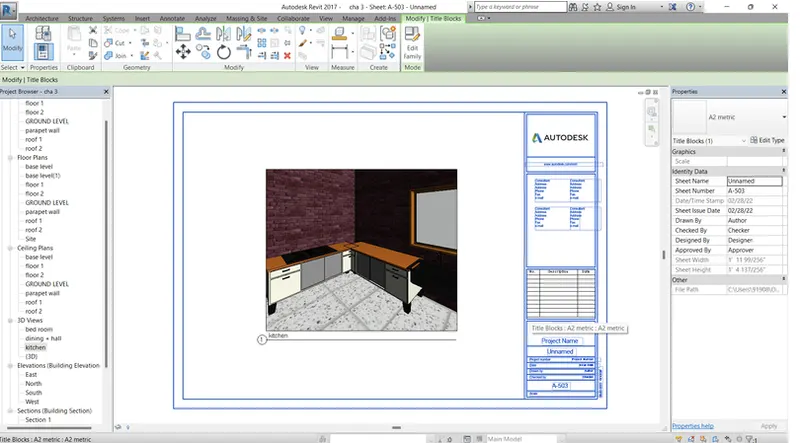

• Next we can take the A-503 as Living elevation sheet and drag the architecture floor plan into sheet and modify the size of the diagram

Result :-
