3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Q1-
Aim-to model a ceiling from the architecture tab above the walls at the first floor level
introduction-
1.the creation of ceiling within Ravet is a very similar process to that of the floss and Groups you can enter sketch mode and literally sketch of the boundary of the ceiling yourself
2.main thing to remember is to be in a correct ceiling plan view before you start rev it will let you place selling in floor plan views but I would not advise this as you can't easily see what you have created
procedure -

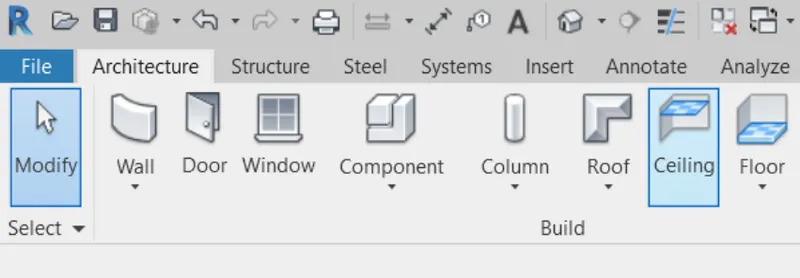

1.first open the Revit software and select the ceiling option from the architecture toolbar.
2.after selecting the cailing option then select the east room one by one

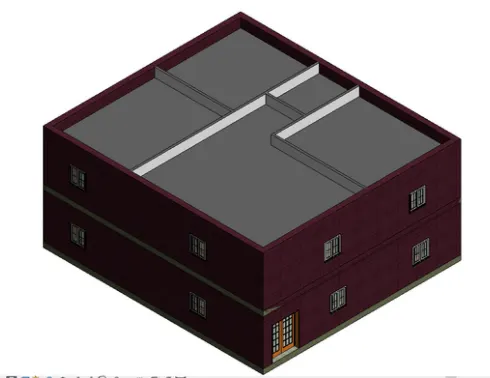

3.then the ceiling will be created here we can ceiling in the three-dimensional view
RESULT-Result the sealing has been modelled successfully from the architecture tab above the walls at the first floor level
Q2-
aim -to model a roof above the ceiling by selecting the footprints of the ceiling
introduction -
1.roof covering of the top of a building serving to protect against the rain snow send light wind and extreme of temperature
2.groups have been constructed in a wide variety of forms flat peach revolted domed or in combination as detected by technical economic or aesthetic consideration the earliest Robes constructed by main where probably A rope that where made of straw leaves branches aur AIDS
3.conical thatched roofs are good example of this type and still widely used in the rural areas of Africa and elsewhere
4.thicker branches and Timber eventually come to be used to spend a roof with clay or some other related impermeable substance or pressed into the interest akshy between the them
5.gabled and flat roofs where possible with this material with information of a brick and cut stone of a building the basic forms of the doorman V appeared
procedure -

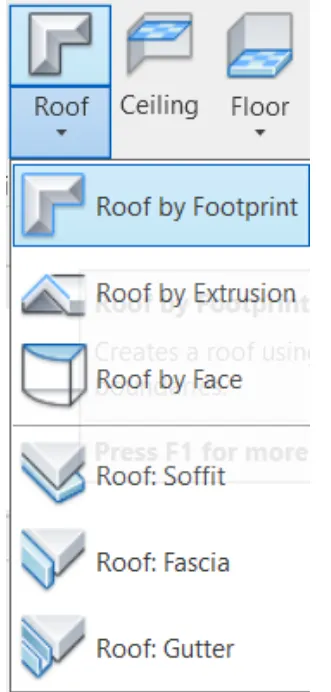

1.open the architecture toolbar and select the road by foot print option as shown in the figure

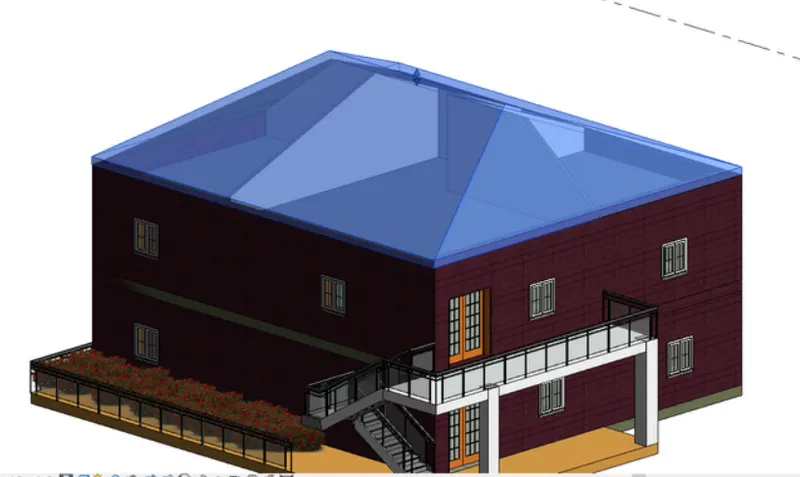

next we select the roof and adjust the roof to 10 degrees by selecting it has been created as shown below
3. next we select the roof and adjust the roof 210 degrees by selecting it has been created as shown below
result-
the roof has been created successfully to the model in the rivet in detailed manner
Q3-
aim-To create a plan views for ground floor level and first floor level including the all walls floors and components and two separate them to architectural and structural plant
introduction-
1.the structural plan view is the default view when you start a new project using a structural template
2.most projects include at least one structural and nonstructural plan views are created automatically as you add new labels to your project you can create multiple structural plan view types
3.the floor plan view is the default view in the new architectural project of most projects include at least one floor plan floor plan views are created automatically as you add new levels to your project
procedure

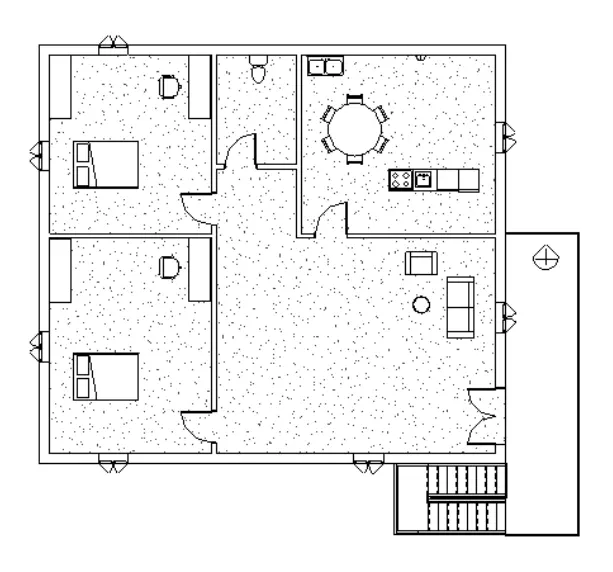

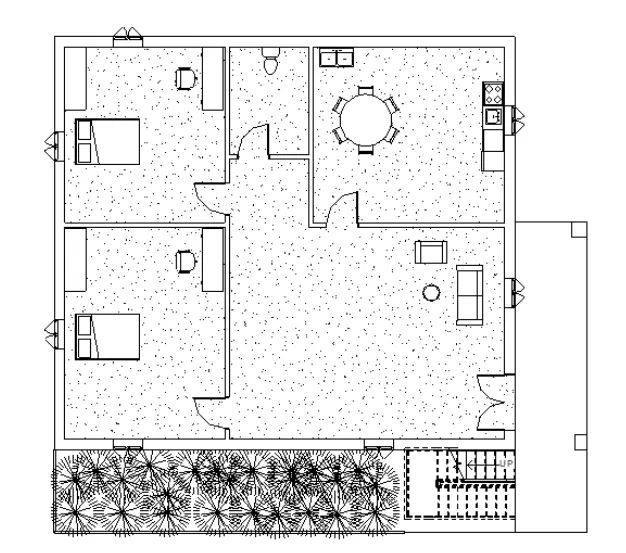

1. first we draw the architectural plan of the first floor and second floor as shown below

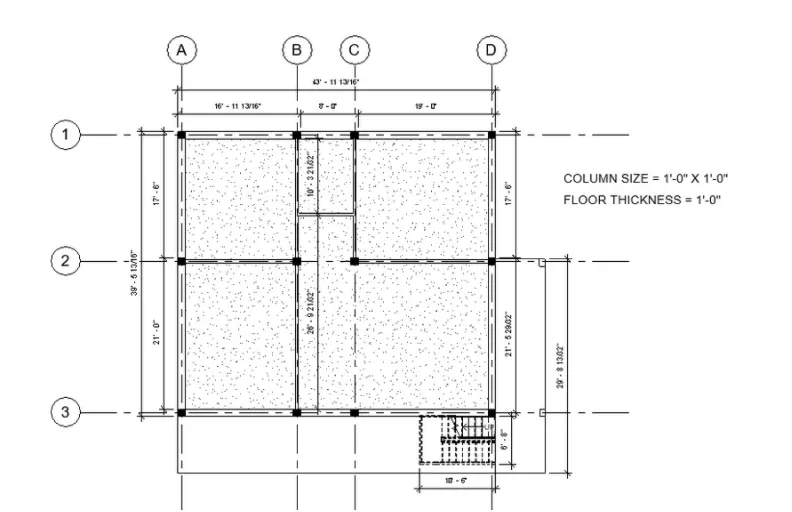

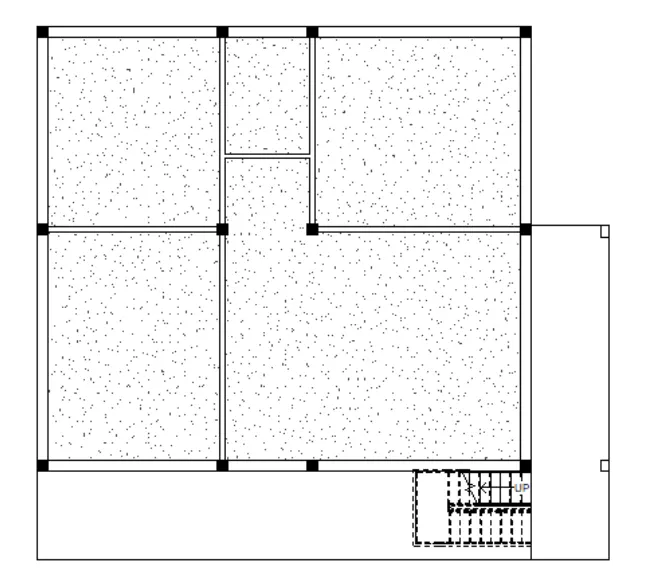

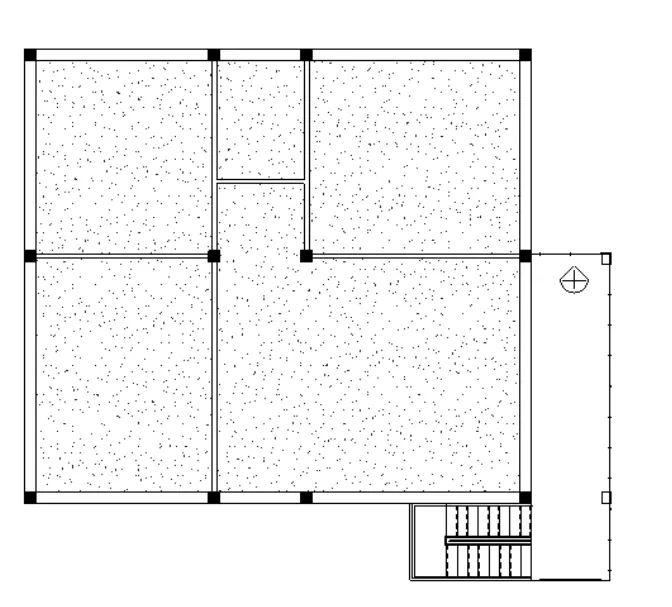

2.next to we draw the structural plan for the first floor and the second floor as shown in figure
result-created plan views for ground floor level and first floor level including all the walls floors and components and separated them to architectural and structural plans
Q4-
aiM- to add dimension to all the words and flowers with reference to the longitudinal and transverse grid created in the project file
introduction-
1.the structural plan view is the default view when you start a new project using a structural template
2.most project include at least one structural plan new structural plan views are created automatically
3.as you add new level to your project the floor plan view is the default view in a new architectural project
4.most projects include at least one floor plan floor plan views are created automatically as you add new labels to your project
procedure-

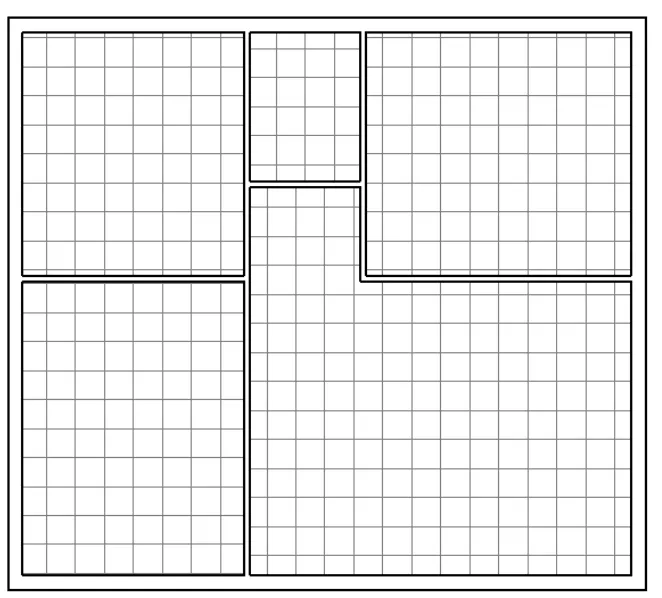

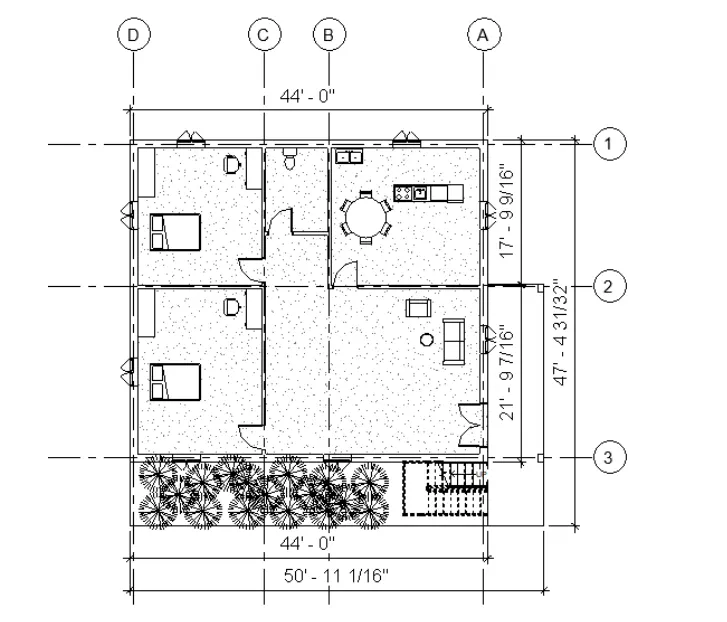

1.here we draw the longitudinal and transverse grades to the architectural floor plan as shown below
2.and add the dimension to the architectural plan as shown below

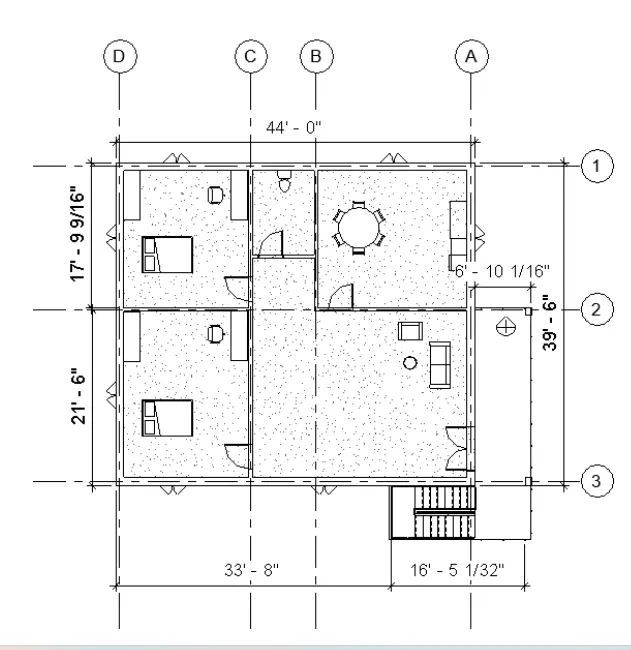

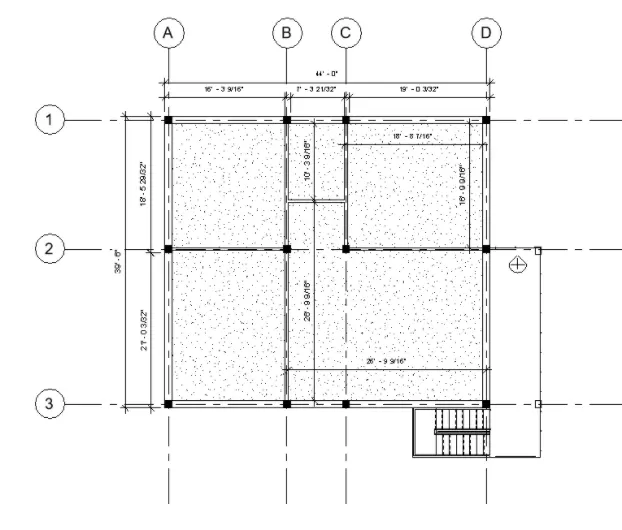

3.next we draw the longitudinal and transverse great to the structural floor plan as shown below
4.and add the dimension to the structural plan
result-the dimension are added to the structural floor plan and the architectural floor plans and the longitudinal and transverse grades are also created in the project file
Q5=
aim-To create a sheet template from the view tab and adjust the parameter on the ship to add appropriate view.
introduction-
1.creative view on a project template before you start building the model to streamline the project documentation process
2.when creating a project template you can include sheets in the template start with the blank project file and create the standard views and levels at each project should include
3.leave the views empty but assigned the standard in names to them
3.add view to the sheet using the desired viewport template and types
4.when you create a project using the project template all of the views and sheets are already created
5.as you start to draw the building model in the project to your the views on the sheet update automatically.
procedure-

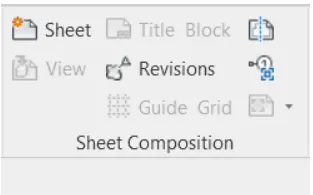

1.first we click on the sheet option from the view toolbar as shown below
2.after clicking the sheet the new tab will be visible on the screen

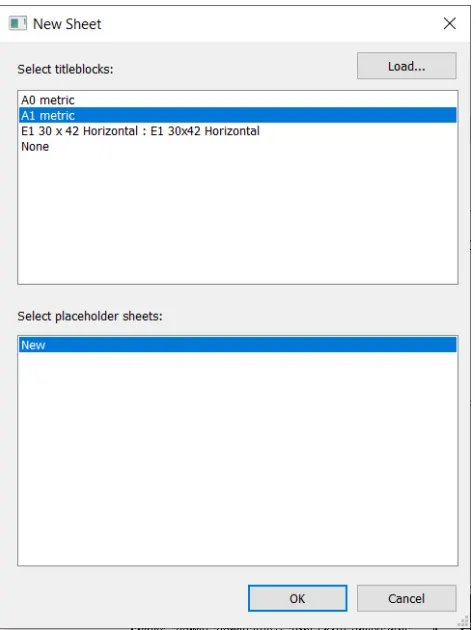

3.in that new tab with select the A1 metric then sheet call-template will be displayed in the sheet template

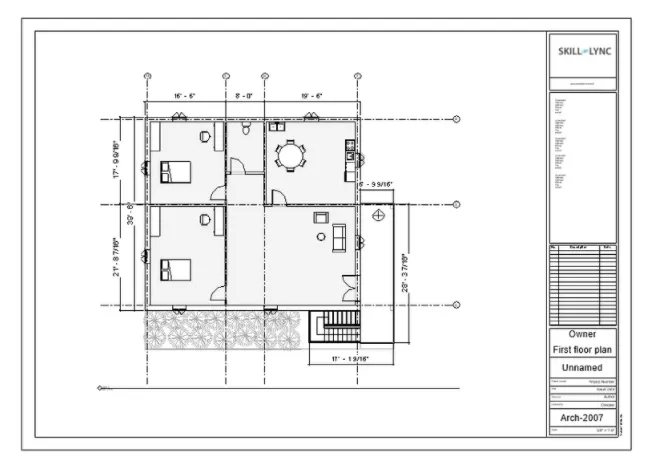

4.to insert the first floor plan and second floor plant separately as shown below
5.next edit the project name and the sheet number as shown in the below figure
RESULT=created a seated template from the view tab and adjusted the parameter on the sheet for adding appropriate view
Q6-
aim- To create the elevation views looking at your building from Eastern north south and West using the elevation tab
introduction -
1. elevation is a view of a building scene from one side a flat representation of One view.
2.this is a most commonly used to describe the external appearance of the Building.
3.each elevation is labelled in relation to the compass direction it faces
procedure-

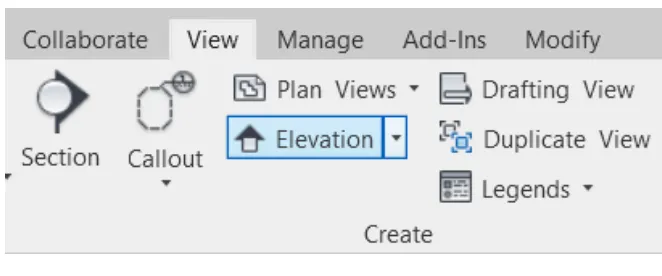

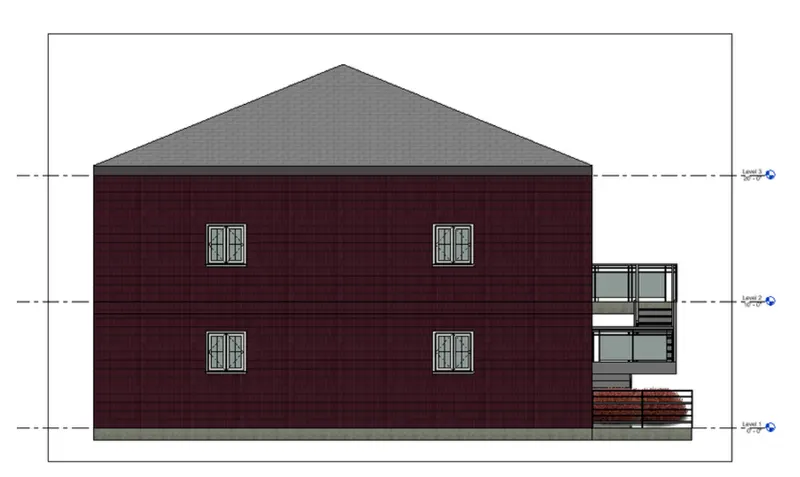

1.first we click on the elevation of action from the view toolbar .

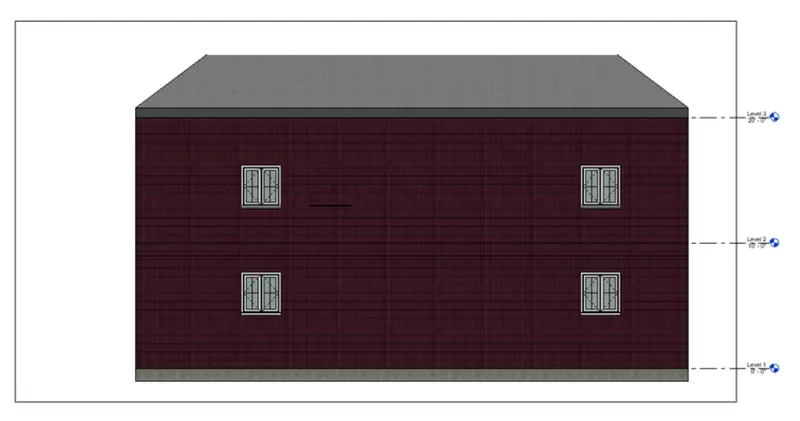

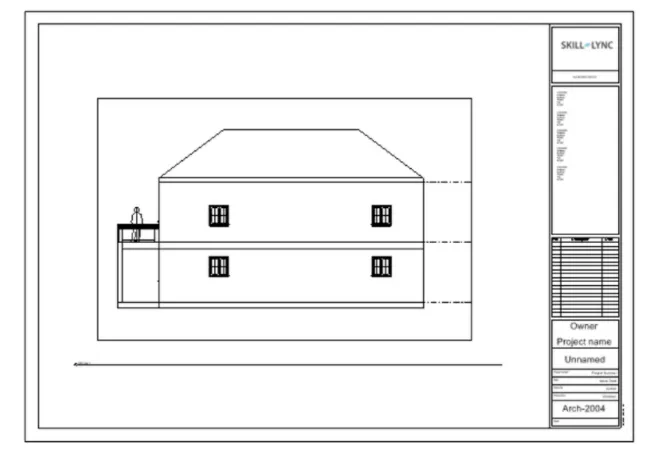

2.next to the elevation from the east will be visible

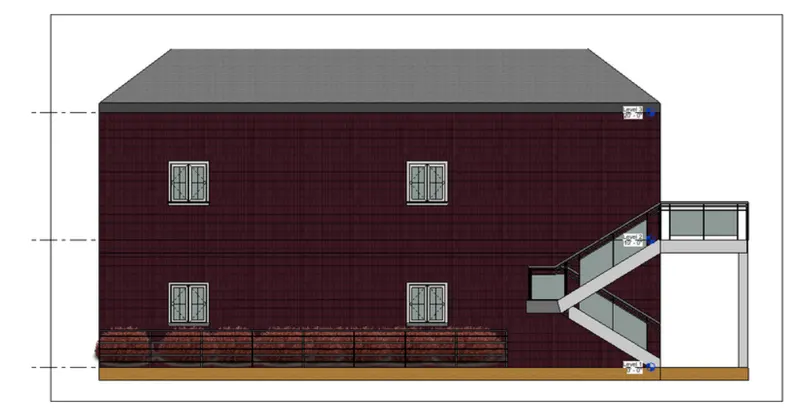

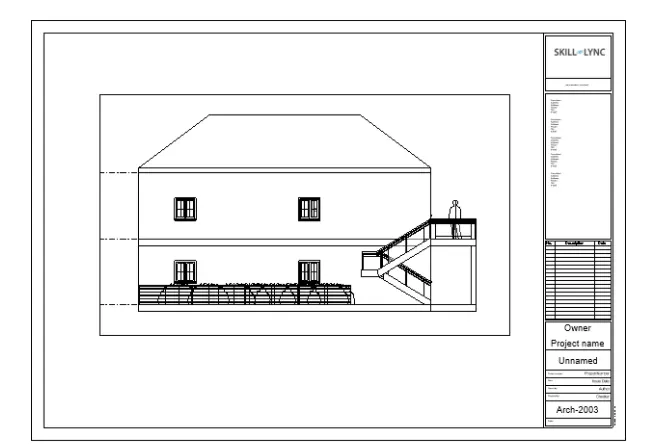

3.next the elevation from the South will be visible on the screen
4.next the elevation from the north will be visible on the screen
5.next the elevation from West will be visible on the screen
RESULT-
Q7-
aim- produce section cut through each room either cutting across longitudinal or transverse direction
introduction-
1.sectional views reveal hidden details in a mechanical drawing
2.this view assume that cutting plane has removed portion of the object represented by the drawing displaying the appropriate section of the interior
3.sectional views are used in engineering and architectural drawing
4.they help civil engineer architect and airplane designer communicate their address to their peers
procedure-

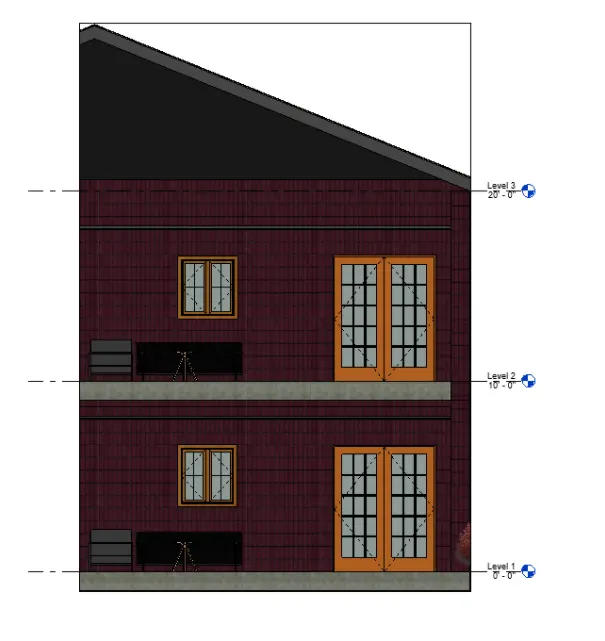

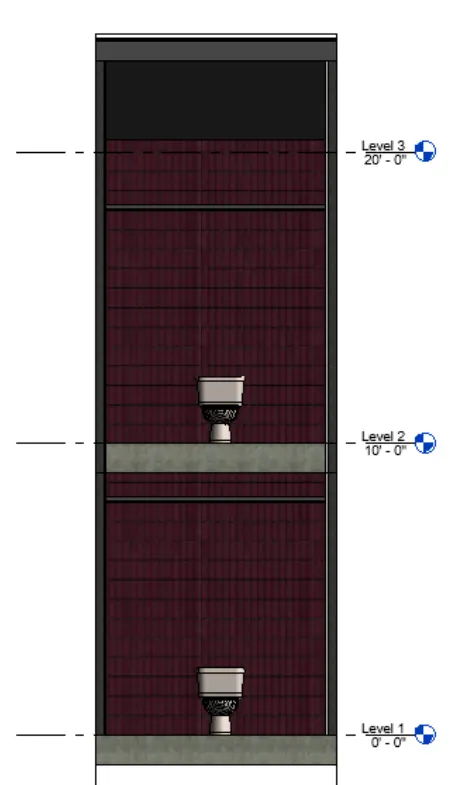

1.first we click on the section option from the view toolbar as shown below1

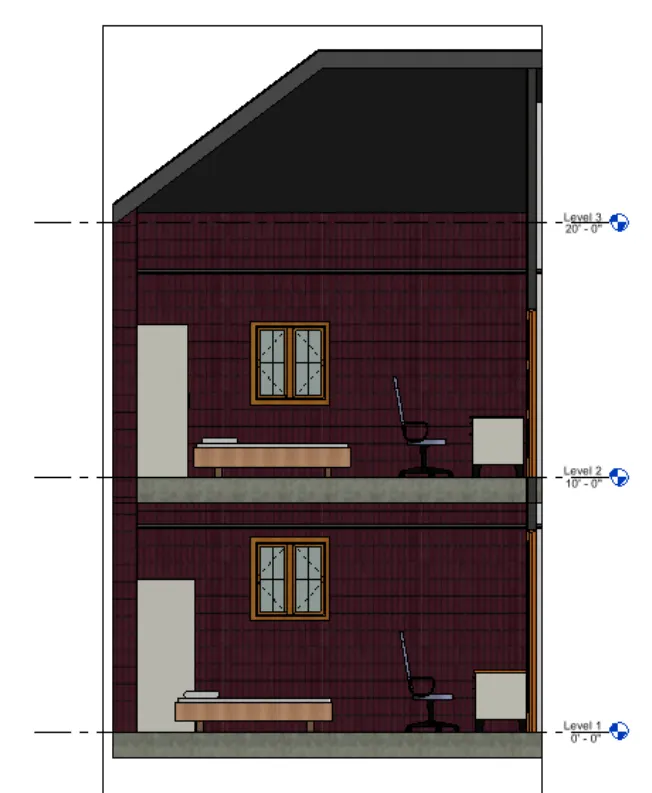

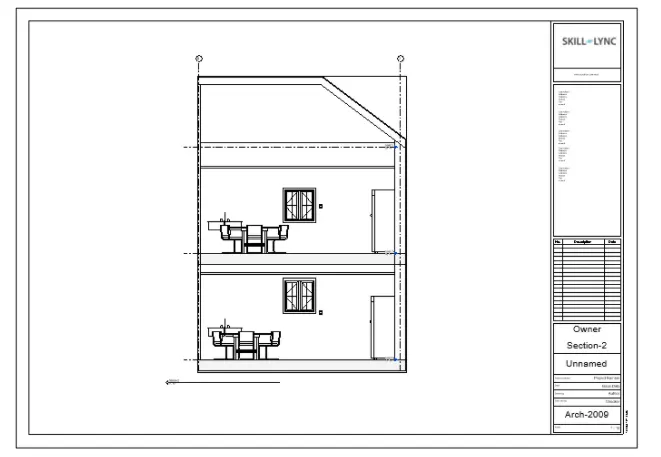

2.next we produce the section view of the bedroom as shown below

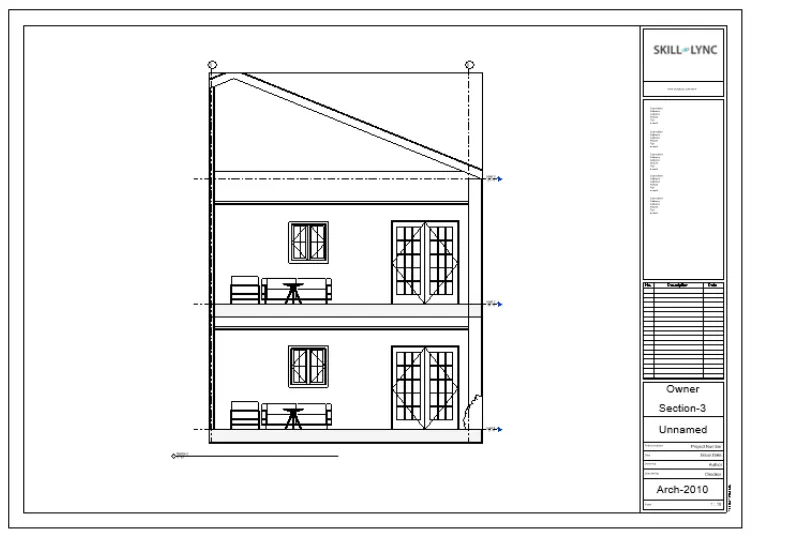

3.next we Produes the section view of the toilet room

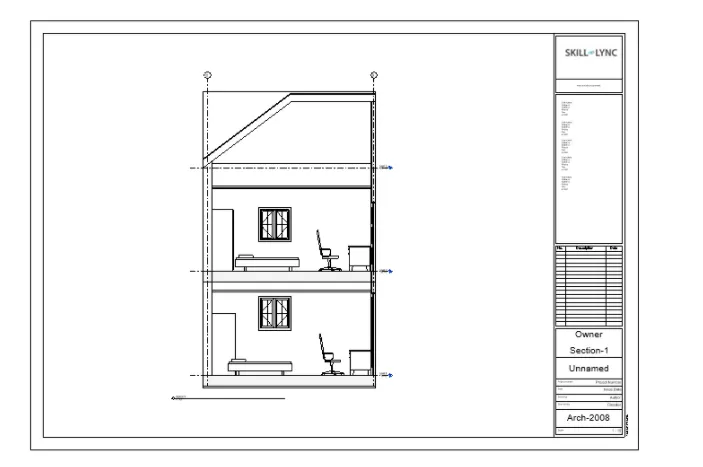

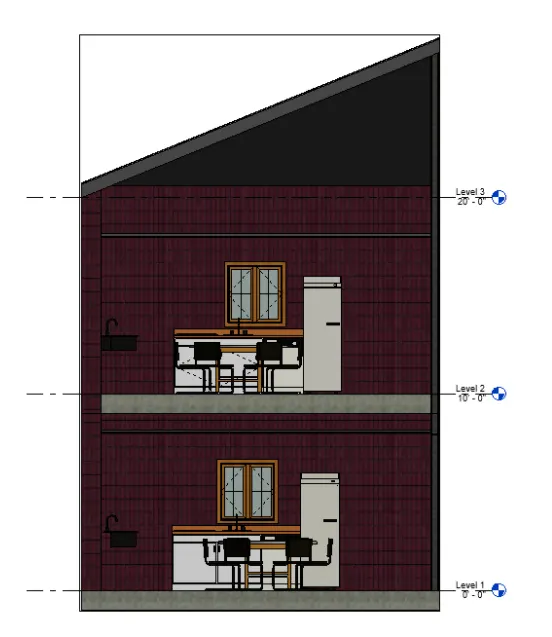

4.next We produce the section view of the kitchen room
5.next We produce the section view of living room
RESULT-created the section views of a model in the revit in the detailed manner
Q8-
AIM- to classify the views plans views section views and elevation views to either design for documentation category using properties Browser.
introduction-
1.the structural plan view is the default view when you start a new project using structural template
2.most projector include at least one structural plant new structural plan views are created automatically as you add new level to your project you can create multiple structural plan view types
3.sectional views are used in engineering and architectural drawings sectional views rivil hidden detail in a mechanical drawing .
4.floor plan views are created automatically as you add new labels to your project and elevation is a view of a building seen from one side a flat representation of One view
5.this is most common view used to describe the external appearance of a building
procedure-
1.first we open the project browser the views plan views, section views and elevation views are visible in that project Browser as shown below
2.we insert plants one by one in the sheets separately
3.first we insert the front elevation in the sheet template
4.next we insert the left side elevation in the sheet template
5.next we insert right side elevation in the template
6.next we insert backside elevation in the sheet template

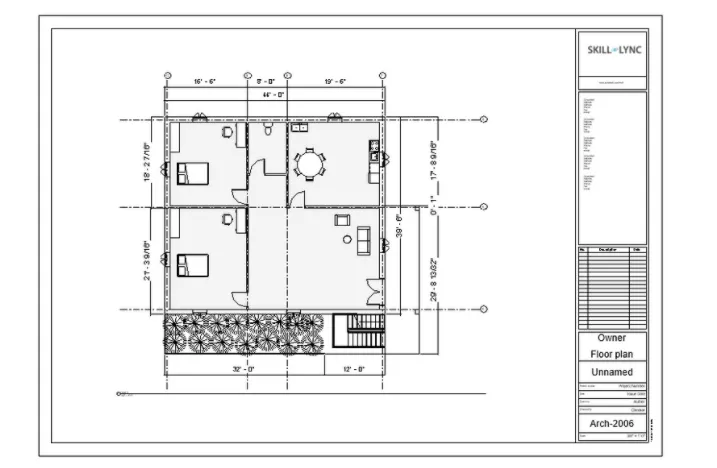

7.now we insert the gound floor plan in the sheet template
8.now we insert the first floor plan in the sheet template
9.next we insert the section 1 in the sheet template
10.next we insert the section to in the sheet template
result= views plan views section views and elevation views are classified To design category using properties Browser
RESULT= views ,plan views, section views and elevation views are classified To design category using properties Browser
q9
AIM: To create the multiple sheets and produce the drawings in the sheet from the given drawing list
introduction-
1.create views on a projector template before you start building the model to stimulate in the projector documentation process
2.when creating a projector template you can include seat in the template start with blank projector file and create the standard views and levels that each projector should include
3.leave the views empty but assign standard names to them add views to the sheets using the desired viewport template and the view title types
4.then save the empty project as a projector template when you create a projector using this template all of views and sheets are already created
5.this technique streamliness the project documentation process and maintenance organisational standard
procedure -

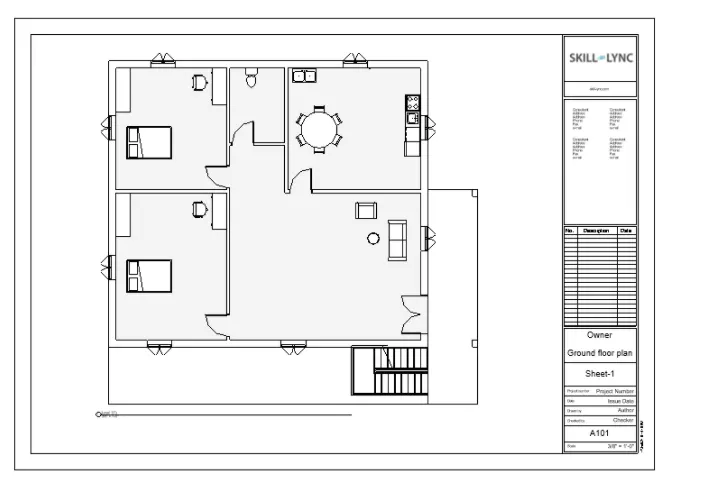

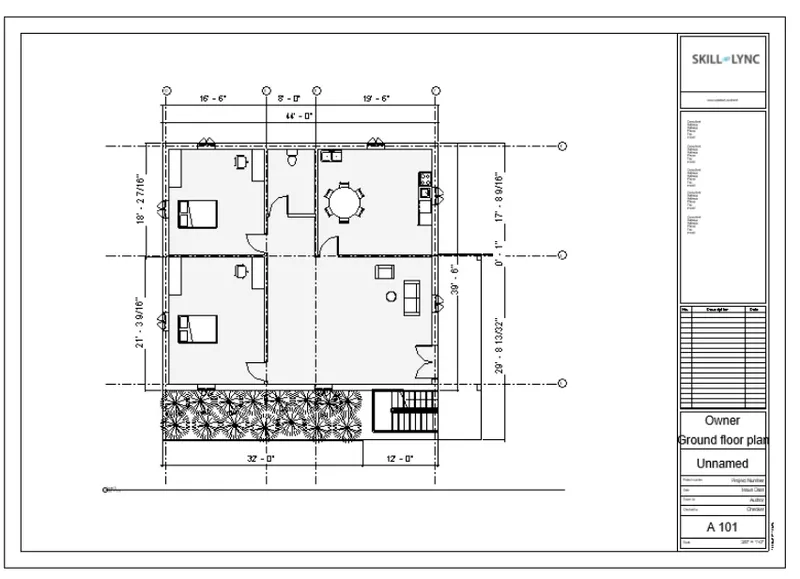

1.we produce the ground floor architectural plan in the sheet template A101

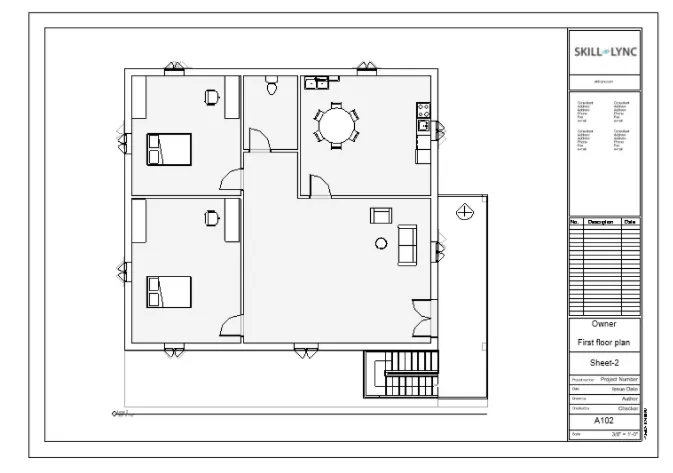

2. Next we produce first floor architectural plan in the sheet template A 102

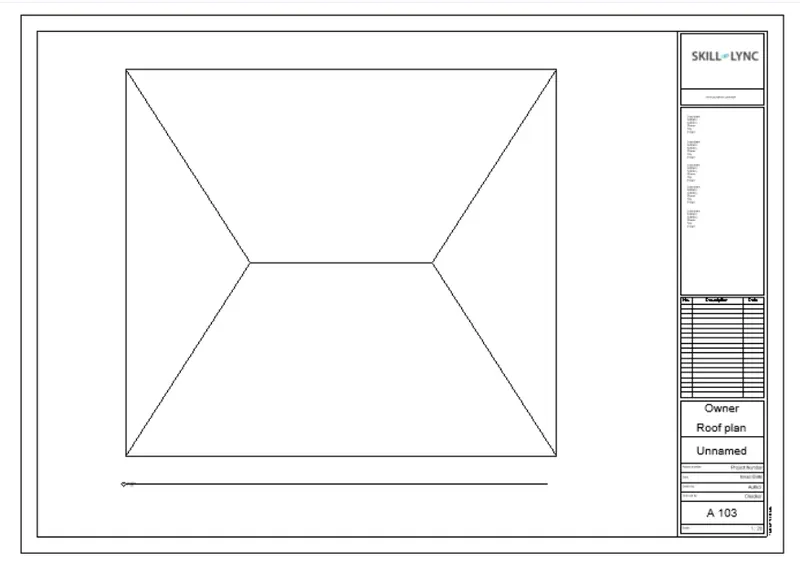

3.next week produced the RoOF plan in a sheet template A103

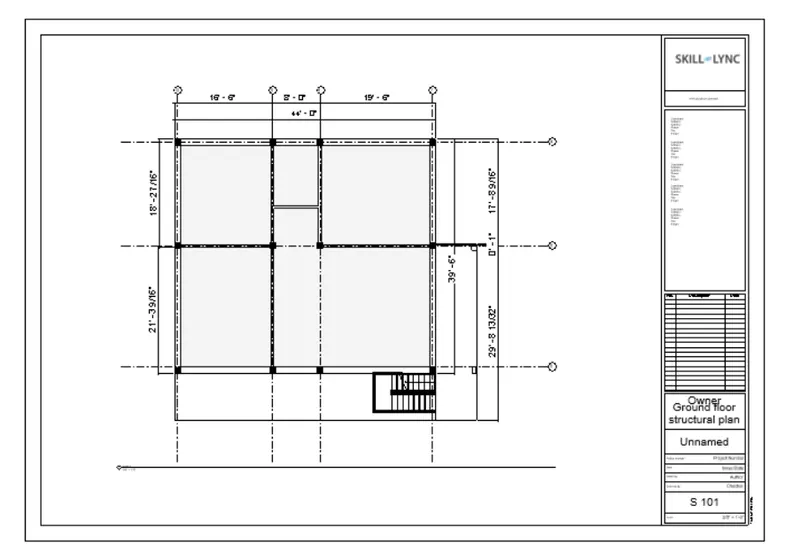

4.next wE produce the ground floor structural plant in the sheet template S101
5.next we produced the first floor structural plan in the sheet template s102

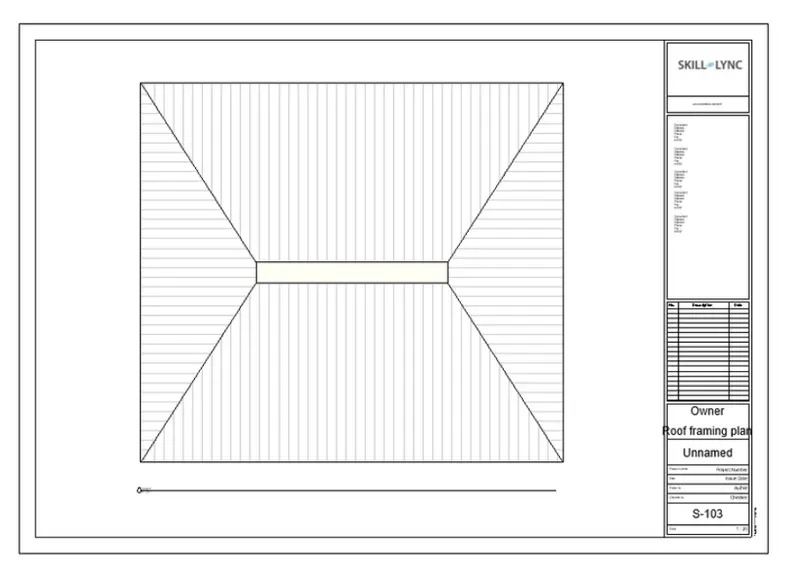

6.next we produce the the roof framing plan in the sheet template s103

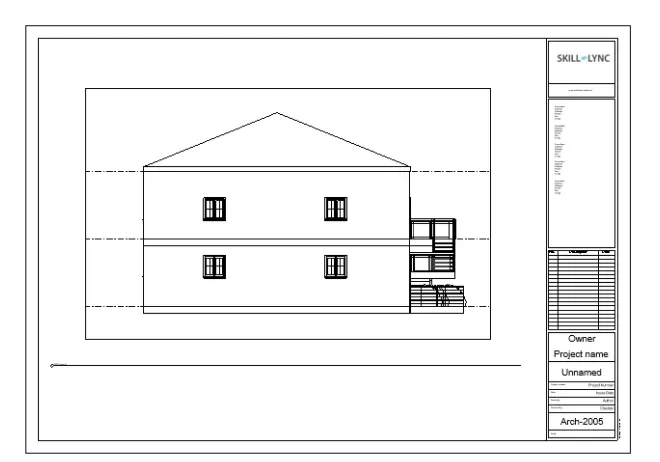

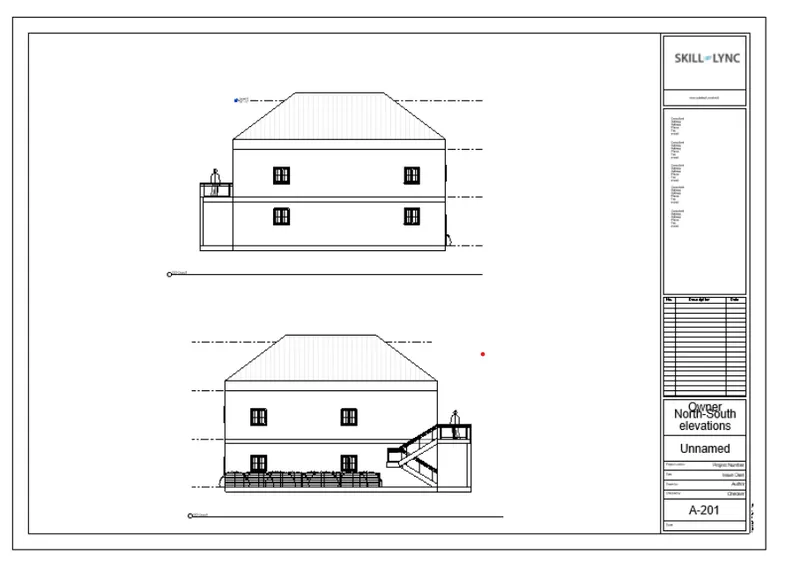

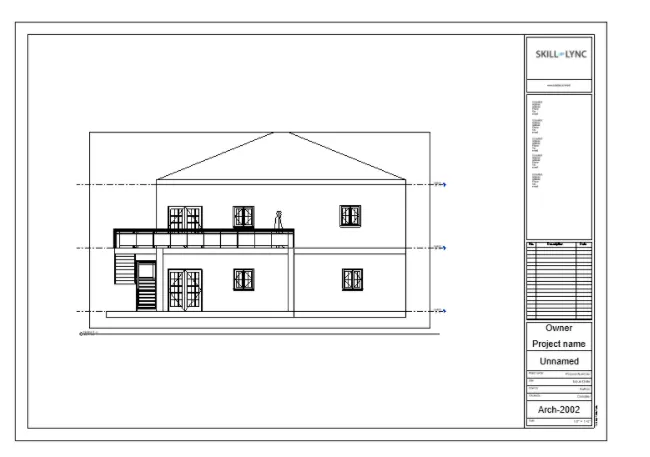

7.next we produce North and South elevation views in the sheet template A201

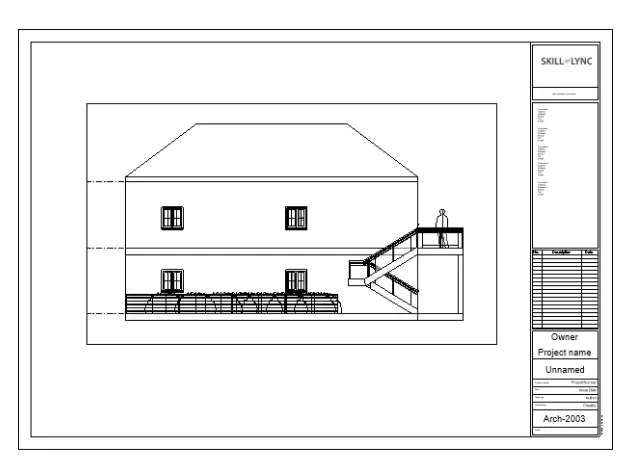

8.next we produced the east and best elevation views in the sheet template A202
result-
created the multiple sheets and produced the dropping in the sheets from the given drawing list
Q10
AIM-
to create a camera specific view for 3D view in the living room dining room and bedroom in the sheets separately
introduction-
1.camera views are really useful in in REVIt
2. THEY allows us to view for what we would actually see if we werE standing at any given location in our design
3.this can be valuable for both understanding and communicating the nature of a space before we go to the expensive link of actually constructing for real
procedure-
1.first we take the sheet and name it as A 501

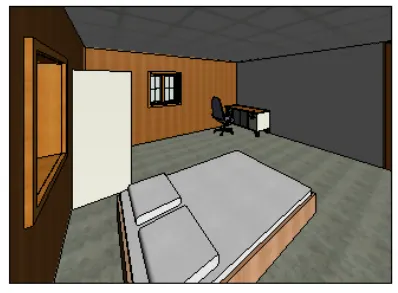

2.next to go to the floor plan and place the camera in the bedroom and the camera view of the bedroom will be shown below.
3.next we take the sheet and name it as A 502
4.next go to the floor plan and place the camera in the kitchen room and camera view of the kitchen room will be shown below
5.next we take the sheet and name it as A503

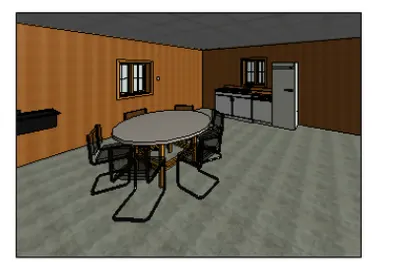

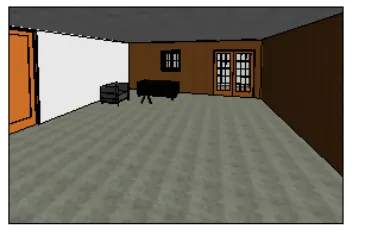

6.next to go to the floor plan and place the camera in the living room and the camera view of living room will be shown
result
created a camera specific view or 3D view in living room dining room and bedroom in the shades separately
