3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1) Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
AIM- To Model a Ceiling from the architecture tab above the walls at the first-floor level Based on the project saved from Week 3.
PROCEDURE -
- Open the revit file

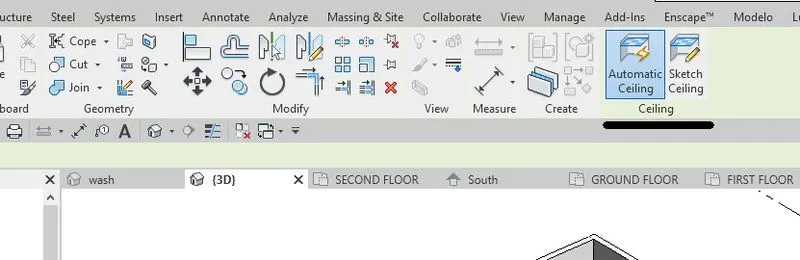

- In Architectural goto "Ceiling Tab".

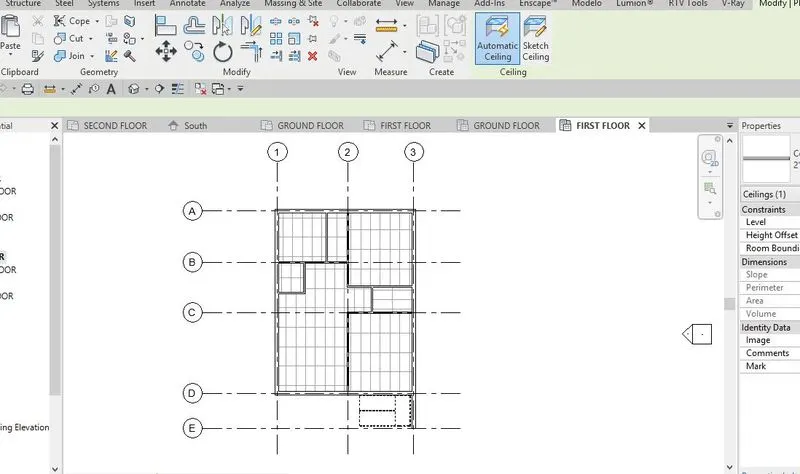

- Goto Ceiling Plan The "Automatic Ceiling ", using cursor mark the region.
RESULT-

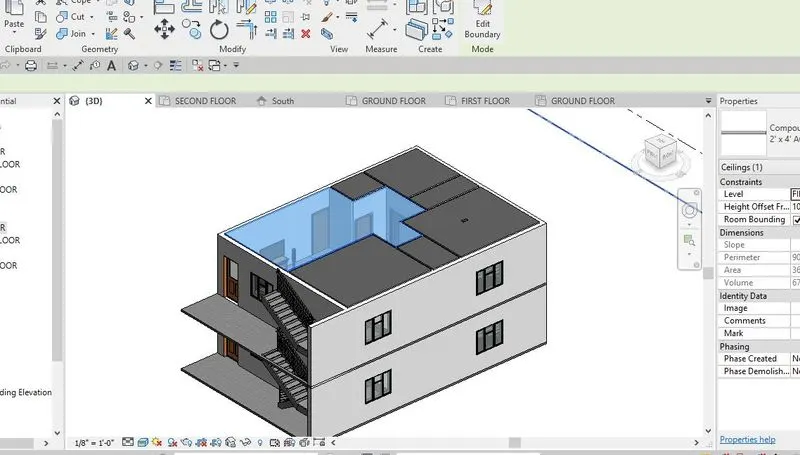

We have modelled ceiling using architectural tab Successfully.
____________________________________________________________________________________________________
2) Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
AIM - To Model a roof above the ceiling by selecting the footprints of the ceiling By Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees.
PROCEDURE-
- Open the revit File

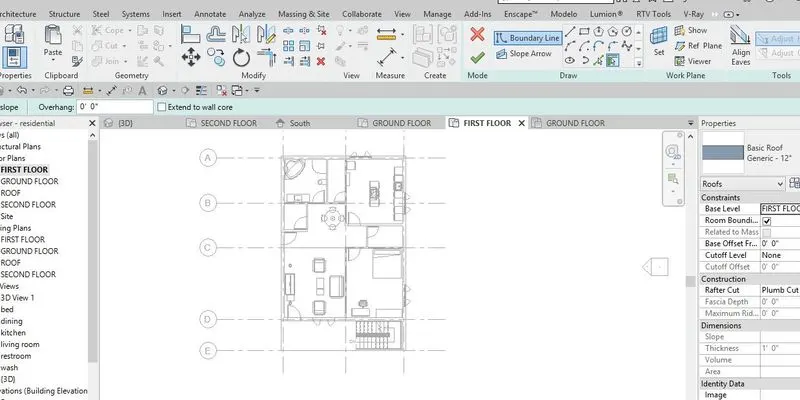

- In Architecural Tab goto "Roof By footprints"
- using Rectangle draw the outline boundary then click right.
RESULT

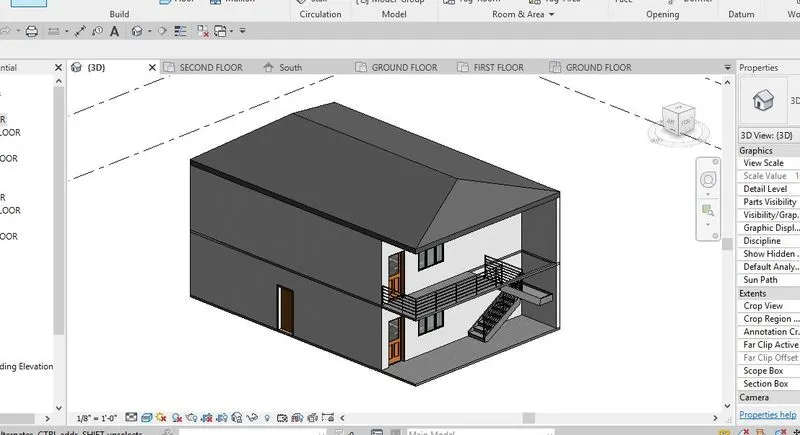

By using footprint roof has been created successfully at 10degrees slope.
____________________________________________________________________________________________________
3) Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
AIM- To create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans.
PROCEDURE -
- Open the Revit File
- Goto the project browser then "Floor Plans"
- select "ground floor" from Floor Plans
- Similarly goto "Views " then plan views then select "Structural Plans".
- Goto the project browser then "Structural Plans"
- select "ground floor" from Structural Plans
RESULT
From the above steps we get architectural & Structural Plans.

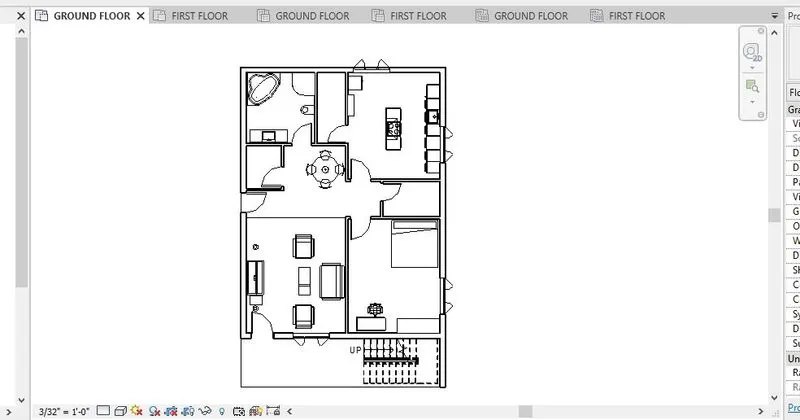

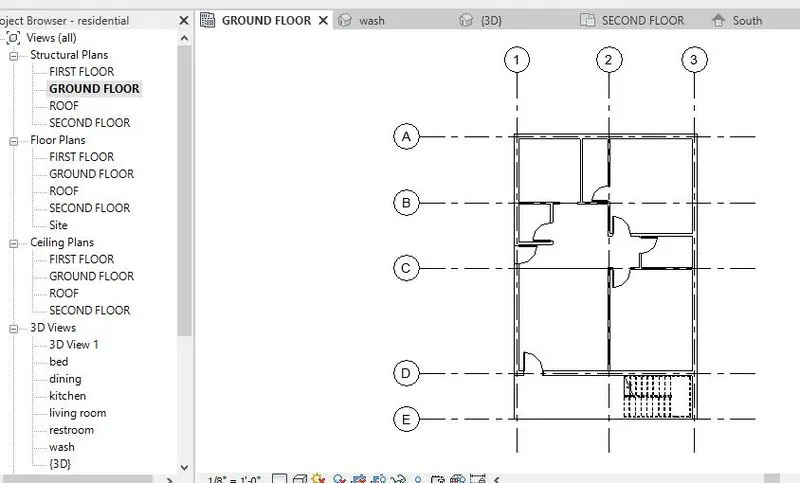

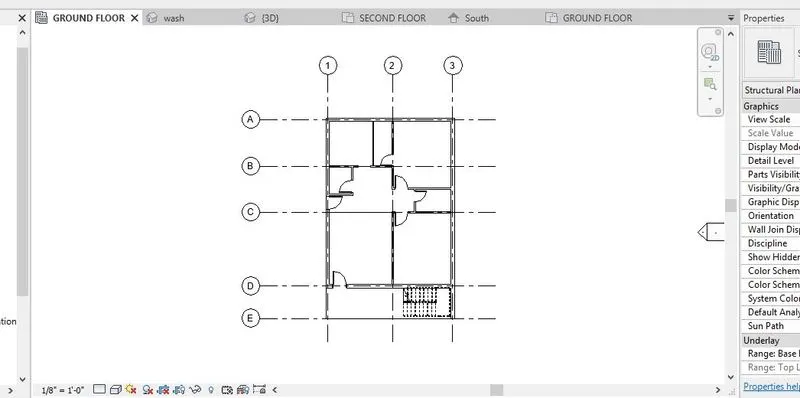

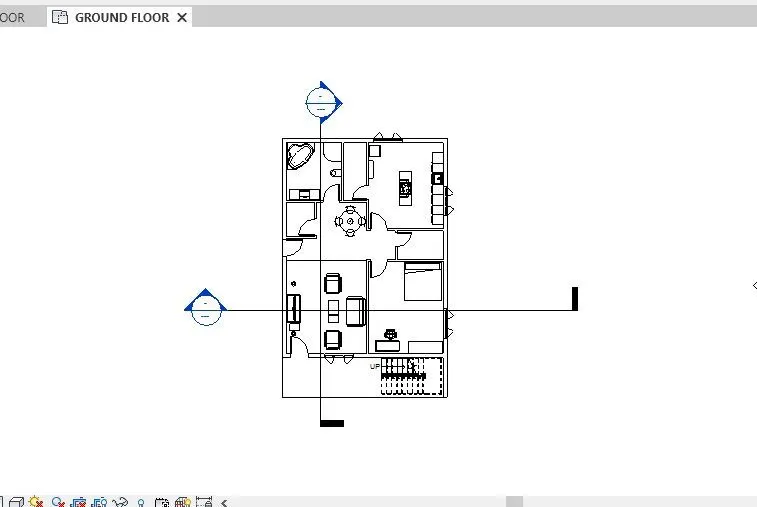

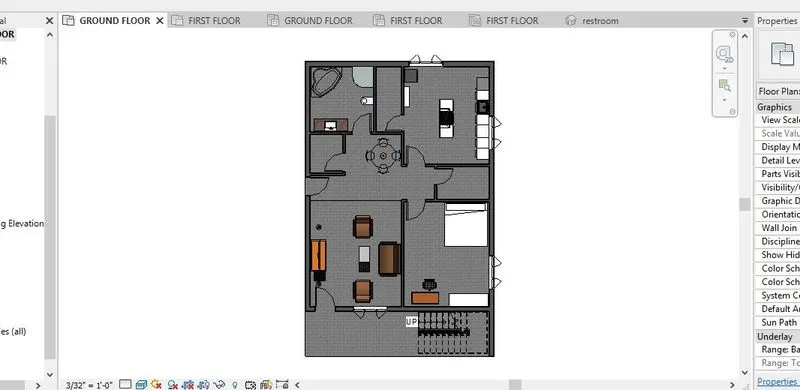

Architectural Plans
Structural Plans
____________________________________________________________________________________________________
4) Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans.
AIM -By Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids which created in the project file by us.
PROCEDURE-
- OPEN REVIT FILE
- Draw Horizontal & Vertical grids in the plan

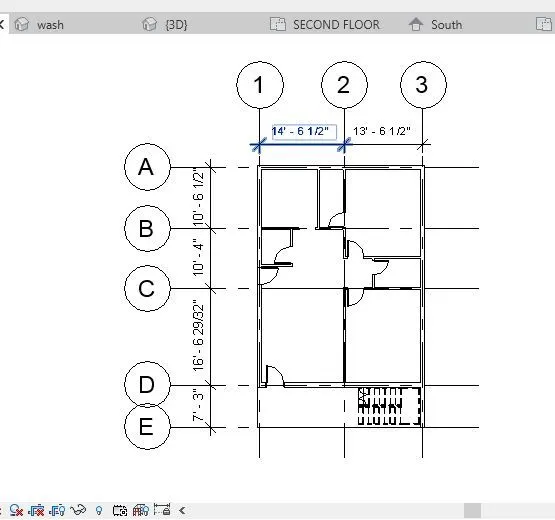

- From Annotate tool bar from the ribbon use "Linear" to Draw the Dimensions.
RESULT

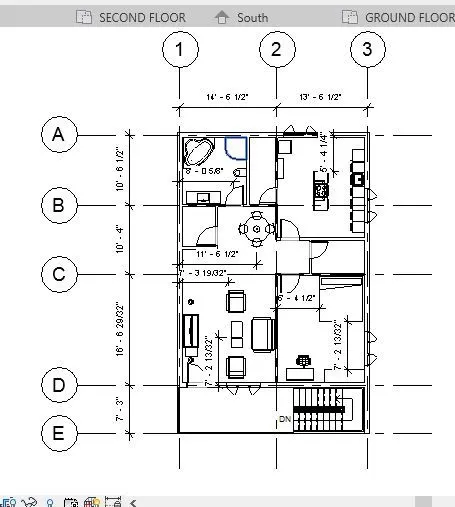

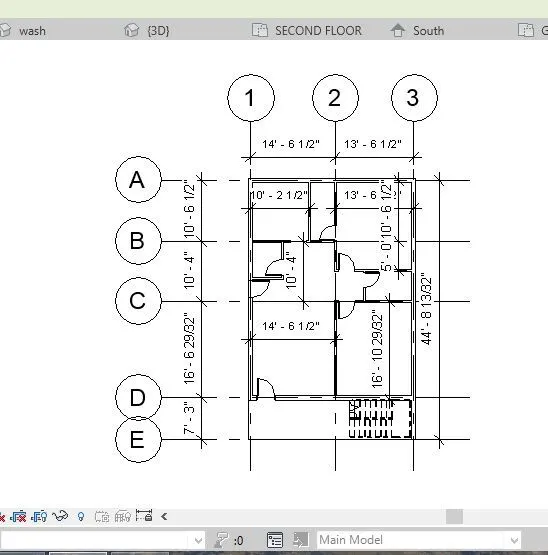

- The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids
- The Structure plan dimensions details from the position of all the walls and interior walls with reference to grids.
____________________________________________________________________________________________________

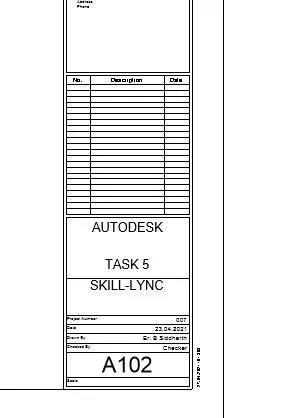

5) Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
AIM- To Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views.
PROCEDURE-
- open the Revit File
- Goto Views Click "Sheet" Dialog box will apear.
- Select the required sheet then click "ok"
- Then make the required Changes in the sheet.
RESULT
We have created a sheet template from the view tab Successfully.
____________________________________________________________________________________________________

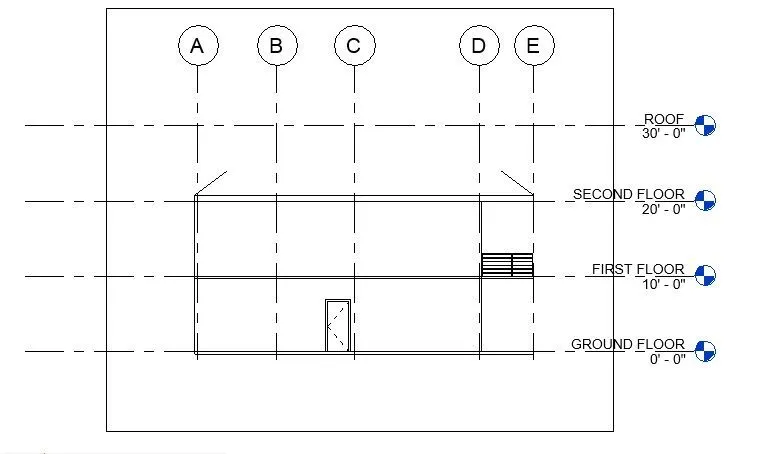

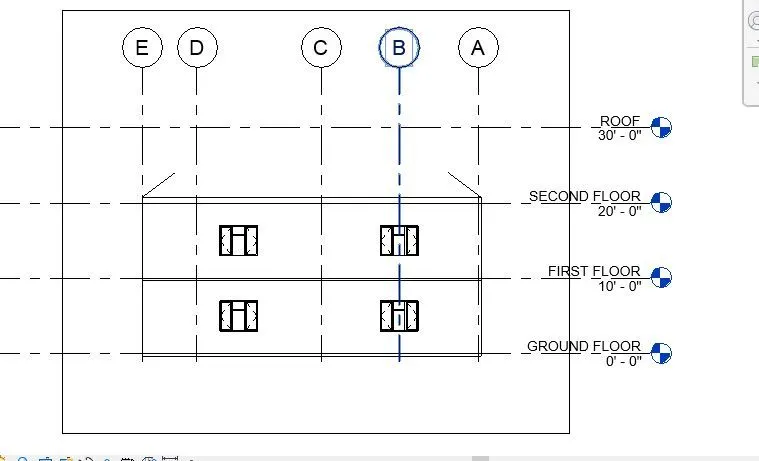

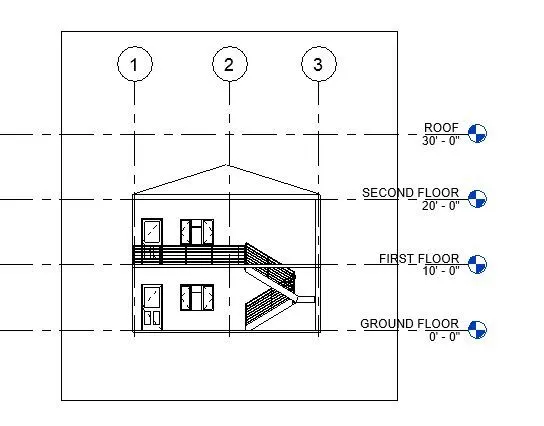

6) Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
AIM- By Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
PROCEDURE-
- Open the project
- Goto View tab then go to Elevation Tab
- Place the Elevation Symbol in all the Directions "north,South, East, West"
- Click on south option to get South Elevation from project browser.
- Click on North option to get North Elevation from project browser.
- Click on East option to get East Elevation from project browser.
- Click on West option to get West Elevation from project browser.
RESULT

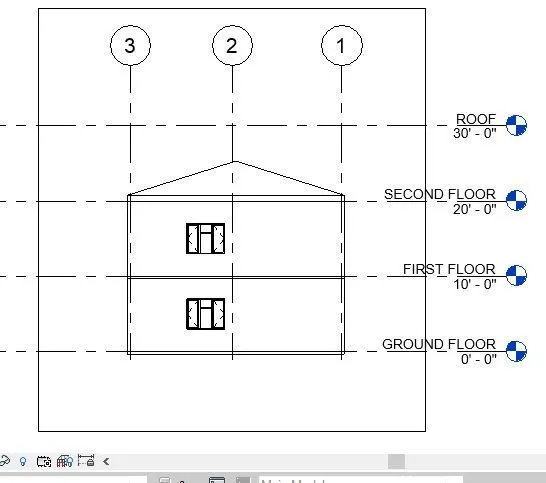

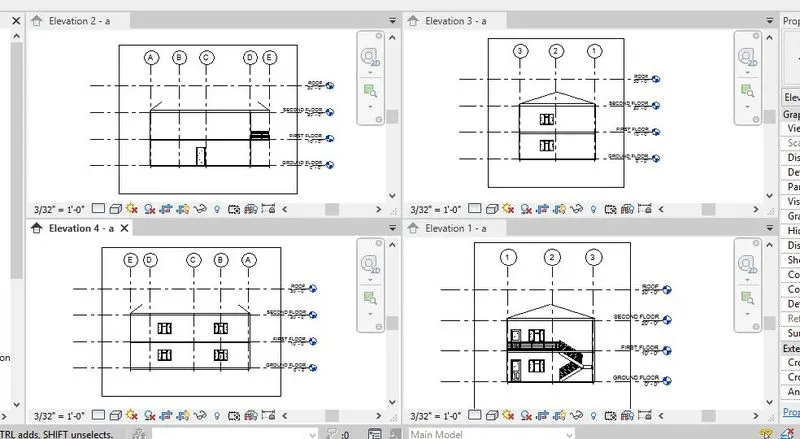

Successfully we have created the required views
____________________________________________________________________________________________________
7) Produce section cut through each room either cutting across longitudinally or in a transverse direction.
AIM- To Draw Produce section cut through each room either cutting across longitudinally or in a transverse direction.
PROCEDURE-
- open the revit File

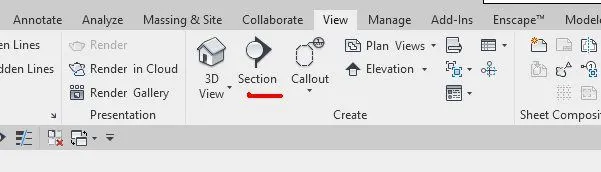

- Goto View tab then go to "Section Tab"
- Draw cutting across longitudinally or in a transverse direction.
RESULT

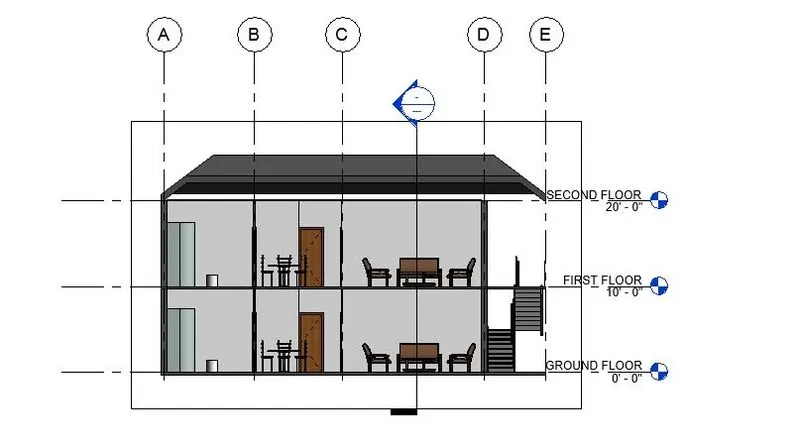

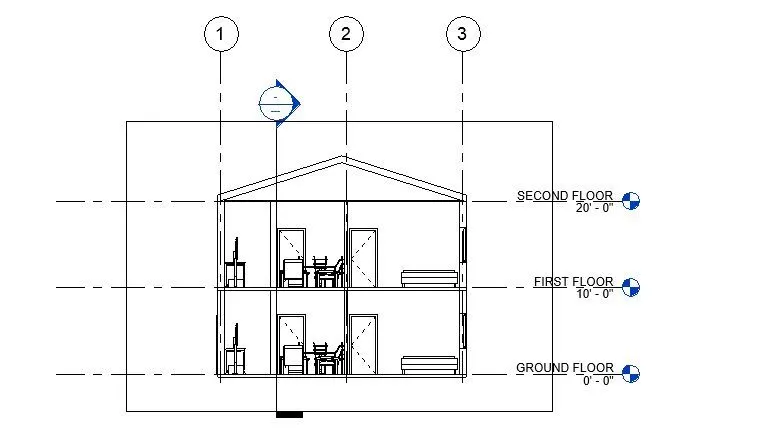

We successfully get the longitudinally & transverse section of the building.
____________________________________________________________________________________________________
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
We can view any object or componnents in any Views or from any different angles and also we can easily get rendered images or 3d Views of required object or componnents.
- Plan Views- plan view is nothing but top view of the object.
- Section Views- It is nothing but the horizontal or longitudinal cross section of the project.
- Elevation views- It is the front, rear, left, right side of the objects.
In Revit, Property brower is available on left side in which we can easily find all the views and by the help of this views option we can easily understand the project.
____________________________________________________________________________________________________
9) Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan

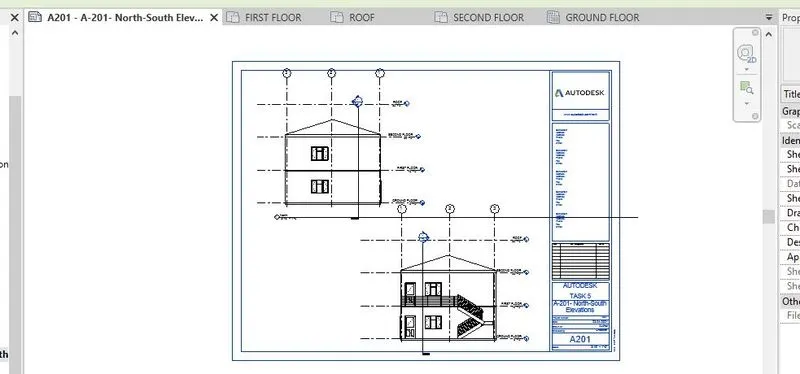

g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
AIM - By Using the sheet template create multiple sheets.
PROCEDURE
- open the Revit File

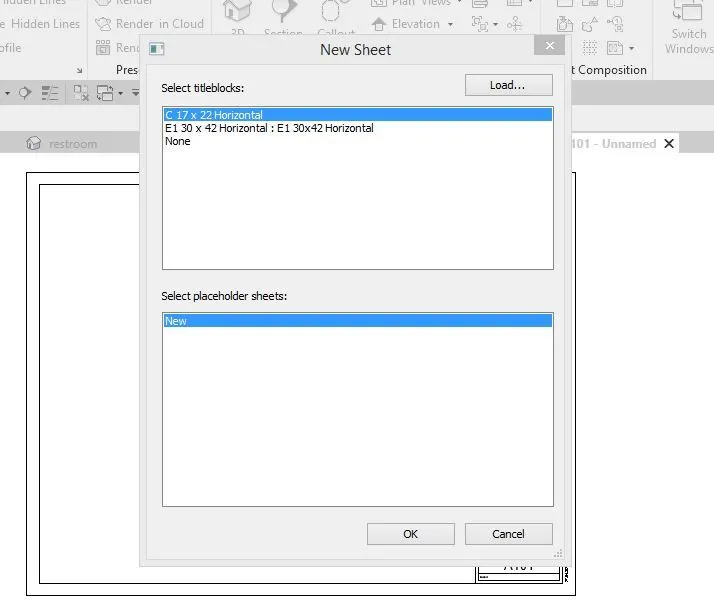

- Goto Views Click "Sheet" Dialog box will apear.
- Select the required sheet then click "ok"
- Then make the required Changes in the sheet.
- Name the sheet as required then goto insert tab then select image option
RESULT

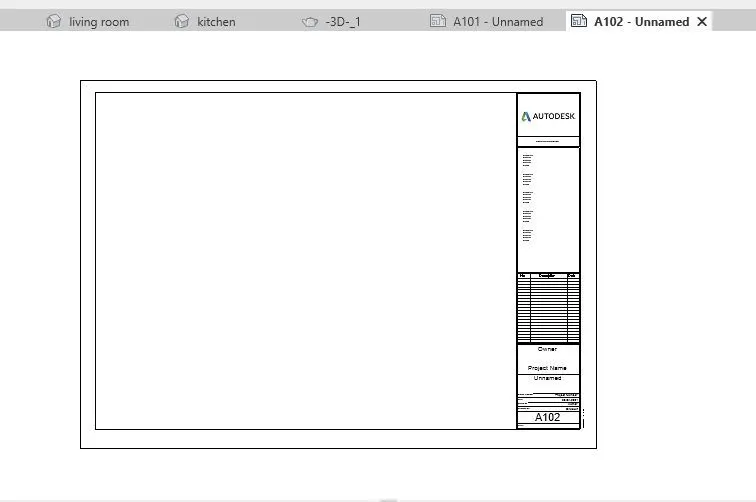

The required sheets are obtained

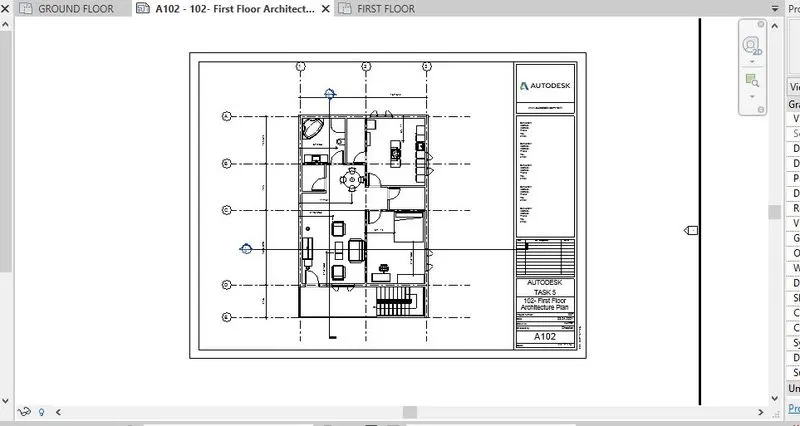

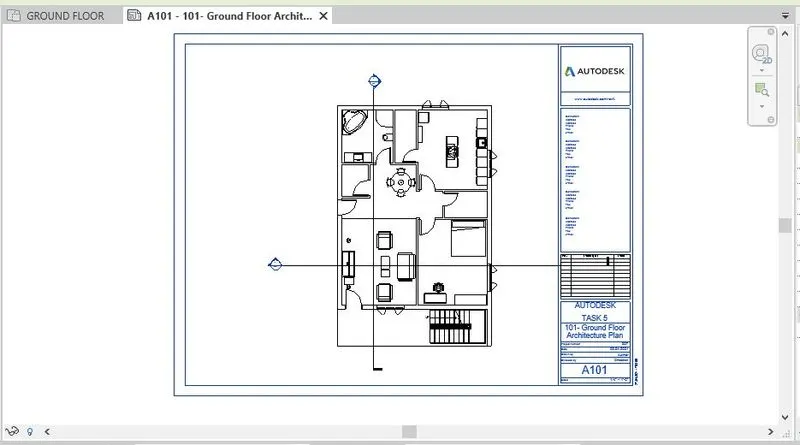

101- Ground Floor Architecture Plan
102- First Floor Architecture Plan

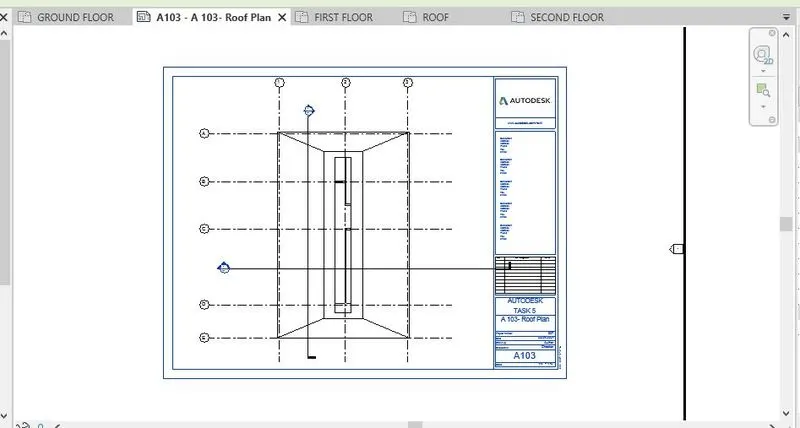

A 103- Roof Plan

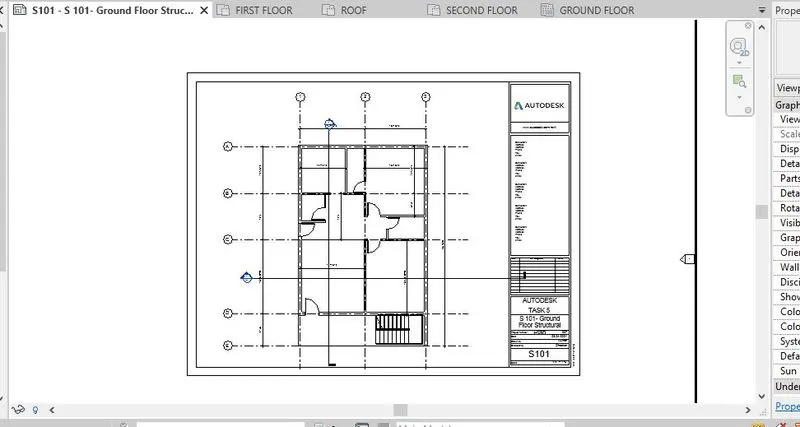

S 101- Ground Floor Structural Plan

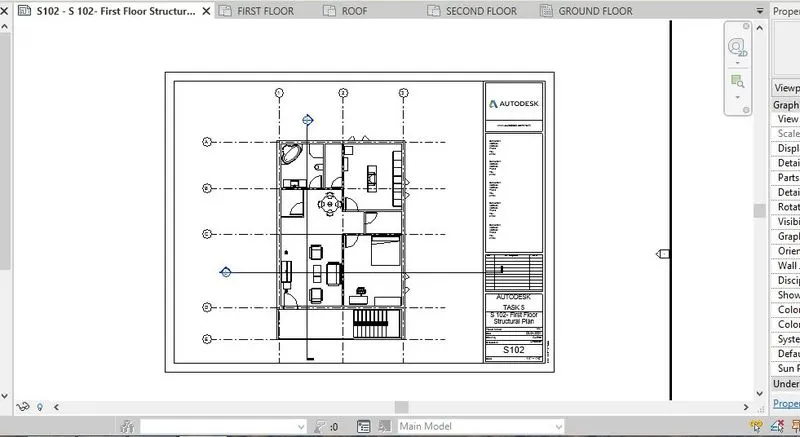

S 102- First Floor Structural Plan

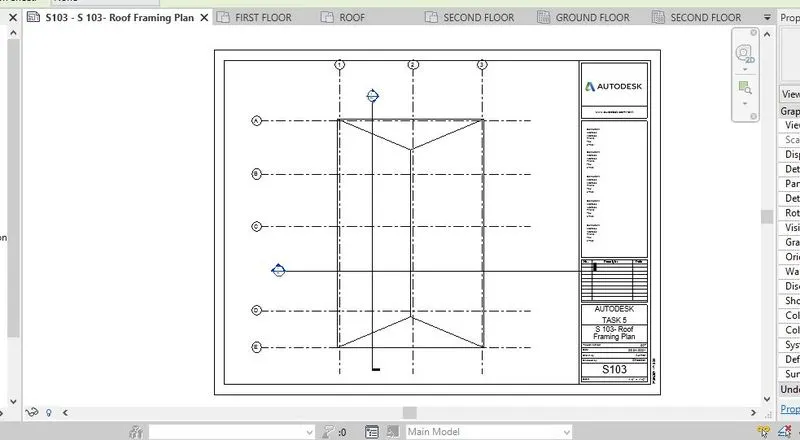

S 103- Roof Framing Plan

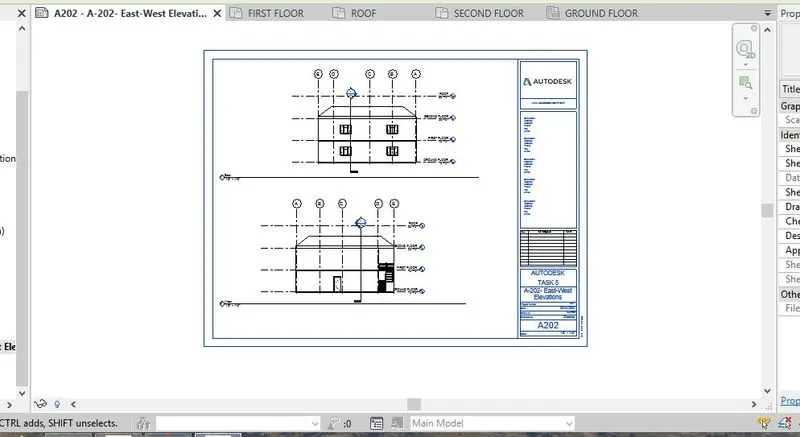

A-201- North-South Elevations
A-202- East-West Elevations
____________________________________________________________________________________________________

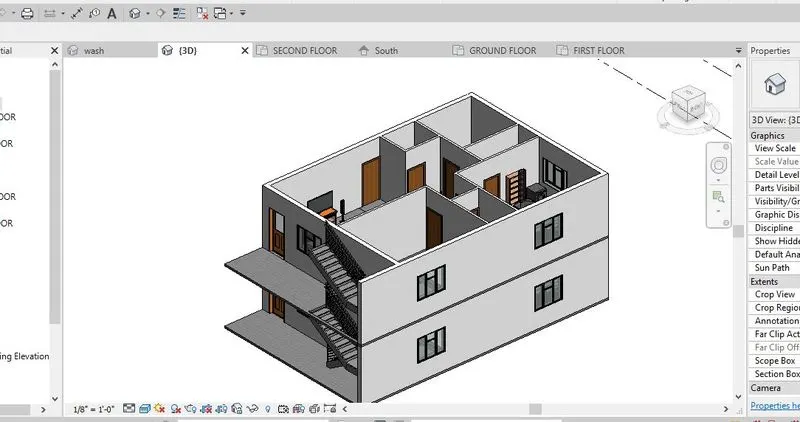

10) Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
AIM- To 3D view in each room & Based on the views create a new set of sheets starting A-501 502, 503.. to place the 3D view images.
PROCEDURE-

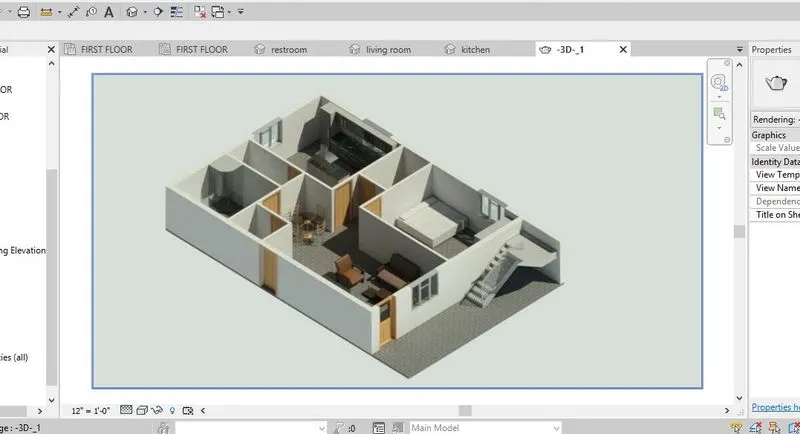

- Open the project goto 3D view Tab in the view tab
- Under 3D view select the Camera.
- place the camera on the plan & tap where you want it.
- Then go to view tab & create new Sheet
- Change the parameter on the sheet as required.
- Name the sheet as "A-501" and add the 3d view images on the sheet.
- In the similar way we can create new sheets & place the images.
RESULT-
We have created 3dview images in different sheets successfully

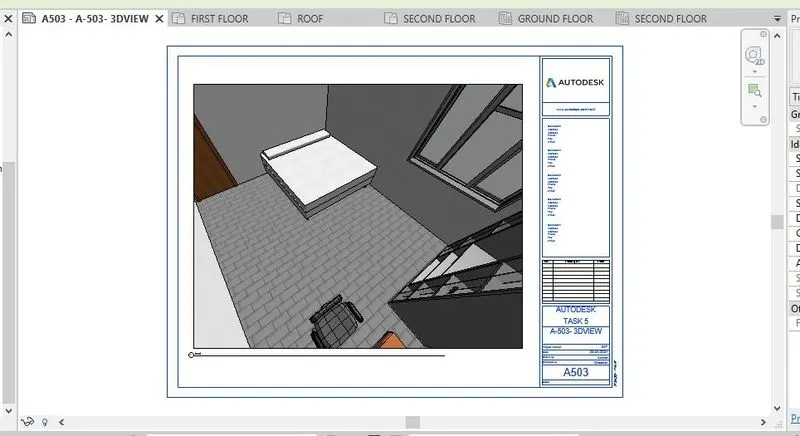

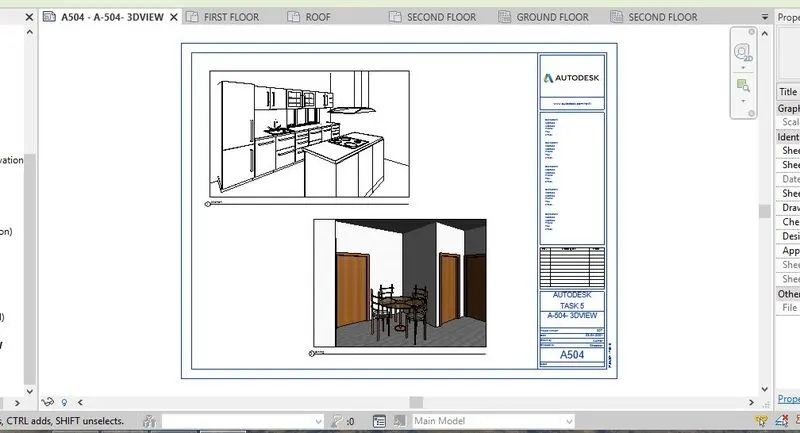

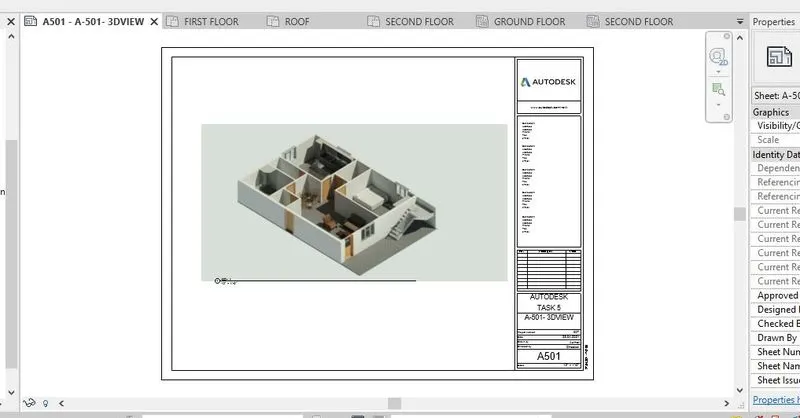

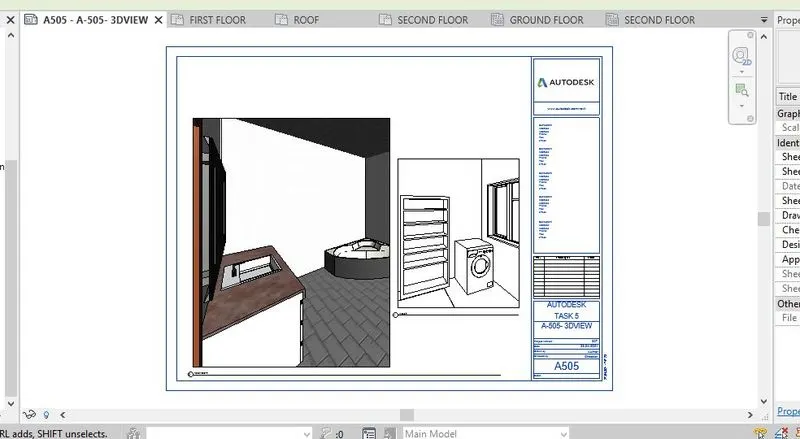

A-501

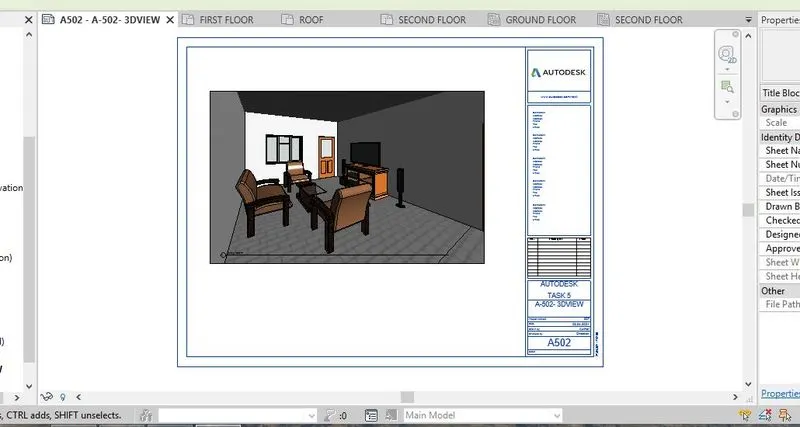

A-502
A-503
A-504
A-505
