3D Creation of Celing, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
Q1. Based on the project saved from Week 3, proceed from the First Floor Level. Model a Ceiling from the architecture tab above the walls at the first-floor level
ANS :
AIM : To model a ceiling from the architecture tab above the walls at the first floor level of the residential unit project of week 3
PROCEDURE :
STEP 1 : Open week 3 project
Add columns and staircase to the project wherever required
STEP 2 : Go to ceiling plan first floor in project browser
Go to Architecture tab select ceiling tool and draw ceiling as per the layout by selecting boundry lines
Click on finish edit and finally the ceiling is created at the first floor level
RESULT : The ceiling is modelled successfully from the architecture tab above the walls at the first floor level
Q2. Model a roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees
ANS :
AIM : To model a roof above the ceiling by selecting the footprints of the ceiling and adjusting the roof slope to 10 degrees using the adjustment toolbars appearing on screen.
PROCEDURE :
STEP 1 : Go to elevation view and create a new level and name it as a roof

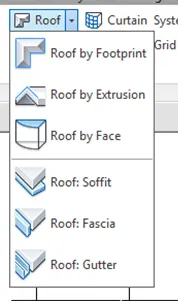

STEP 2 : After creating the roof level go to architecture tab select roof and in that select roof by footprint
Draw roof by selecting pick walls and draw the roof

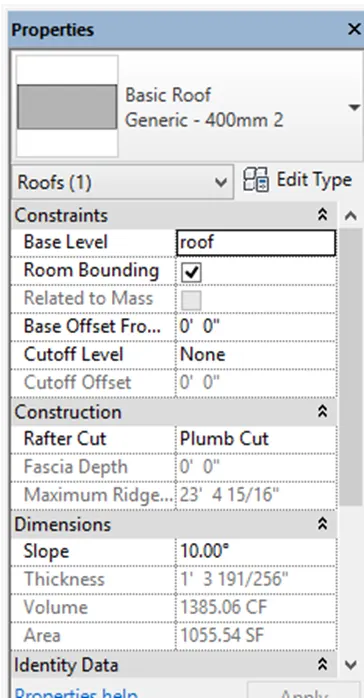

STEP 3 : Go to properties browser and change the slope to 10degrees

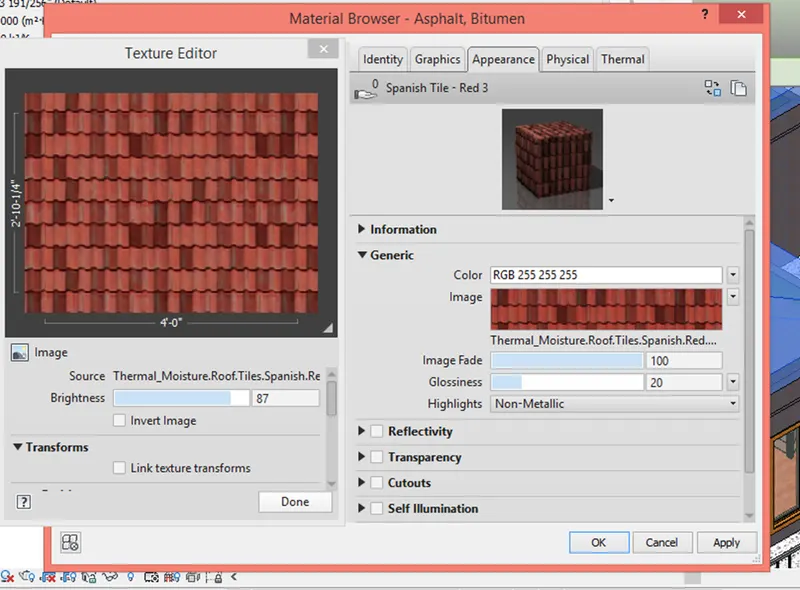

STEP 4 : Got to properties browser and select edit type duplicate the type of roof and name it and go to structure and edit it by giving roof material and apply and press ok
RESULT : The roof is modelled successfully from the architecture tab
Q3. Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans
a. Architecture plan must have walls, floors, and all the components placed within the building
b. Structure plan must have details of only walls, floors, and columns
ANS :
AIM : To create plan views for ground floor level and first floor level and separate them to architectural and structural plan
PROCEDURE :

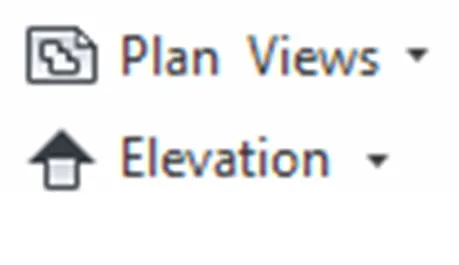

STEP 1 : Go to view tab select plan view in that select floor plans and select the floors or levels in the dialogue box and press ok

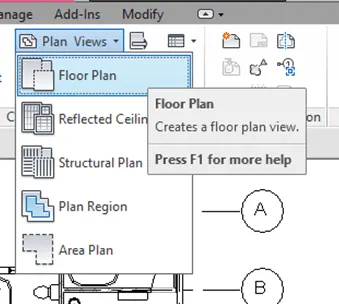

STEP 2 : Go to view tab select plan view in that select Structural plans and select the floors or levels in the dialogue box and press ok
RESULT : The given challenge is completed using necessary tools in REVIT software

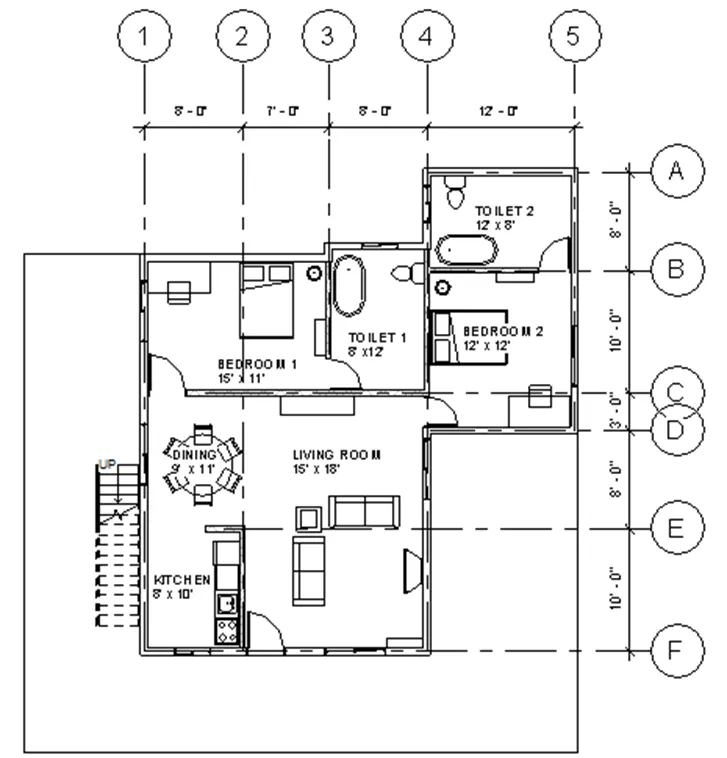

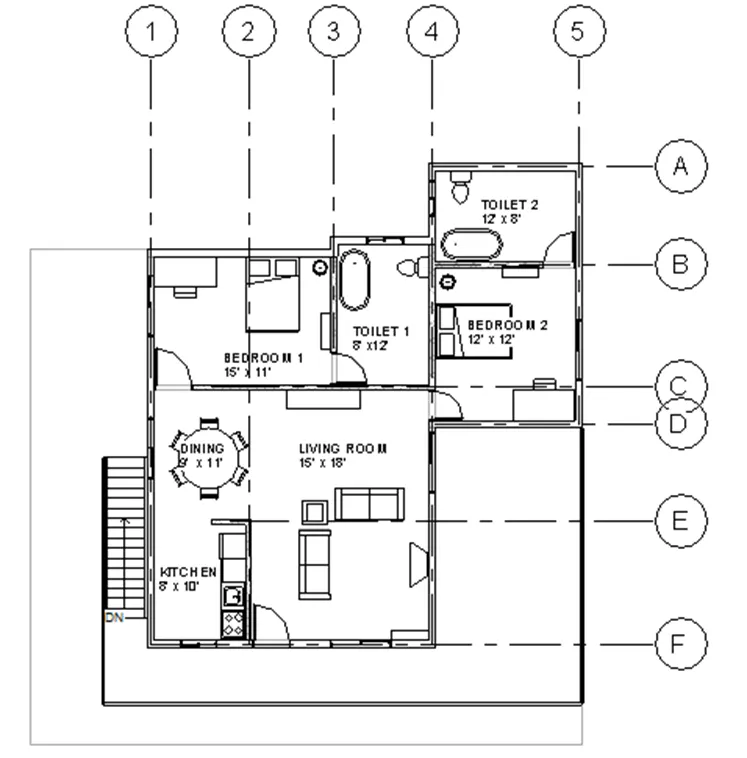

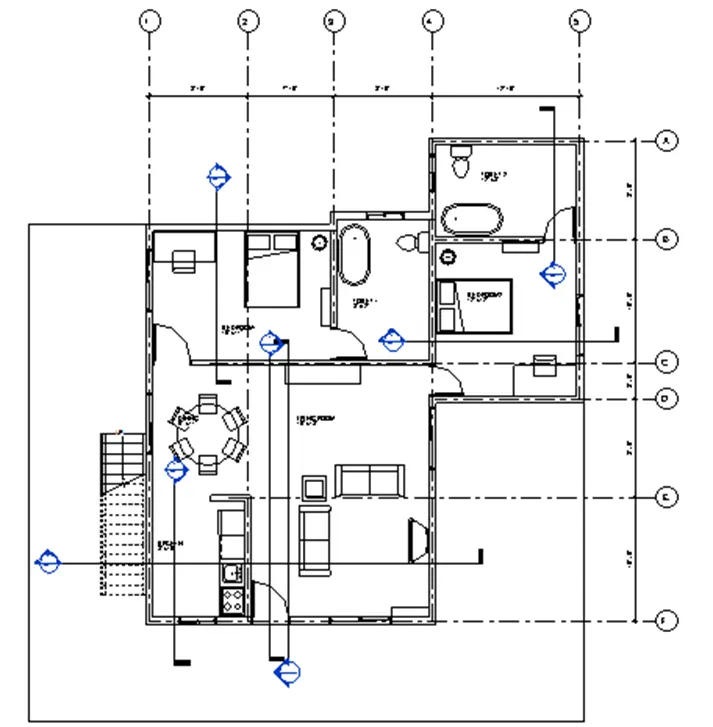

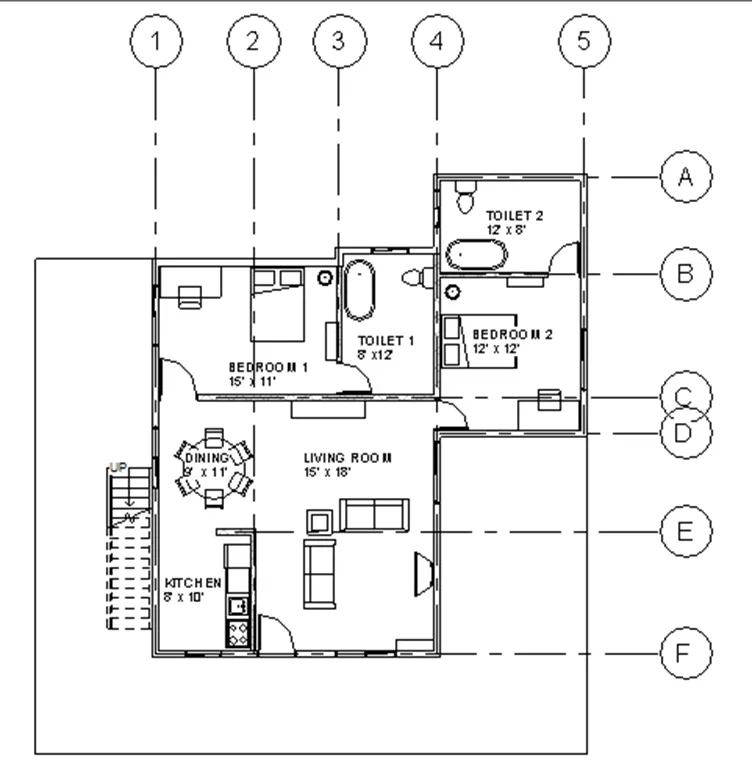

Architectural plan : Ground floor

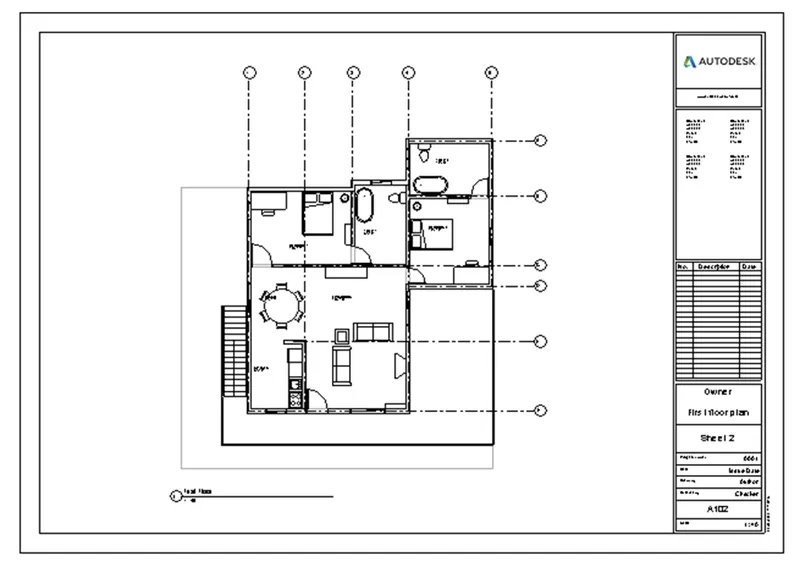

Architectural plan : First floor

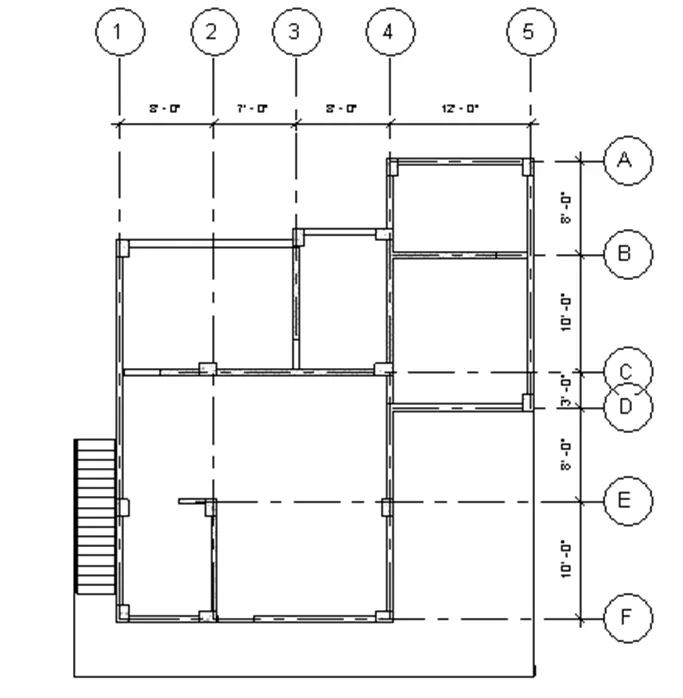

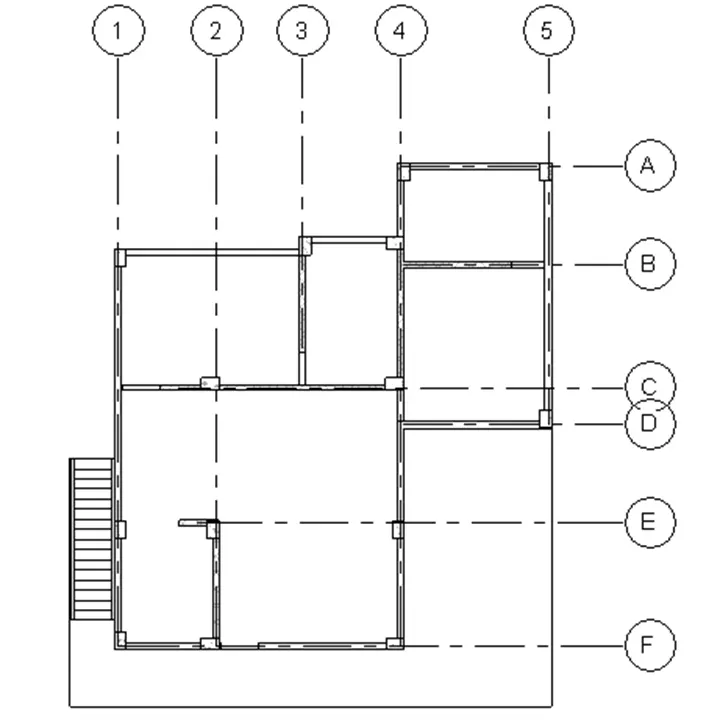

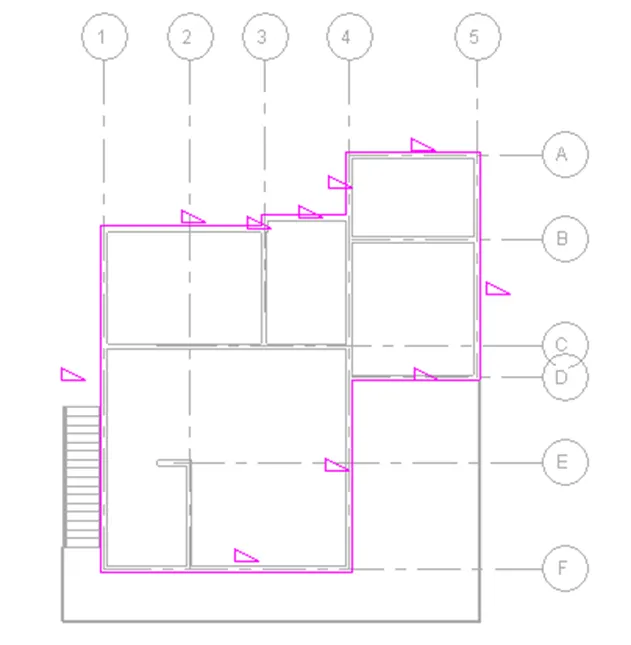

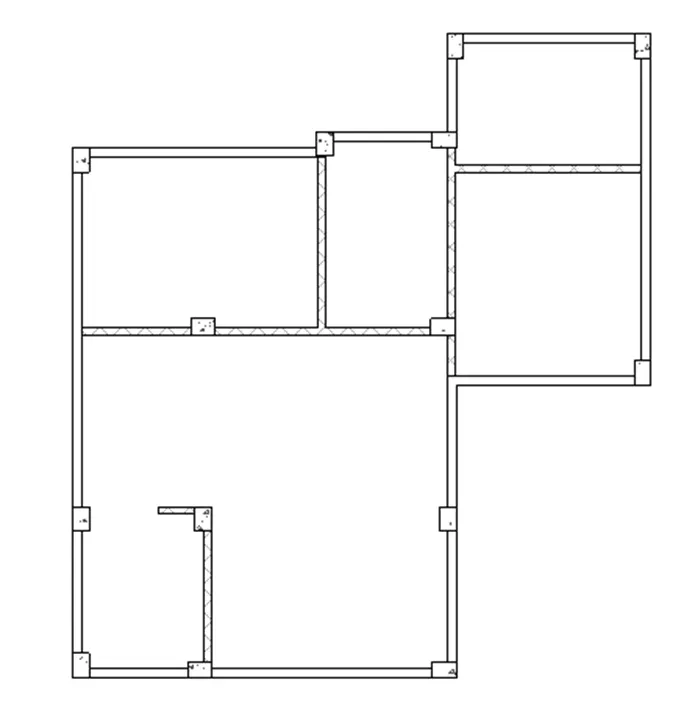

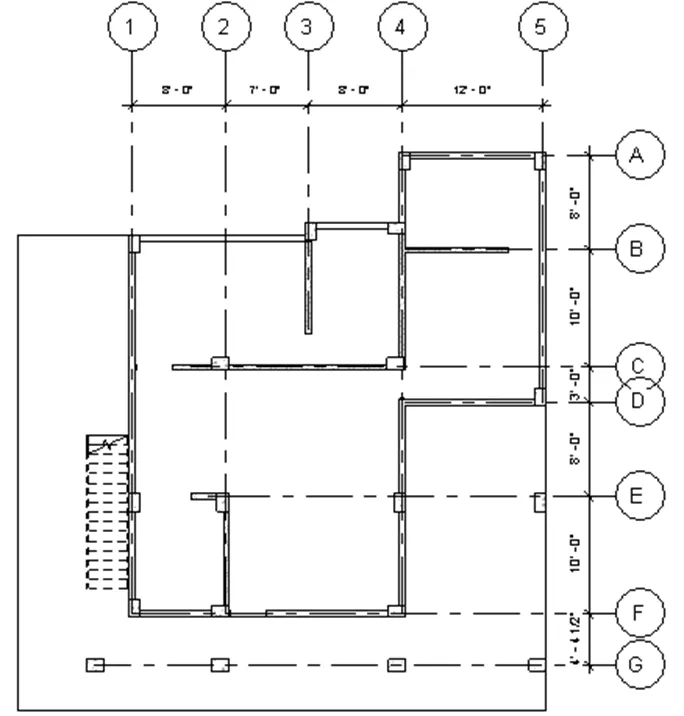

Structural plan : Ground floor

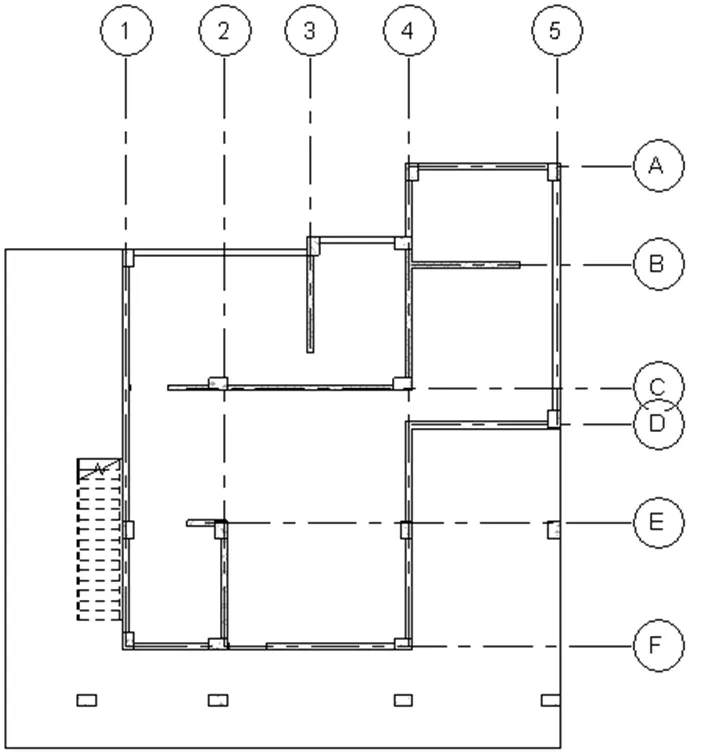

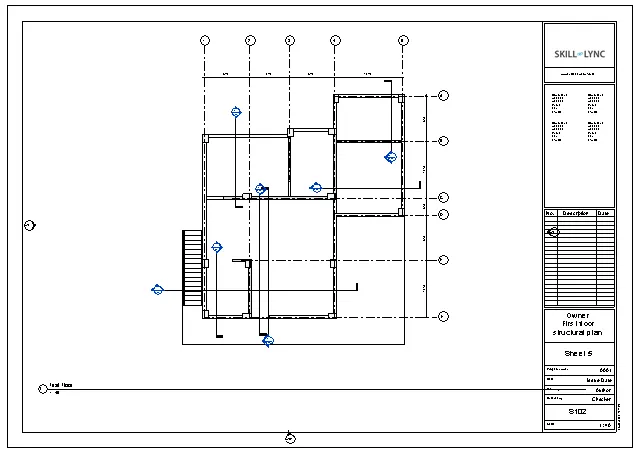

Structural plan : First floor
Q4. Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings with relation to grids. Overall dimensions are sufficient for architecture plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
ANS :
AIM : To add dimensions to all the walls and floors using the annotate toolbar with reference to the longitudinal and traverse grids
PROCEDURE :
STEP 1 : Go to Annotate tab select aligned dimensions and add dimensions to the grid in both architectural plan and structural plan
RESULT : Dimensions are added to model wherever required
Q5. Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
ANS :
AIM : To create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
PROCEDURE :

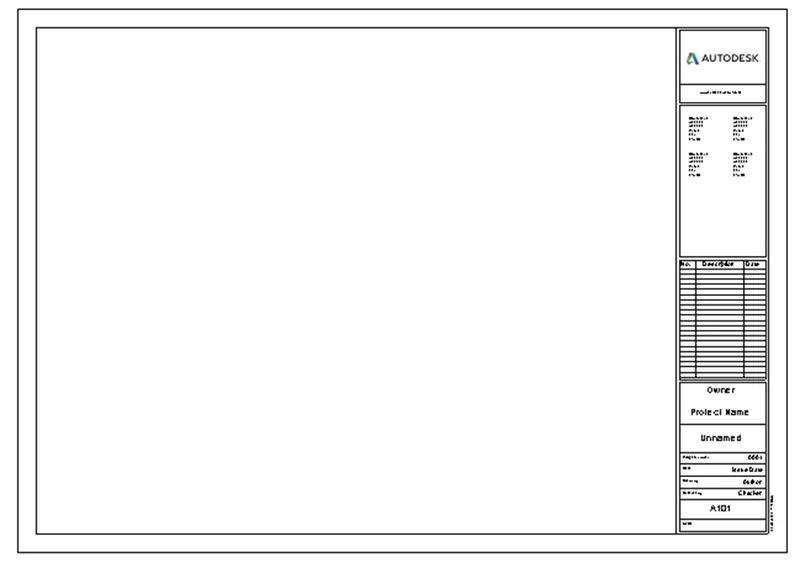

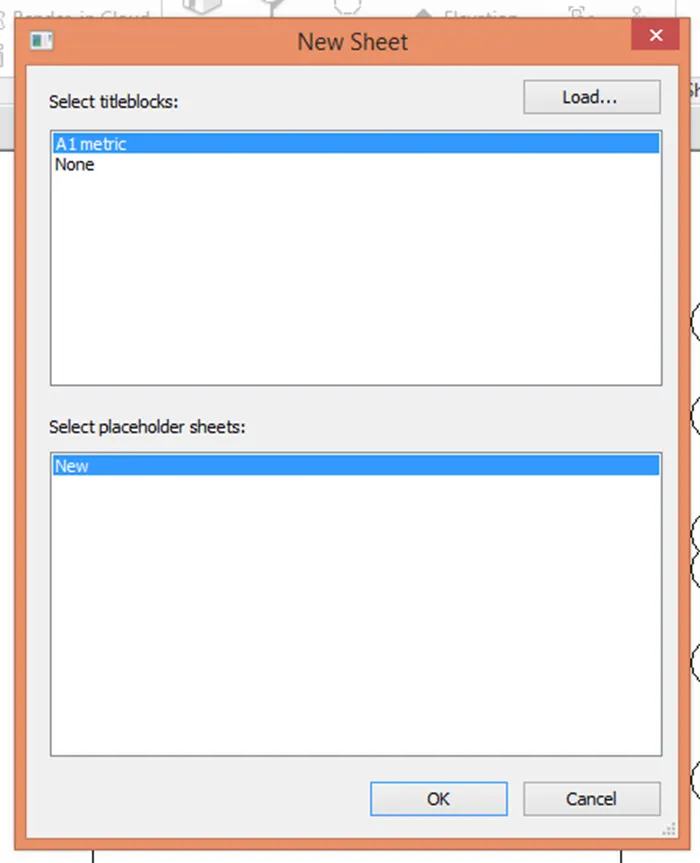

STEP 1 : Go to view tab and select sheet in that select A1 metric and press ok the template sheet is displayed
STEP 2 : In the sheet template insert the ground floor plan & first floor plan separately and also edit the project name and sheet number
RESULT : Created sheet template from the view tab and adjust the parameters on the sheet for adding appropriate views

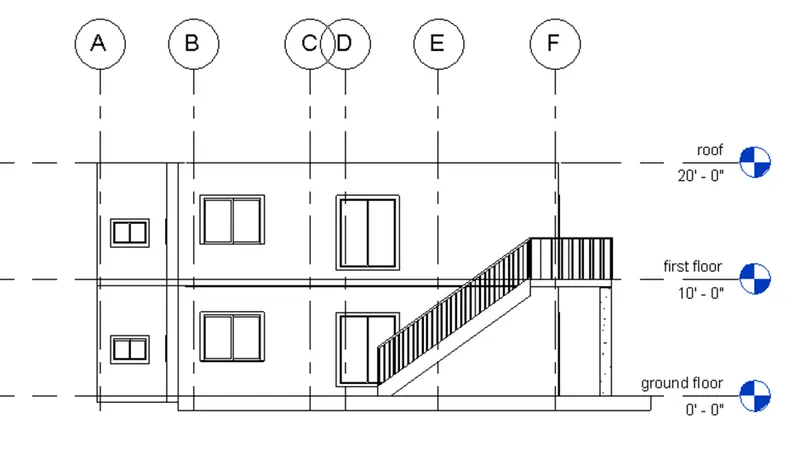

Q6. Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
ANS :
AIM : To create the elevation views, looking at your building from East, North, South and West using elevation tab
PROCEDURE :

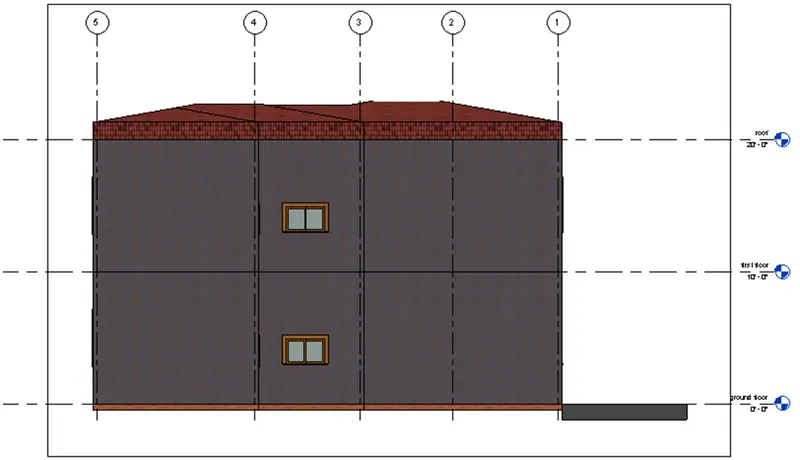

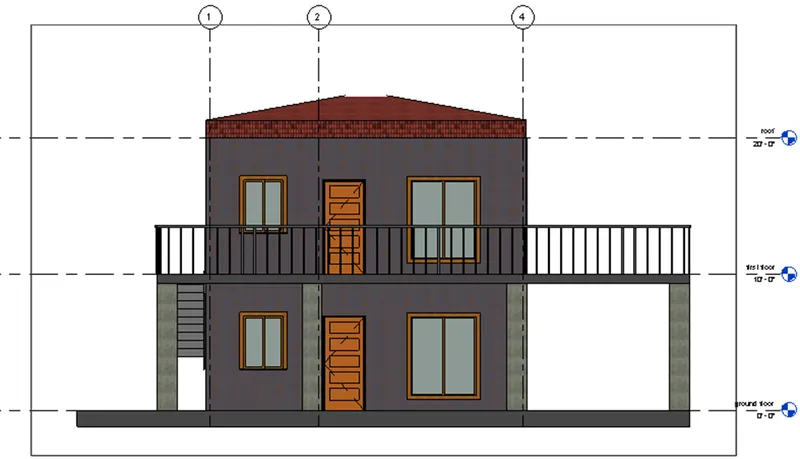

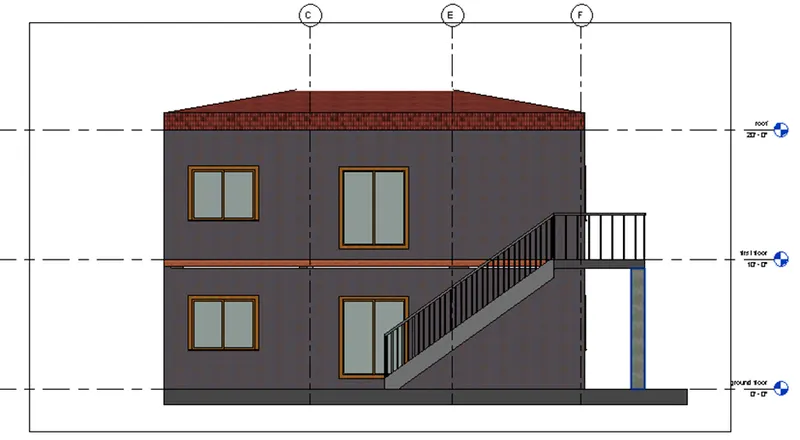

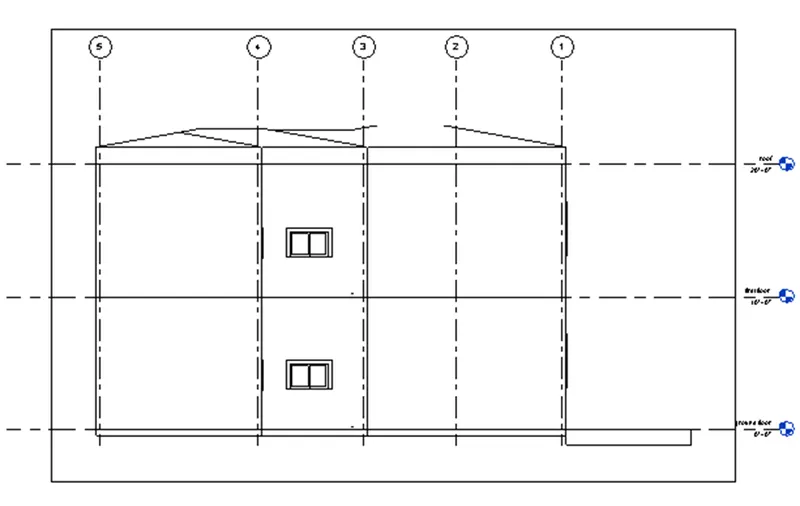

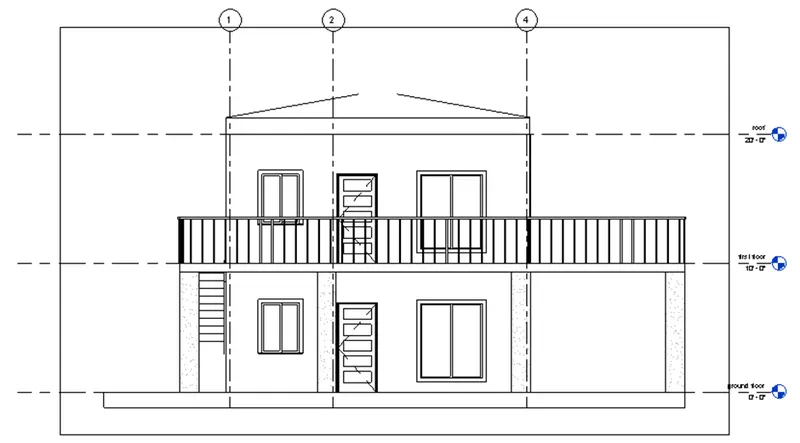

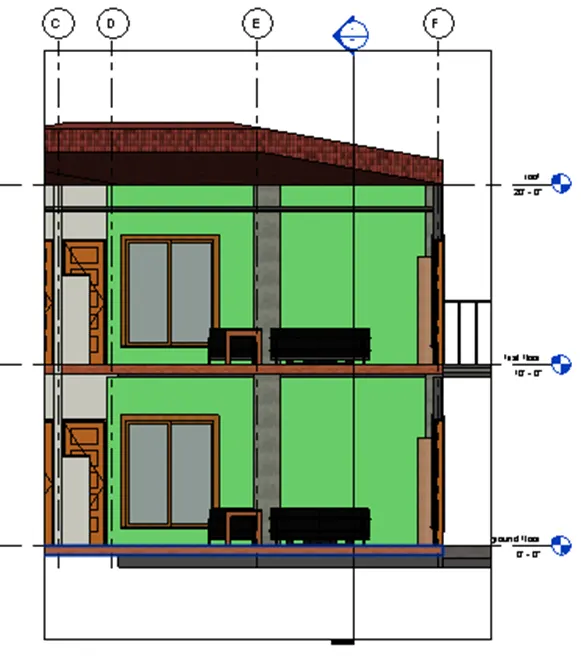

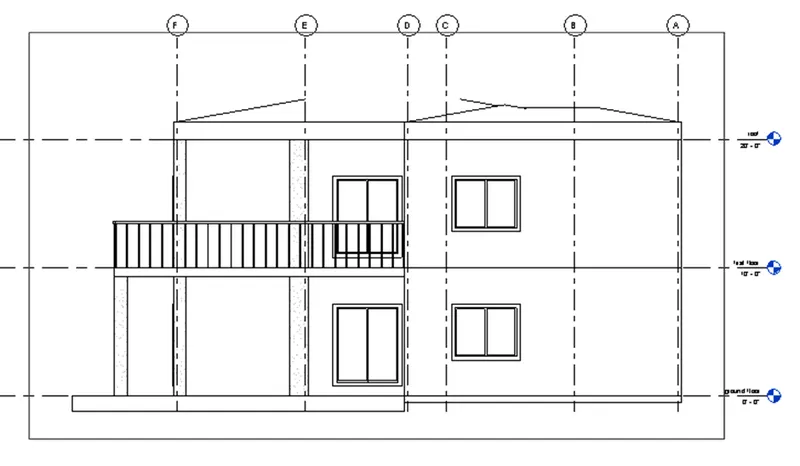

STEP 1 : Go to view tab and select elevation and add elevation on all the four directions
STEP 2 : Add elevation view at North
STEP 3 : Add elevation view at South

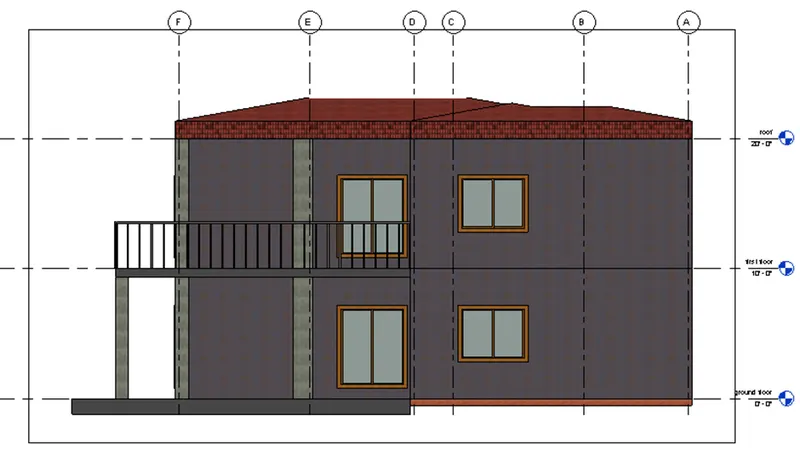

STEP 4 : Add elevation view at East
STEP 5 : Add elevation view at West
RESULT : All the elevation view in all directions are added

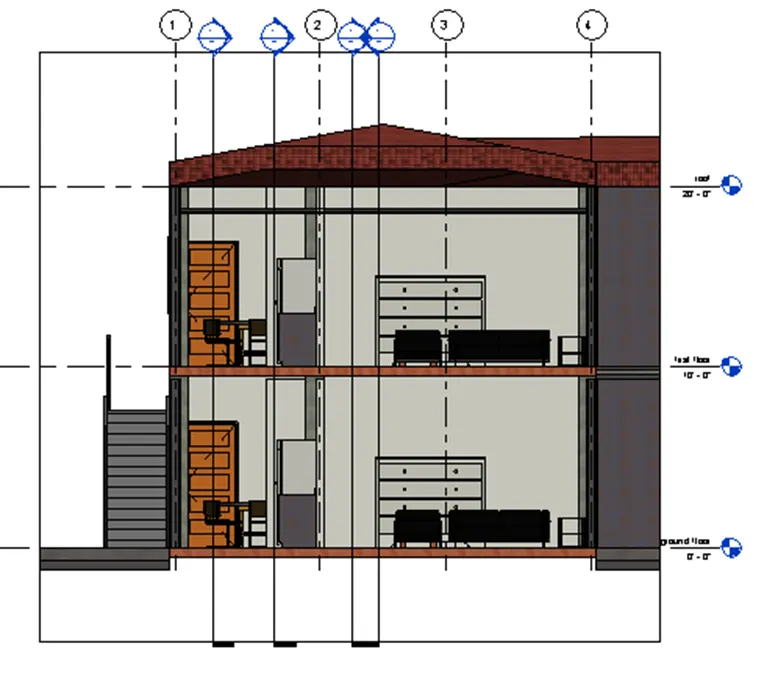

Q7. Produce section cut through each room either cutting across longitudinally or in a transverse direction
ANS :
AIM : To produce section cut through each room either cutting across longitudinal or in a transverse direction
PROCEDURE :

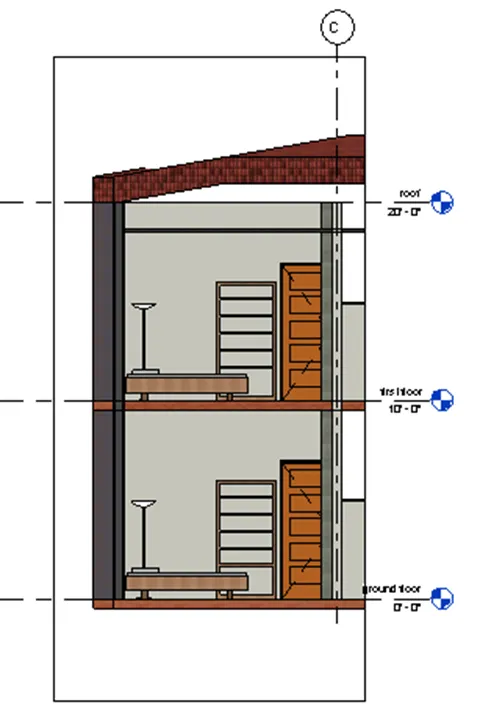

STEP 1 : Go to view tab and select section and give sectional view to the rooms wherever required

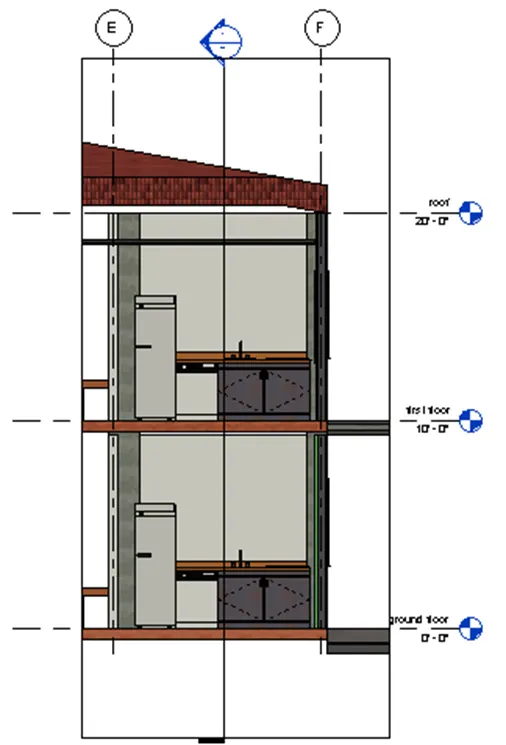

STEP 2 : Kitchen sectional view
STEP 3 : Dinning area sectional view

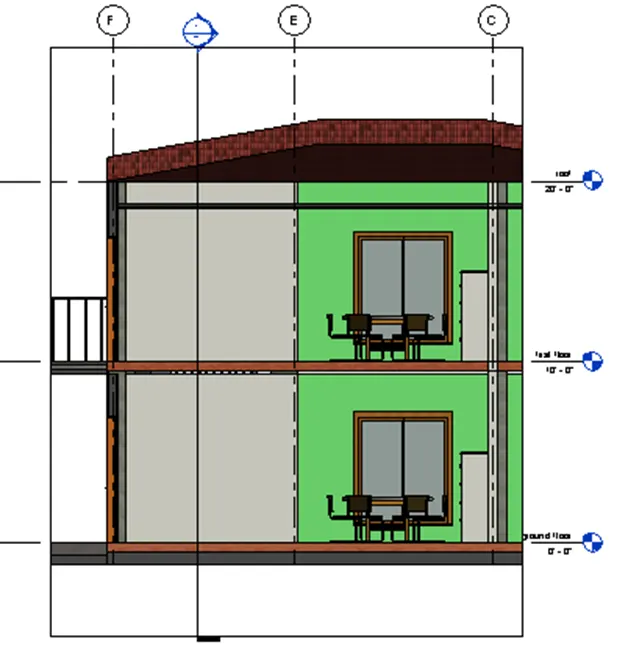

STEP 4 : Living area sectional view

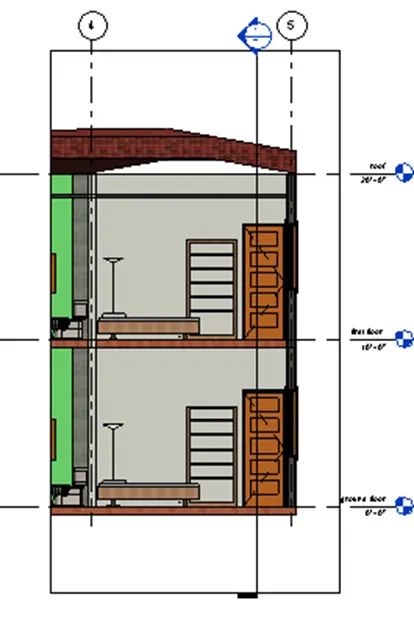

STEP 5 : Bedroom sectional view

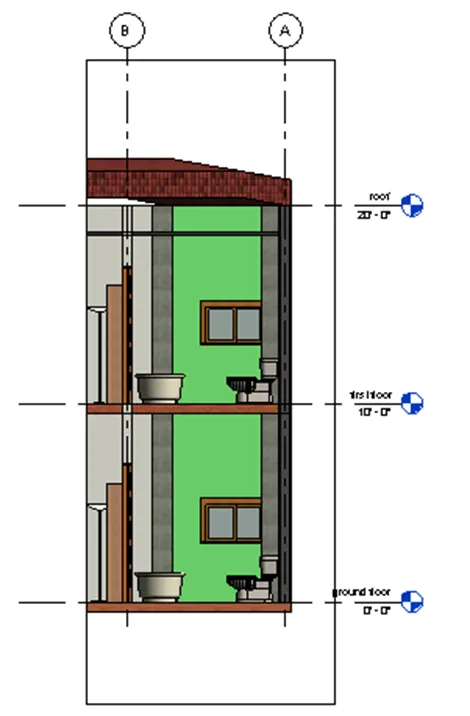

STEP 6 : Toilet sectional view
RESULT : Sectional view of each room is created
Q8. Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
ANS :
AIM : To classify the views, Plan views, Section views and elevation views to either design or documentation category using properties browser
PROCEDURE :
STEP 1 : Go to view tab and select sheet in that select A1 metric and press ok the template sheet is displayed
STEP 2 : Open the project browser in that plan view, section view and elevation view and insert all this views in sheets

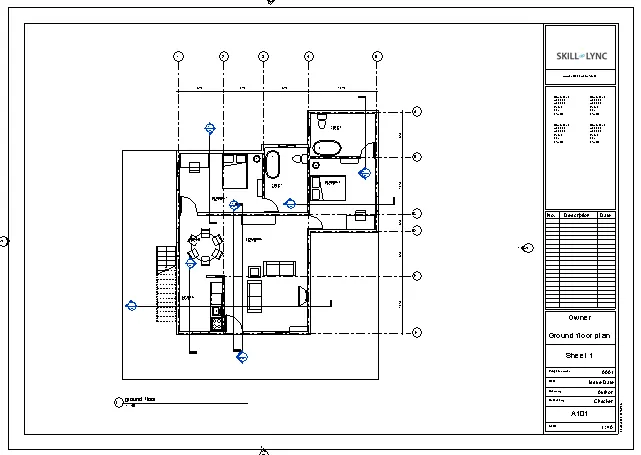

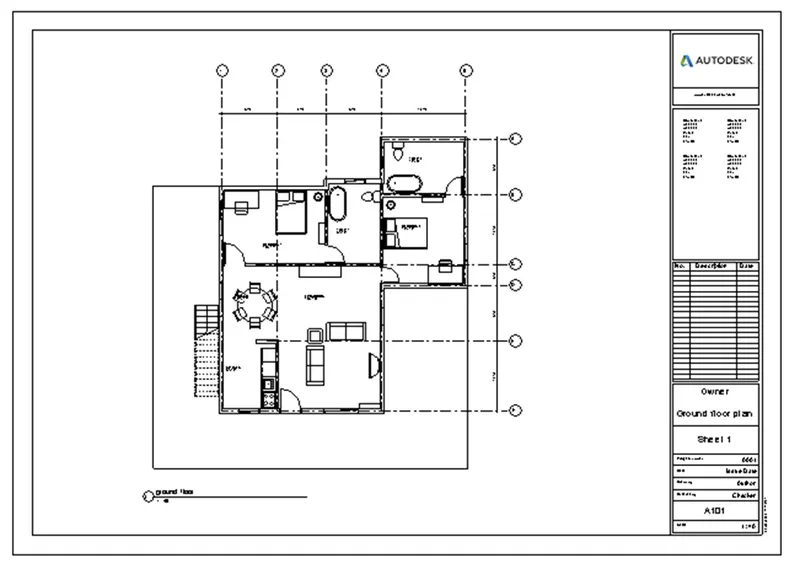

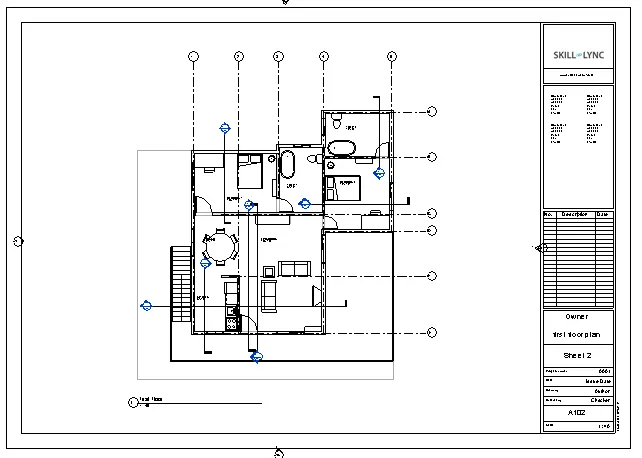

STEP 3 : Insert ground floor plan to the sheet and name it as A 101
STEP 4 : Insert first floor plan to the sheet and name it as A 102

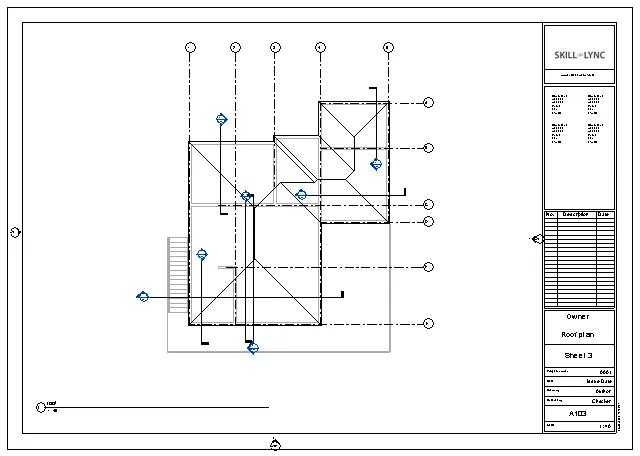

STEP 5 : Insert roof plan to the sheet and name it as A 103

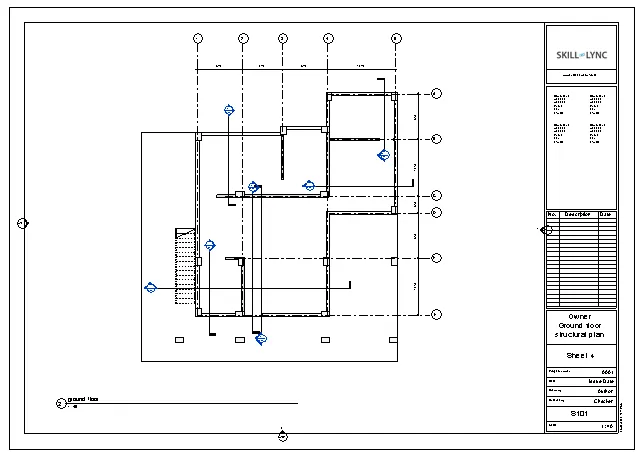

STEP 6 : Insert Ground floor structural plan to the sheet and name it as S 101
STEP 7 : Insert Ground floor structural plan to the sheet and name it as S 102

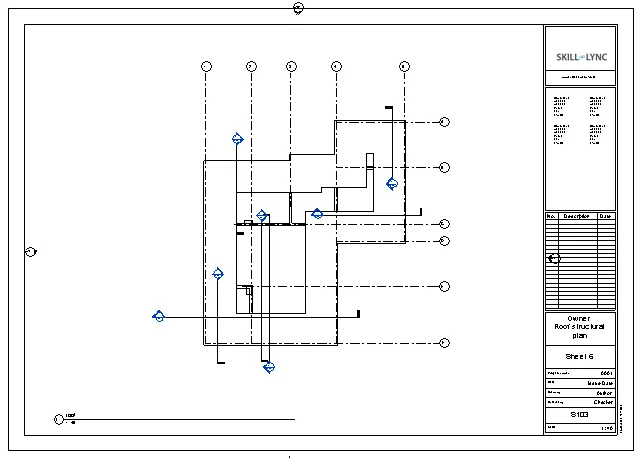

STEP 8 : Insert Roof structural plan to the sheet and name it as S 103

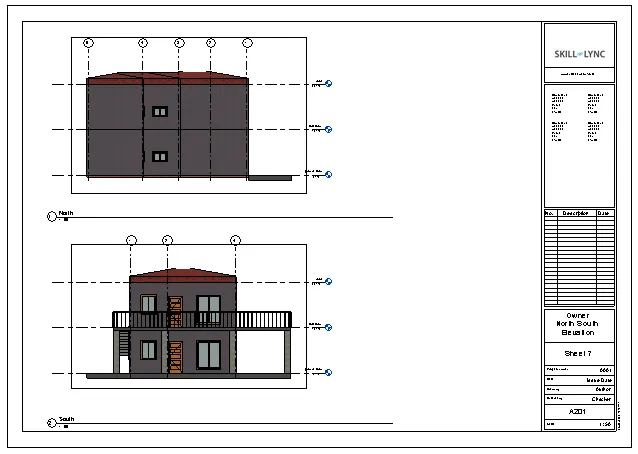

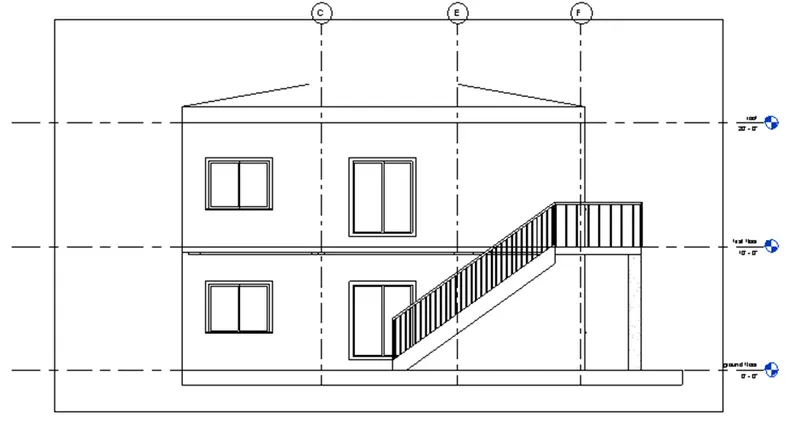

STEP 9 : Insert North South elevation to the sheet and name it as A 201

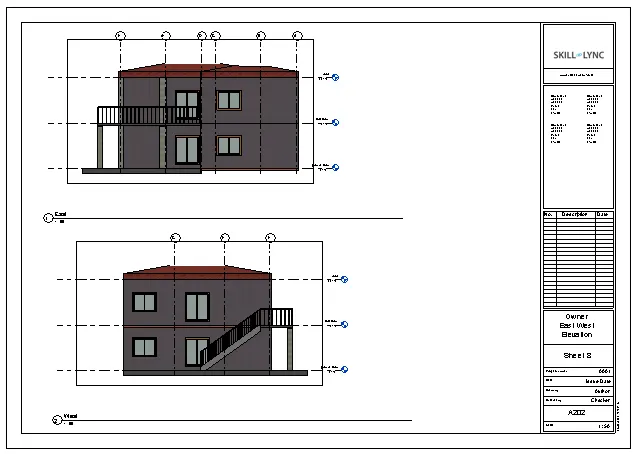

STEP 10 : Insert East West elevation to the sheet and name it as A 202

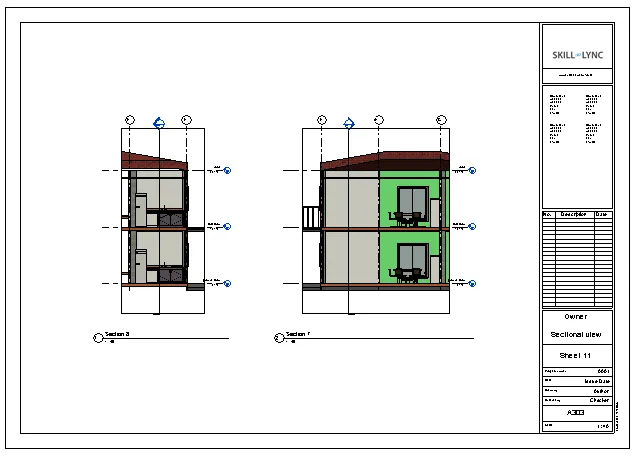

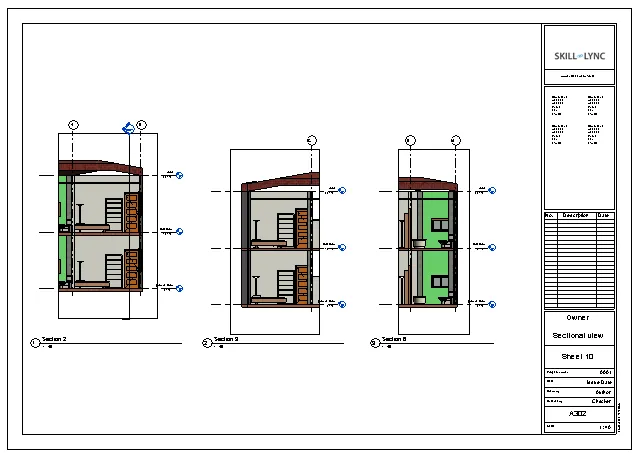

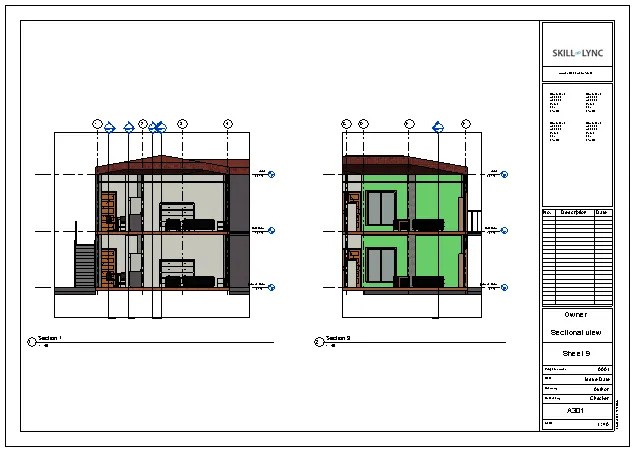

STEP 11 : Insert Sectional views to the sheet and name it as A 301, A 302 & A 303
RESULT : Multiple sheet template are created and drawings are inserted to the sheet from the given drawing list
Q9. Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
ANS :
AIM : To create the multiple sheet template and insert the drawings in the sheet from the given drawing list
PROCEDURE :
STEP 1 : Go to view tab and select sheet in that select A1 metric and press ok the template sheet is displayed
STEP 2 : Insert ground floor plan to the sheet and name it as A 101
STEP 3 : Insert first floor plan to the sheet and name it as A 102
STEP 4 : Insert roof plan to the sheet and name it as A 103
STEP 5 : Insert Ground floor structural plan to the sheet and name it as S 101
STEP 6 : Insert Ground floor structural plan to the sheet and name it as S 102
STEP 7 : Insert Roof structural plan to the sheet and name it as S 103
STEP 8 : Insert North South elevation to the sheet and name it as A 201
STEP 9 : Insert East West elevation to the sheet and name it as A 202
STEP 10 : Insert Sectional views to the sheet and name it as A 301, A 302 & A 303
RESULT : Multiple sheet template are created and drawings are inserted to the sheet from the given drawing list

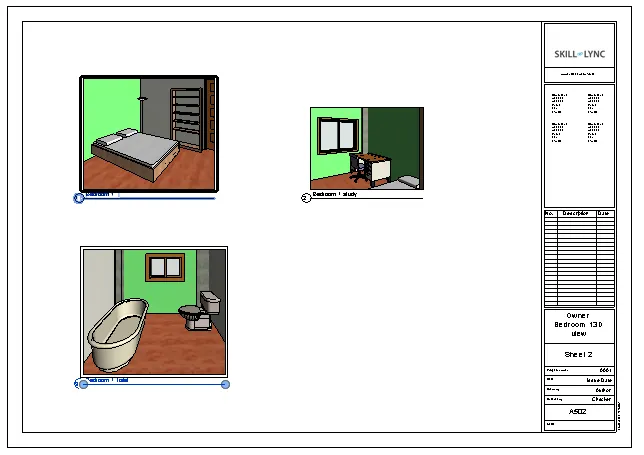

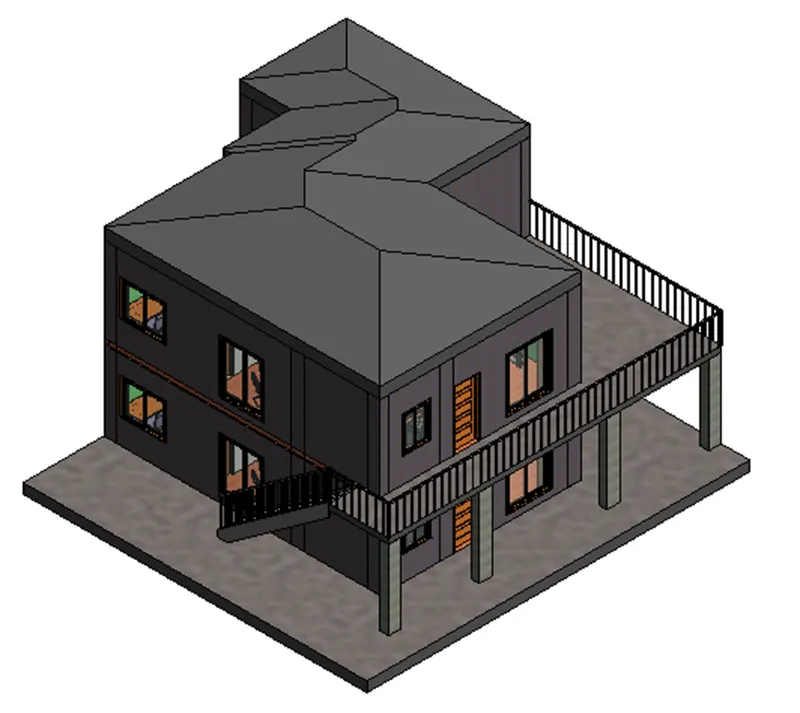

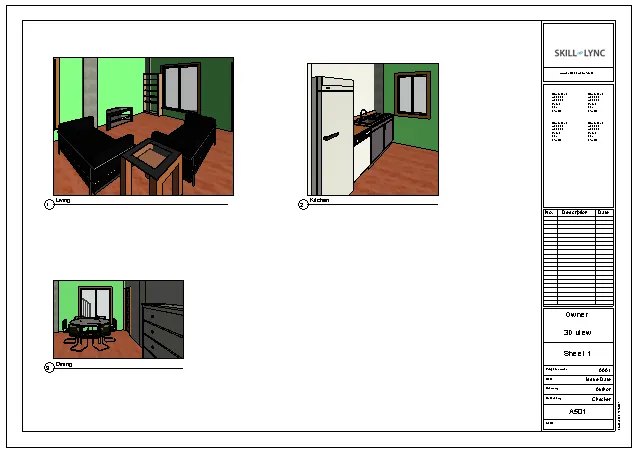

Q10. Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
ANS :
AIM : To create a camera specific view or 3D view in each room(living, dining, bedroom)
PROCEDURE :
STEP 1 : Go to view tab and select sheet in that select A1 metric and press ok the template sheet is displayed

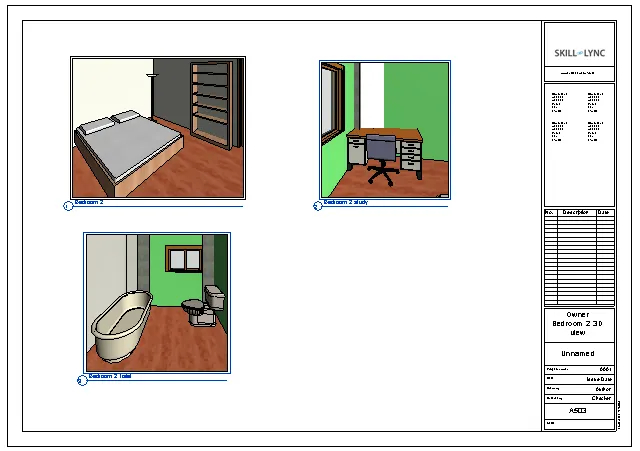

STEP 2 : Insert 3D view to the sheet and name it as A 501
STEP 3 : Insert Bedroom 1 3D view to the sheet and name it as A 502
STEP 4 : Insert Bedroom 2 3D view to the sheet and name it as A 503
RESULT : The created camera views are inserted in the sheets accordingly
