3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT
1.
Aim: To create the ceiling above the walls at the first floor level.
Procedure:
- Initially open the week 3 assignment from theRevitt software.
- For this initially go to plan view.
Step 1.Stair case design
- Next we have to create the Staircase connected to the First Floor.

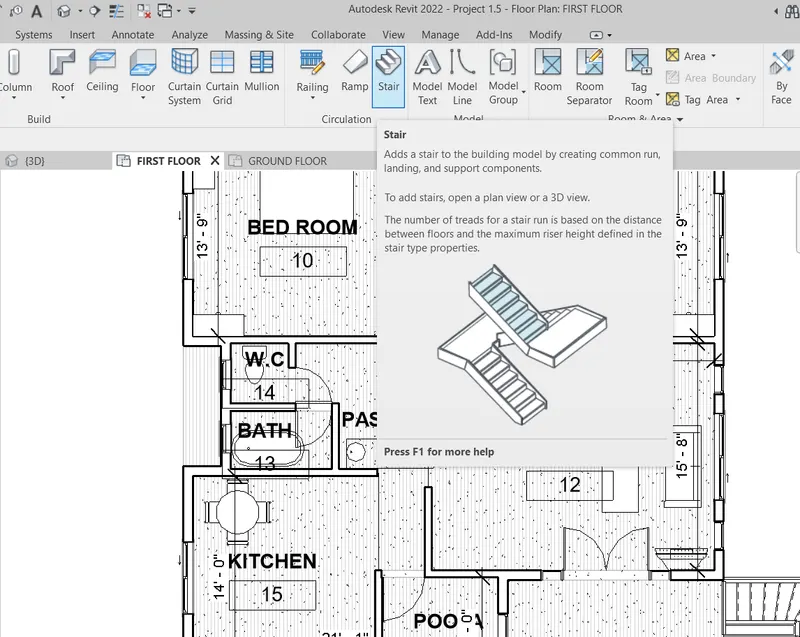

- For this go to the the Stair se option in the architecture tab and create the Staircase.
- Draw the Stair Case at appropriate place.
- Click on the right click to place the object.
Q2:
Railing Design:-

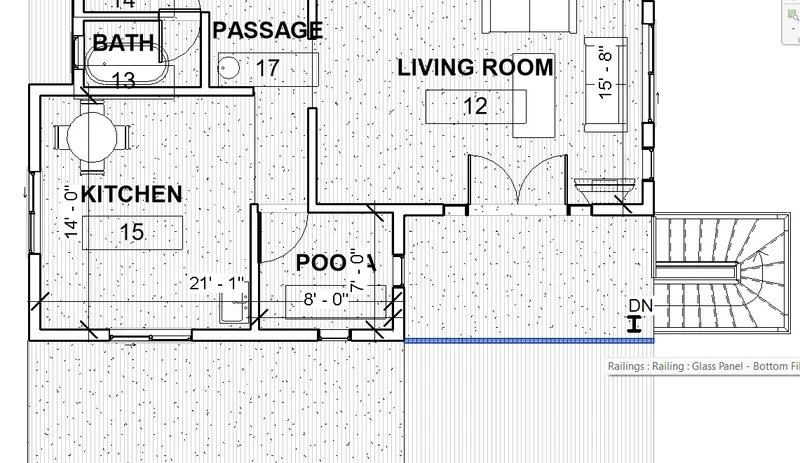

- Draw the railings for the first floor verandah.

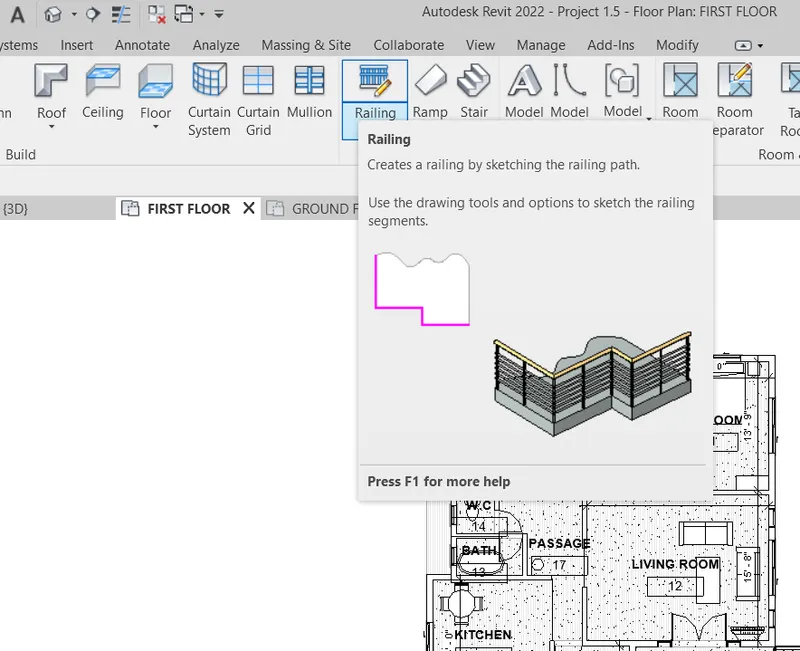

- For this go to railings option in the architecture tab and create the railings.
- Draw the Railing at the appropriate place.
- Click on the right click to place the object.

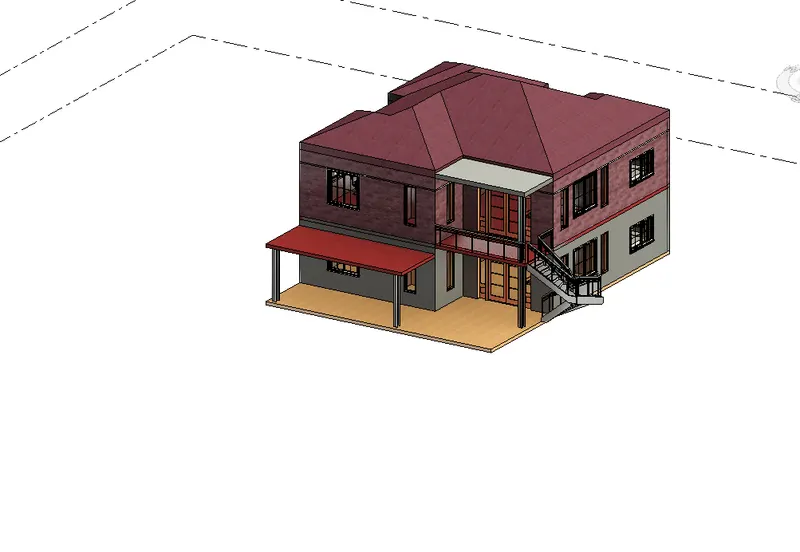

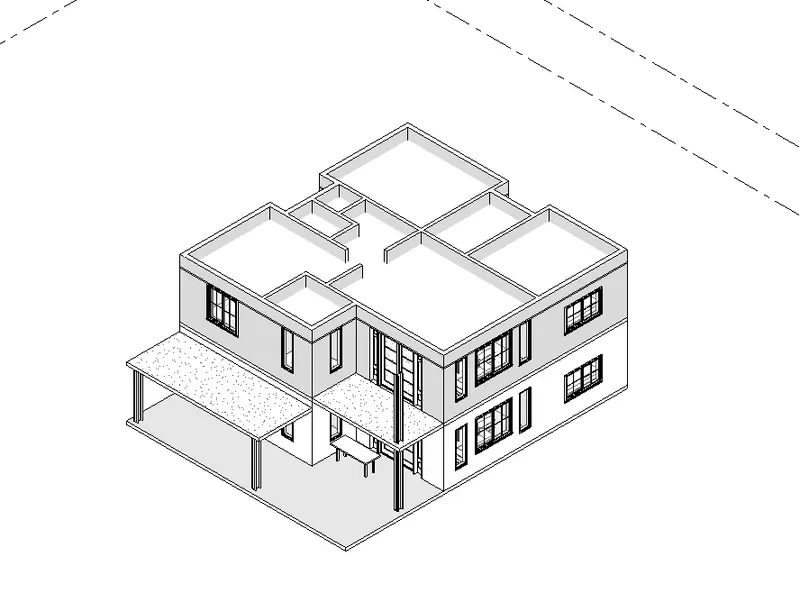

3D View:-
Q3:
Ceiling Design

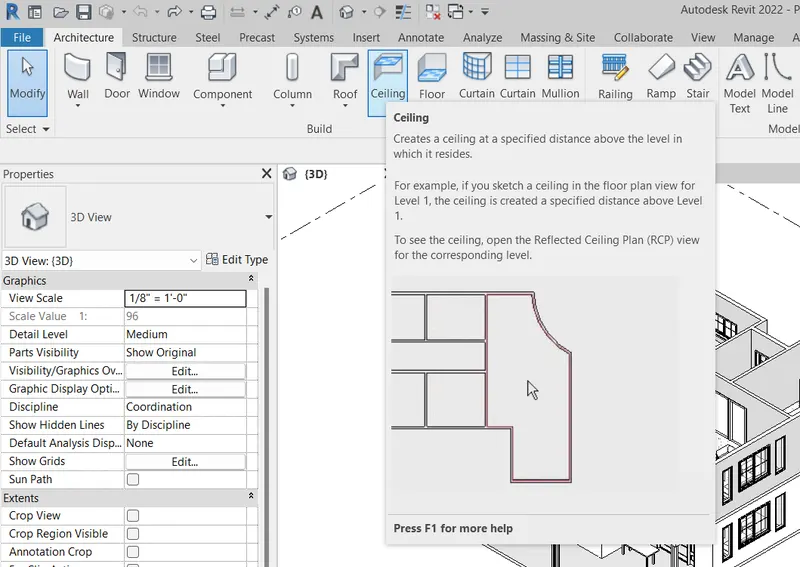

- Now we can place the ceiling, for this go to the architecture tab and choose to ceil.
- Ceiling is to be provided on level 2 for the ground floor.

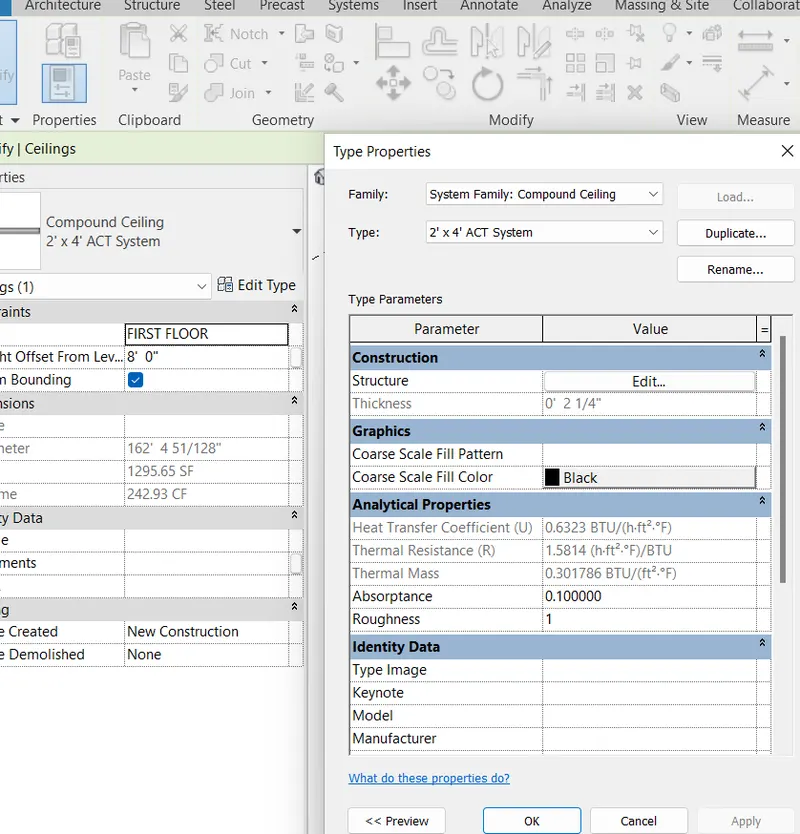

- After selecting the ceiling option, modify tab will open automatically.

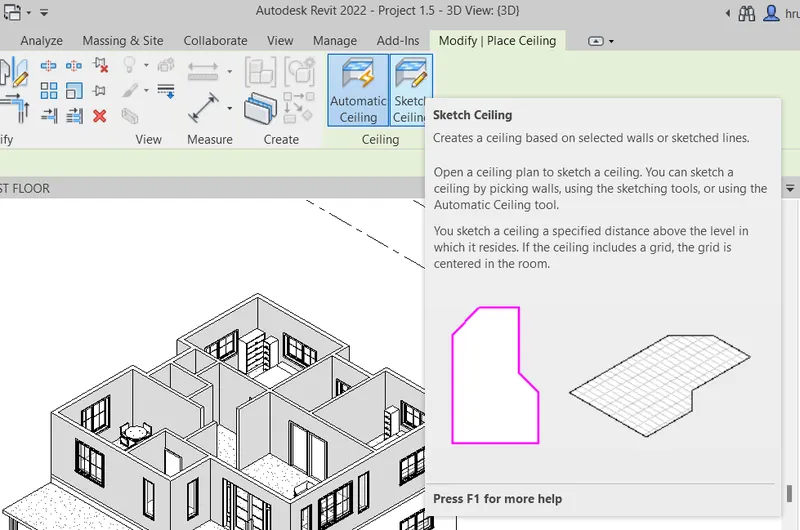

- Select sketching ceiling.
- Select the pick line option from the ribbon
- Select all the outer boundaries of the ground floor wall to plot ceiling
- Click ok button to complete
- Hence, the ceiling is created.
2.AIM: To create a roof above the ceiling and a roof having a slope of 10 degrees.
Procedure:
- Initially open the week 3 assignment from the Revit software.
- For this initially go to-plan view.
Step:1
- Inorder to create the roof, initially go to the architecture tab of the ribbon.
- Then choose the roof option.
Step:2

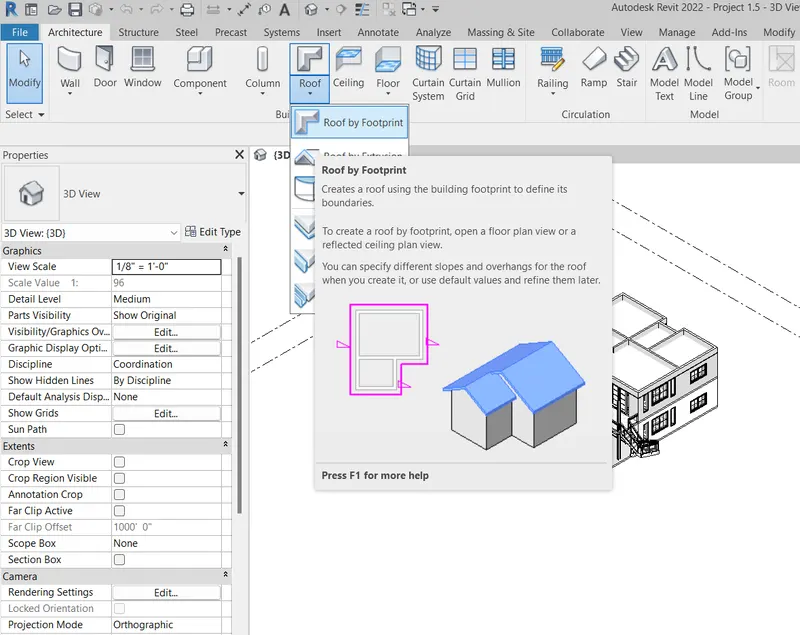

- From the roof dropdown choose roof by footprint.
Step:3

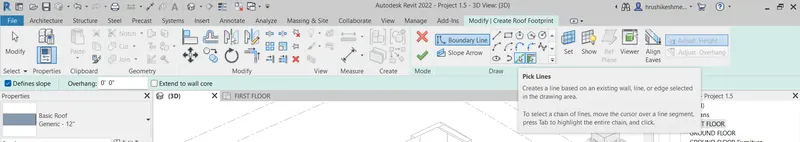

- Select the Pickline option to select all the boundary in the first floor

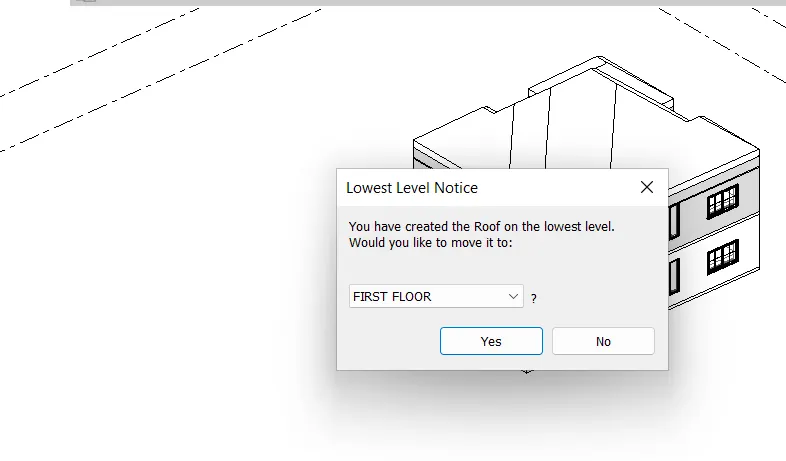

- Click ok to plot the roof
Step:4

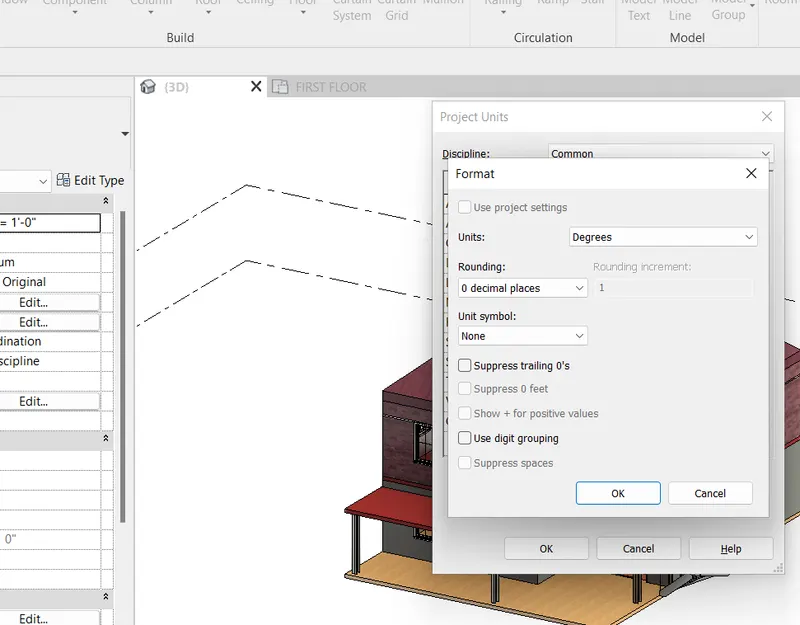

- Go to unit option to select the degree for slope
Step:5

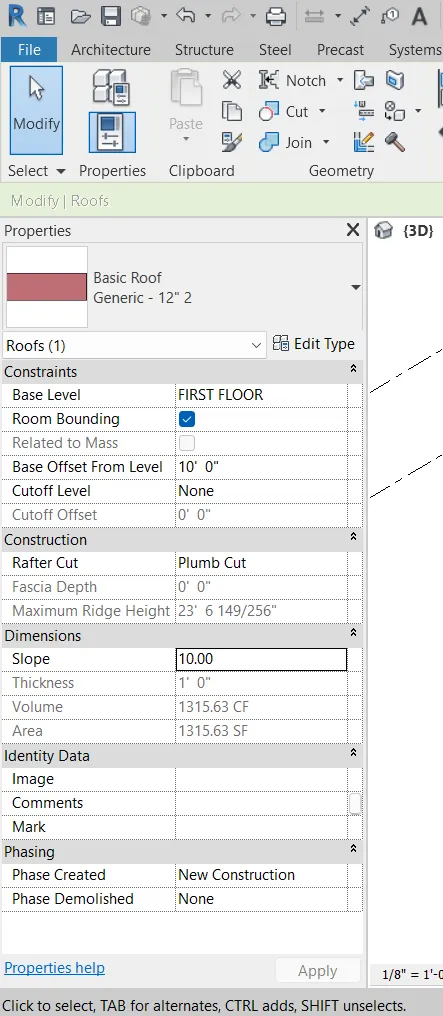

- Go to property browser
- Enter 10 degree for slope of the roof
Step:6
- Hence, the ceiling is created.
3.Using the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to architecture and structural plans
Aim:
To create plan views for ground floor level and first-floor level including all the walls, floors, and components and then separate them to
a) Architecture plan -------> It must have walls, floors, and all the components placed within the building
b) Structural plans --------> It must have details of only walls, floors, and columns
Procedure:
a) To create architecture plan:

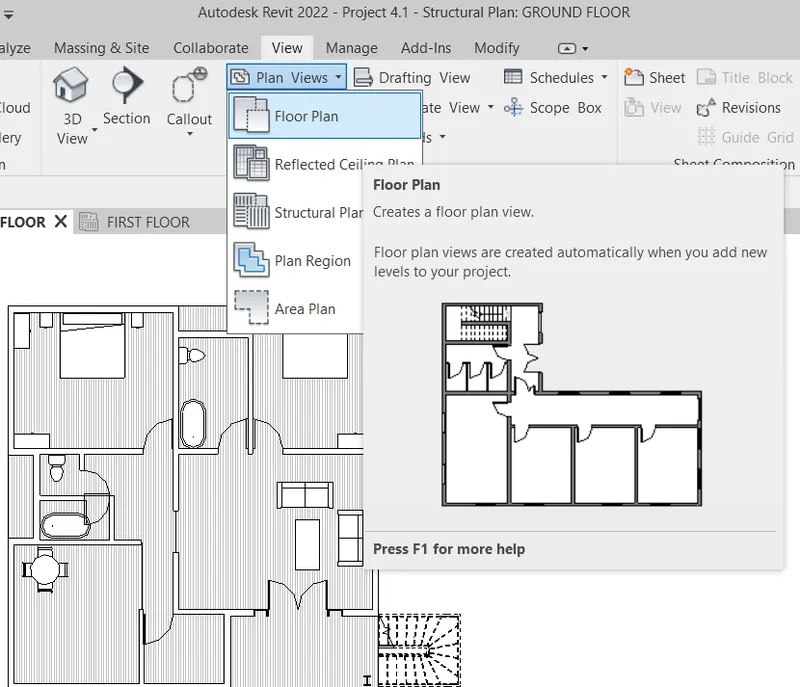

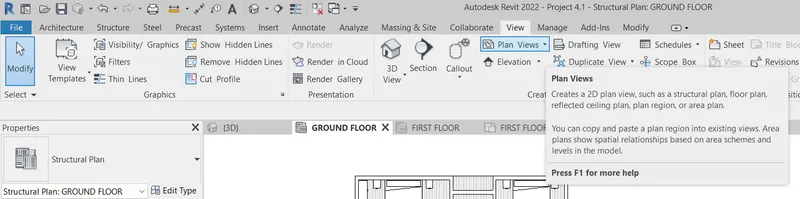

- Initially go to view tab of the ribbon -------> Then select plan views.

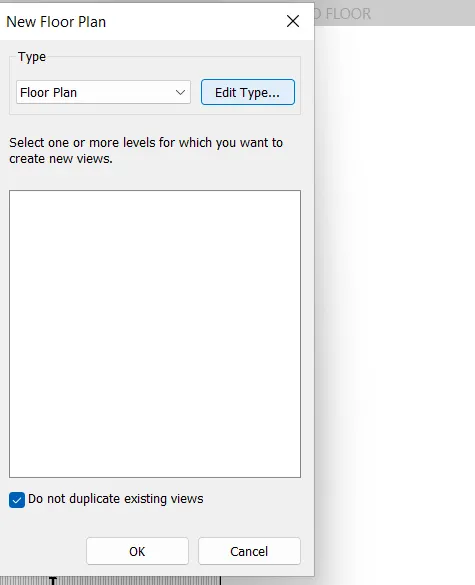

- In the plan views -----> select floor plan.

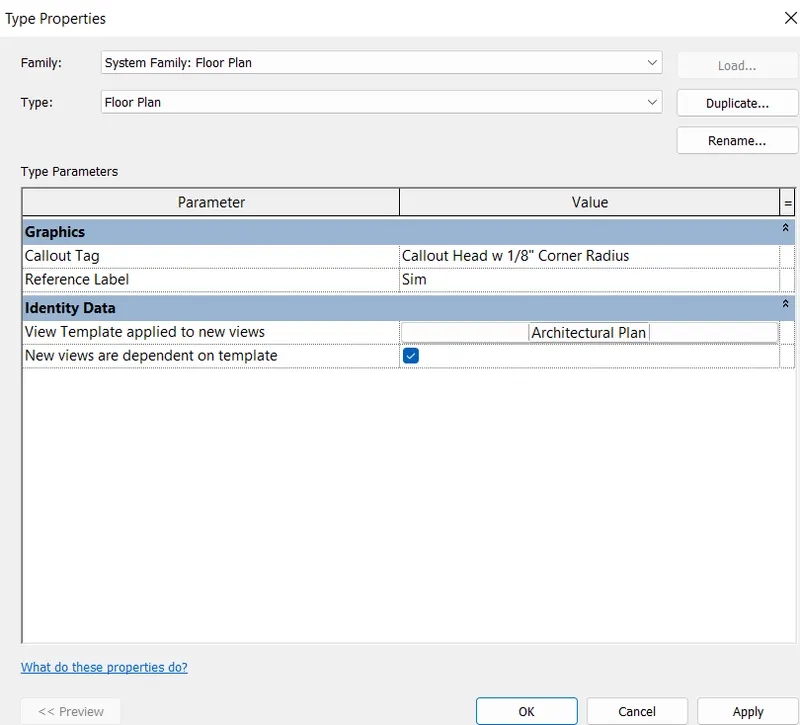

- select floor plan-----> go to the edit type
- Then change the identity detail.

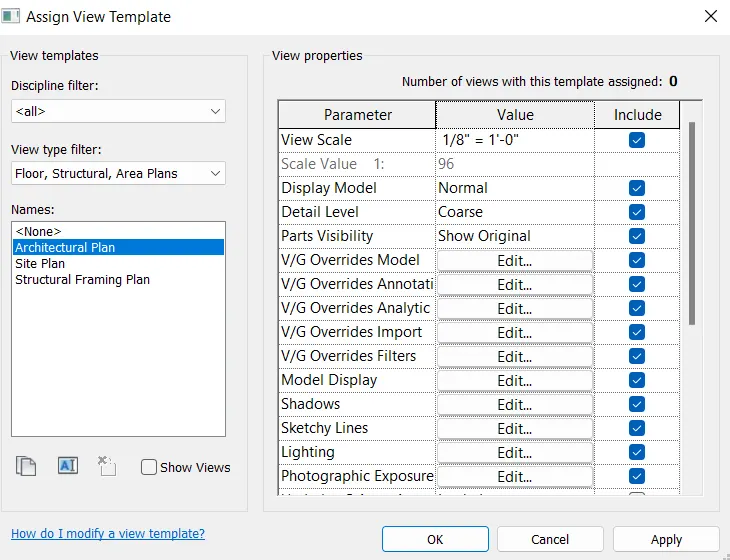

- change the Template view as Architectural.
- In that select architectural plan.
Then the floor plan is obtained as follows:

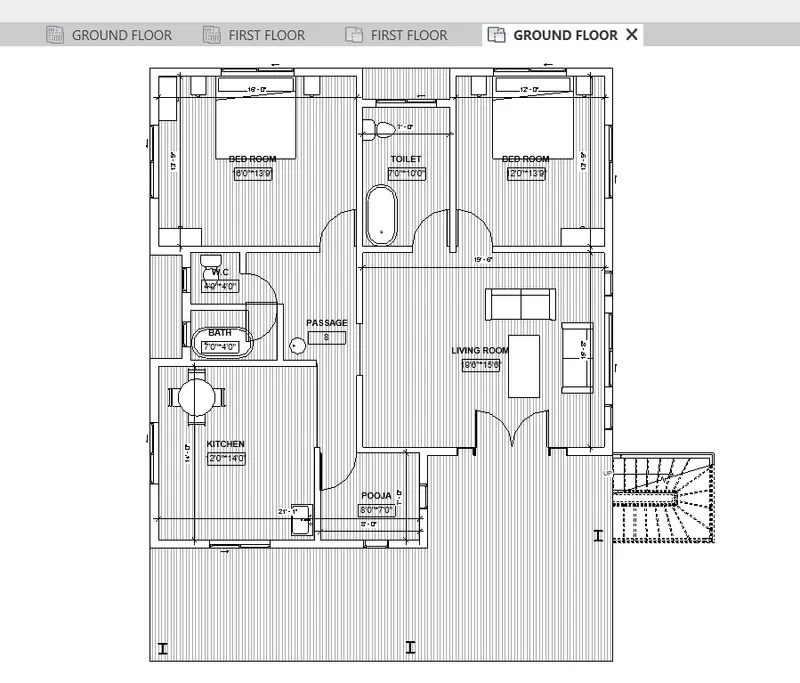

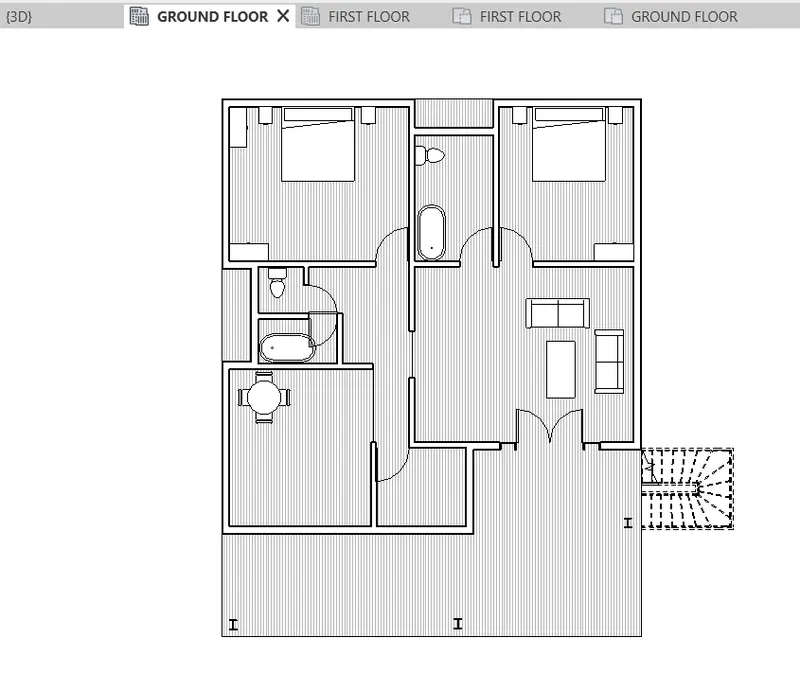

- Ground floor architectural plan.

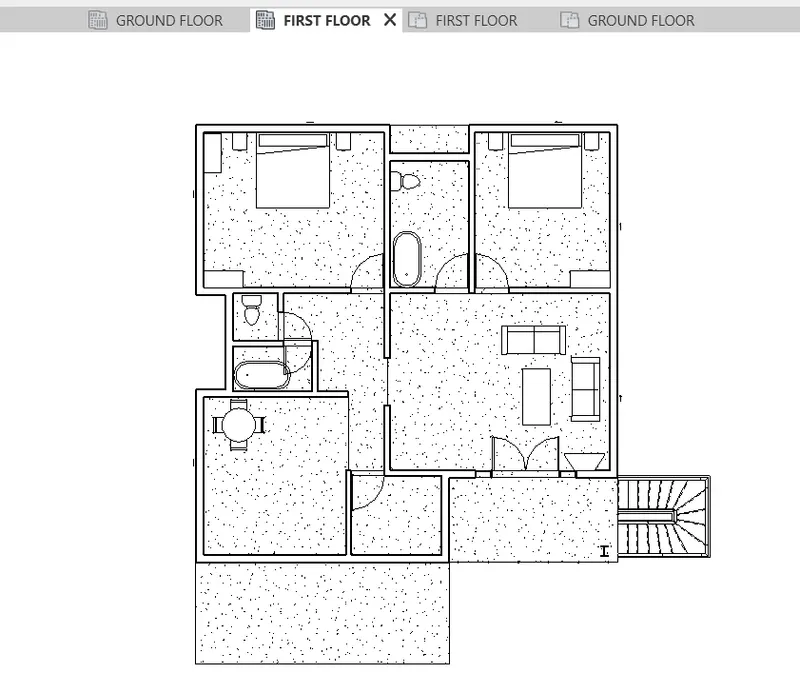

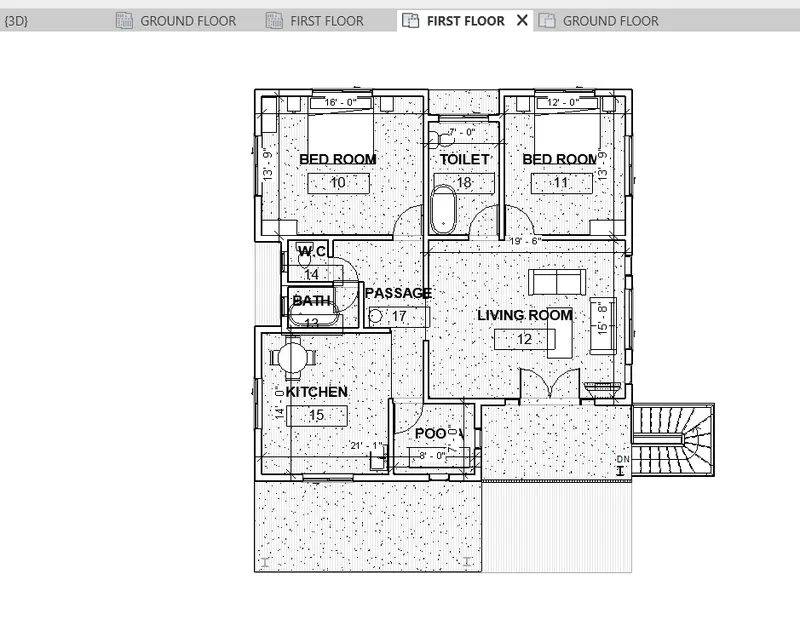

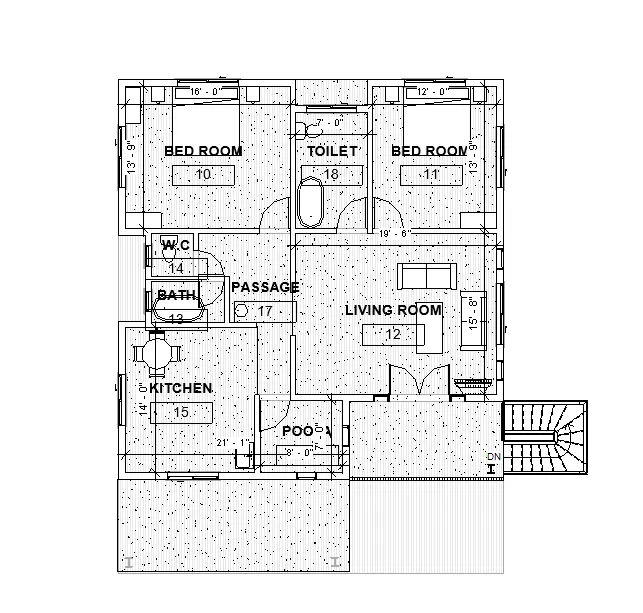

- First floor architectural plan:
b)Structural plan: For this the plan will contain only walls floors and the column as the structural element.
a) To create Structural plan:
- Initially go to view tab of the ribbon -------> Then select plan views.

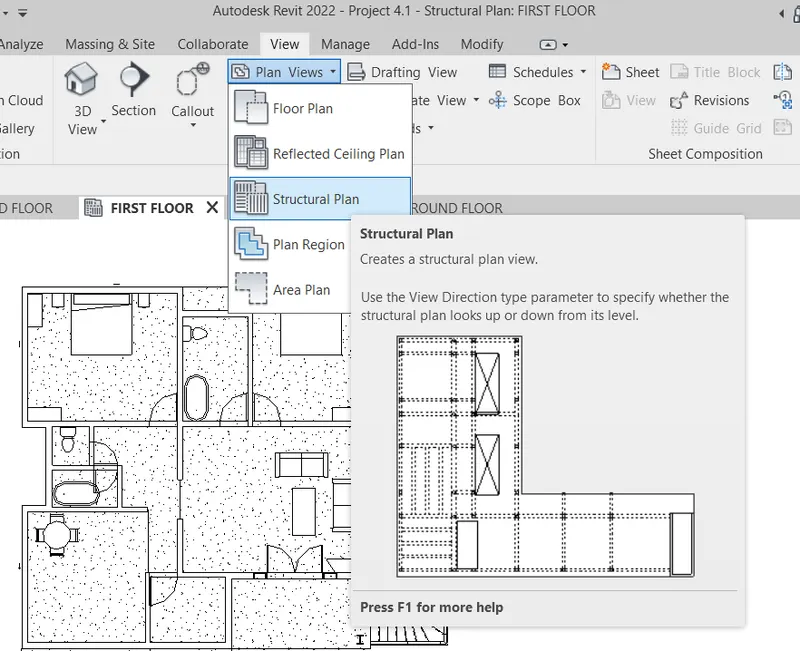

- In the plan views -----> select Structural Plan.

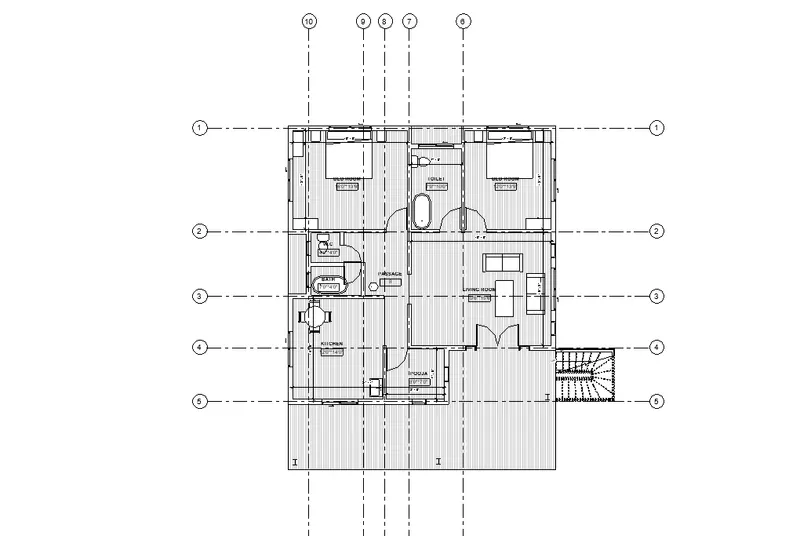

- Ground floor Structural plan.
- First floor structural plan:
Q4:
Using annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file
a. The architecture plan dimensions include details on where the components are placed within the buildings in relation to grids. Overall dimensions are sufficient for architectural plans
b. The Structure plan dimensions must include details on the position of all the walls and interior walls with reference to grids. Locate all the framing components of the building with reference to a fixed point using Structural plans
AIM: To mark all dimensions in the architectural and structural plan
PROCEDURE:
- step-1: Open RVT 2022
- step-2: Open the Existing project file
- step-3: Draw the longitudinal and transverse grids to all the walls and floors

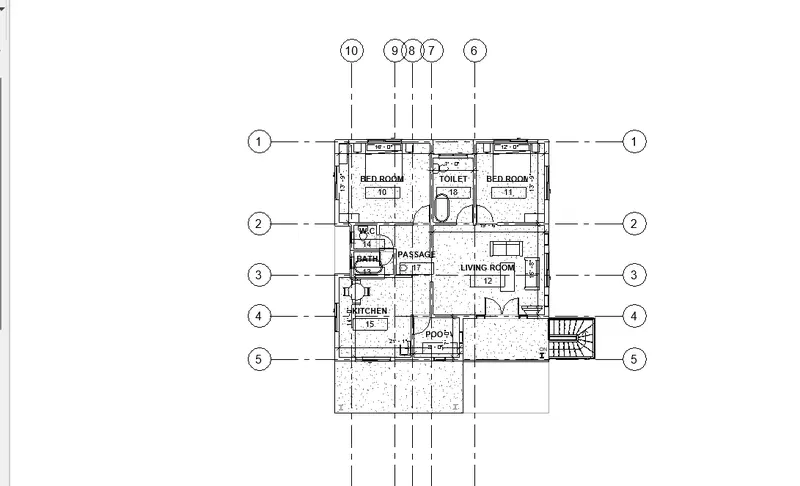

Ground floor Detailing:-
First Floor Detailing:-
- Step-4:Go to Annotate tab
- step-5: Select Aligned tool

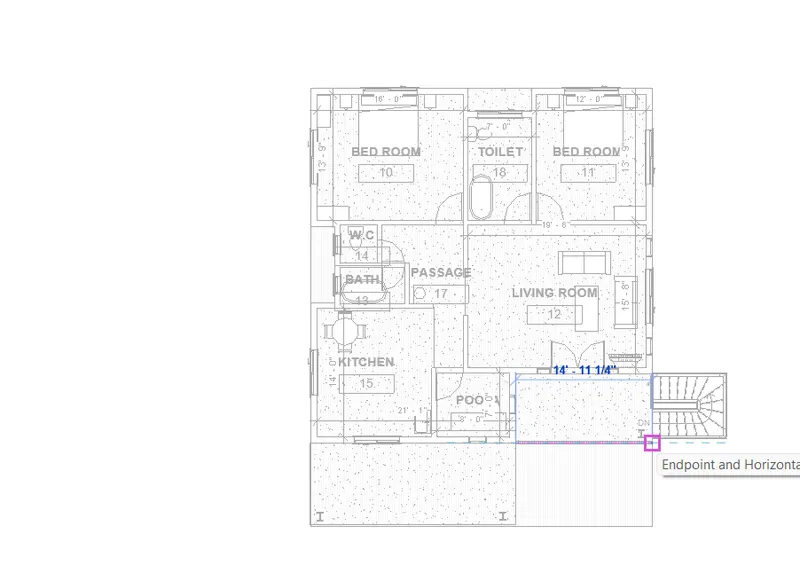

- step-6: Mark all the dimensions on the floor plan

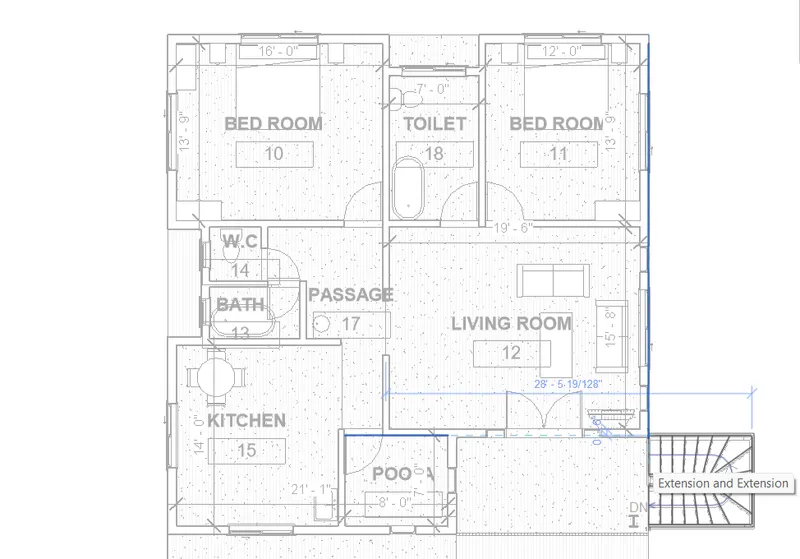

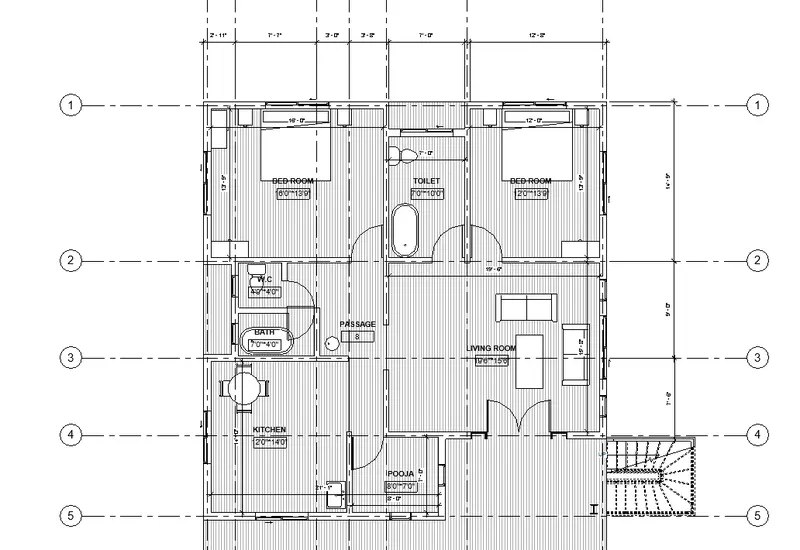

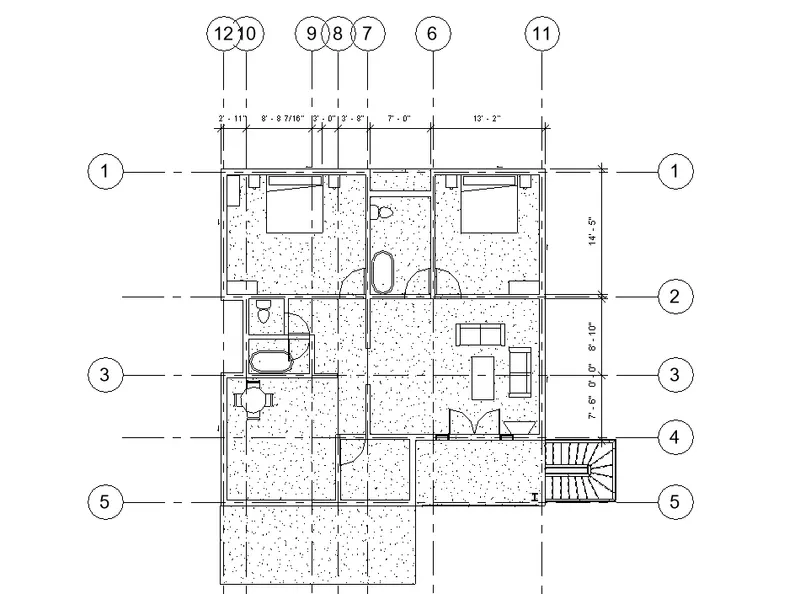

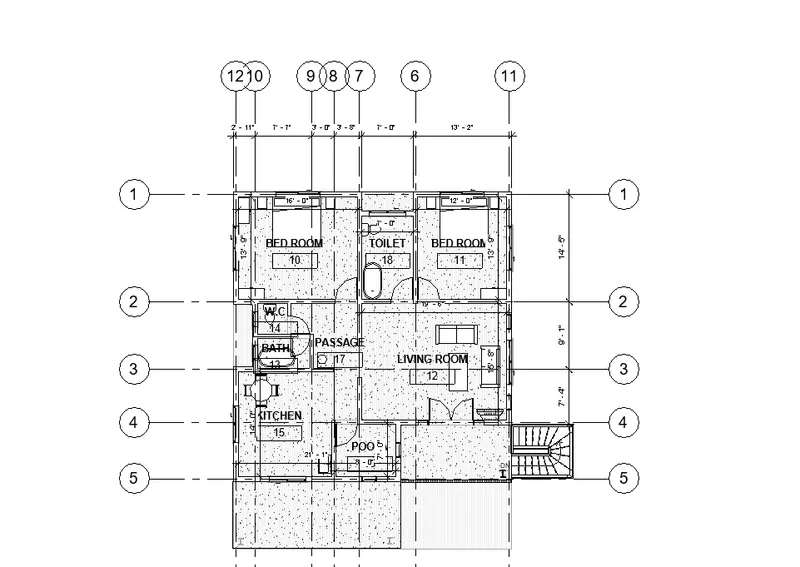

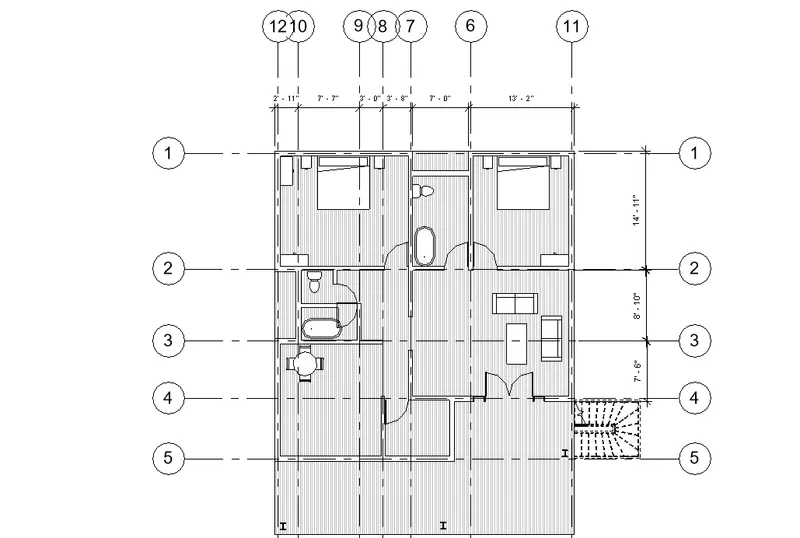

Ground floor Architecture Dimension Detailing:-
First Floor Architecture Dimension Detailing:-
Similarly Draw the dimension detail of Structural drawing.
Ground floor Structural Dimension Detailing:-
First Floor Structural Dimension Detailing:-
5. Create a sheet template from the view tab and adjust the parameters on the sheet to add appropriate views
AIM: To create sheet template fro view tab
PROCEDURE:
- step-1: Open RVT 2023
- step-2: Open existing project file
- step-3: Go to View tab

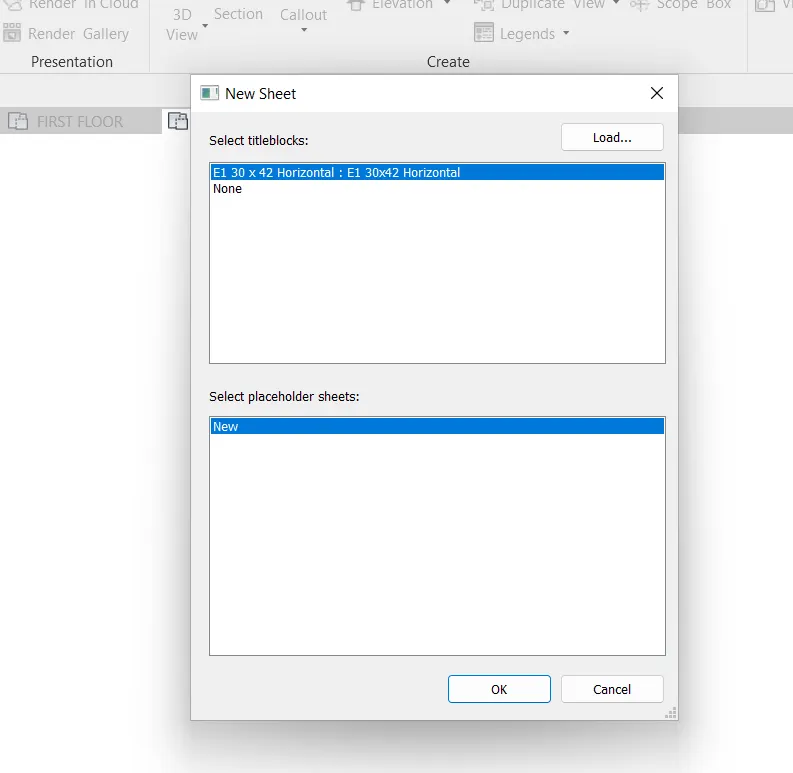

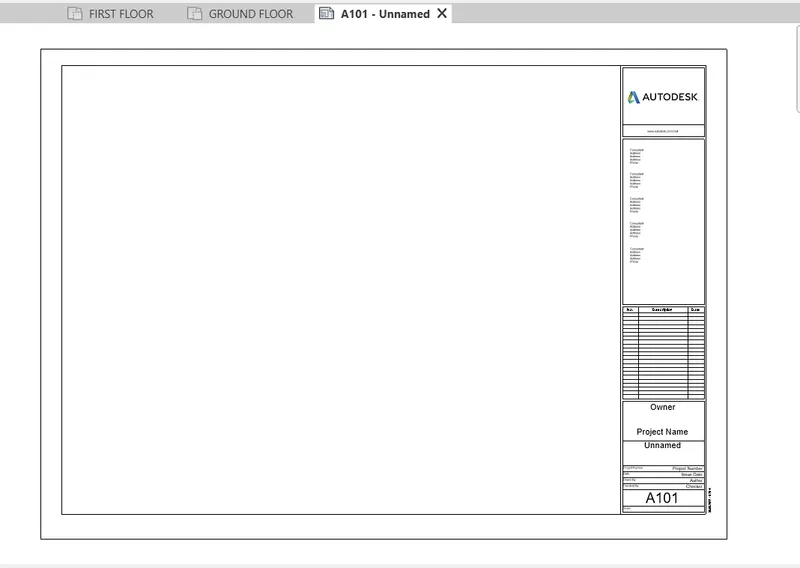

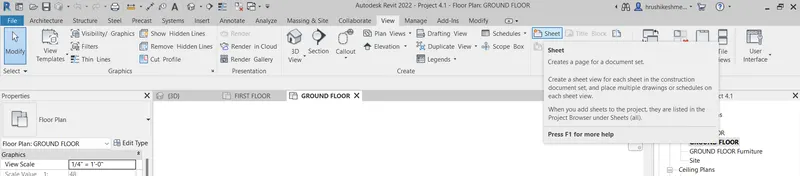

- step-4: Select Sheet option
- step-5: Select the sheet and click open
- step-6: Renamed sheet file .
- step-7: Select Architectural Ground floor plan and drag into sheet layout.
- step-8: Change the scale to plot
- step-9: Select Architectural First floor plan and drag into sheet layout.
- step-10: Change the scale to plot
RESULT:
6. Using the elevation tab create the elevation views, looking at your building from East, North, South, and West
AIM:- To create the elevation views, looking at your building from East, North, South, and West using the elevation tab.
PROCEDURE:
step-1:
- Open RVT 2023
- Open existing project file
step-2:
- Go to View tab
step-3:

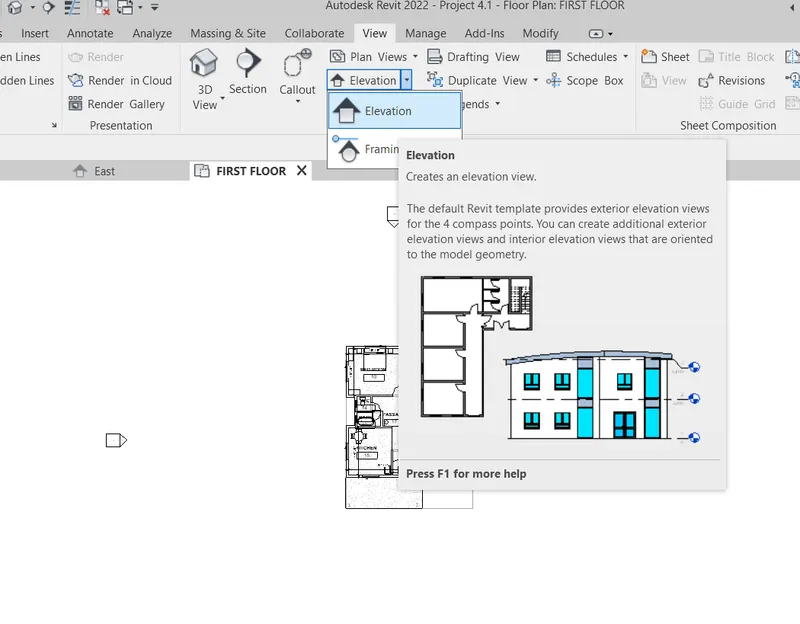

- ------>Select Elevation view
step-4:
- Next the elevation from the Different direction will be visible, as shown below.

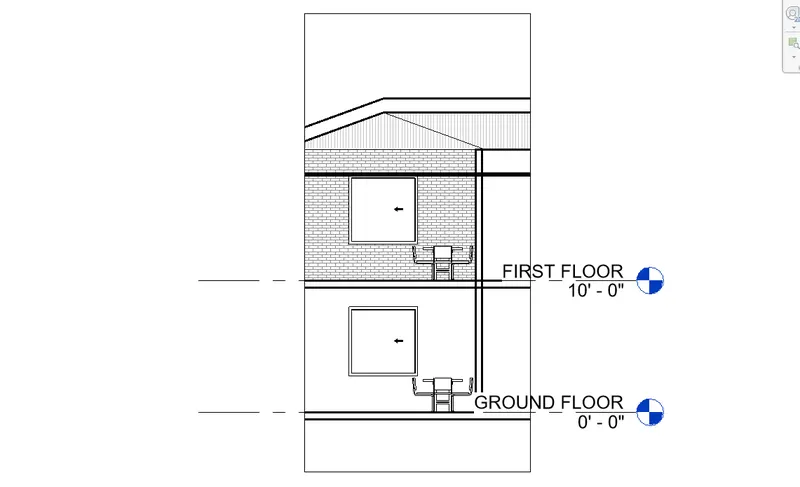

- East elevation

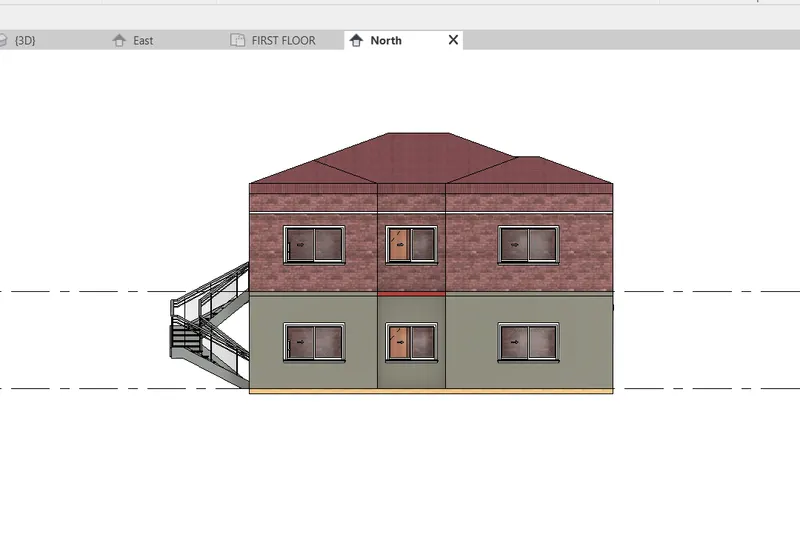

- North elevation

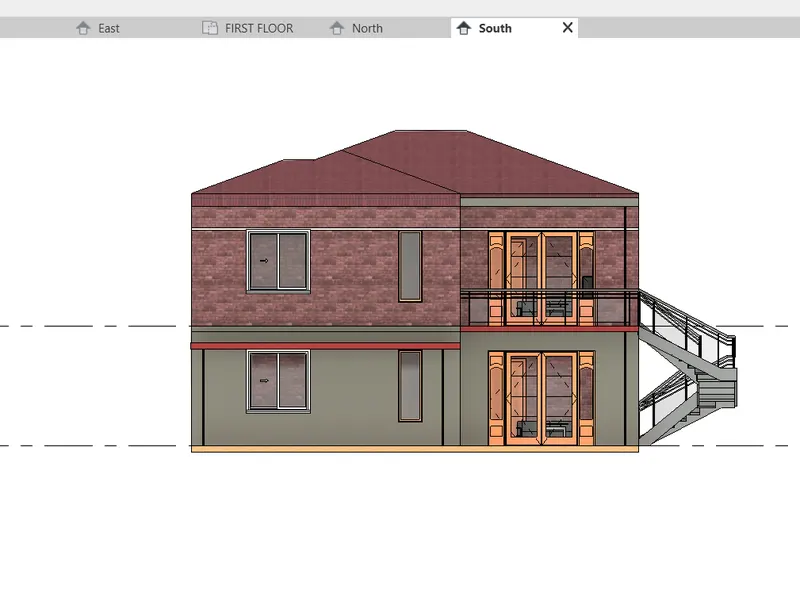

- South elevation

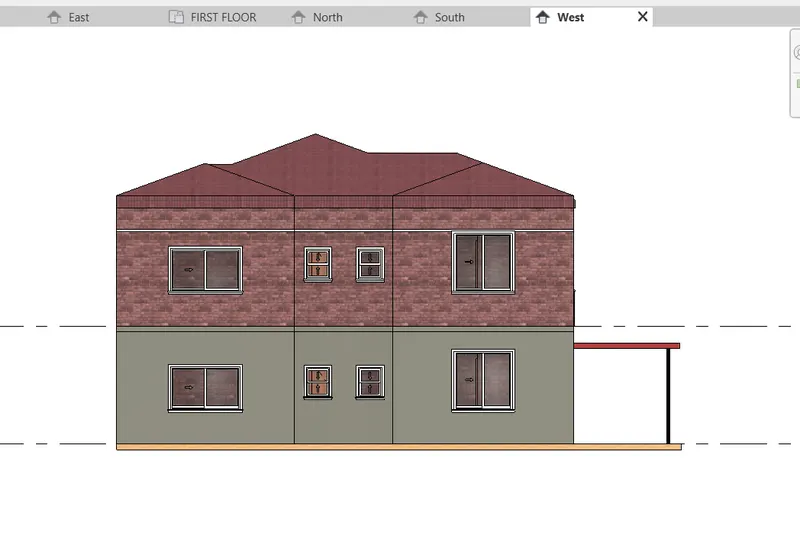

- West elevation

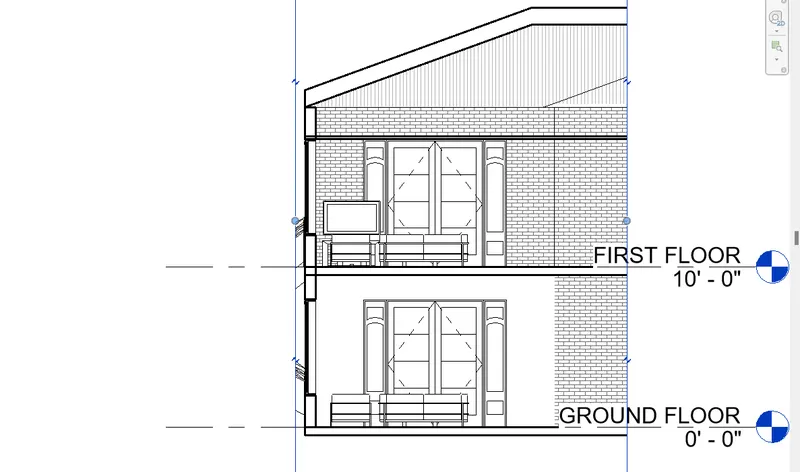

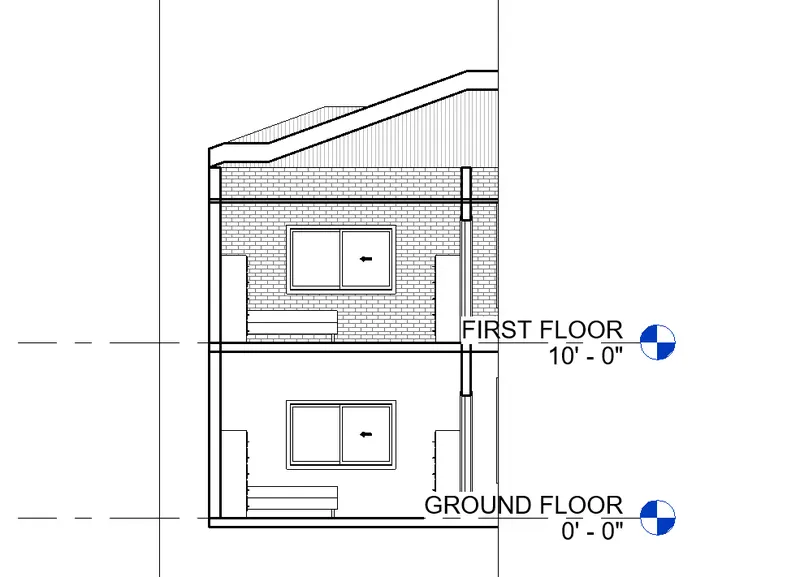

7. Produce section cut through each room either cutting across longitudinally or in a transverse direction
AIM:- To produce section cut through each room either cutting across longitudinally or in a transverse direction.
PROCEDURE:-
Step:-1
- First we click on the section option from the view toolbar.

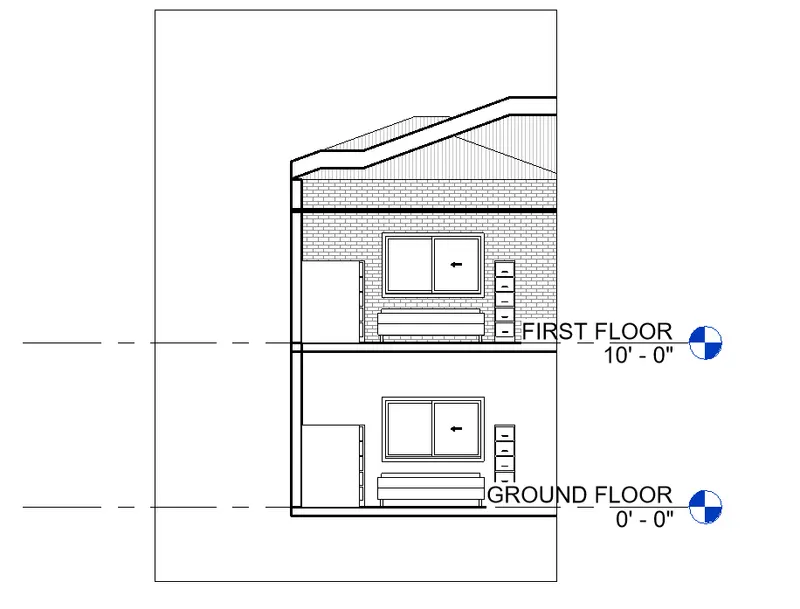

- Next -----> the section view of the Bed room 1 First Floor and Ground Floor---->
Bed room 2 First Floor and Ground Floor---->
Step:-2
- Next we produce the section view of the Toilet room as shown in the below figure.

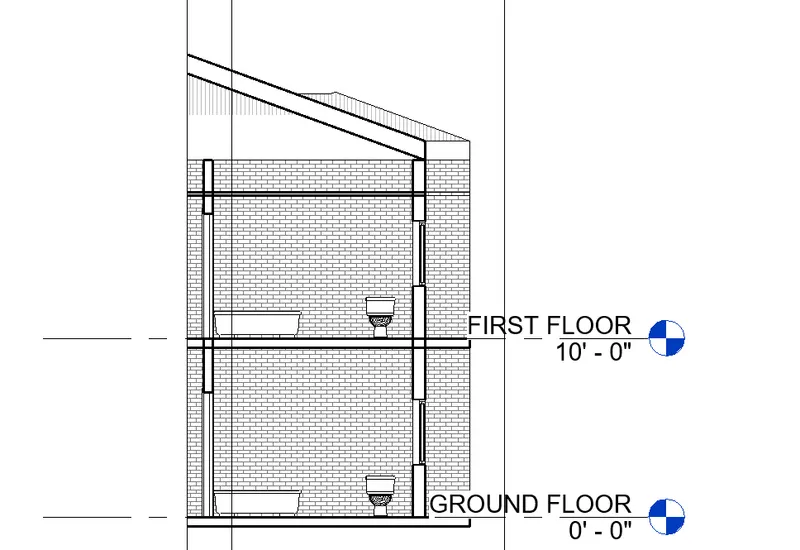

Toilet for First Floor and Ground Floor---->
Step:-3
- Next we produce the section view of the kitchen room as shown in the below figure.
Kitchen for First Floor and Ground Floor---->
Step:-4
- Next we produce the section view of the Living room as shown in the below figure.
Dining Hall First Floor and Ground Floor---->
RESULT:-
- Hense I Created the section views of a model in the revit in detailed.
8) Classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser
Aim:To classify the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using properties browser.
Procedure:
- Go to view tab of the ribbon.
- Choose property browser.

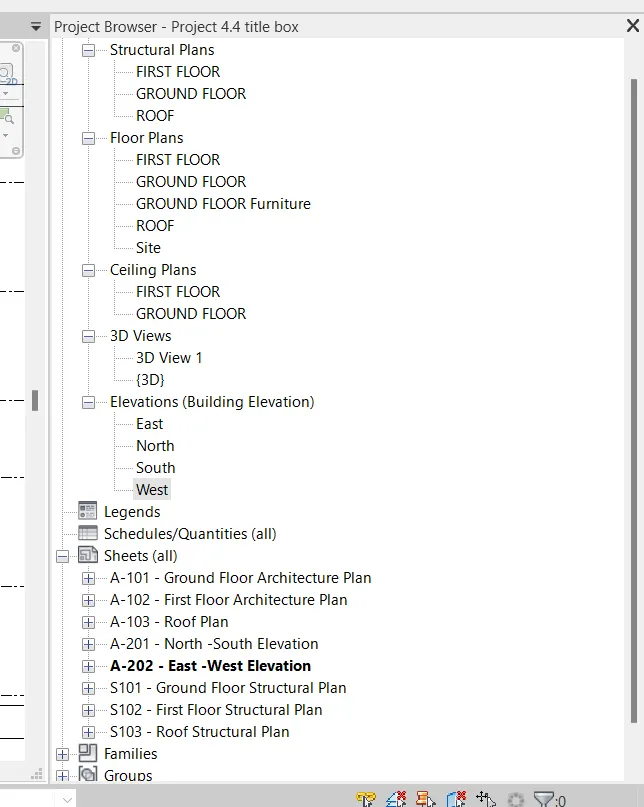

- The following are the different views created.
Plan View:-
- Ground Floor Plan View
- First Floor Plan View
Elevation View:-
- East Elevation & West Elevation
- North Elevation & South Elevation
9.Using the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations
Add additional sheets based on the sections created in your Revit file
AIM:- To create the multiple sheets and produce the drawings in the sheets, from the given drawing list.
PROCEDURE:-
Step:-1

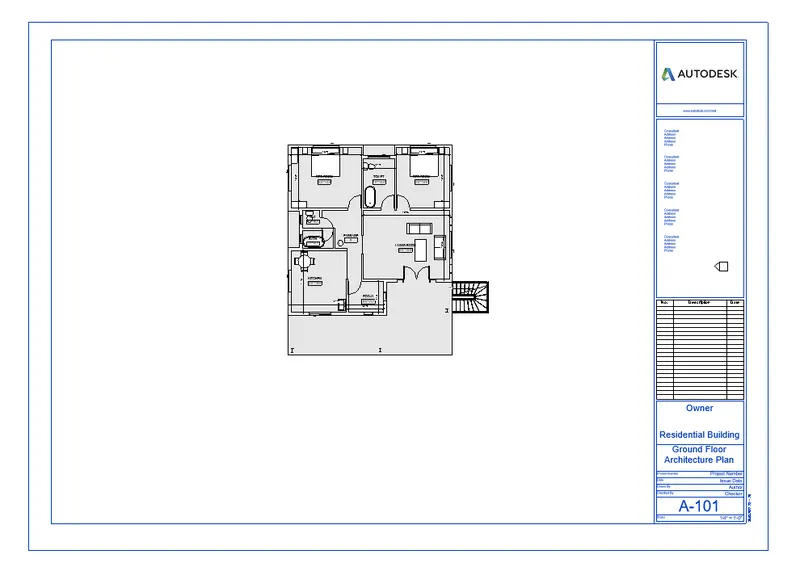

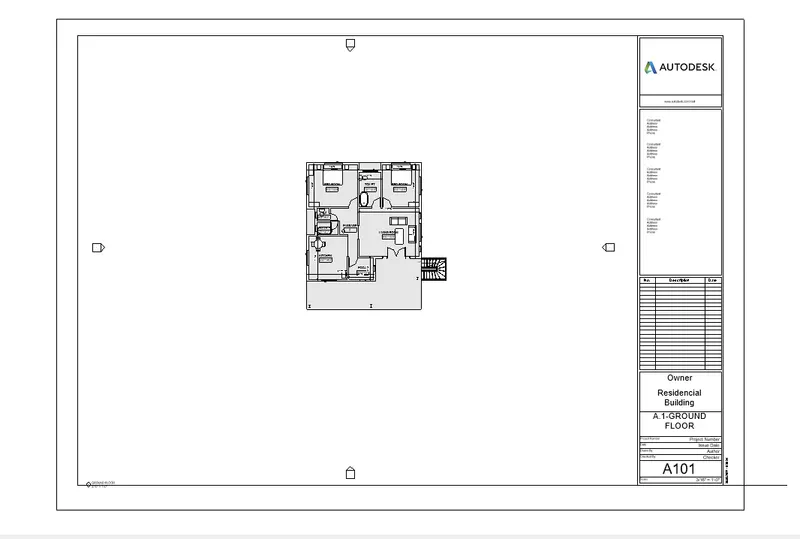

- First we produce the Ground floor architectural plan in the sheet template A-101, as shown in the below figure.
Step:-2

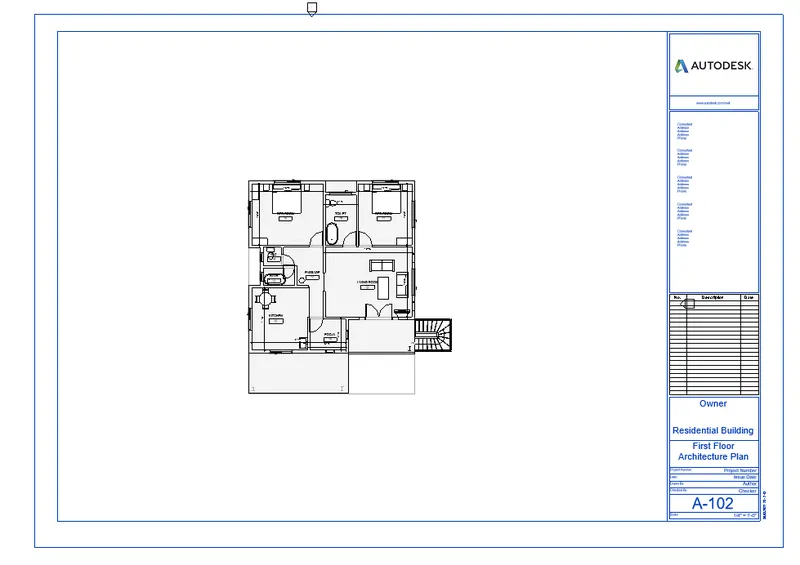

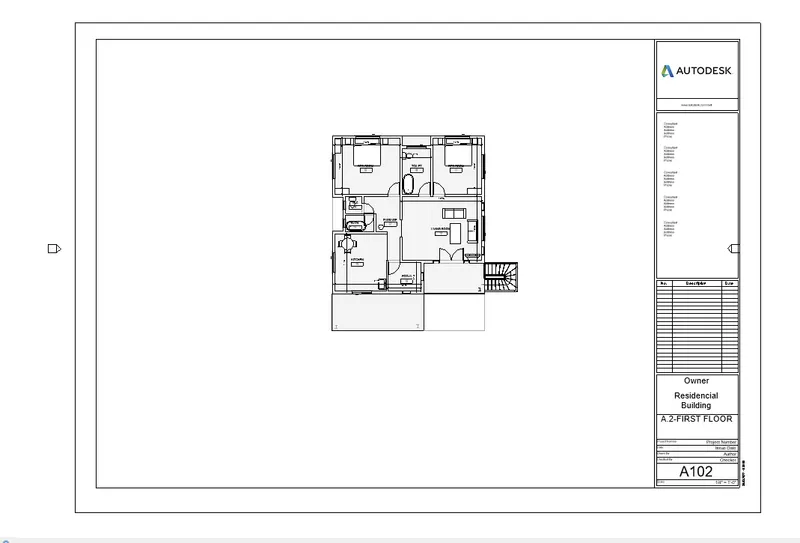

- Next we produce the First floor architectural plan in the sheet template A-102, as shown in the below figure.
Step:-3

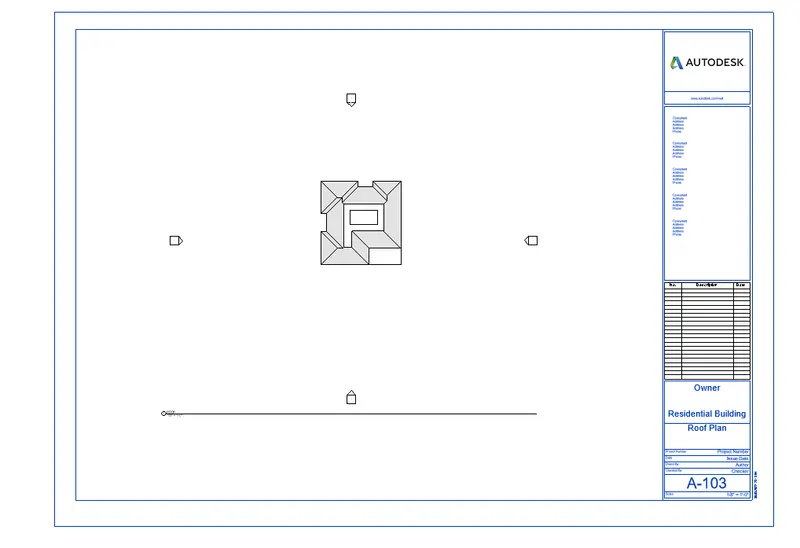

- Next we produce the Roof plan in the sheet template A-103, as shown in the below figure
Step:-4

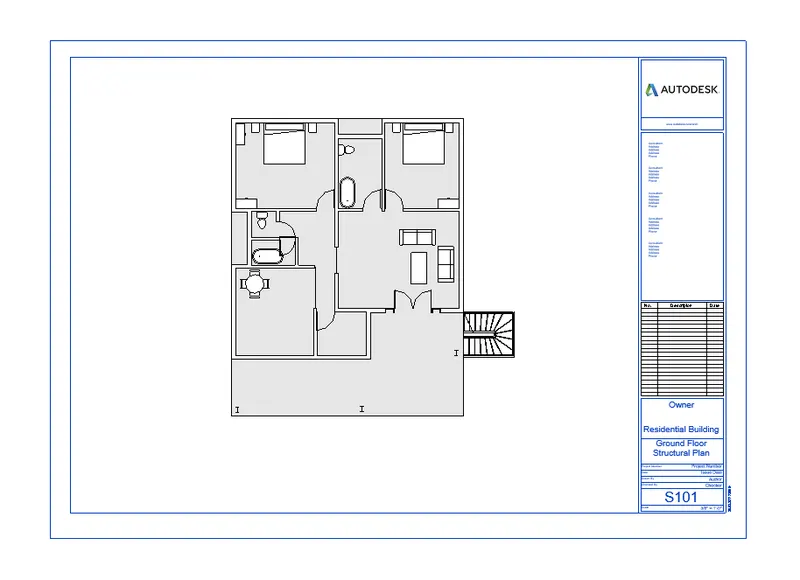

- Next we produce the Ground floor structural plan in the sheet template S-101, as shown in the below figure
Step:-5

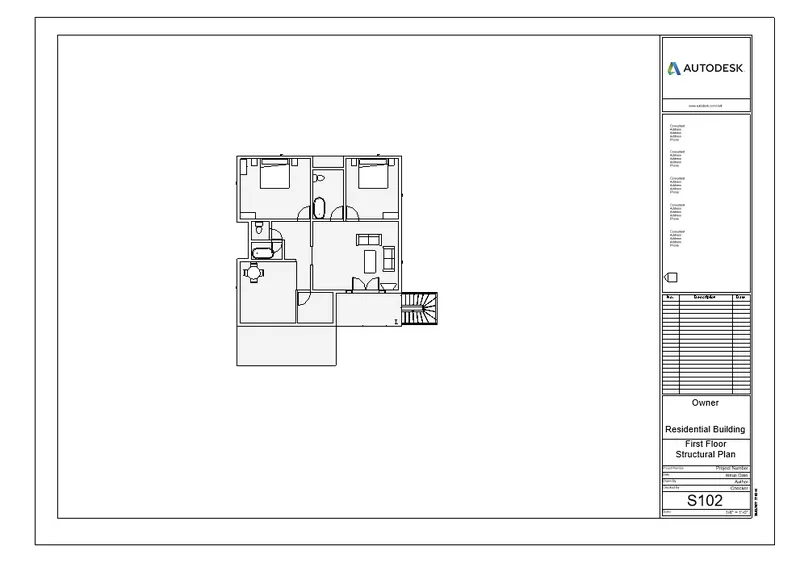

- Next we produce the First floor structural plan in the sheet template S-102, as shown in the below figure
Step:-6

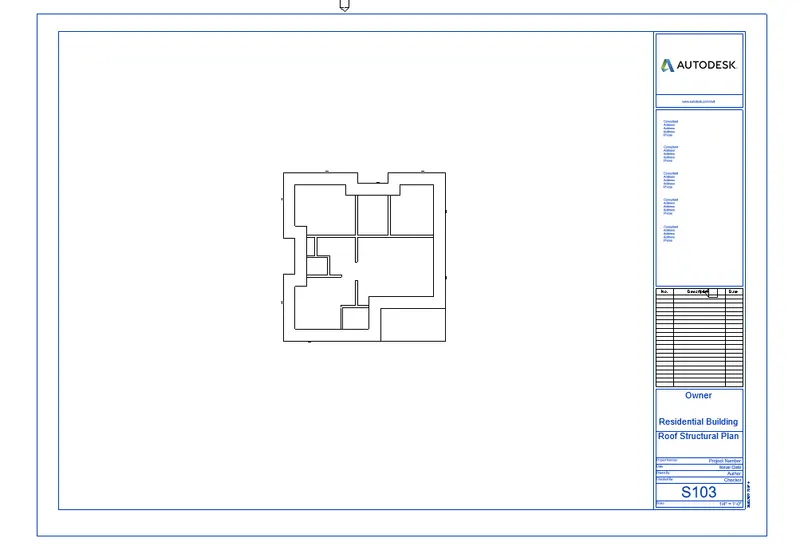

- Next we produce the Roof framing plan in the sheet template S-103, as shown in the below figure
Step:-7

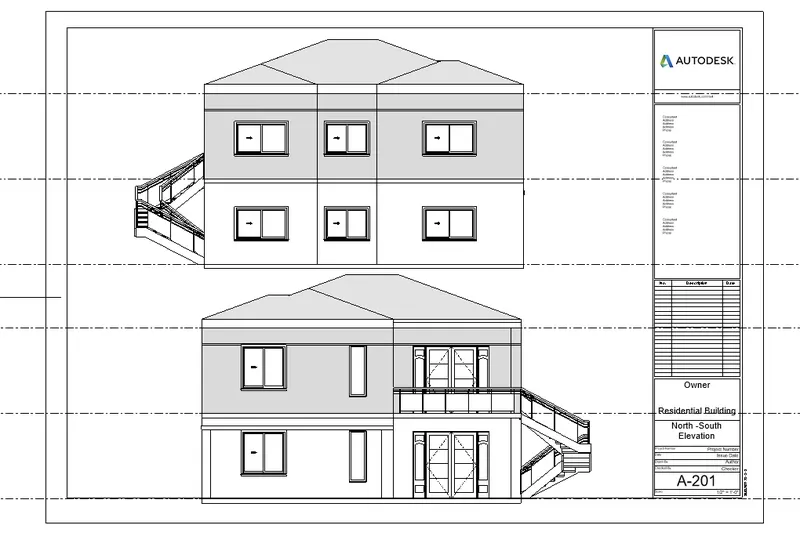

- Next we produce the North and south elevation views in the sheet template A-201, as shown in the below figure
Step:-8

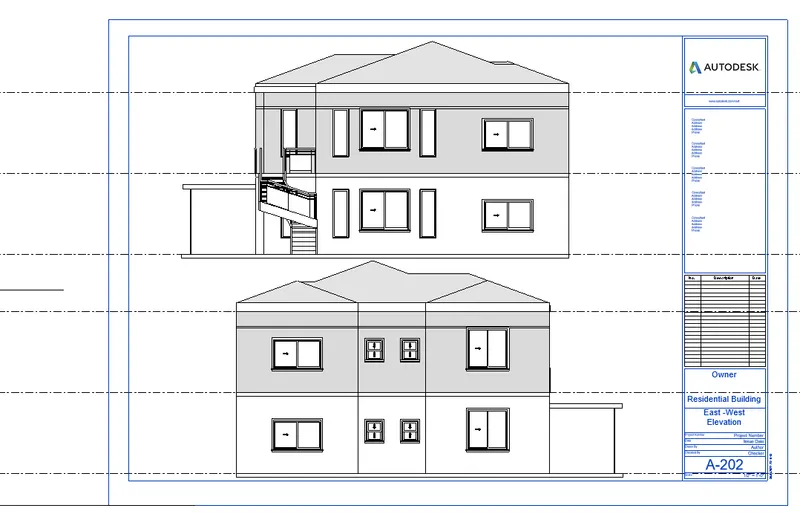

- Next we produce the East and West elevation views in the sheet template A-202, as shown in the below figure
RESULT:-
10. Create a camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting
AIM:- To create a camera-specific view or a 3D view in living room, dining room and bedroom in the sheets separately.
PROCEDURE:
step-1:
- Open RVT 2023
- Open a Project file
- Go to View tab
- Select Camera view option
- Go to Ground floor option
step-2:
- Locate camera to take view we required to see
- Repeat the above and create all the views from plan layout
Step -3
- Take all the cammera view of different Room.
Drawing Room Cammera View:-

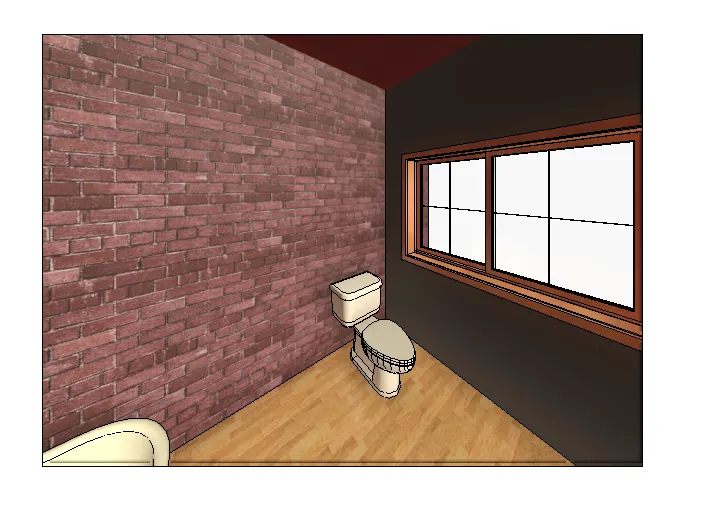

Rest Room Cammera View:-
Dining Room Cammera View:-

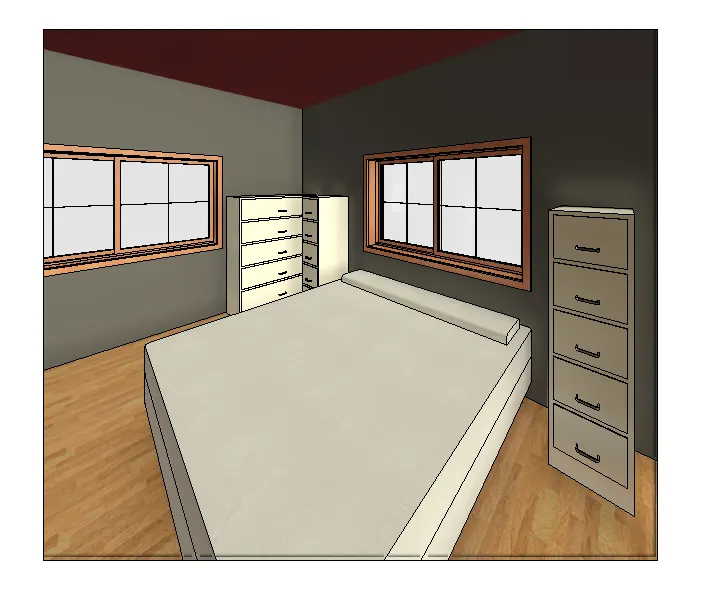

Bed Room Cammera View:-

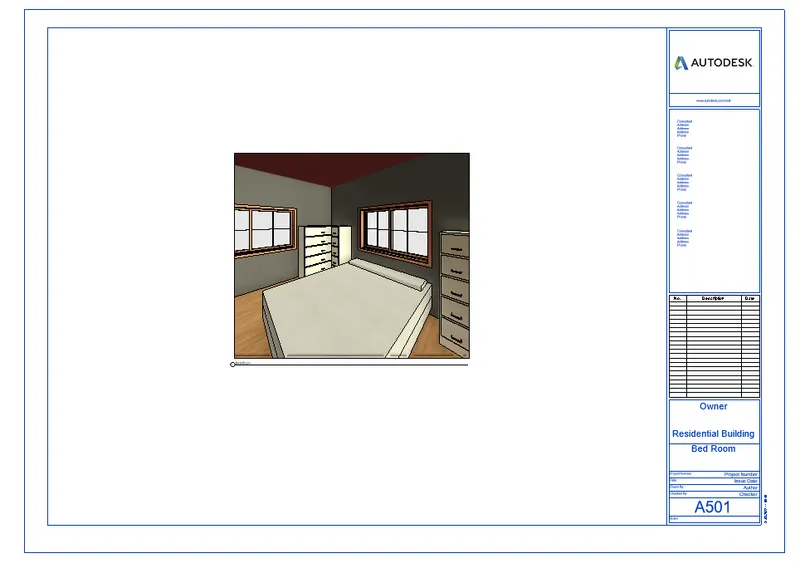

- First we take the sheet and name it as A-501.
- Next go to the floor plan and place the camara in the bed room .

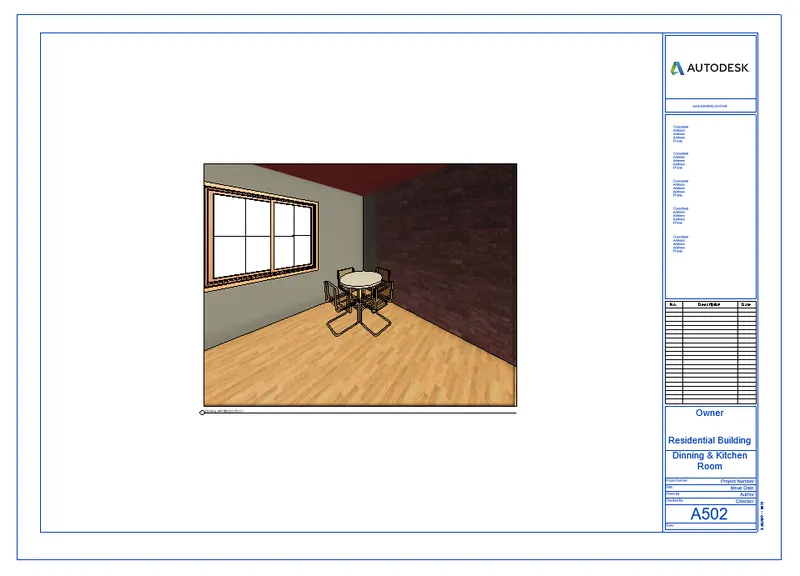

- Next we take the sheet and name it as A-502.
- Next go to the floor plan and place the camara in the Kitchen room .

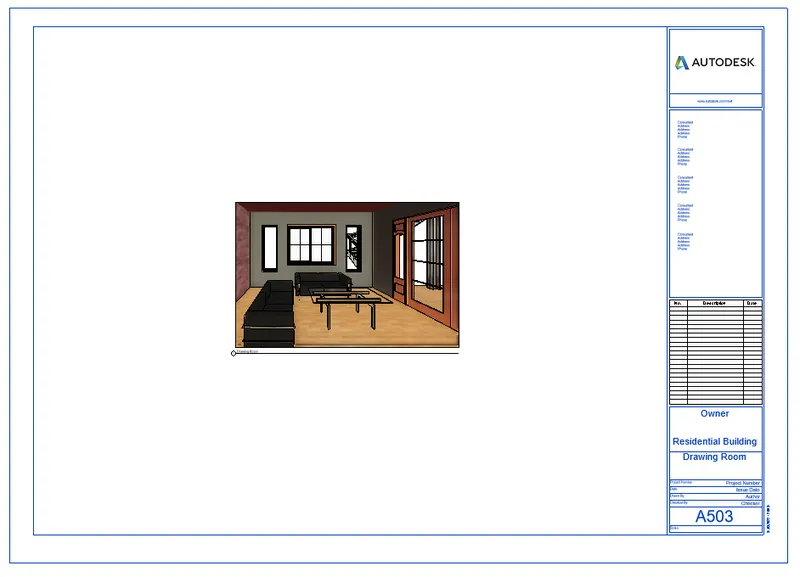

- Next we take the sheet and name it as A-503.
- Next go to the floor plan and place the camara in the Drawing room .

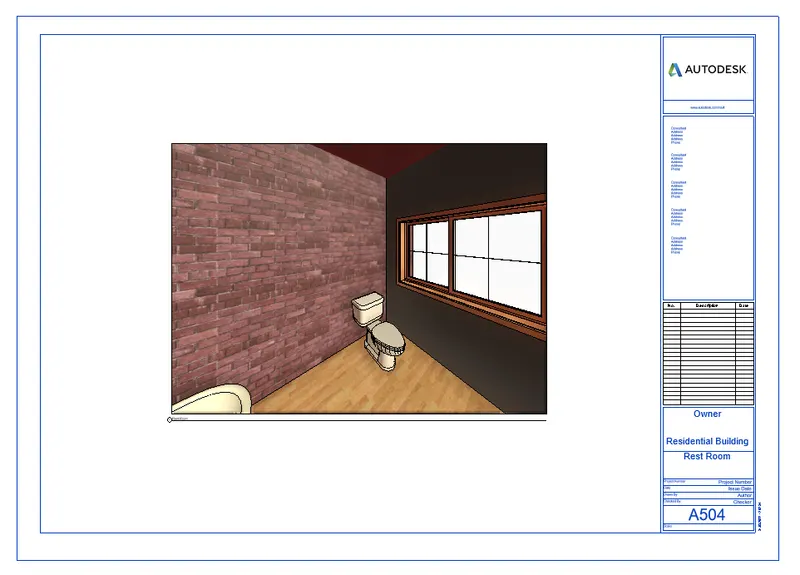

- Next we take the sheet and name it as A-504.
- Next go to the floor plan and place the camara in the Toilet.
Final Results
Results.1

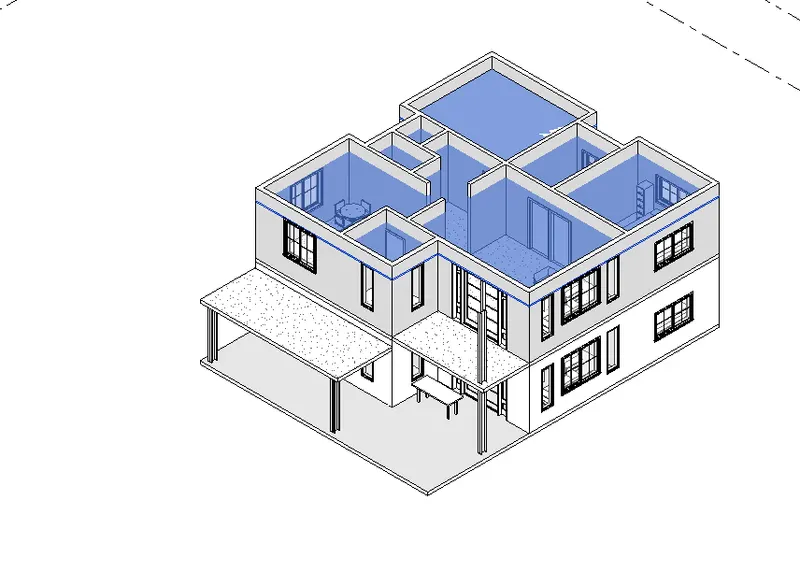

Ceilling Created:-
Results.2

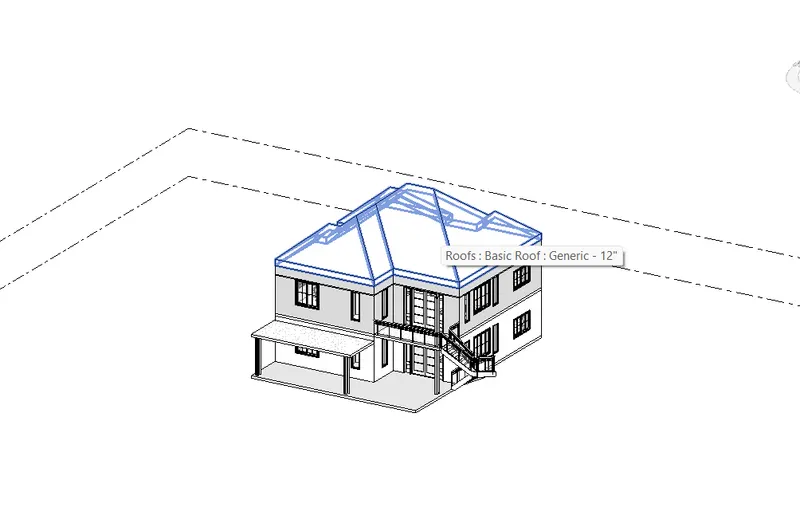

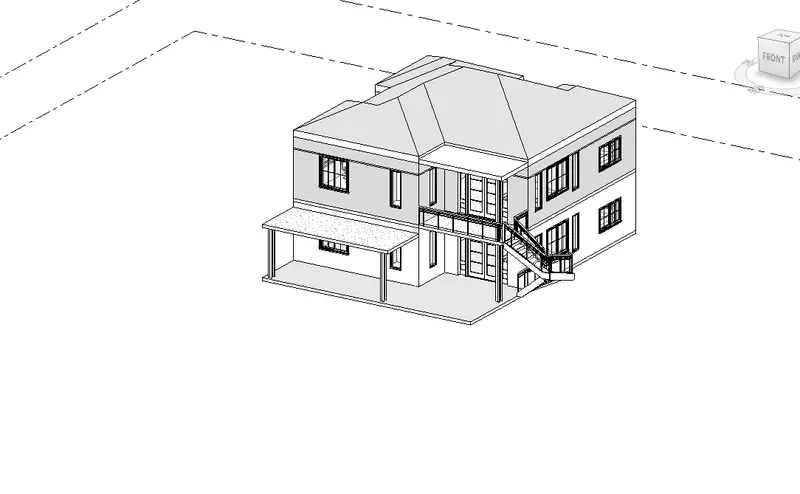

Slope Roof Created
Results.3
Ground floor architectural plan.
First floor architectural plan:
Ground floor Structural plan.
First floor Structural plan:
Results.4
Ground floor Architecture Dimension Detailing with Grid:-
First Floor Architecture Dimension Detailing with Grid:-
Ground floor Structural Dimension Detailing with Grid:-
First Floor Structural Dimension Detailing with Grid:-
Results.5
Results.6

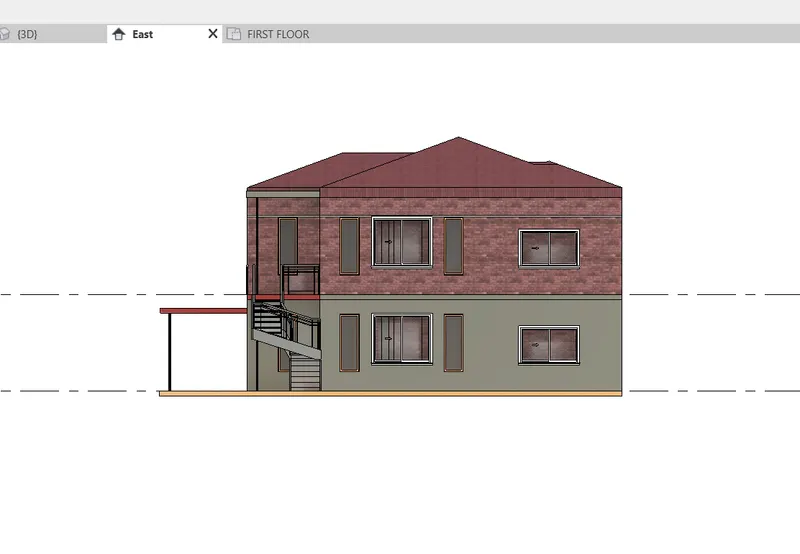

East Elevation
- North elevation
- South elevation
- West elevation
Results.7
Results.8
Results.9
Results.10
