3D Creation of Ceiling, Roof, Architectural plan, Structural plan, Sectional view, Elevation view and Camera specific view for a house plan using REVIT

c-1

Aim: To determine the First Floor Level. Model a Ceiling from the architecture tab above the wall

procedure:

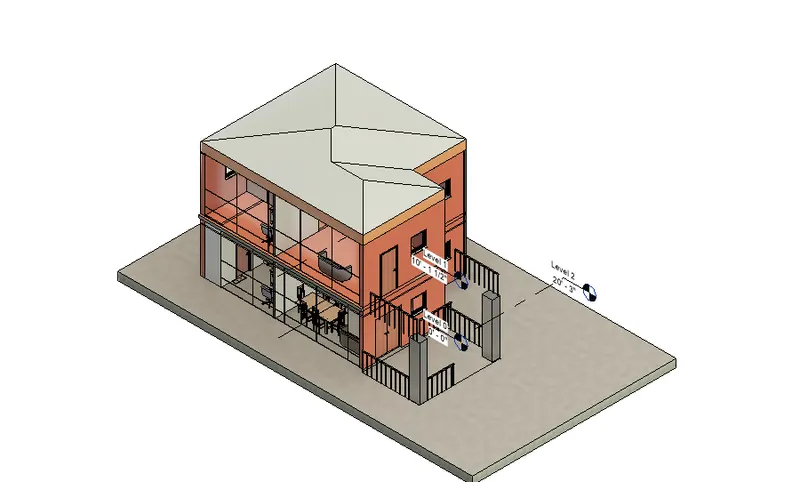

c-2 AIM:To determine the roof above the ceiling by selecting the footprints of the ceiling. Using the adjustment toolbars appearing on-screen adjust the roof slope to 10 degrees

c-3

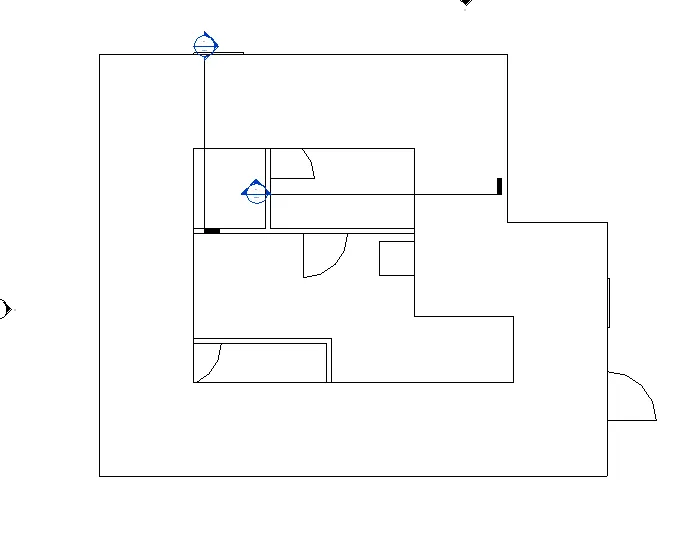

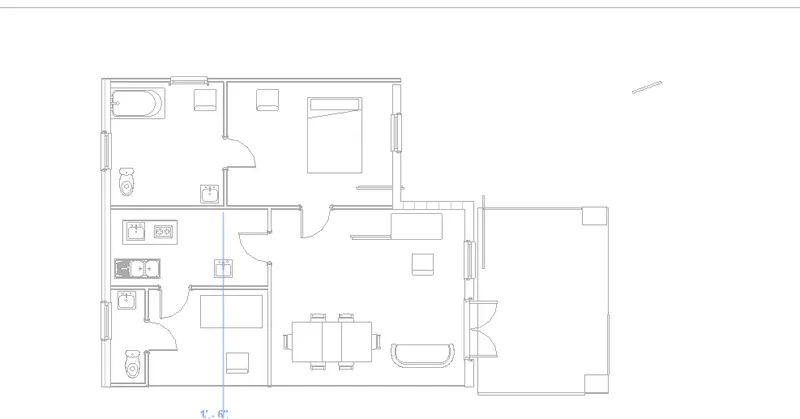

Aim: To determine the file saved from weeks 2 to 4, create plan views for ground floor level and first-floor level including all the walls, floors, and components. Separate them to
architecture and structural plans

c-4

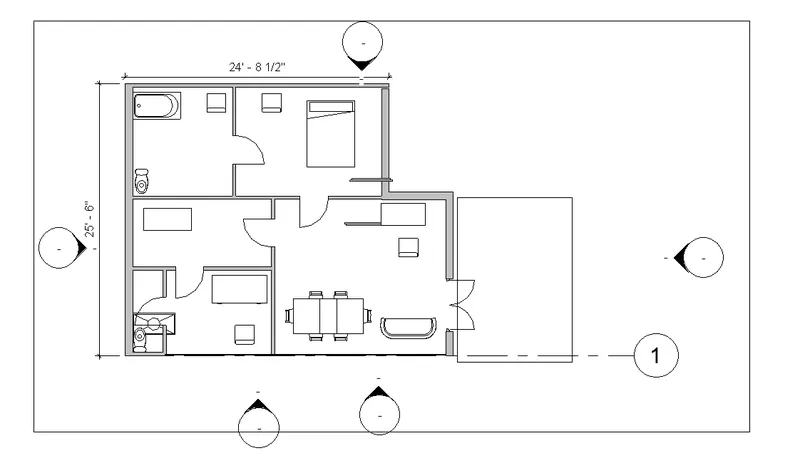

Aim: To determine the annotate toolbar add dimensions to all the walls and floors with reference to the longitudinal and transverse grids created in the project file

c-5

Aim:To determine the view tab and adjust the parameters on the sheet to add appropriate views

c-6

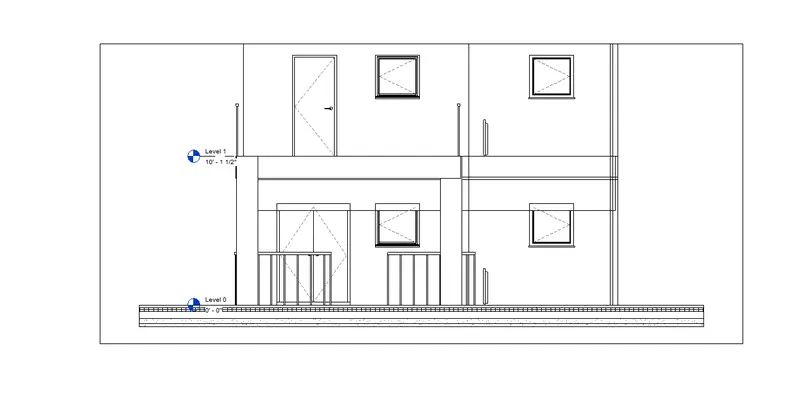

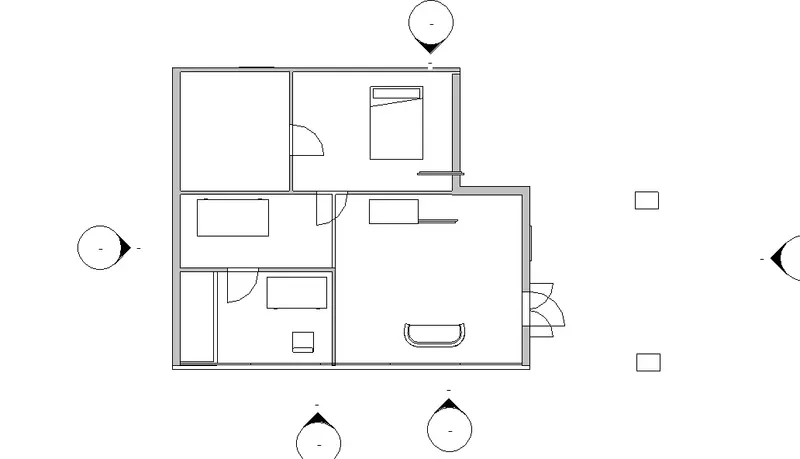

Aim: To determine the elevation tab create the elevation views, looking at your building from East, North, South, and West

c-7

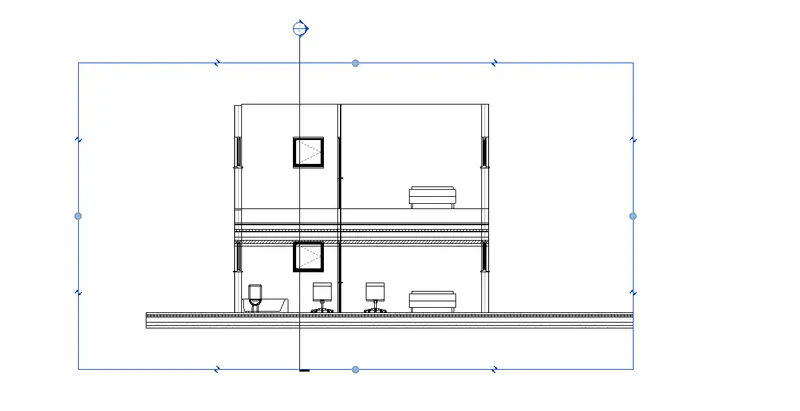

Aim:To determine the section cut through each room either cutting across longitudinally or in a transverse direction

c-8

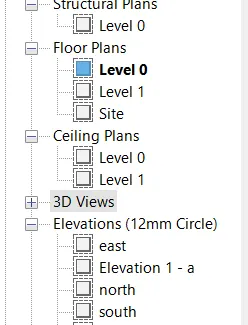

Aim: To determine the views, Plan Views, Section Views, and Elevation views to either Design or Documentation category using Properties browser

c-9

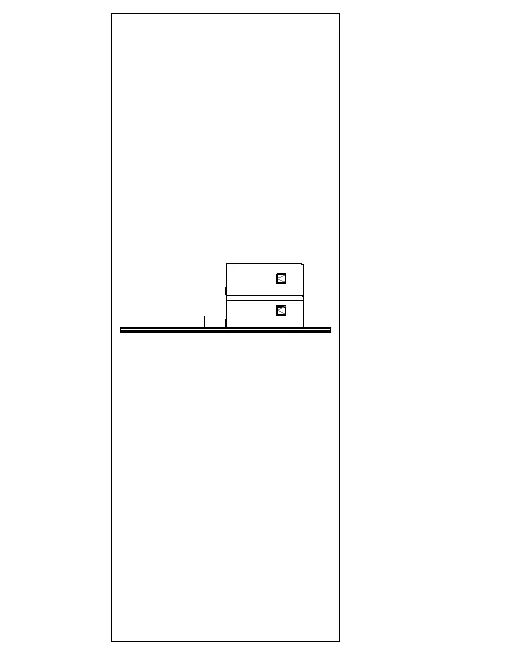

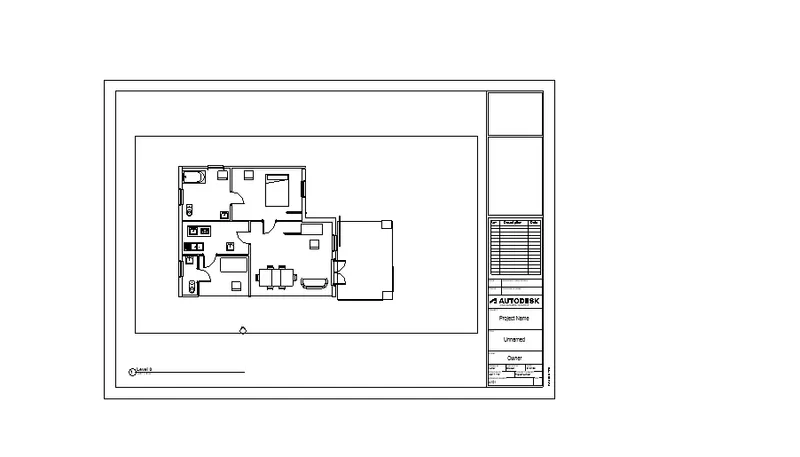

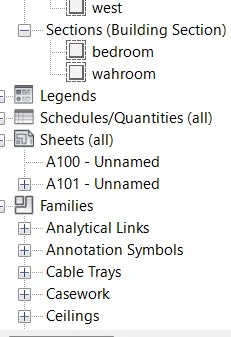

Aim: To determine the sheet template produced create multiple sheets as follows
a. A 101- Ground Floor Architecture Plan
b. A 102- First Floor Architecture Plan
c. A 103- Roof Plan
d. S 101- Ground Floor Structural Plan
e. S 102- First Floor Structural Plan
f. S 103- Roof Framing Plan
g. A-201- North-South Elevations
h. A-202- East-West Elevations

c-10

Aim: to determine the camera-specific view or a 3D view in each room ( living, dining, bedroom). Based on the views create a new set of sheets starting A-501 (you can add as many sheets after, 502, 503.. n)to place the 3D view images. Produce the sheets as a part of project drafting.
