Creating Bar Bending schedule, Different Door types, and Creation of standard drawing templates using AutoCad

1)

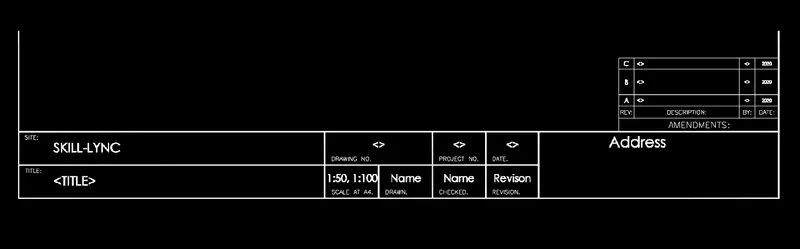

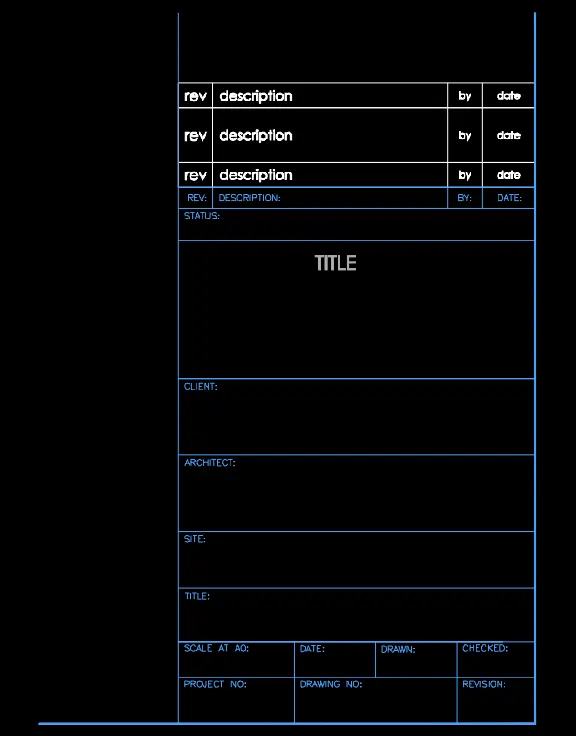

AIM- Create the templates as shown in Figures also create a block of this template name as Custom1_titleblock and Custom2_

PROCEDURE

• SELECT the line command
• using line command create the template as shown in fig
• select single line text from annotate and mention the text as shown
• select block command using command window
• name the block as Custom1_titleblock and Custom2_
• select pick up point , object and press ok
• using insert command block can be bring into the drawing

RESULT

2)

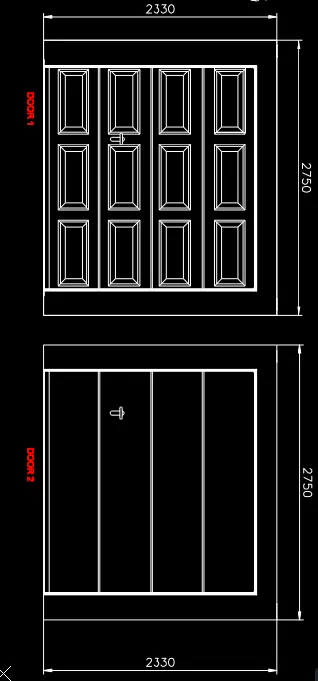

AIM-Create the doors type for warehouse as shown in the Figure also create the block of this.

PROCEDURE

• SELECT the line command
• using line command create the door as shown in fig
• select single line text from annotate and mention the text as shown
• select dimension  tool
• give the dimension where as needed
• select block command using command window
• name the block
• select pick up point , object and press ok
• using insert command block can be bring into the drawing

RESULT

3)

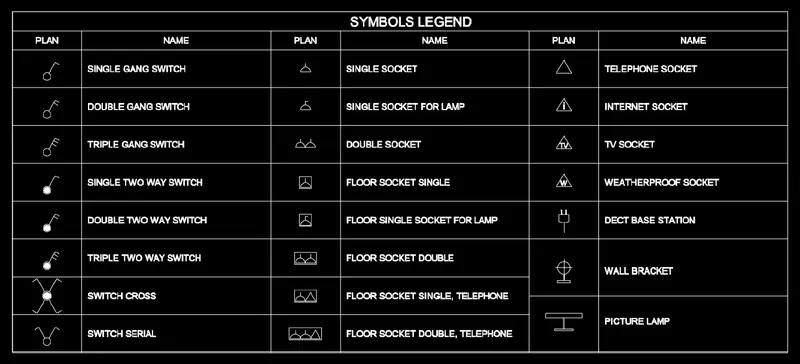

AIM-Create each symbol as a block with the name given in the legend. After creating the blocks arrange them in the legend as shown in the Figure.

PROCEDURE

• SELECT the line command
• using line command create the TABLE as shown in fig
• select single line text from annotate and mention the text as shown
• create the legend as shown in table
• select block command using command window
• create the block of each legend
• name the block
• select pick up point , object and press ok
• using insert command block can be bring into the drawing
• place the legend block with the respected name in the table

RESULT

4)

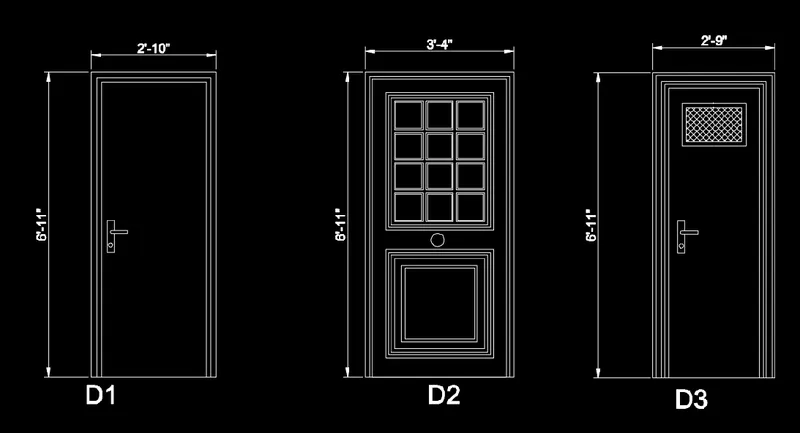

AIM-Create the door type for residential building as a block and give the dimensions

PROCEDURE

• SELECT the line command
• using line command create the doors as shown in fig
• select single line text from annotate and mention the text as shown
• select dimension tool and give the dimension
• select block command using command window
• create the block of each figure
• name the block
• select pick up point , object and press ok
• using insert command block can be bring into the drawing

RESULT

5)

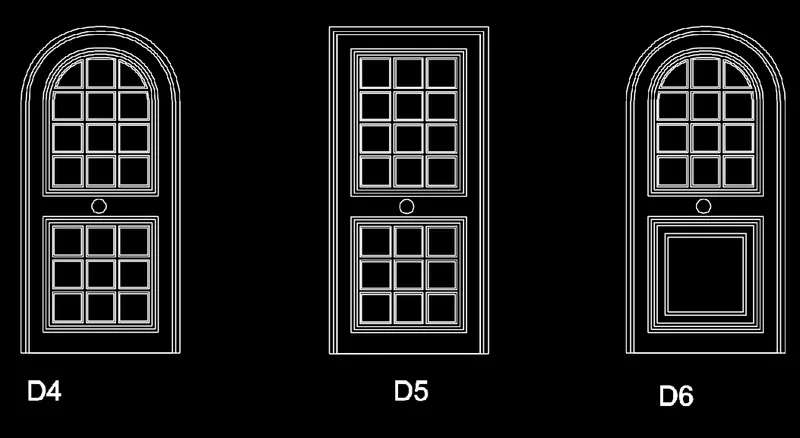

AIM-Create each shape as a block as shown in the Figure. and Save the block and insert them on the table

PROCEDURE

• SELECT the line command
• using line command create the TABLE as shown in fig
• select single line text from annotate and mention the text as shown
• create the figure as shown in table
• select block command using command window
• create the block of each figure
• name the block
• select pick up point , object and press ok
• using insert command block can be bring into the drawing
• place the block with the respected name in the table

RESULT
