Wiring harness routing & packaging Rules Week 3 Challenge

Q1.Ans:

Aim:Download cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

The Electrical Support like clips are also important component of the wiring harness which should be defines before starting wiring harness routing.Following are the important parameters requierd to be defined

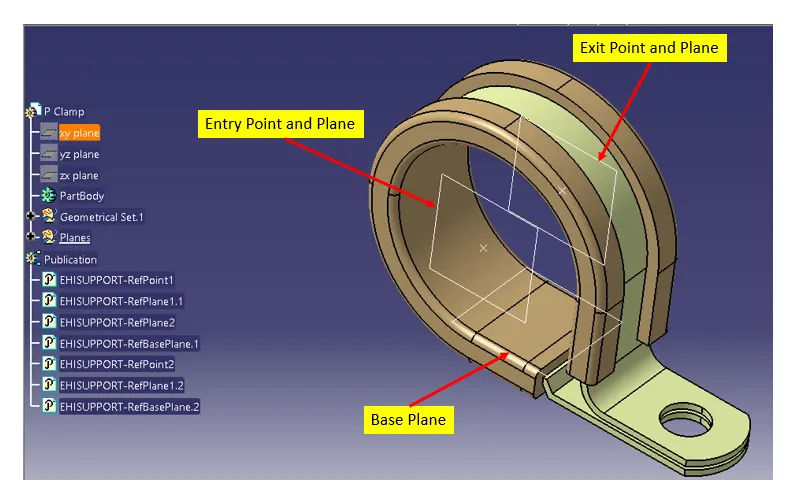

• Entry point and plane
• Base plane
• Exit Plane

Procedure:

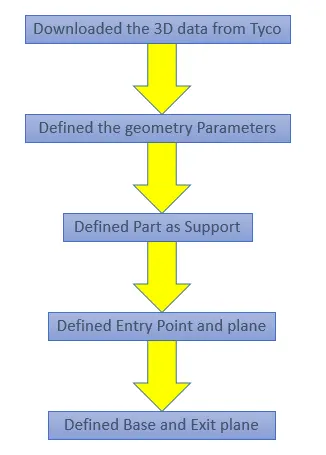

• Part Defined By using the electrical Support Command As Below.

• Finally Part has saved in Catologue.

Q2 Ans:

Aim:Download Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Backshell Definition: Back shell are plastic molded parts used at wire entry side of connectors either for protection or to improve apperance of harness.

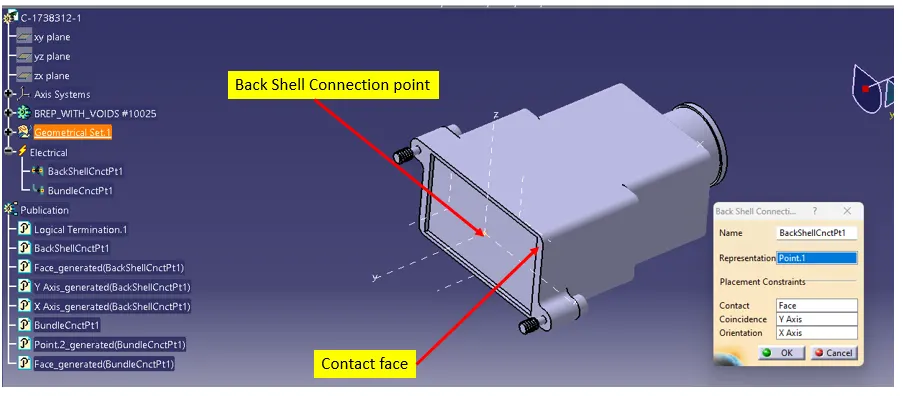

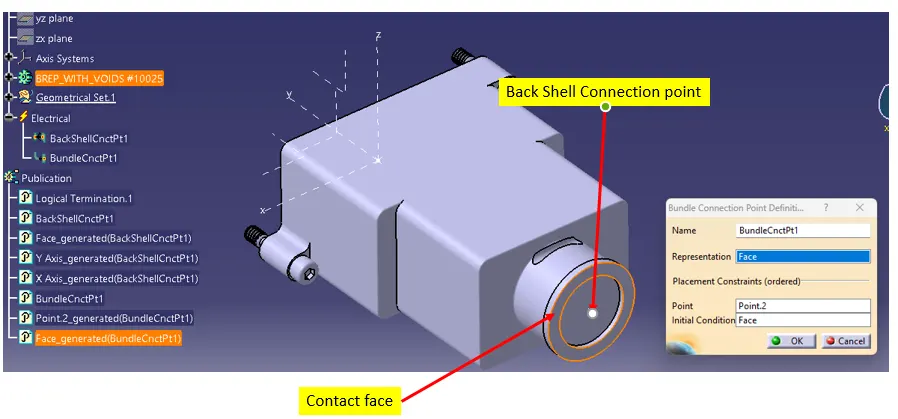

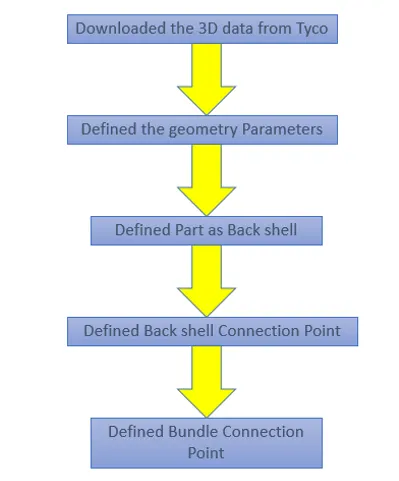

• Part Defined as Back shell:



•
• Q3.Ans:

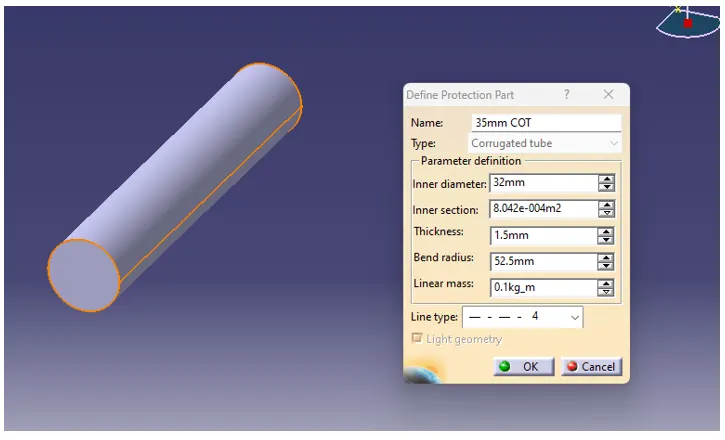

  Aim:Create Corrugated tubes & Add them in Catalogue under “Slit COT” family.

  Corrugated tubes,Convolutes and sleeves and many other types of coverings are used to protect the harness.

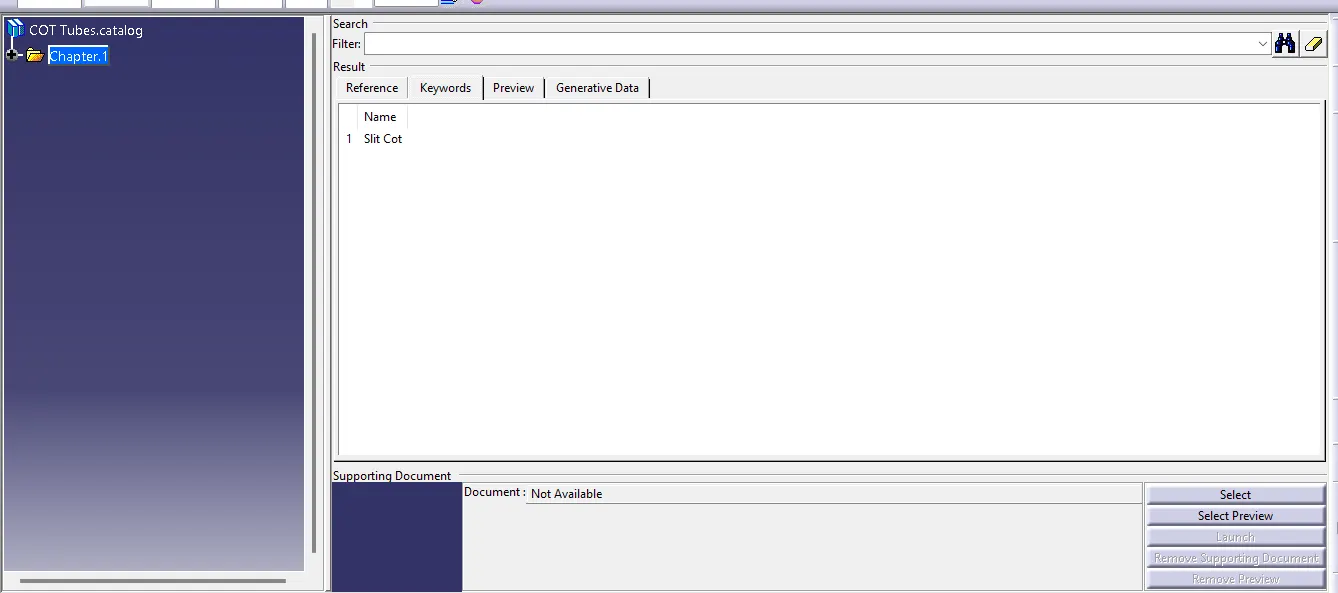

In the same way given different sizes of cot tubes have been ceated and stored in Slit Cot family in catalogue document.
