Wiring harness routing & packaging Rules Week 3 Challenge

after downloading pclamp it is then converted into a catpart file.the pclamp is a suporting unit so irt should defined as a support to define it we need 3 planes they should have startpoint,endpoint and base plane.

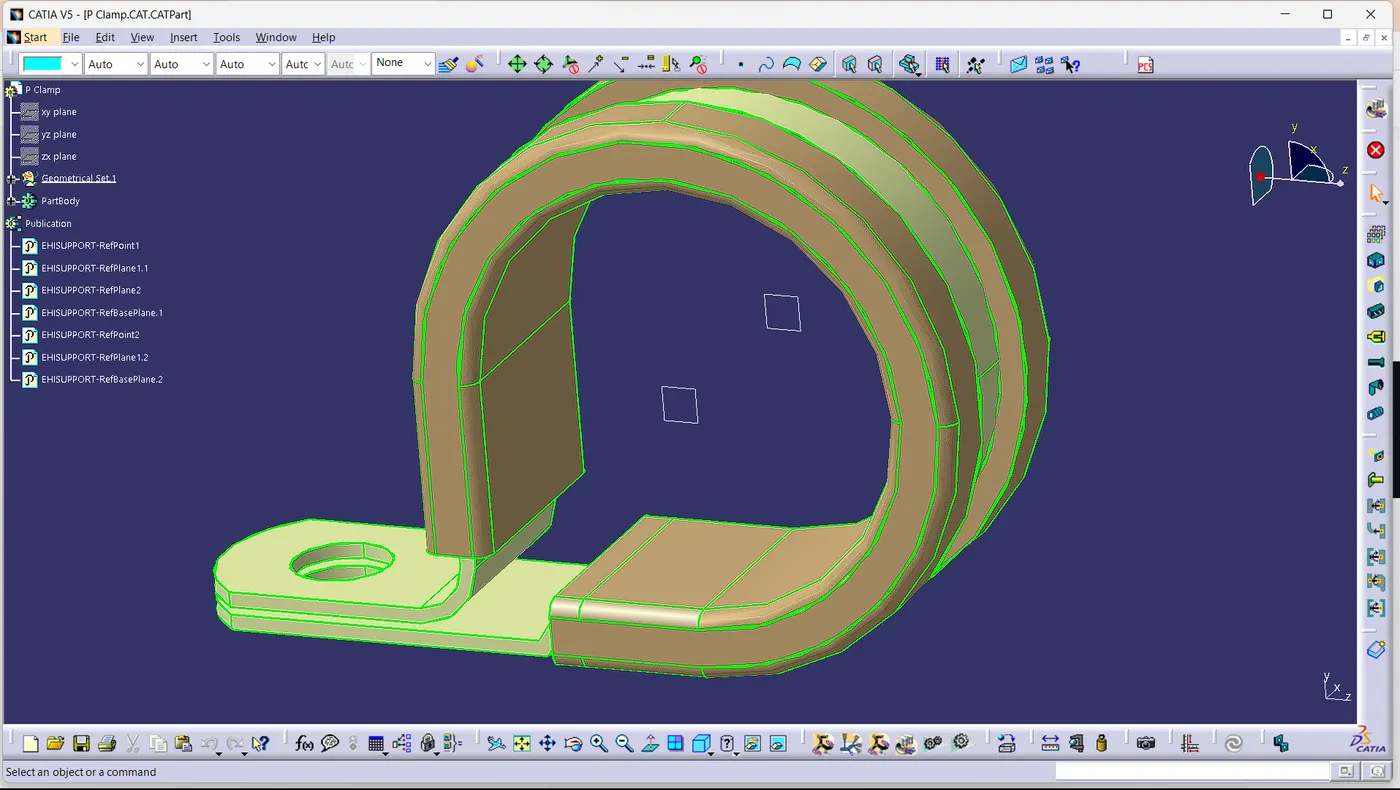

it represents cad data of a pclamp.

Back shell has to be downloaded from the given link after downloading it is then converted into a catpartfile later it is defined by shell command.it should defined by bundle entry point definition and the back shell connecting point deinition,

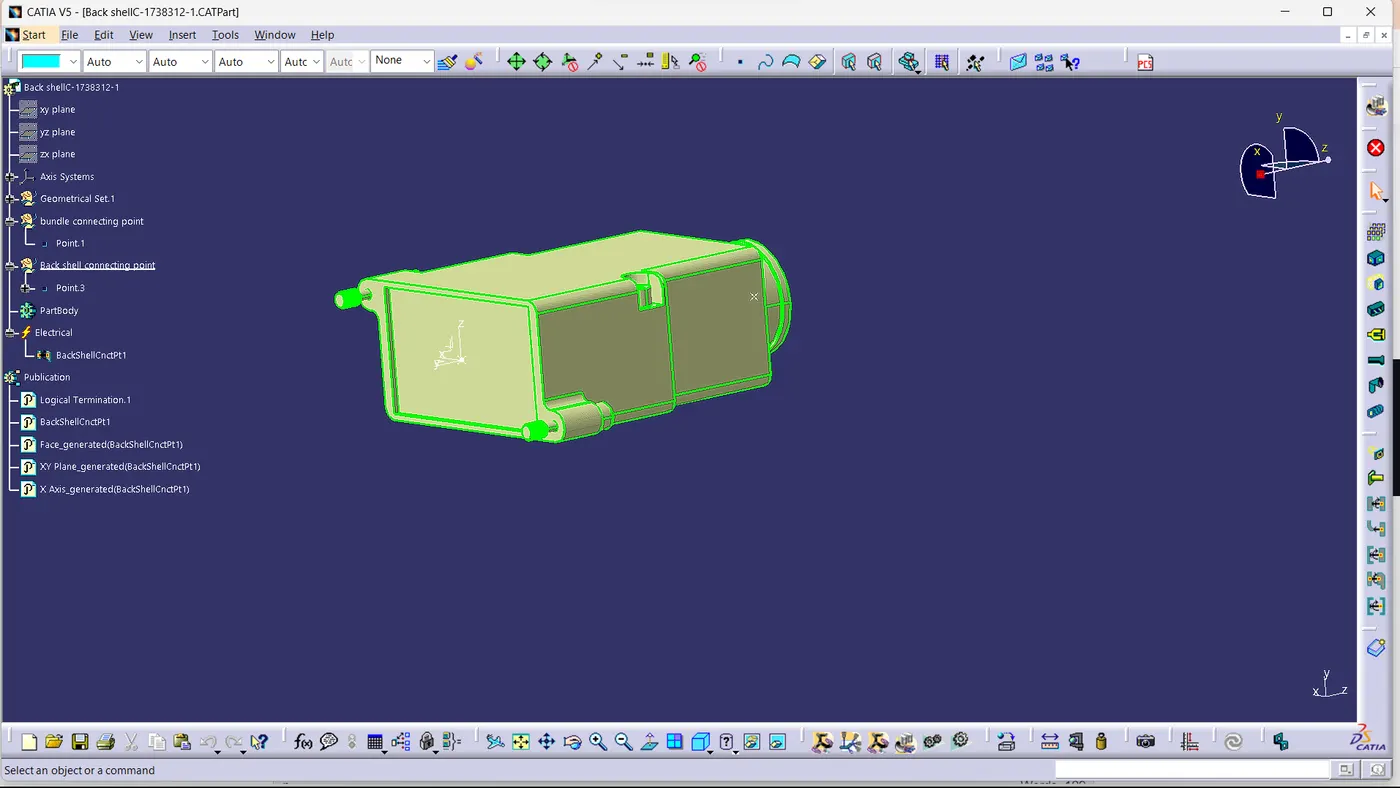

it represents back shell cad data.

Protective covering which is called as a corrogated tube it should bedefined inside the family of a cot tubes, before defining it we have to create a catalogue , after defining it the cot tubes are added to it .

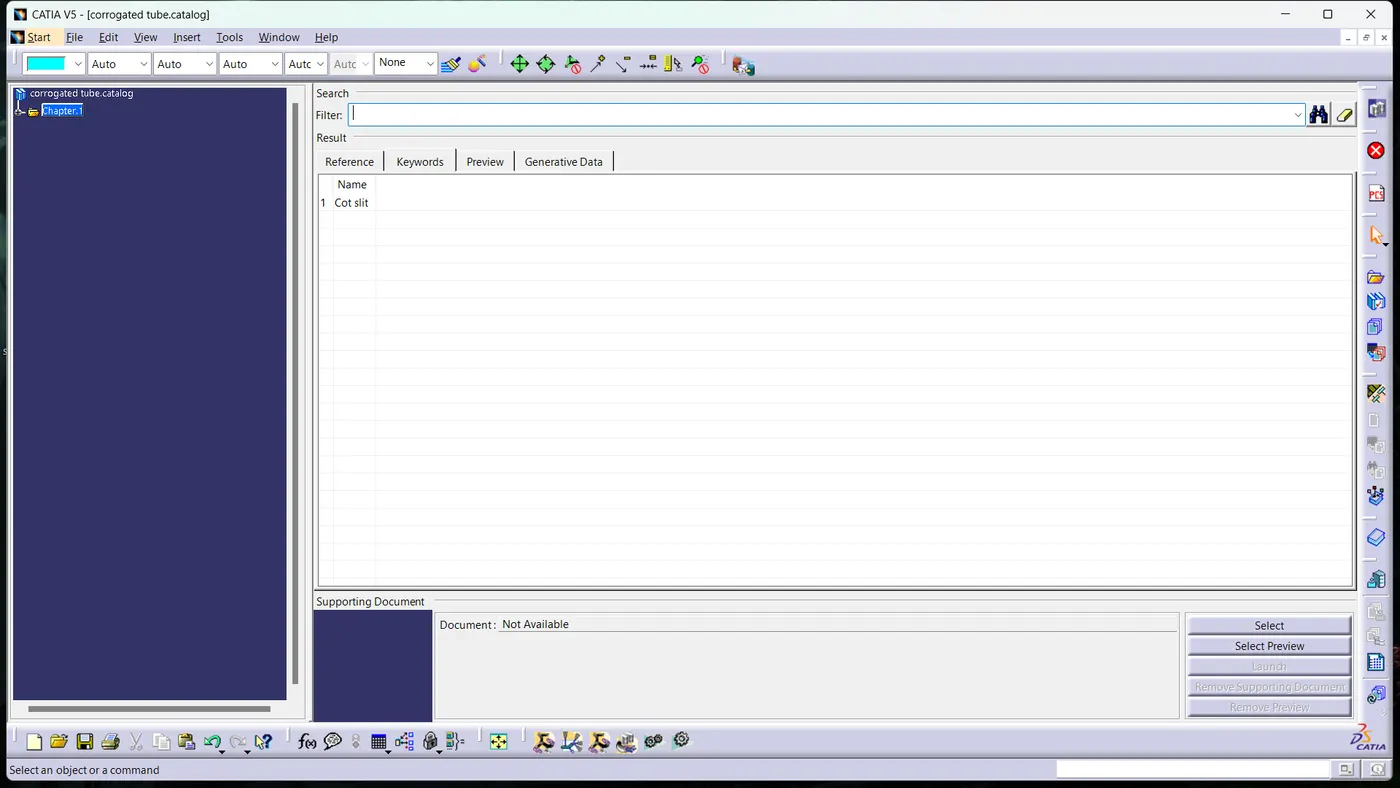

it shows creating of a cataloge.

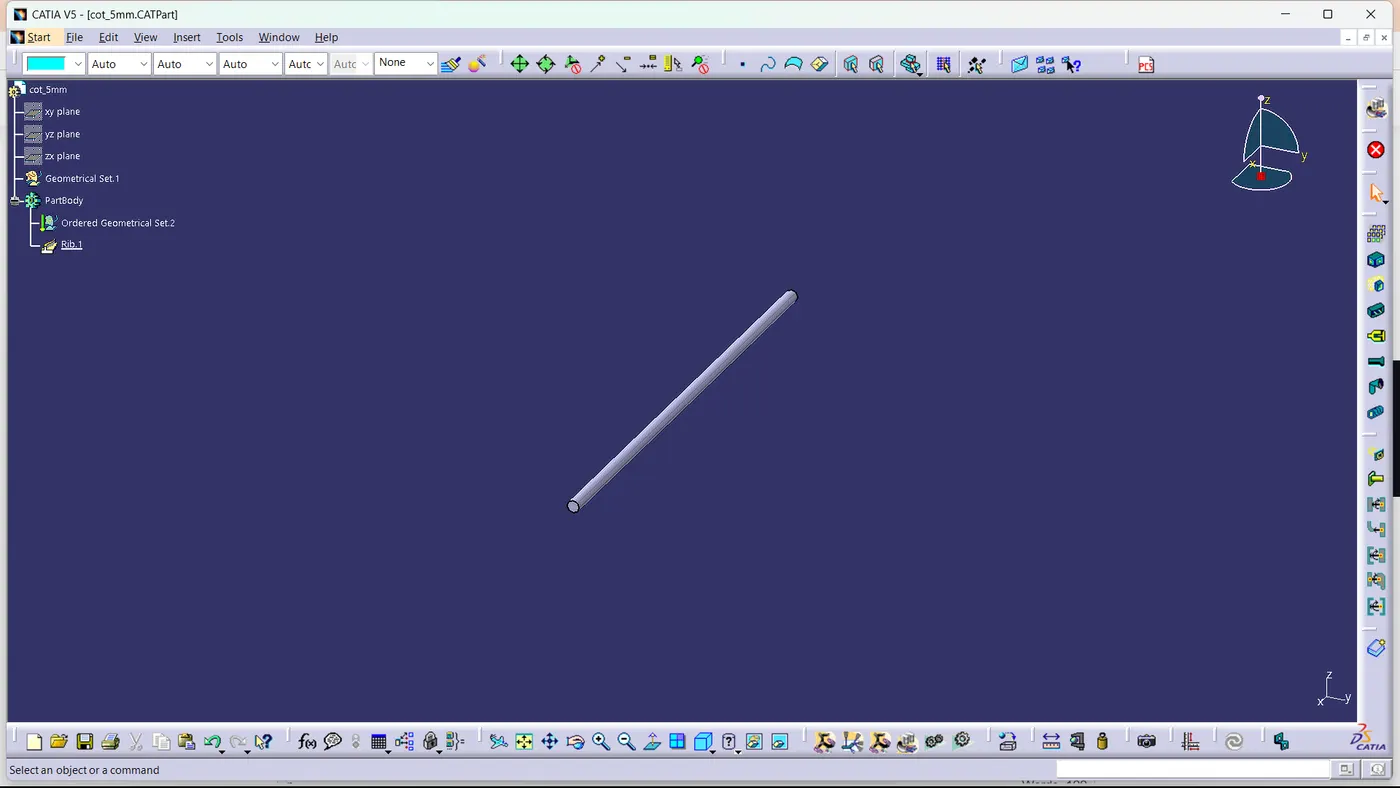

it represents creation of a corrogated tube.
