Wiring harness routing & packaging Rules Week 3 Challenge

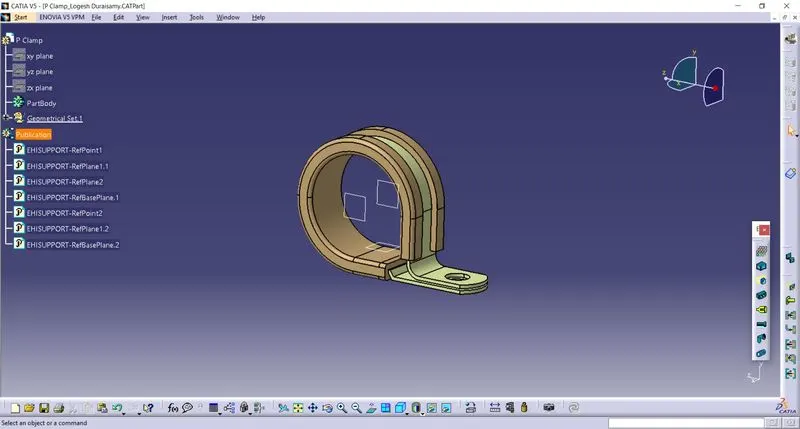

1.P Clamp

• The P clamp is first uploaded in the part design workbench.
• We define the entry and exit point after cerate plane of entry, exit and base plane.
• Change the part design workbench to electrical part design.
• We define the entry and exit path of wire by using the support part command.

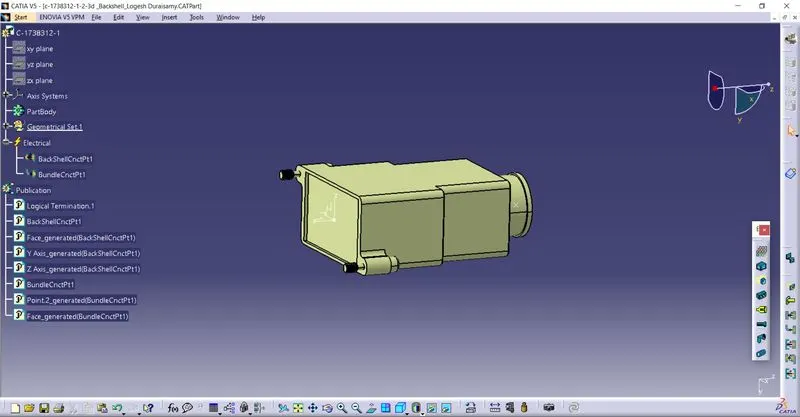

2.BackShell

• The cad file is first uploaded in the part design workbench
• We define the points for back shell connection & bundle connection
• The axis systems are placed on the back shell connection points
• The orientation of the axis system is not specific we just need to follow a similar orientation for all the parts.
• Change the part design workbench to electrical part design.
• We define the back shell connection point & bundle connection point

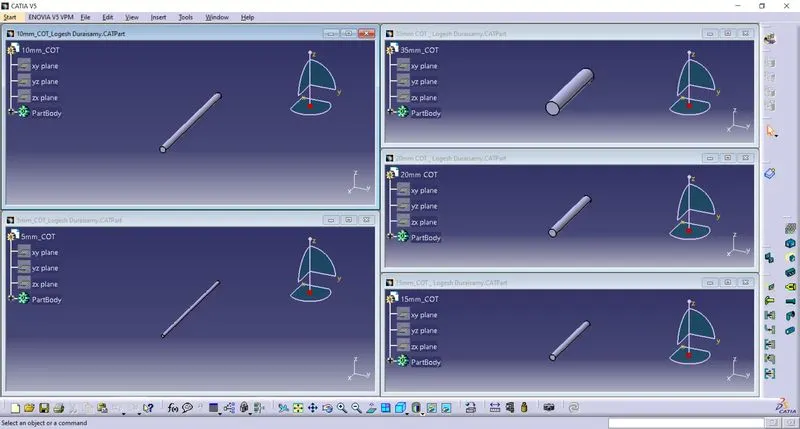

3.Corrugated tubes

• First open the part design work bench to change electrical part design work bench.
• Select the protection part command input the required data.

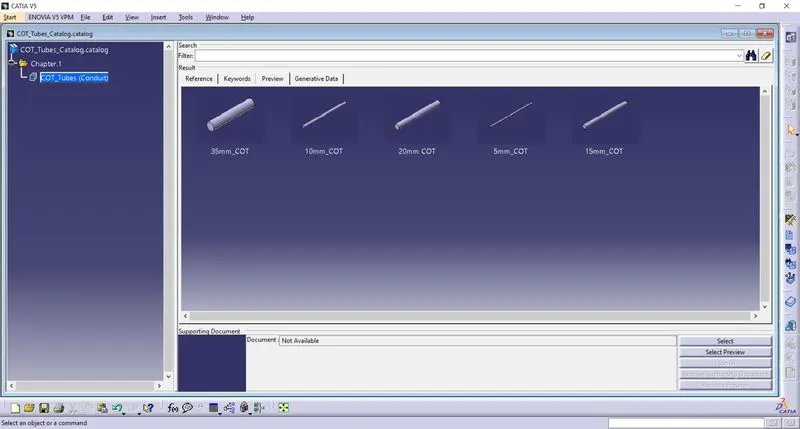

• After cerate the corrugated tubes and store the catalog files.
