Wiring harness routing & packaging Rules Week 3 Challenge
Corrugated tubes,
The cylindrical first regions of the corrugated tube are positioned adjacent to connectors at the ends of the wire harness. This feature allows electrical wires of the harness to be uniformly distributed therein and prevents them from being twisted when the electrical wires are inserted into cavities of the connectors.

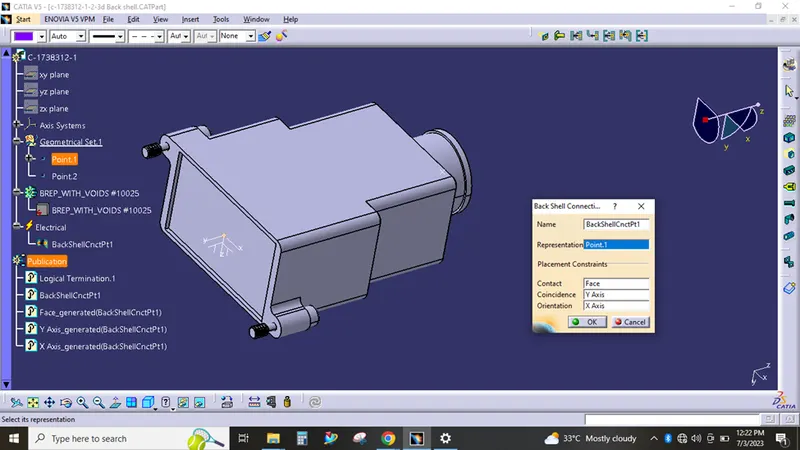

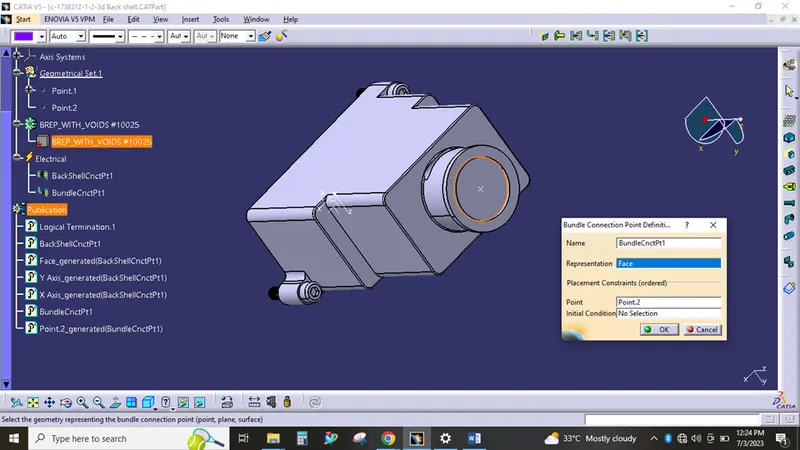

Back Shell,
A backshell, also known as a connector backshell or strain relief backshell, is a type of connector that is used in wiring harnesses to protect and secure the connectors that connect the wires to the other components or systems in the harness.
Clamps,
Cable clamps or wire clamps as they are commonly known, are cable-routing clips or mechanical devices that help define the routing of cable and wire installations. These cable management fasteners are designed to ensure retention and support to cables and wires when fastened to the chosen applications.
Defining mechanical part as an electrical part,

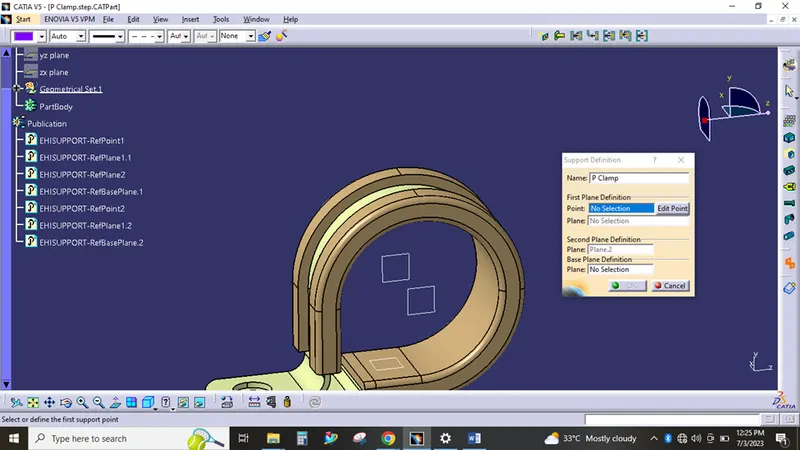

Creation of double entry points for P clamp,

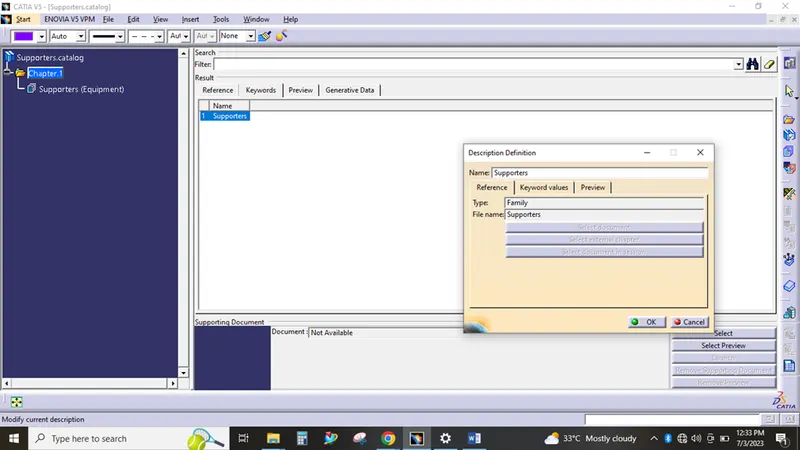

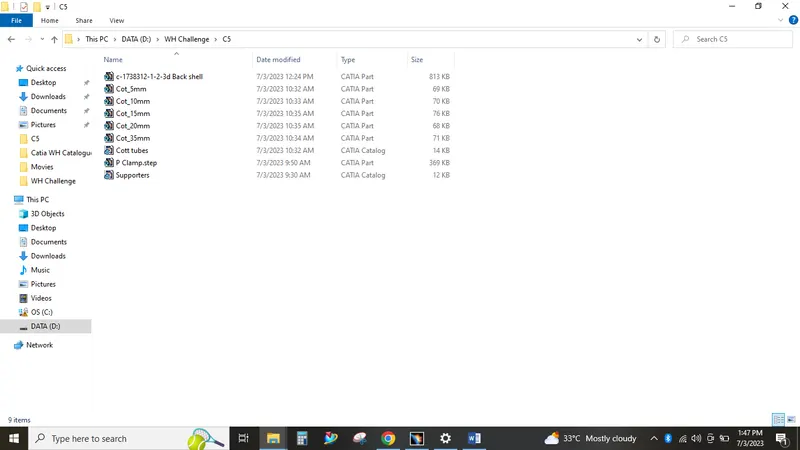

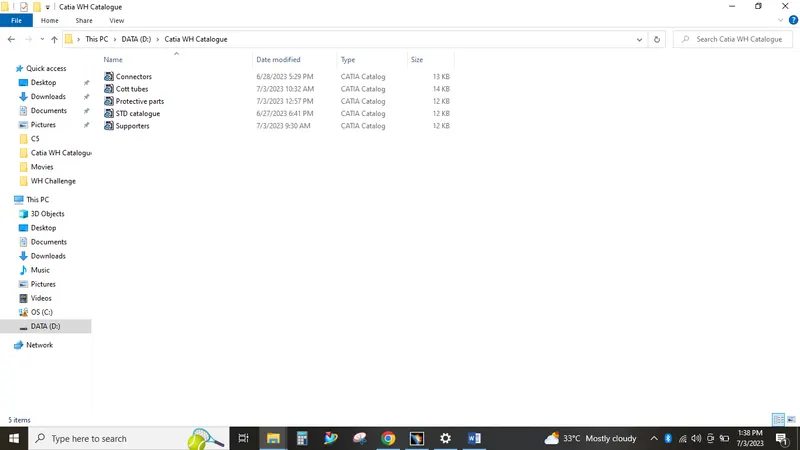

Catalogue creation,

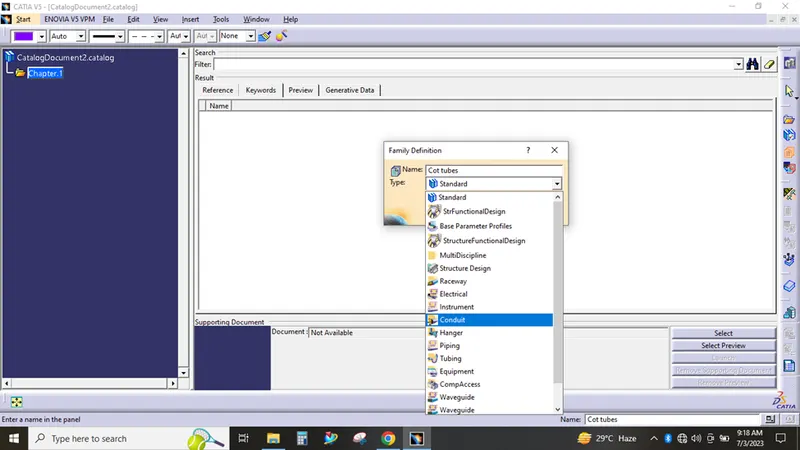

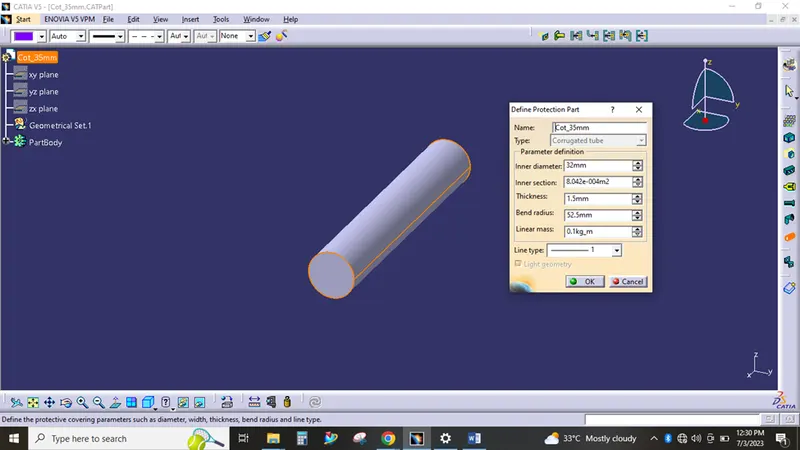

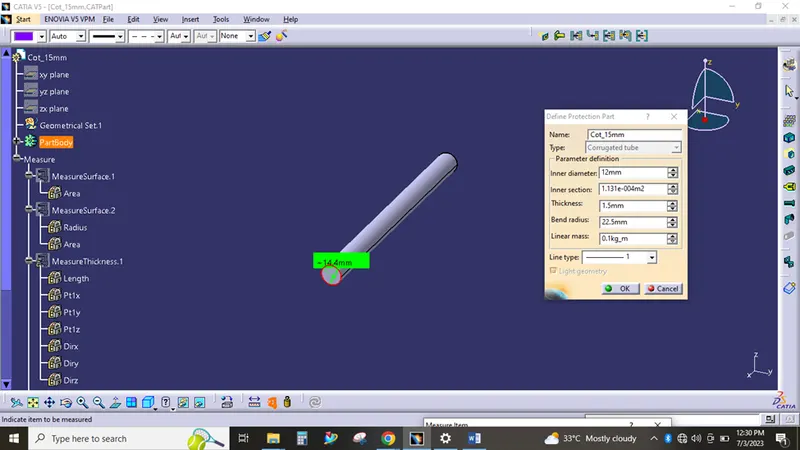

Corrugated tubes - Virtual creation in CATIA V5,
