Wiring harness routing & packaging Rules Week 3 Challenge

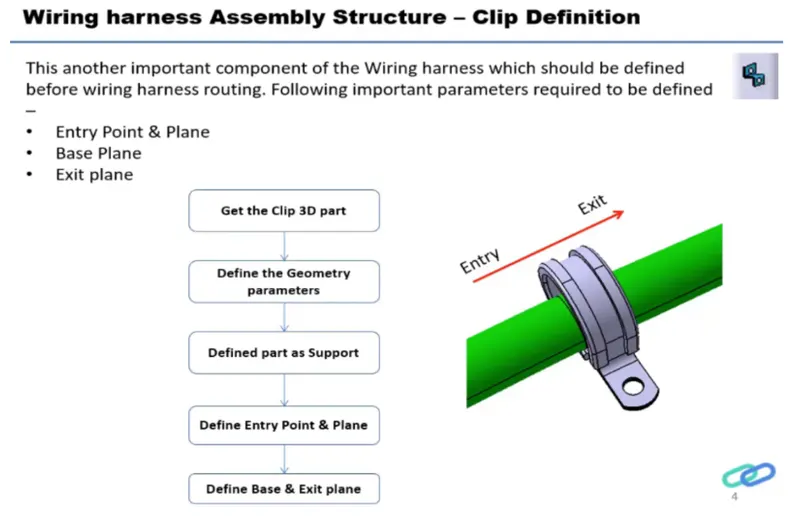

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

Procedure

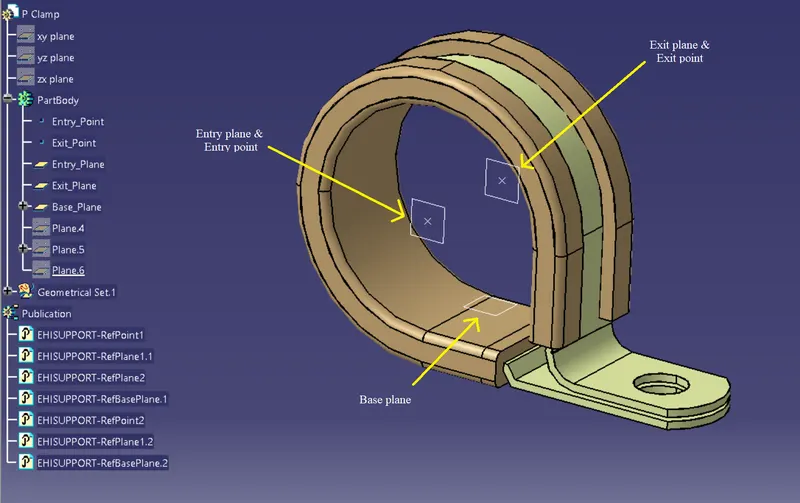

• Create two points one as entry and another as exit point.
• create planes at two points and another at base.
• Switch to Electric part desgn

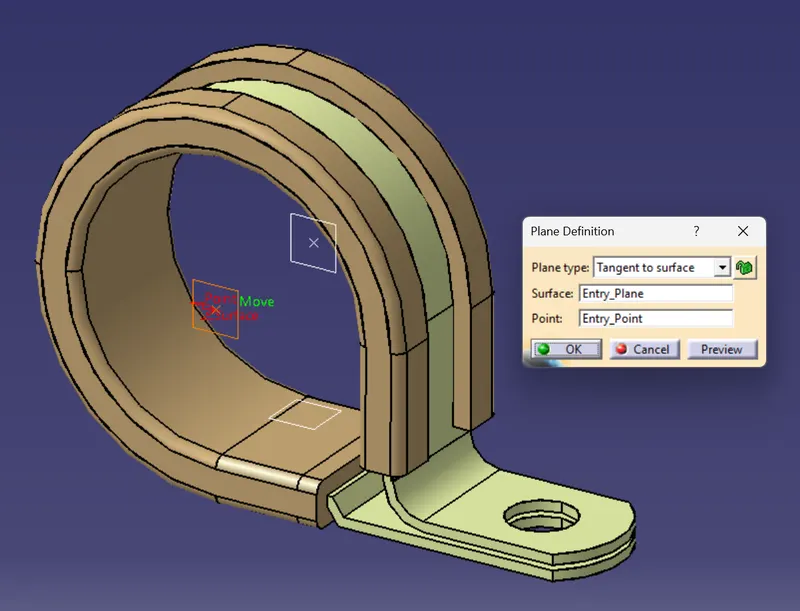

• Click on support defination - select part - select entry point - select entry plane, exit and base plane.

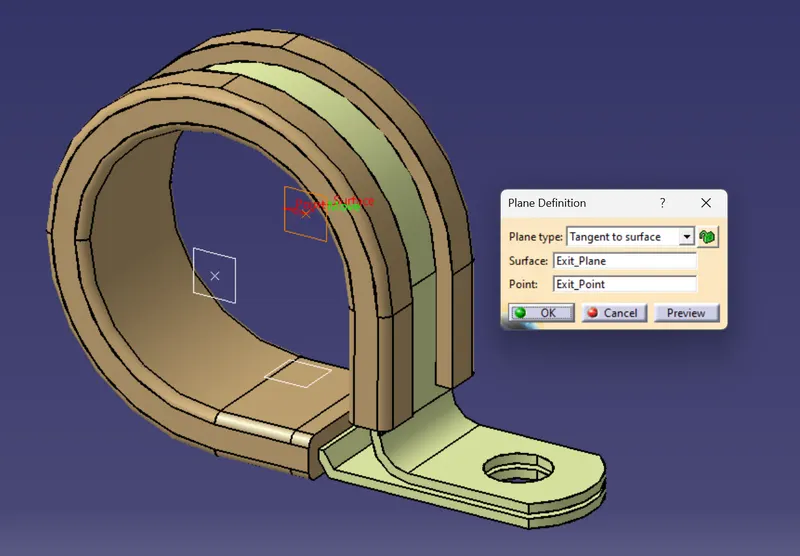

• Again Click on support defination - select part - select exit point - select exit plane and base plane as secondary plane is automatically taken.

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Process:

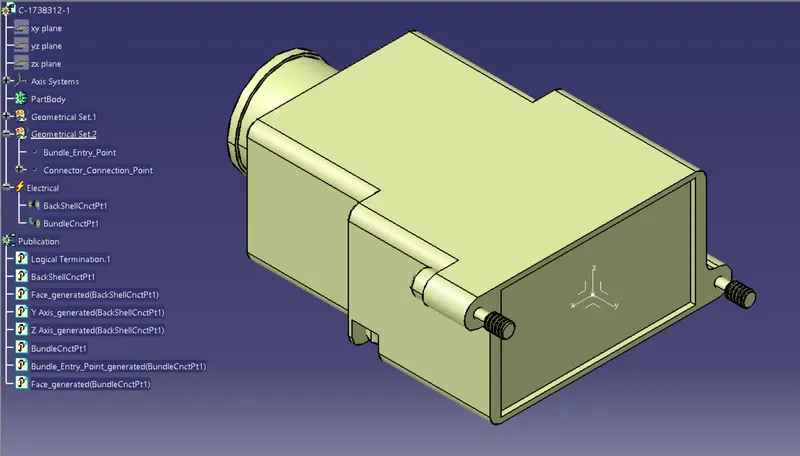

• create Back shell entry point.
• create axis system for back shell entry.
• create bundle connection point.
• switch to Electrical part design.
• Define part electricaly as back shell.
• Then define Back shell connection point.
• Define bundle connection point.

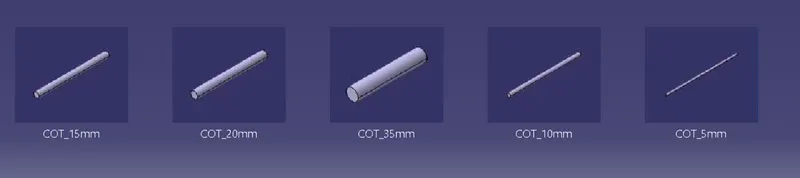

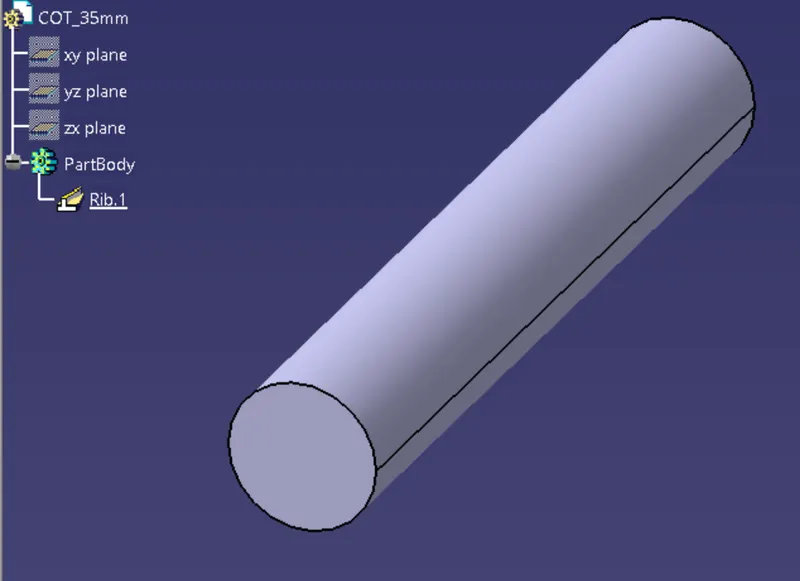

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Added to catalogue
