Wiring harness routing & packaging Rules Week 3 Challenge

1.

Steps.

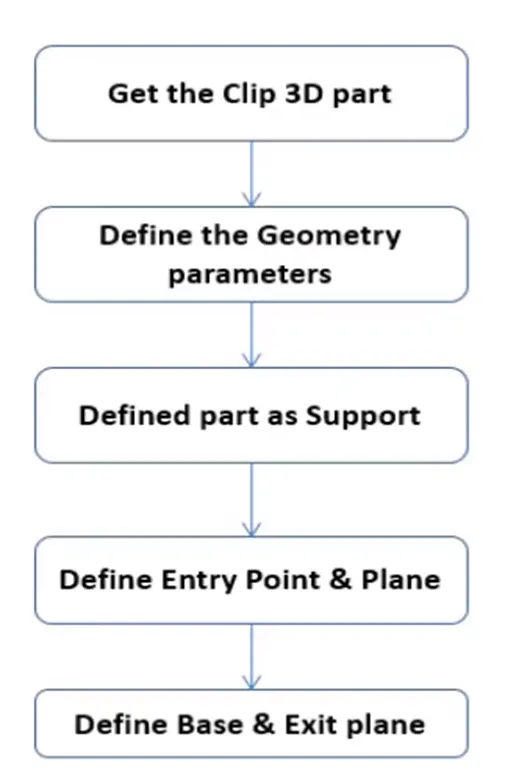

• After downloading the file, use CATIA V5 to open it.
• In accordance with the part design model,entry,exit,base points, and planes are defined.
• Open the files in Electrical part design once points and planes have been established.
• Using the define support part command, we must now define the part as a support.

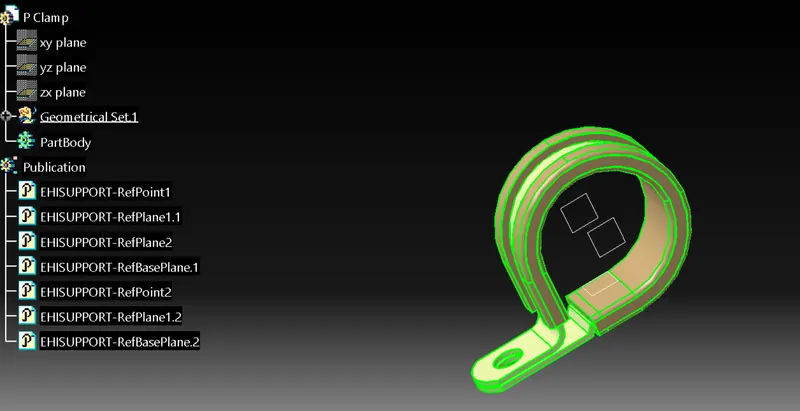

• Here we use the required point and planes as an entry and exit of the clamp for one side
• Select the point opposite the initial support definition while maintaining the same base plane, and then utilise the support definition once more to provide an entrance point on the opposite side.
• After providing the necessary properties save the file
•

• First specify the shell fixing point and the bundel entering point. Ensure that you also add the axis system to the fixing point.

  The axis is in same direction as of connectors.

  Define the shell as an electrical body

  Add bundle entry parameter

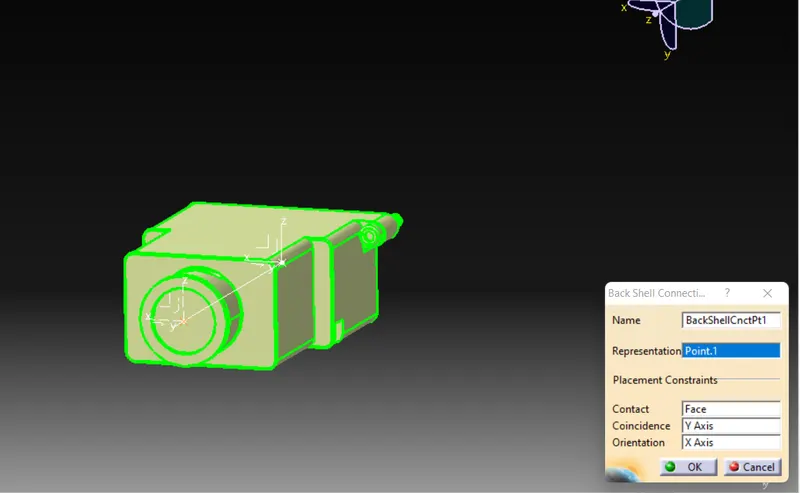

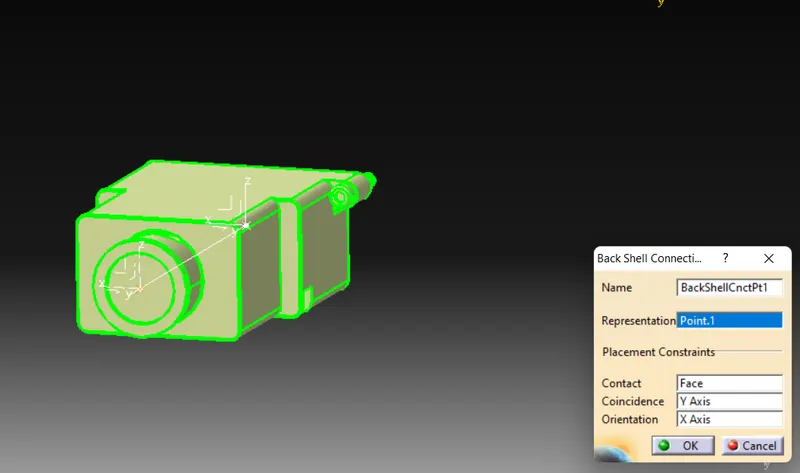

  Add the back shell parameters

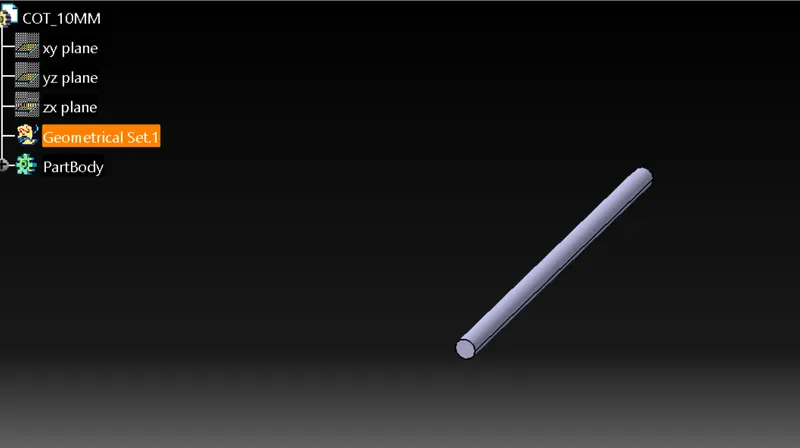

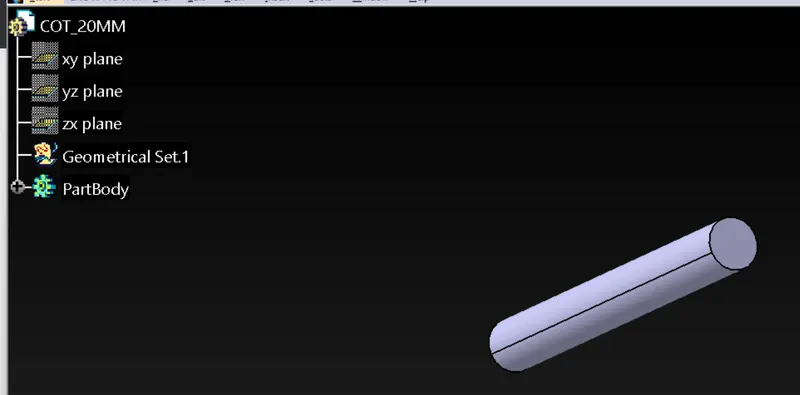

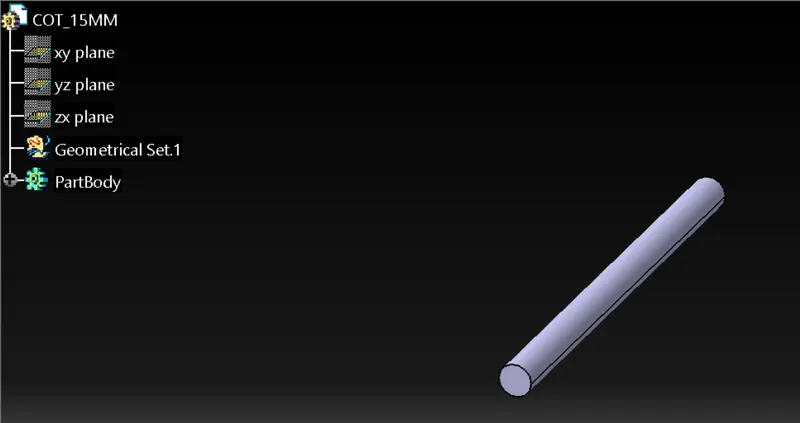

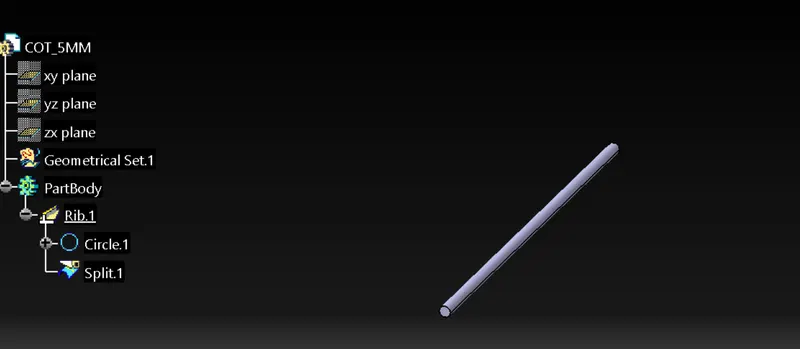

• “Slit COT” family.

  Name	ID (mm)	OD (mm)	Thickness (mm)
  15mm COT	12	15	1.5
  20mm COT	17	20	1.5
  35mm COT	32	35	1.5
  10mm COT	7	10	1.5
  5mm COT	3	5	1



  Steps.

  • Open CATIA V5 with Electrical Part Design Model

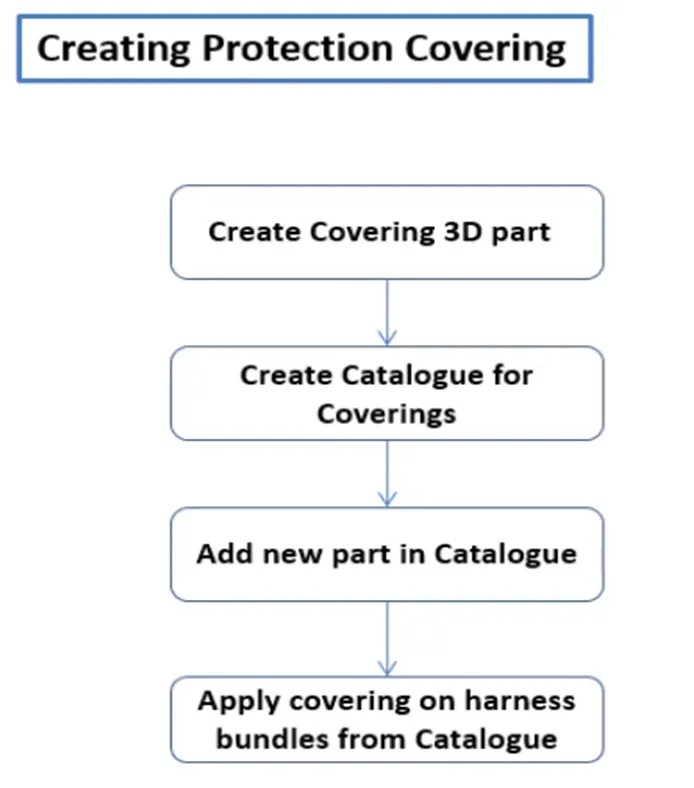

  • Using Define Protection Part
  • Select the type as Corrugated Tube
  • Give the Required Parameters (Inner dia, Thickness, Bend Radii( Bend Radii= 1.5 times the OD)
  • Click on OK

After giving the necessary properties save the file. .
