Wiring harness routing & packaging Rules Week 3 Challenge

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

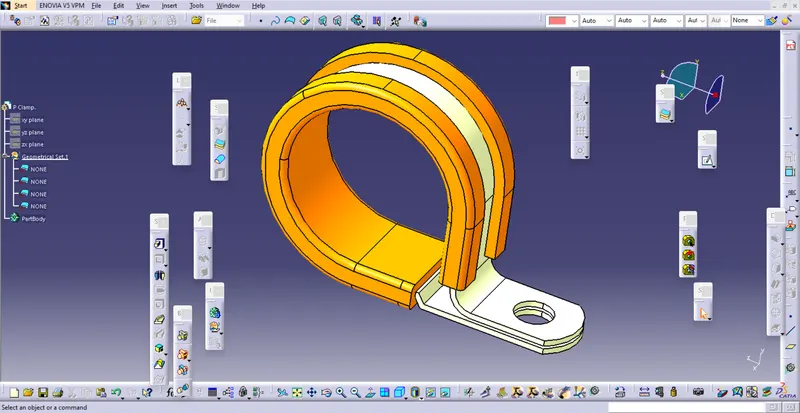

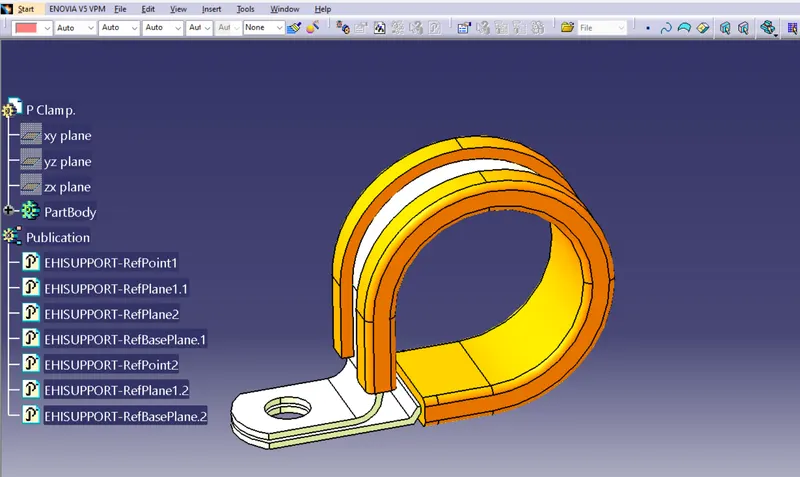

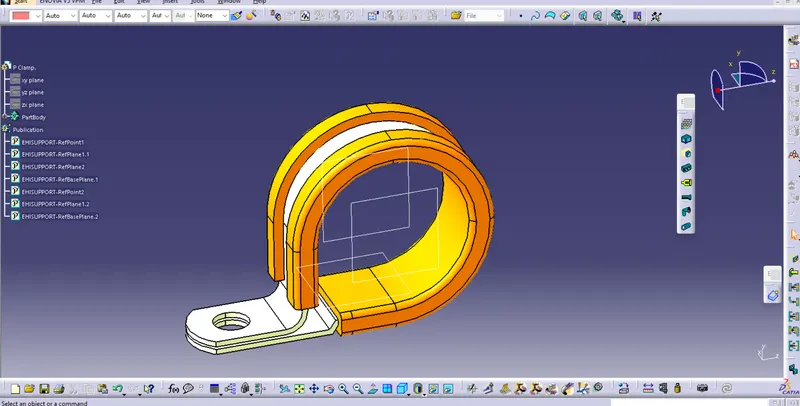

1. Step file transfered

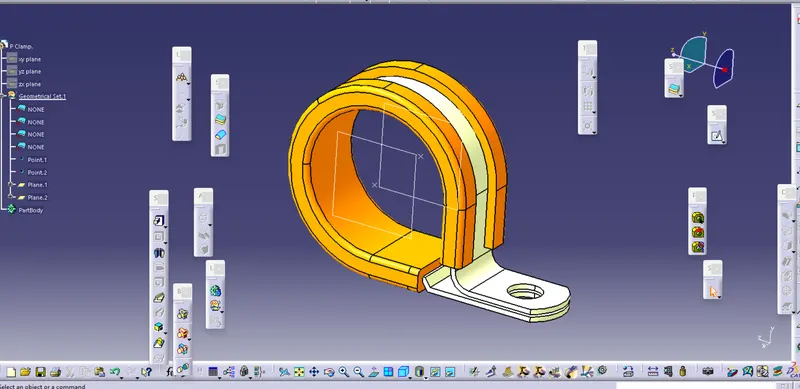

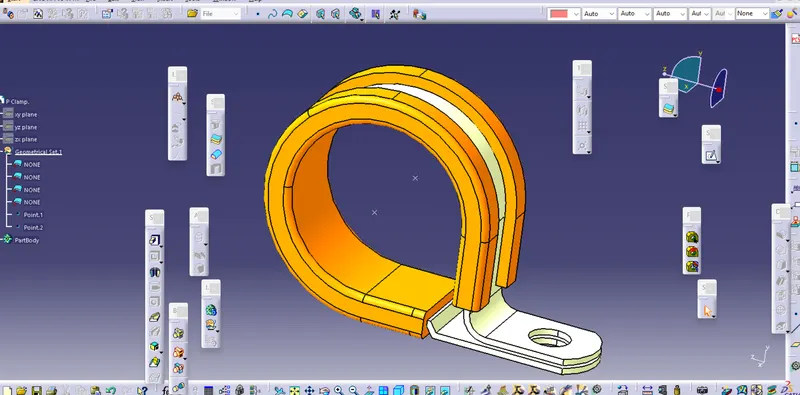

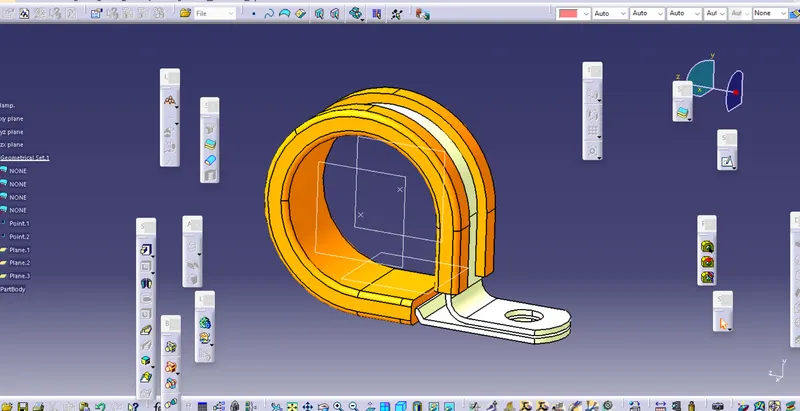

2. Create center points at enter and exit , and create plane on these points

3. Define clamp as a electrical support:

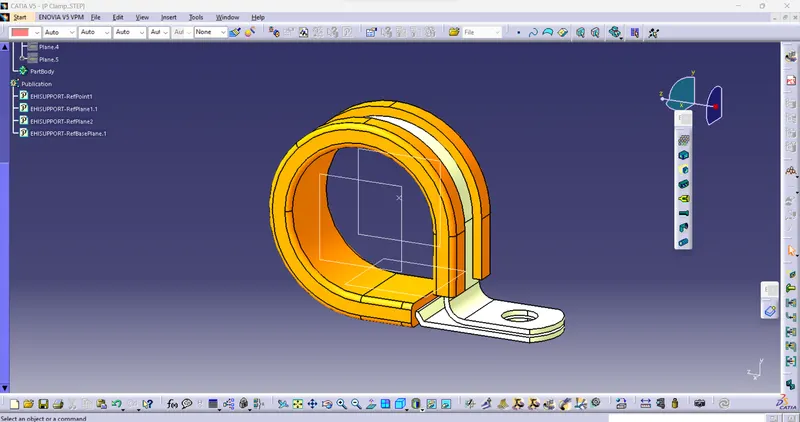

Ready to use

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

A backshell is an accessory that mounts to the rear threads of a connector to enhance its operational characteristics.

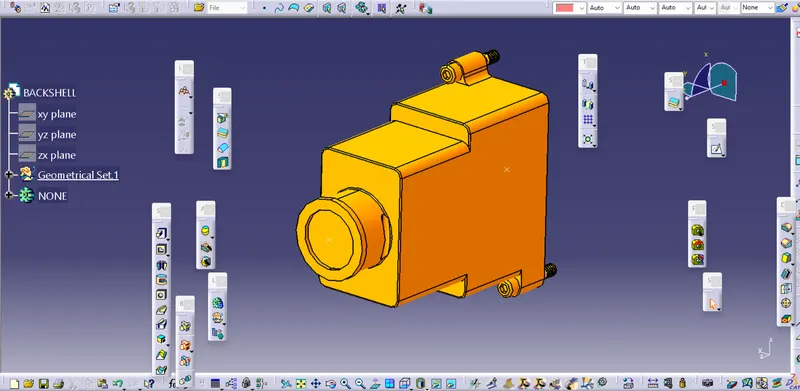

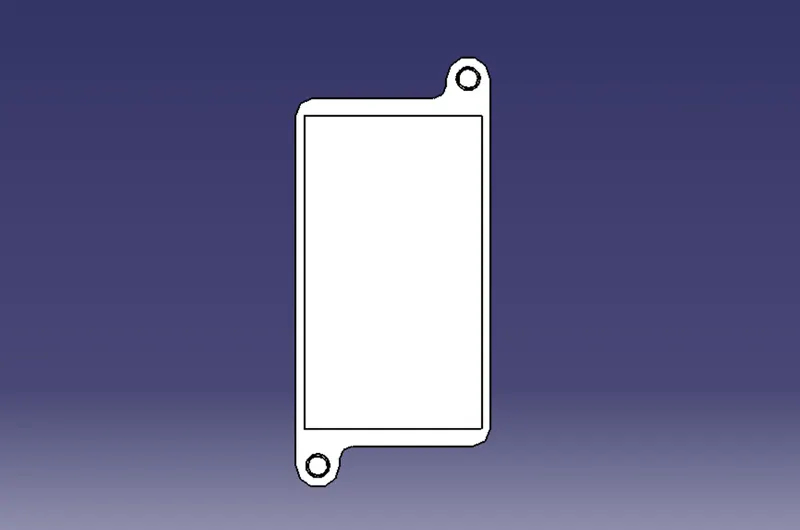

Transfered the file

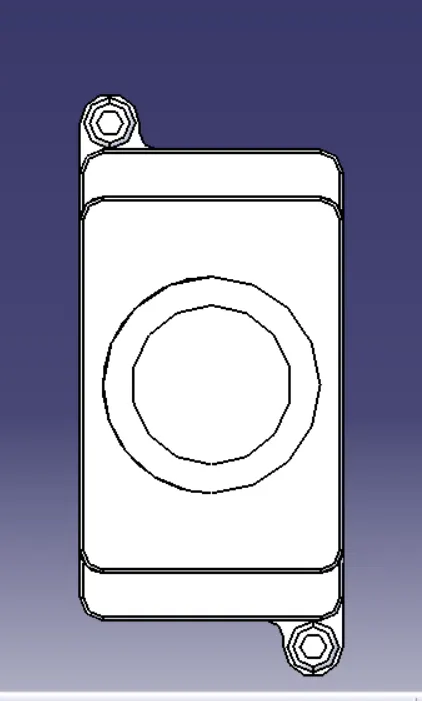

Bundle Entry Side:

Connector mating side:

Creating mid-point at the bundle entry side and connector mating side.

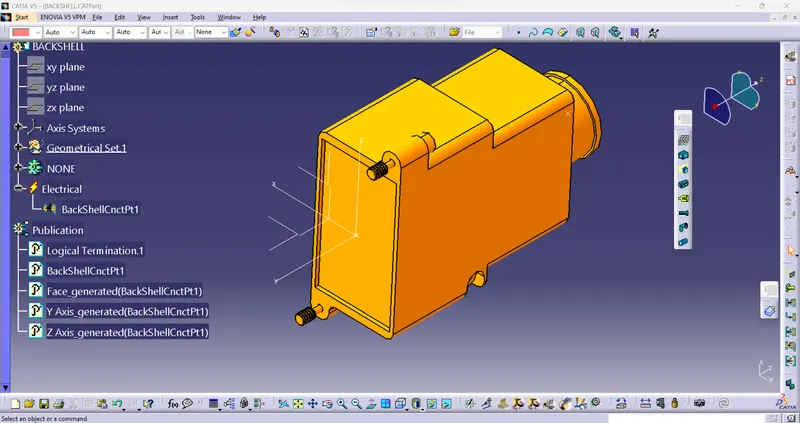

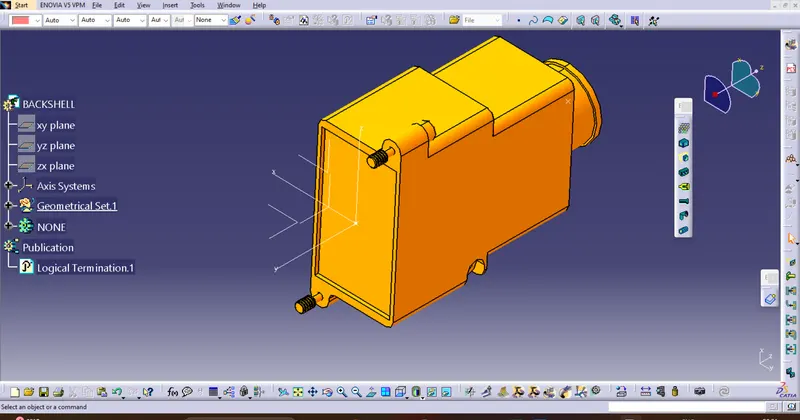

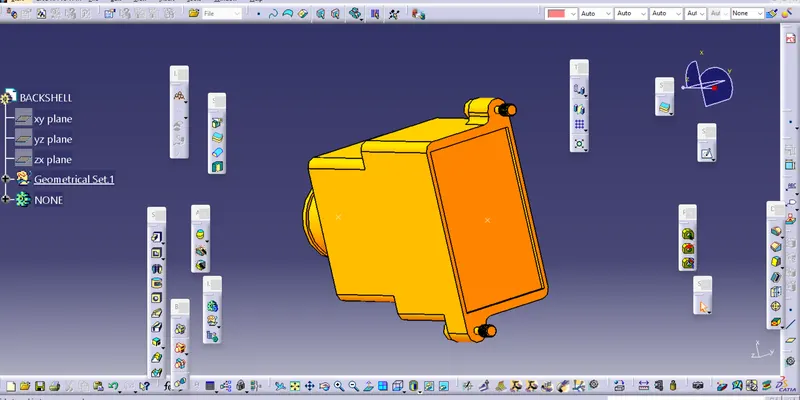

Creating an Axis system at the Connector mating side:

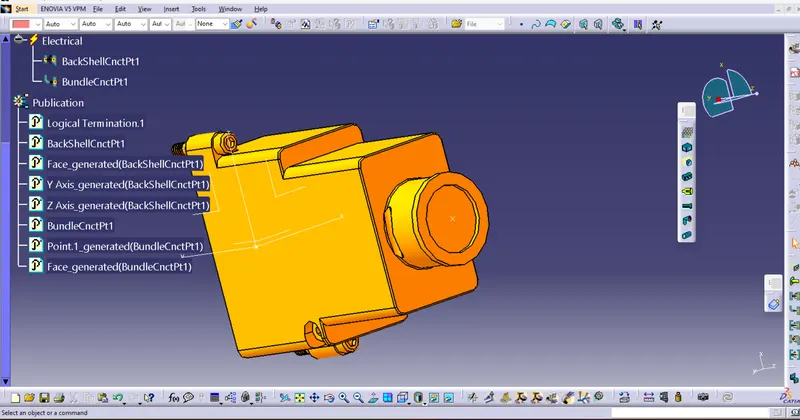

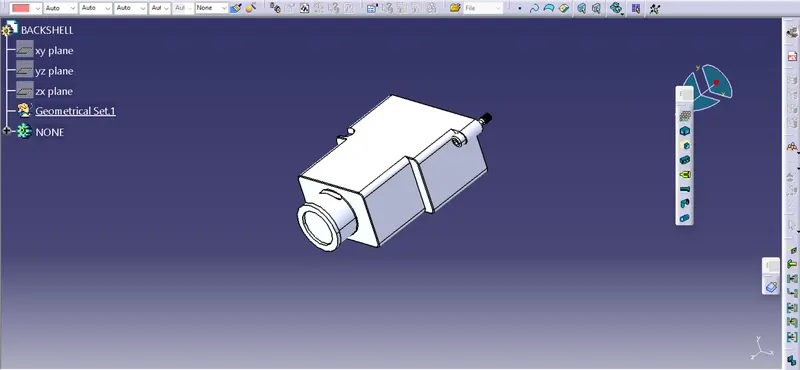

Defining the component as the Backshell and Backshell Connection Point:

Bundle Connection Point:

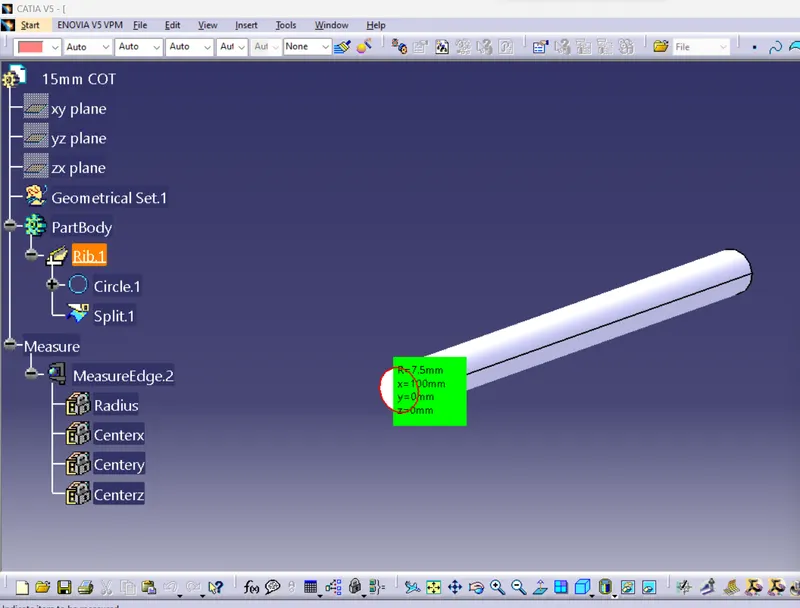

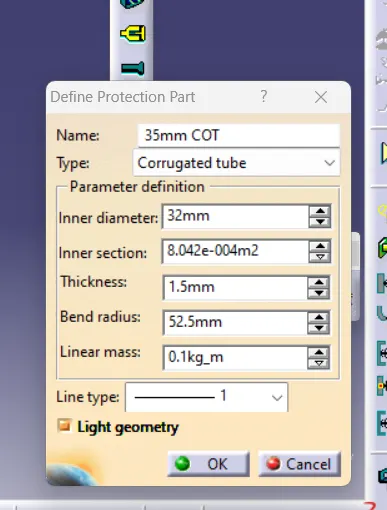

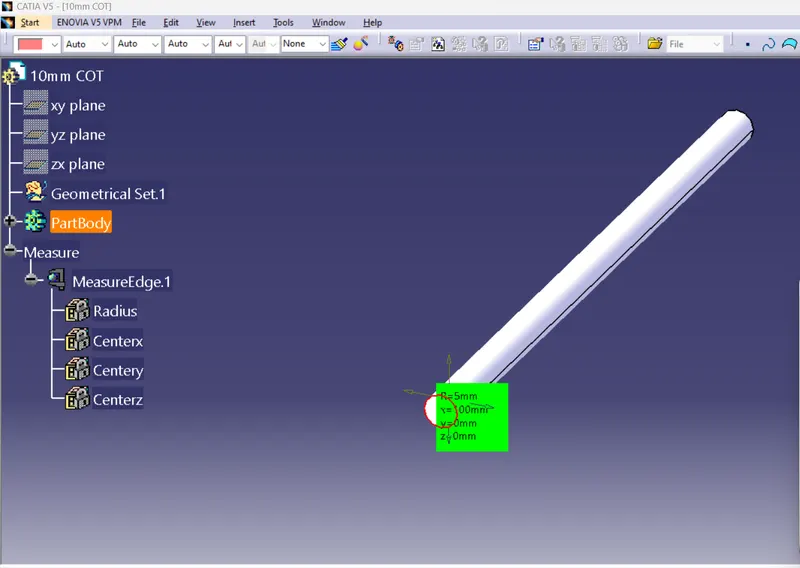

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

1.

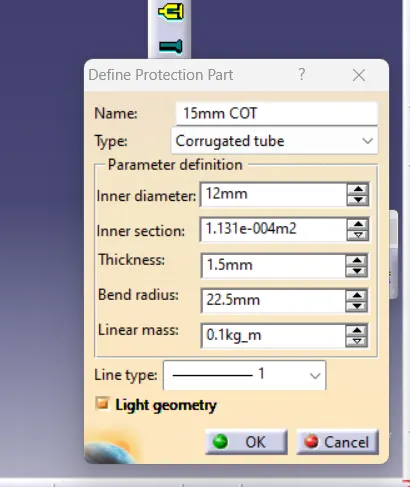

15mm COT

12

15

1.5

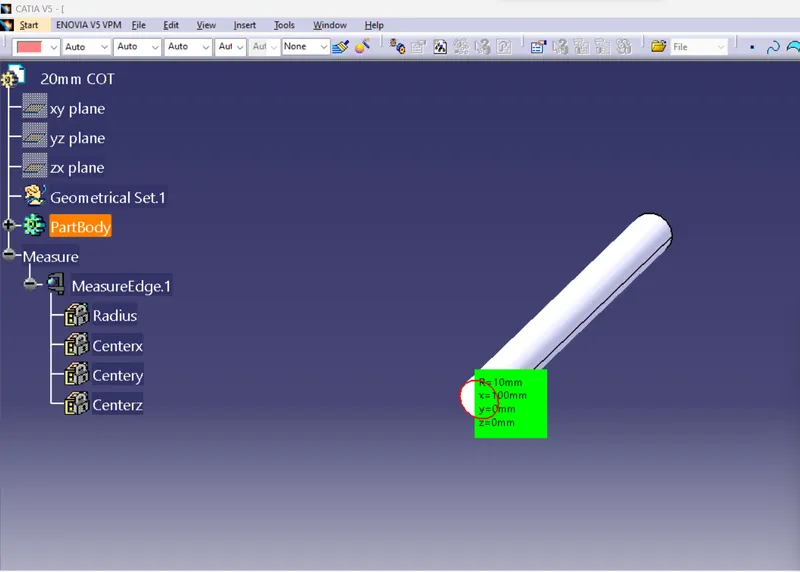

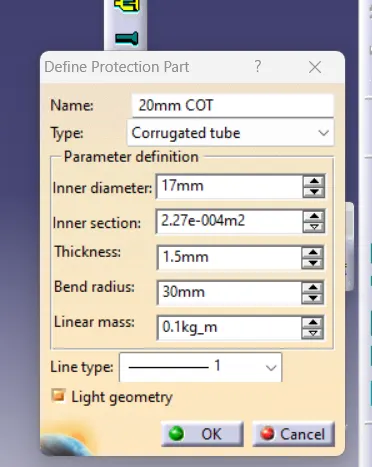

20mm COT

17

20

1.5

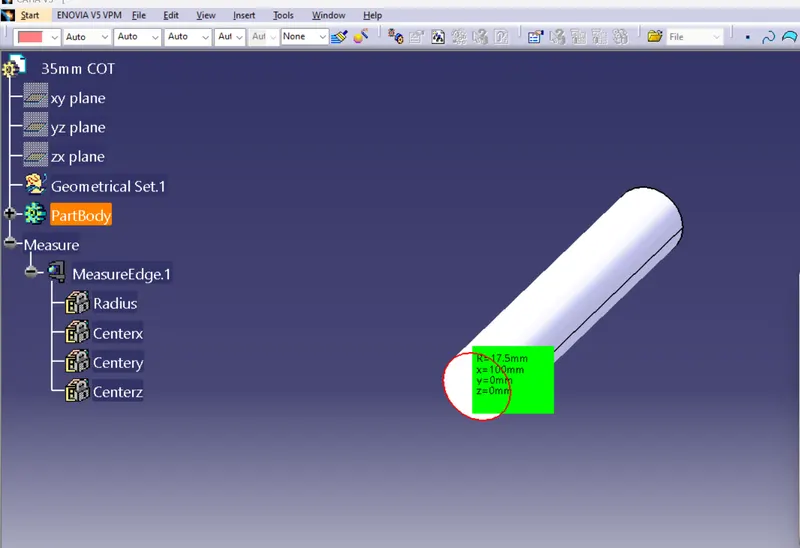

35mm COT

32

35

1.5

10mm COT

7

10

1.5

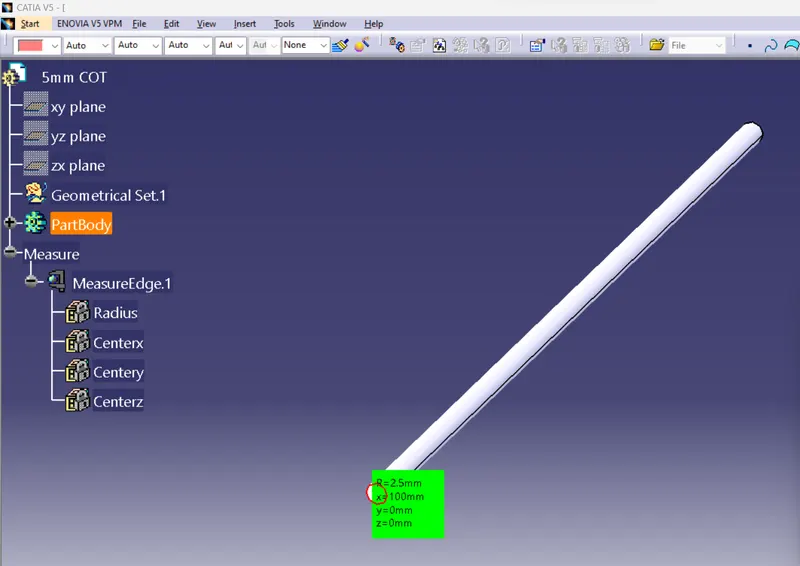

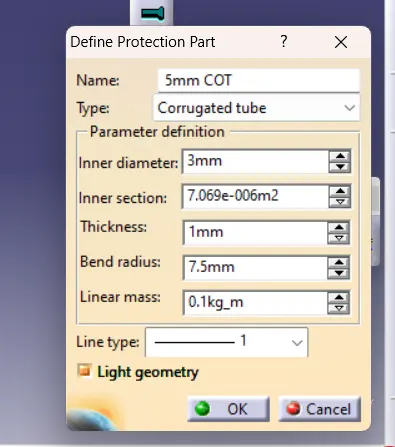

5mm COT

3

5

1

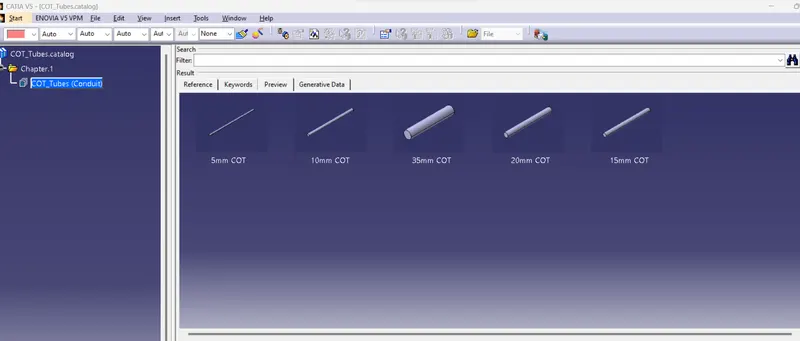

CORRUGATED TUBE CATALOGUE:
