Fender Design - Wheel Arch Challenge

The value of 'L' at each section and the value of 'a' are found out to determine whether the fender satisfies the European standards as shown below.

'L' Value at Different Sections:

Sections	Value(MM)

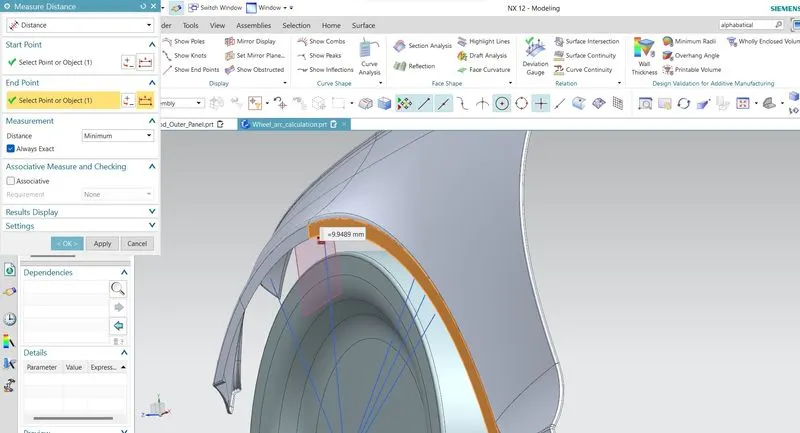

SA	9.94

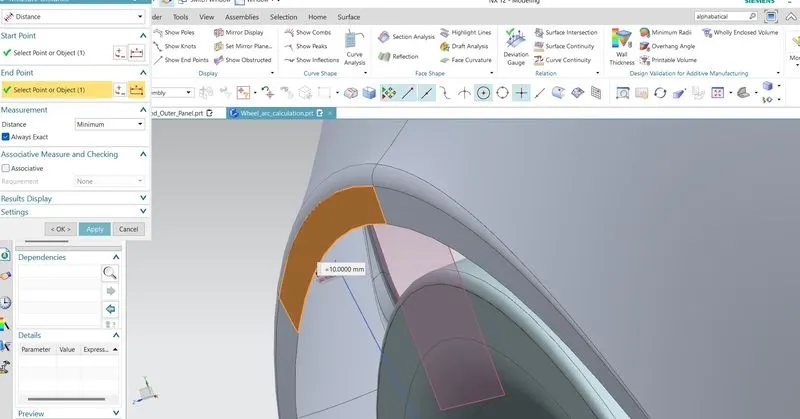

SB	10

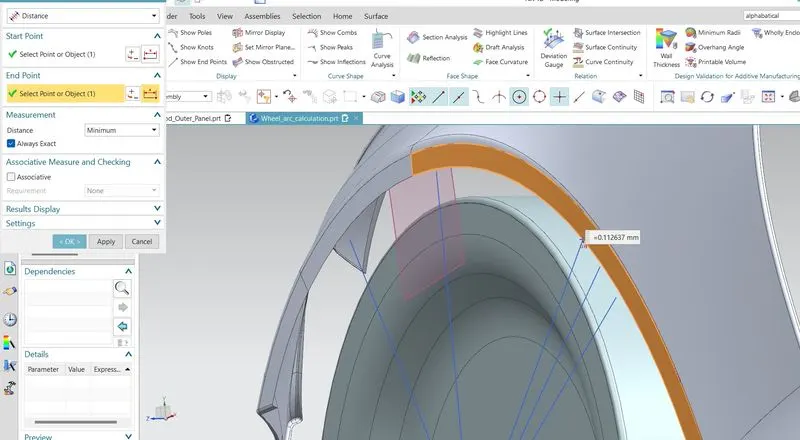

SC	0.112

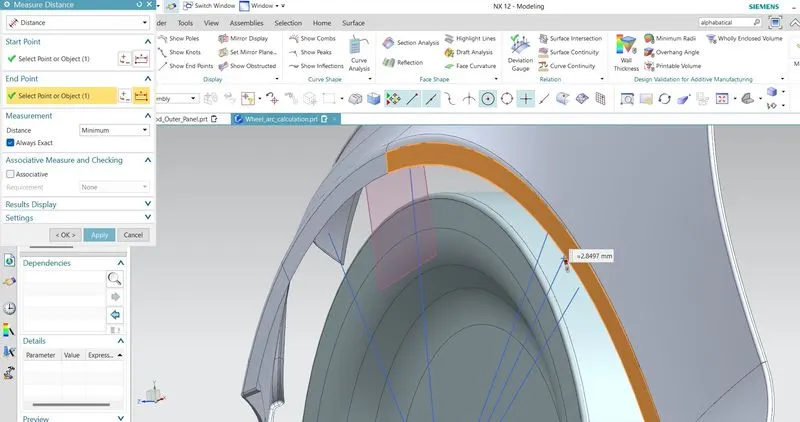

SD	2.84

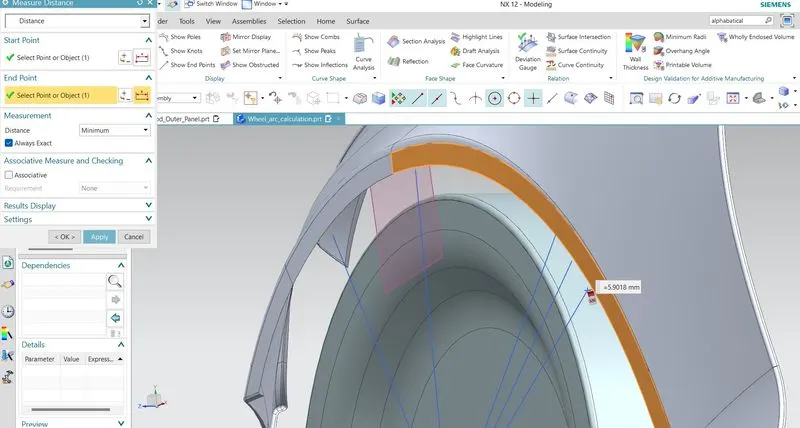

SE	5.98

As per the European standards, the value of 'L' should be greater than 10mm. But only at one Section, the value of L is equal to 10mm and rest of the sections have value of 'L' less than 10mm. So, it does not satisfy the condition L > 10mm to meet the European standards in any of the sections.

Value of 'a' :

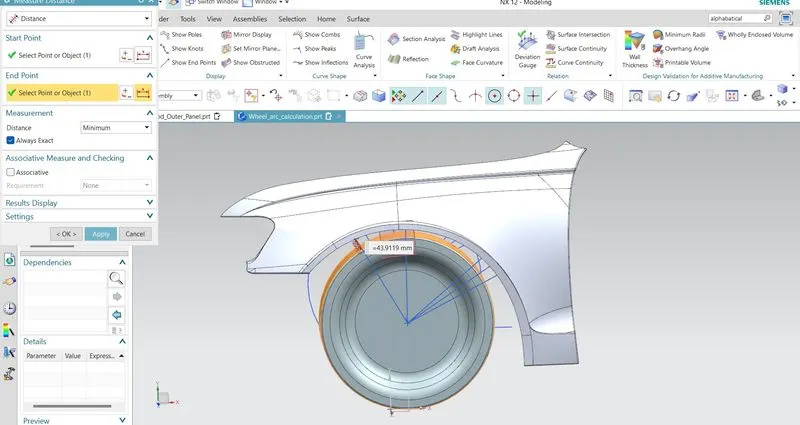

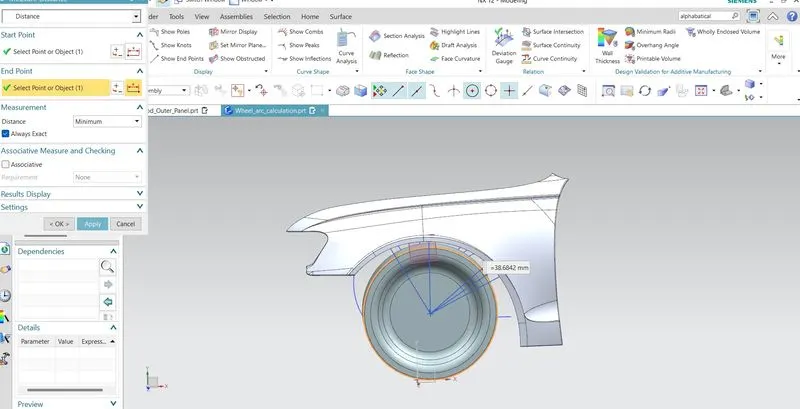

The value of 'a' at the sections are greater than 5mm. So, it satisfies the criteria for wheel guard requirement.

CONCLUSION:

Above shown results concludes that the given fender does not pass the European standards for wheel arch area.
