Wiring harness routing & packaging Rules Week 3 Challenge

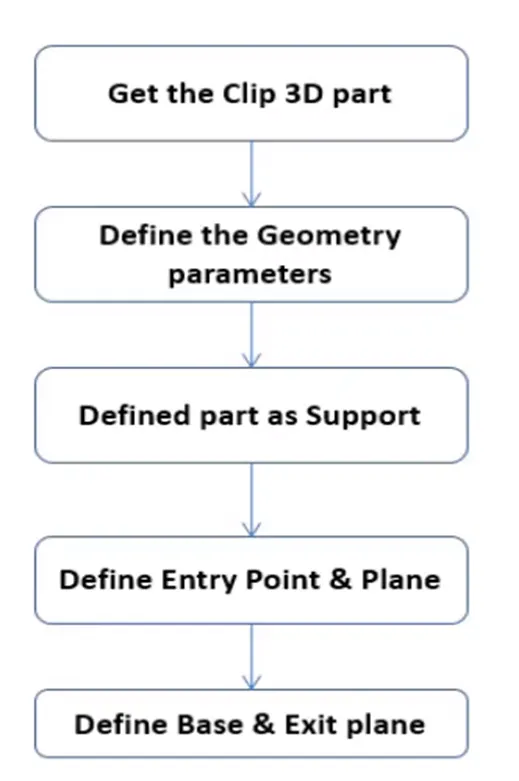

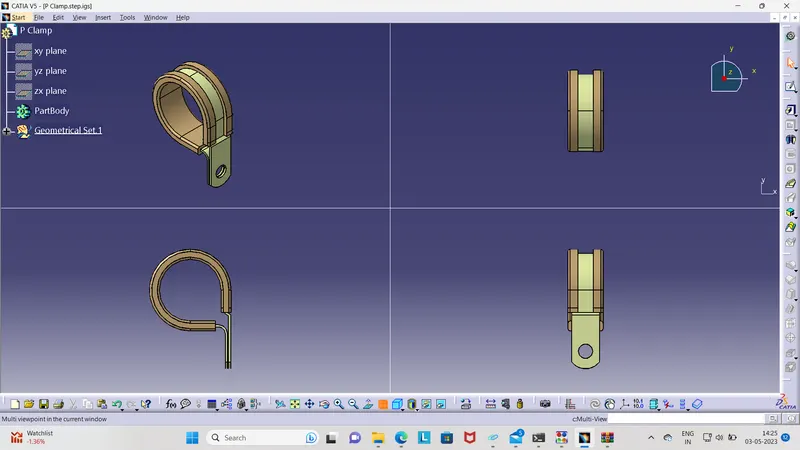

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

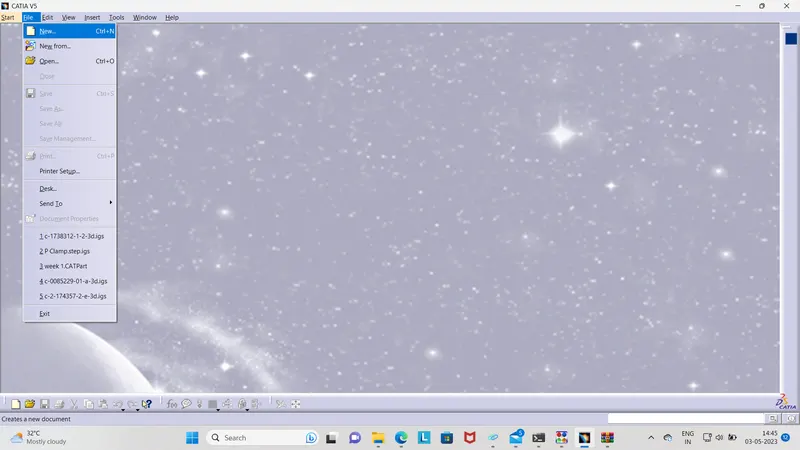

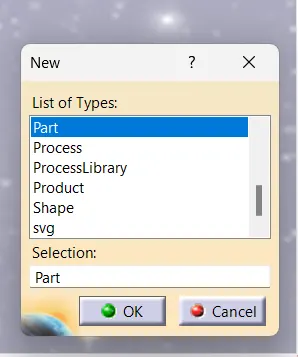

Once the File is Downloaded, Open the File Using CATIA V5
After providing the necessary properties Save the file.

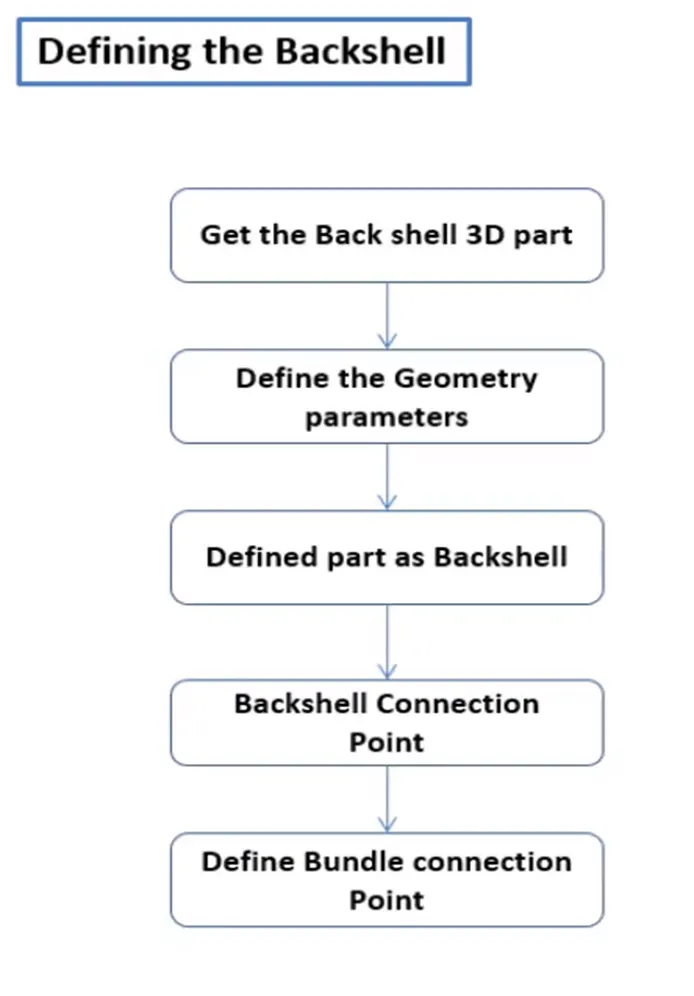

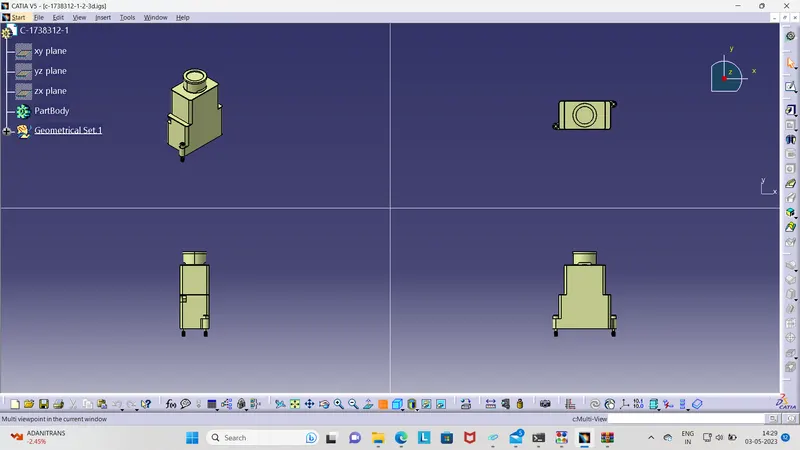

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|

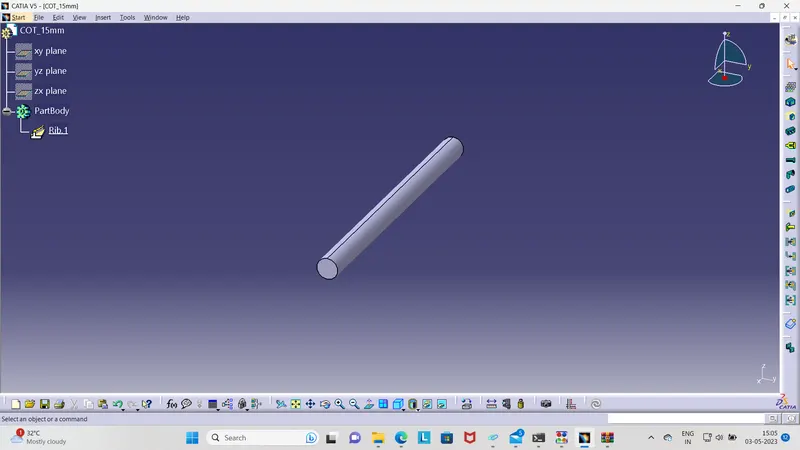

15mm COT |
12 |
15 |
1.5 |
|

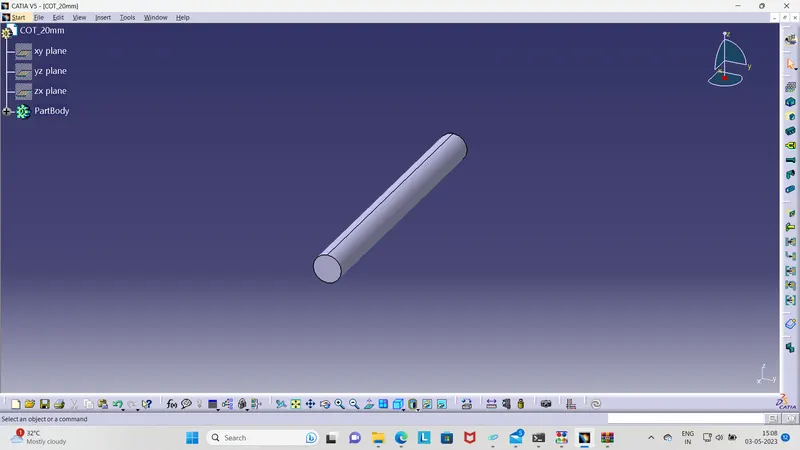

20mm COT |
17 |
20 |
1.5 |
|

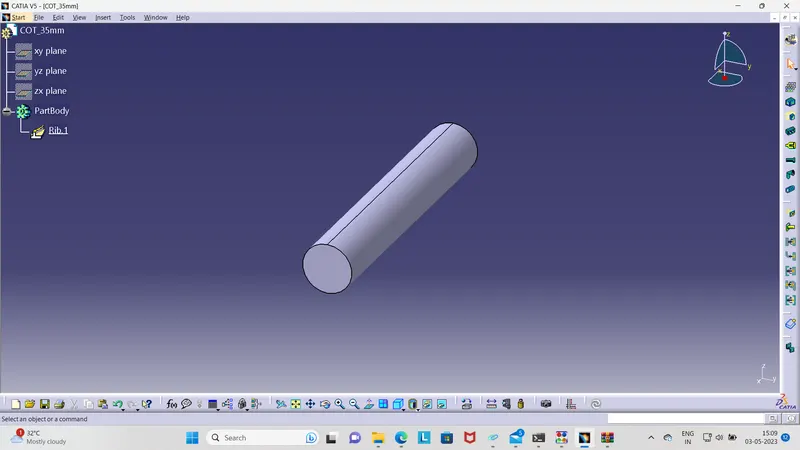

35mm COT |
32 |
35 |
1.5 |
|

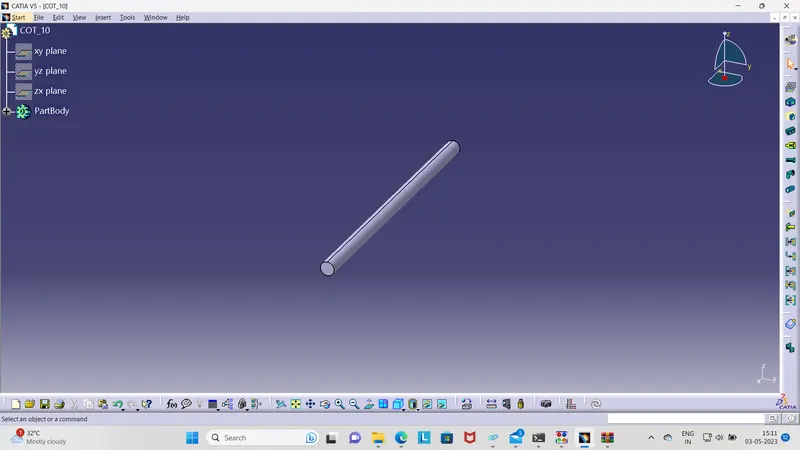

10mm COT |
7 |
10 |
1.5 |
|

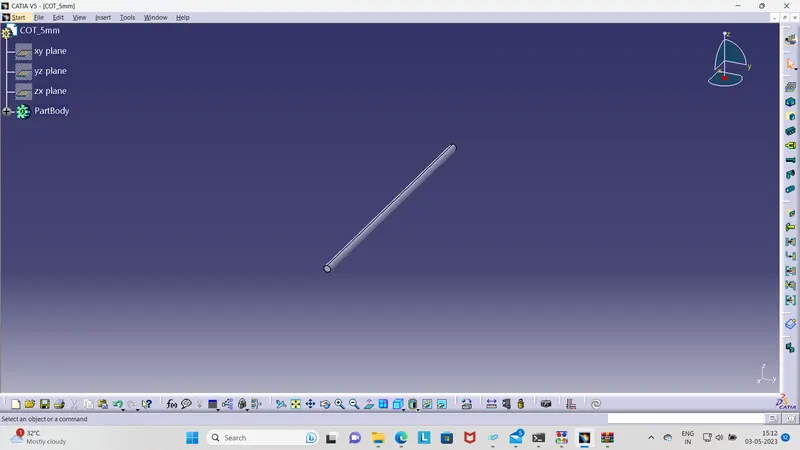

5mm COT |
3 |
5 |
1 |
Steps.
Open CATIA V5 with Electrical Part Design Model
Using Define Protection Part
Select the type as Corrugated Tube
Give the Required Parameters (Inner dia, Thickness, Bend Radii( Bend Radii= 1.5 times the OD))
Click on OK
After giving the necessary properties Save the file.
