Wiring harness routing & packaging Rules Week 3 Challenge

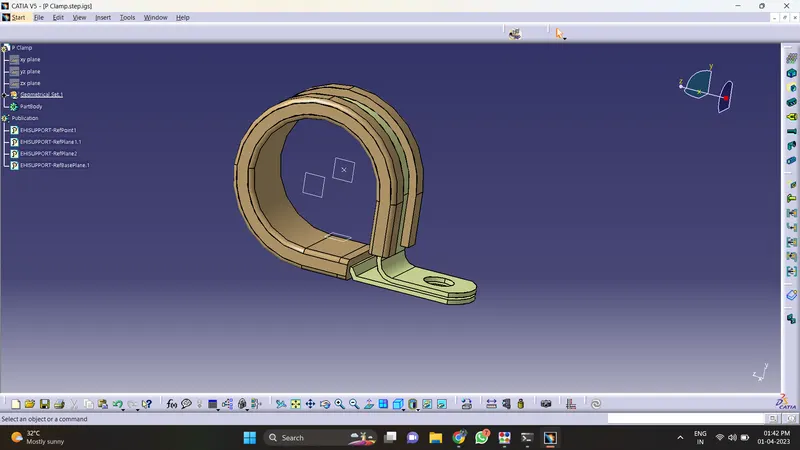

DIFINE CLIP :

1. The given clip was downloaded and opened as a part file.
2. I have to define two points that will be used as entry and exit points.
3. Then a plane has to be defined at the points.
4. A base plane has to be defined at a distance of 2 to 3 mm from the clip.
5. again we define the exit point at the first definition as the entry point.
6. hence I have two entry and two exit points.

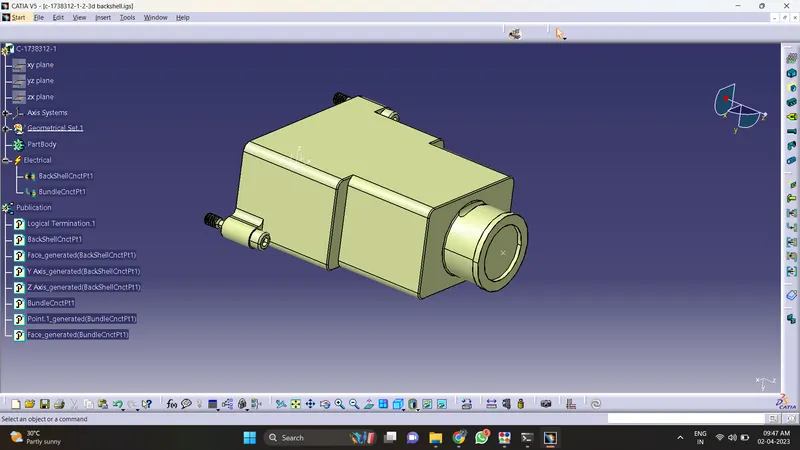

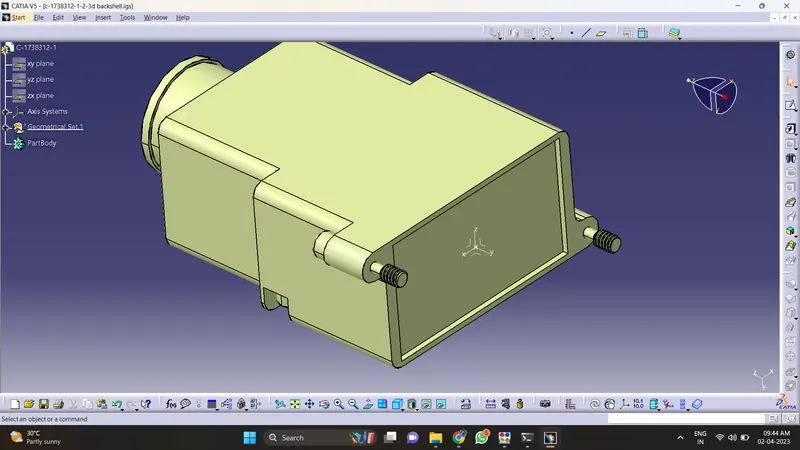

DIFINE THE BACKSHELL:

CREATING PROTECTION COVERING :

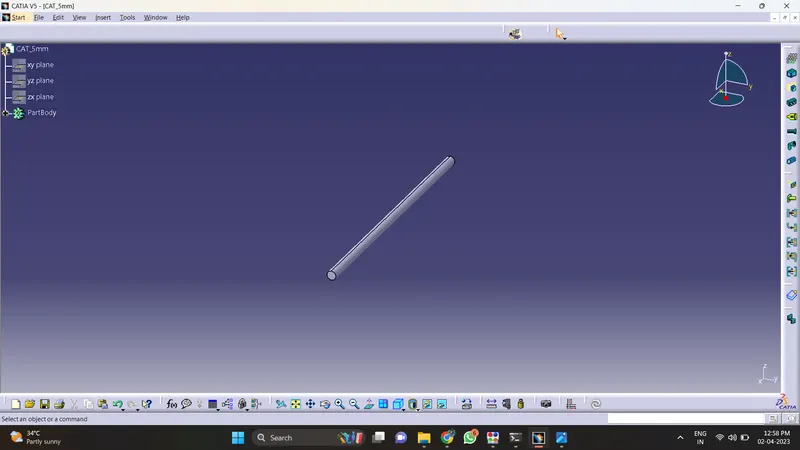

• we define the cot tubes in the electrical part workbench.
• the inner dia & thickness are given as the inputs.
• a catalog was created for the cot tubes.
• all the cot tubes were saved in the catalog.
