Wiring harness routing & packaging Rules Week 3 Challenge

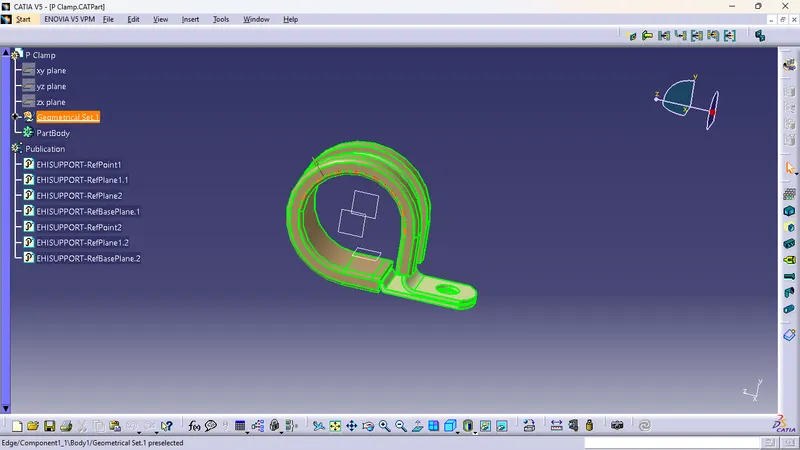

- I have to define two points that will be used as entry and exit points.
- Then a plane has to be defined at the points.
- A base plane has to be defined
- again we define the exit point at the first definition as the entry point.
- hence I have two entry and two exit points.
- We define the points in the part workbench.
- Then add An Axis system with the correct axis orientation

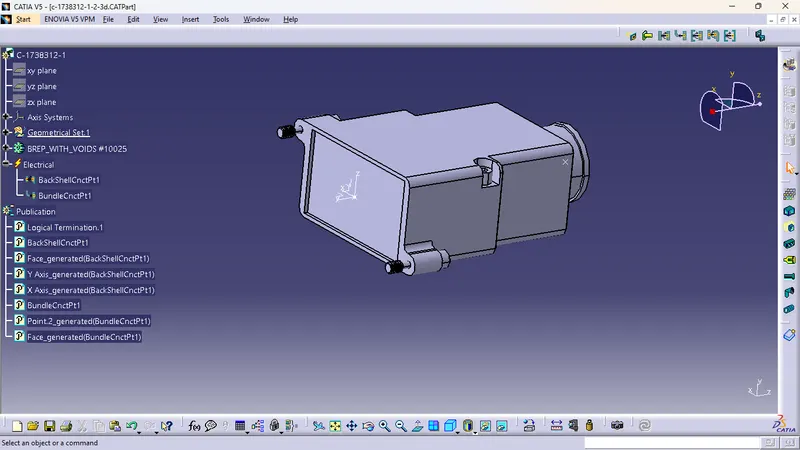

- Then defined as the backshell connection point and bundle connection points.
- Then I define the cot tubes in the electrical part workbench.
- the inner dia & thickness are given as the inputs.

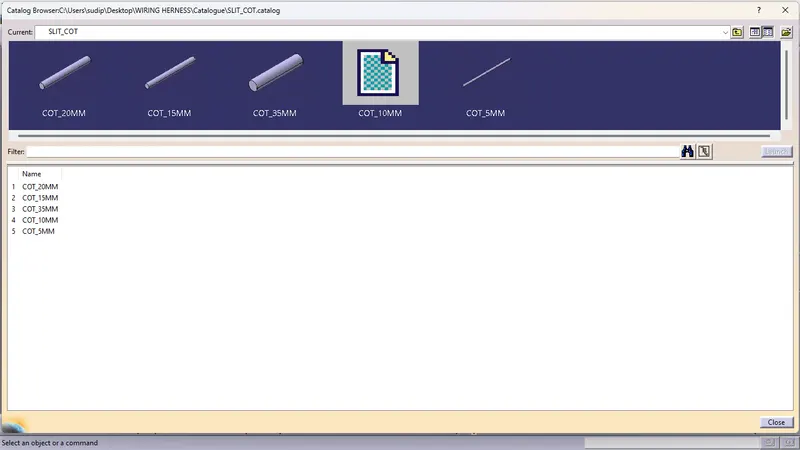

- a catalog was created for the cot tubes name SLIT_COT.
- all the cot tubes were saved in the catalog.
