Wiring harness routing & packaging Rules Week 3 Challenge

Week-3 challenge

Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties?

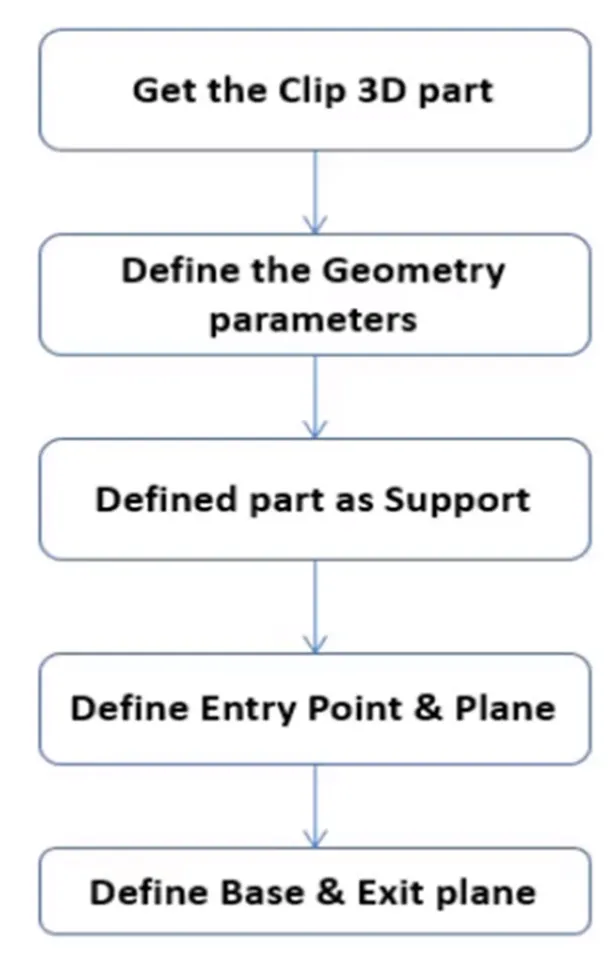

The flow diagram is given for the further procedure wher it can define the process step by step

Steps:

• Use CATIA V5 to open the file after downloading it.
• Entrance, exit, base points, and planes are established in line with the part design model.
• Once the points and planes have been set, open the Electrical component design files.
• We must now declare the part as a support using the define support part command.
• Here, we employ the necessary planes and points to serve as the entry and exit points for the clamp on one side.
• While keeping the same base plane, choose the point opposite the first support definition, and then use the support definition once more to offer an entrance point on the other side.
• Save the file after adding the required attributes.

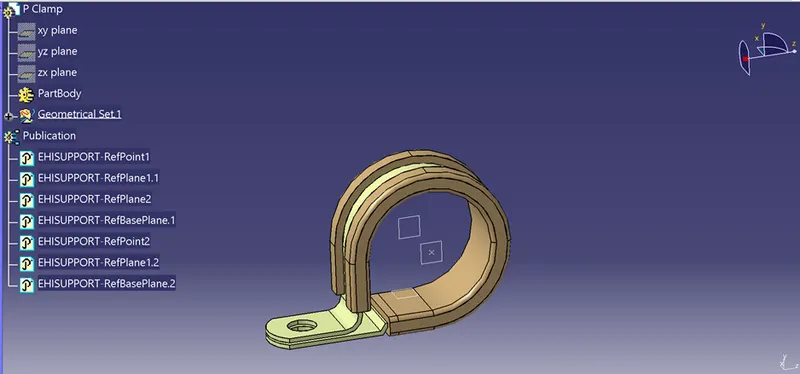

p-clamp

2) Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties?

First specify the shell fixing point and the bundle entering point. Ensure that you also add the axis system to the fixing point.

The axis is in same direction as of connectors

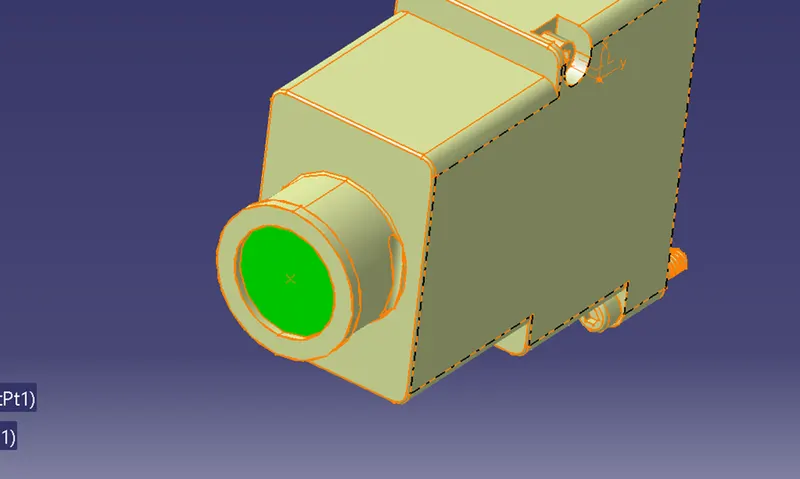

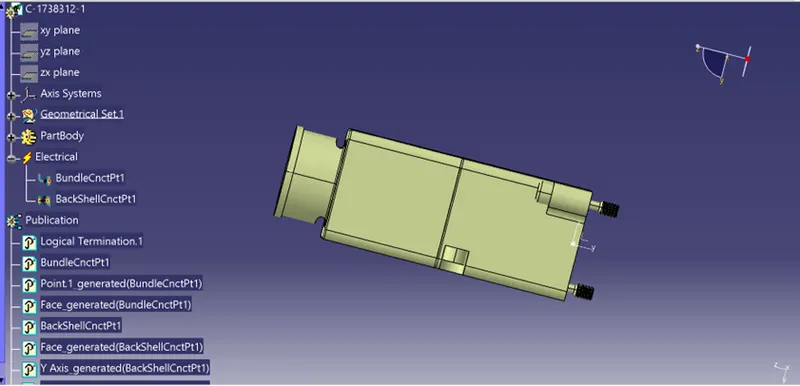

The bundle and the backshell connection part is shown below

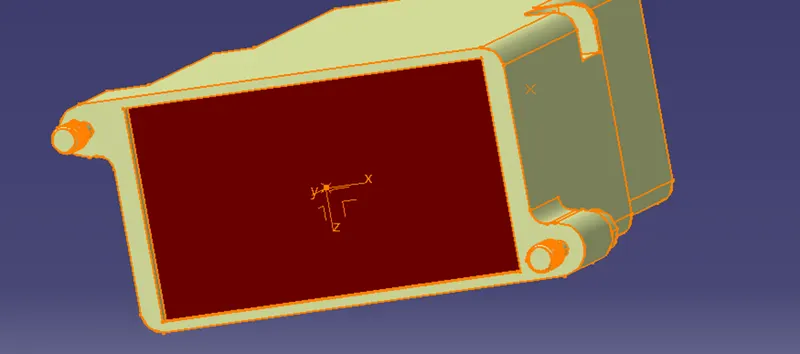

Backshell part:

3) Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.?

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

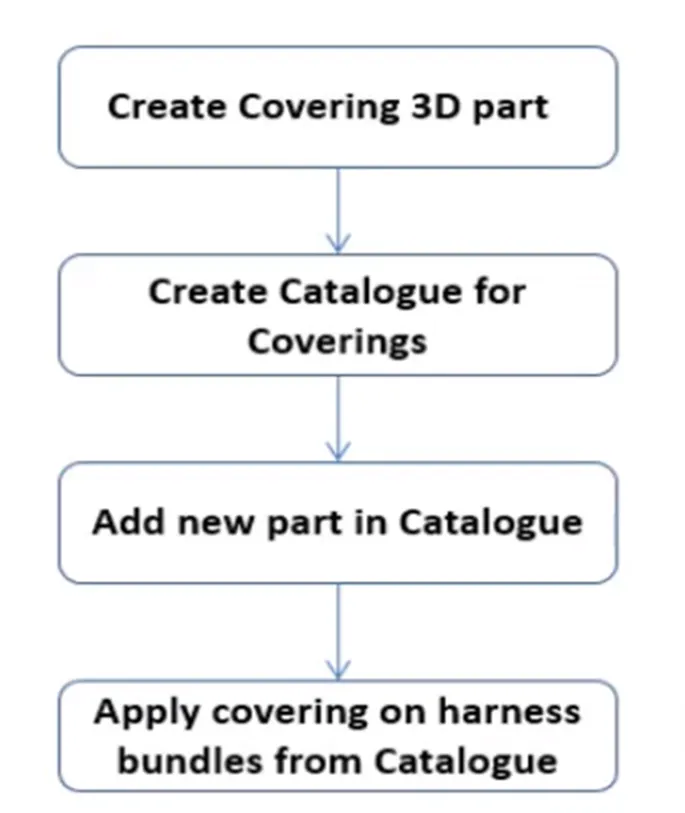

Creating protection covering

Steps:

Open CATIA V5 with Electrical Part Design Model

Using Define Protection Part

Select the type as Corrugated Tube

Give the Required Parameters (Inner dia, Thickness, Bend Radii( Bend Radii= 1.5 times the OD)

Click on OK

After giving the necessary properties save the file

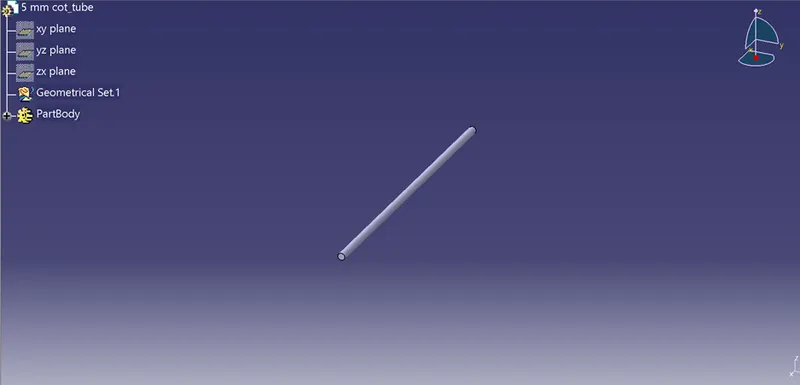

5mm cot:

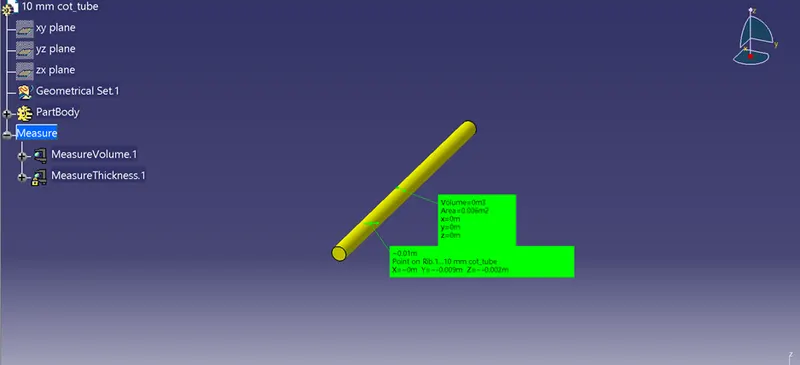

10mm cot:

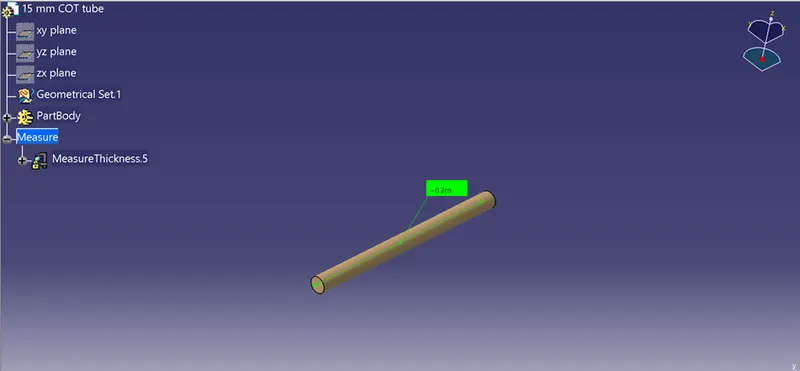

15mm cot:

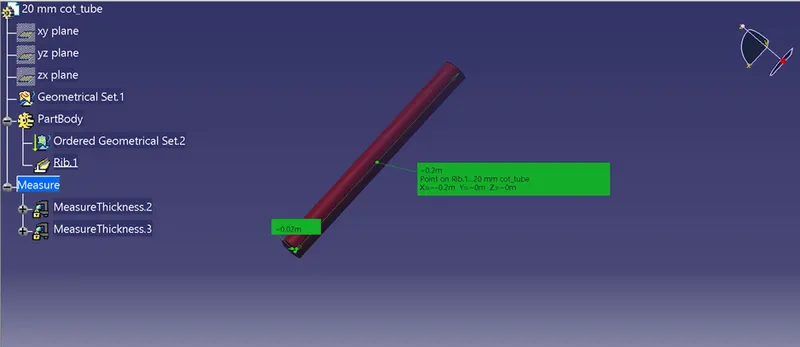

20mm cot:

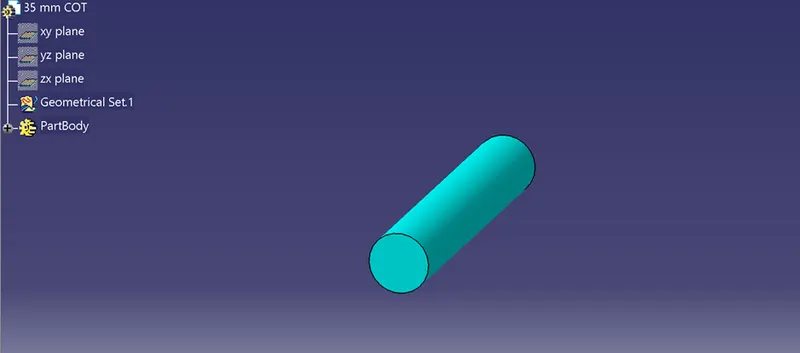

35mm cot:
