Wiring harness routing & packaging Rules Week 3 Challenge

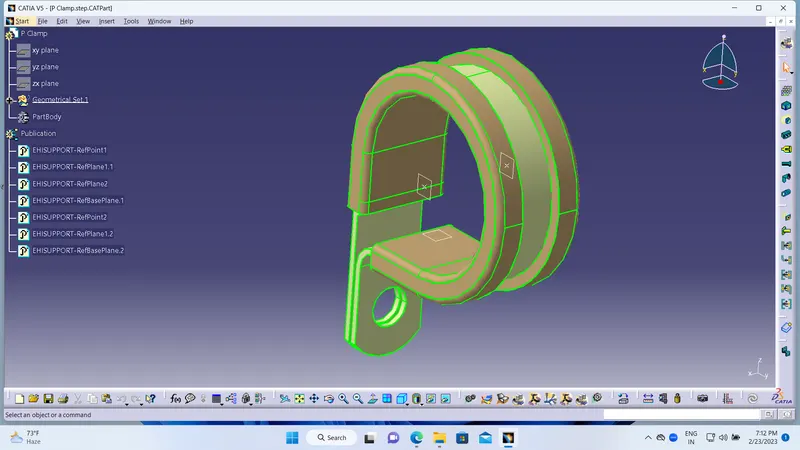

P - CLAMP -

P-clamps lock cables and hoses in place and help ensure that machinery, vehicles and equipment keep running. They bracket wires, cables or hoses together mechanically and are fastened securely to an anchor point – usually with a screw or a bolt.

VERY FIRST I WILL DOWNLOAD THE P CLAMP WITH THE HELP OF LINK AFTER THAT USE THE PART DESIGN AND CREATES THE TWO POINTS ENTRY AND EXIT SIDE AFTER MAKE THIS POINT AND THEN I WILL CREATE THE 3 PLANES WITH THE HELP OF THIS POINT ONE IS THE ENTRY SIDE AND SECOND IS EXIT SIDE AND THIRD IS BASE SIDE AFTER COMPLETE THIS PROCESS IN PART DESIGN WE WILL MOVE ON THE ELECTRICAL PART DESIGN AFTER THAT I WILL USE THE DEFINE SUPPORT PART COMMAND AND TAKE ONE ENTRY POINT AND ENTRY PLANE AND TAKE SECOND EXIT PLANE AND ALSO TAKE BASE PLANE SO FIRST ENTRY SIDE DEFINE AND AFTER THAT WILL TAKE AGAIN DEFINE SUPPORT COMMAND AND TAKE EXIT POINT AND EXIT PLANE ALSO AND SECOND PLANE ALREADY SHOWN BY DEFAULT AND TAKE THIRD PLANE BASE PLANE SO THIS PROCESS WILL COMPLETE IT IS READY FOR WIRING HARNESS.

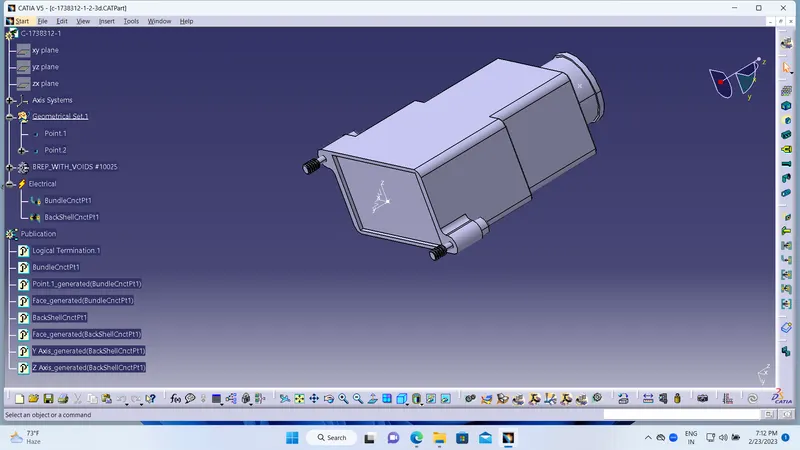

BACK SHELL -

A Backshell is the rear portion of a connector, which is normally a separate section from the connector head, used to secure the cable via a clamp to the end of the connector. Also called a Hood.

VERY FIRST I WILL DOWNLOAD THE BACK SHELL FROM THE LINK AND AFTER THAT I WILL USE THE PART DESIGN AND CREATE THE TWO POINTS ONE IS MATIG SURFACE AND SECOND IS BUNDLE SIDE AFTER THAT WITH THE USE OF THIS POINT CREATE THE AXIS SYSTEM ON THE MATING SURFACE AND ENSURE THE Y AXIS IS TOWARDS THE MATIG DIRECTION AND X AXIS IS LOCKING DIRECTION AND Z IS TOWARDS RIGHT OR LEFT AFTER COMPLETE THIS I WILL MOVE ON THE ELECTRICAL PART DESIGN AND THEN FIRST USE THE DEFINE BACK SHELL COMMAND AFTER THAT USE THE DEFINE BACK SHELL CONNECTION POINT AND ALSO USE THE DEFINE BUNDLE CONNECTION POINT SO THIS IS READY FOR THE WIRING HARNESS.

CORRUGATED TUBES -

A corrugated tube is a pipe with a helical groove obtained from a plain tube by cold forming. The number of starts of the helix can be changed as well as the angle to optimize the heat transfer and performance.

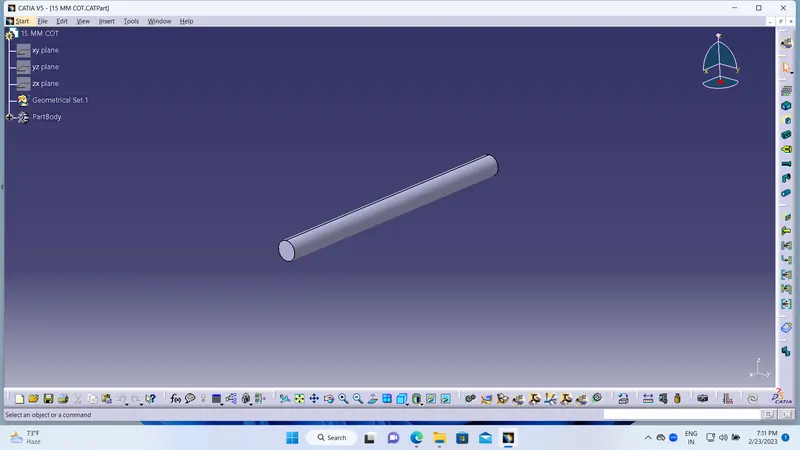

IN THE CORRUGATED TUBE I WILL CREATE WITH THE HELP OF DEFINE PROTECTION PART ONCE YOU WILL CLICK ON THIS COMMAND YOU CAN GIVE THE NAME 15 MM TYPE CORRUGATED TUBE INNER DIA 12 MM THICKNESS 1.5 MM BEND RADIOUS IS 1.5 TIMES OF THE INNER DIA SO OUR FIRST TUBE WILL COMPLETE. AFTER THAT I WILL USE THE CATALOGUE sLITCOT FAMILY AND SAVE THIS TUBE IN THIS CATALOGUE FOR THE FUTURE.

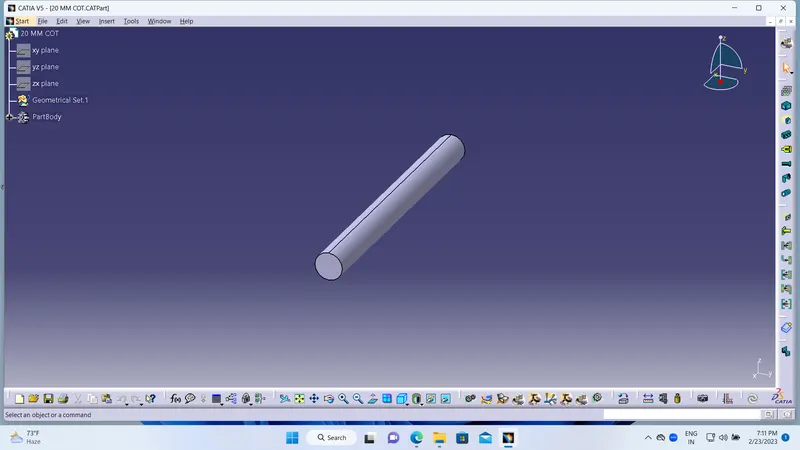

IN THE CORRUGATED TUBE I WILL CREATE WITH THE HELP OF DEFINE PROTECTION PART ONCE YOU WILL CLICK ON THIS COMMAND YOU CAN GIVE THE NAME 20 MM TYPE CORRUGATED TUBE INNER DIA 17 MM THICKNESS 1.5 MM BEND RADIOUS IS 1.5 TIMES OF THE INNER DIA SO OUR FIRST TUBE WILL COMPLETE. AFTER THAT I WILL USE THE CATALOGUE sLITCOT FAMILY AND SAVE THIS TUBE IN THIS CATALOGUE FOR THE FUTURE.

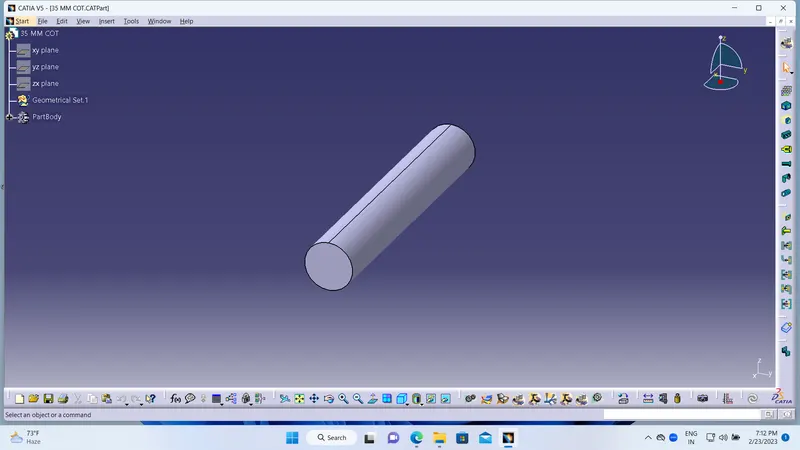

IN THE CORRUGATED TUBE I WILL CREATE WITH THE HELP OF DEFINE PROTECTION PART ONCE YOU WILL CLICK ON THIS COMMAND YOU CAN GIVE THE NAME 35 MM TYPE CORRUGATED TUBE INNER DIA 32 MM THICKNESS 1.5 MM BEND RADIOUS IS 1.5 TIMES OF THE INNER DIA SO OUR FIRST TUBE WILL COMPLETE. AFTER THAT I WILL USE THE CATALOGUE sLITCOT FAMILY AND SAVE THIS TUBE IN THIS CATALOGUE FOR THE FUTURE.

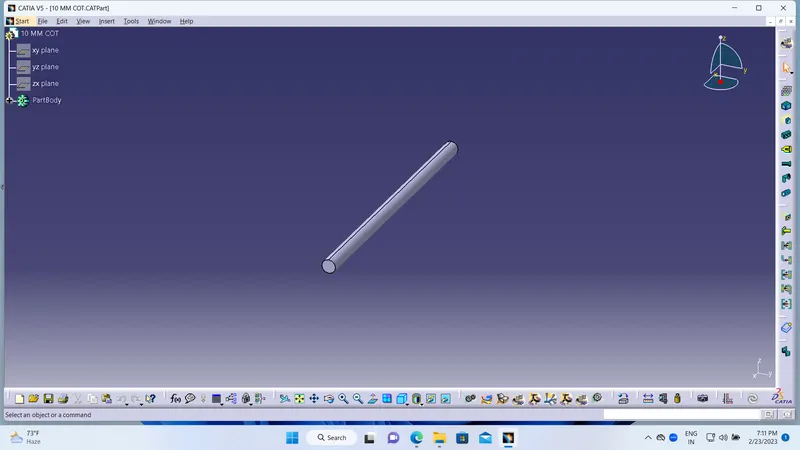

IN THE CORRUGATED TUBE I WILL CREATE WITH THE HELP OF DEFINE PROTECTION PART ONCE YOU WILL CLICK ON THIS COMMAND YOU CAN GIVE THE NAME 10 MM TYPE CORRUGATED TUBE INNER DIA 7 MM THICKNESS 1.5 MM BEND RADIOUS IS 1.5 TIMES OF THE INNER DIA SO OUR FIRST TUBE WILL COMPLETE. AFTER THAT I WILL USE THE CATALOGUE sLITCOT FAMILY AND SAVE THIS TUBE IN THIS CATALOGUE FOR THE FUTURE.

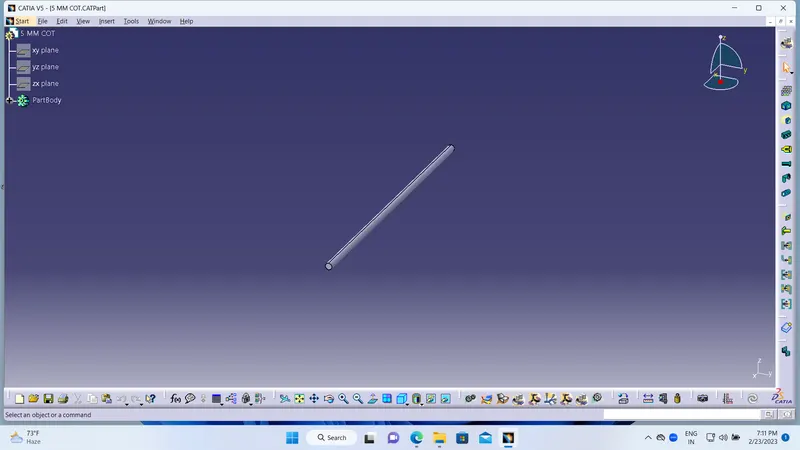

IN THE CORRUGATED TUBE I WILL CREATE WITH THE HELP OF DEFINE PROTECTION PART ONCE YOU WILL CLICK ON THIS COMMAND YOU CAN GIVE THE NAME 5 MM TYPE CORRUGATED TUBE INNER DIA 3 MM THICKNESS 1.5 MM BEND RADIOUS IS 1.5 TIMES OF THE INNER DIA SO OUR FIRST TUBE WILL COMPLETE. AFTER THAT I WILL USE THE CATALOGUE sLITCOT FAMILY AND SAVE THIS TUBE IN THIS CATALOGUE FOR THE FUTURE.

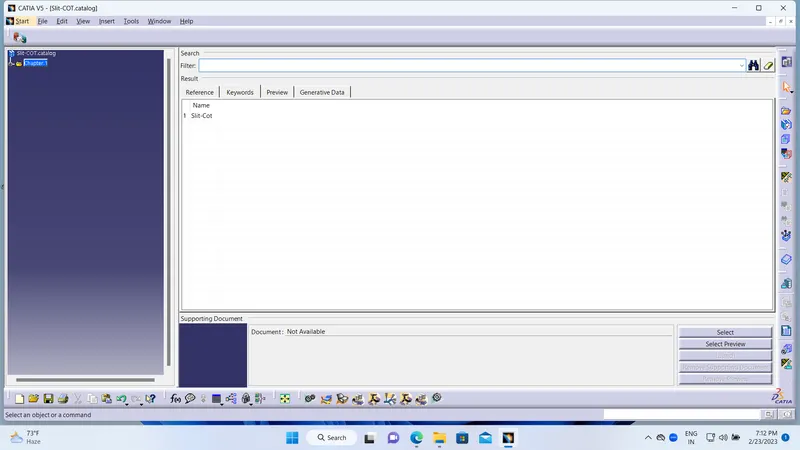

CATALOGUE -

A catalog is a CATIA V5 document that keeps a list of references to other CATIA parts and features. A typical CATIA document is a generic family table with specific instances within a library context.

IMAGES -
