Wiring harness routing & packaging Rules Week 3 Challenge

Wiring harness routing & packaging Rules Week 3 Challenge:-

Aim:-

Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

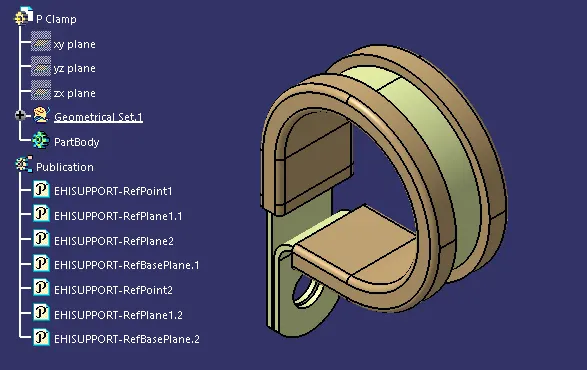

Q1. P Clamp:-

1. The given clip was downloaded and opened as a part file.
2. I have to define two points that will be used as entry and exit points.
3. Then a plane has to be defined at the points.
4. A base plane has to be defined at a distance of 2 to 3 mm from the clip.
5. again we define the exit point at the first definition as the entry point.
6. hence I have two entry and two exit points.

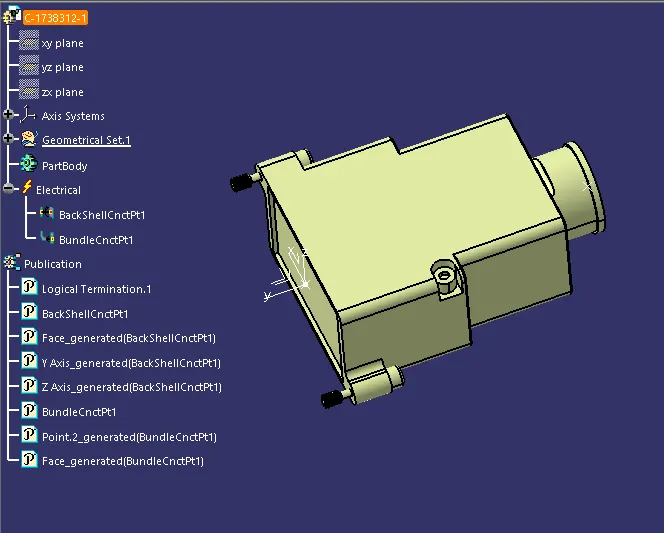

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Process:

• create Back shell entry point.
• create axis system for back shell entry.
• create bundle connection point.
• switch to Electrical part design.
• Define part electricaly as back shell.
• Then define Back shell connection point.
• Define bundle connection point.

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

Process:-

• Switch to Electrical part design
• Select Define protection Part
• Click on part (on file name in specification tree)
• Provide given parameters and bend radius as '1.5 x Outer Dia'.

Catalogue Cretation:-

• new part - catalogue document - add family - give name - type - select Conduit - save.
• Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok

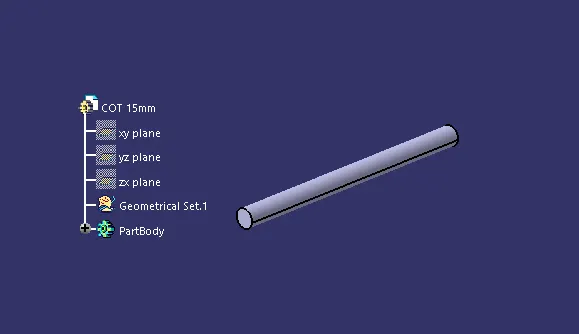

15mm COT:-

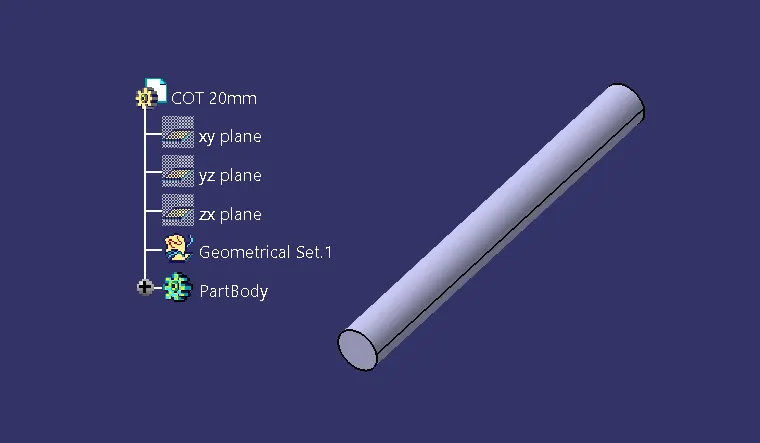

20 mm COT:-

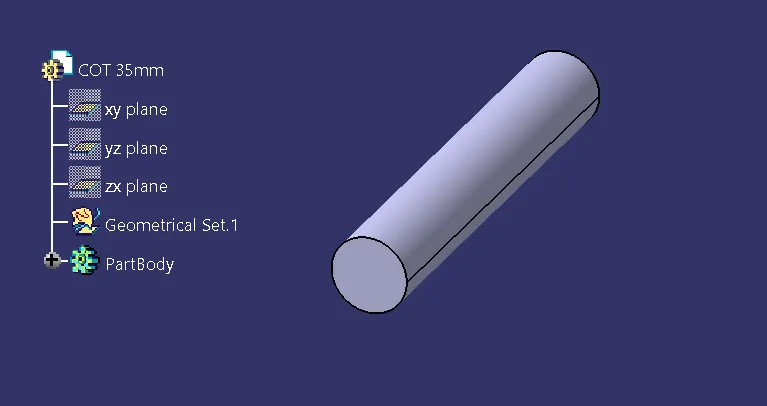

35 mm COT:-

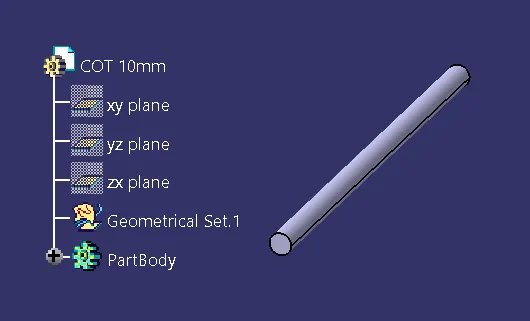

10 mm COT:-

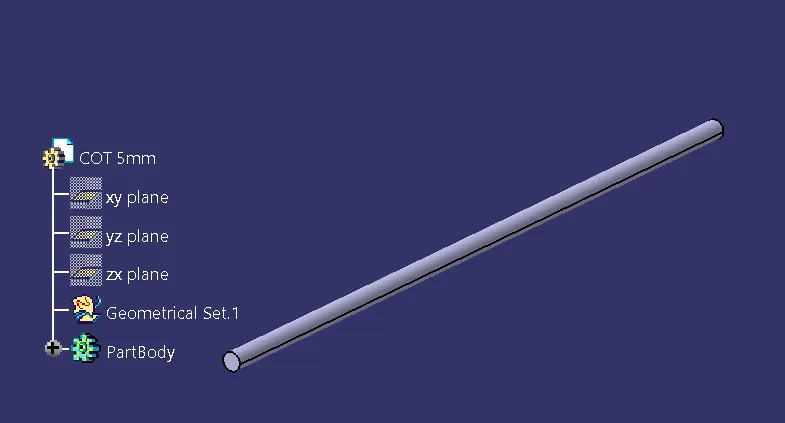

5 mm COT:-
