Wiring harness routing & packaging Rules Week 3 Challenge

Q1.

1. The given clip was downloaded and opened as a part file.

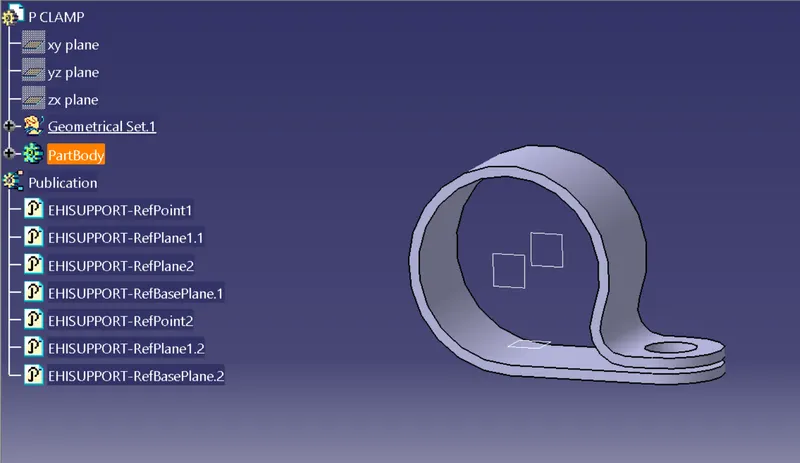

2. I have to define two points that will be used as entry and exit points.

3. Then a plane has to be defined at the points .

4. A base plane haS to be defined at a distance of 2 to 3 mm from the clip.

5. again we define the exit point at the first definition as the entry point.

6. Hence i have two entry and two exit points.

Q2.

1.The backshell data was downloaded from the website.

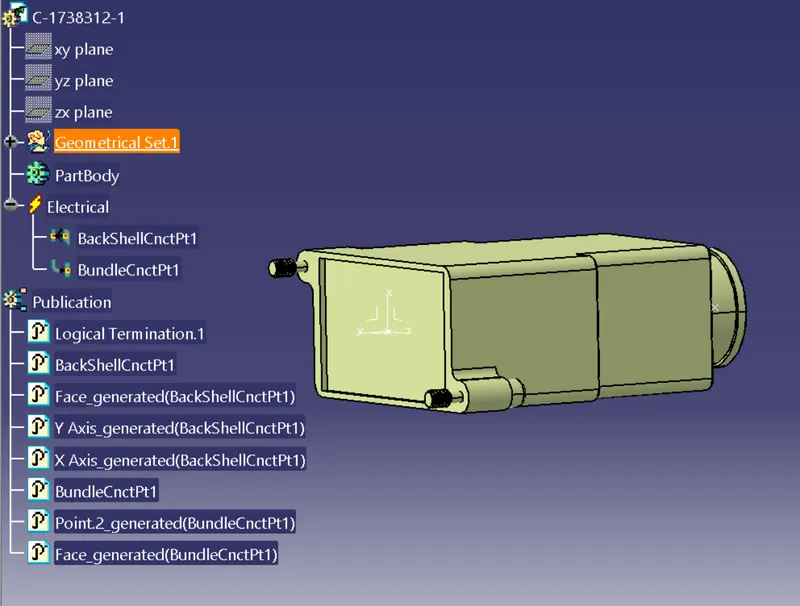

2. we define the points in the part workbench.

3.An axis system with the correct axis orientation is placed at the backshell connection point .

4.The points have to be defined as the backshell connection and bundle connection points.

Q3.

1.We define the cot tubes in the electrical part workbench.

2. The inner Dia &thickness are given as the inputs.

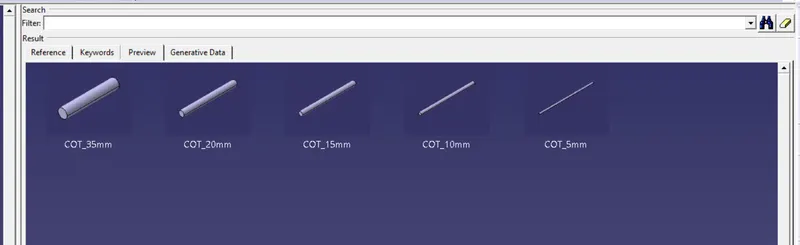

3. a catalog was created for the cot tubes.

4.all the cot tubes were saved in the catalog
