Wiring harness design in CATIA V5 - 3D modeling Week 4 Challenge

Aim:-

(1) To Route the following harness layout in Electrical workbench.

(2) Add protective covering on all branches connected to DT06-2S & DT06-4S connectors.

  Given -.

  CAD data of the following Connectors: .

•  DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

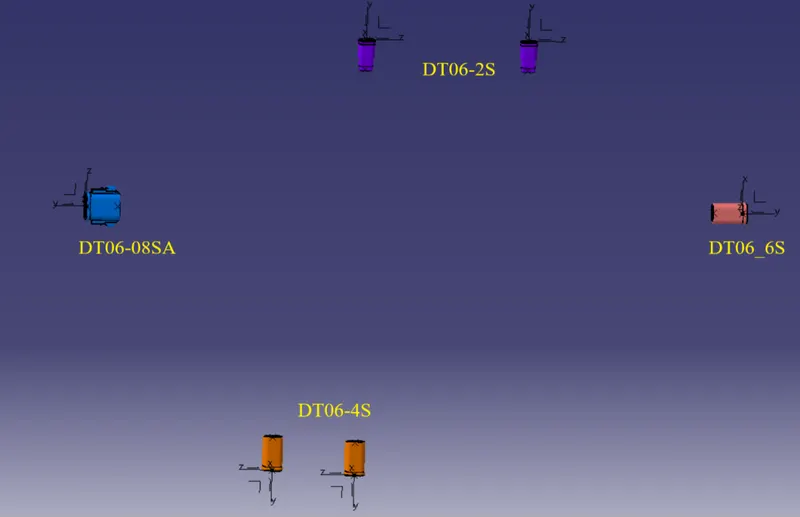

  Connectors Layout Design.

Steps to be followed.

1. Download connector 3D data form www.te.com

•  DT06-4S
• DT06-6S
• DT06-2S
• DT06-08SA

 2. Convecting the Mechanical part into the Electrical part for that I had followed the following steps.

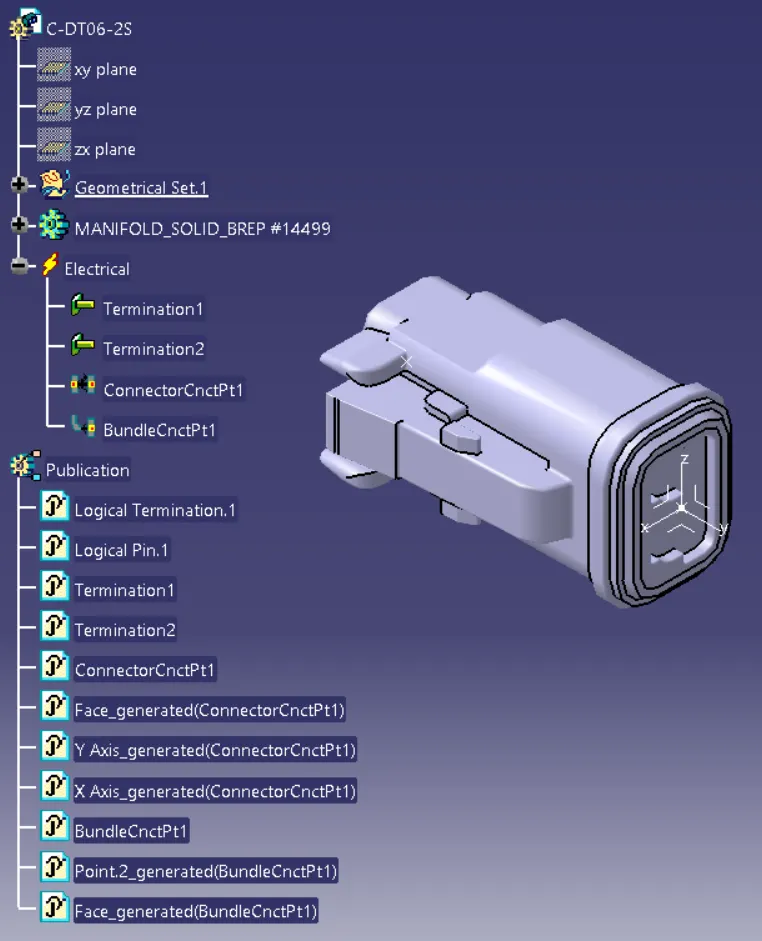

     For DT06-2S.

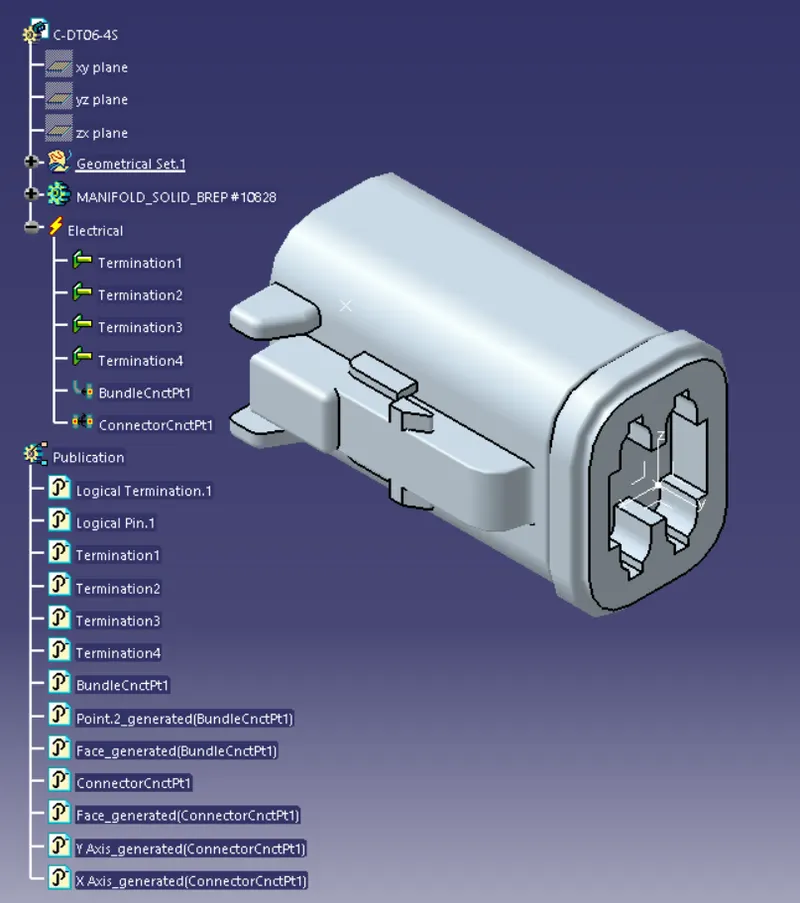

    For DT06-4S.

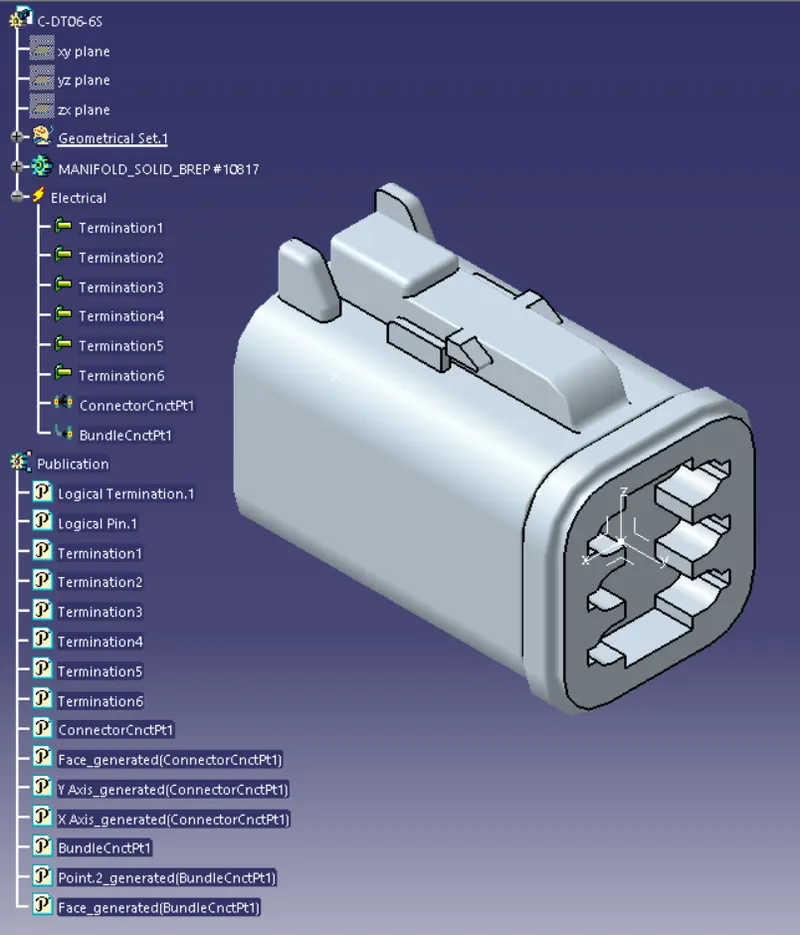

For DT06-6S

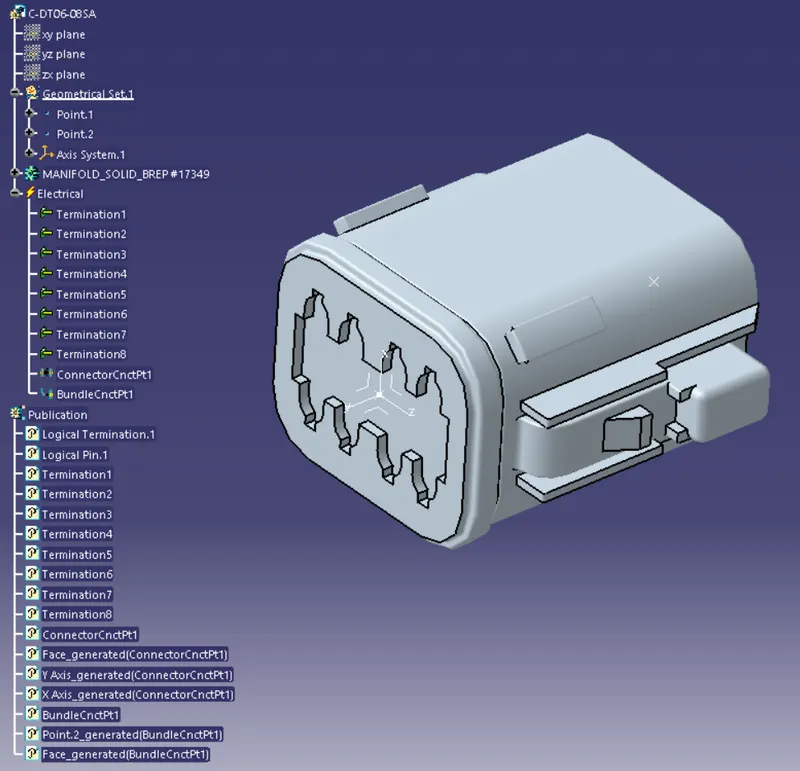

For DT06-08SA.

   3. Arranging the Connectors by following the Layout

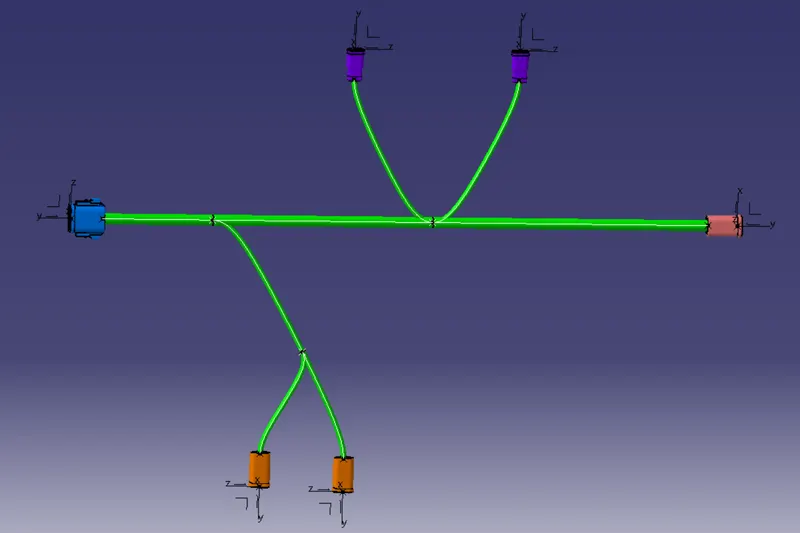

   4. Creating Multi-Branching to the connectors.

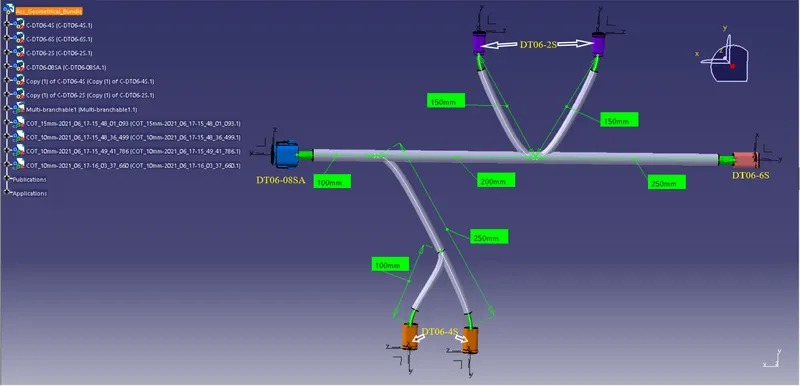

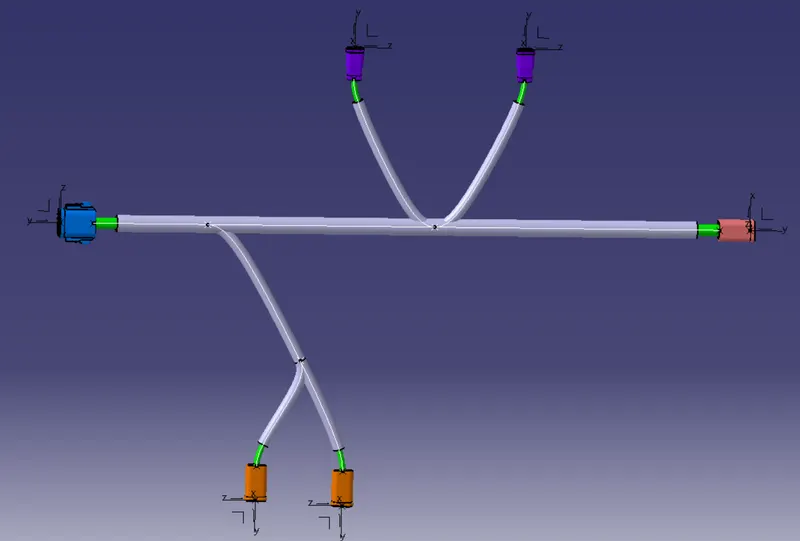

    5. creating a protective covering  .

    6. checking as per Layout.
