Wiring harness routing & packaging Rules Week 3 Challenge

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

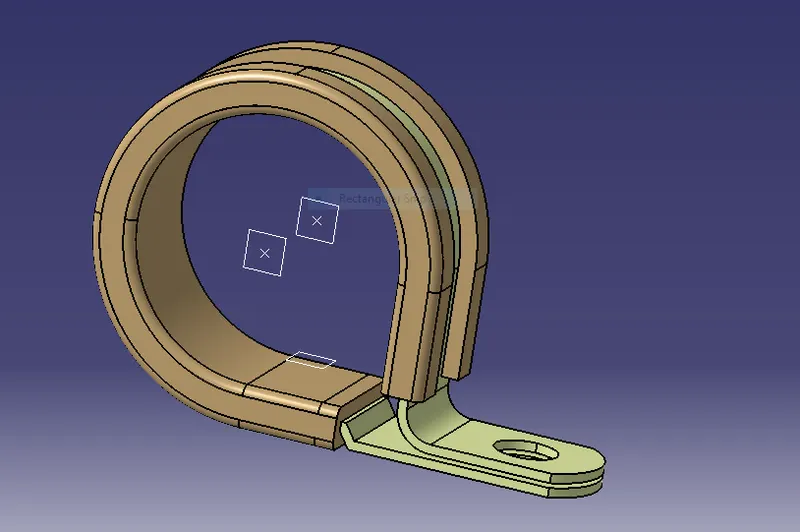

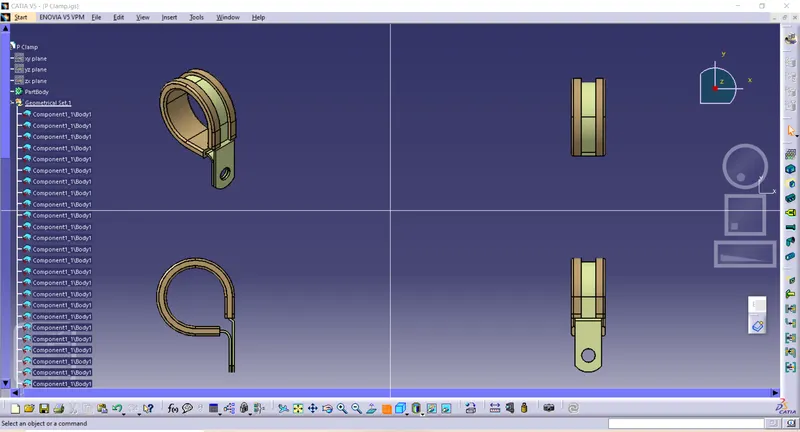

P CLAMP

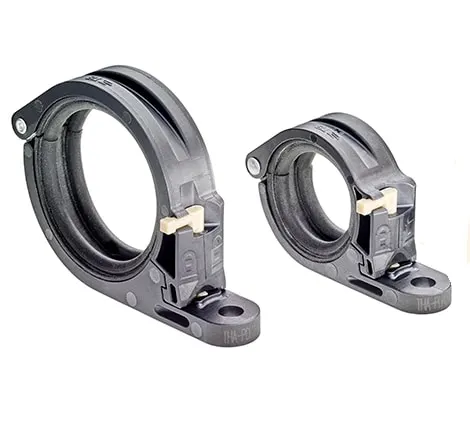

The P-Clamp from TE Connectivity (TE) offers a compact, quick, and effective way to instal cable harnesses. The whole cable diameter range of (21) AS21919 P-Clamp sizes is covered by (10) TE P-Clamp sizes. TE P-Clamps have a lower application cost than normal AS21919 P-Clamps because they are easier to instal and weigh less.

Tyco 1738312-1 Connector

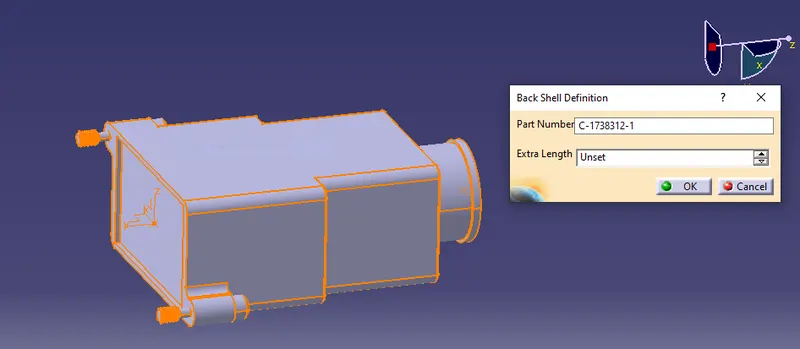

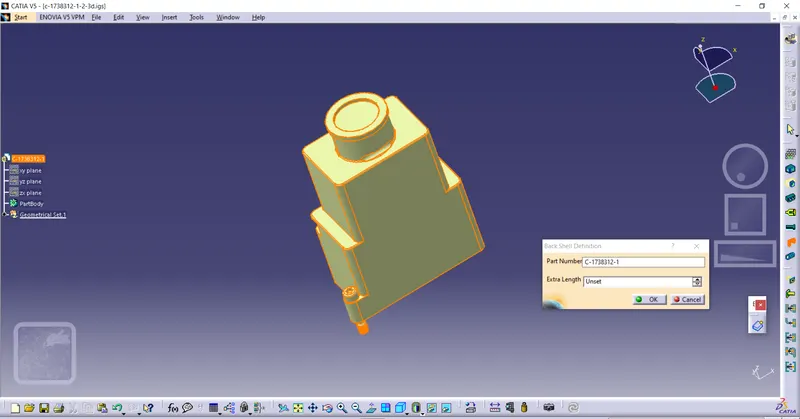

Back Shell definition

Part Number : C - 1738312-1

Extra Length : Unset

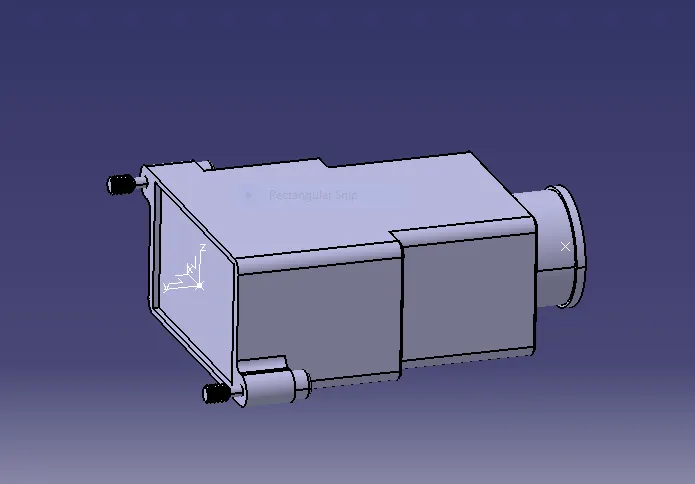

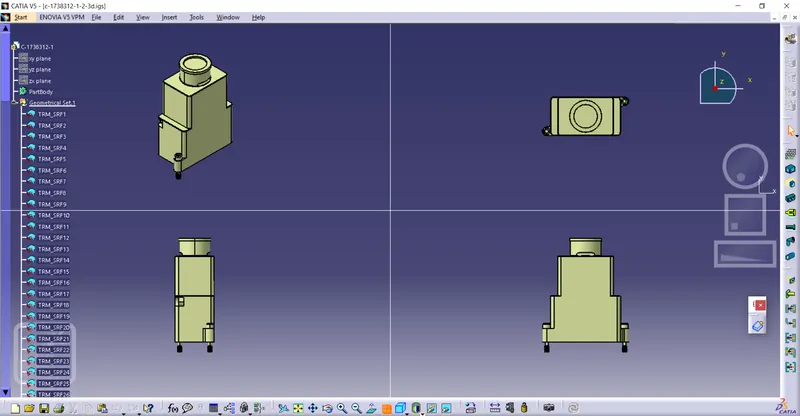

Back shell cad data Tyco 1738312-1 Connector



first create entry point and and plane

then create exit point and plane

then add base plane for it

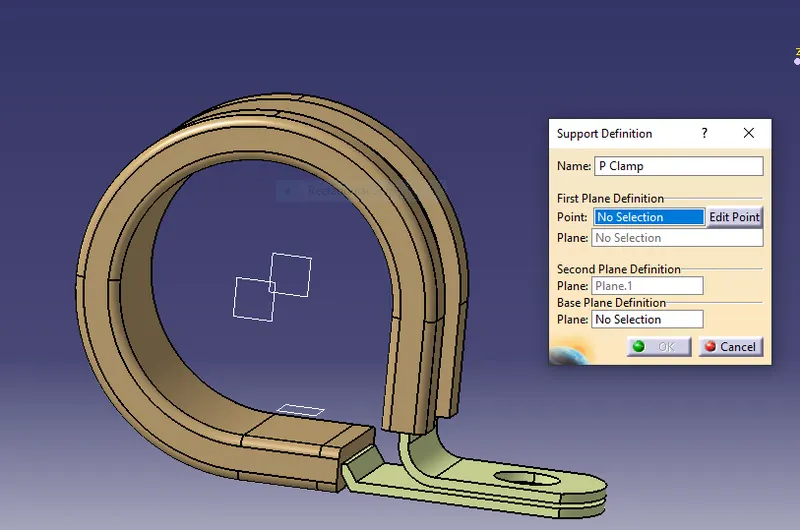

go into electrical work bench and click support definition.

first add entry point entry plane exit plane and base.

then click  support definition again and add the exit pont exit plane and the base plane

note If you face any issue with point definition, point selection, Right-click on the point definition window and use the reset option.

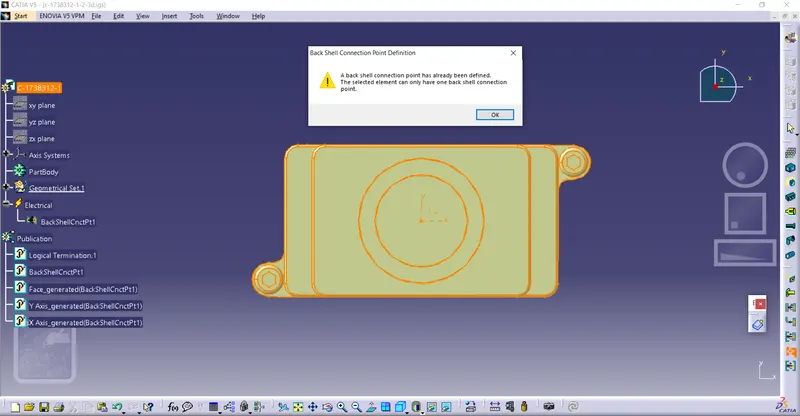

 Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

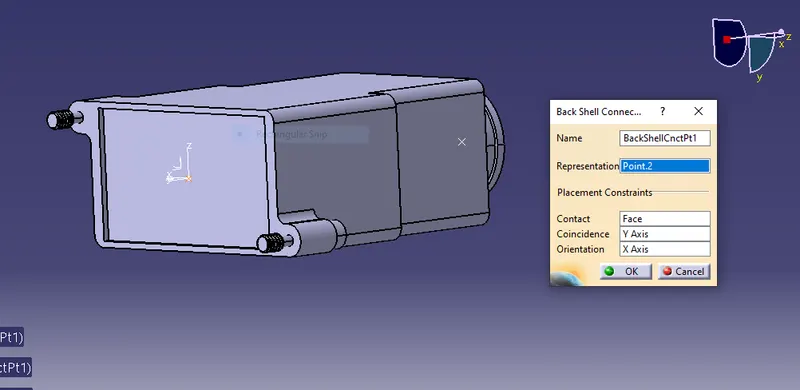

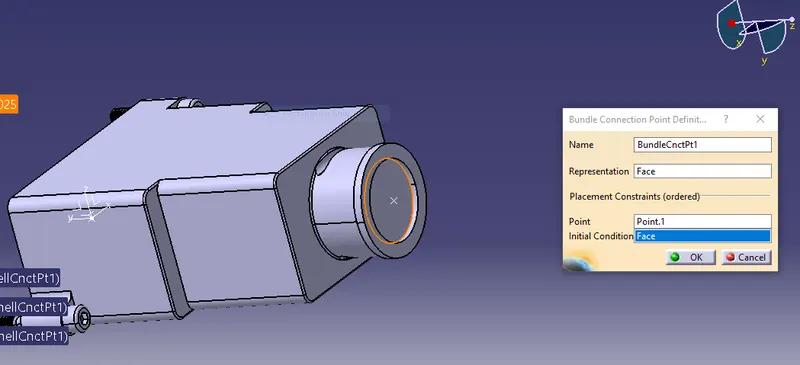

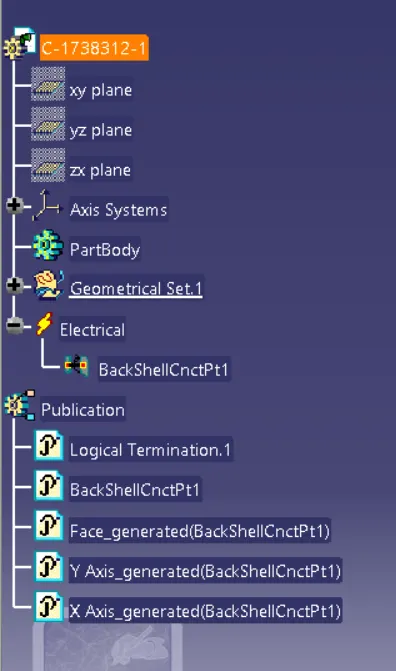

first define the bundle entry point and the shell fixing point also add the axis system to the fixing point make sure

the axis is in same direction as the of connectors.



define the shell as an electrical body

add bundle entry parameters.

Q3) Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

Answer

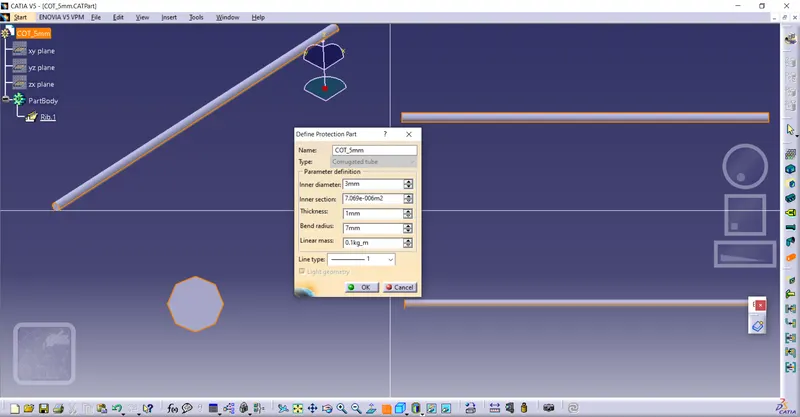

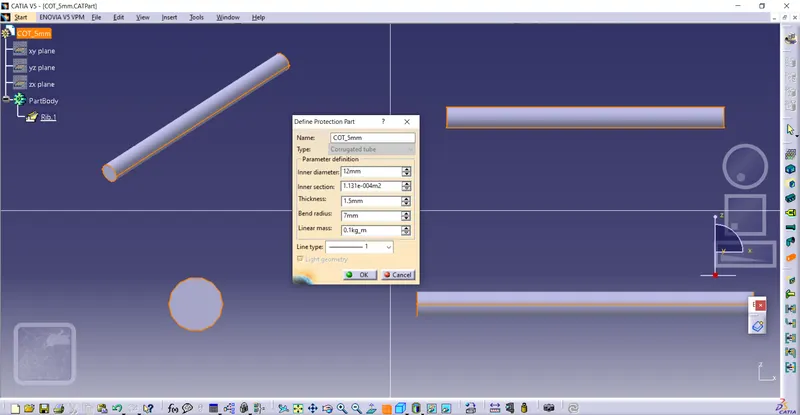

5mm Cot

5mm COT

3

5

1

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5

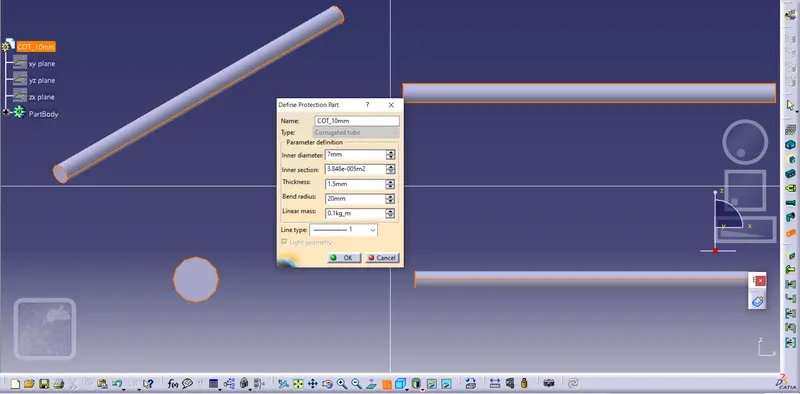

10mm Cot

10mm COT

7

10

1.5

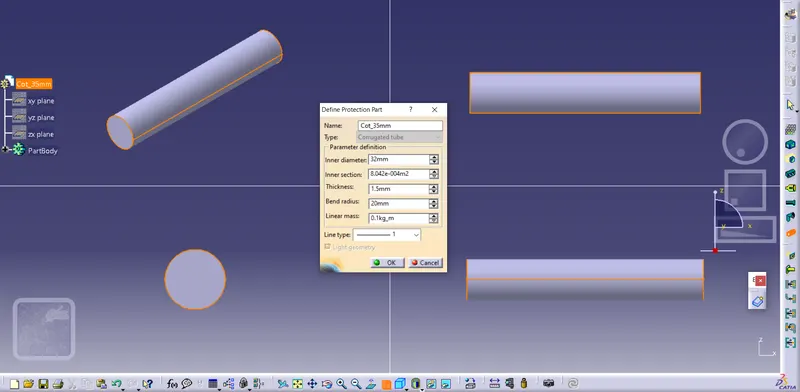

35mm COT

32

35

1.5

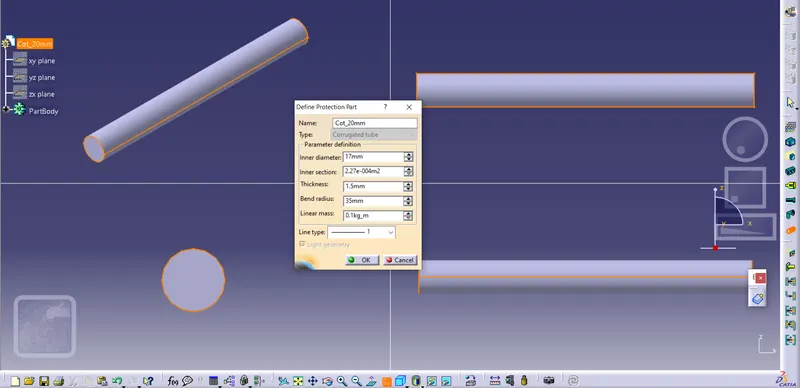

20mm COT

17

20

1.5

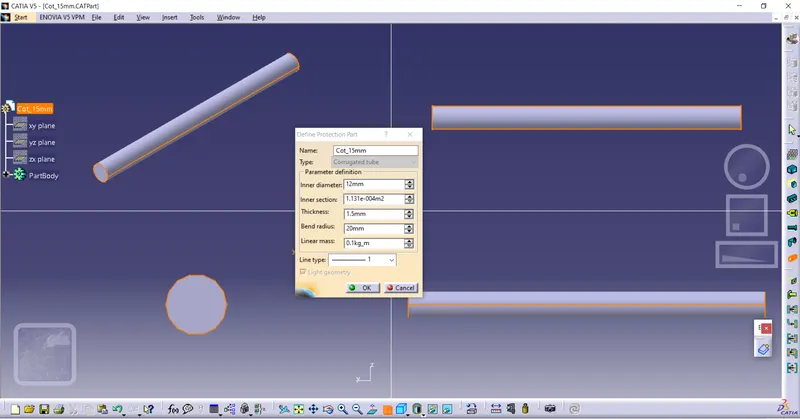

15mm Cot

15mm COT

12

15

1.5

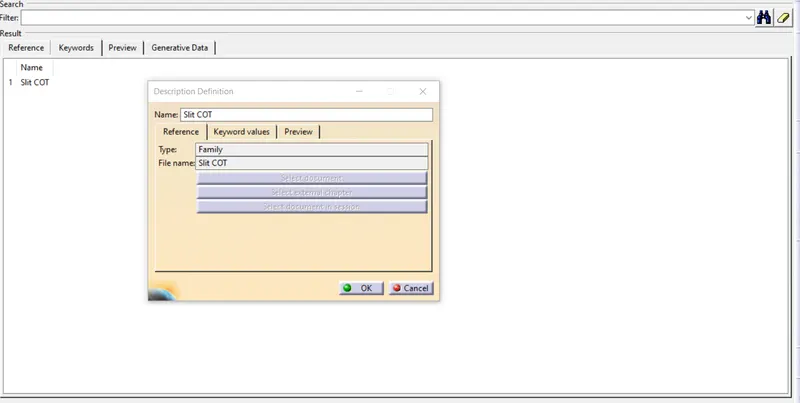

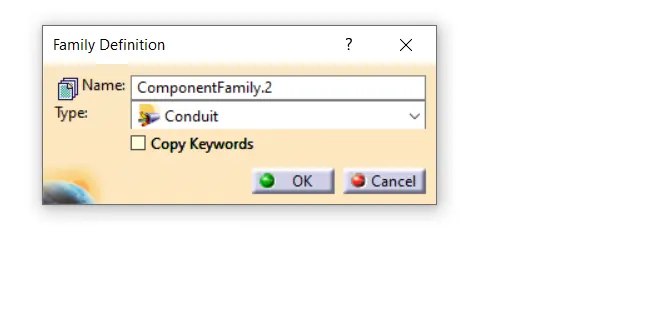

Catalogue

All the cot family were added in Spit

add the back shell parameters.
