Wiring harness routing & packaging Rules Week 3 Challenge

AIM :

• Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
• Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Name	ID (mm)	OD (mm)	Thickness (mm)
15mm COT	12	15	1.5
20mm COT	17	20	1.5
35mm COT	32	35	1.5
10mm COT	7	10	1.5
5mm COT	3	5	1

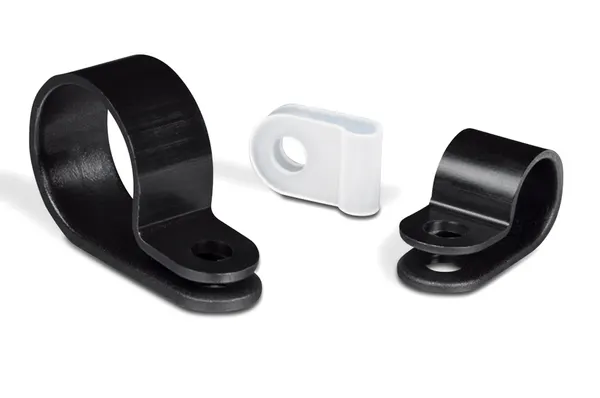

P CLAMP

P-clamps lock cables and hoses in place and help ensure that machinery, vehicles and equipment keep running. They bracket wires, cables or hoses together mechanically and are fastened securely to an anchor point – usually with a screw or a bolt.

CORRUGATED TUBES.

Corrugated stainless steel tubing (CSST) is tubing made of stainless steel with corrugation on the inside or outside. CSST is not FAC (Flexible Appliance Connector) tubing. Presently, CSST and FAC tubing both use corrugated stainless steel tubing. In the past, FAC used corrugated brass tubing.

DEFINING P CLAMP

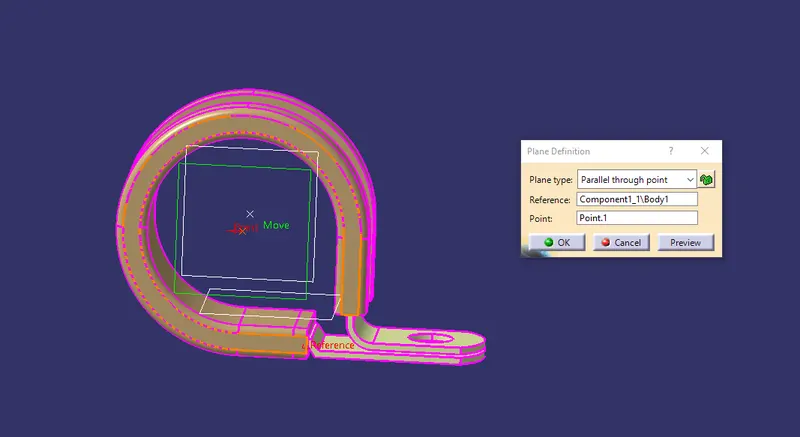

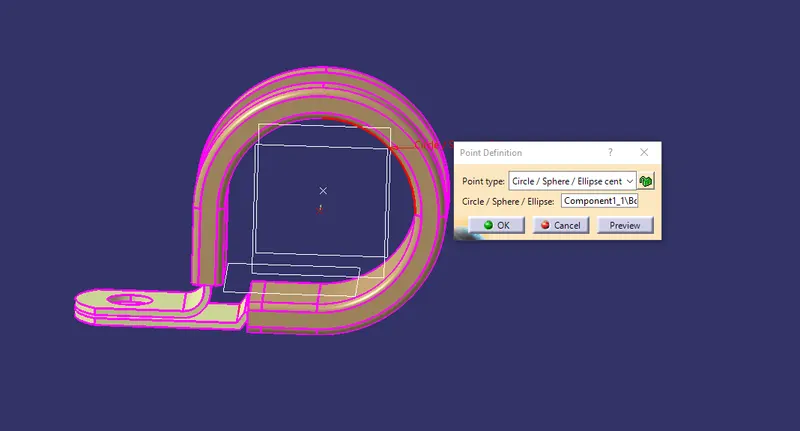

pont and plane on entry side of the wire in p clamp

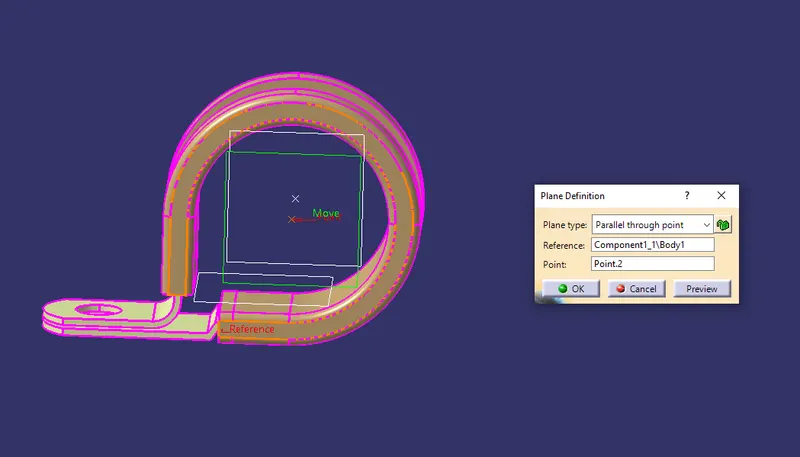

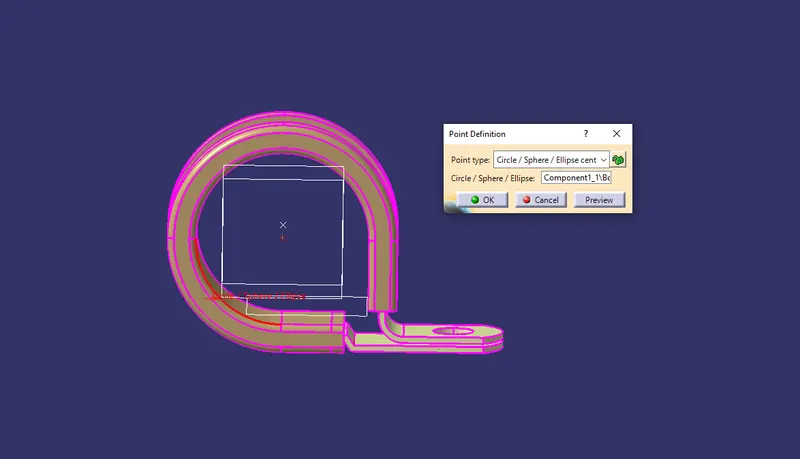

WIRE EXITING POINT AND PALNE

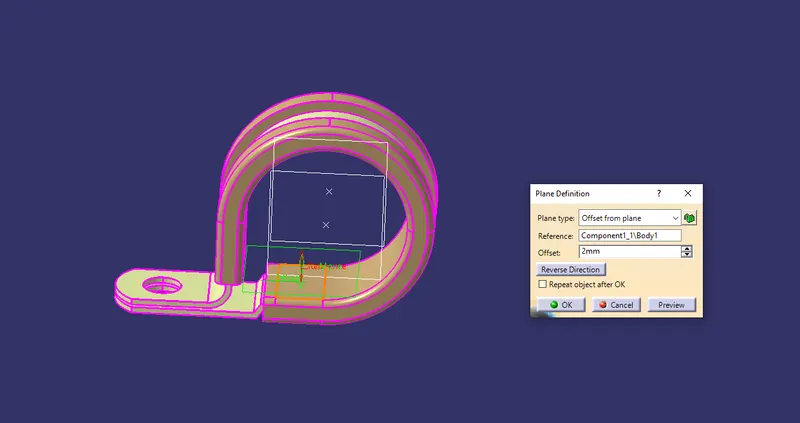

BOTTOM PLANE

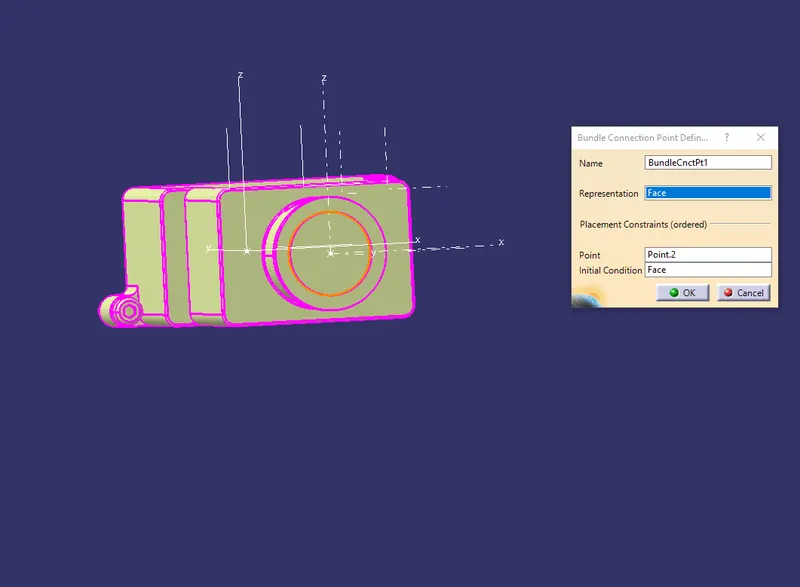

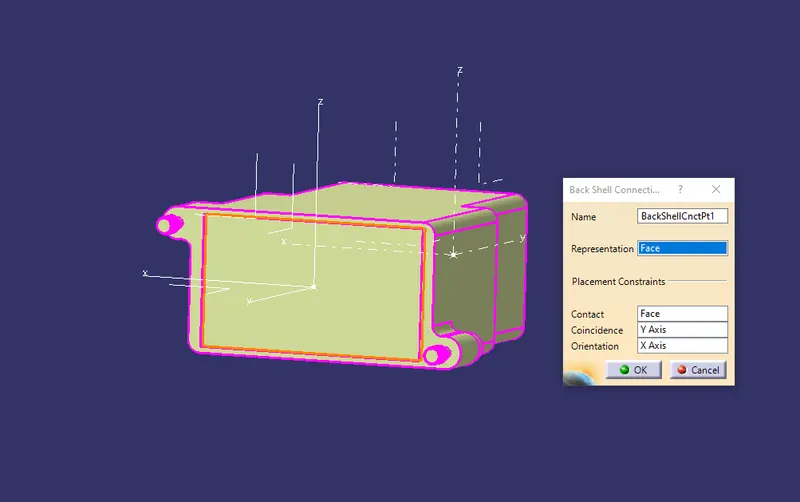

DEFINING THE BACK SHELL

backshell (plural backshells) (mechanical) Part of an electrical conductor or other electrical device, such as a cable clamp or adapter, that is threaded onto the rear connector accessory threads of plug or receptacle connectors to make up the total connector assembly.

A backshell is a mechanical device threaded into the rear of an electrical connector. The more popular backshells are strain relief, cable clamps and adaptors. The SUNBANK brand offers a wide range of standard and customized backshells for the aviation and defense markets.

CONNETION DEFINATION

BUNDLE DEFINATION

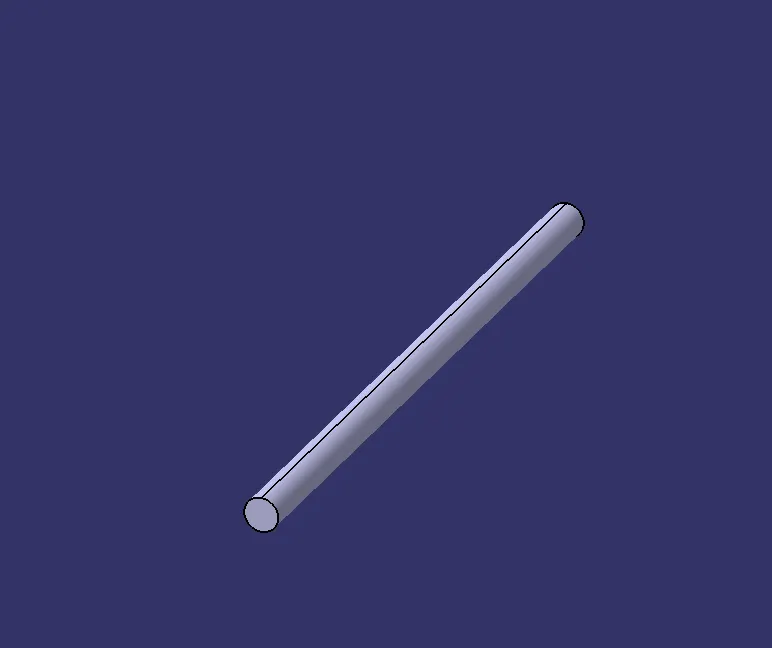

CORRUGATED TUBES

Corrugated stainless steel tubing (CSST) is tubing made of stainless steel with corrugation on the inside or outside. CSST is not FAC (Flexible Appliance Connector) tubing. Presently, CSST and FAC tubing both use corrugated stainless steel tubing. In the past, FAC used corrugated brass tubing

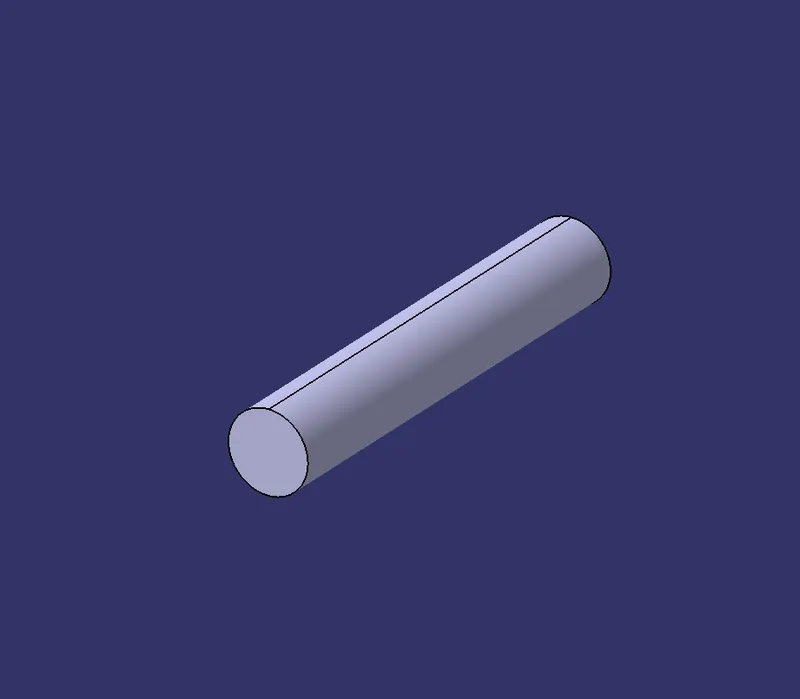

15 MM COT

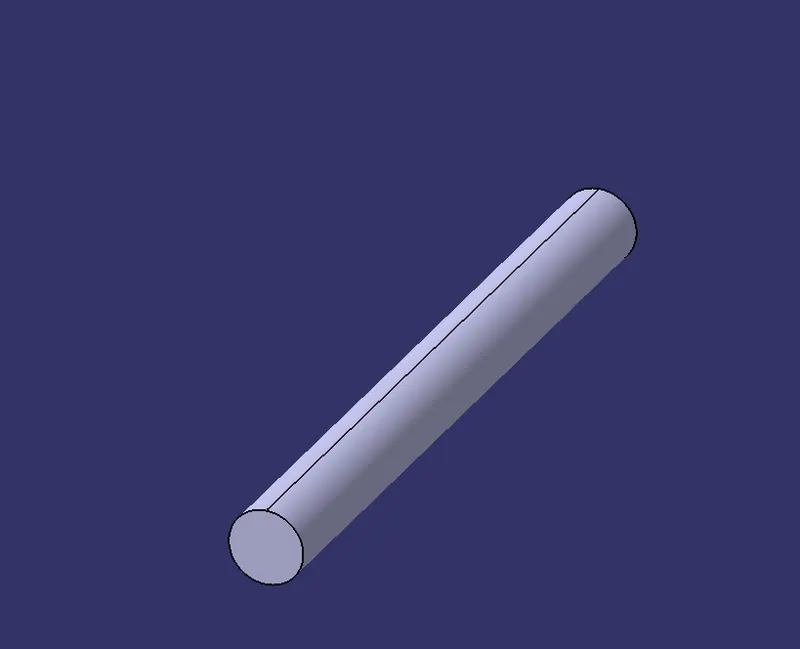

20MM COT

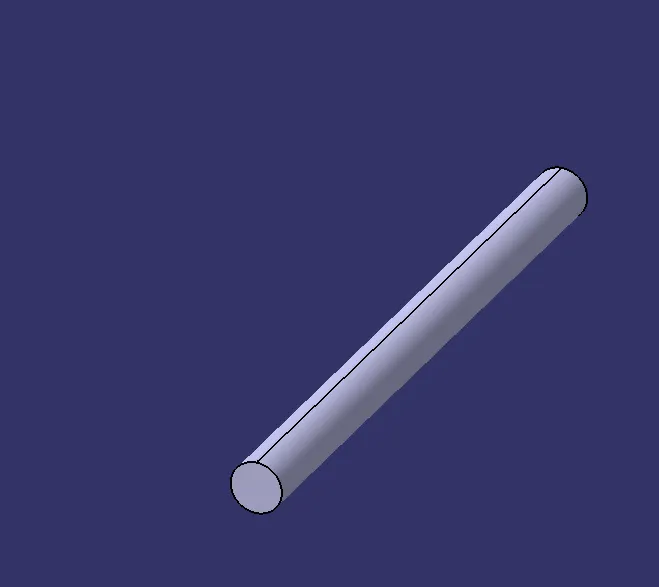

35mm COT

10mm COT

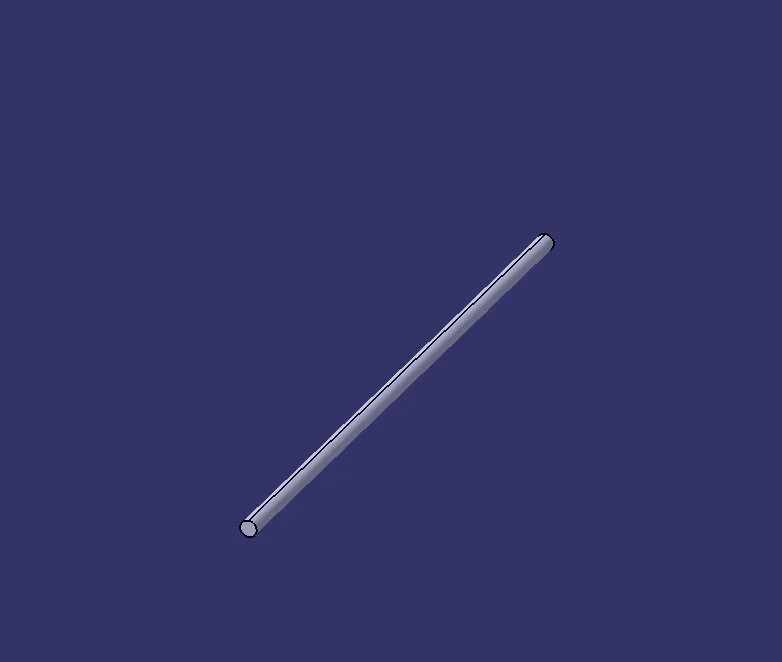

5mm COT

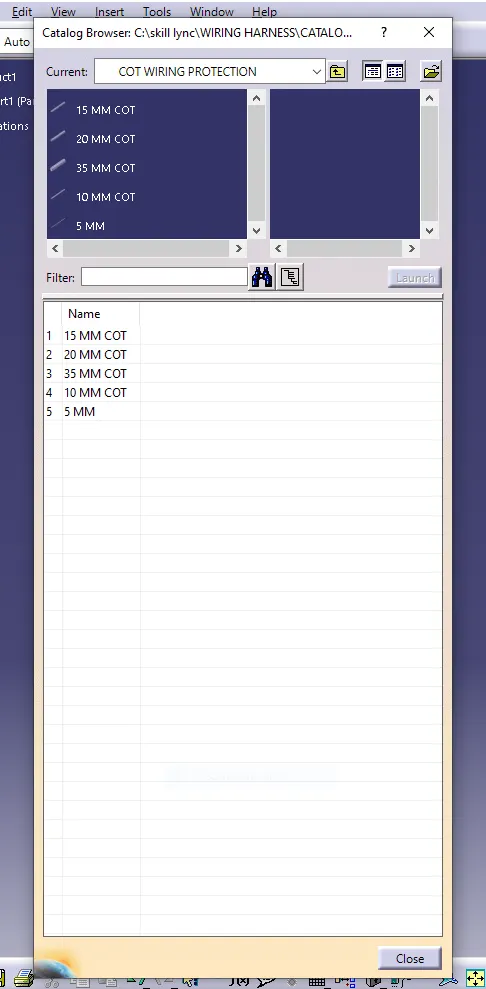

Corrugated tubes & Add them in Catalogue under “Slit COT” family.

CONCLUSION:

• From the above assignment we learnt how to define the Electrical support for a P-Clamp and also define its Electrical properties.
• We also learnt how to Electrical Backshell for a Backshell component and also define its Electrical properties.
• We also learnt how to make Corrugated Tubes of different diameters and also save them in the respective families in the Corrugated Tubes catalogues.
