Wiring harness routing & packaging Rules Week 3 Challenge

Q.1 Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

P clamp

Ans:

Procedure to define S-Clamp is as follows:

1. S-clamp downloaded form given site and load into the Catia V5
2. Define two points and two planes as entry and exit, also define base plane.
3. Shift to the electrical part design.
4. Define part as support.
5. Define entry and exit plane (clamp have two entry and two exits)
6. Also define the base plan

Q.2 Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html

Ans:

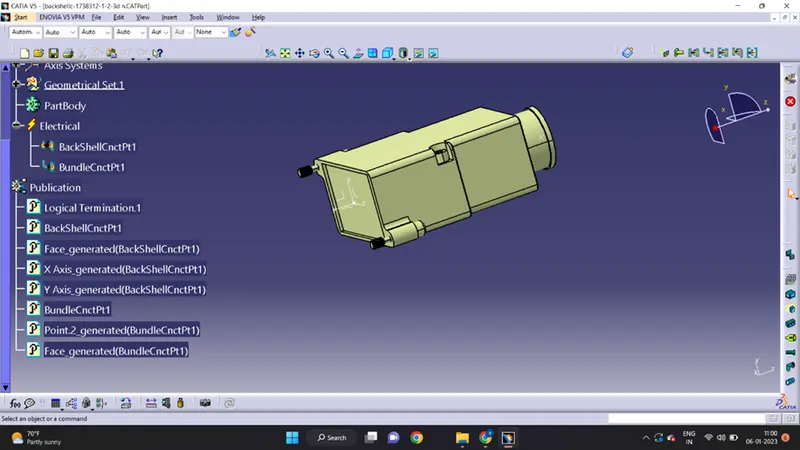

1. The backshell data was downloaded from the website.
2. We define the points in the part workbench.
3. An Axis system with the correct axis orientation is placed at the backshell connection point.
4. The points have to be defined as the backshell connection and bundle connection points.

Q.2 Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

1. COT_15mm ID- 12 OD-15 TK-1.5
2. COT_20mm ID- 11 OD-20 TK-1.5
3. COT_35mm ID- 32 OD-35 TK-1.5
4. COT_ 10mm ID- 07 OD-10 TK-1.5
5. COT_05mm ID- 03 OD-05 TK-1.0

Ans:

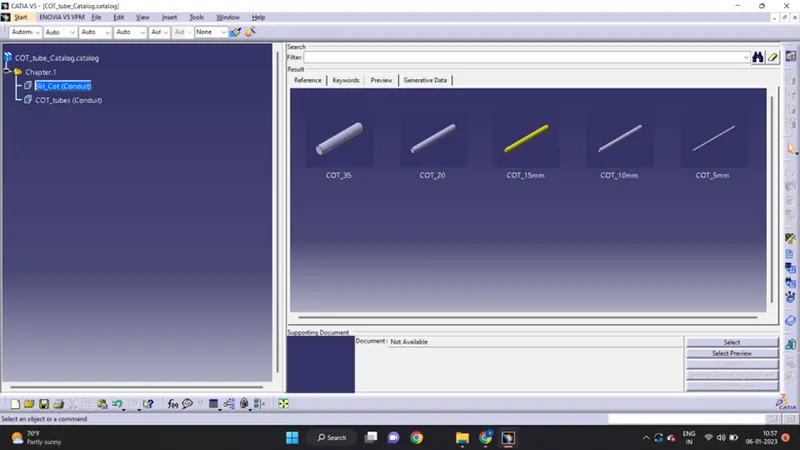

1. Create a cot tube in the electrical workbench
2. The inner dia & thickness are given as the inputs.
3. a catalogue was created for the cot tubes.
4. all the cot tubes were saved in the catalogue.

Q.2 Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

1. COT_15mm ID- 12 OD-15 TK-1.5
2. COT_20mm ID- 11 OD-20 TK-1.5
3. COT_35mm ID- 32 OD-35 TK-1.5
4. COT_ 10mm ID- 07 OD-10 TK-1.5
5. COT_05mm ID- 03 OD-05 TK-1.0

Ans:

1. Create a cot tube in the electrical workbench
2. The inner dia & thickness are given as the inputs.
3. a catalogue was created for the cot tubes.
4. all the cot tubes were saved in the catalogue.
