Q1. Download following clip cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

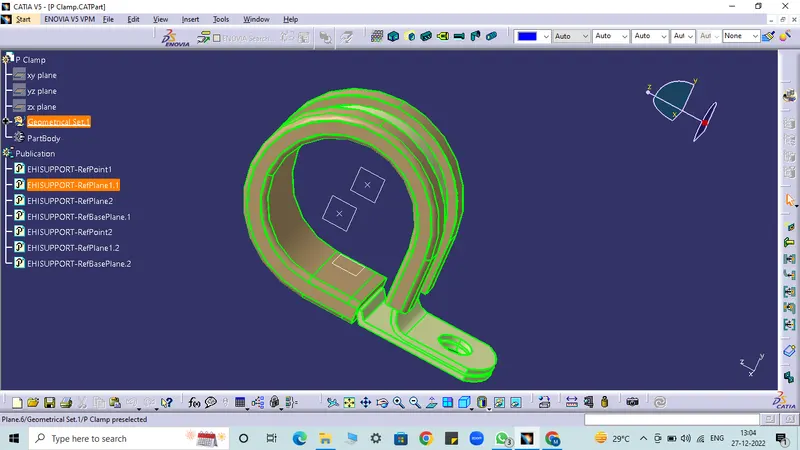

P CLAMP
- The given clip was downloaded and opened as a part file.
- I have to define two points that will be used as entry and exit points.
- Then a plane has to be defined at the points.
- A base plane has to be defined at a distance of 2 to 3 mm from the clip.
- again we define the exit point at the first definition as the entry point.
- hence I have two entry and two exit points.
Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

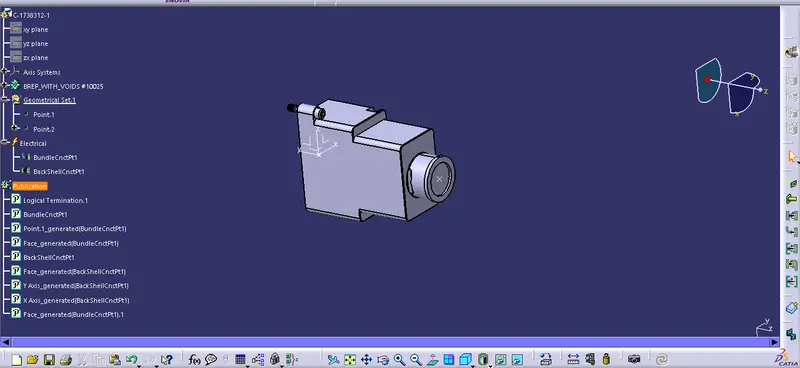

Tyco 1738312-1 https://www.te.com/usa-en/product-1738312-1.html
Process:
- create Back shell entry point.
- create axis system for back shell entry.
- create bundle connection point.
- switch to Electrical part design.
- Define part electricaly as back shell.
- Then define Back shell connection point.
- Define bundle connection point.
Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Process:

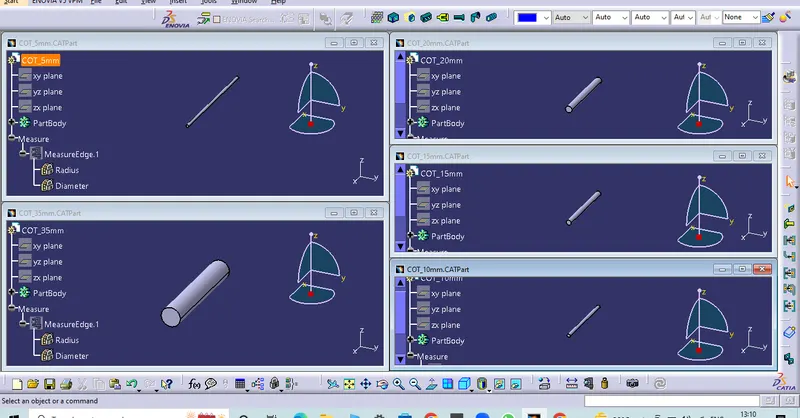

- Switch to Electrical part design
- Select Define protection Part
- Click on part (on file name in specification tree)
- Provide given parameters and bend radius as '1.5 x Outer Dia'.
Catalogue Cretation:

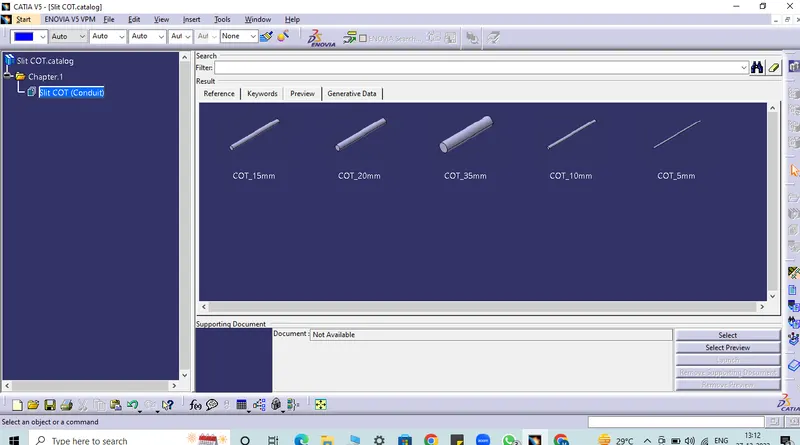

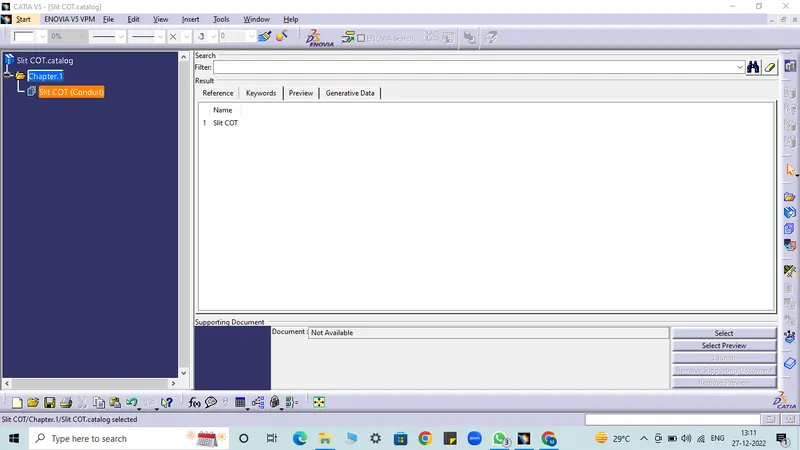

- new part - catalogue document - add family - give name - type - select Conduit - save.
- Open part to add catalogue - store device command - select catalogue - family - Slit_cot_tube - ok
