Wiring harness routing & packaging Rules Week 3 Challenge

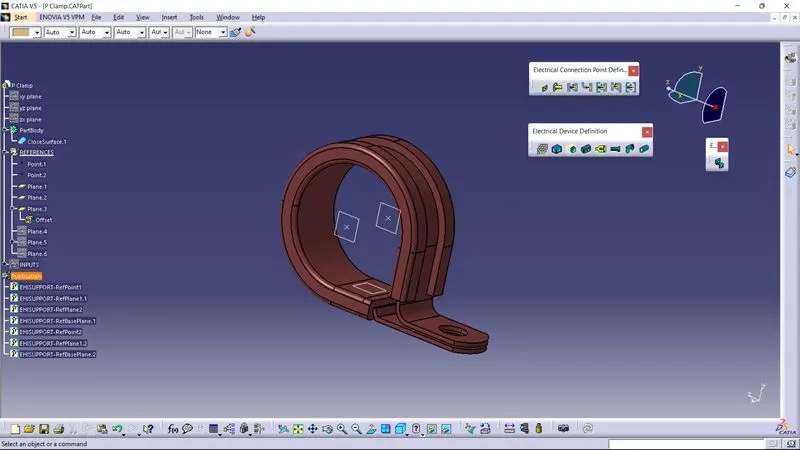

 Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.

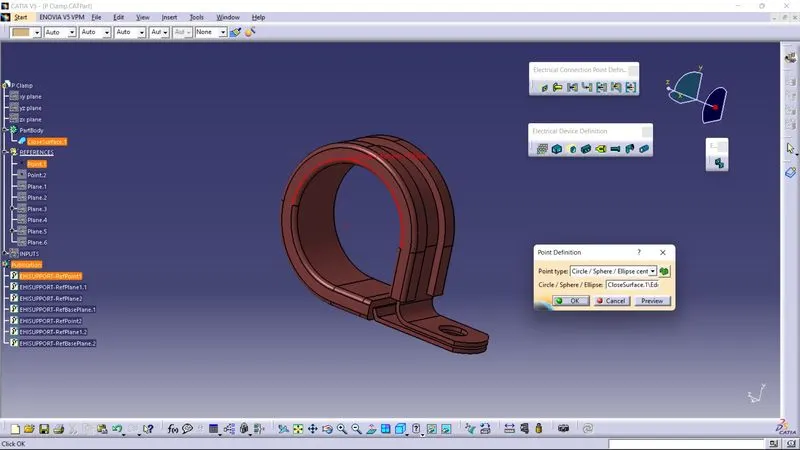

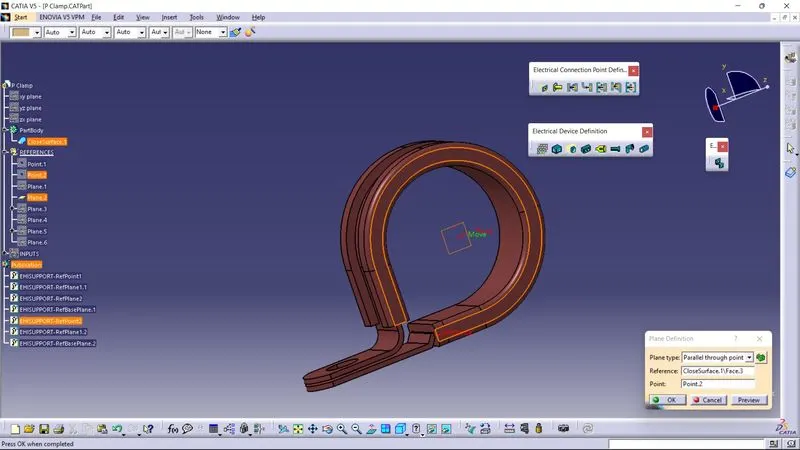

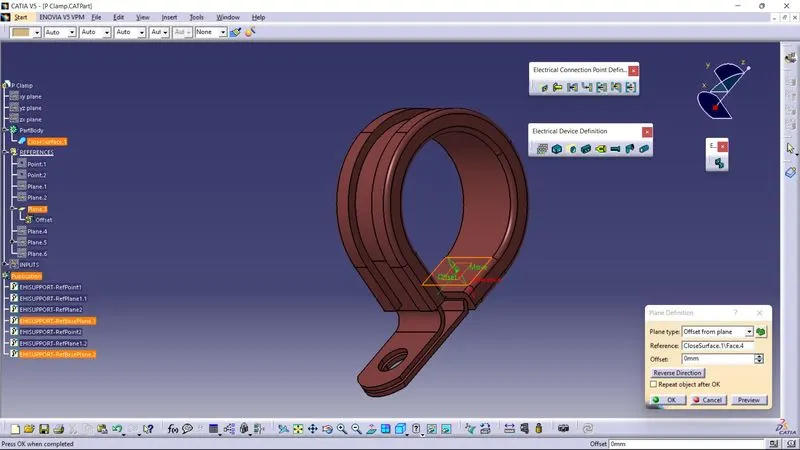

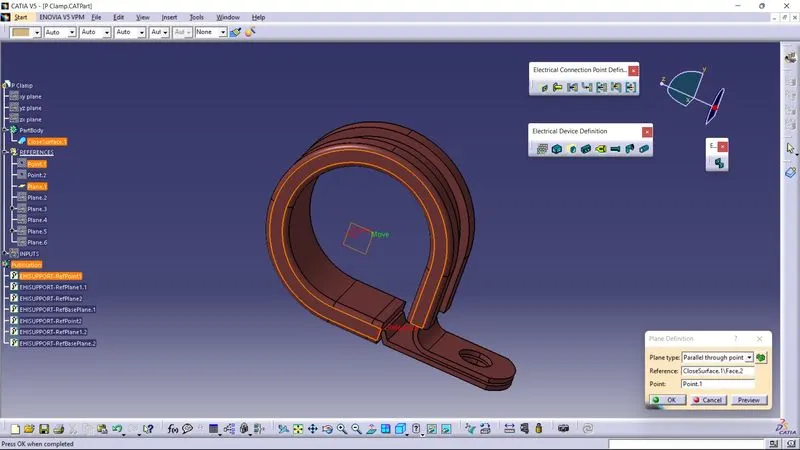

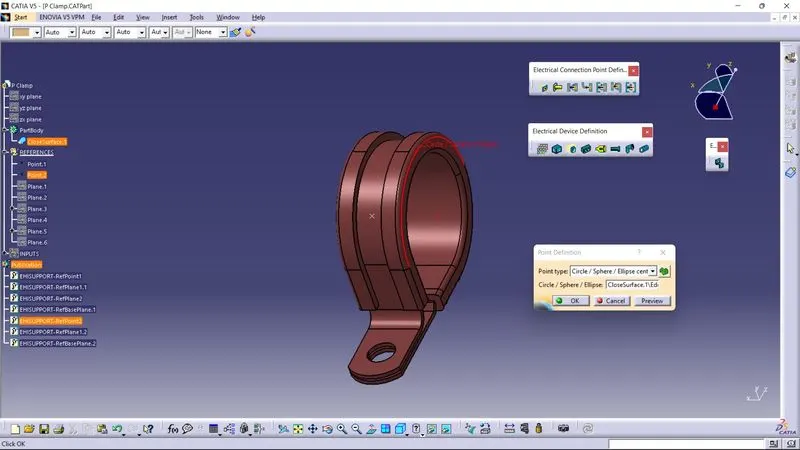

Create the Points and Planes in Part Design Work Bench.

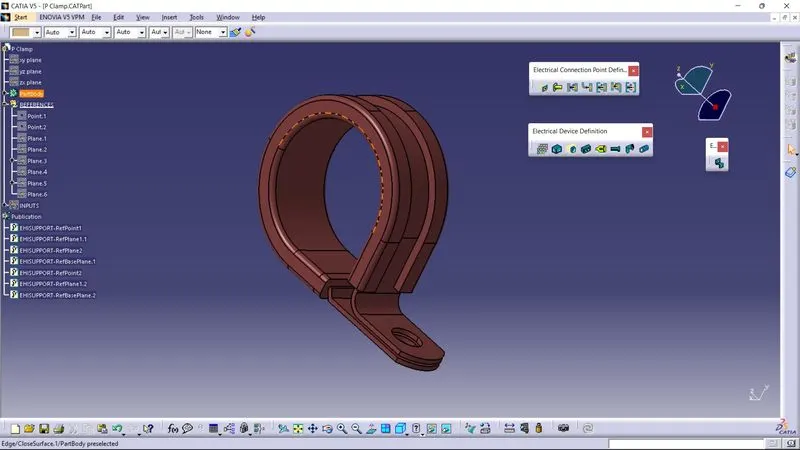

Define the part as support in Eletrical Part Design Workbench.

Select the point and Plane for First entry point and Select the exit plane and base plane.

Similarly Select the point and Plane for Second entry point and the exit plane will be automatically selected and base select plane.

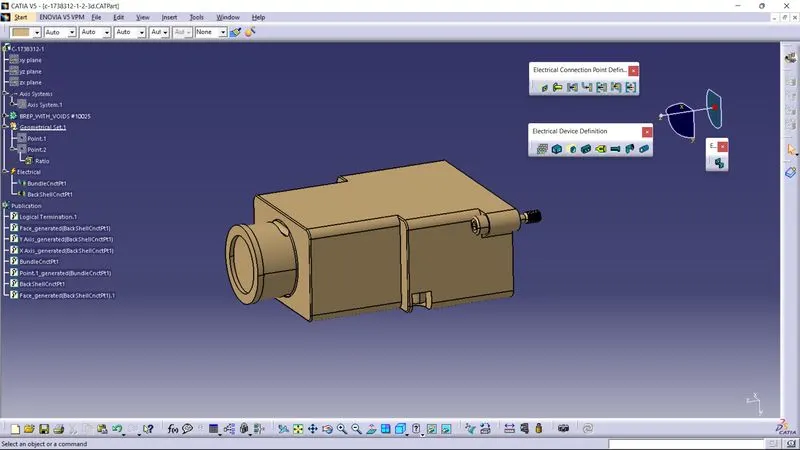

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.

In Part Design Workbench.

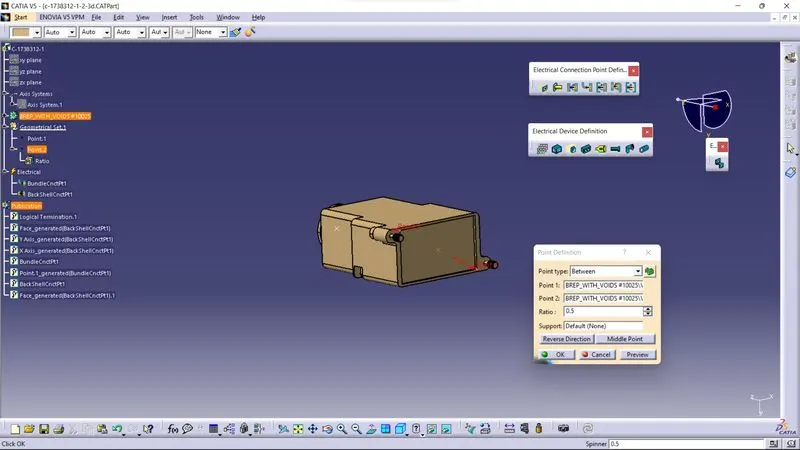

Create Backshell Entry Point.

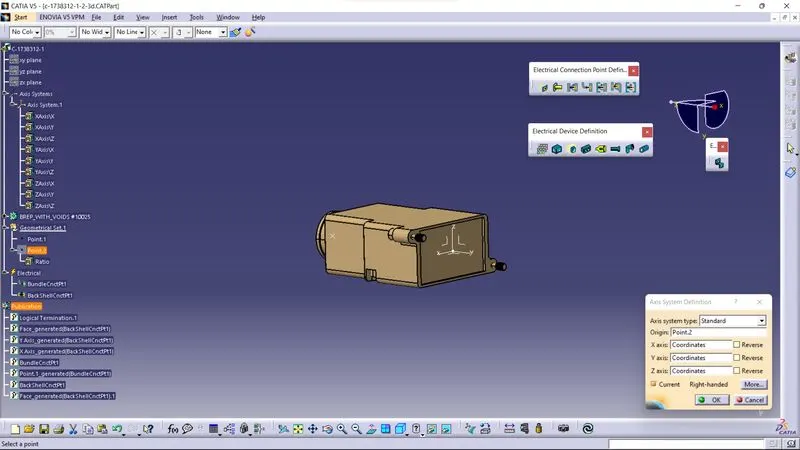

Create Axis system for Backshell Entry.

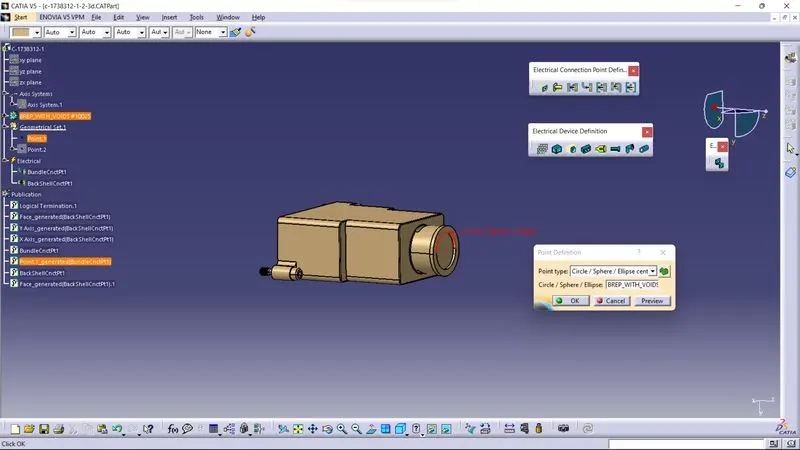

Create a Bundle Connection point.

Switch to Electrical Part Design Workbench.

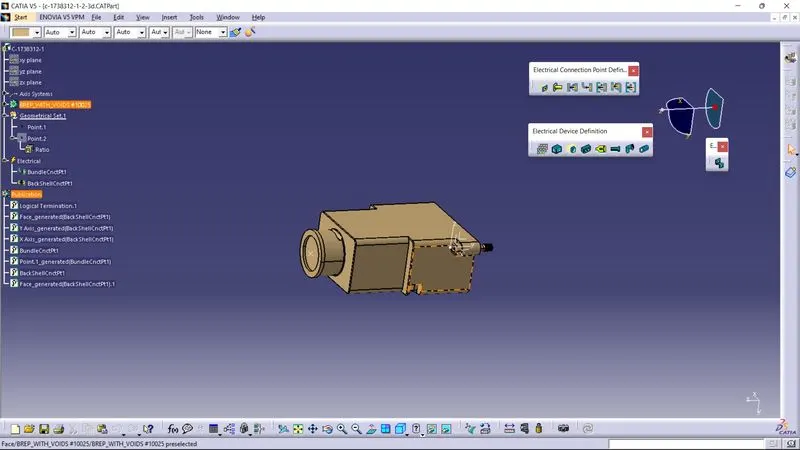

Define the part as Backshell.

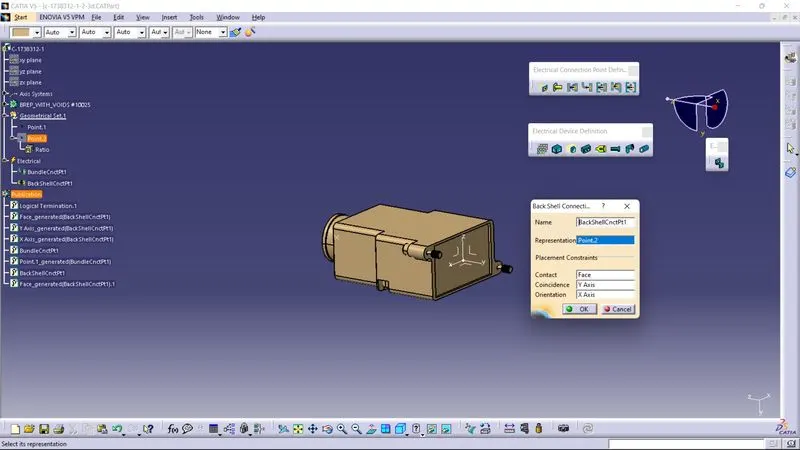

Define Backshell Connection point.

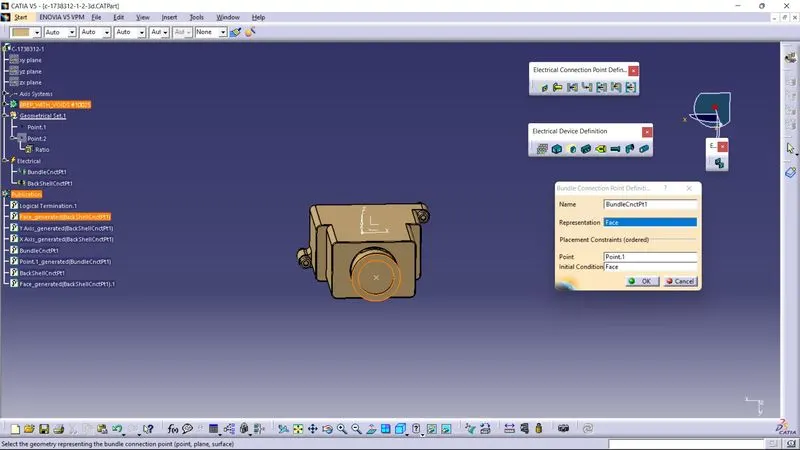

and define Bundle connection point.

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.

Process:

Create a new Part - switch to Electrical Part Design work bench.

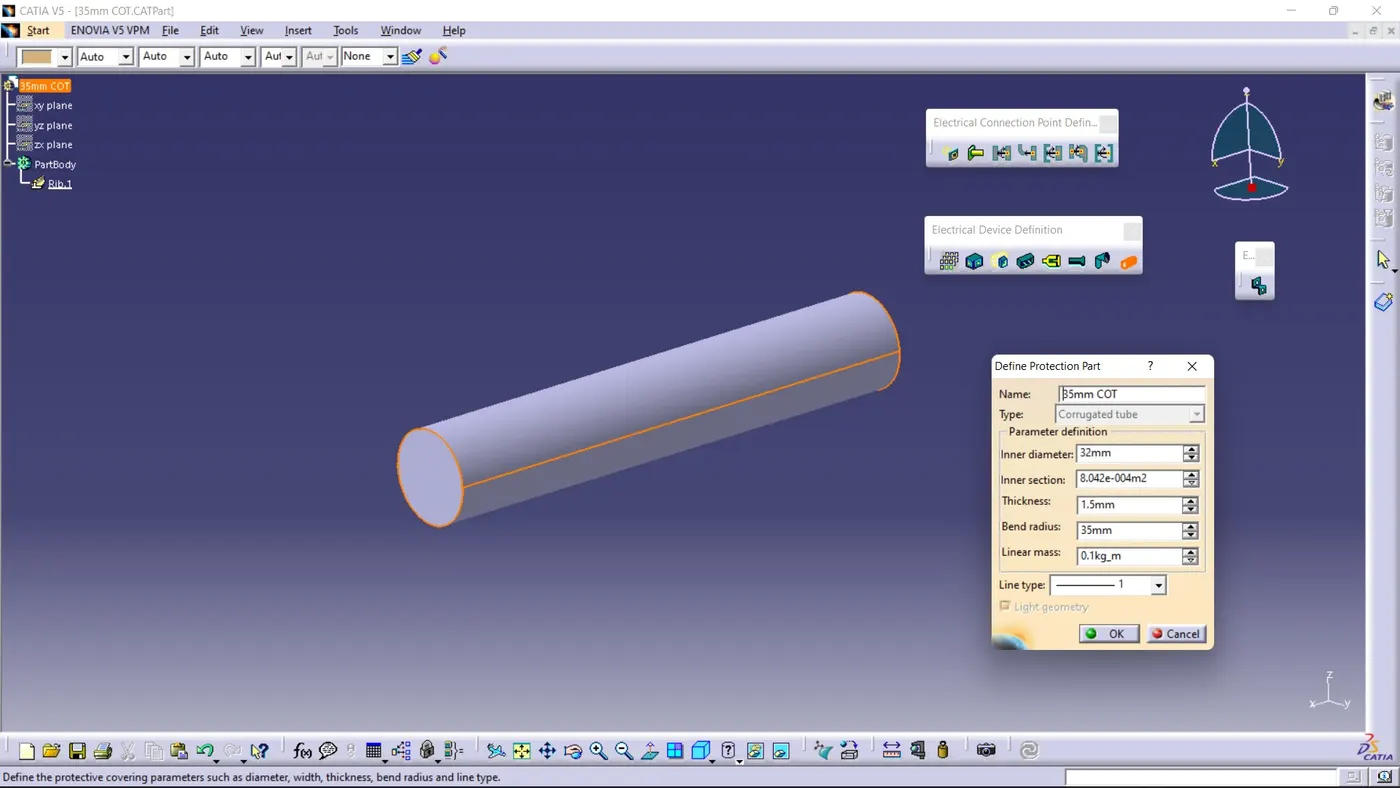

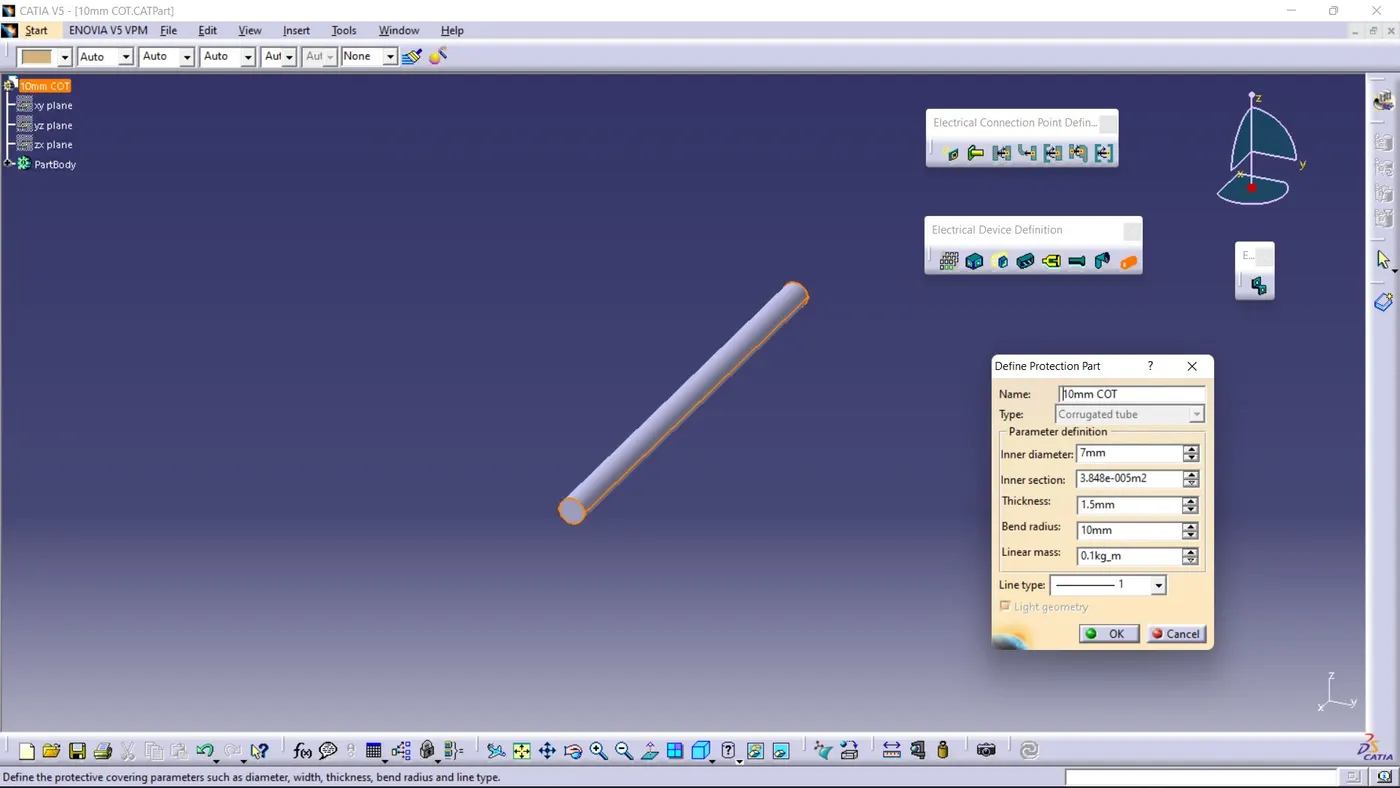

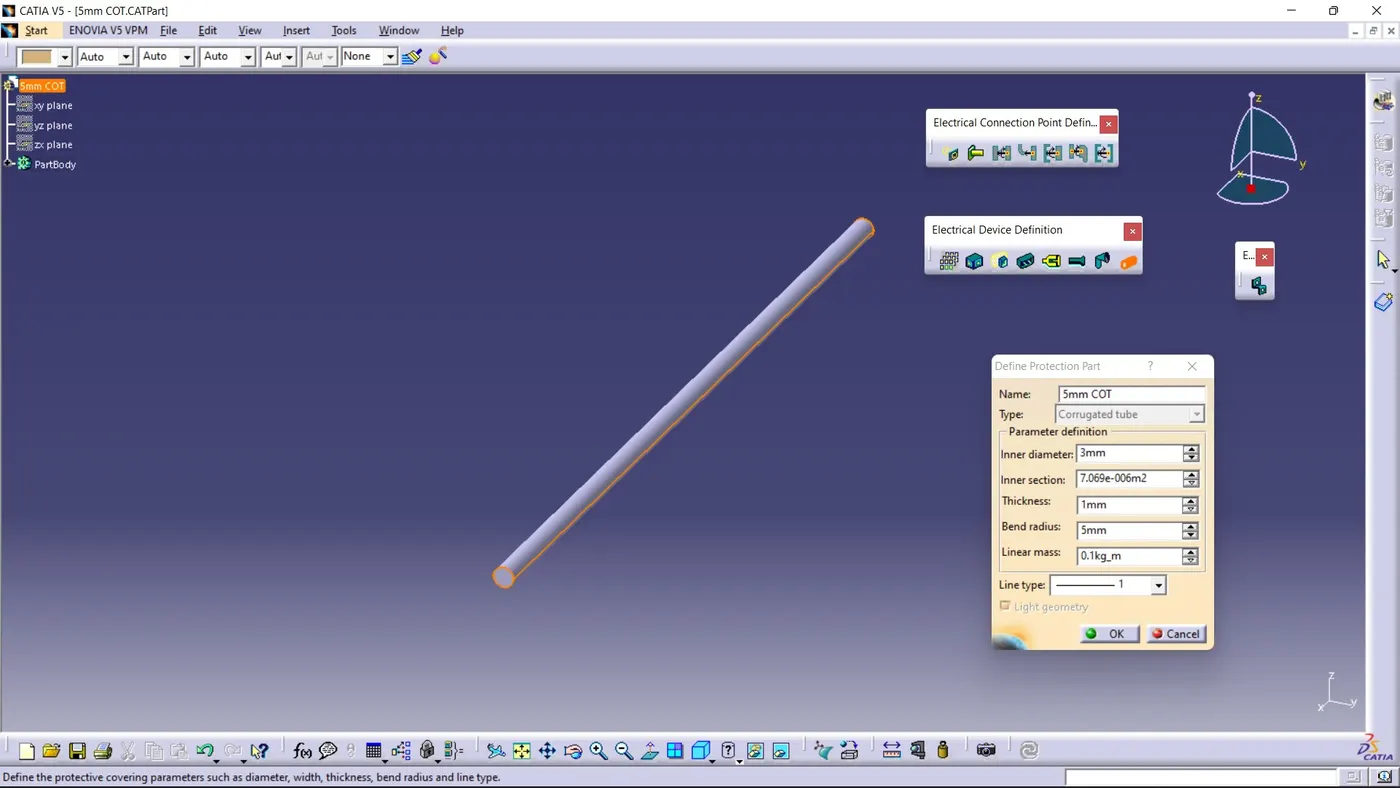

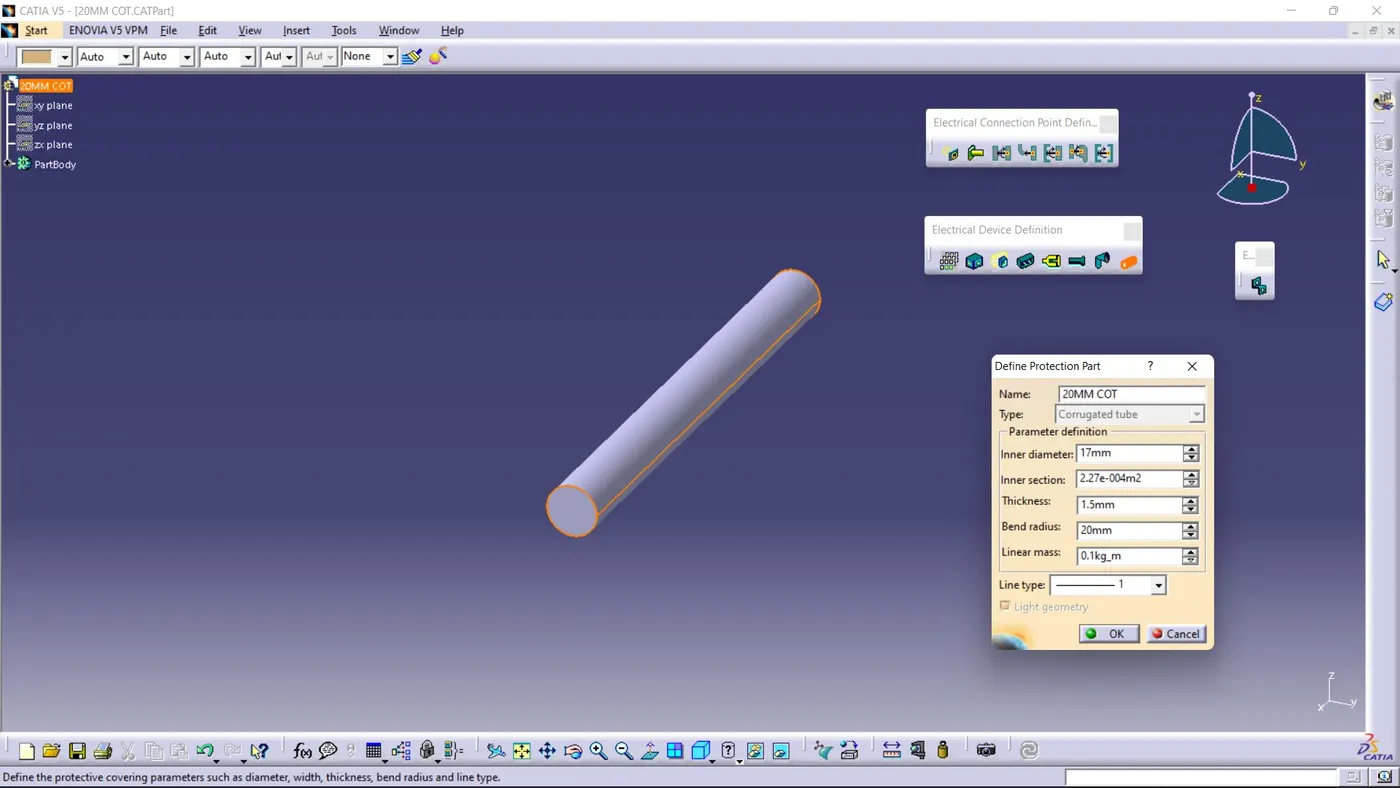

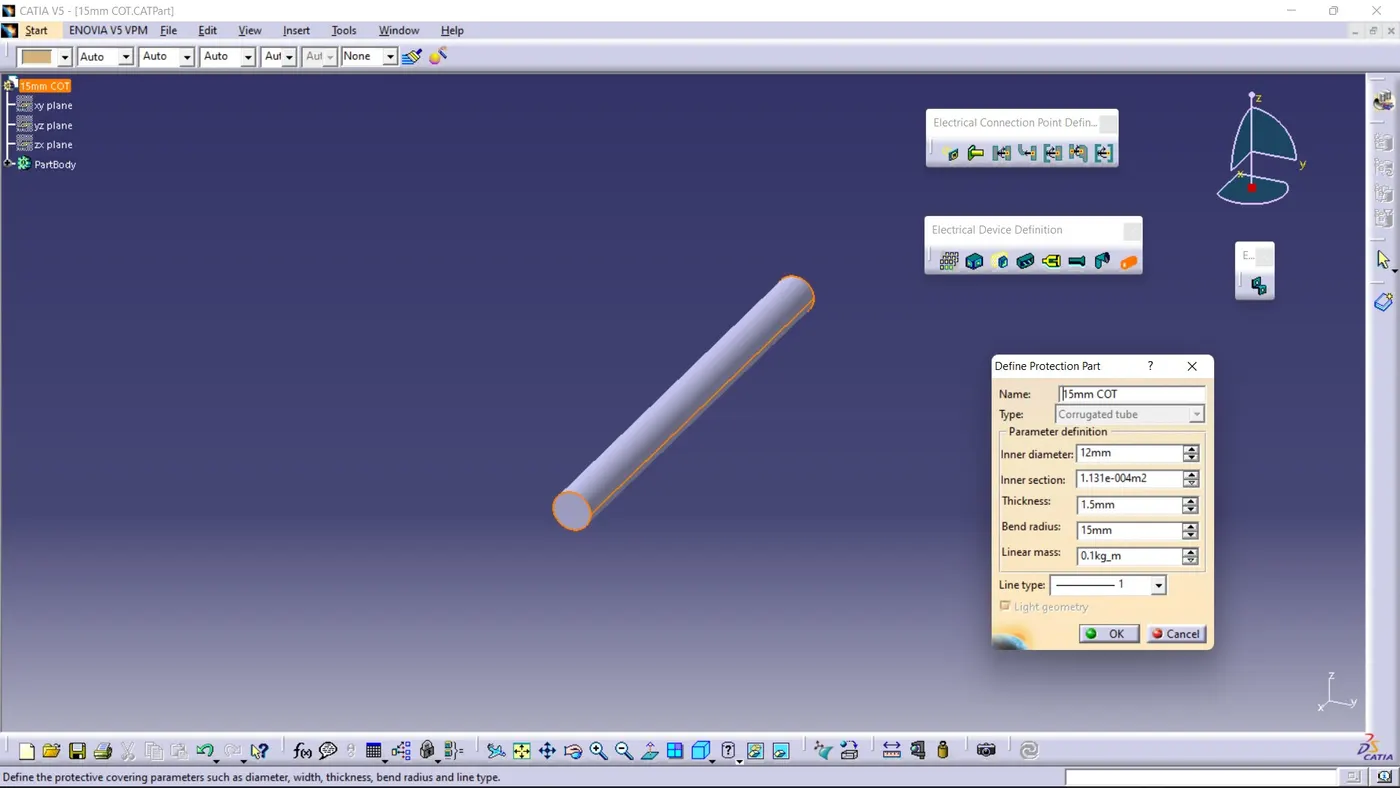

Define Protection Part

Provide the parameter as per given in chart and bend radius to be kept as 1.5times the diameter.

Clatalogue creation:

File - New Part - catalogue document

Add Family - Provide Name

Select Type - as Conduit and Save

Then Goto Part (COTs Created) - Store Device Command - Select Catalogue family - and select the part
