Wiring harness routing & packaging Rules Week 3 Challenge

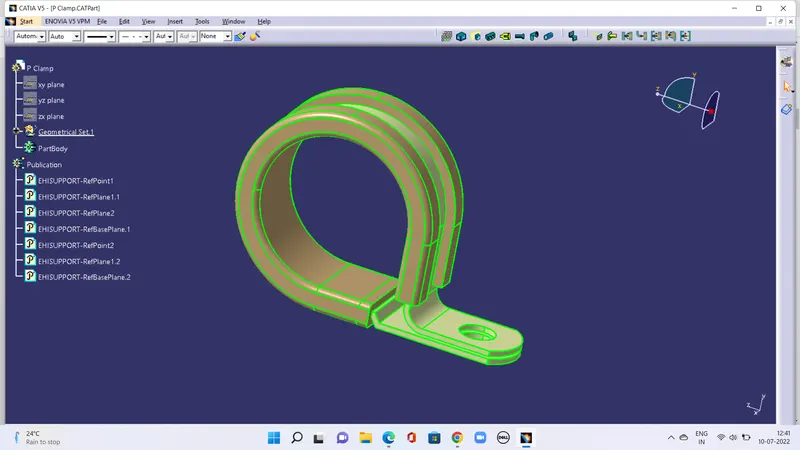

Q1. Download following cad data & define it as Electrical support using Electrical Part design Workbench. Define all the necessary properties.
P-Clamp
Wiring harness assembly structure-clip definition
Following important parameters required for define clip.
1.Entry point & plane
2.base plane
3.Exit plane.
Process:
Create two poins one as entry point and another as exit point.
Create two plane at points also crate base plane as shown in below figure.
switch to electrical part design.
click on define support part it is available in toolbar electrical device definition.
click on P-clamp select entry point and entry plane also exit plane and base plane.
again click on define support part select exit point and exit plane and base plane.
the definition of p-clamp is done.

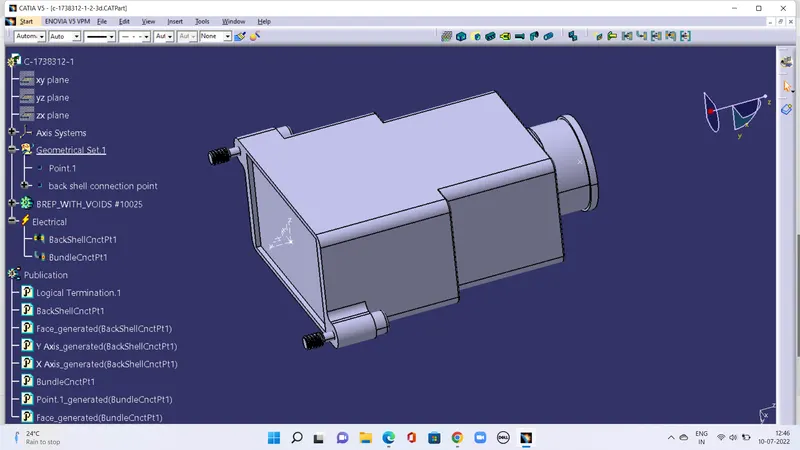

Q2. Download following Back shell cad data & define it as Electrical back shell using Electrical Part design Workbench. Define all the necessary properties.
Process:
open the backshell igs part in catia
Create backshell point.
create bundle connection point.
creat axis system at back shell point.
switch to electrical part design
define backshell connection point.
define bundle connection point.

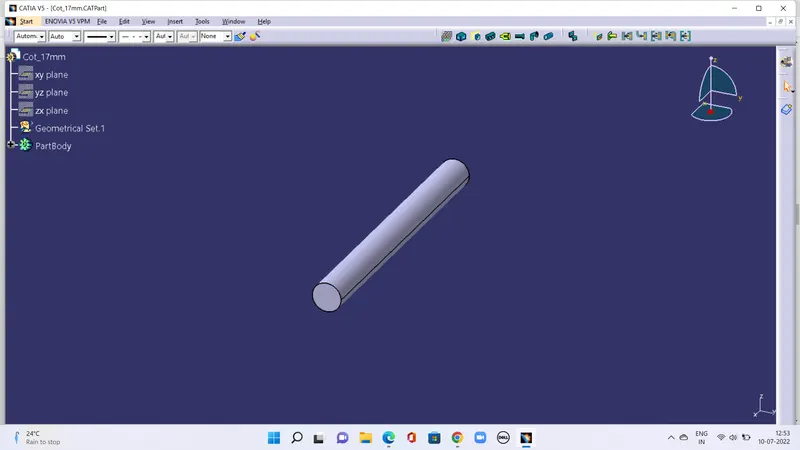

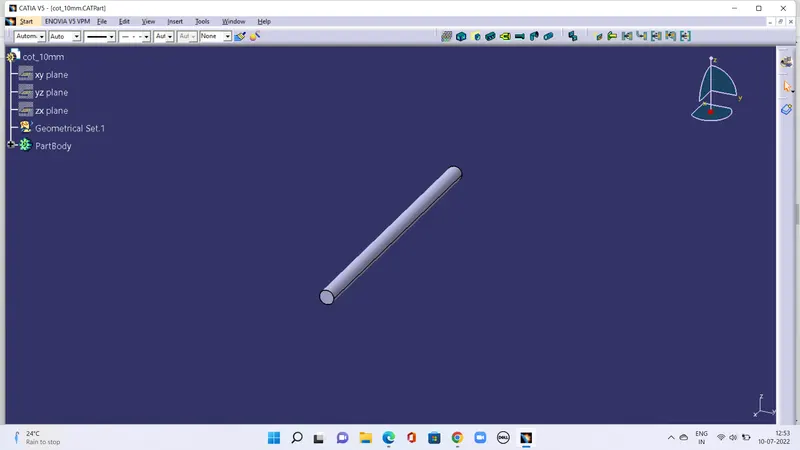

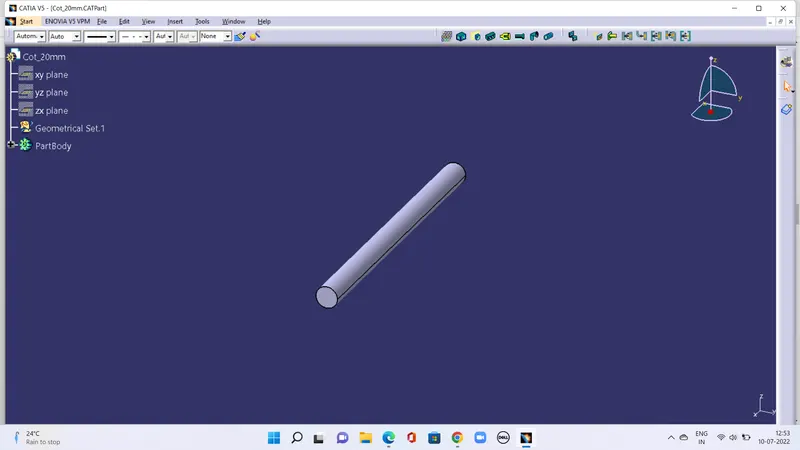

Q3. Create Following Corrugated tubes & Add them in Catalogue under “Slit COT” family.
|
Name |
ID (mm) |
OD (mm) |
Thickness (mm) |
|
15mm COT |
12 |
15 |
1.5 |
|
20mm COT |
17 |
20 |
1.5 |
|
35mm COT |
32 |
35 |
1.5 |
|
10mm COT |
7 |
10 |
1.5 |
|
5mm COT |
3 |
5 |
1 |
Process:
Switch to Electrical part design
Select Define protection Part
Click on part (on file name in specification tree)
Provide given parameters and bend radius as '1.5 x Outer Dia'.
Catalogue Cretation:
new part - catalogue document - add family - give name - type - select Conduit - save.

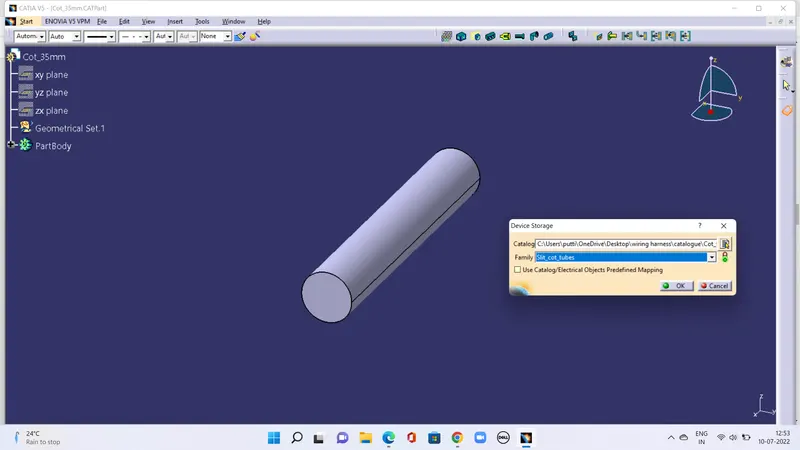

Open part to add catalogue - store device command - select catalogue - family -
Slit_cot_tube - ok
