AIM:

TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

GIVEN:

HARNESS ASSEMBLY:

I take the harness assembly from week 3 challenge context.

HARNESS FLATTENING:

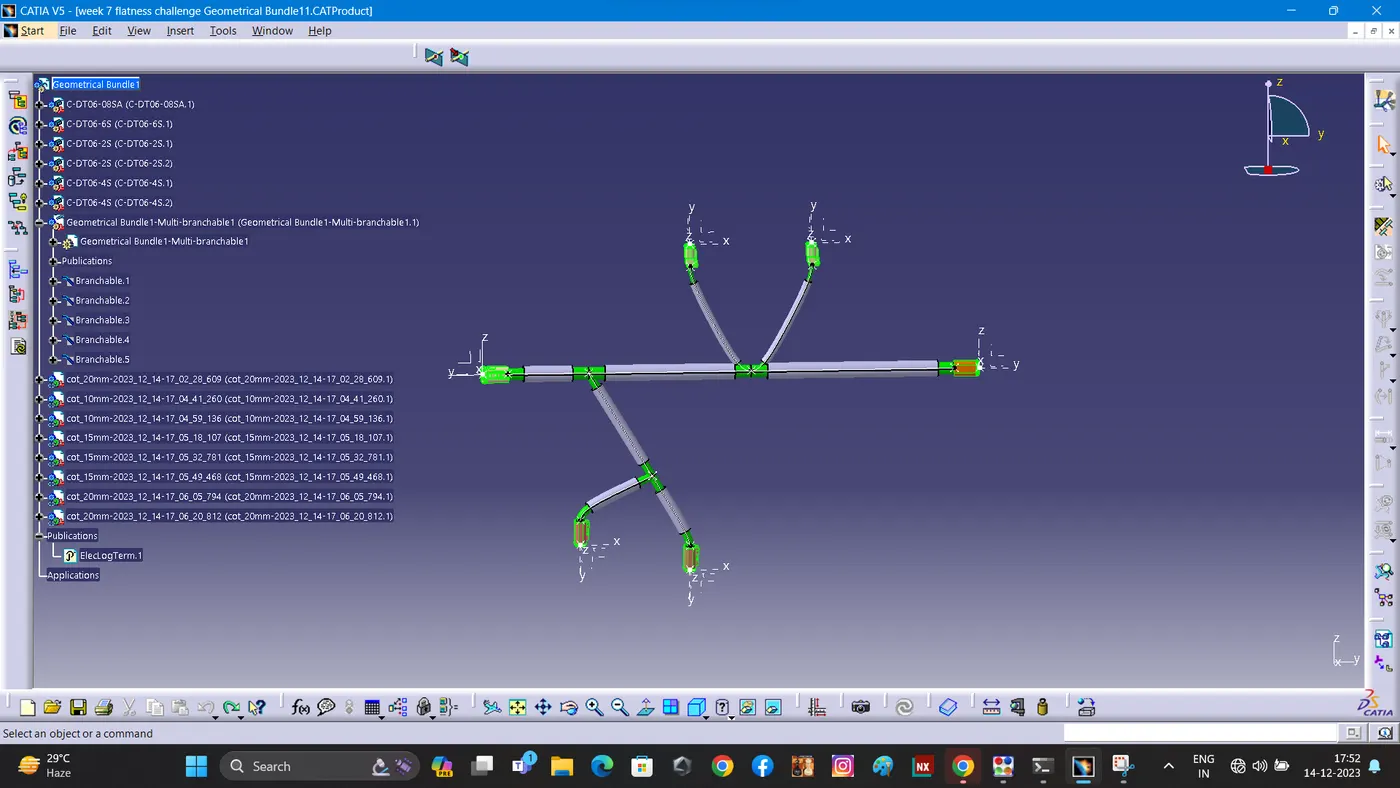

• 1) WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS.

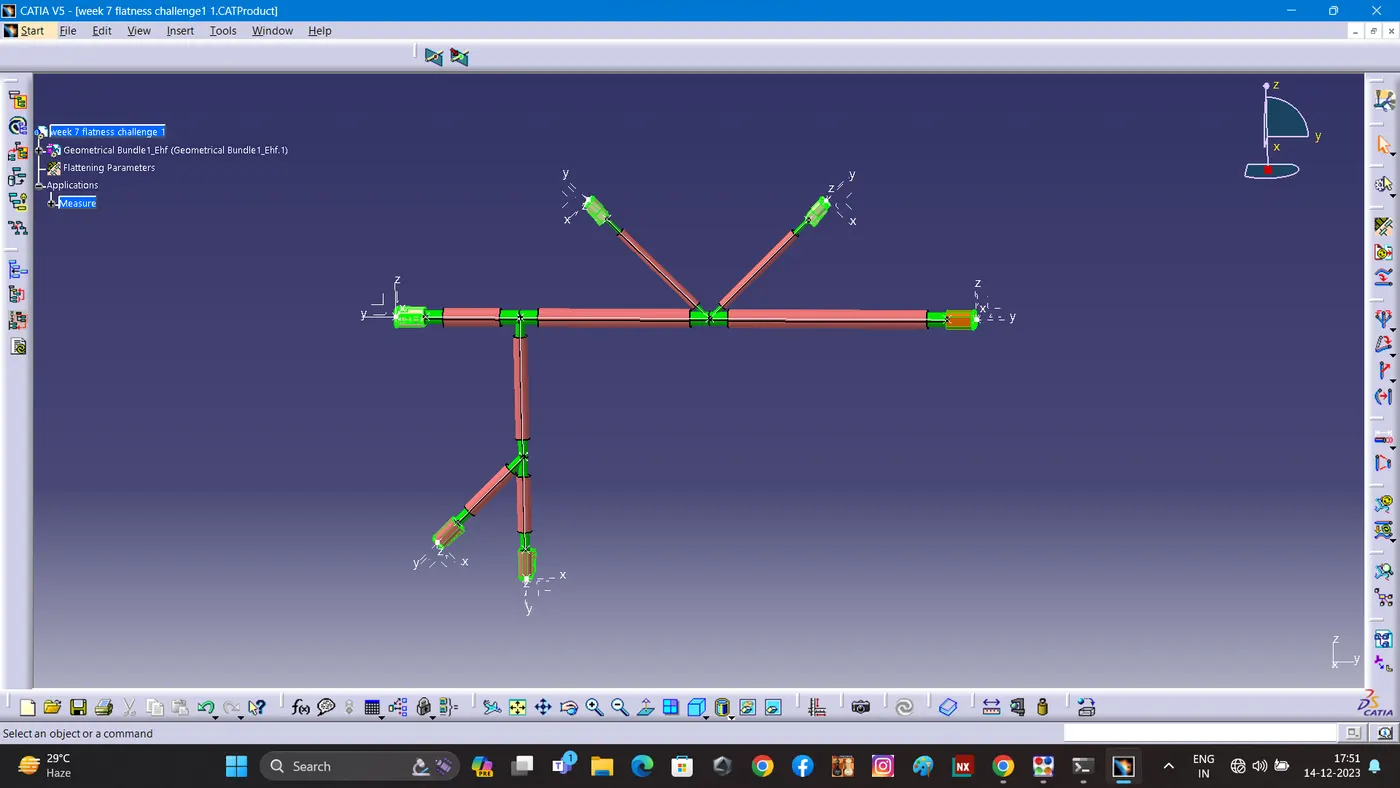

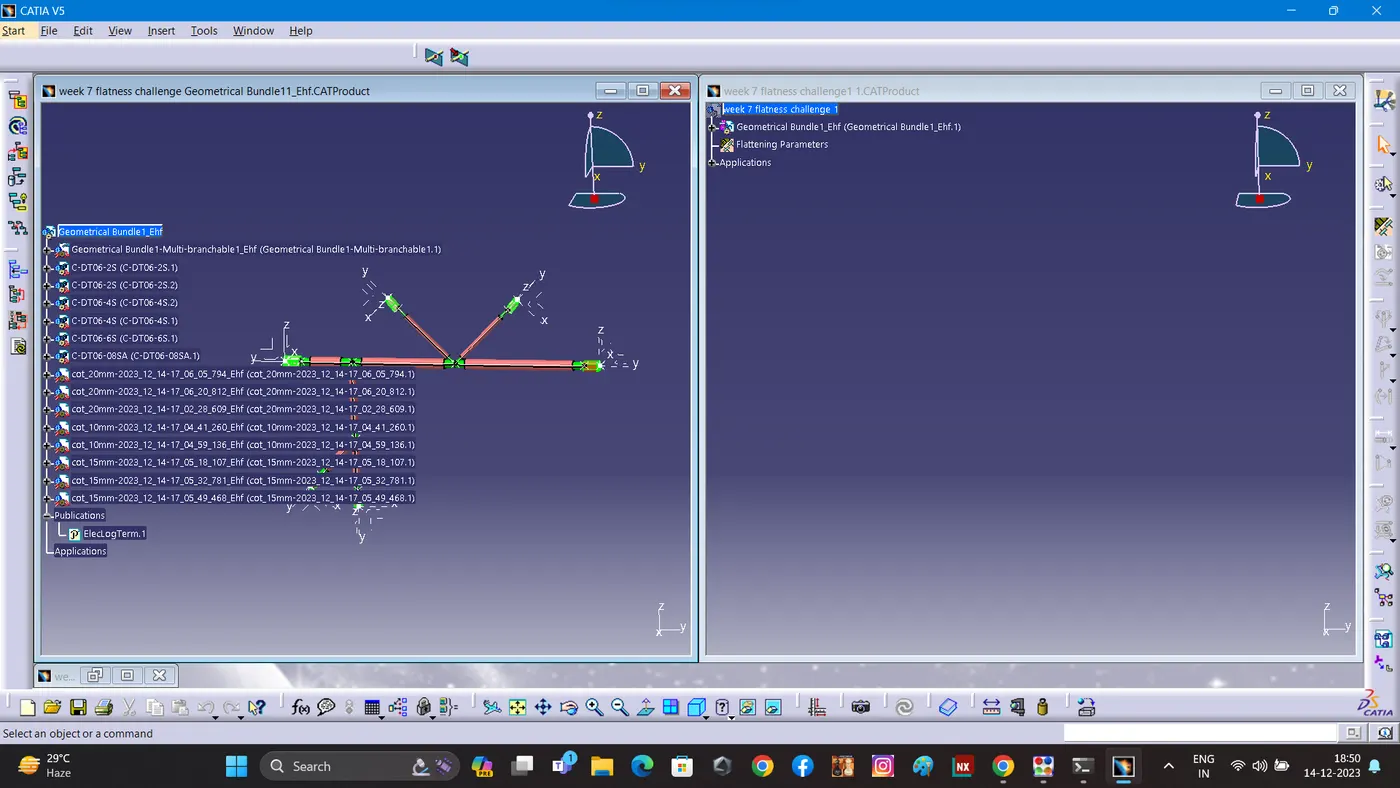

• 2) WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE.

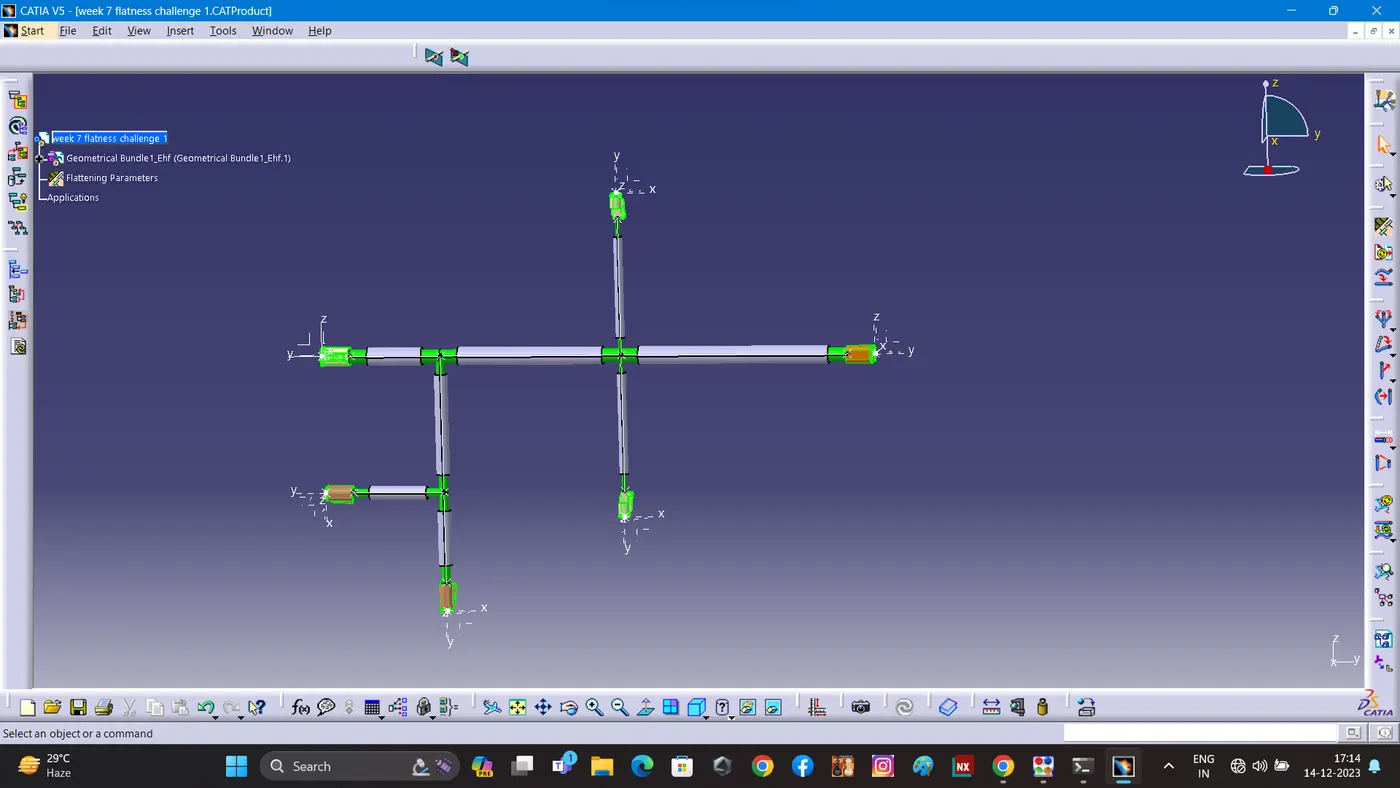

• 3) CHOOSING A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY.
• 4) BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES. THE HARNESS ASSEMBLY IS THEN DRAFTED.
• 5) FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS.

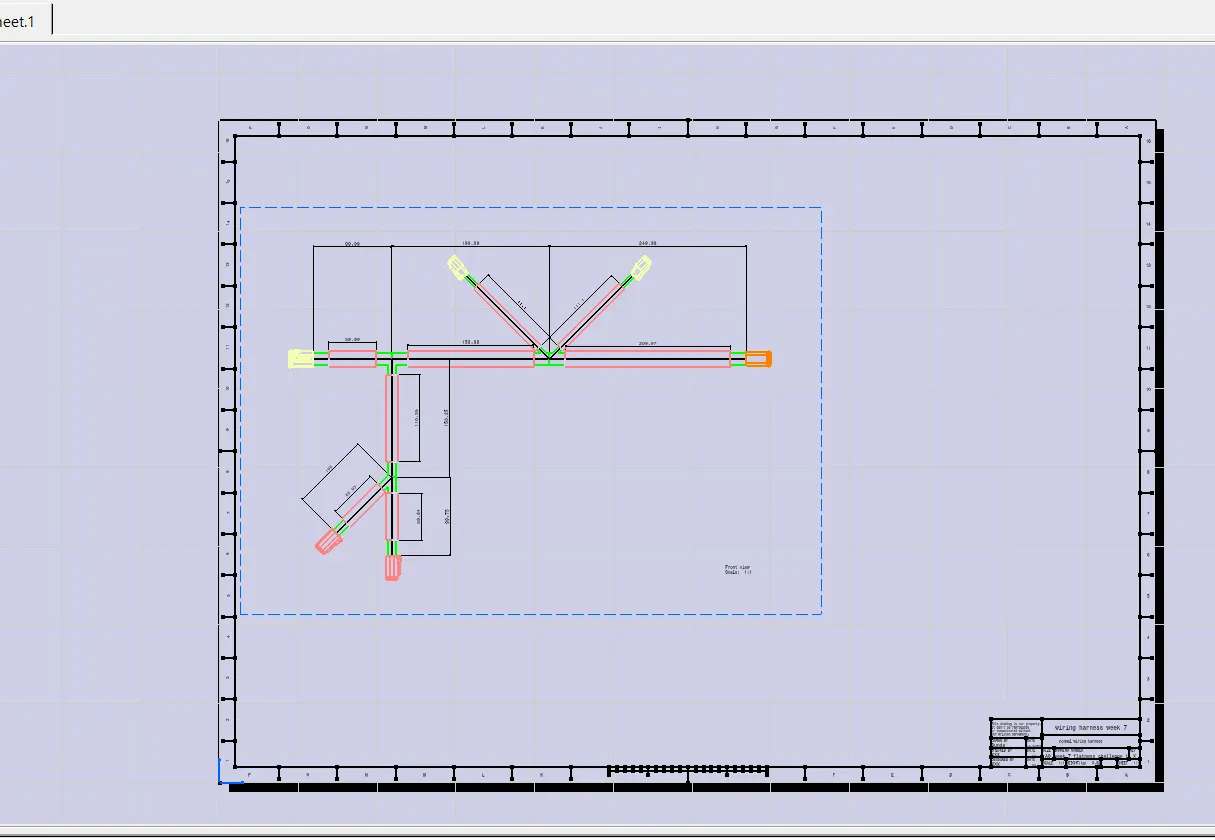

DRAFTING REPRESENTATION:

(the length only given in the drawing more specification,model no,application,cable type etc.. added as per harness behaviour.)

conclusion:

the flatness and drawing has been done as per the given data.and added the all CAT part and drawing document added successfully.
