Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge

AIM: TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

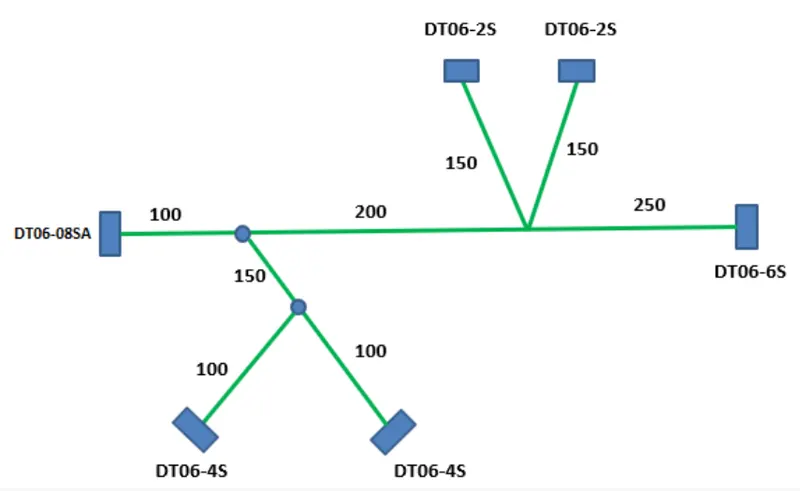

GIVEN:

HARNESS FLATTENING:

• WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS
• WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY IN THE FLATTENING WORKBENCH

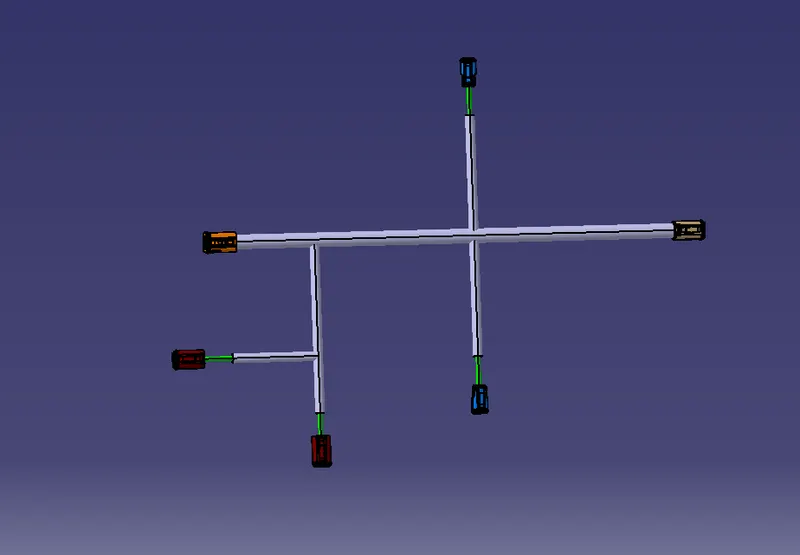

• HERE CHOOSING A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY
• BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES.
• THE HARNESS ASSEMBLY IS THEN DRAFTED
• FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS.

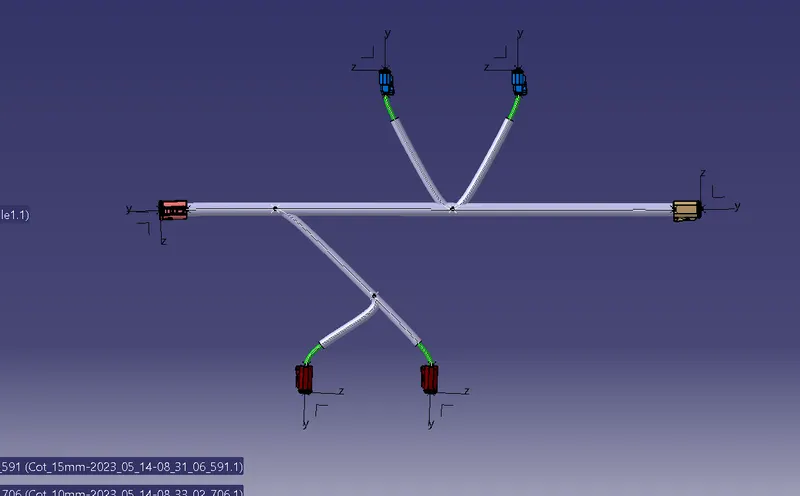

Flatening_Harness_Product_File

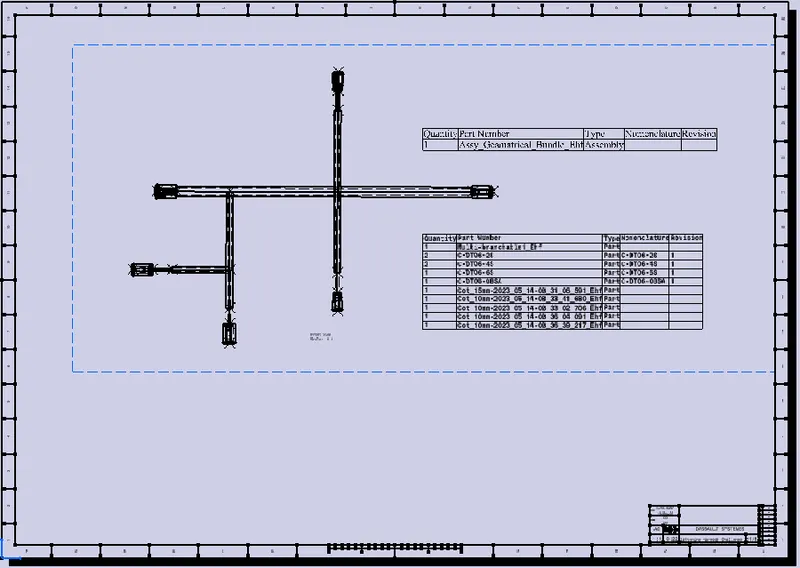

Drawing :-

Note :- Drawing Filr is also attached in the Zip-File.
