Wiring harness design in CATIA V5 - 3D modeling Week 7 Challenge
Aim:
TO FLATTEN THE WIRING HARNESS AND DRAFT THE WIRING HARNESS ASSEMBLY.

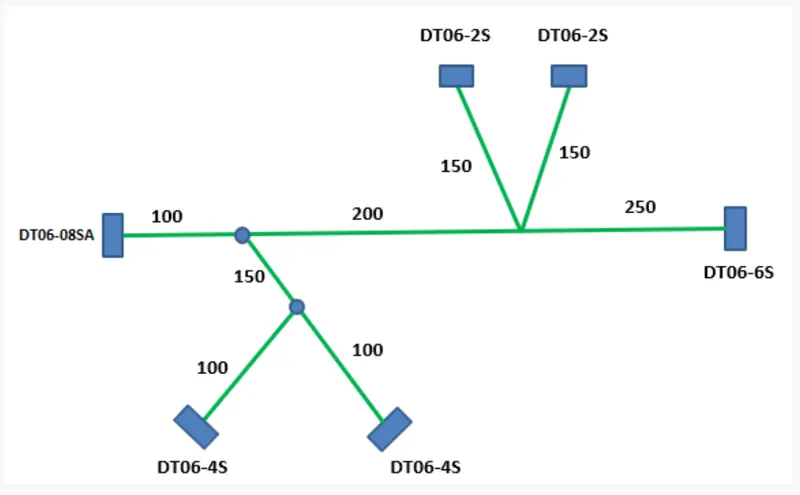

Given:-
Harness Assembly:-
- WE GO TO THE HARNESS FLATTENING WORKBENCH AND DEFINE THE FLATTENING PARAMETERS.
- WE USE THE EXTRACT COMMAND TO BRING THE HARNESS ASSEMBLY TO THE FLATTENING WORKBENCH HERE.

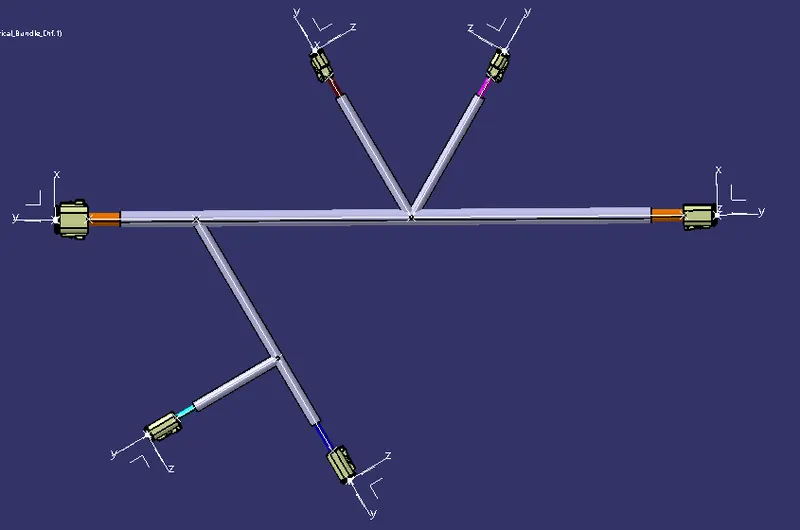

- CHOOSING A SUITABLE PLANE WE FLATTEN THE HARNESS ASSEMBLY.
- BUNDLE SEGMENTS ARE ROTATED AT THE REQUIRED ANGLES. THE HARNESS ASSEMBLY IS THEN DRAFTED.
- FLATTENING PARAMETERS ARE DEFINED IN ORDER TO MAKE THE BUNDLE AND THE CORRUGATED TUBES VISIBLE IN THE 3D DRAWINGS.

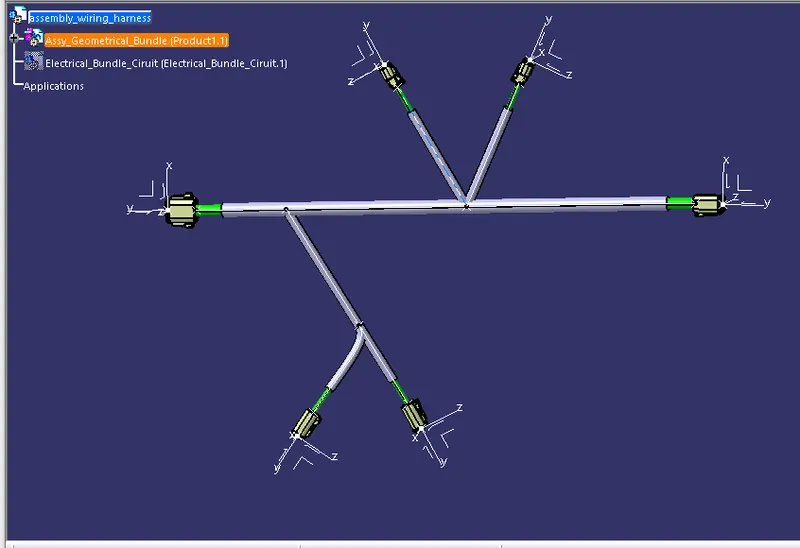

Colour coading:-
Main branch connected to connector DT06-08SA "Branchable.1"
Sub branch connected to connector DT06-4S "Branchable.2"
Sub branch connected to connector DT06-4S "Branchable.3"
Sub branch connecte to connector DT06-2S " Branchabla.4"
Sub branch connected to connector DT06-2S " Branchable.5"

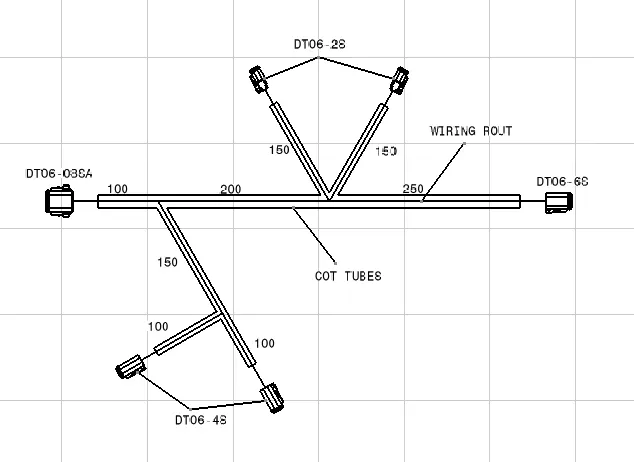

Drafting:-
