Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing,

1. Check the bundle Continuity. Add snap of result in submission
2. Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 etc
3. Check for the bundle warning. Add snap.
4. Generate CAT.part of harness assembly and convert is in. igs format

As given above draft the below connections are done and parts are mentioned below

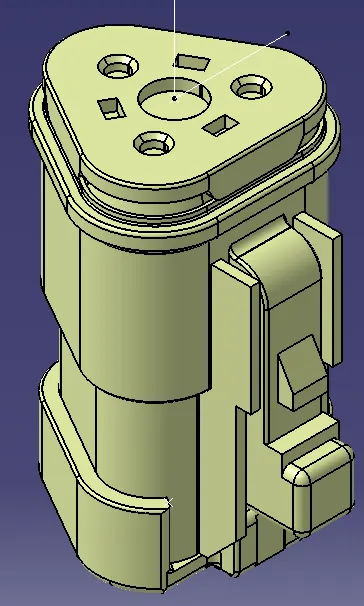

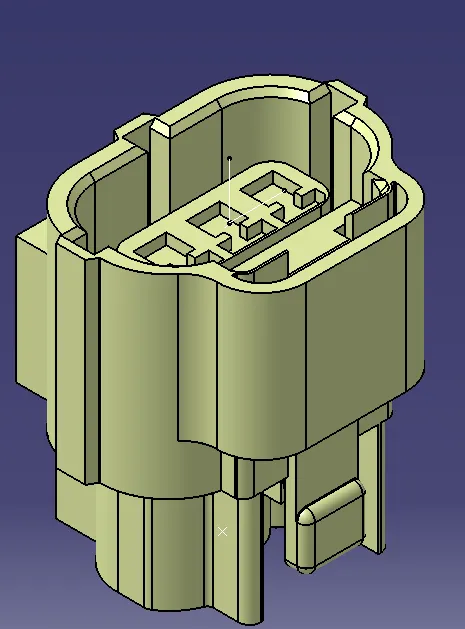

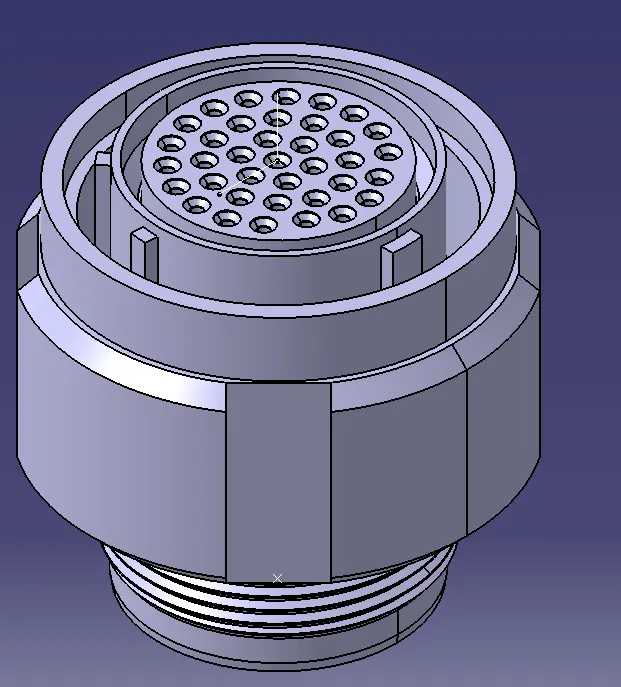

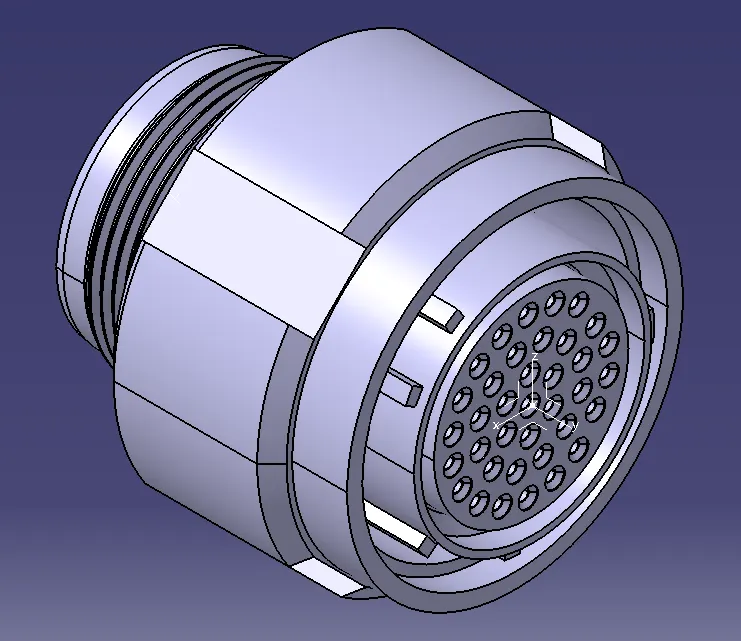

connector 1

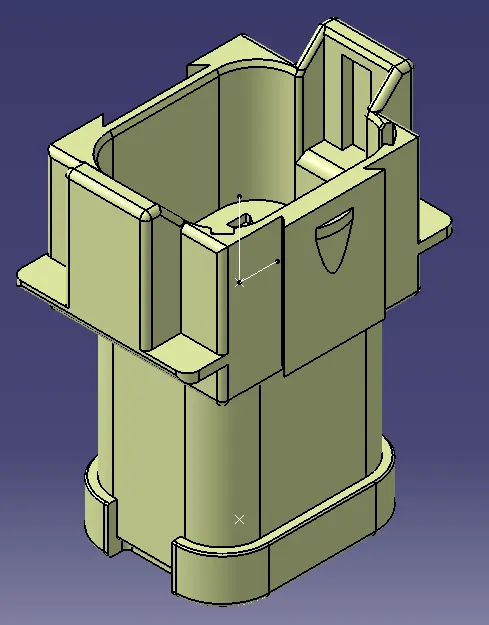

connector 2

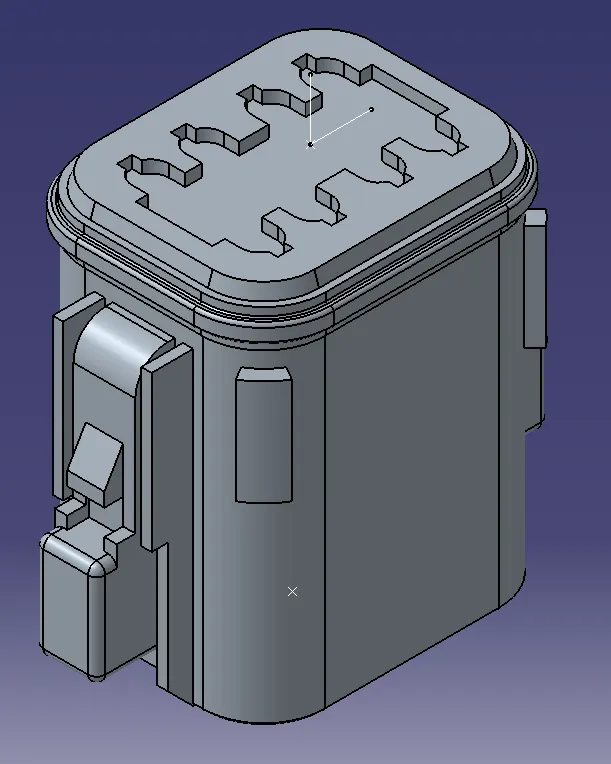

connector 3

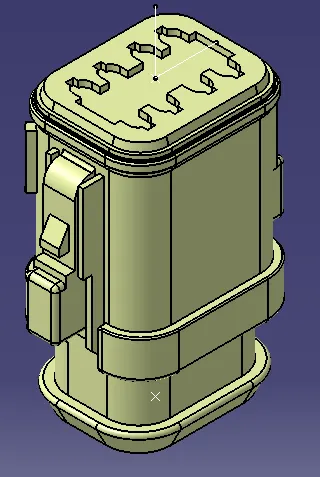

connector 4

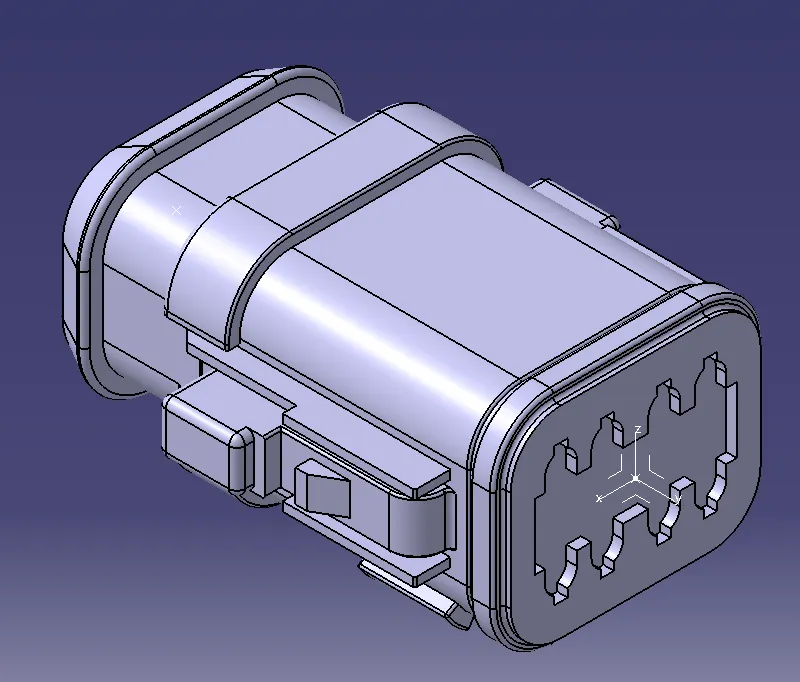

connector 5

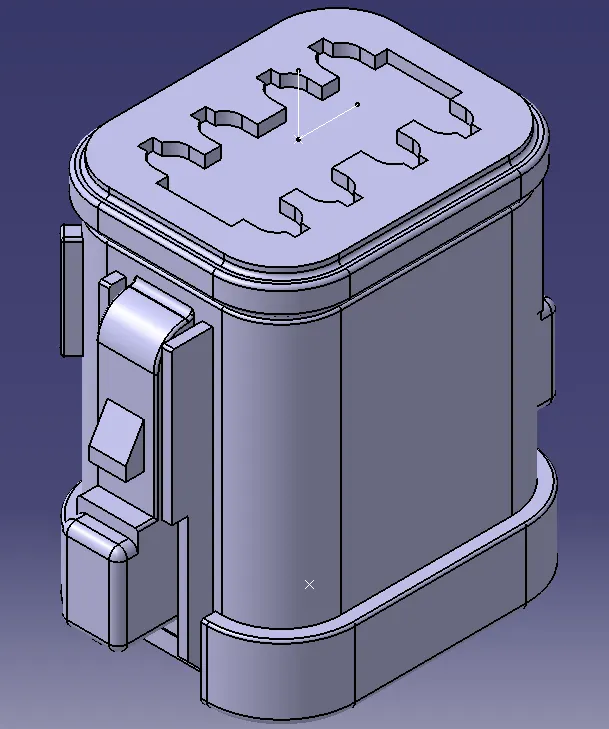

connector 6

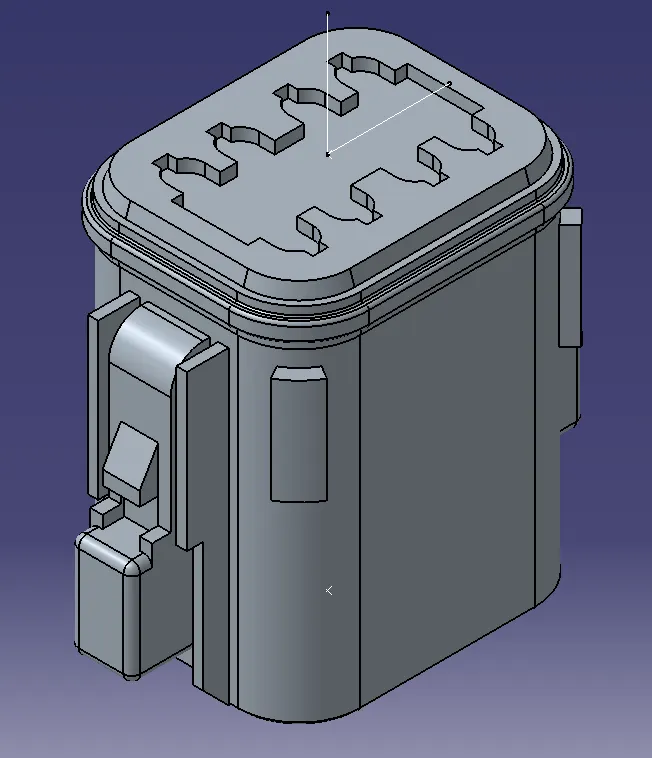

connector 7

connector 8

connector 9

connector 10

the above given are the connectors they are assy., as shown above

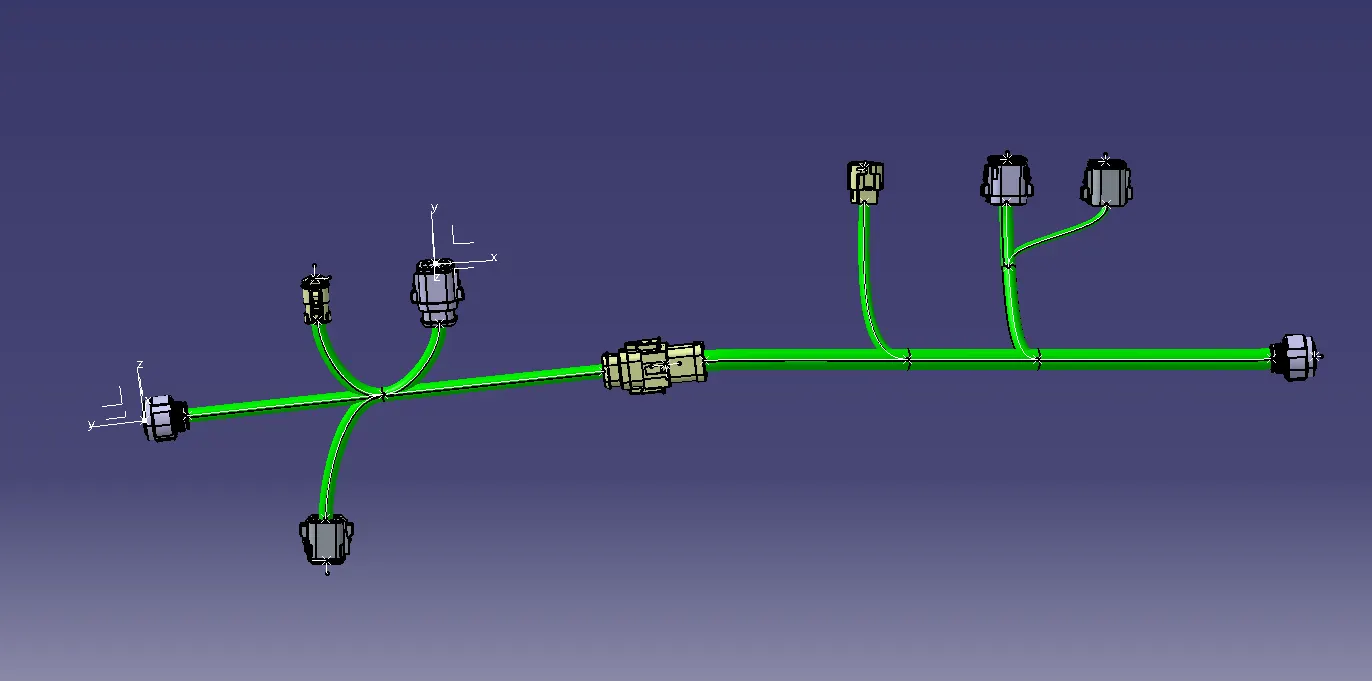

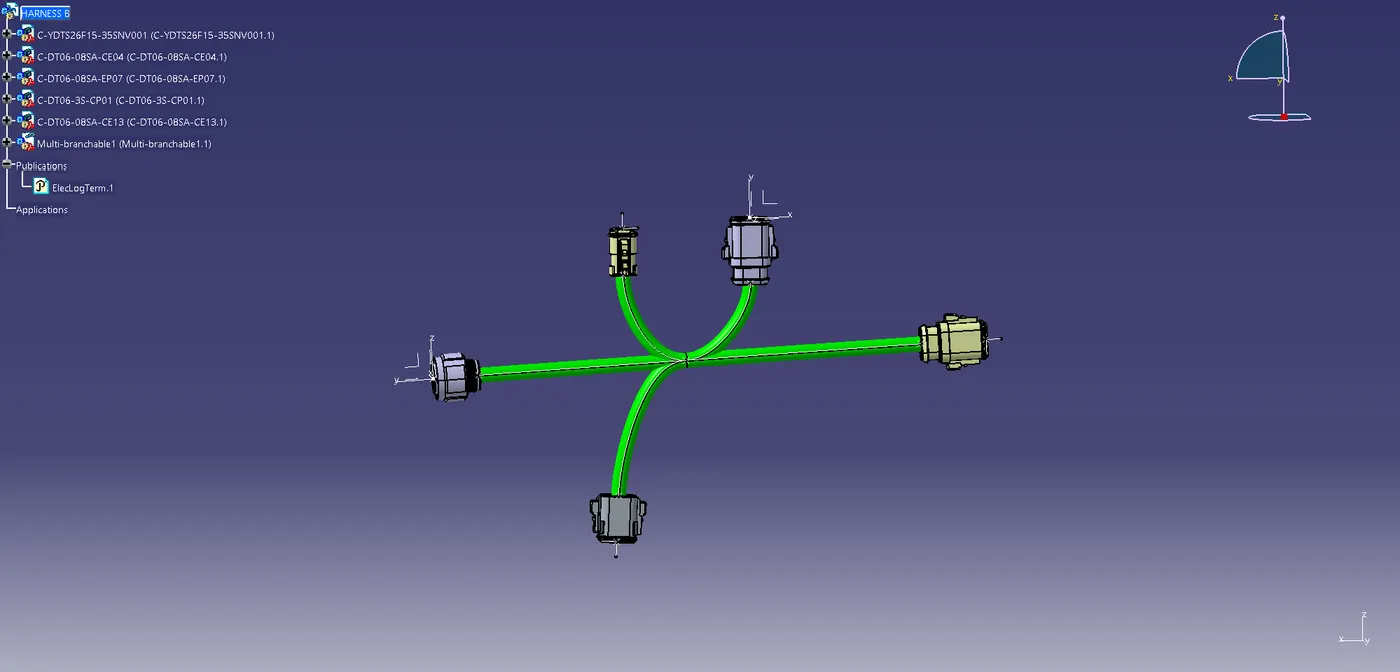

HARNESS A

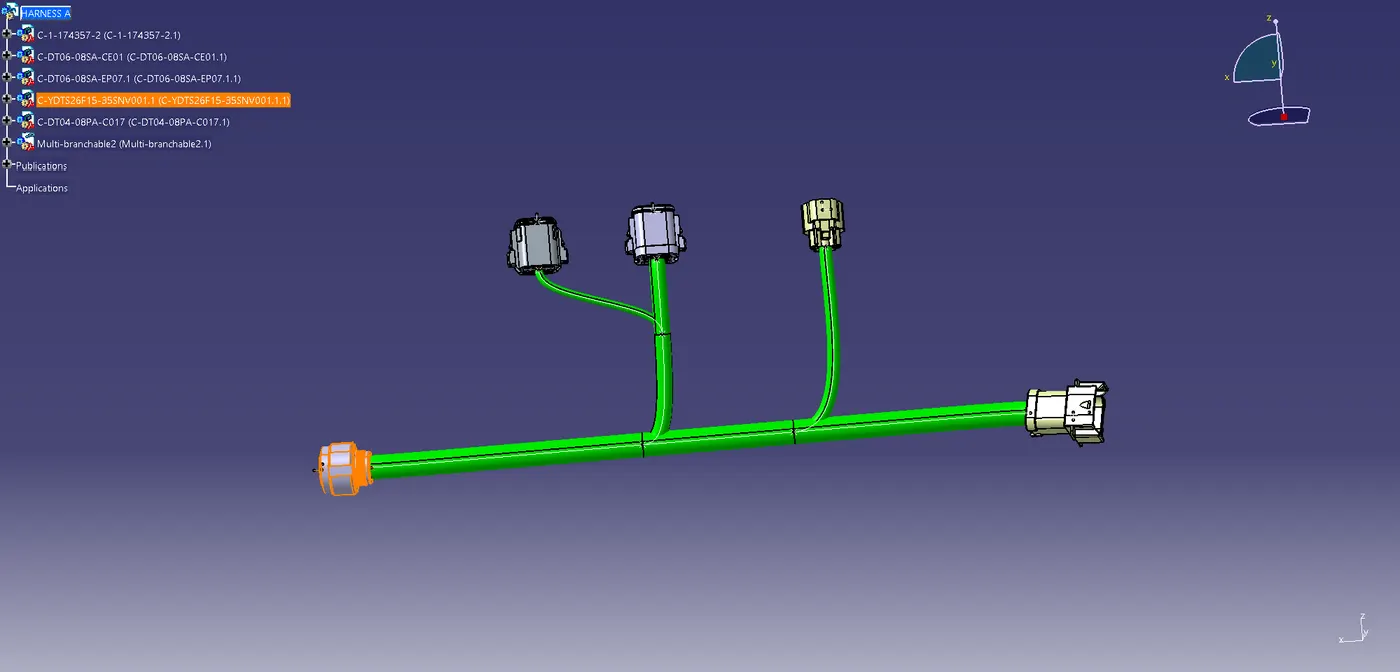

HARNESS B

The given assy., with connectors contact
