Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

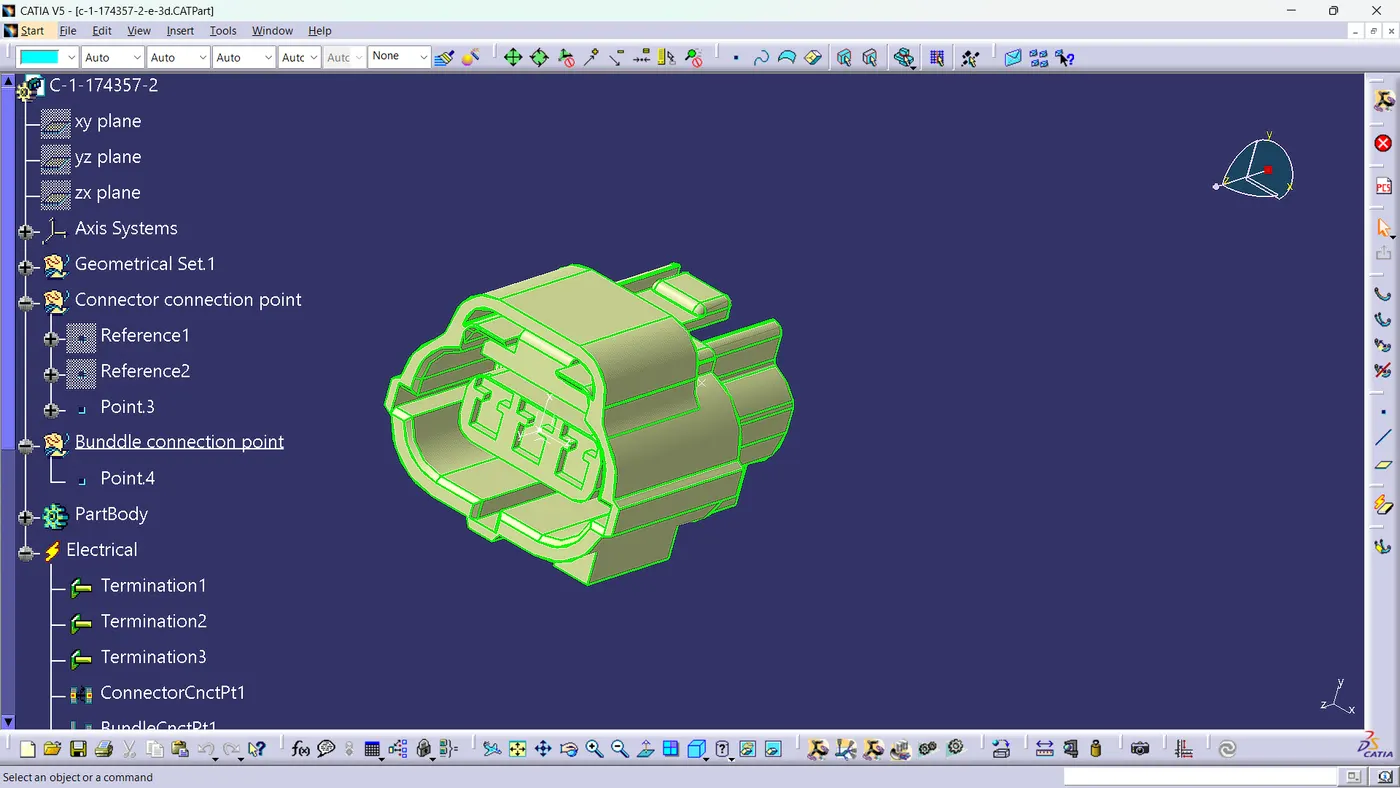

After downloading all the cad data of a connectors from the fgiven data defining the connector by providing point and axsis system which is important to create a electrically defined connectors.

in this way we define electrical components such as connectors.

After dowloading all connectors required for wiring harness it is then assembled using .cat part it is represented below.

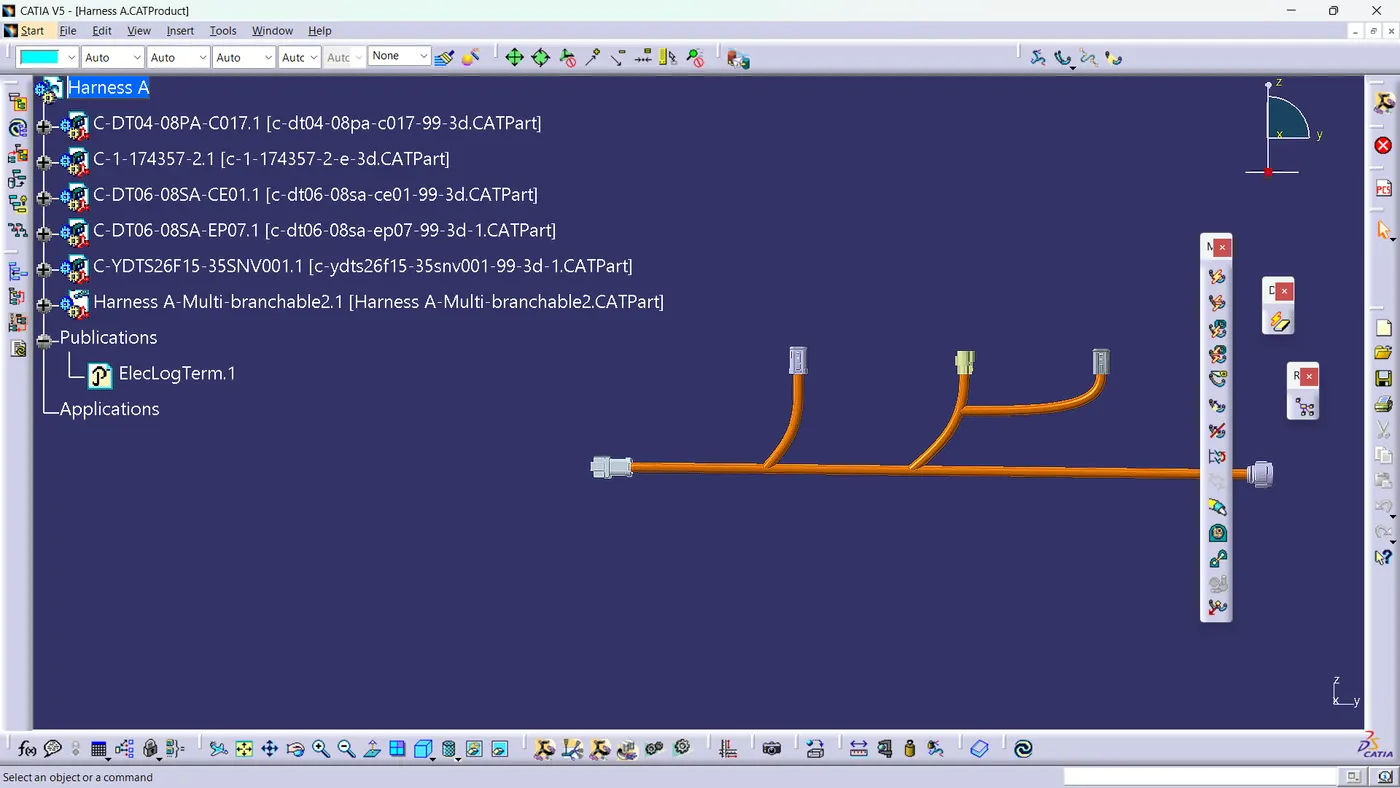

it is representing .cat file of a harness A.

in this way im creating another harness b as a assembly file which is created by product file with part files and electrical harness as bundle.

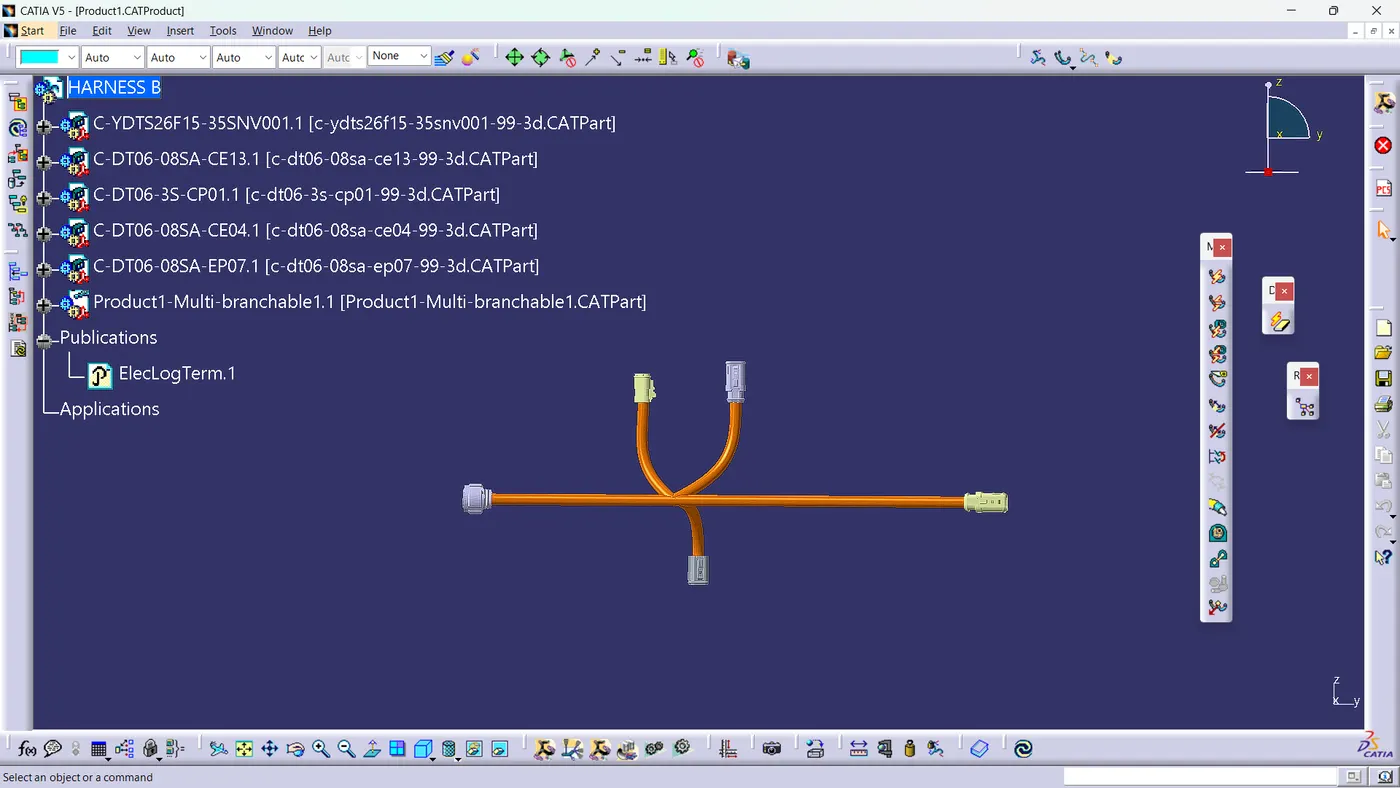

it representing assembly of a harness b.

after completing all subassemblies im creating final geometrical bundle represented by a WIRINGHARNESSASSEMBLY.

inthis we switched to the electrical assembly to create a final wiring harness assembly from given data.

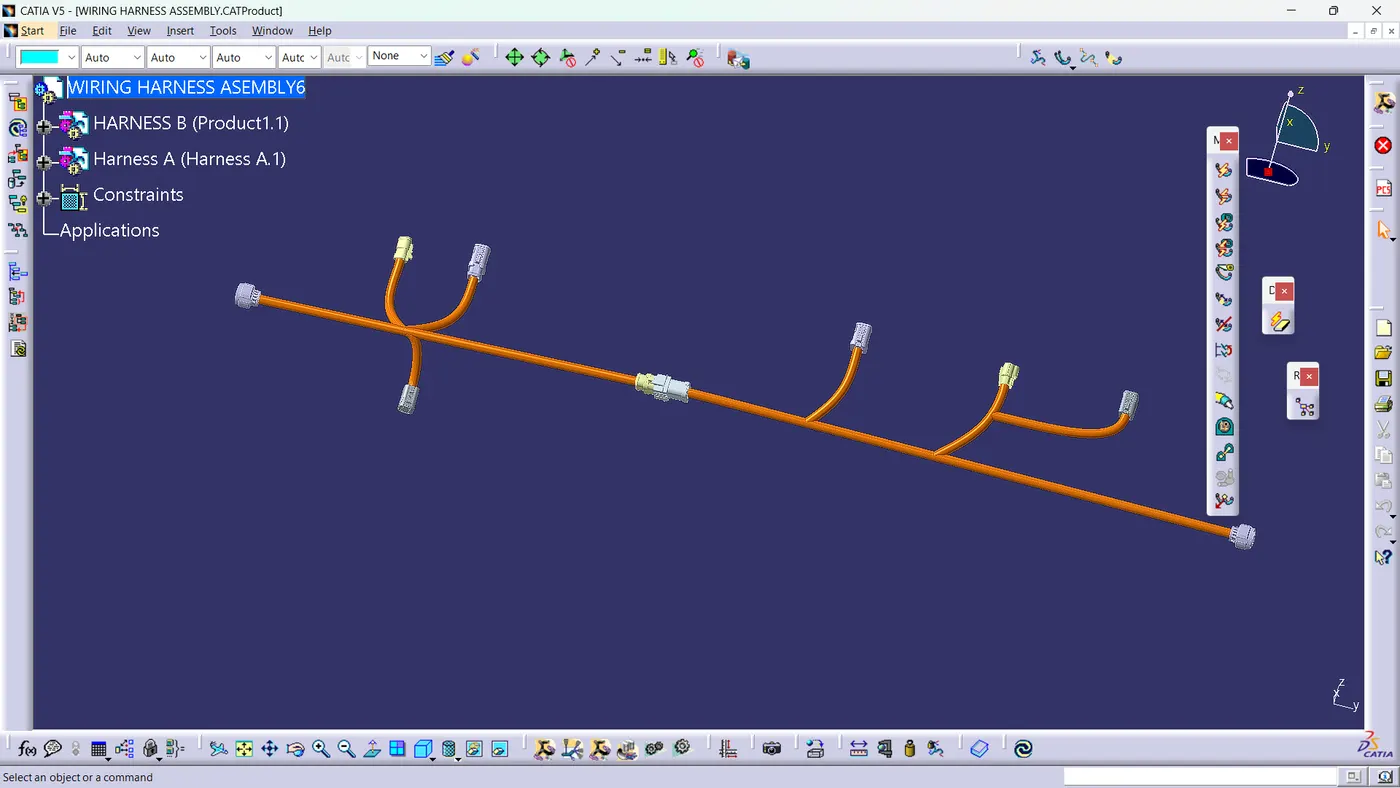

it represents final assembly of a wiringharness.

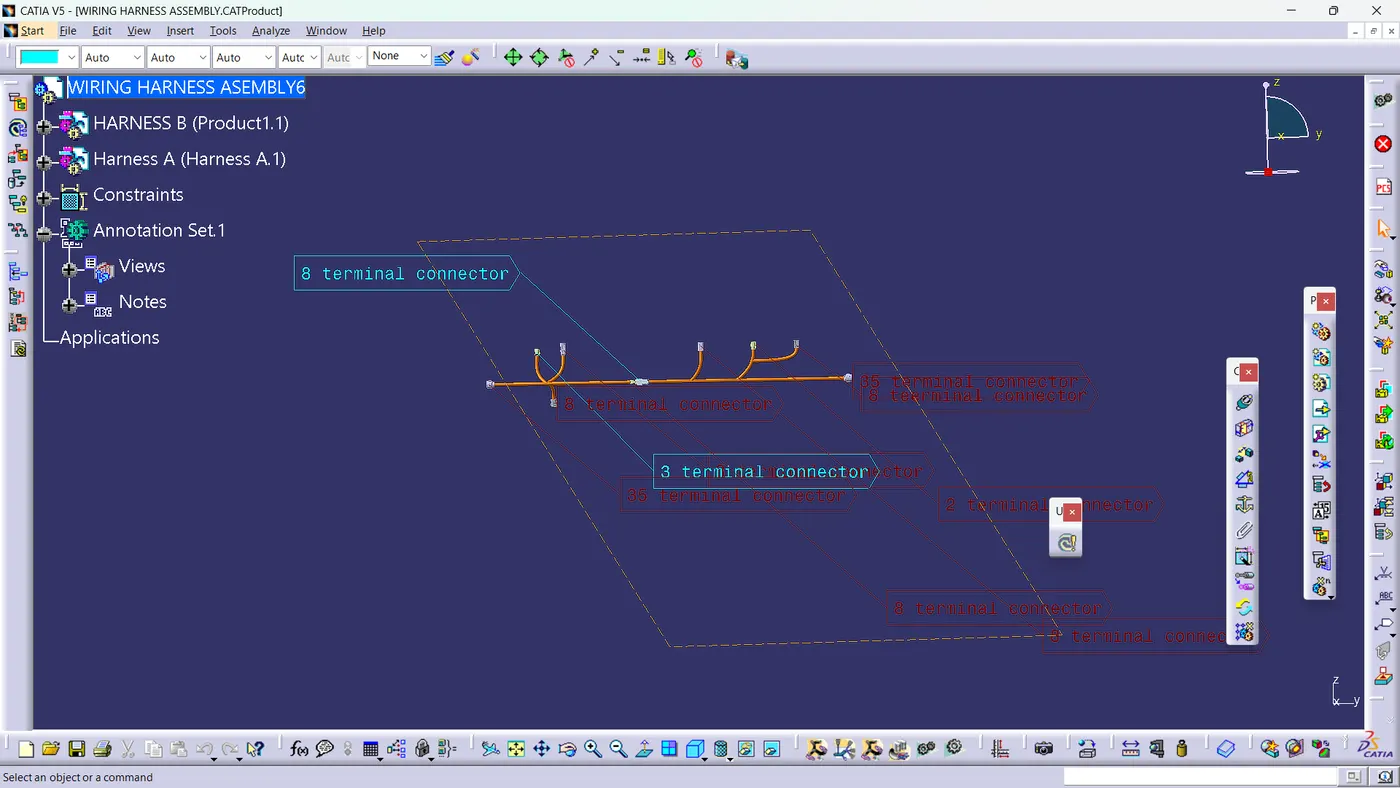

annotations of connectors are shown below.
