Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge
AIM:- To route the Harness layout in Eletrical workbench by using the connectors which taken as an inut
Objectives:
- To Check the Bundle Connectivity.
- Adding Annotations to connectors.
- check for bundle warning
- Generate CATPart and make STP or IGS File...
INPUT
We have to route the harness as shown in below Harness Layout.
the connector data is given we have to download from links provided.
CONNECTORS DATA
| CONNECTOR | DESCRIPTION |
| 1 | C-YDTS26F15-35SNV001 |
| 2 | C-DT06-3S-CP01 |
| 3 | C-DT06-08SA-CE04 |
| 4 | C-DT06-08SA-EP07 |
| 5 | C-DT06-08SA-CE13 |
| 6 | C-DT04-08PA-C017 |
| 7 | C-1-174357-2 |
| 8 | C-DT06-08SA-CE01 |
| 9 | C-DT06-08SA-EP07 |
| 10 | C-YDTS26F15-35SNV001 |
we have to download the data by the link provided .
CONNECTOR 1
C-YDTS26F15-35SNV001
STEP 01

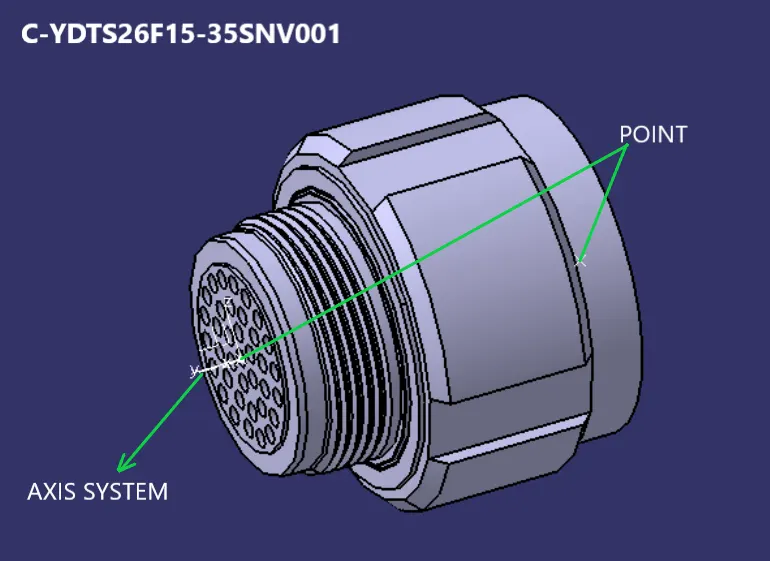

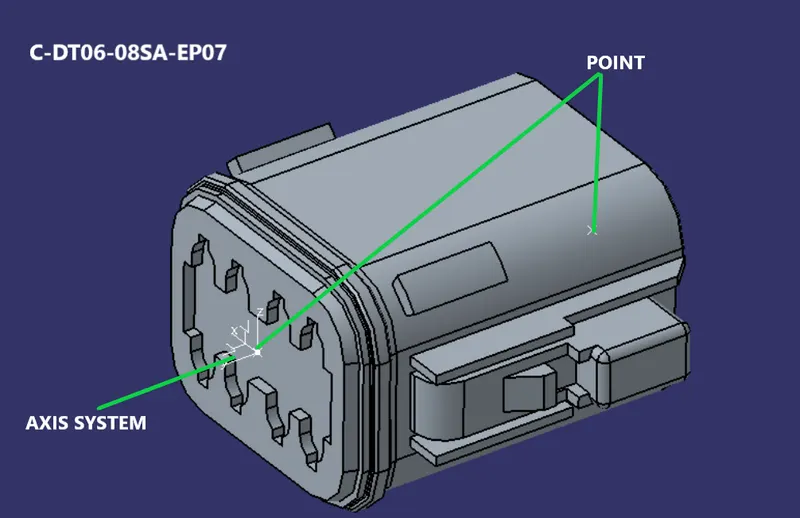

Creating points and axis system to define as Electrical Part
STEP 02

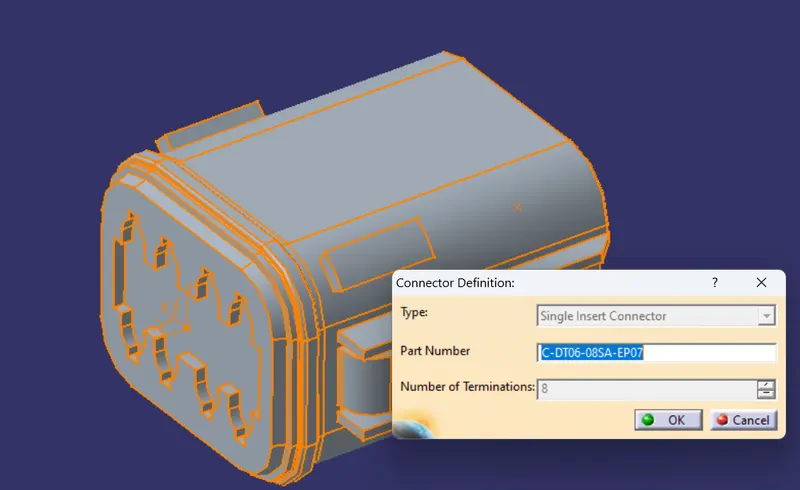

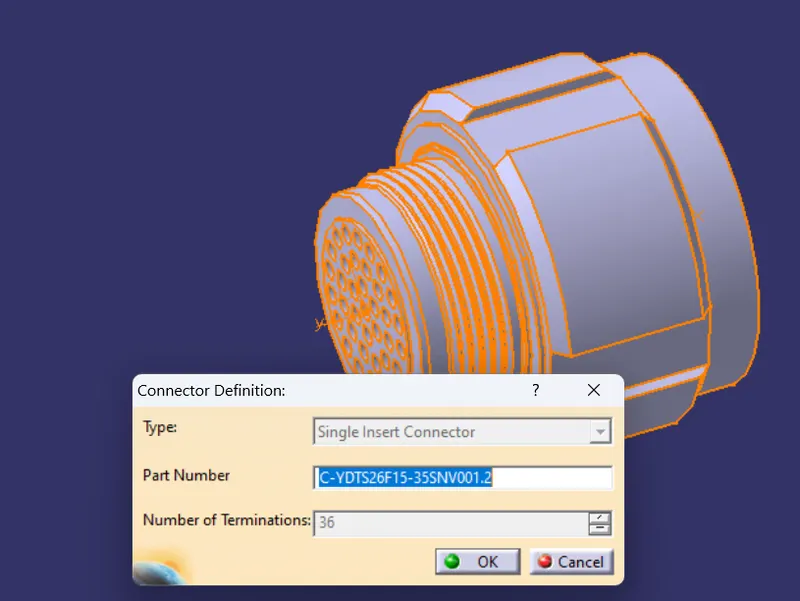

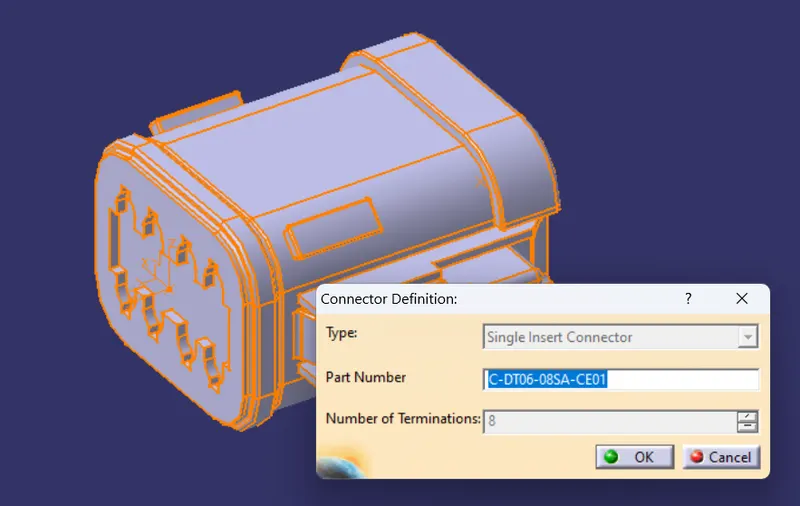

Connector Definaion
STEP 03

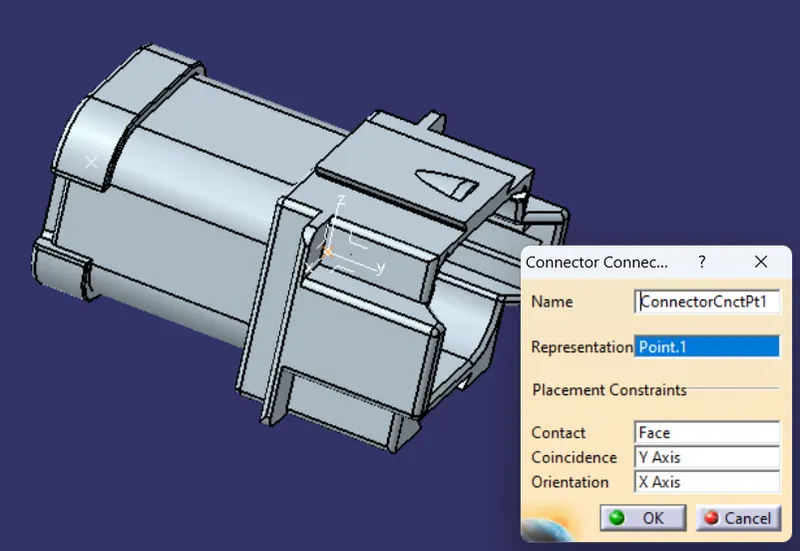

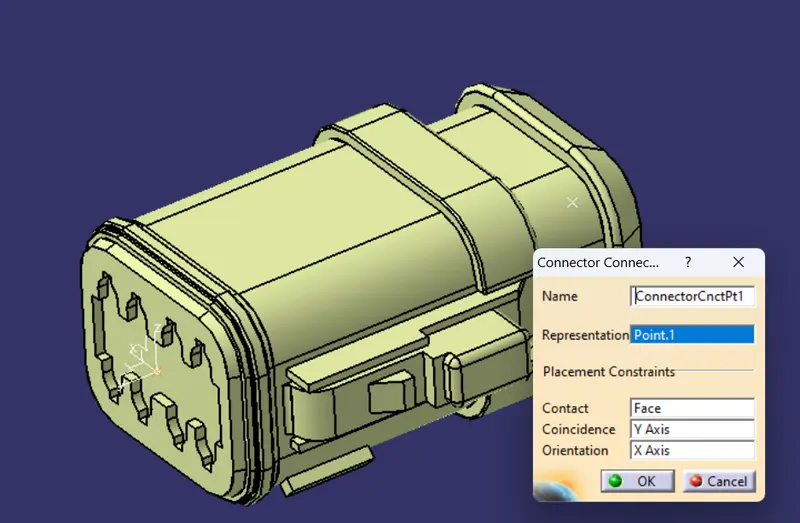

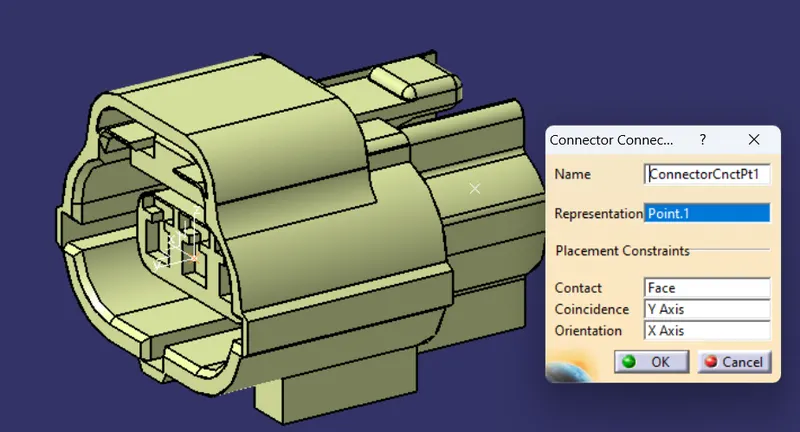

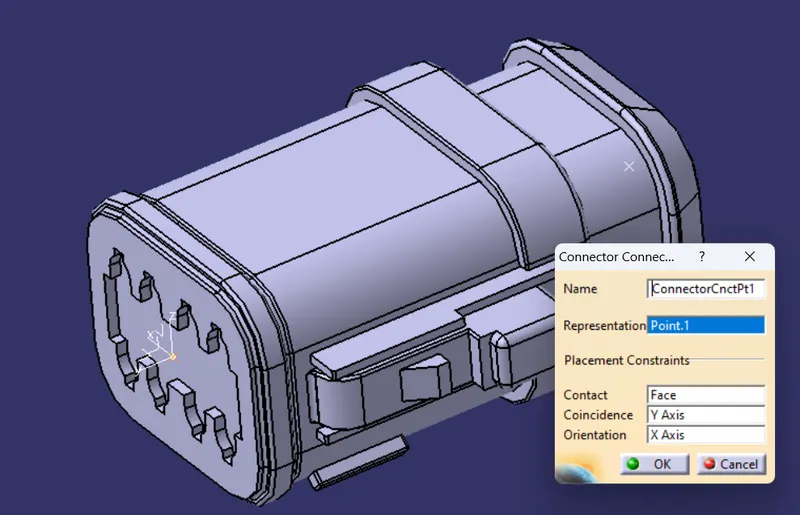

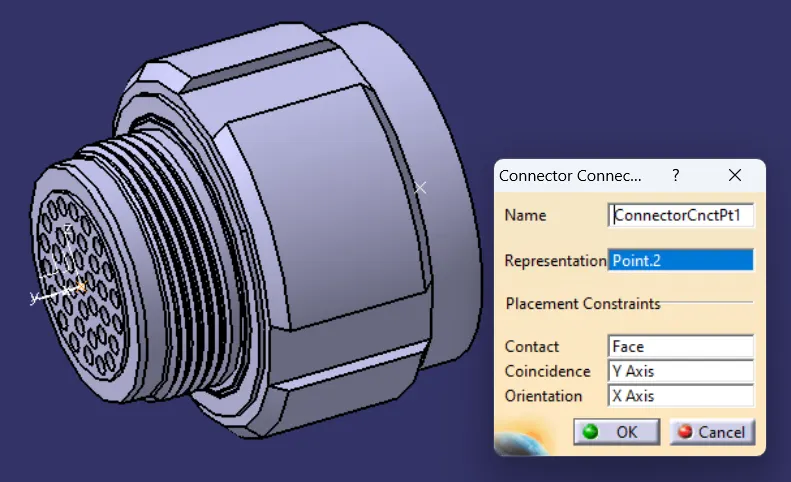

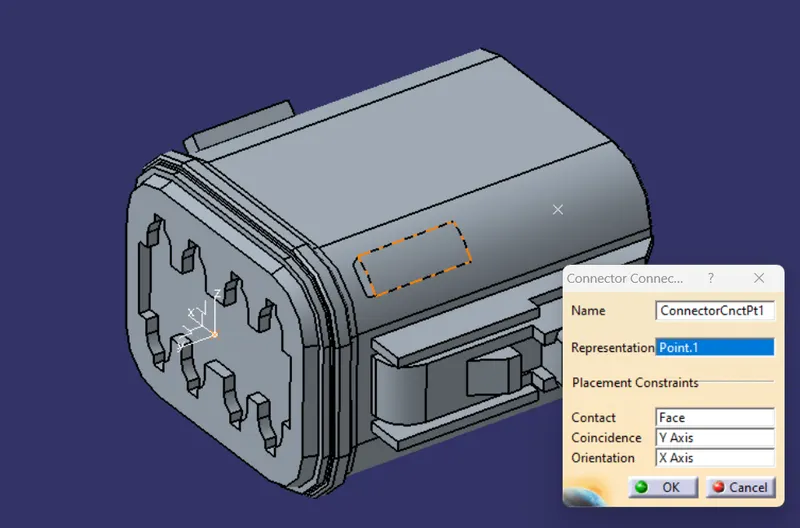

Connector Connection Defination
STEP 04

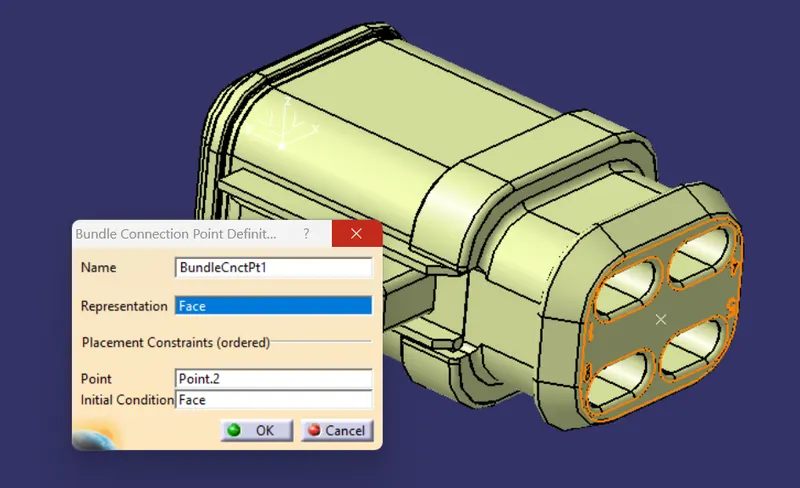

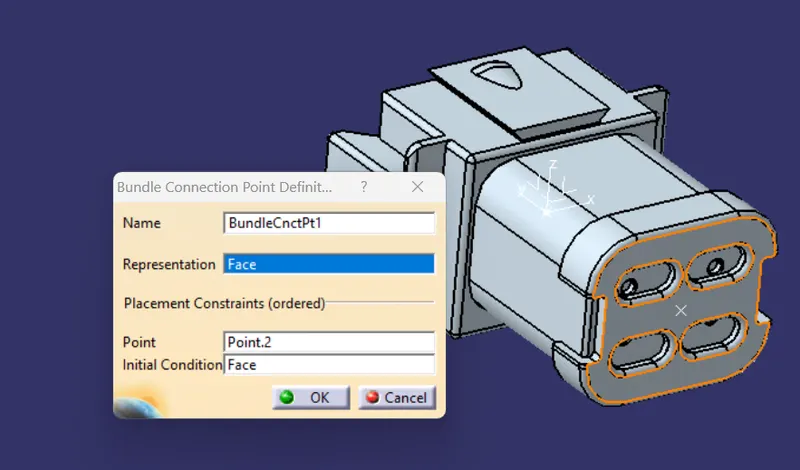

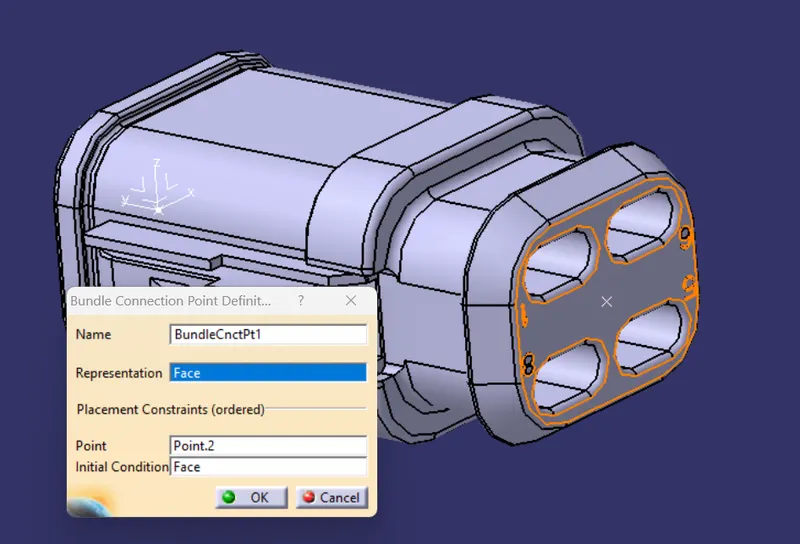

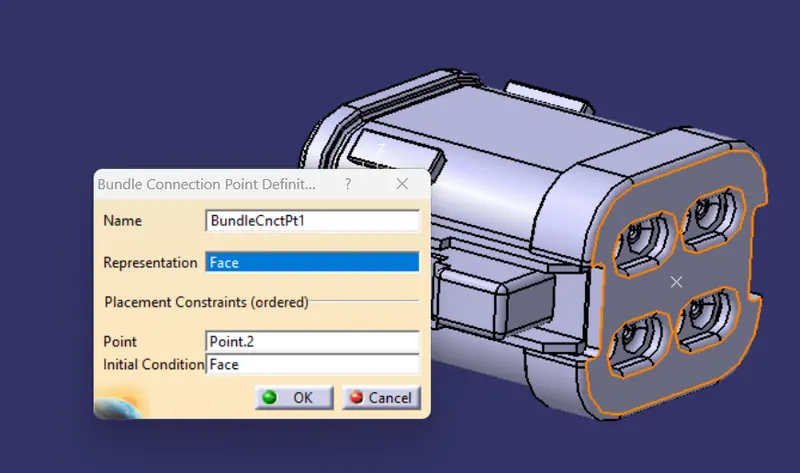

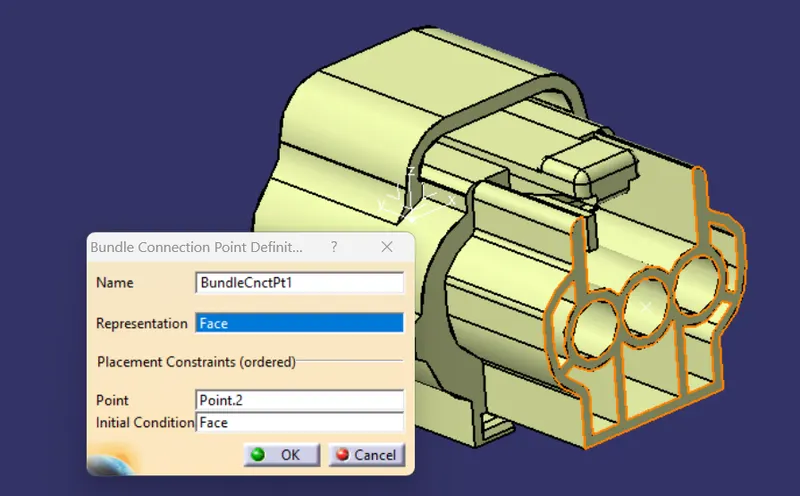

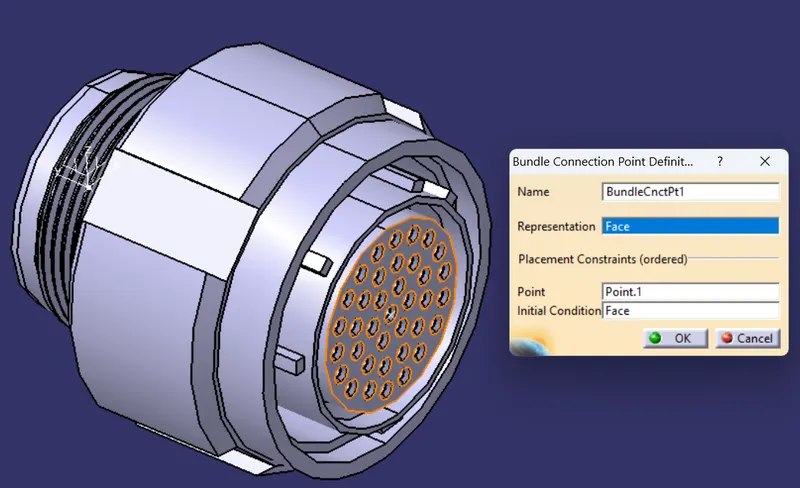

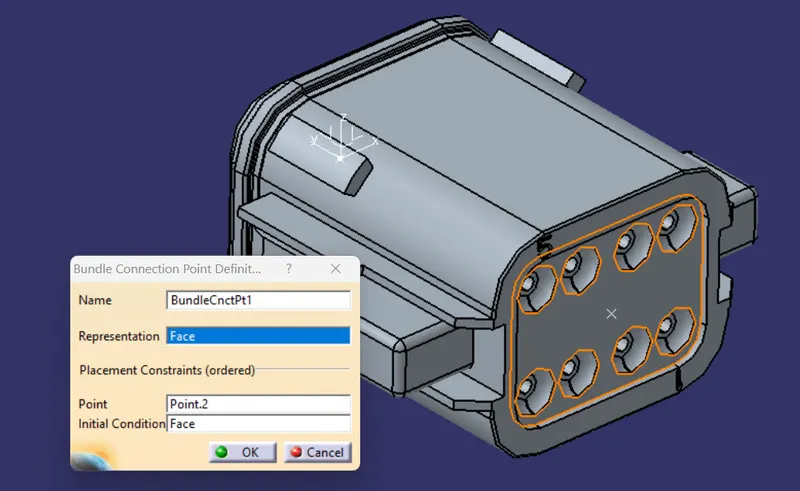

Bundle connection Defination

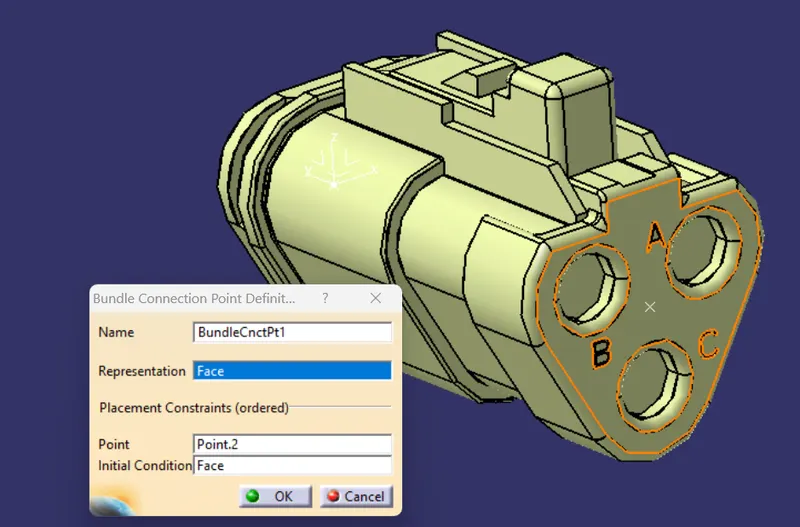

CONNECTOR 2
C-DT06-3S-CP01
STEP 01

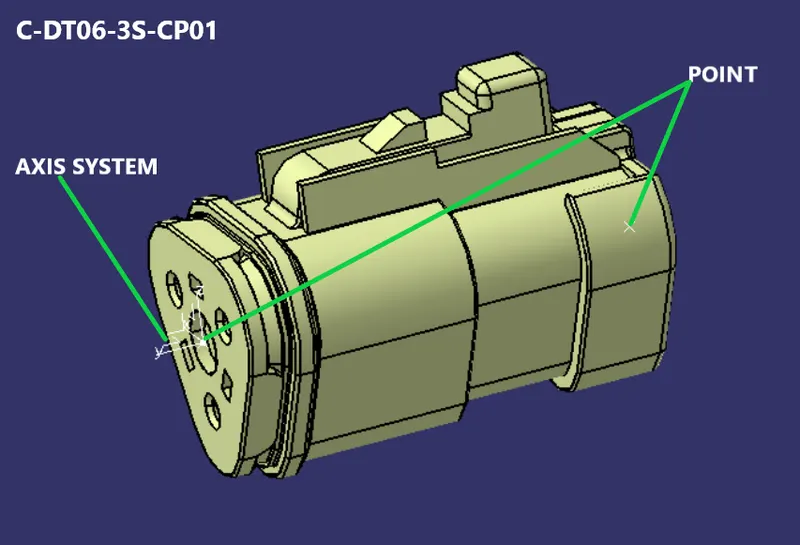

Creating points and axis system to define as Electrical Part
STEP 02

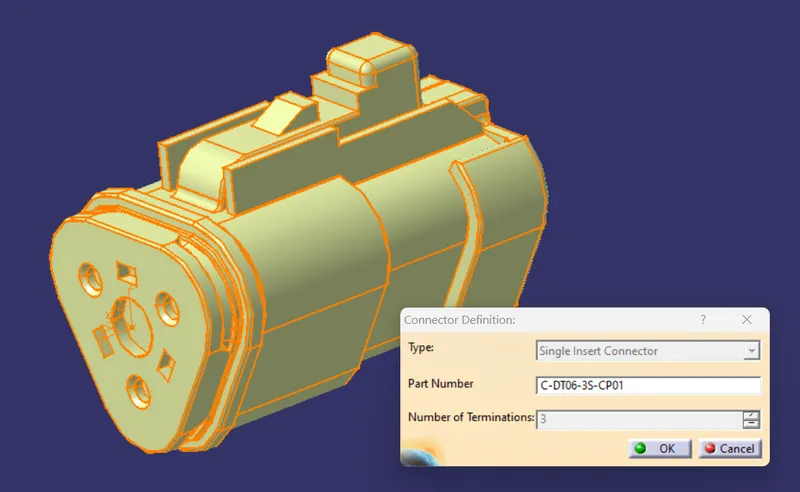

Connector Definaion
STEP 03

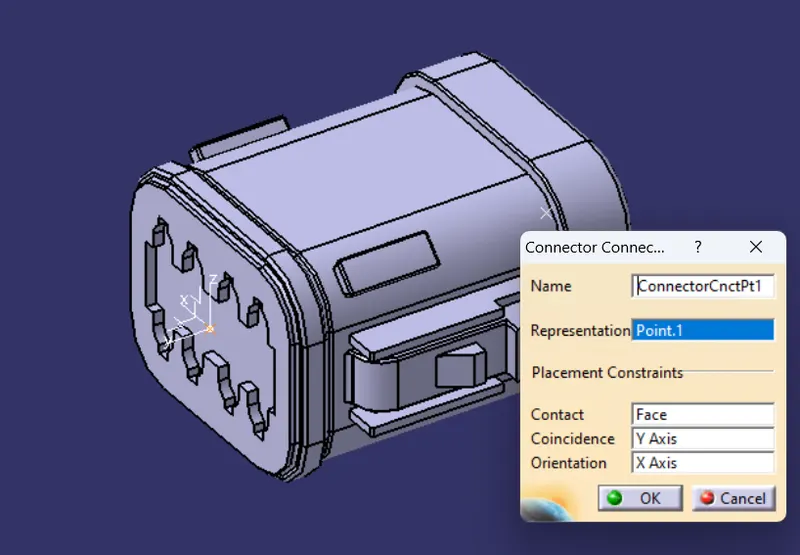

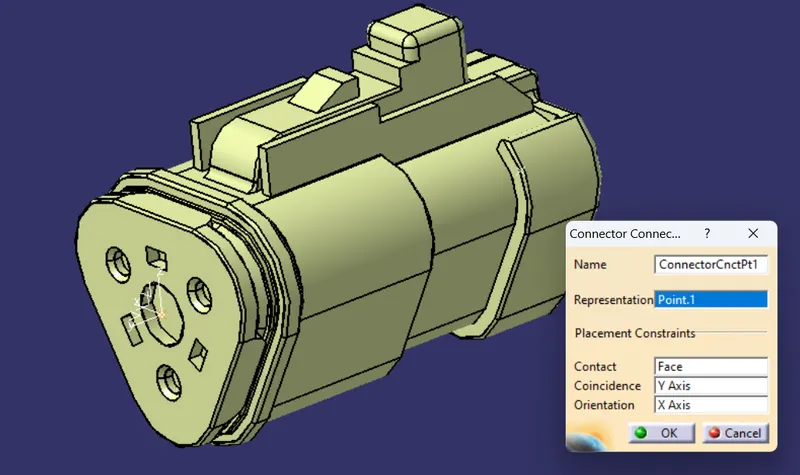

Connector Connection Defination
STEP 04
Bundle connection Defination

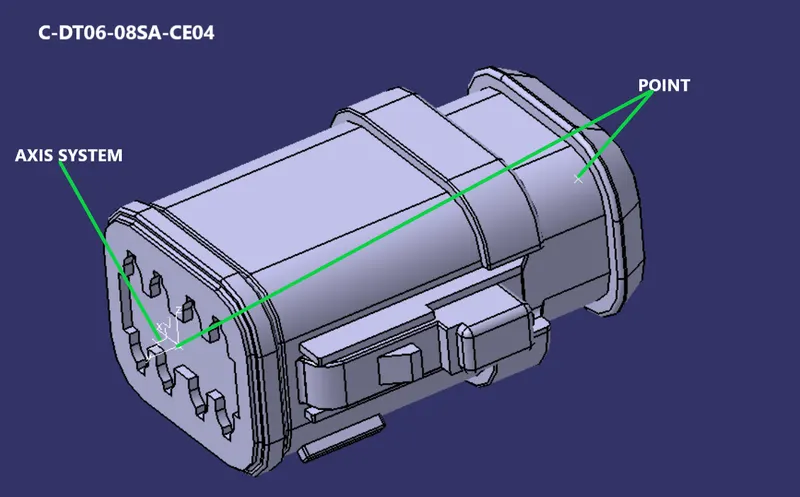

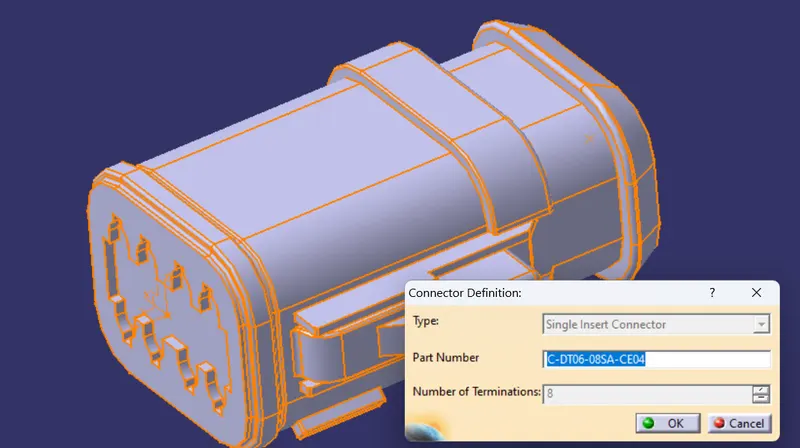

CONNECTOR 03
C-DT06-08SA-CE04
STEP 01
Creating points and axis system to define as Electrical Part
STEP 02
Connector Definaion
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination
CONNECTOR 4
C-DT06-08SA-EP07
STEP 01
Creating points and axis system to define as Electrical Part
STEP 02
Connector Definaion
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination
CONNECTOR 5
C-DT06-08SA-CE13
STEP 01

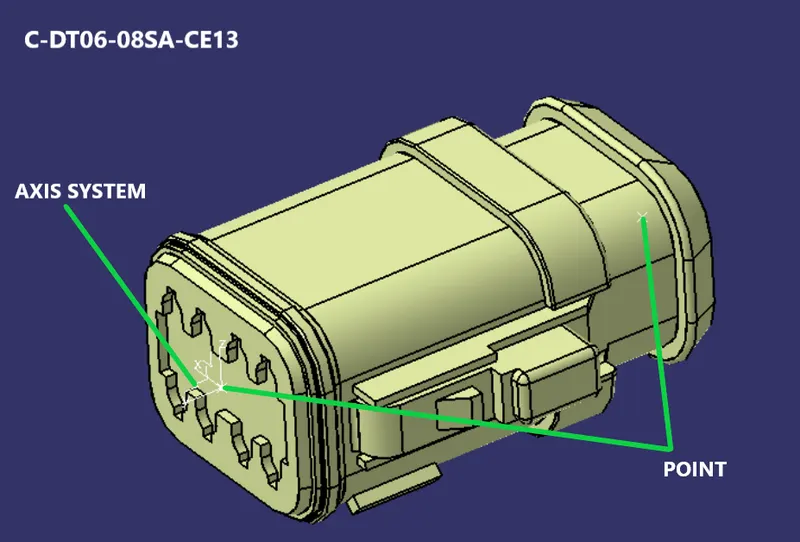

Creating points and axis system to define as Electrical Part
STEP 02

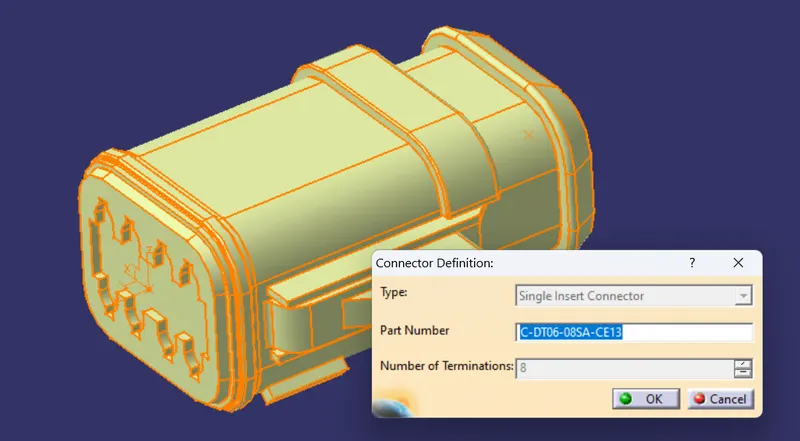

Connector Definaion
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination

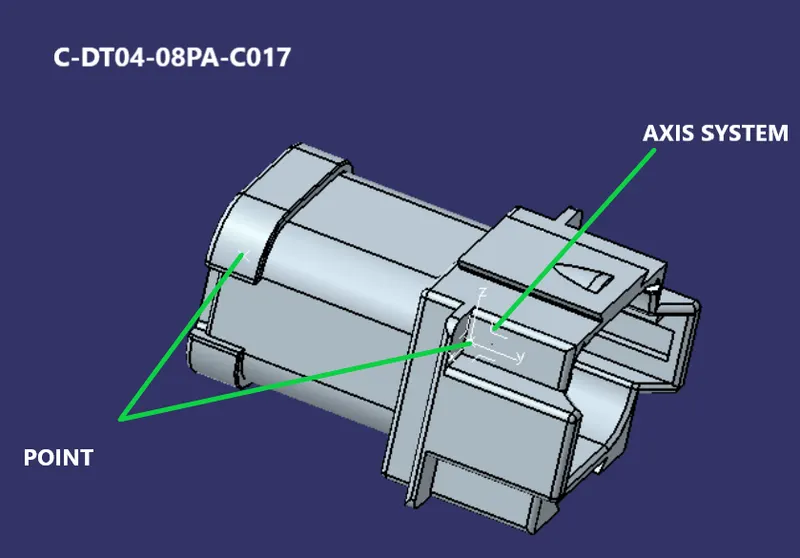

CONNECTOR 6
C-DT04-08PA-C017
STEP 01
Creating points and axis system to define as Electrical Part
STEP 02

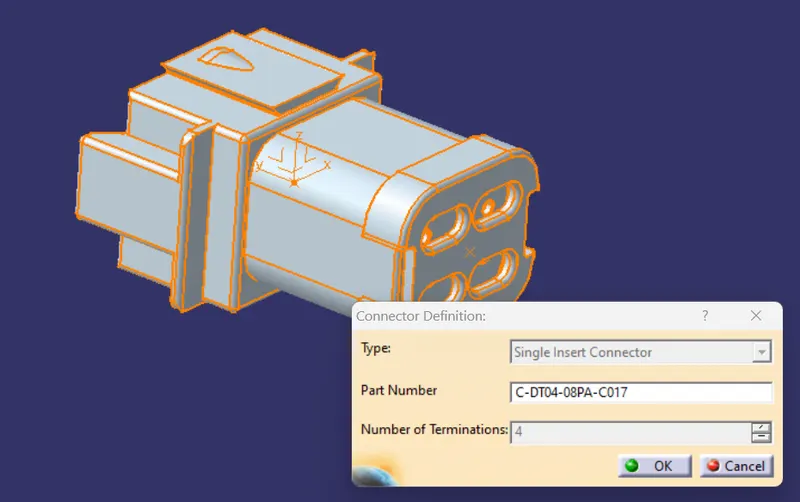

Connector Defination
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination

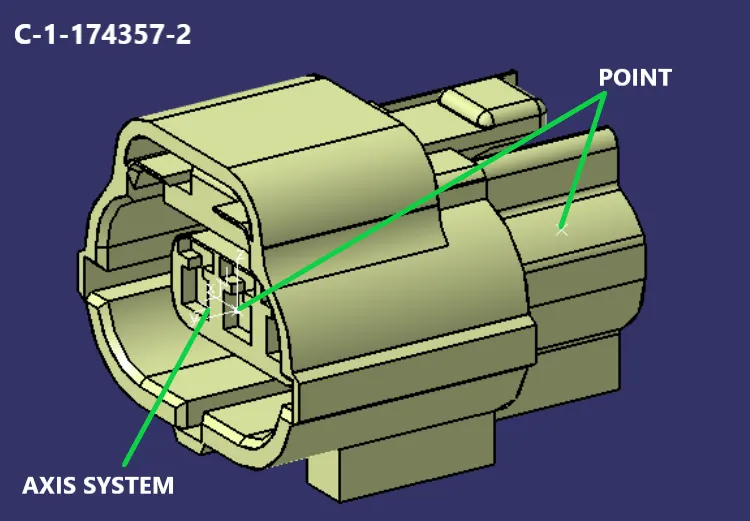

CONNECTOR 7
C-1-174357-2
STEP 01
Creating points and axis system to define as Electrical Part
STEP 02

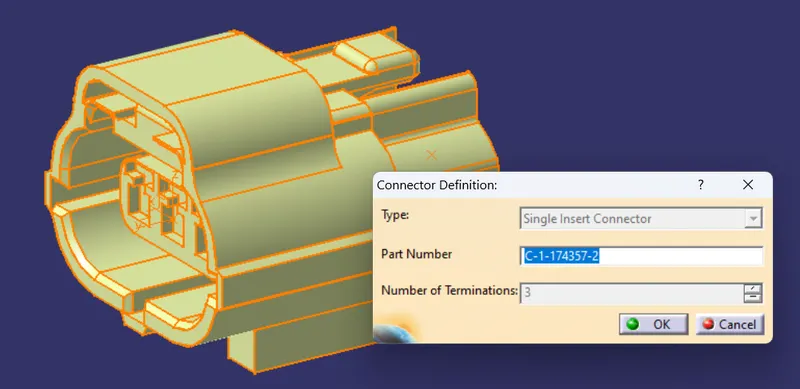

Connector Defination
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination

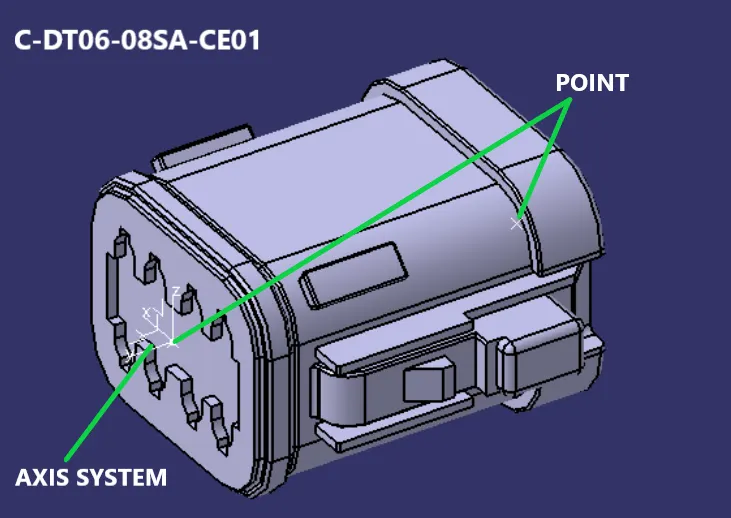

CONNECTOR 8
C-DT06-08SA-CE01
STEP 01
Creating points and axis system to define as Electrical Part
STEP 02
Connector Defination
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination
CONNECTOR 9
C-DT06-08SA-EP07
STEP 01
Creating points and axis system to define as Electrical Part
STEP 02
Connector Defination
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination
CONNECTOR 10
C-YDTS26F15-35SNV001
STEP 01
Creating points and axis system to define as Electrical Part
STEP 02
Connector Defination
STEP 03
Connector Connection Defination
STEP 04
Bundle connection Defination

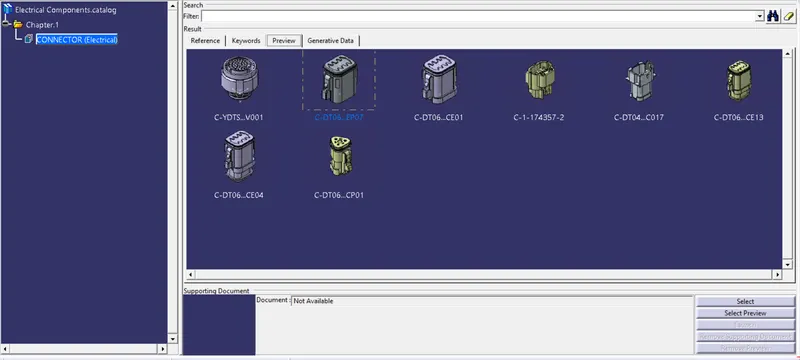

CATALOUGE CREATION

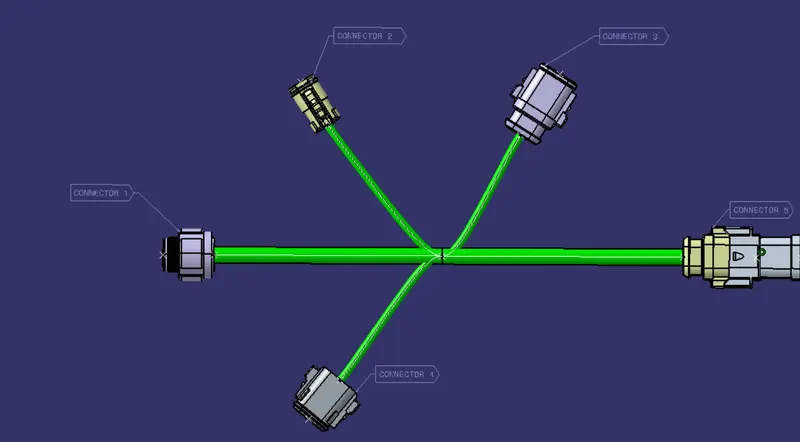

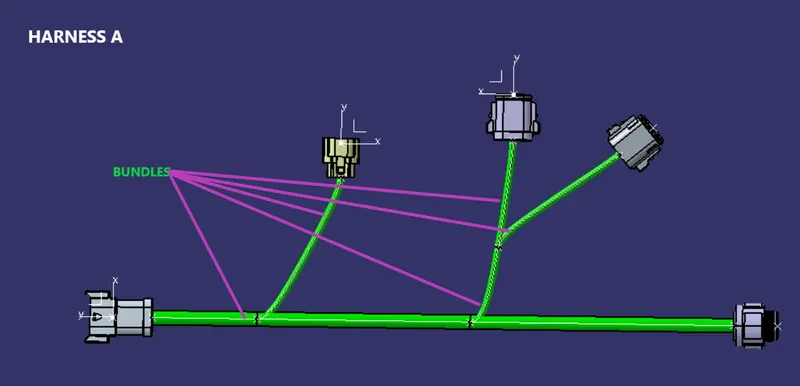

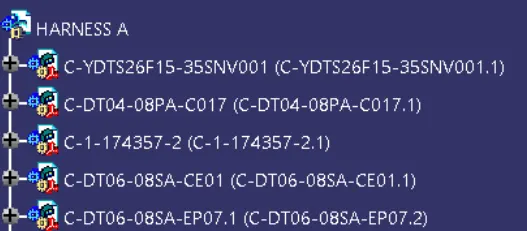

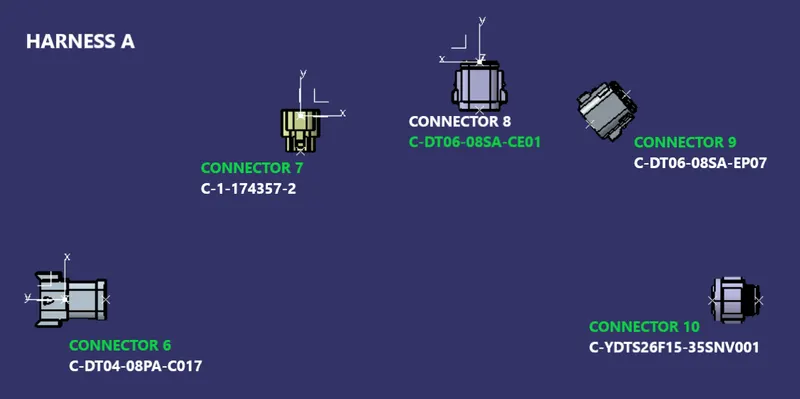

HARNESS A
Connectors are placed according to the Layout given and bundles are connected between then
Bundle connection

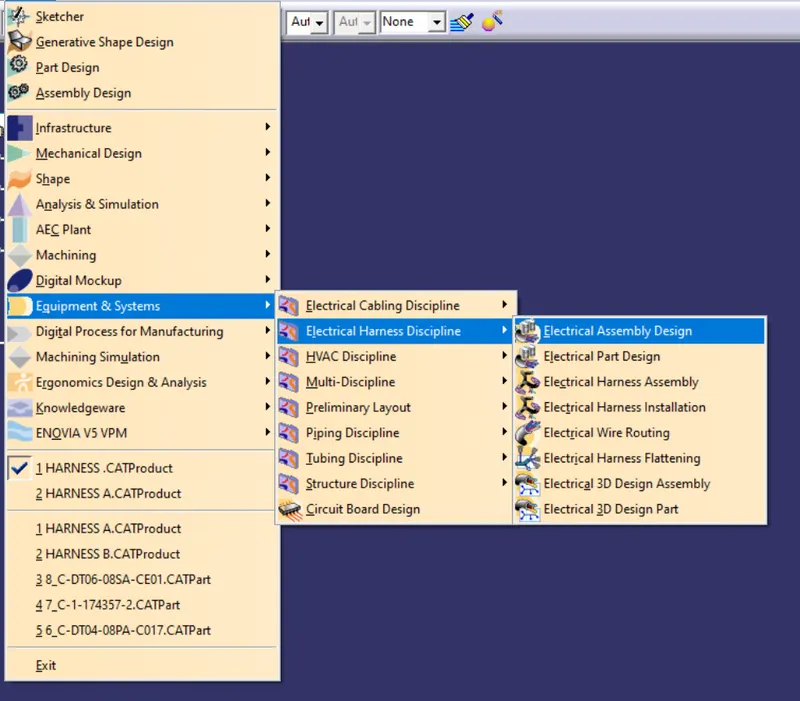

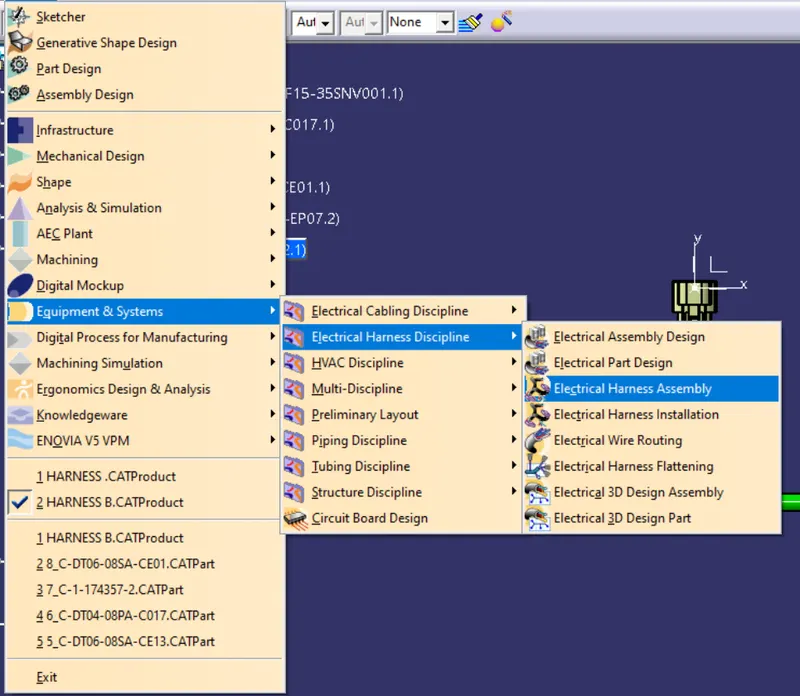

To created bundle connections we have to entre to Electrical Harness Assembly
as shown in the figure
PRODUCT -----> GEOMETRICAL BUNDLE
Convert the Product into Geometrical bundle by clicking the product icon by selecting geometrical bundle attribute
After that product icon will be changed so its defined as electrical product
CONNECTING CONNECTORS
Select multi Branchable icon as shown

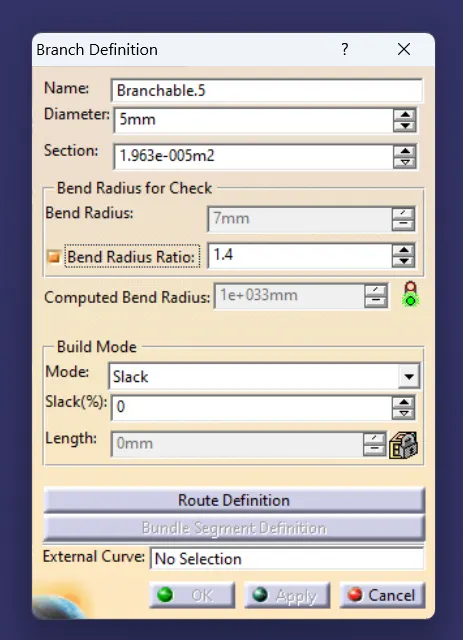

Branch Defination
Entre the Bundle diameter bend radius slack if needed

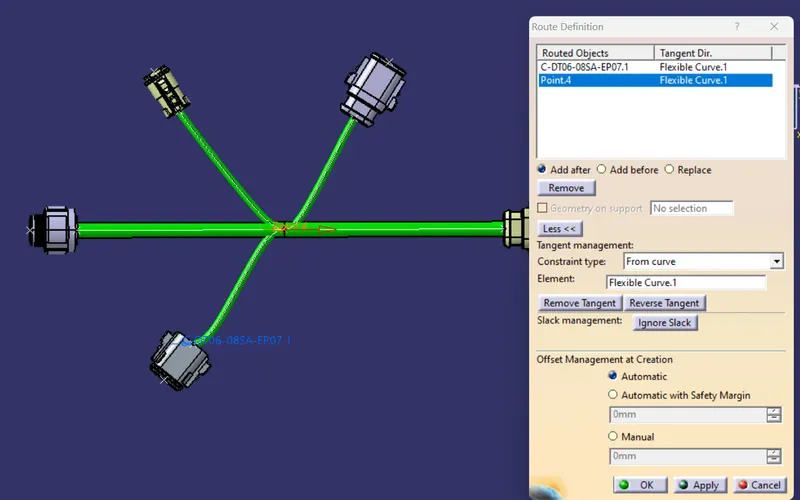

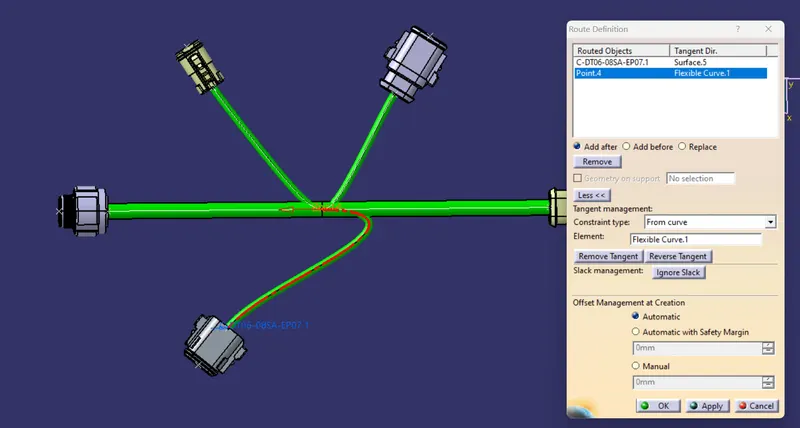

after that Click Route Defination at the bottom

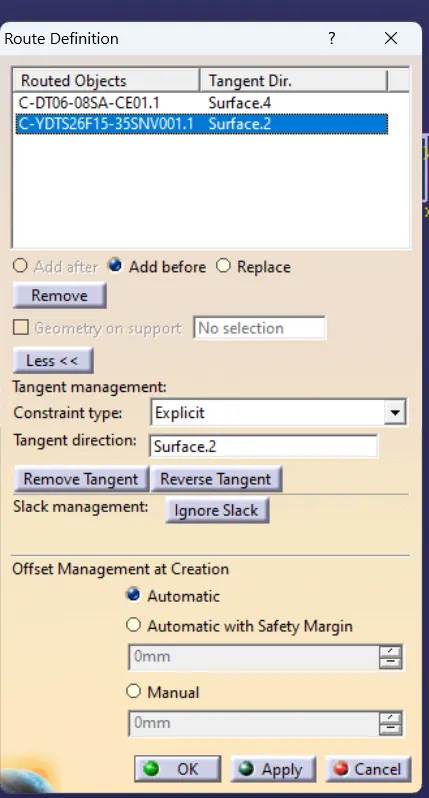

it will take you to other window where you need to give connector and tangent direction

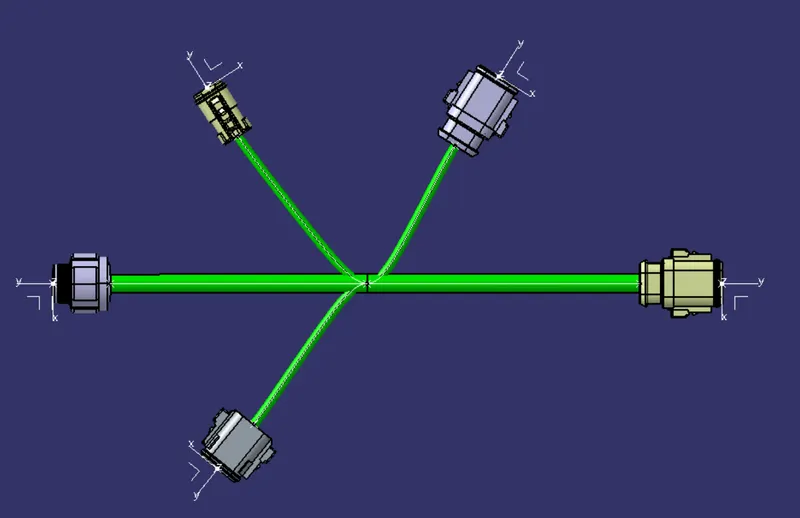

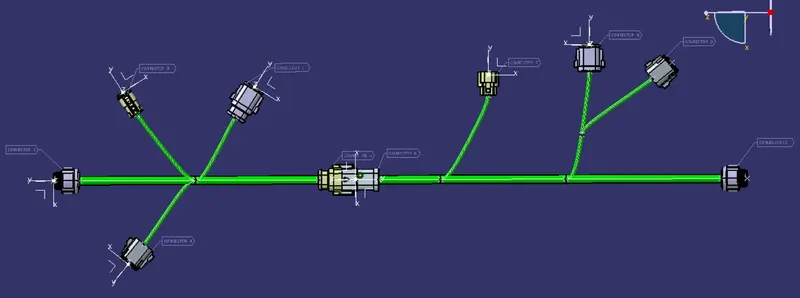

by following this we have to create the Bundle and connect the connectors as shown in below fiigure

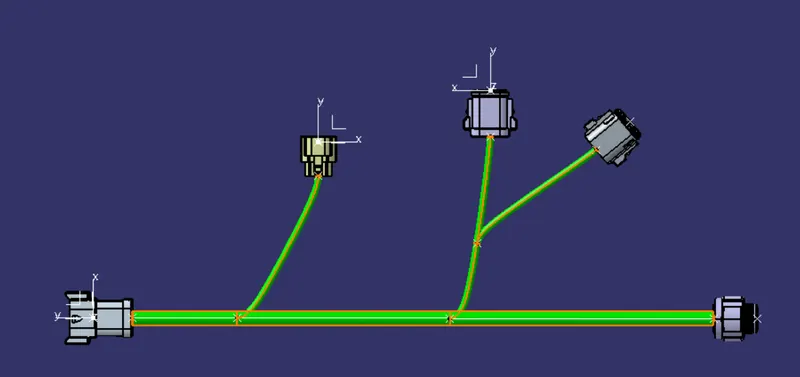

HARNESS B
follow the same procedure as Harness A
Harness B should be created in another Product
Assemble Both HARNESS A AND HARNESS B
To assemble the harness first we need to import both Products in one separate Product and name it as Haness
Entre into Harness Assembly Design

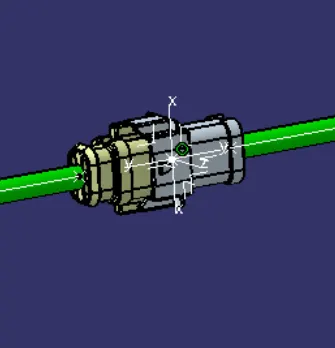

connect both Harness as shown using Connect command

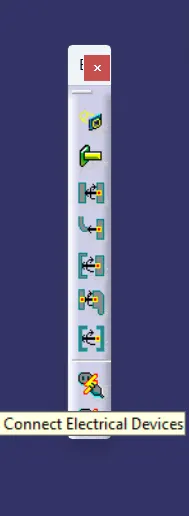

Connect electrical Device
Harness are connected

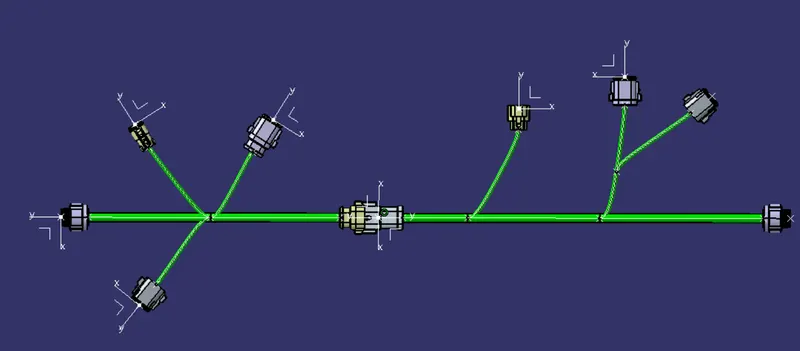

HARNESS ASSEMBLY

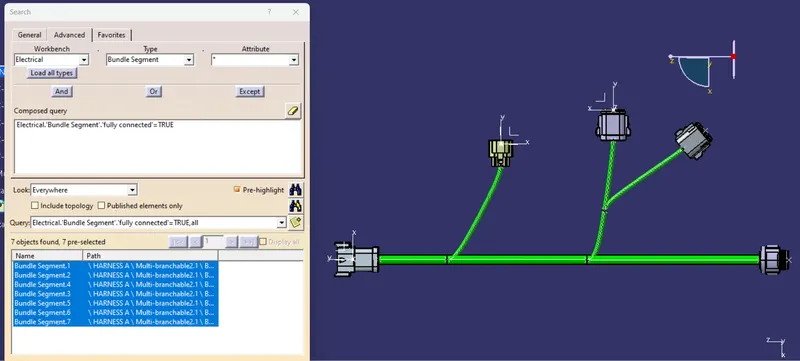

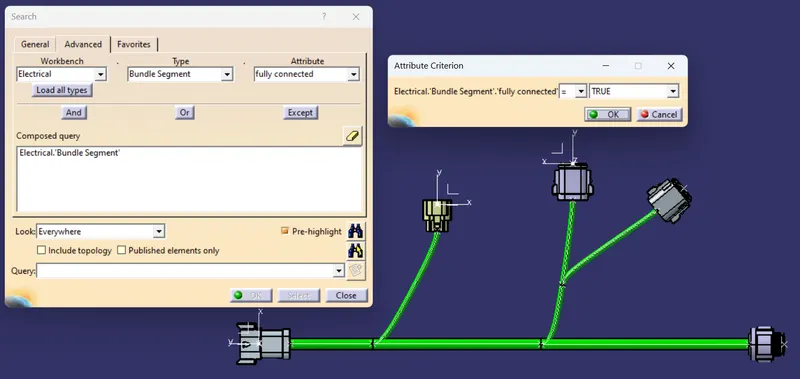

CHECK FOR BUNDLE CONNECTIVITY
HARNESS A

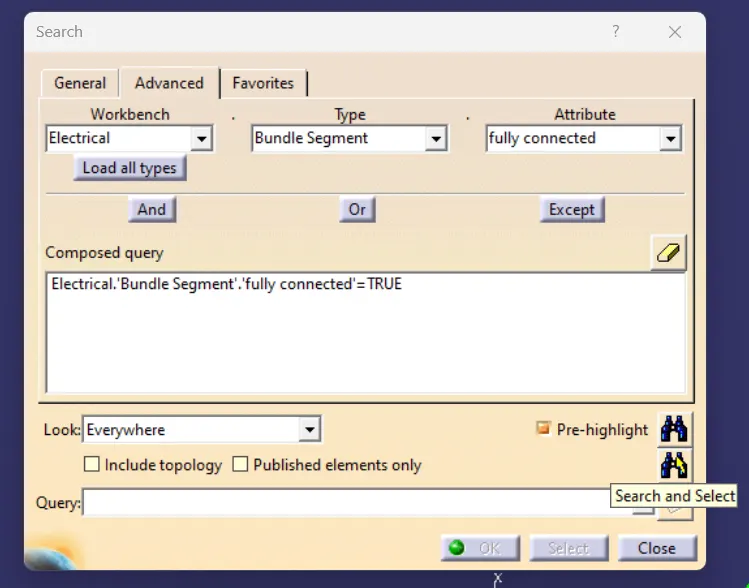

Edit---> Search--->Advance
Workbench---->Electrical
Type------>Bundle Segment
Attribute----> Fully connected
Attribute Criterion-----> TRUE
Serch and Select
Serch and Select
so it will select automatical and shows the connected Bundles
IF we select Pre Highlite
Annotation Creation
for creating Annotation we need to jump to Mechanical Assembly Workbench

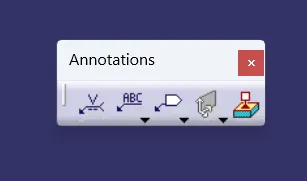

Select the annotation type and select the Plane on which we need to create the annotation
Annotation are created

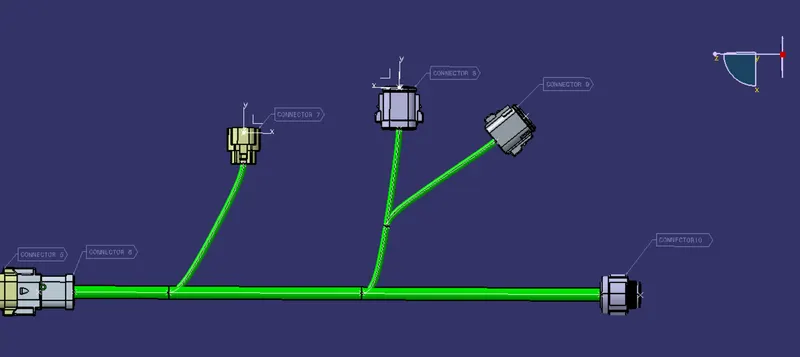

Harness B side Annotation
Harnes A Side Annotation
Harness Annotation
BUNDLE WARNING
Due to Reverse in Tangent Direction it is showing warning we can sove by reversing the tangent Direction
Problem solved

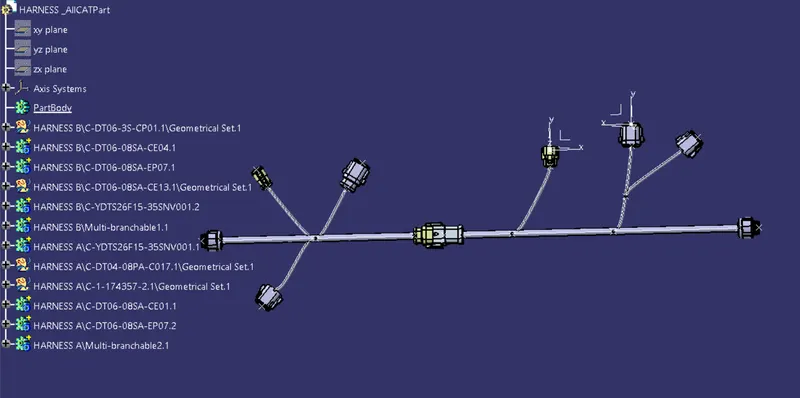

Converting Product File to Part File
To convert go to mechanical Assembly Work Bench

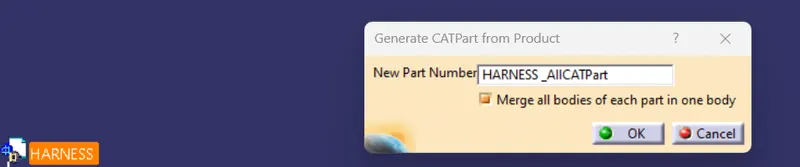

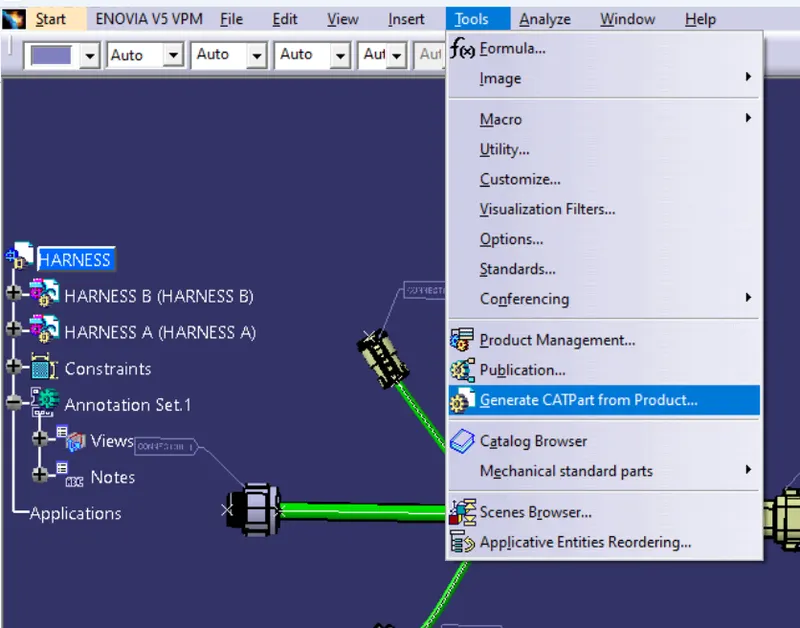

Tools---->Generate CATPart from Product...
click on the product icon and OK
so Product is Converted To CATPart
Now covert them into STP and IGS file Using Save AS Option
Conclusion
Harness Assembly is created By using Connectors DATA and Harness Layout
Mechanical Parts are defined as Electrical Components
Anootations are Created
Bundle Conntunity is Checked
Product is Converted as PARt file , STP and IGS format.
Catalouge is ceated for Connctors and imported in assembly
