Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

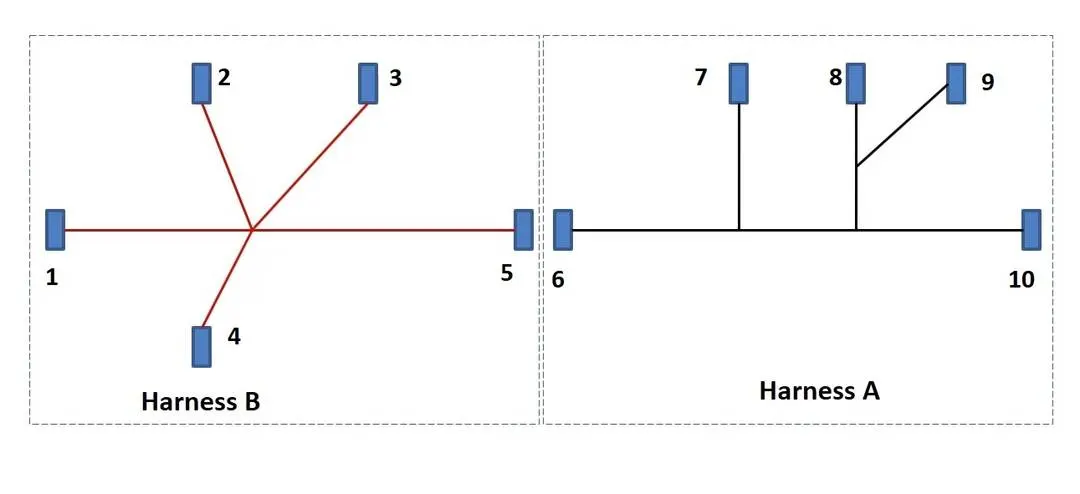

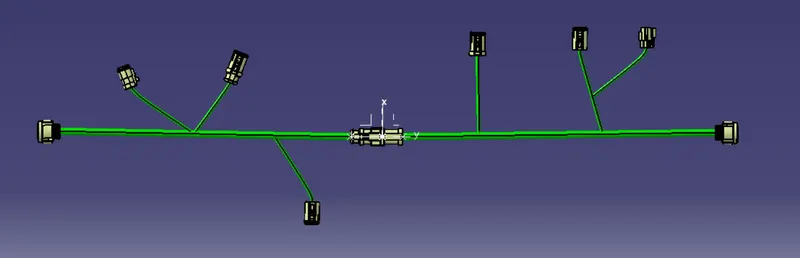

Let, we have provided the harness layout as below and accordingly we have to route it. For that we have to make assumption for harness bundle diameters and use DT connectors.

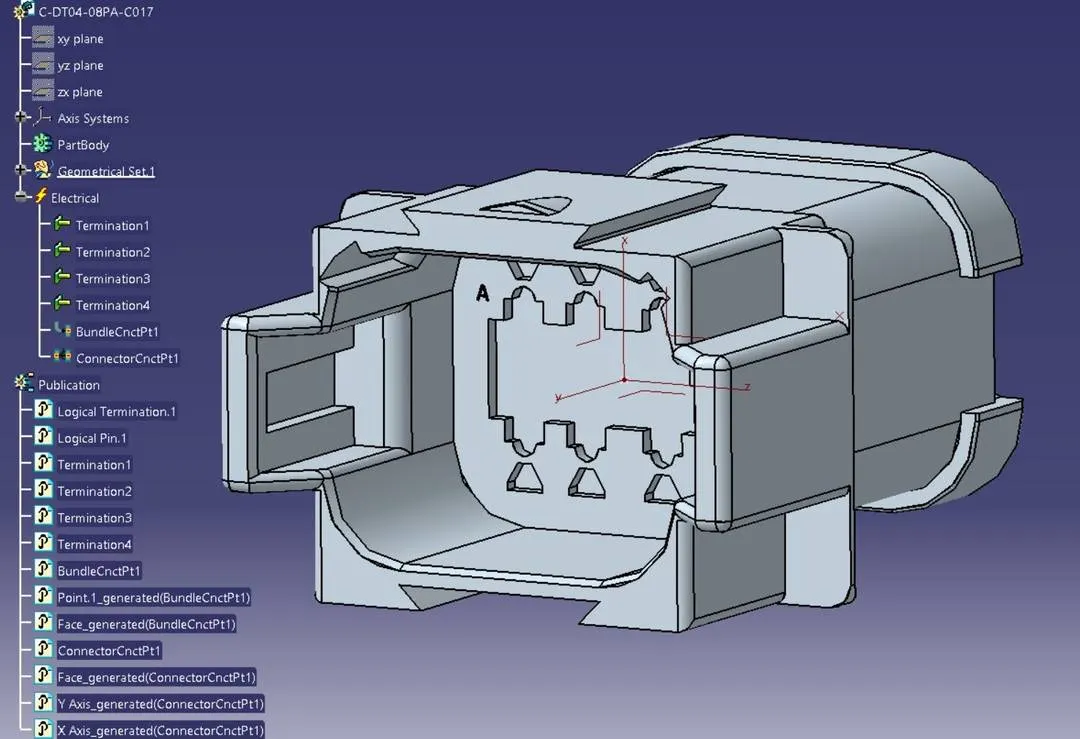

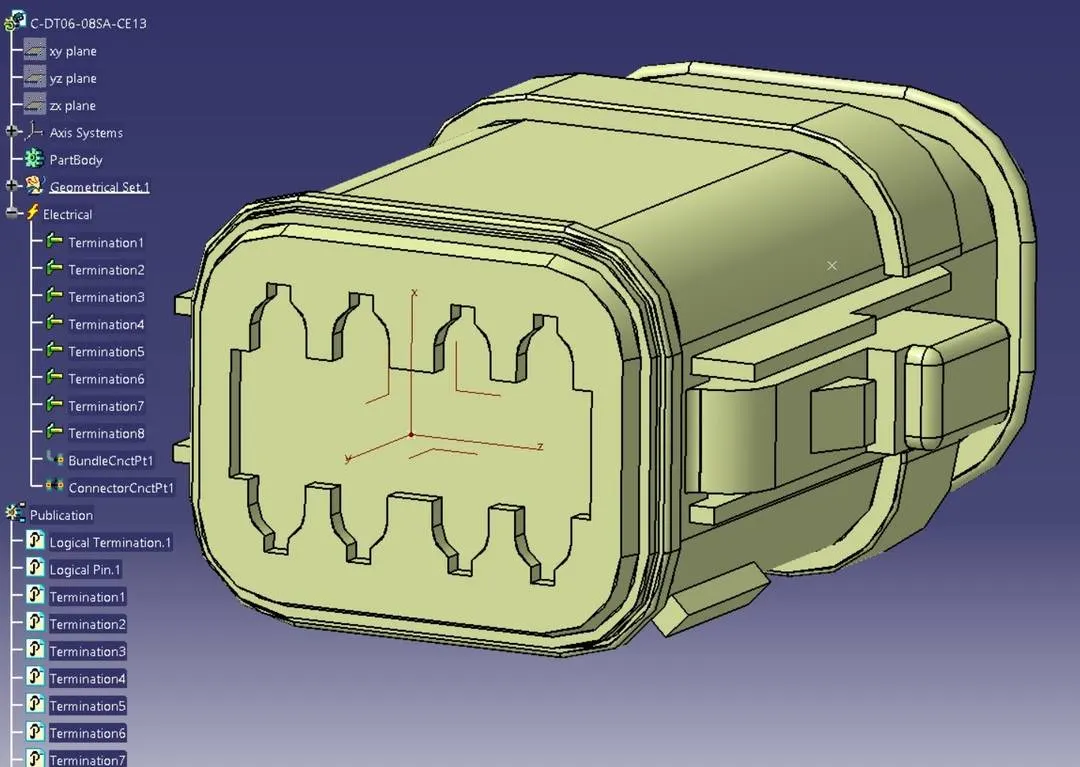

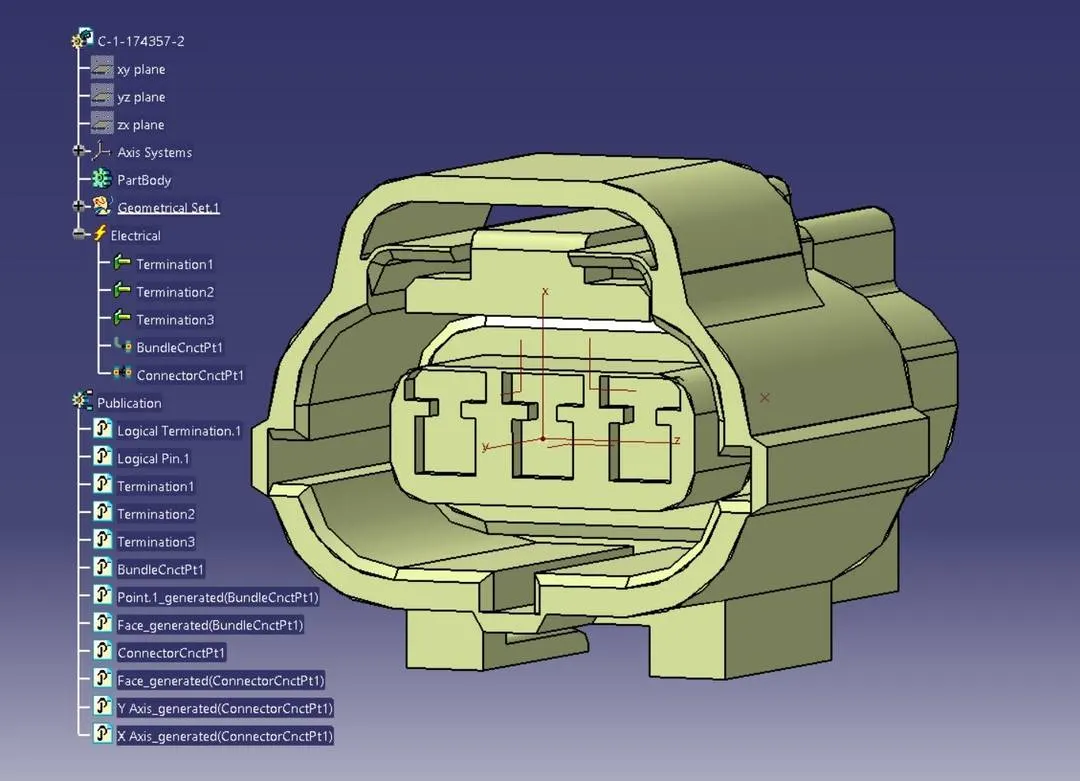

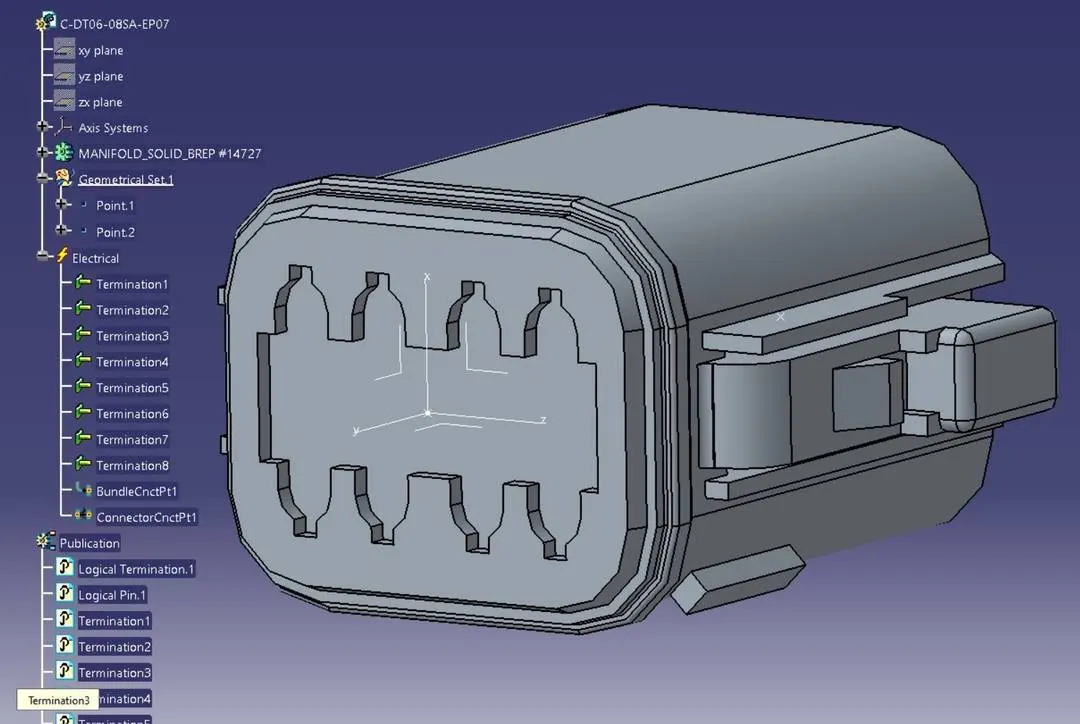

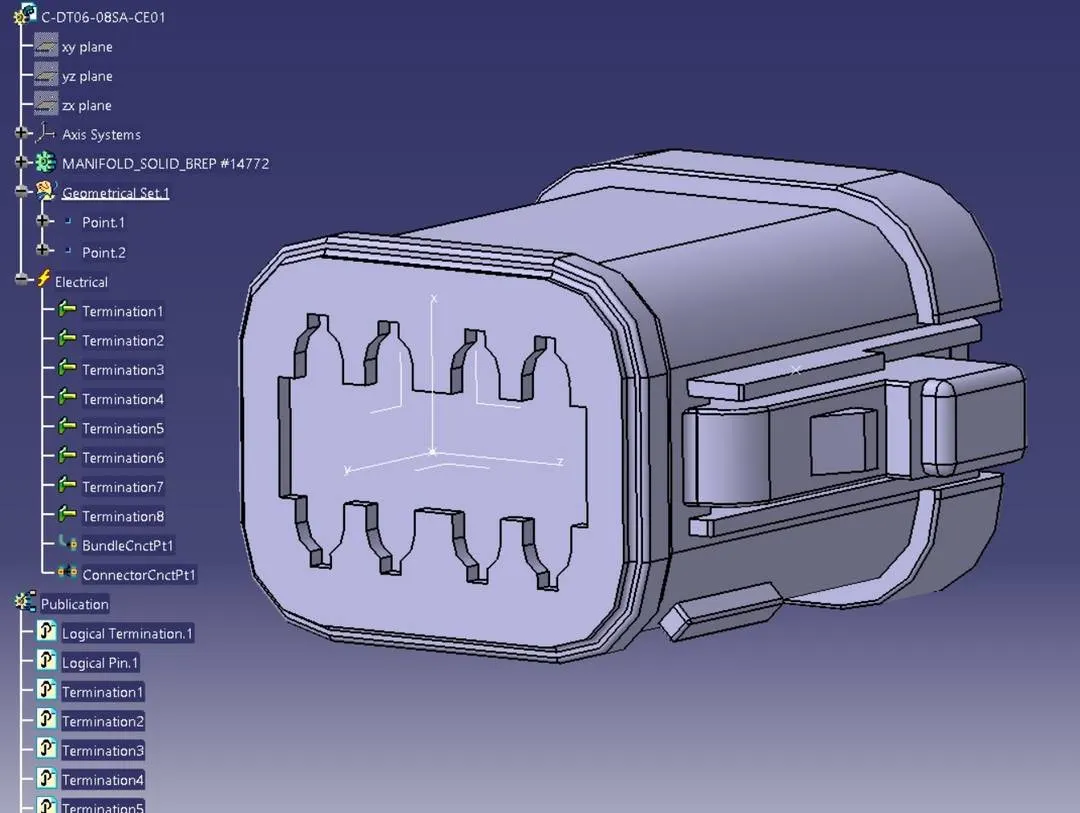

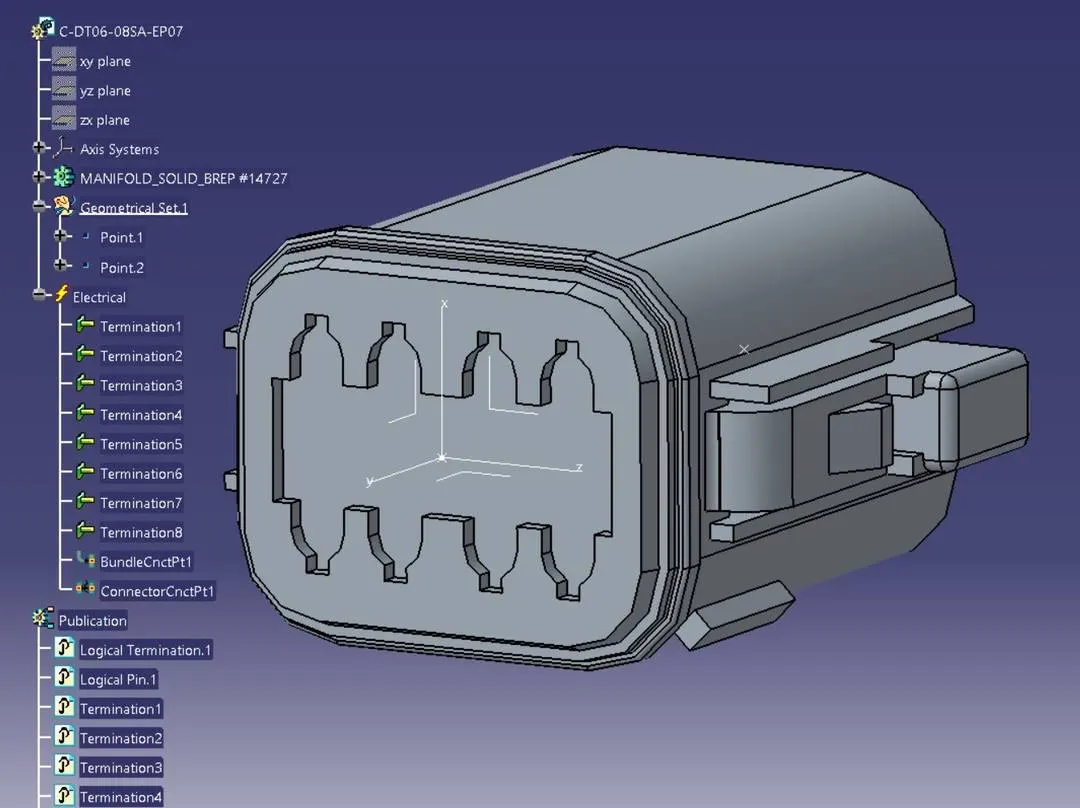

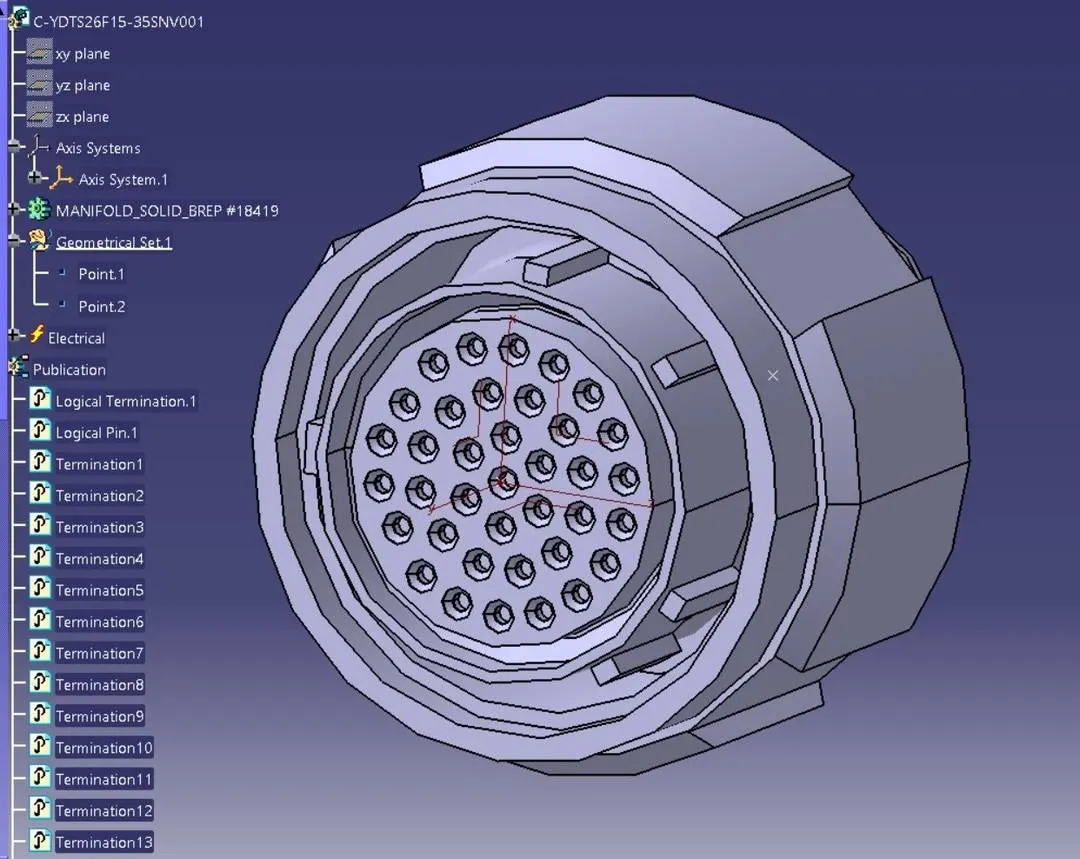

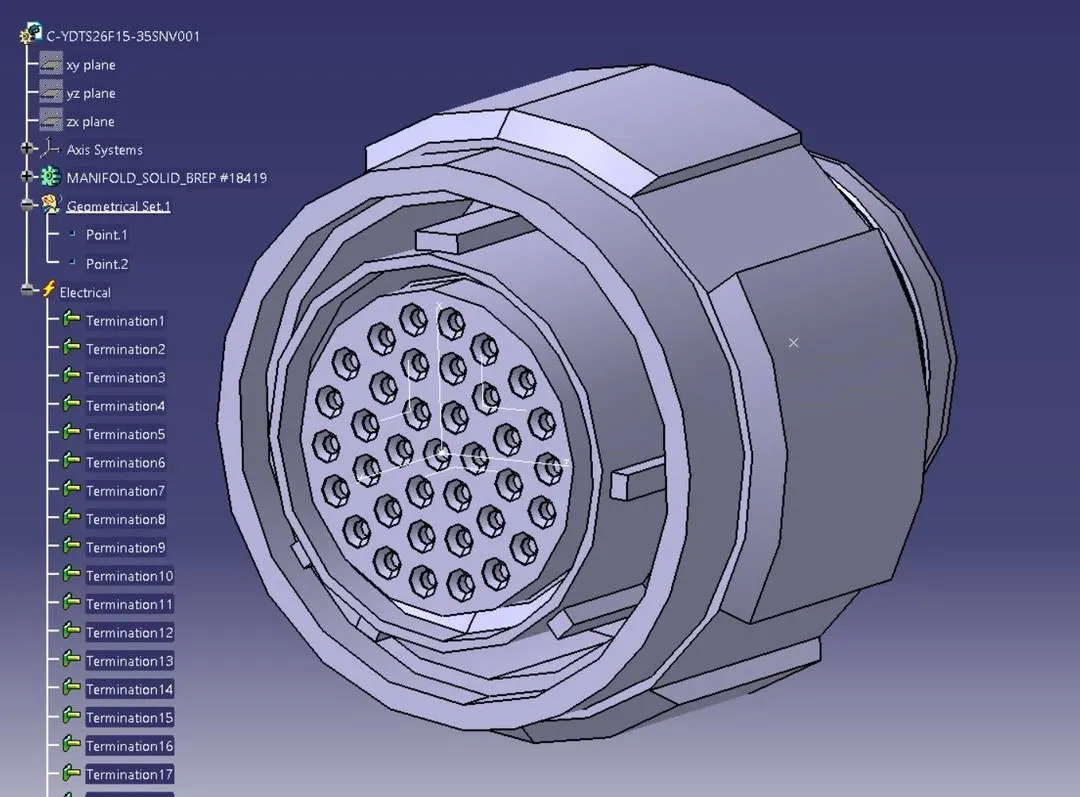

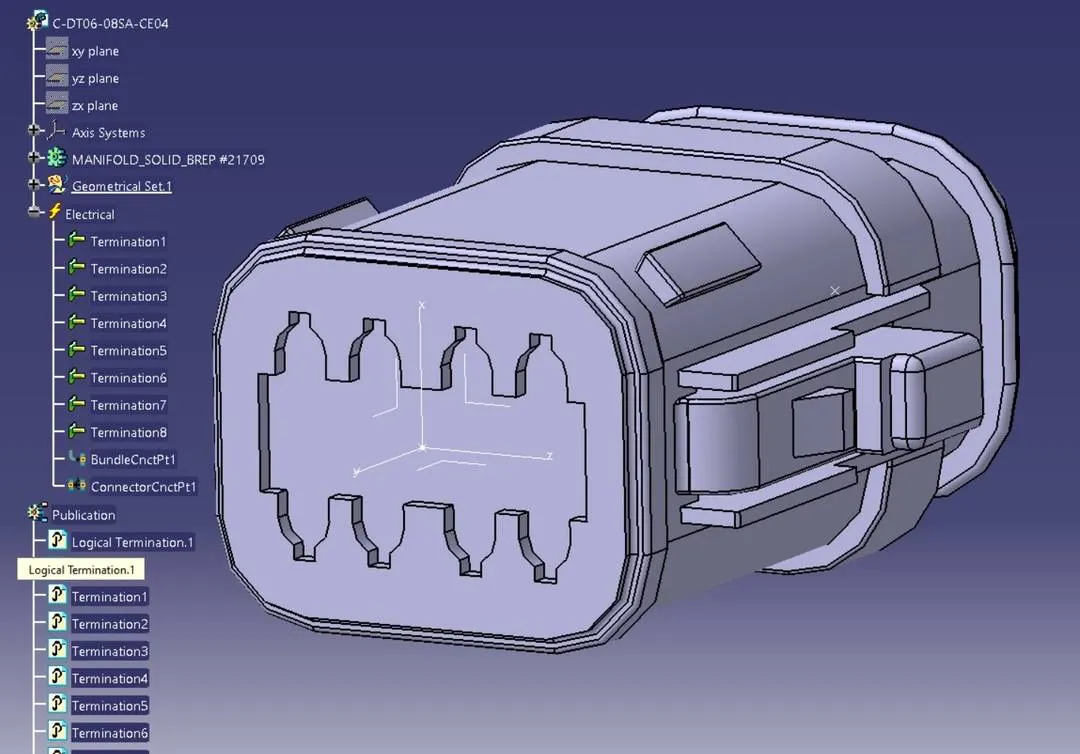

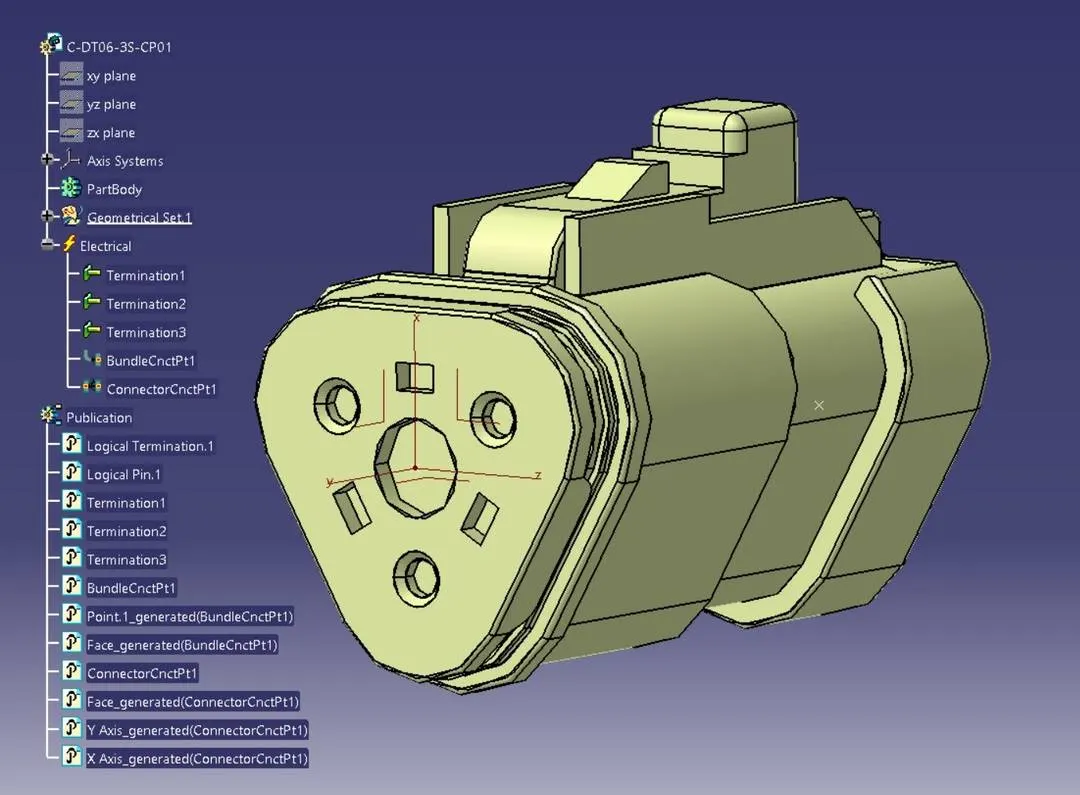

Step 1: We have to first define all the connectors geometrically and electrically as shown in below images.

Step 2:

Now, we have to create Harness A and Harness B by using electrical harness assembly as shown in below image.

First, we will locate all the connectors at their desired position, add branch points required and create bundle segment according to the diameters assumed as 10mm and 5mm.

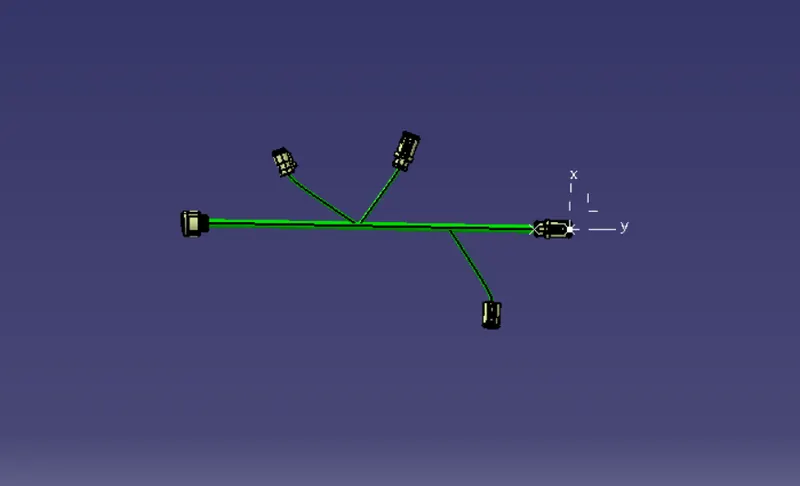

Harness A

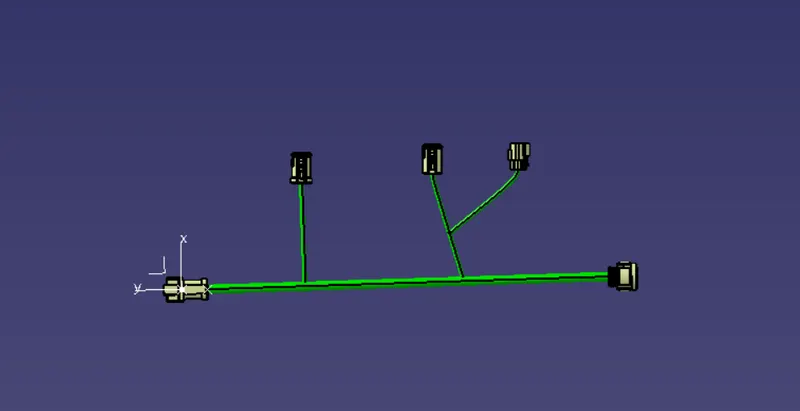

Harness B
