Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge
Q1. Route the following harness layout in Electrical workbench. Make assumption for harness bundle diameters. Use the connectors provided. After completion of routing,
- Check the bundle Continuity. Add snap of result in submission
- Add annotation to all connectors. Make an assumptions for annotations like connect 1 , 2 etc
- Check for the bundle warning. Add snap.
- Generate CAT.part of harness assembly and convert is in. igs format.
AIM:
Route two electrical harnesses per the given layout and interconnect them as a single harness assembly and import both assemblies in a single product and Add annotation to all connector check for bundle continuity, and bundle warnings, and then provide annotations for the final harness assembly.
Objective:
The objective of this project is to first route the two Harness A and Harness B as per the given harness layout.
CONNECTOR

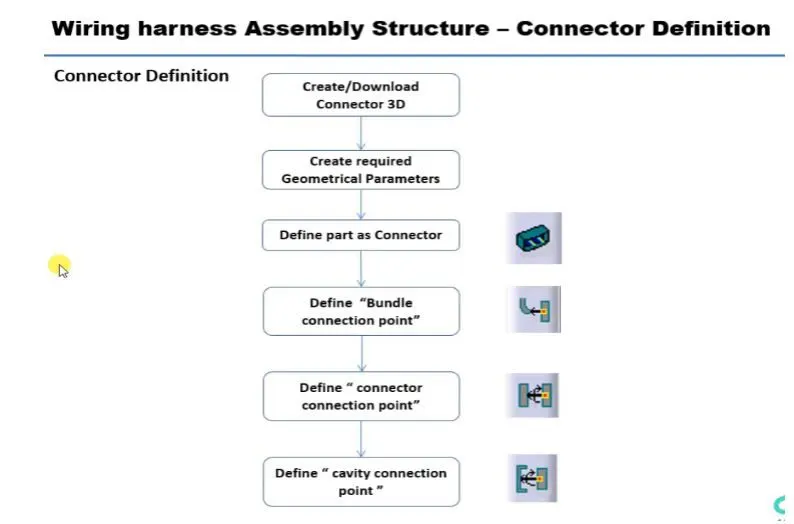

steps follow for the connector are shown below in the flow chart
METHOLOGY

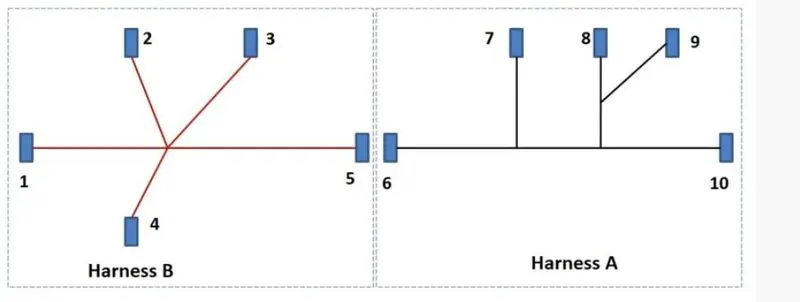

1.Shows the layout of two Harness A and Harness B
The electrical connectors are represented by numbers in the above figure. There are 8 different types of connectors at 10 different locations.
2. Bundle continuity has to be checked for the two created harnesses.
3. After the two Harnesses are created, the next objective is to have them interconnected electrically.
4. Check for bundle warnings in Harness A and Harness B.
5. Add annotations to all the connectors in Harness A and Harness B.
HARNESS B

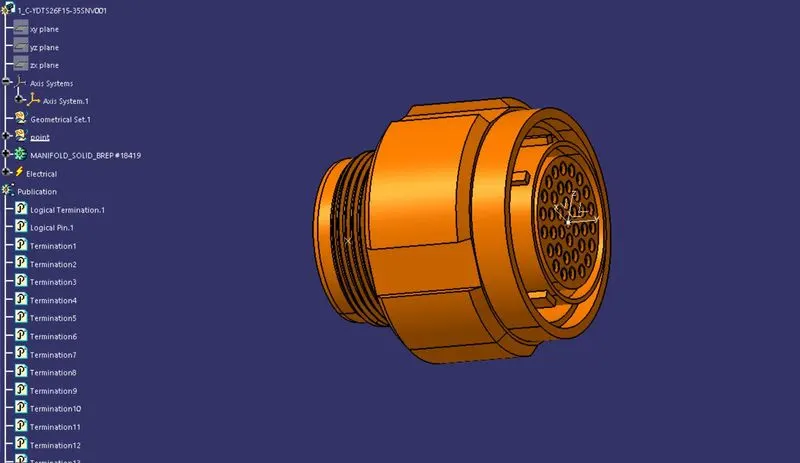

CONNECTOR 1
CODE 1_C-YDTS26F15-35SNV001

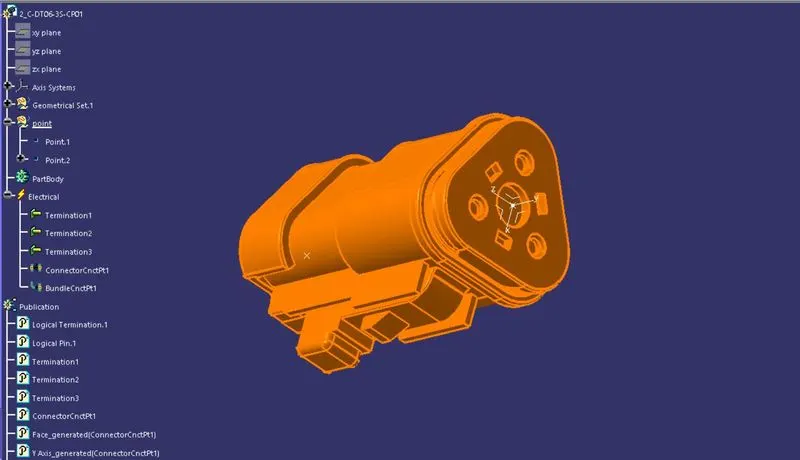

CONNECTOR 2
CODE 2_C-DT06-3S-CP01

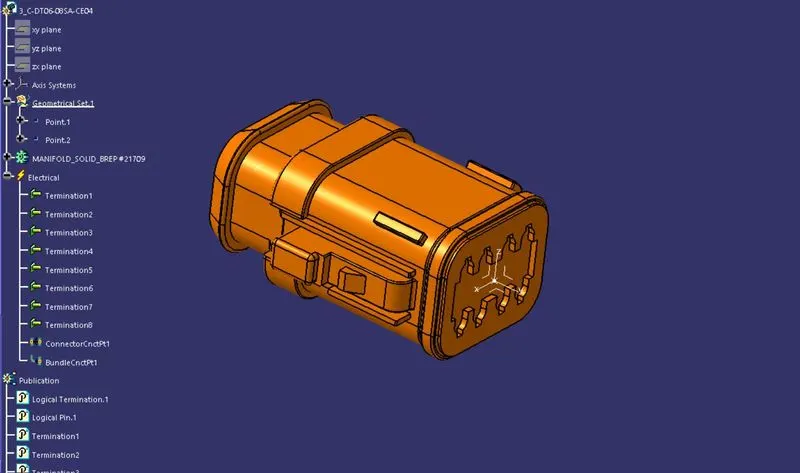

CONNECTOR 3

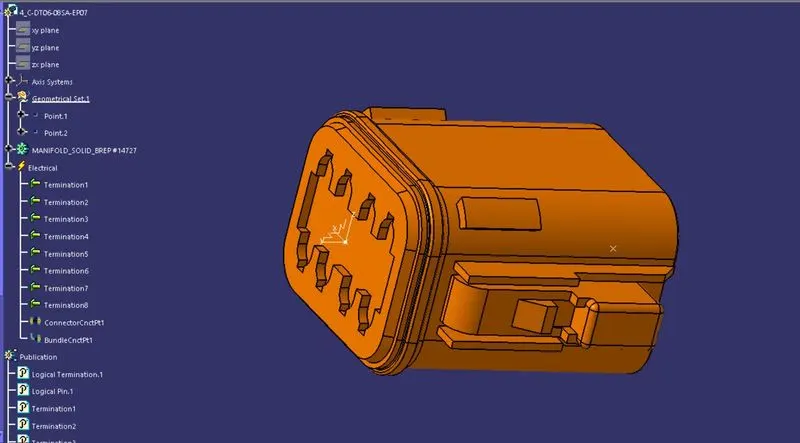

CODE 3_C-DT06-08SA-CE04
CONNECTOR 4
CODE 4_C-DT06-08SA-EP07

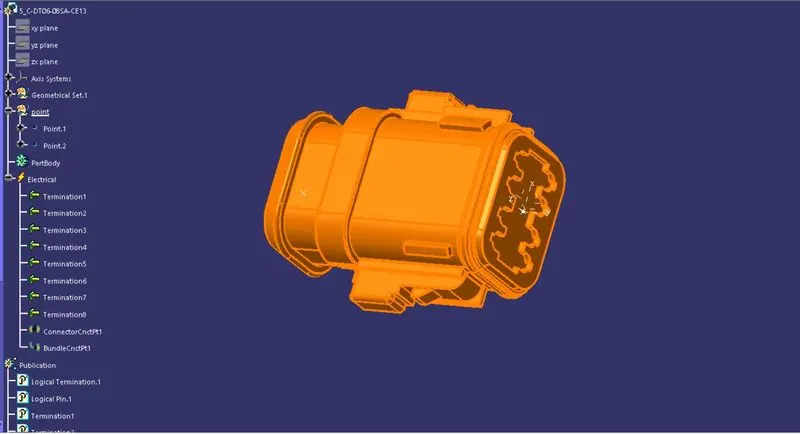

CONNECTOR 5
CODE 5_C-DT06-08SA-CE13
HARNESS B

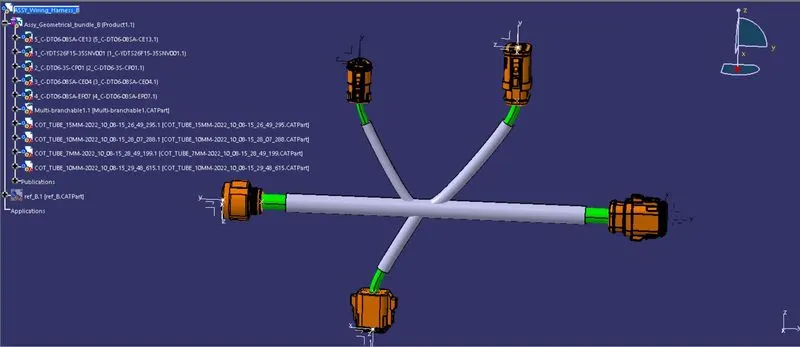

After all the connectors are defined, the workbench was switched to Electrical Harness Assembly where Geometrical Bundle was activated. All the connectors were routed using the Multi-Branchable Document command and cot-tube are added in my model.
then the model is shown below
HARNESS A

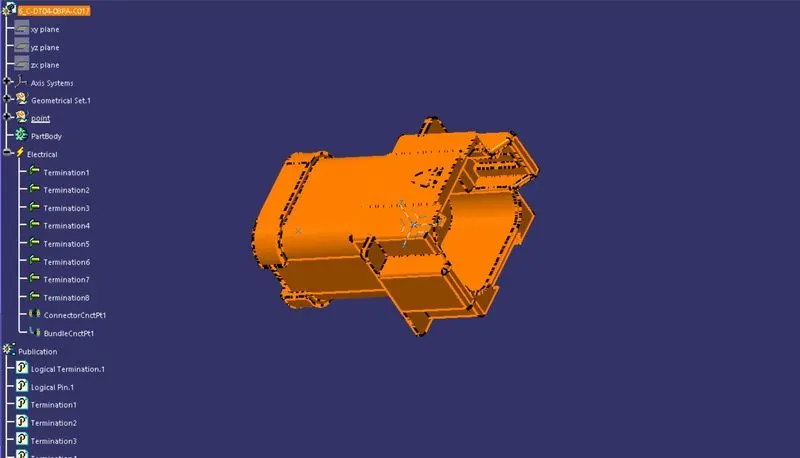

CONNECTOR 6
CODE 6_C-DT04-08PA-C017

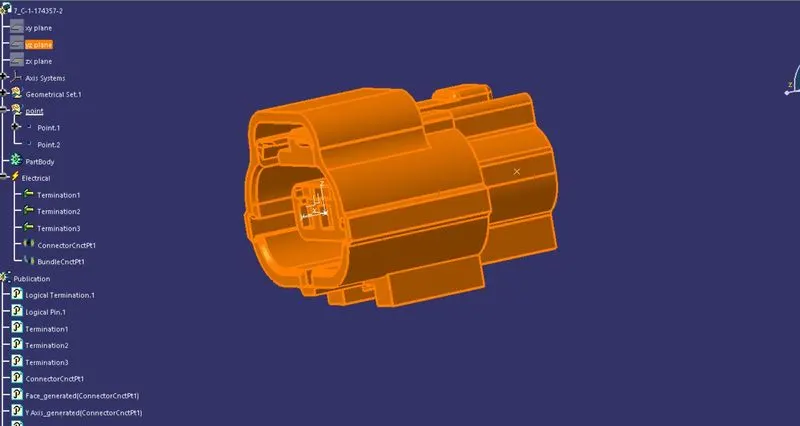

CONNECTOR 7
CODE 7_C-1-174357-2
CONNECTOR 8

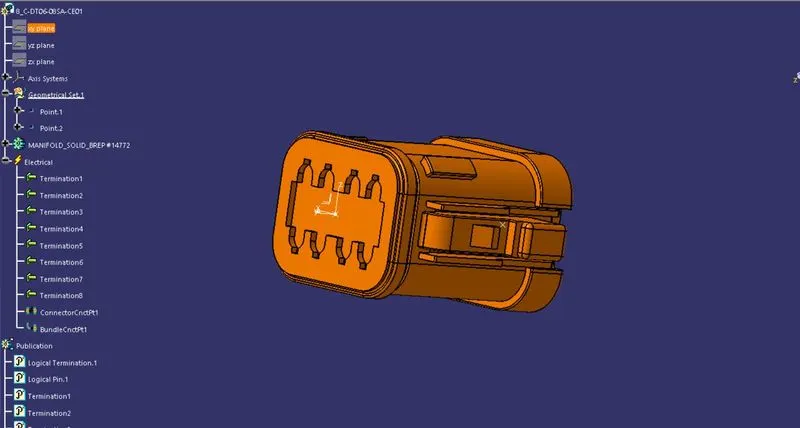

CODE 8_C-DT06-08SA-CE01

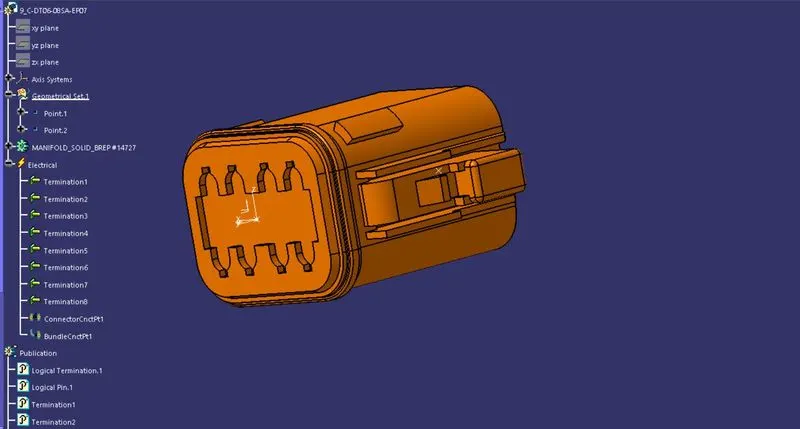

CONNECTOR 9
CODE 9_C-DT06-08SA-EP07
CONNECTOR 10

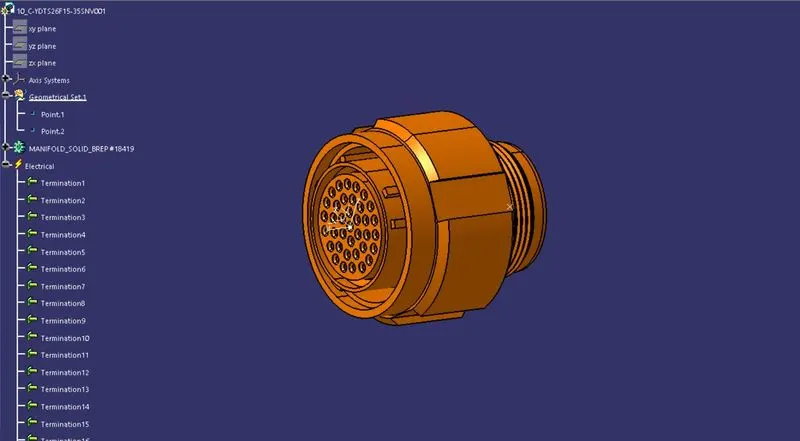

CODE 10_C-YDTS26F15-35SNV001

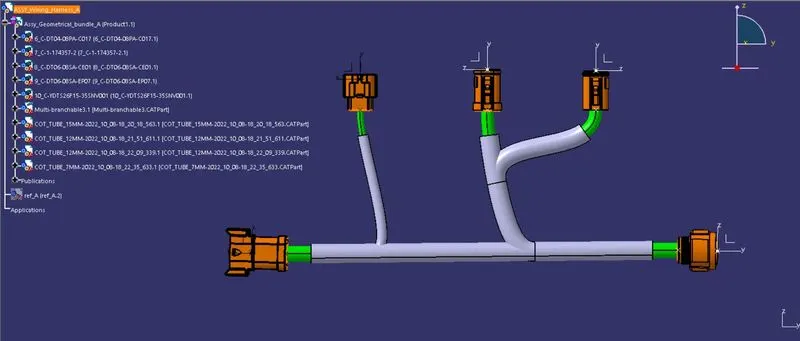

HARNESS A
After all the connectors are defined, the workbench was switched to Electrical Harness Assembly where Geometrical Bundle was activated. All the connectors were routed using the Multi-Branchable Document command and cot-tude is added in my model.

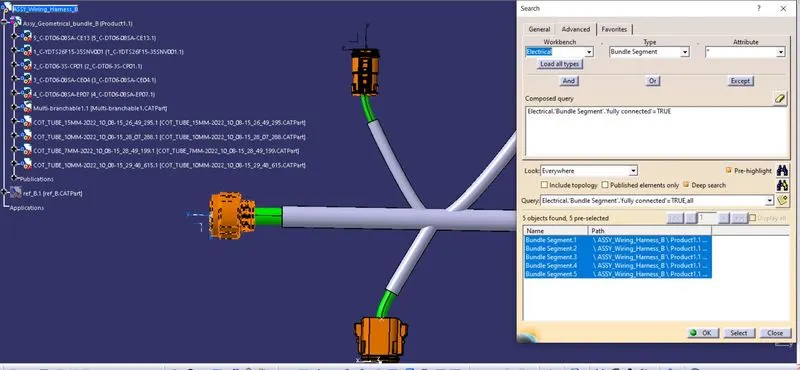

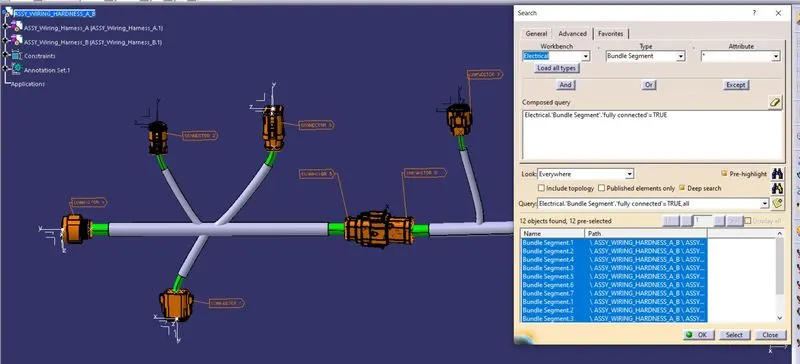

CONNECTIVITY CHECK

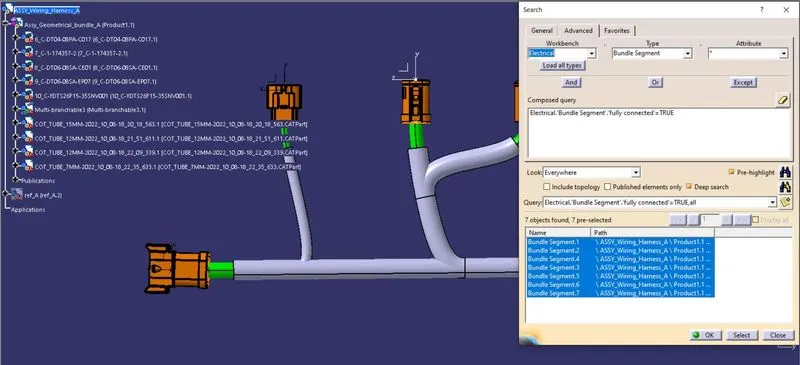

connectivity check is down separately for harness a and harness b and the image is added below.
HARNESS A
HARNESS B

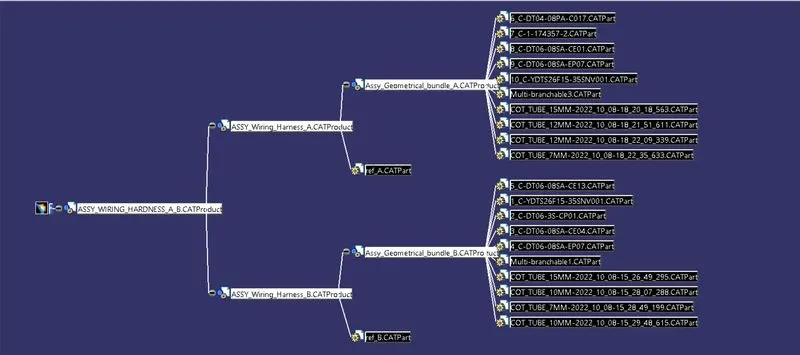

CONNECTIVITY CHECK FOR HARNESS A & B

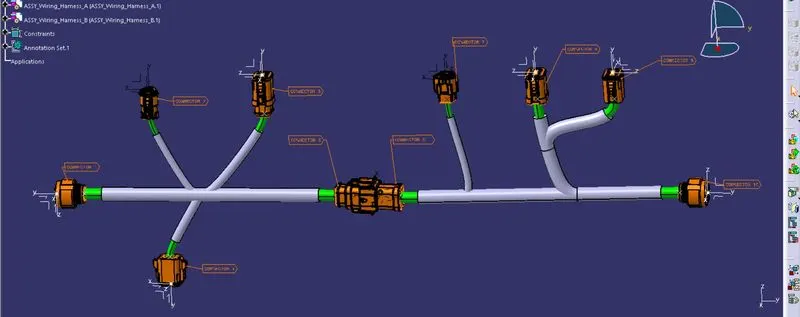

ANNOTATIONS
DESK IS SHOW

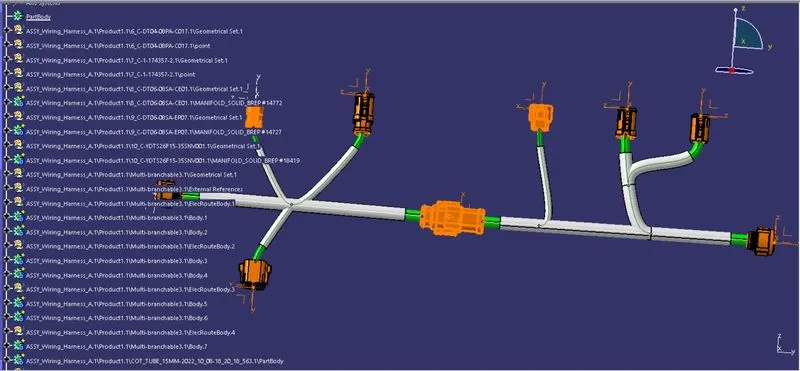

Converted as a part body and save as IGS Format
