Project 1 - Parsing NASA thermodynamic data

MANI PROGRAM

clear all
close all closing all the function
clc

%Input
% Gas Constant
R=8.314; gas constant value

% Reading data file
% open file and reading THERMO.dat file
f1 = fopen('THERMO.dat','r') reading data and geting data
get = fgetl(f1);

%Reading Temperature from this file
temp = fgetl(f1); reading the tem value

%spliting array
s = strsplit(temp); spliting in to array

% converting strings cells into numbers
templow = str2num(s{2});
tempmid = str2num(s{3}); three temperature value
temphigh = str2num(s{4});

% Temperature Range
T = linspace(templow,temphigh,1000); using linspace command

%Skipping comment lines
for i=1:3
get=fgetl(f1);
end
% Reading the Species
for j=1:53
tline=fgetl(f1);

% spliting into cell array
A=strsplit(tline,' ');
species = (A{1}); % To read the name of the species

% string to number using str2num command
lowtemp = str2num(A{end-3});
midtemp = str2num(A{end-2}); reading secound value
hightemp = str2num(A{end-1});

% getting next line
tline1 = fgetl(f1);

% Finding the E
a = strfind(tline1,'E'); finding E in the value

% First 7 higher & second 7 lower coefficients
%Finding Higher coefficients
a1 = tline1(1:a(1)+3);
a1 = str2num(a1);
a2 = tline1(a(1)+4:a(2)+3);
a2 = str2num(a2);
a3 = tline1(a(2)+4:a(3)+3);
a3 = str2num(a3);
a4 = tline1(a(3)+4:a(4)+3); getting 14 coefficients
a4 = str2num(a4);
a5 = tline1(a(4)+4:a(5)+3);
a5 = str2num(a5);

tline2 = fgetl(f1);
b = strfind(tline2,'E');
a6 = tline2(1:b(1)+3);
a6 = str2num(a6);
a7 = tline2(b(1)+4:b(2)+3);
a7 = str2num(a7);

% Finding Lower coefficients
a8 = tline2(b(2)+4:b(3)+3);
a8 = str2num(a8);
a9 = tline2(b(3)+4:b(4)+3); lower coefficients
a9 = str2num(a9);
a10 = tline2(b(4)+4:b(5)+3);
a10 = str2num(a10);

tline3 = fgetl(f1);
c = strfind(tline3,'E');
a11 = tline3(1:c(1)+3);
a11 = str2num(a11);
a12 = tline3(c(1)+4:c(2)+3);
a12 = str2num(a12);
a13 = tline3(c(2)+4:c(3)+3);
a13 = str2num(a13);
a14 = tline3(c(3)+4:c(4)+3);
a14 = str2num(a14);

% calculate specific heat

Cp = Specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,T,R,tempmid);

% calculate Entropy

S = Entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,T,R,tempmid);

% calculate Enthalpy

H = Enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,T,R,tempmid);

% Calculate Molecular weight of the Species

W = Molecular_weight(species);

% writing molecular weight file
MW_file = fopen('Molecular Weight.txt','w');
fprintf(MW_file,'Molecular weight of %s is %d ',species,W);

% Closing the file
fclose(MW_file);

%Plotting Cp, H & S
% Saving in a folder

%creating directory for file

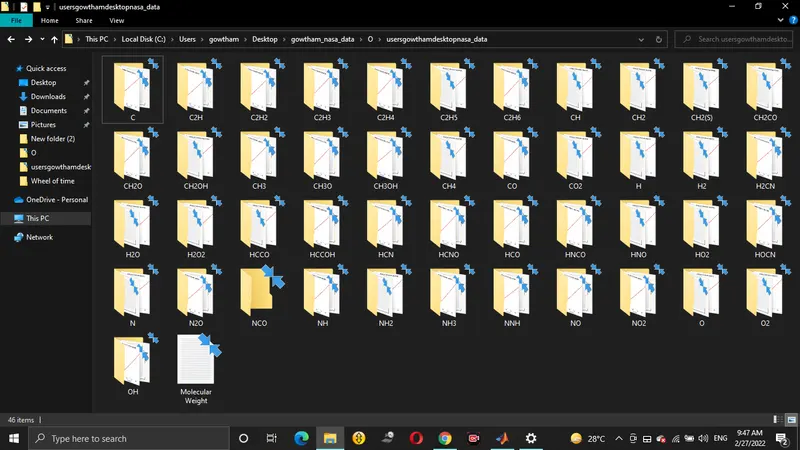

mkdir(species); creating space to save data
cd(species);

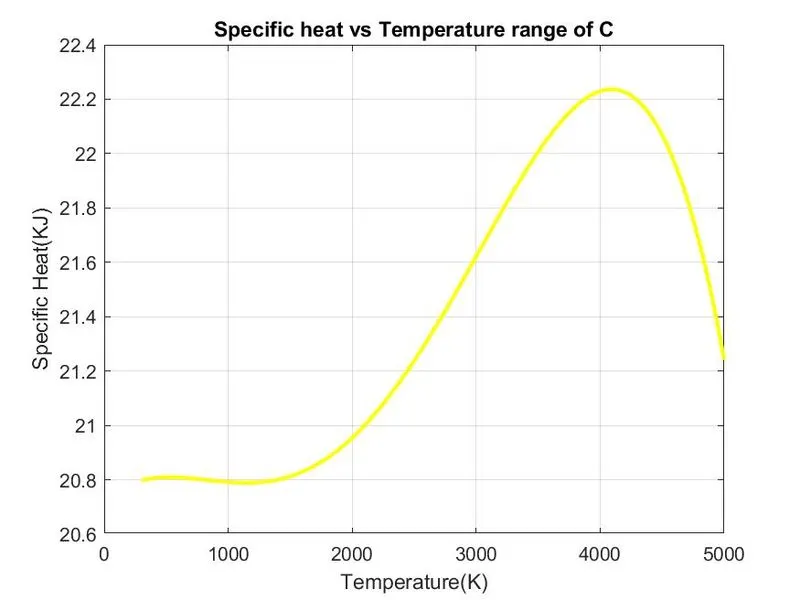

% Plot 1 Cp vs T
figure(1)
plot(T,Cp,'linewidth',2,'color','y');
xlabel('Temperature(K)');
ylabel('Specific Heat(KJ)');
title(sprintf('Specific heat vs Temperature range of %s',species));
grid on
saveas(figure(1),'Specific Heat.jpg');

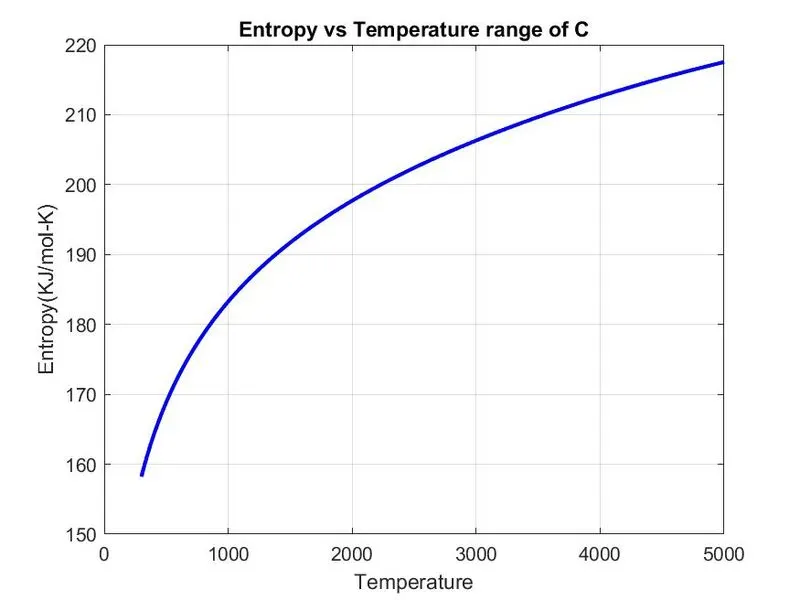

% Plot 2 S vs T
figure(2)
plot(T,S,'linewidth',2,'color','b');
xlabel('Temperature');
ylabel('Entropy(KJ/mol-K)');
title(sprintf('Entropy vs Temperature range of %s',species));
grid on
saveas(figure(2),'Entropy.jpg');

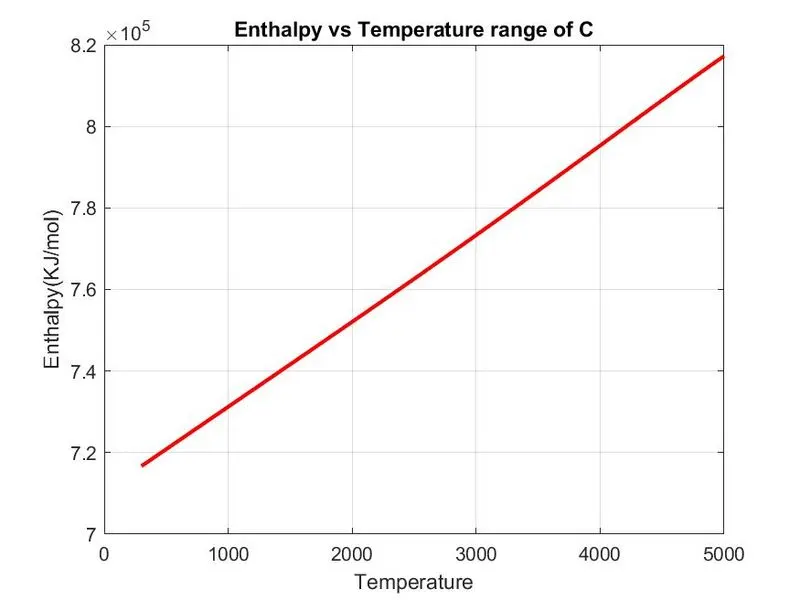

% Plot 3 Cp vs T
figure(3)
plot(T,H,'linewidth',2,'color','r');
xlabel('Temperature');
ylabel('Enthalpy(KJ/mol)');
title(sprintf('Enthalpy vs Temperature range of %s',species));
grid on
saveas(figure(3),'Enthalpy.jpg');

%Molecular weight

W = Molecular_weight(species)

end

SPECIFIC_HEAT.M

function Cp = Specific_heat(a1,a2,a3,a4,a5,a8,a9,a10,a11,a12,T,R,tempmid)
% calculating specific heat
% calculating specific heat for higher and lower temperature repectively.
if (T <= tempmid)
Cp = R*(a8 + (a9*T) + (a10*(T).^2) + (a11*(T).^3) + (a12*(T).^4));
else
Cp = R*(a1 + (a2*T) + (a3*(T).^2) + (a4*(T).^3) + (a5*(T).^4));
end

ENTROPY CALCULATION

function S = Entropy(a1,a2,a3,a4,a5,a7,a8,a9,a10,a11,a12,a14,T,R,tempmid)
% calculating entropy
% calculating entropy for higher and lower temperature repectively.
if (T <= tempmid)
S = R*(a8.*log(T) + (a9*T) + ((a10*(T).^2)/2) + ((a11*(T).^3)/3) + ((a12*(T).^4)/4) + a14);
else
S = R*(a1.*log(T) + (a2*T) + ((a3*(T).^2)/2) + ((a4*(T).^3)/3) + ((a5*(T).^4)/4) + a7);

end
end

ENTHALPY CALCULATION FUNCTION

function H = Enthalpy(a1,a2,a3,a4,a5,a6,a8,a9,a10,a11,a12,a13,T,R,tempmid)
% calculating enthalpy
% calculating enthalpy for higher and lower temperature repectively.
if (T <= tempmid)
H = R*T.*(a8 + ((a9*T)/2) + ((a10*(T).^2)/3) + ((a11*(T).^3)/4) + ((a12*(T).^4)/5)+ ((a13./T)));
else
H = R*T.*(a1 + ((a2*T)/2) + ((a3*(T).^2)/3) + ((a4*(T).^3)/4) + ((a5*(T).^4)/5) + ((a6./T)));
end
end

MOLECULAR WEIGHT FUNCTION CALCULATION

function W = Molecular_weight(species)
% Defining Atomic name of the species
atomic_name = ['H','C','O','N','Ar'];

% Defining Atomic masses of main species
atomic_weight = [1.008 12.011 15.999 14.007 39.948];

W=0; % Molecular weight starting range

for i=1:length(species) % Loop runs to the length of the species
for j=1:length(atomic_name) % Loop runs to the length of the atomic names
if strcmp(species(i), atomic_name(j)) %function to compare 2 strings
W = W + atomic_weight(j);
position = j;
end
end
n = str2num(species); % Now we will find if there is more element in the species then incrementing atomic weight of the species

if n>1
W = W + atomic_weight(position)*(n-1);
end
end

fprintf('Molecular Weight of %s :- ',species);
fprintf('%f',W);
disp(' ')
end

FOR eg
