Wiring harness design in CATIA V5 - 3D modeling Week 5 & 6 Challenge

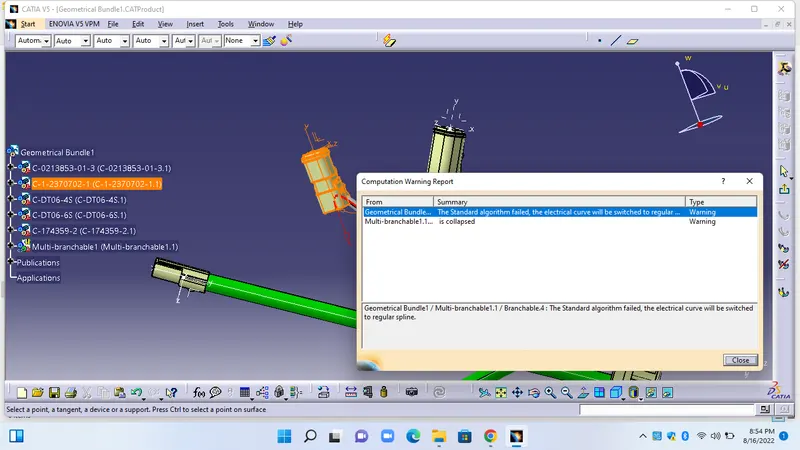

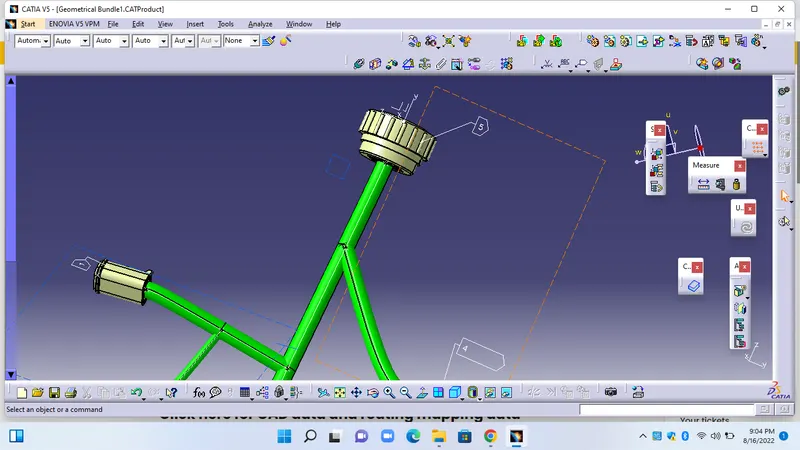

change tangent management option to rectify the warning bundle segment.

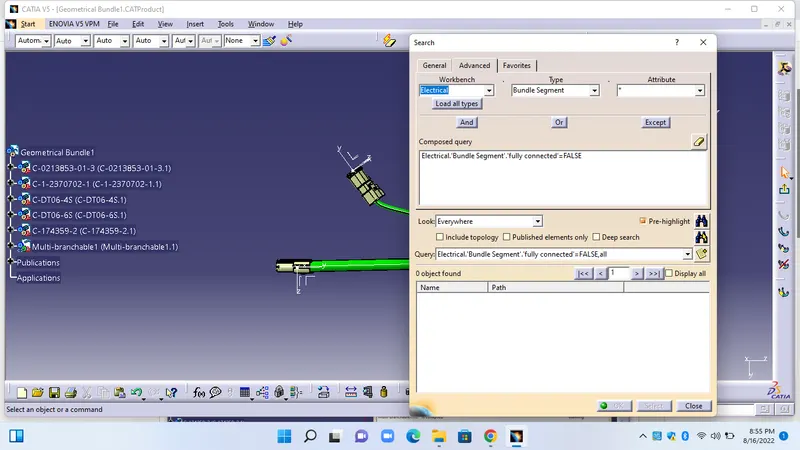

check bundle continity by using edit -advance -false option and found zero false segmant.

Now swith to the assembly work bench select annotation-create plane to view and select ladder type annotations.

Again make sure asembly workbench and select tools-create cat part file from product file click ok
